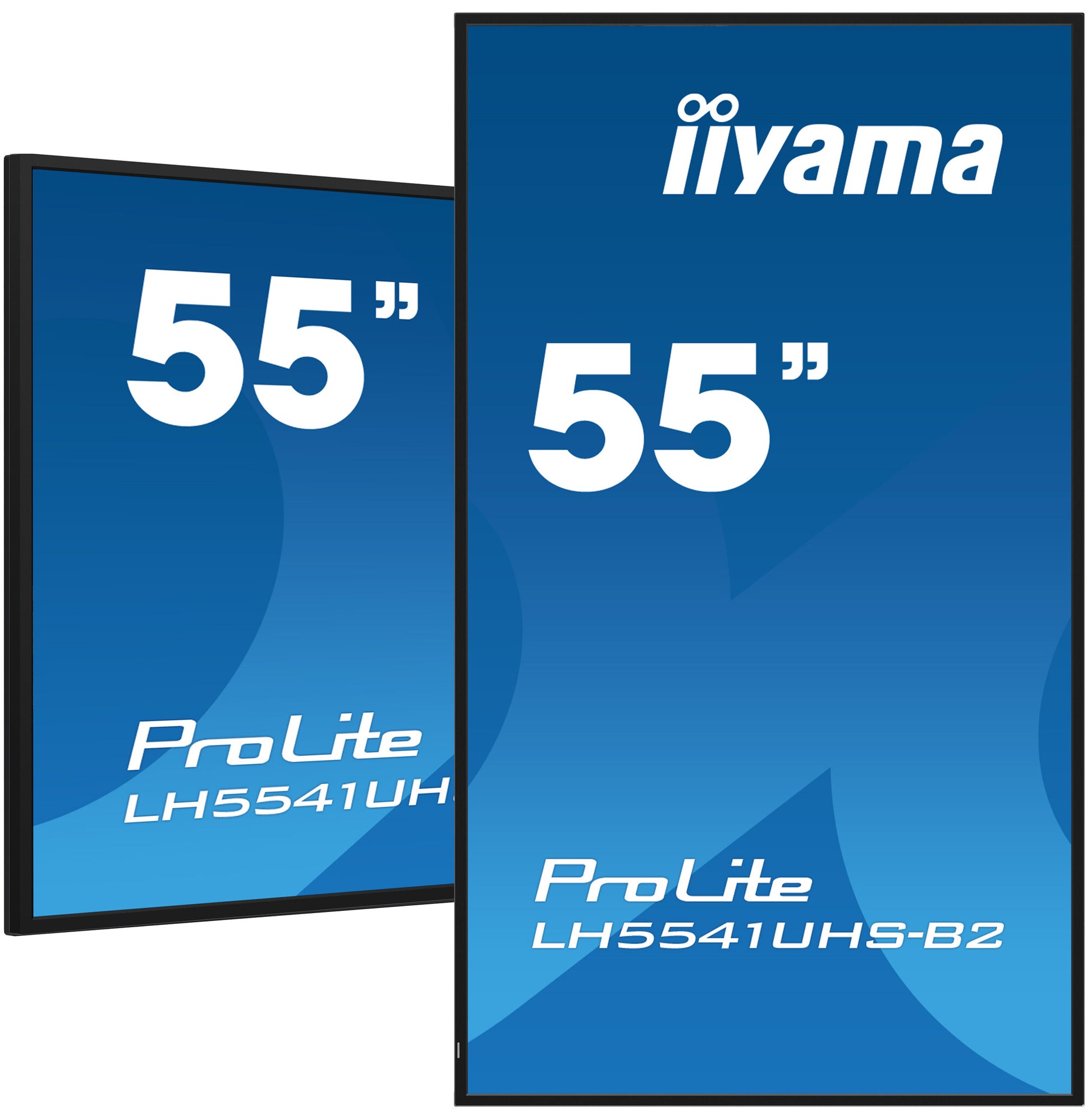

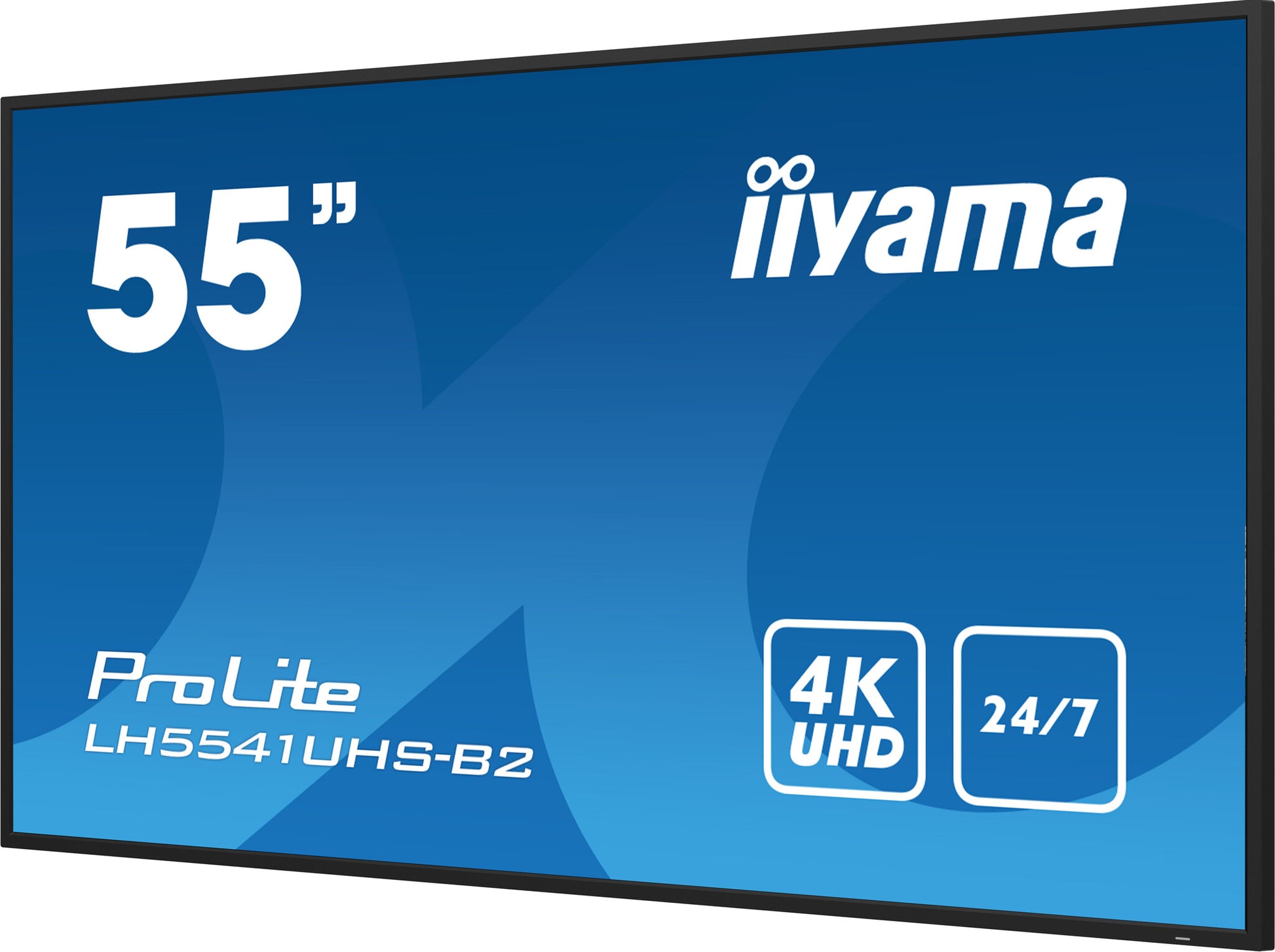

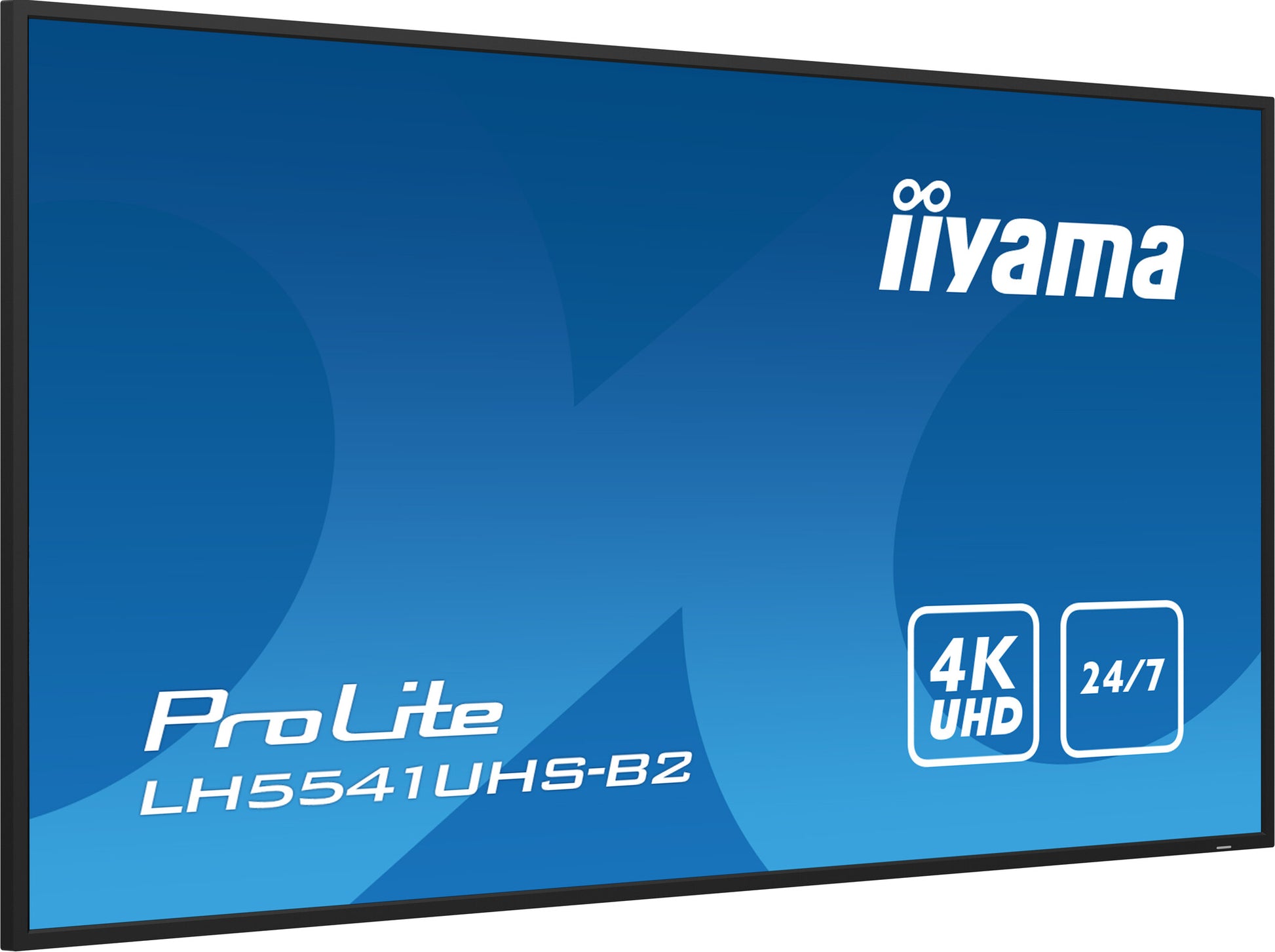

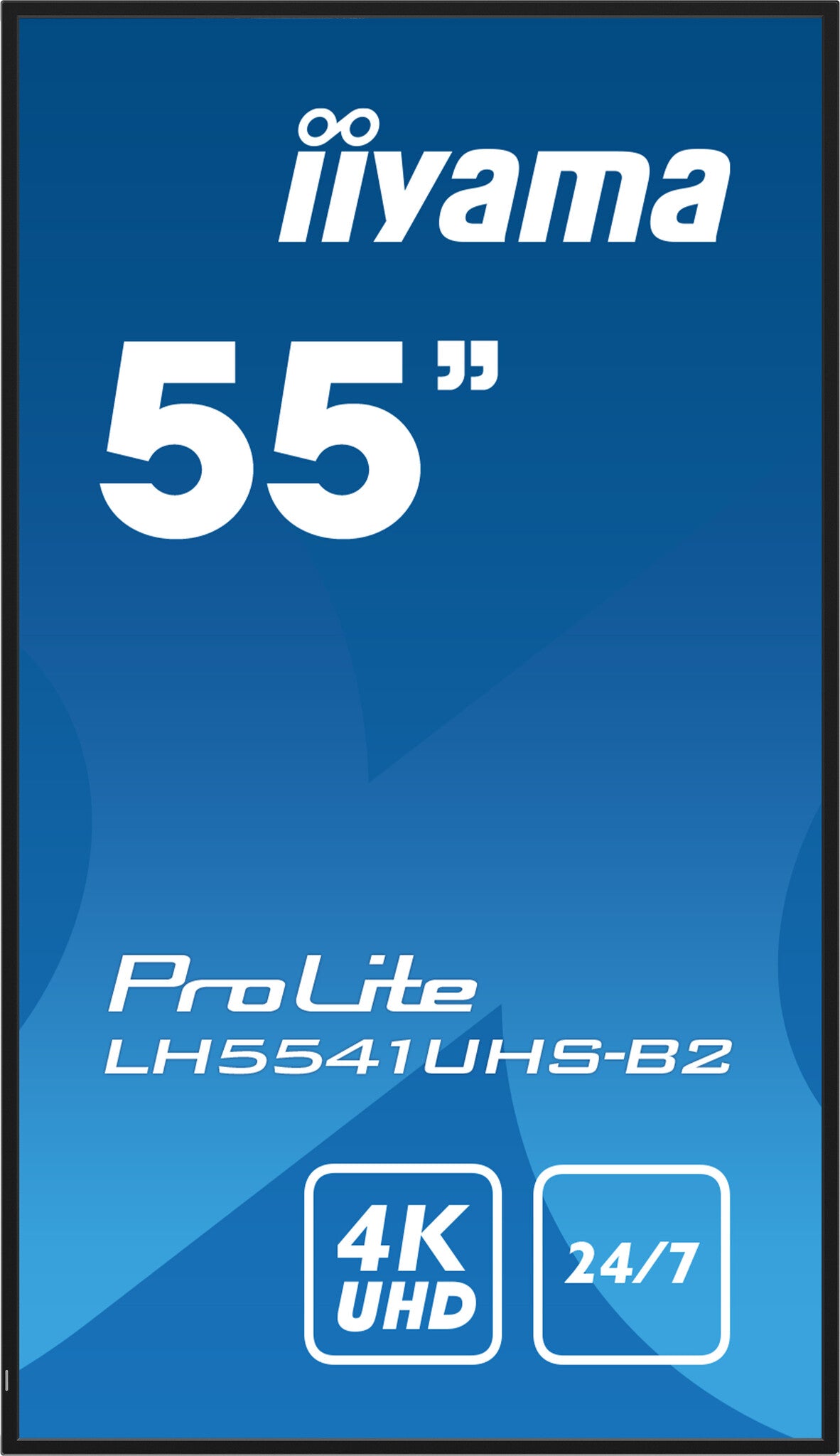

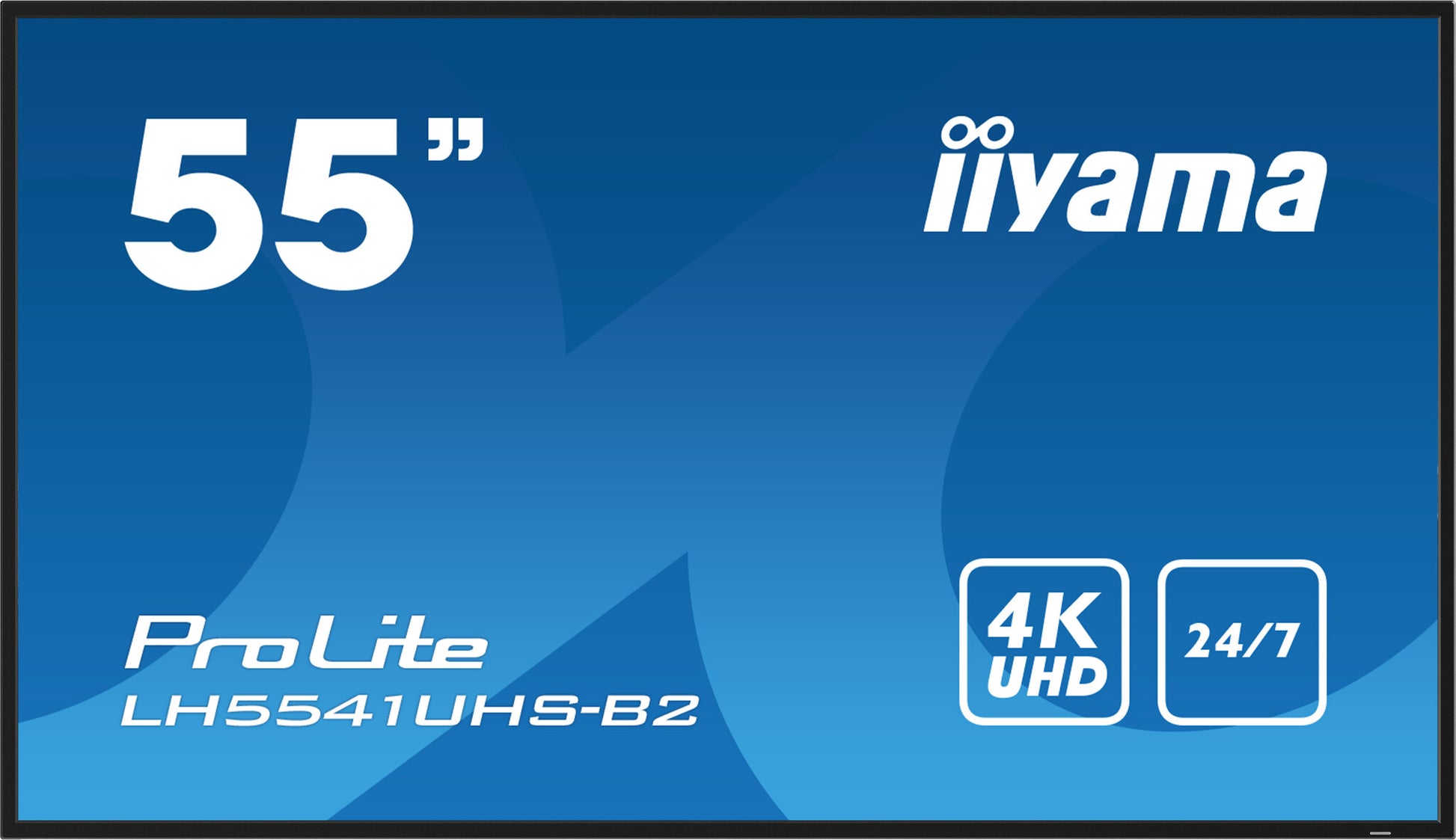

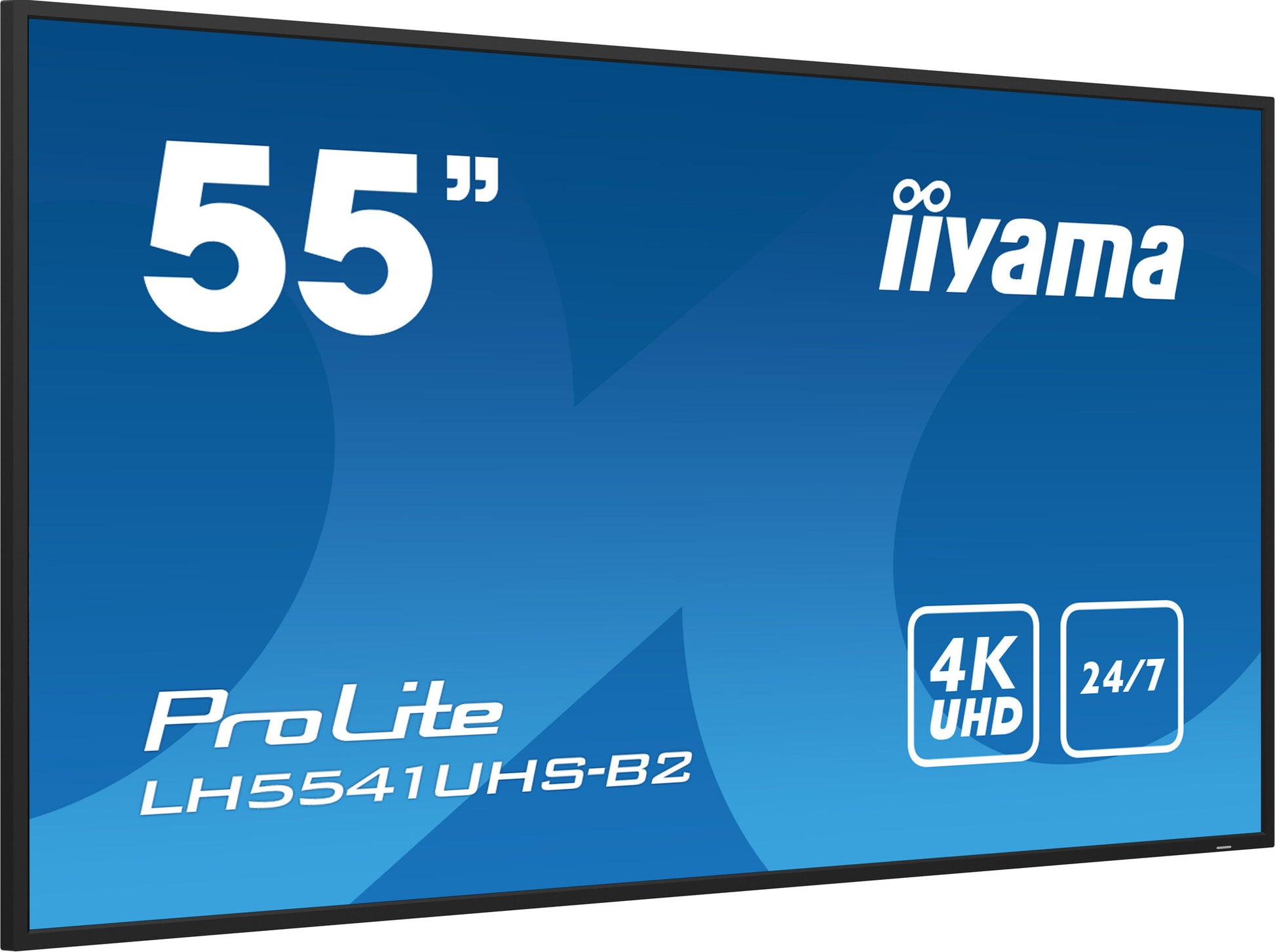

iiyama LH5541UHS-B2 Signage Display Kiosk design 138.7 cm (54.6") LCD 500 cd/m² 4K Ultra HD Black Built-in processor 24/7

iiyama LH5541UHS-B2 Signage Display Kiosk design 138.7 cm (54.6") LCD 500 cd/m² 4K Ultra HD Black Built-in processor 24/7

55" Professional Digital Signage display with 4K UHD resolution and 24/7 operating time

  • Indoor Kiosk design Black
  • 138.7 cm (54.6") 3840 x 2160 pixels LCD 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:4948570123544
  • GTIN/EAN:4948570123544
  • MPN:LH5541UHS-B2

You need to login to view the price.

View full details

iiyama LH5541UHS-B2. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

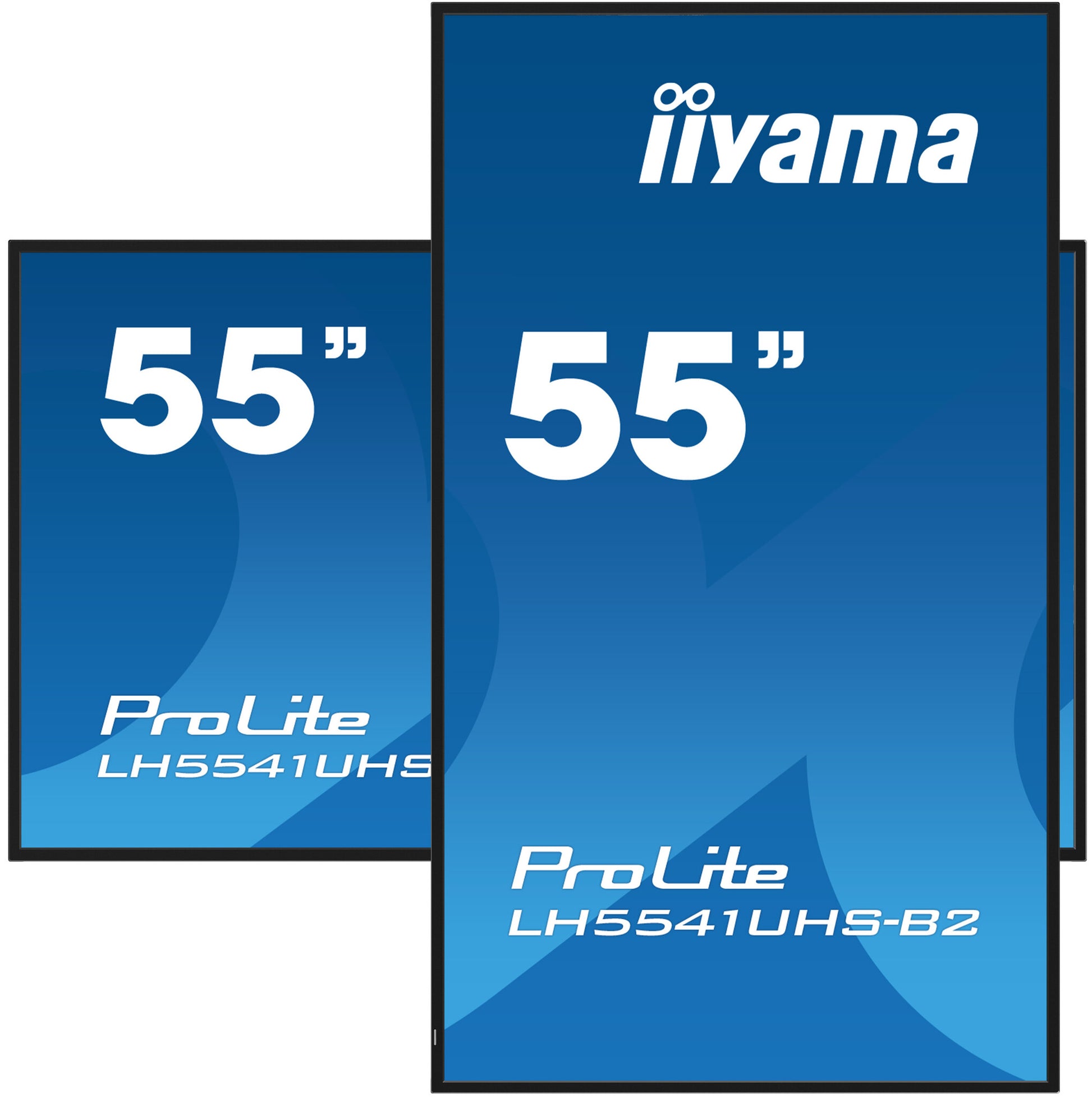

Set in a slim bezel, the iiyama LH5541UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Display
Display diagonal
138.7 cm (54.6")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.3155 x 0.3155 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
139 cm
Horizontal scan range
30 - 83 kHz
Native refresh rate
60 Hz
Panel type
IPS
Haze rate
1%

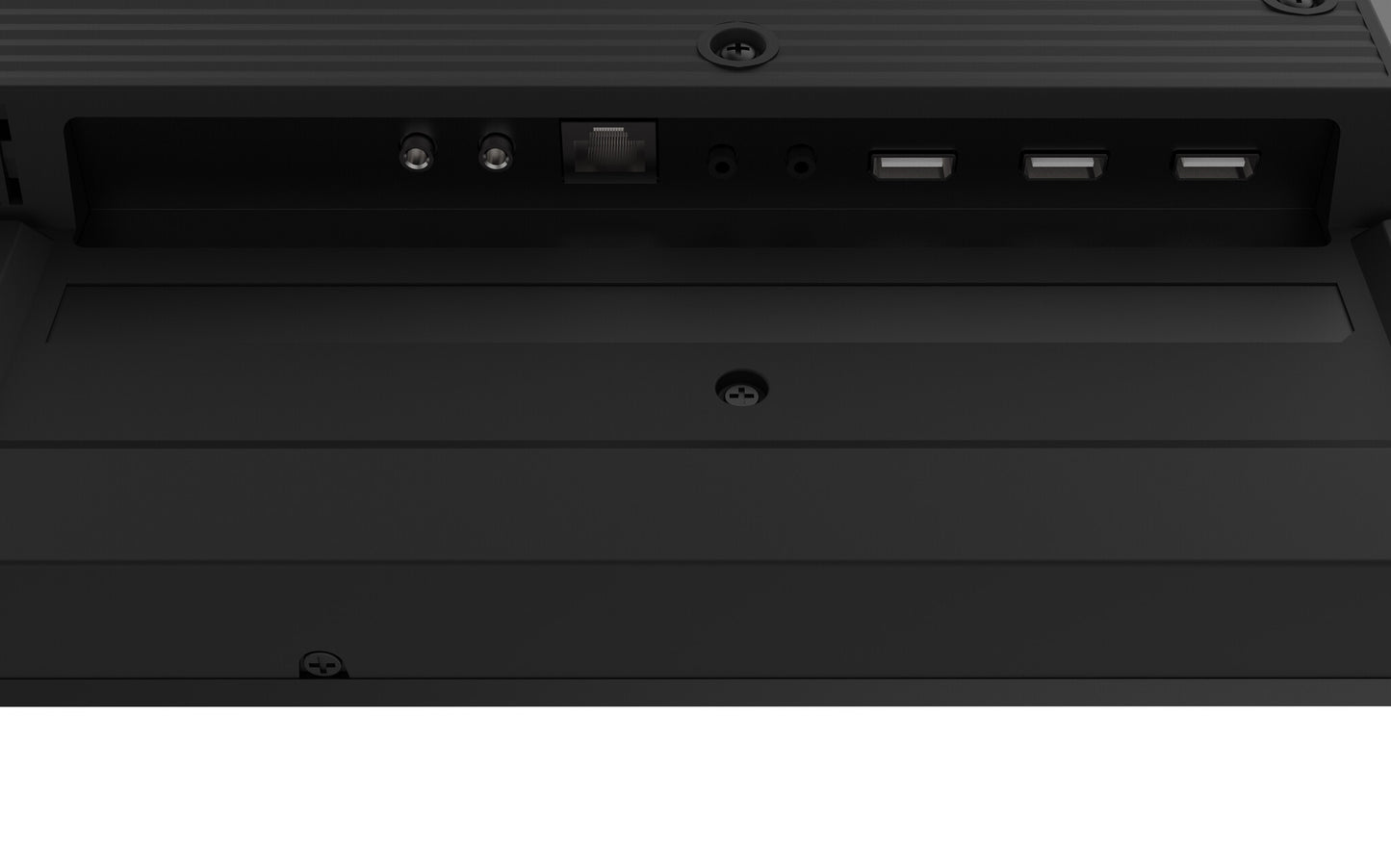

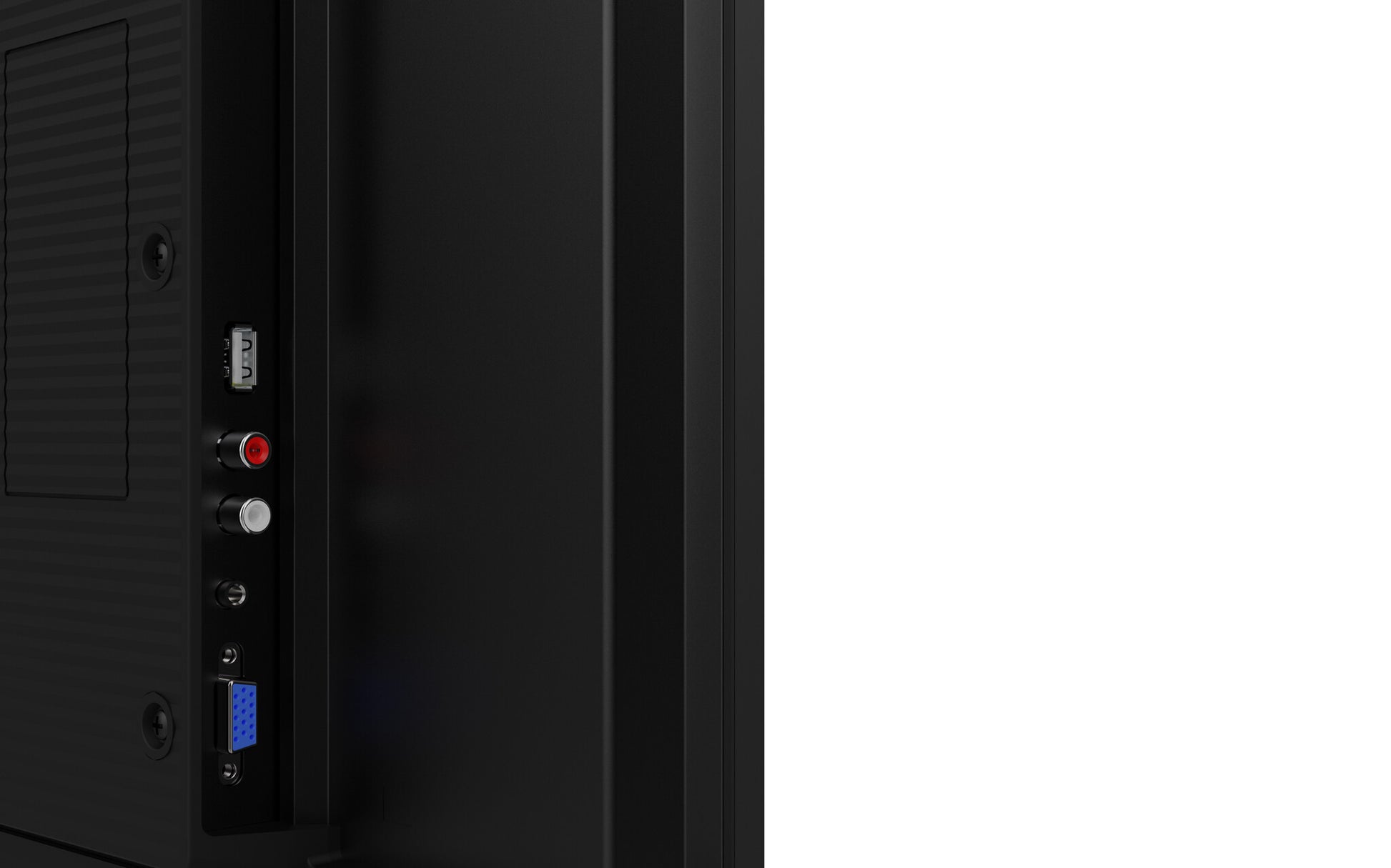

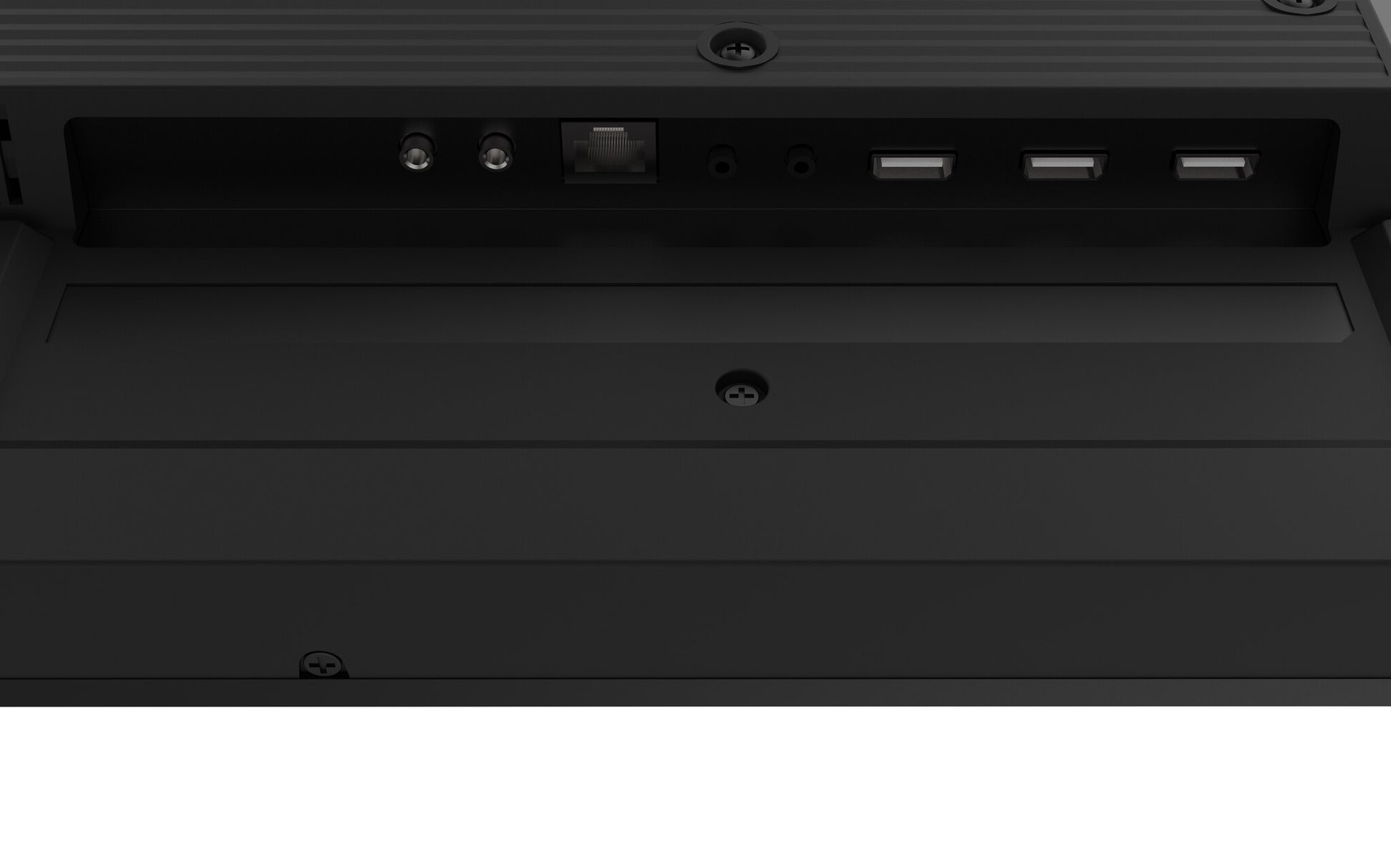

Ports & interfaces
HDMI ports quantity
3
DVI port
Yes
VGA (D-Sub) input ports
1
USB ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
No
PC Audio in
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Kiosk design
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal/Vertical

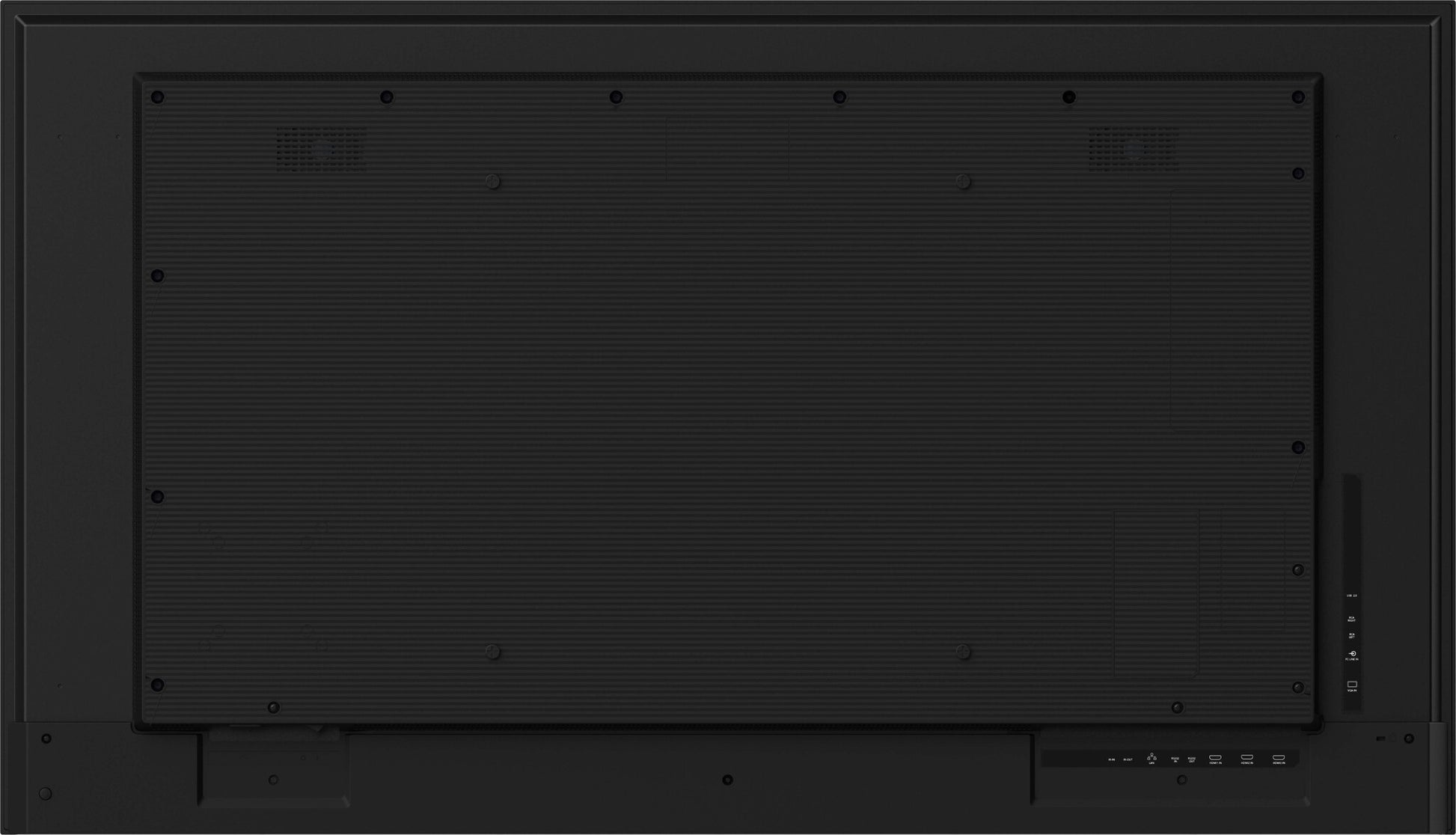

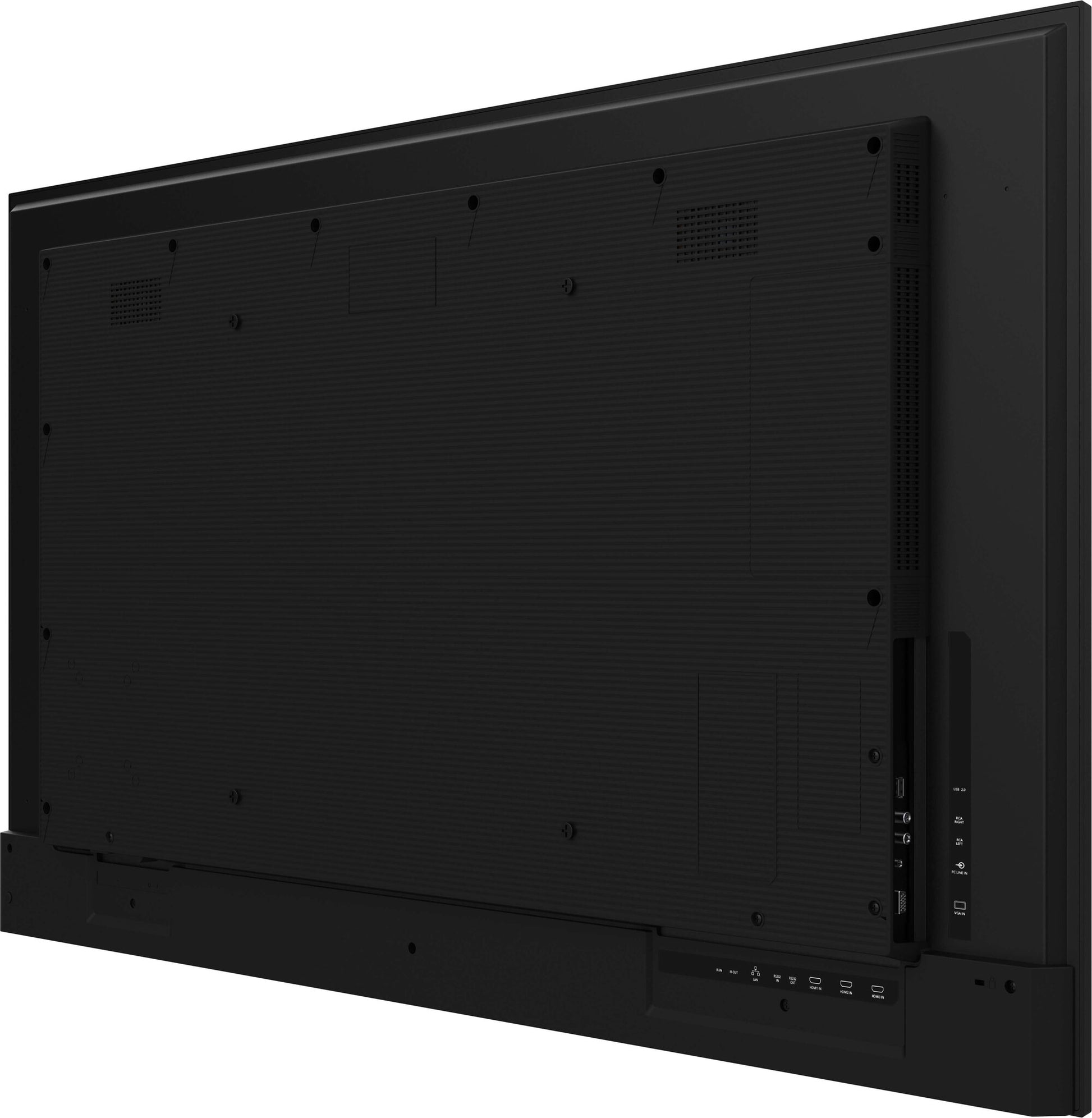

VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Bezel colour
Black
Bezel width (top)
1.4 cm
Bezel width (side)
1.4 cm
Bezel width (bottom)
1.55 cm
Performance
Purpose
Universal
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Number of OSD languages
11
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
139 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
139 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor model
V810
Internal memory
2 GB
Internal storage capacity
16 GB
Weight & dimensions
Display width
1237.5 mm
Display depth
55 mm
Display height
710 mm
Display weight
14.3 kg
Width
1237.5 mm
Depth
55 mm
Height
710 mm
Weight
14.3 kg
Packaging data
Package width
1386 mm
Package depth
130 mm
Package height
845 mm
Packaging content
Remote control included
Yes
Cables included

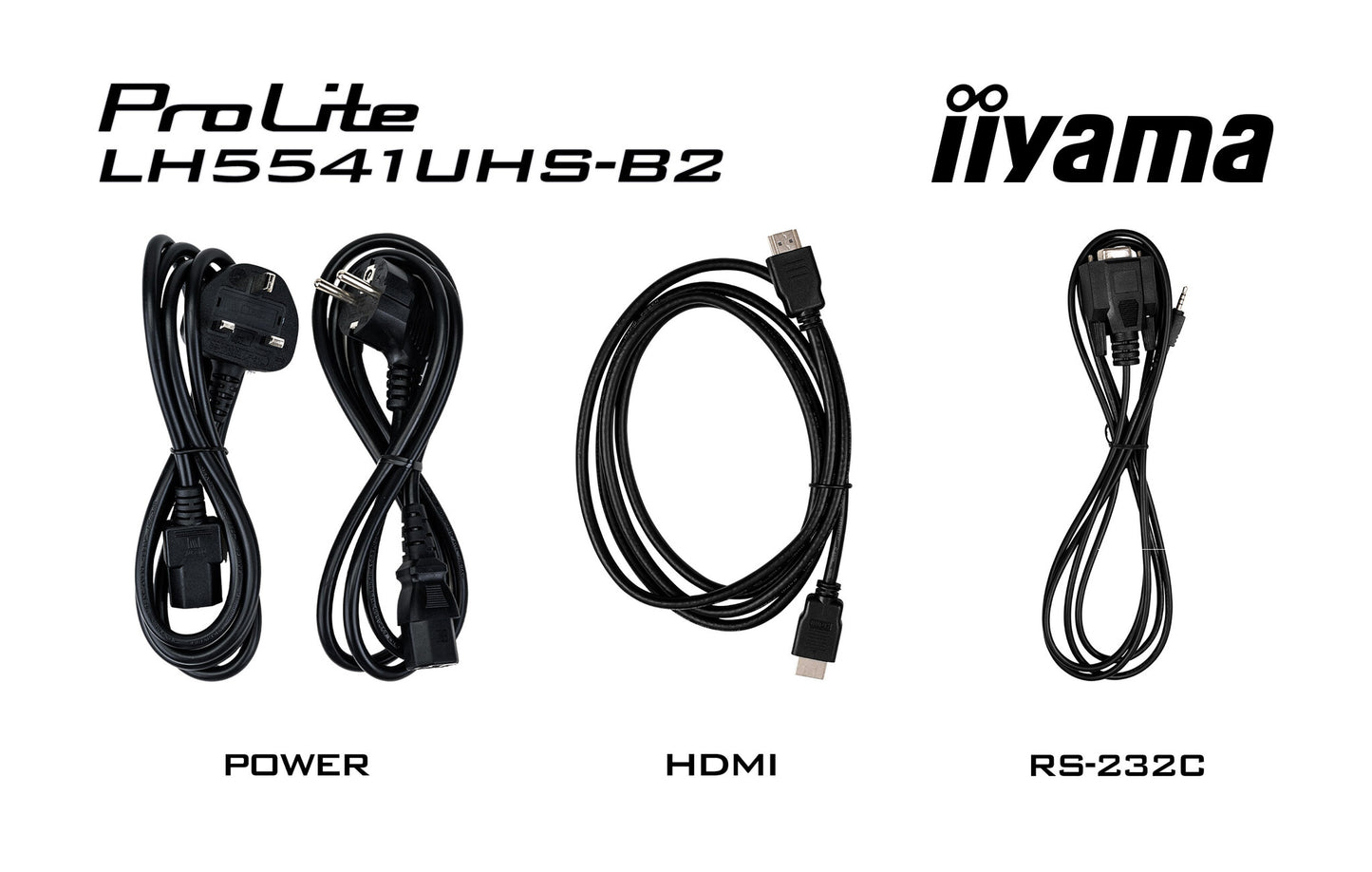

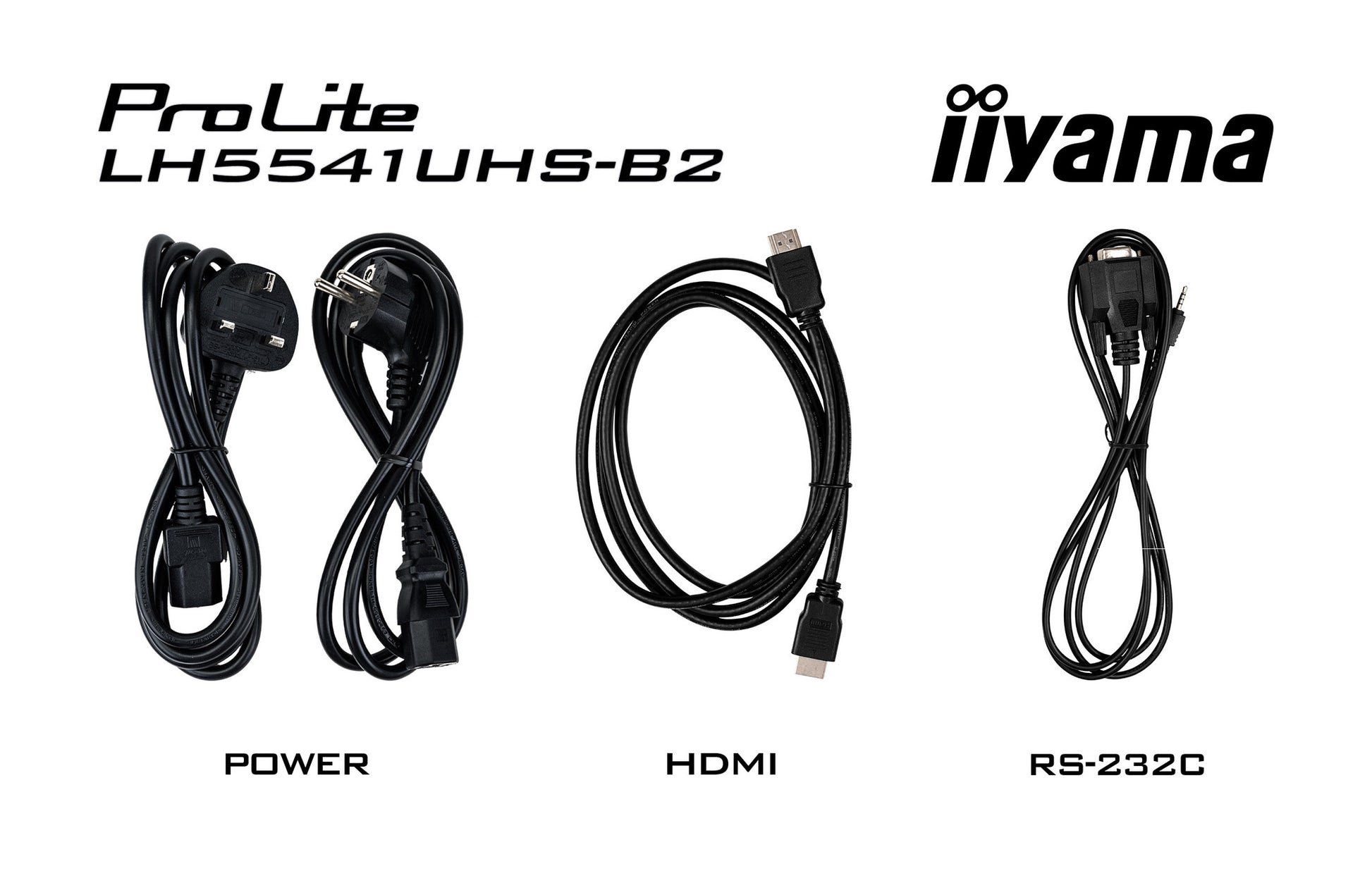

AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Features
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates
ErP
User controls
picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, contrast, colour, hue, sharpness, RGB range, reset), sound (treble, bass, balance, speaker, audio output, reset), general settings (language, clock, schedule, HDMI CEC link, HDMI modes, communication setting, screen (auto adjust, clock, phase, H. position, V. position, reset), auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)
Audio in (mini jack)
Yes
Playback media
Y
Other features
Cable management
Yes
Power supply type
Internal
Housing material
Metal
Quick start guide
Yes
