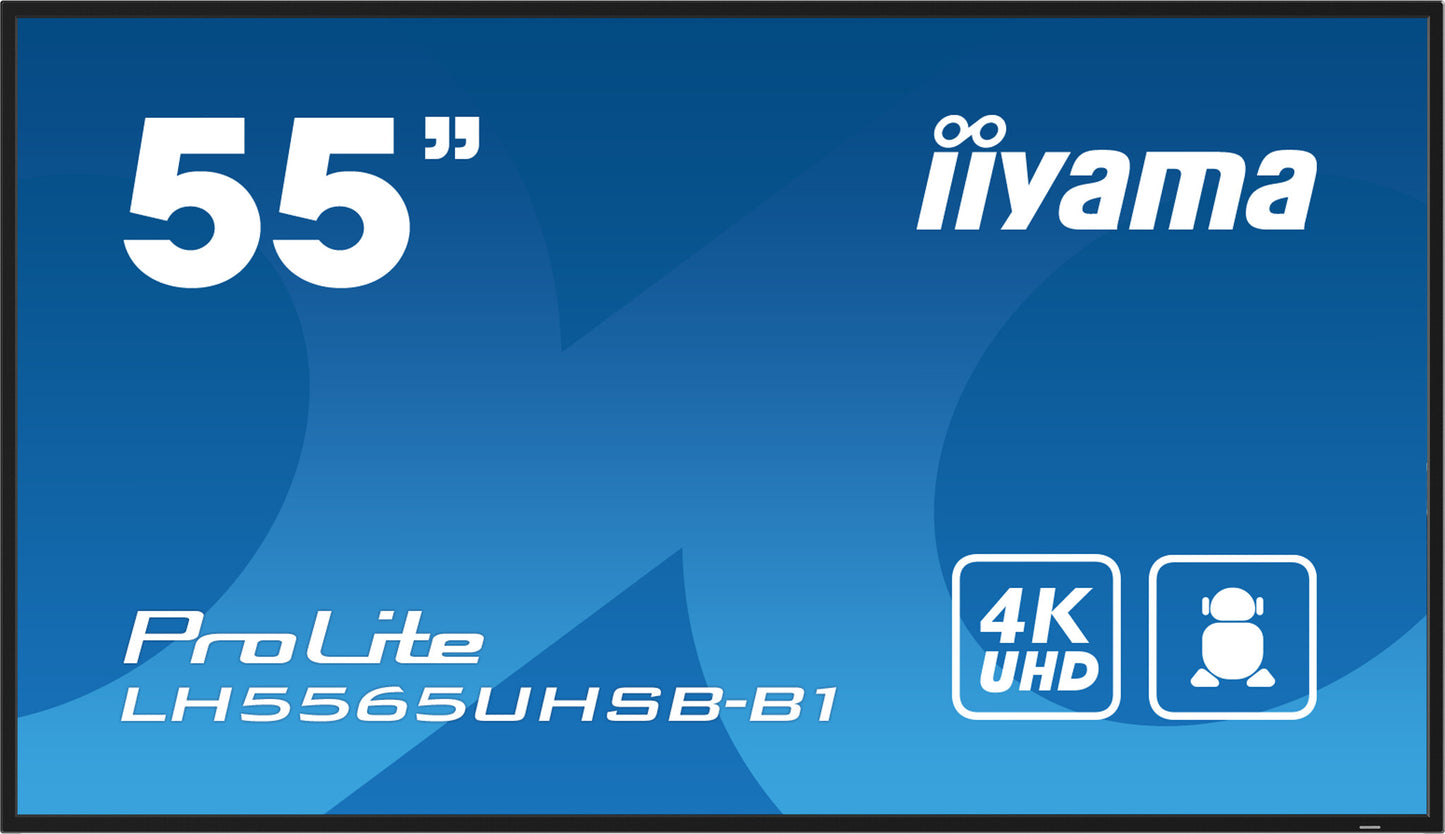

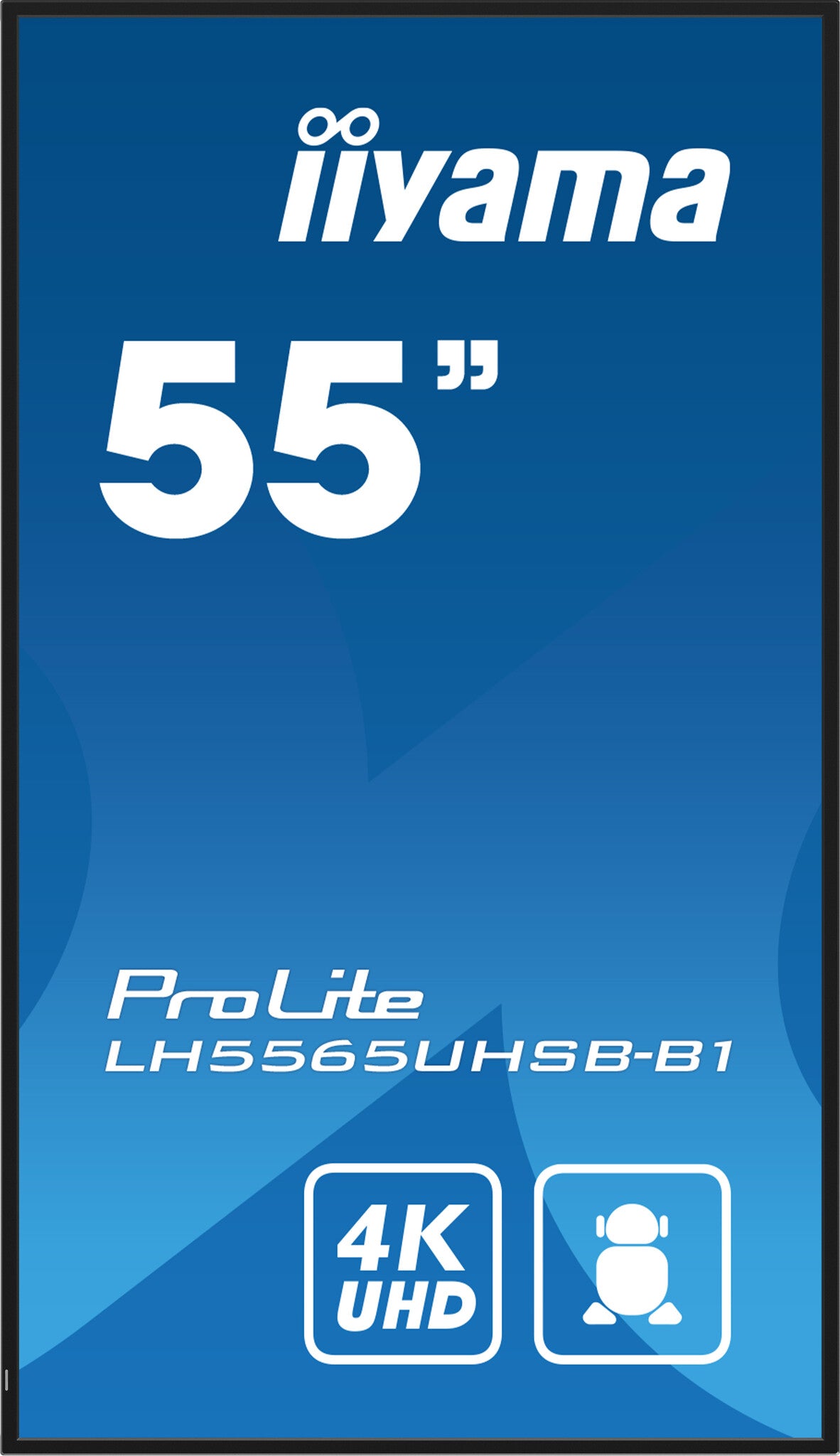

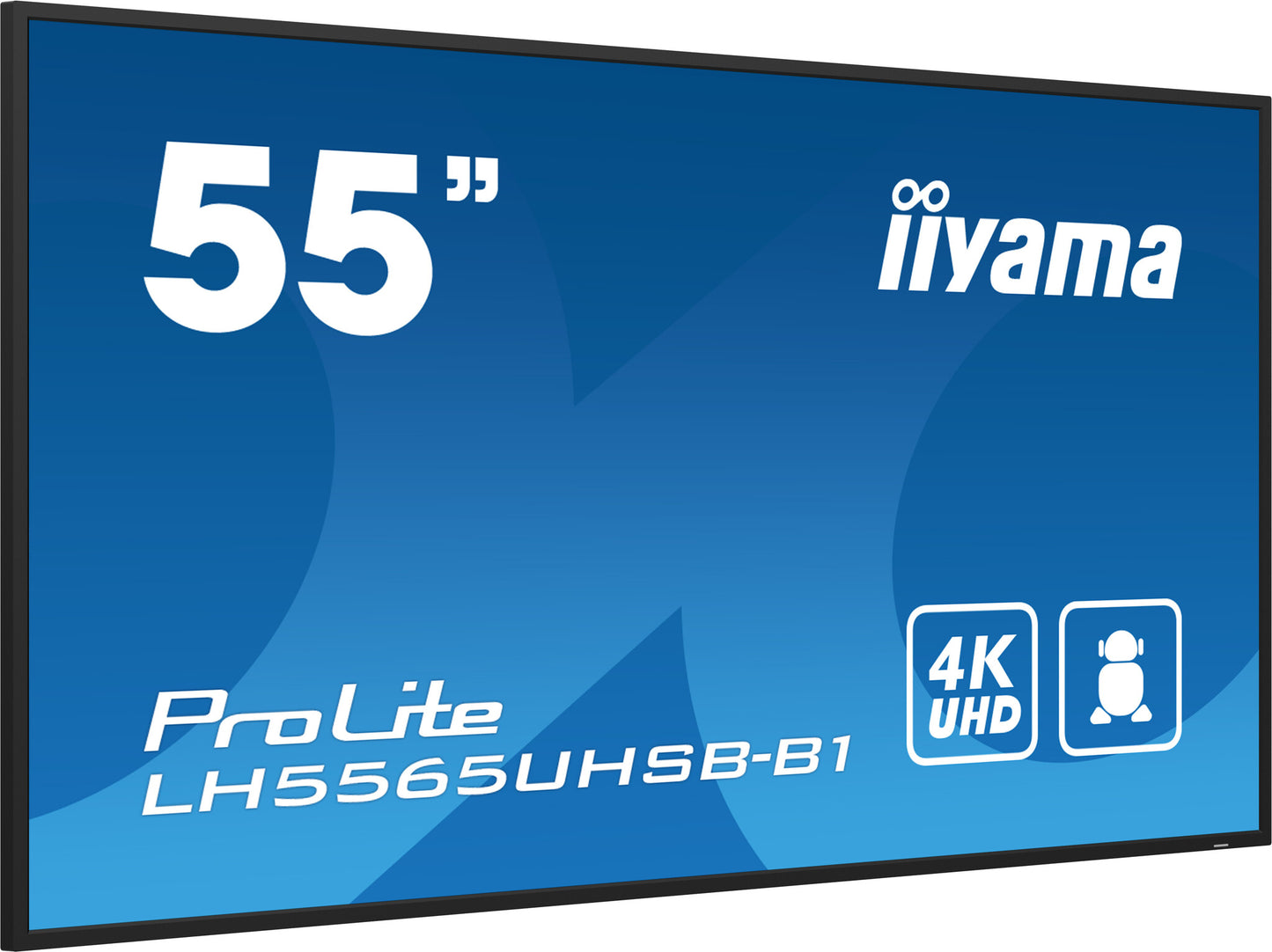

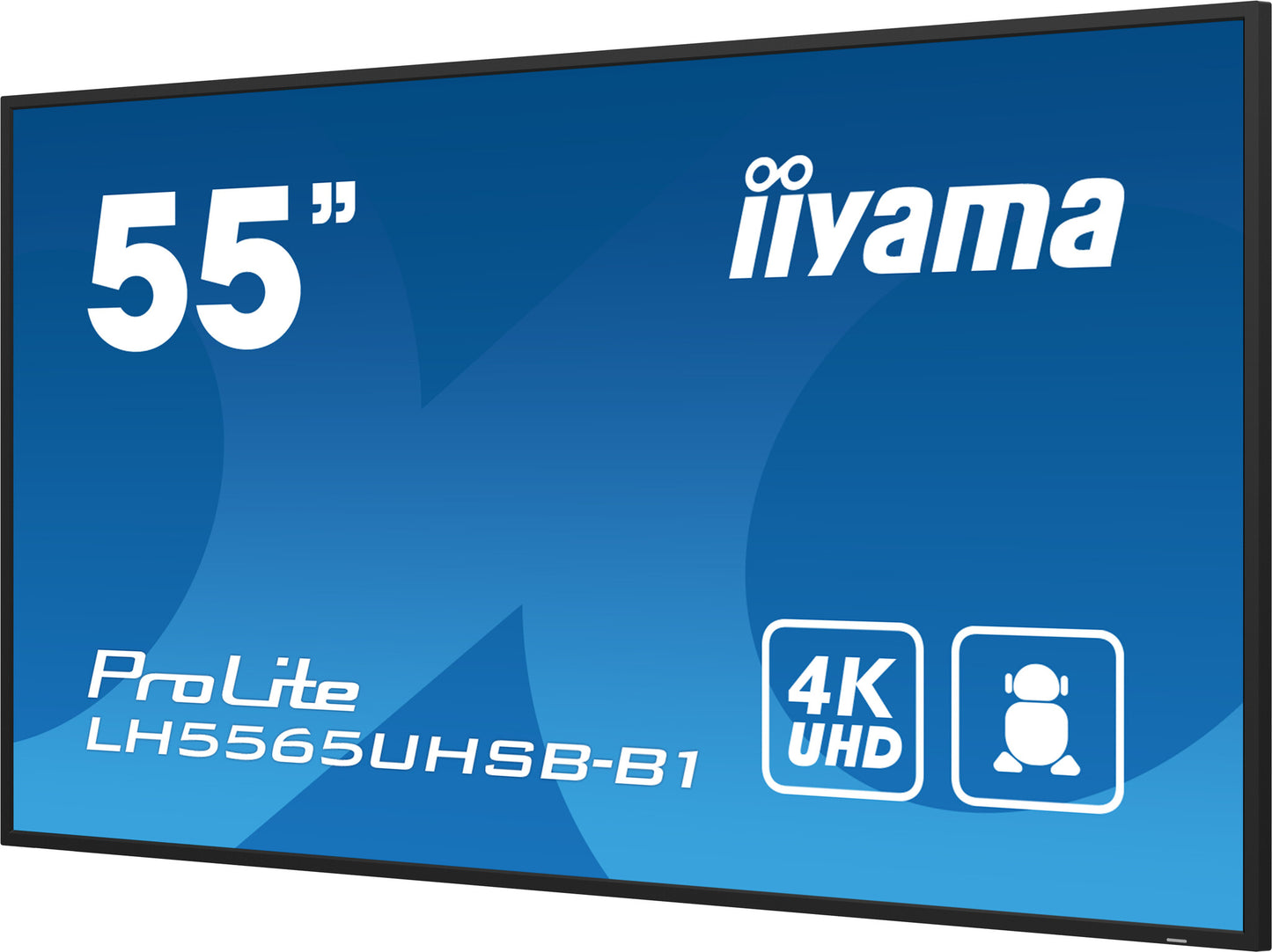

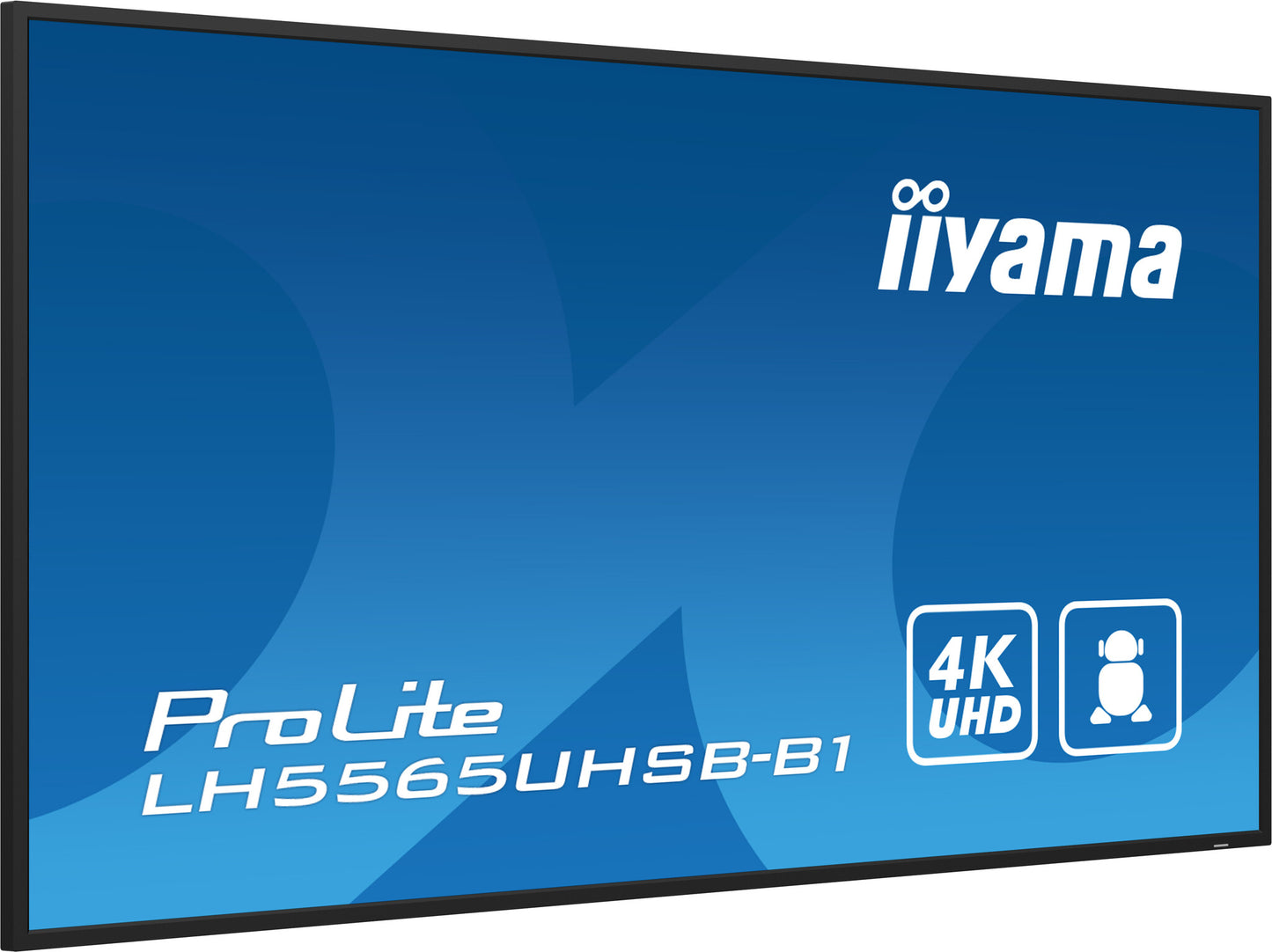

iiyama LH5565UHSB-B1

iiyama LH5565UHSB-B1

55" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication

  • Kiosk design Black
  • 138.7 cm (54.6") 3840 x 2160 pixels LED 800 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570123575
  • GTIN/EAN:4948570123575
  • MPN:LH5565UHSB-B1
Add To Favorite

You need to login to view the price.

View full details

iiyama LH5565UHSB-B1. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

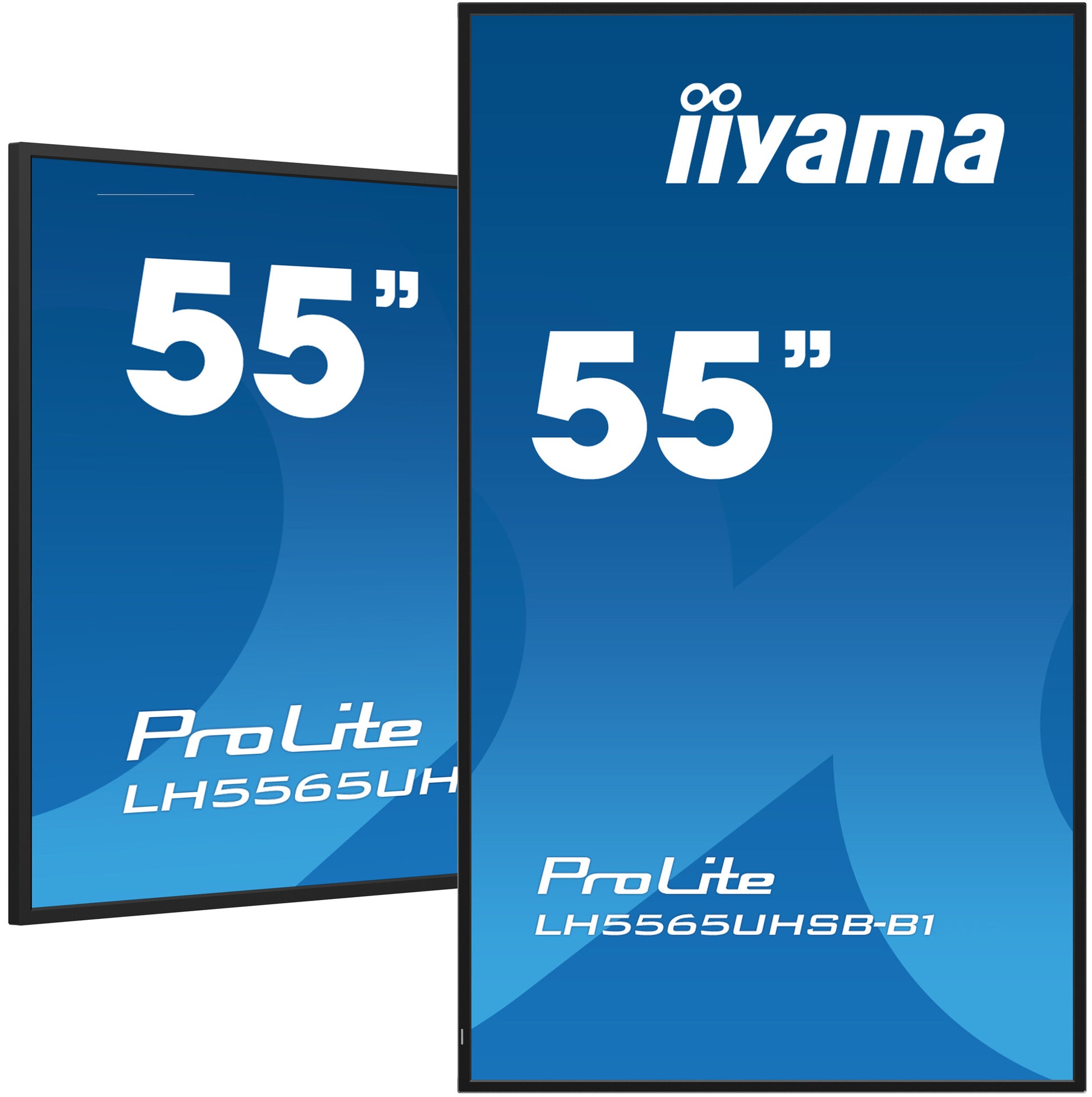

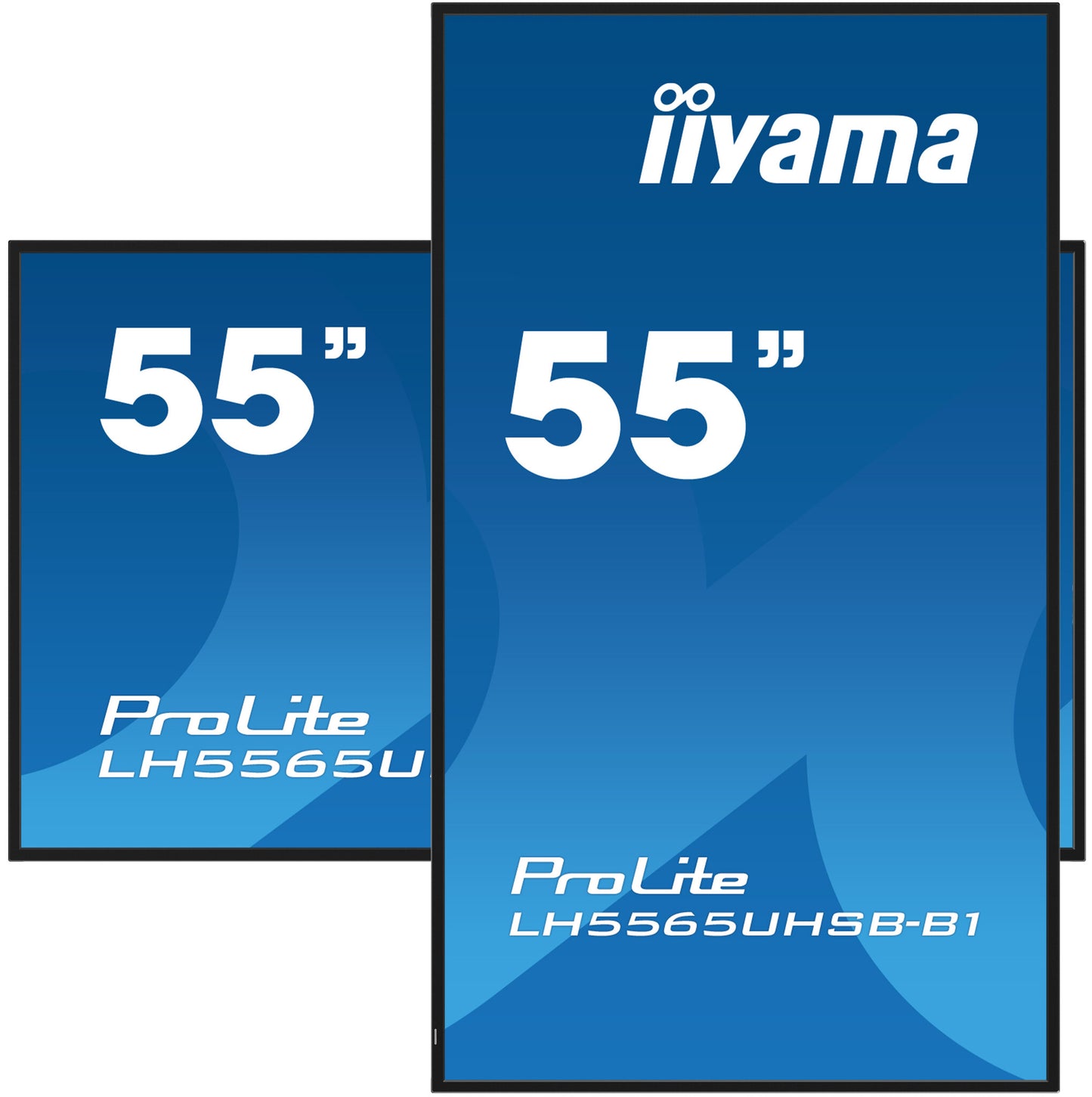

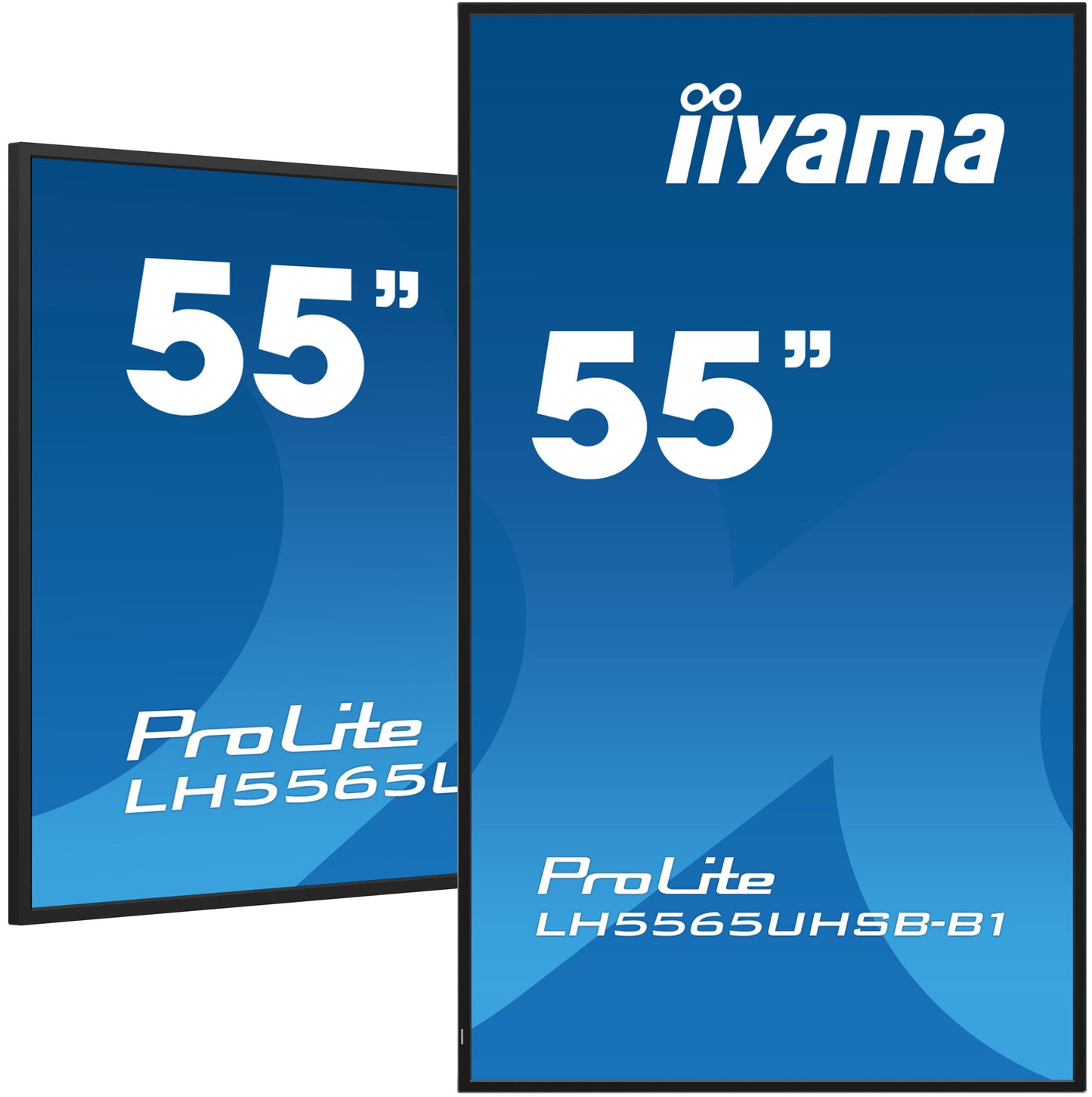

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
RGB colour space
NTSC
Horizontal scan range
28 - 160 kHz
Haze rate
1%
Panel type
IPS
Native refresh rate
60 Hz
Display diagonal (metric)
139 cm
Active display area (W x H)
1209.6 x 680.4 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
800 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LED
Display diagonal
138.7 cm (54.6")

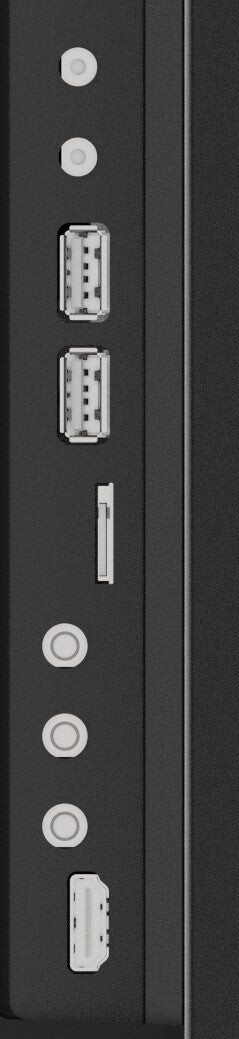

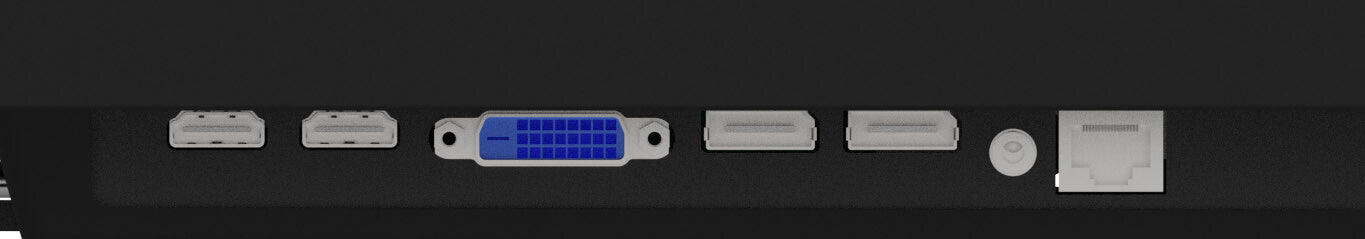

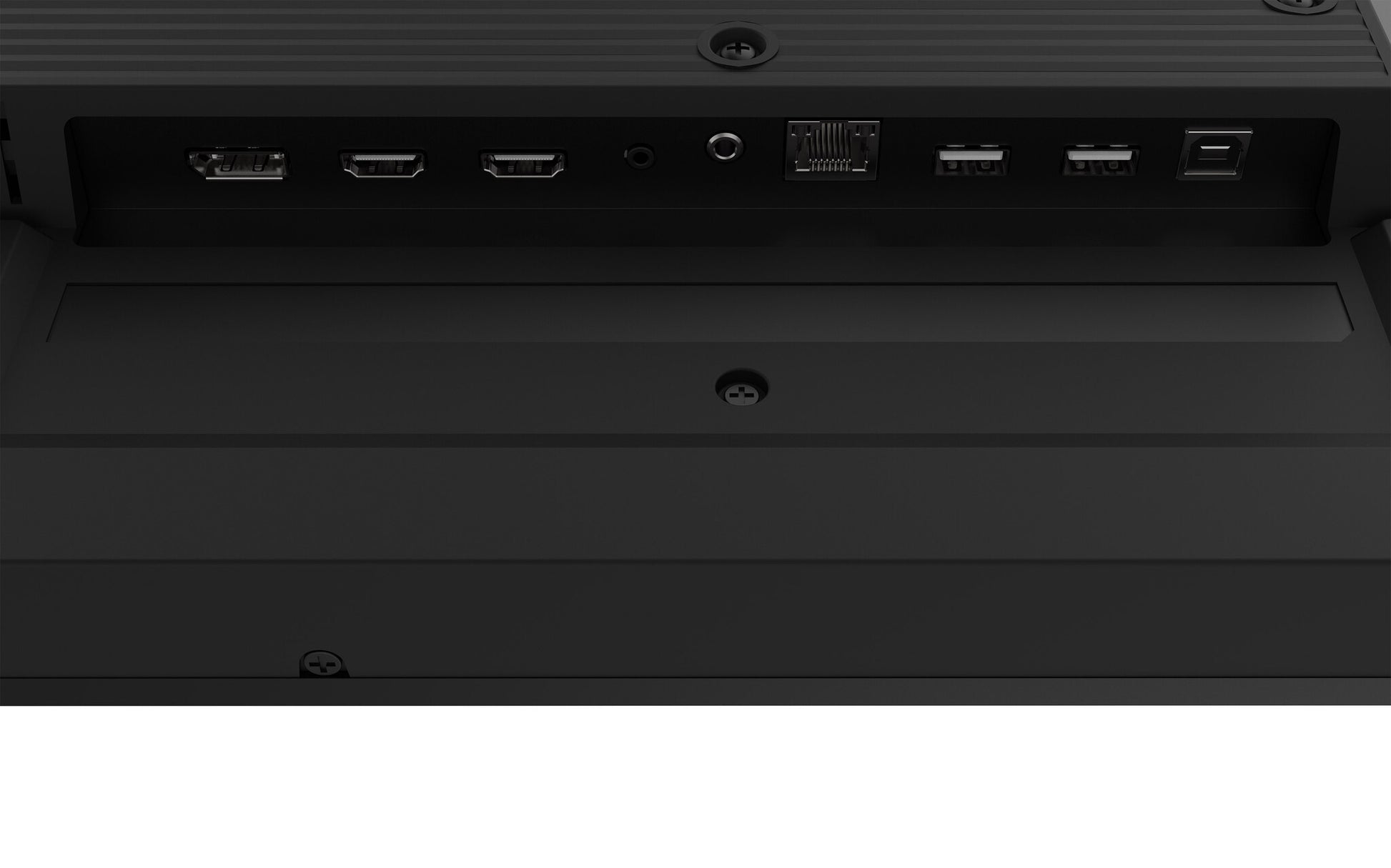

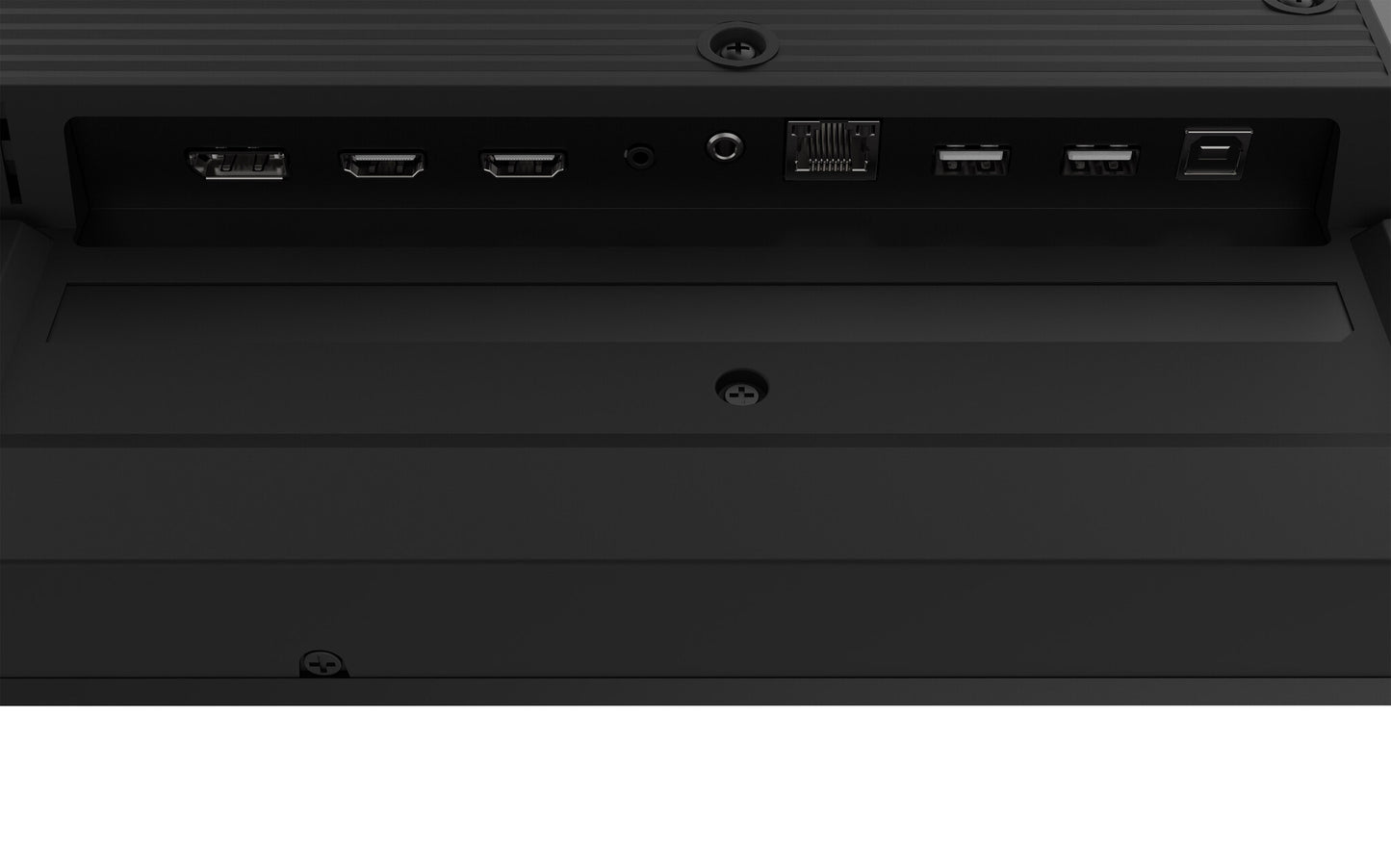

Ports & interfaces
Remote (IR) input
1
RS-232C
Yes
RS-232 interface
Yes
Audio (L/R) in
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
HDMI version
2.0
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Bezel colour
Black

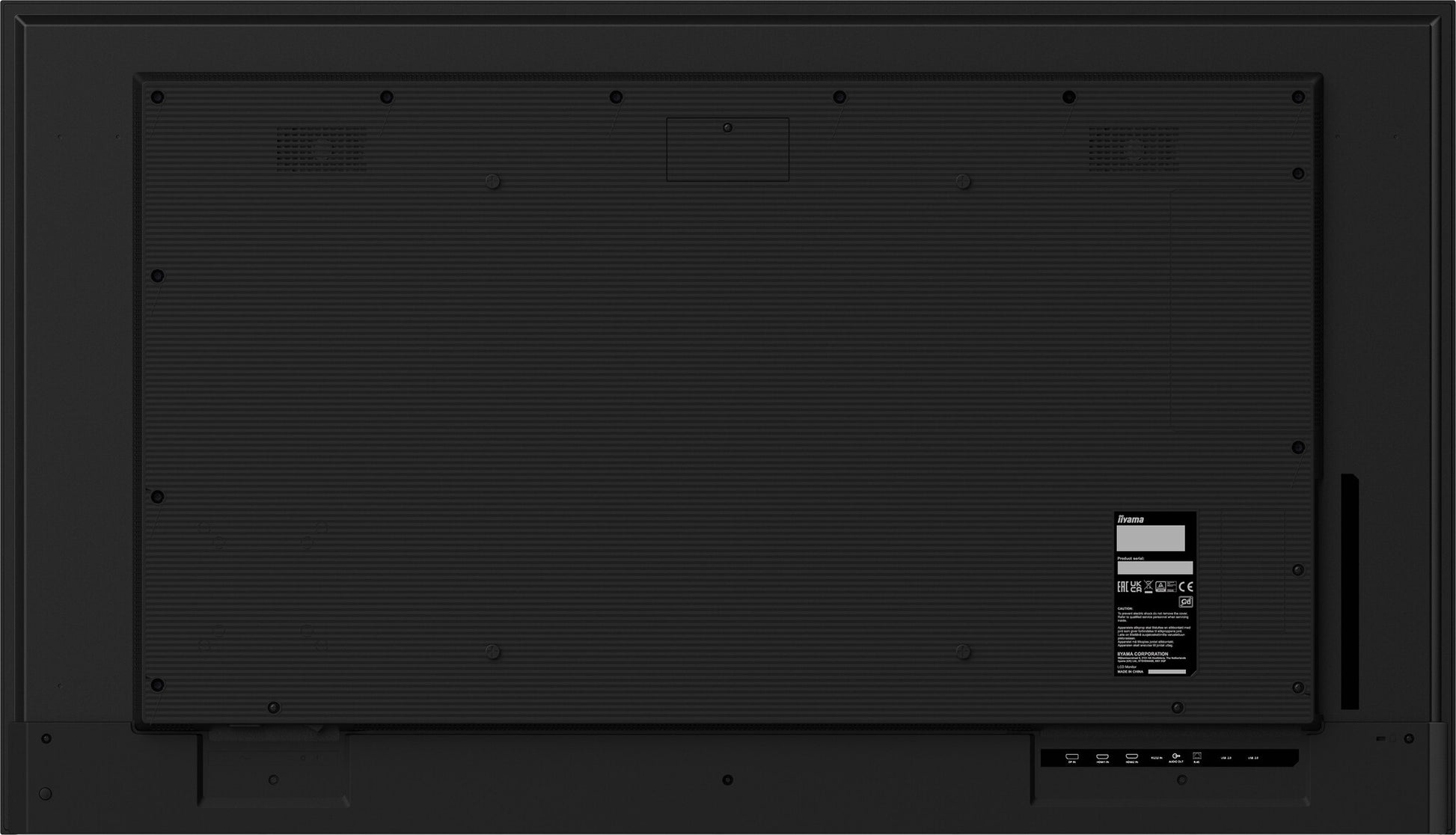

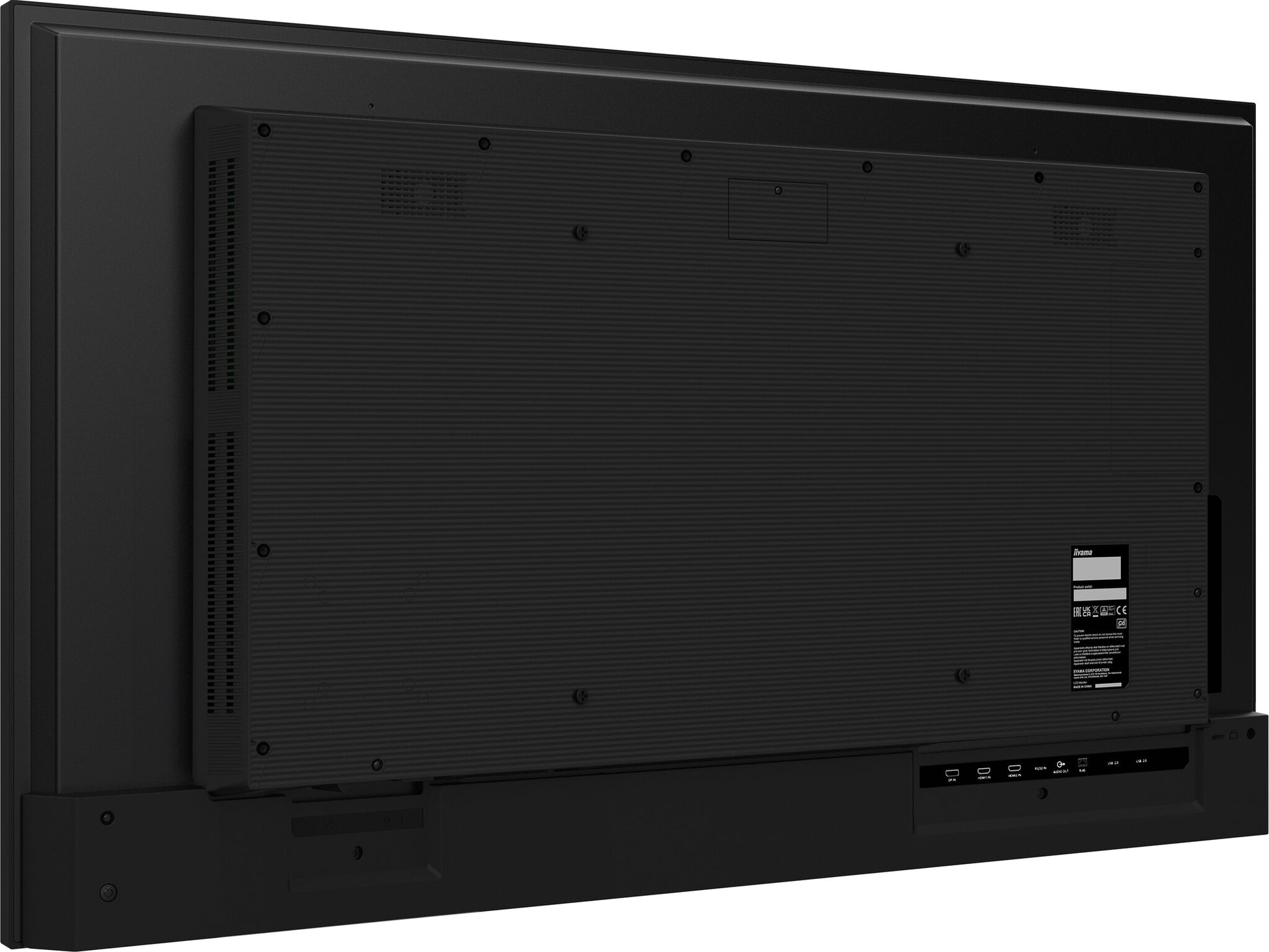

Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Kiosk design
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
8
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Purpose
Commercial
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
78 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Power consumption (off)
0.3 W
Power consumption (standby)
0.4 W
Power consumption (typical)
78 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
8
Processor architecture
ARM Cortex-A73
Processor family
ARM Cortex
Processor manufacturer
ARM
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Weight
14.6 kg
Height
710 mm

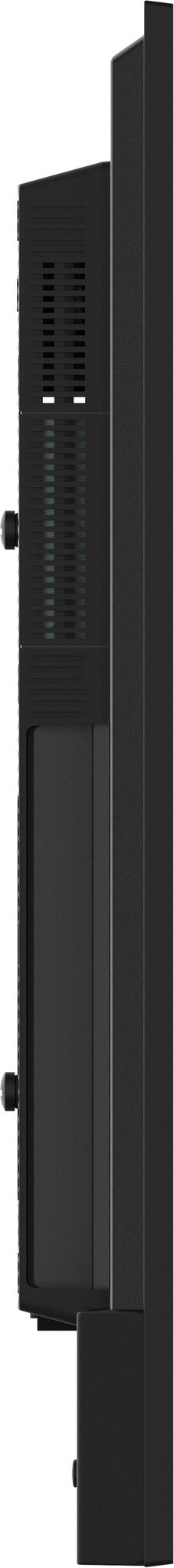

Depth
55 mm
Width
1237.5 mm
Display weight
14.6 kg
Display height
710 mm
Display depth
55 mm
Display width
1237.5 mm
Packaging data
Package weight
19.8 kg
Package height
845 mm
Package depth
130 mm
Package width
1386 mm
Packaging content

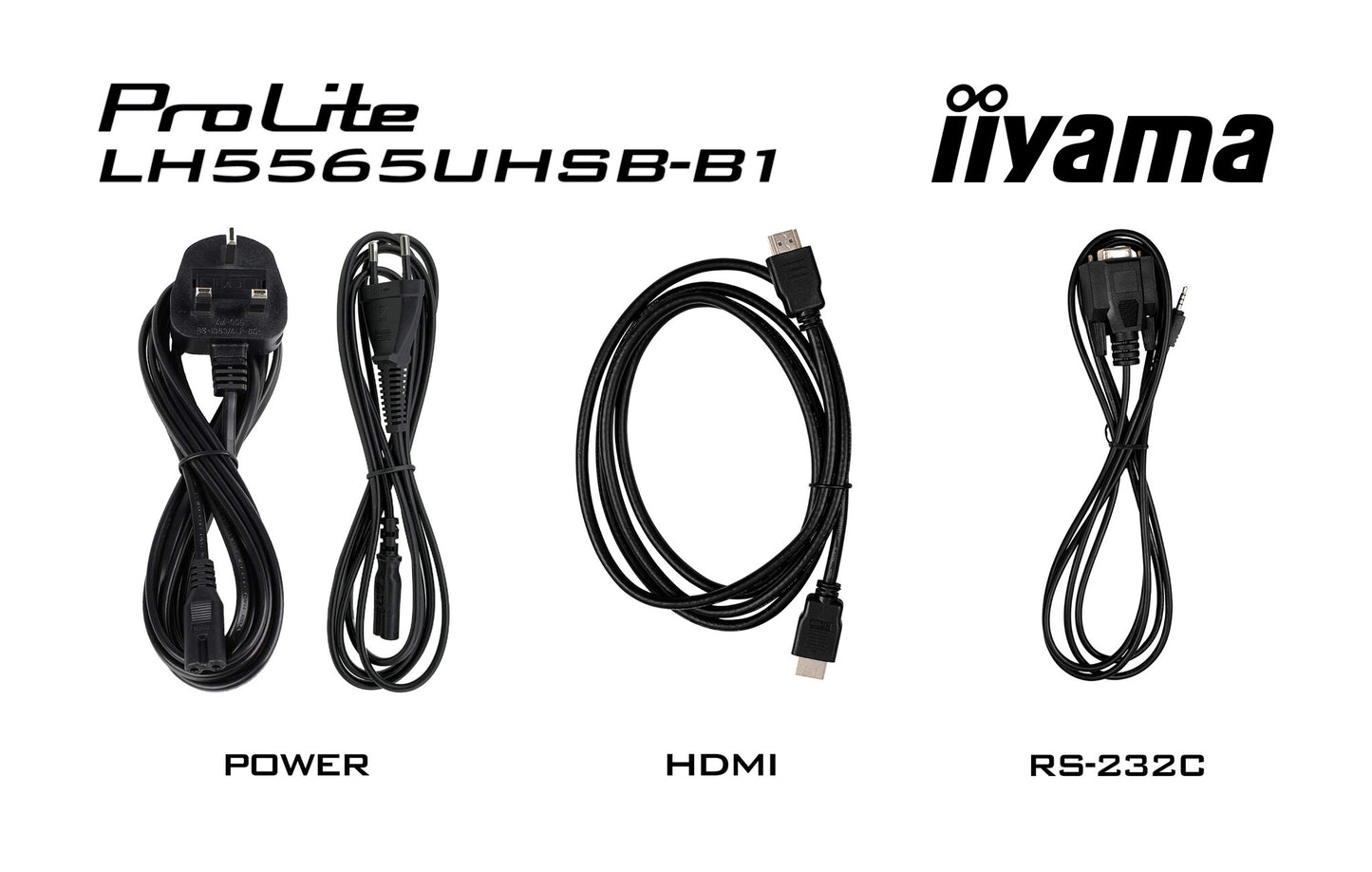

Cables included
AC, HDMI, RS-232
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
-20 - 60%
Operating temperature (T-T)
0 - 40 °C
Technical details
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
Playback media
Y
Sustainability certificates
ErP
Compliance certificates
CE, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Power supply type
Internal
DisplayPort version
1.2
