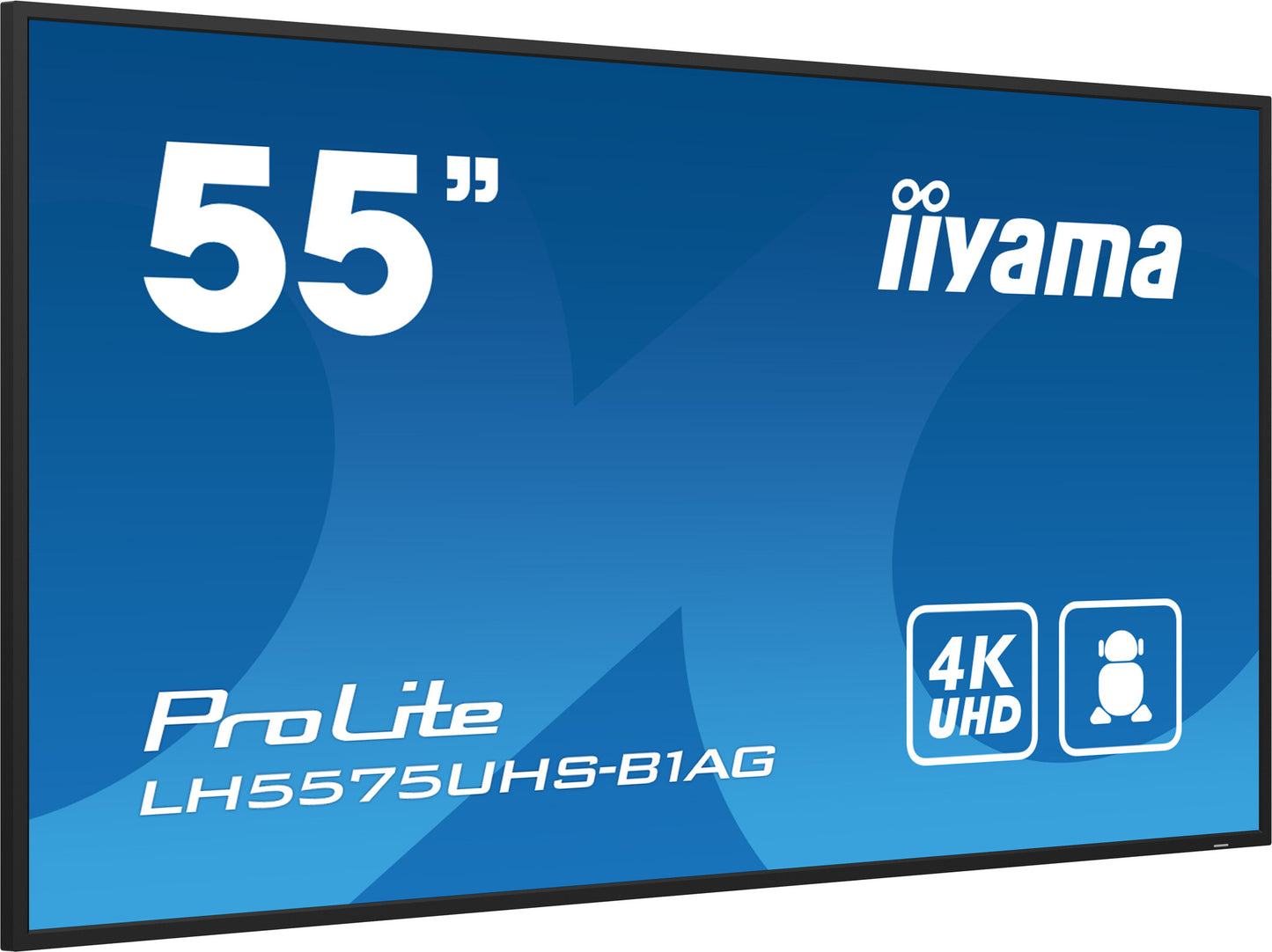

iiyama ProLite

iiyama ProLite

55", 3840x2160, 16:9, IPS, HDMI, DP, RS-232C, RJ-45, RMS 2x 10W, USB, Android OS 11

  • Indoor Digital signage flat panel Black
  • 138.7 cm (54.6") 3840 x 2160 pixels LCD 500 cd/m²
  • 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570123469
  • GTIN/EAN:4948570123469
  • MPN:LH5575UHS-B1AG

You need to login to view the price.

Add To Favorite
View full details

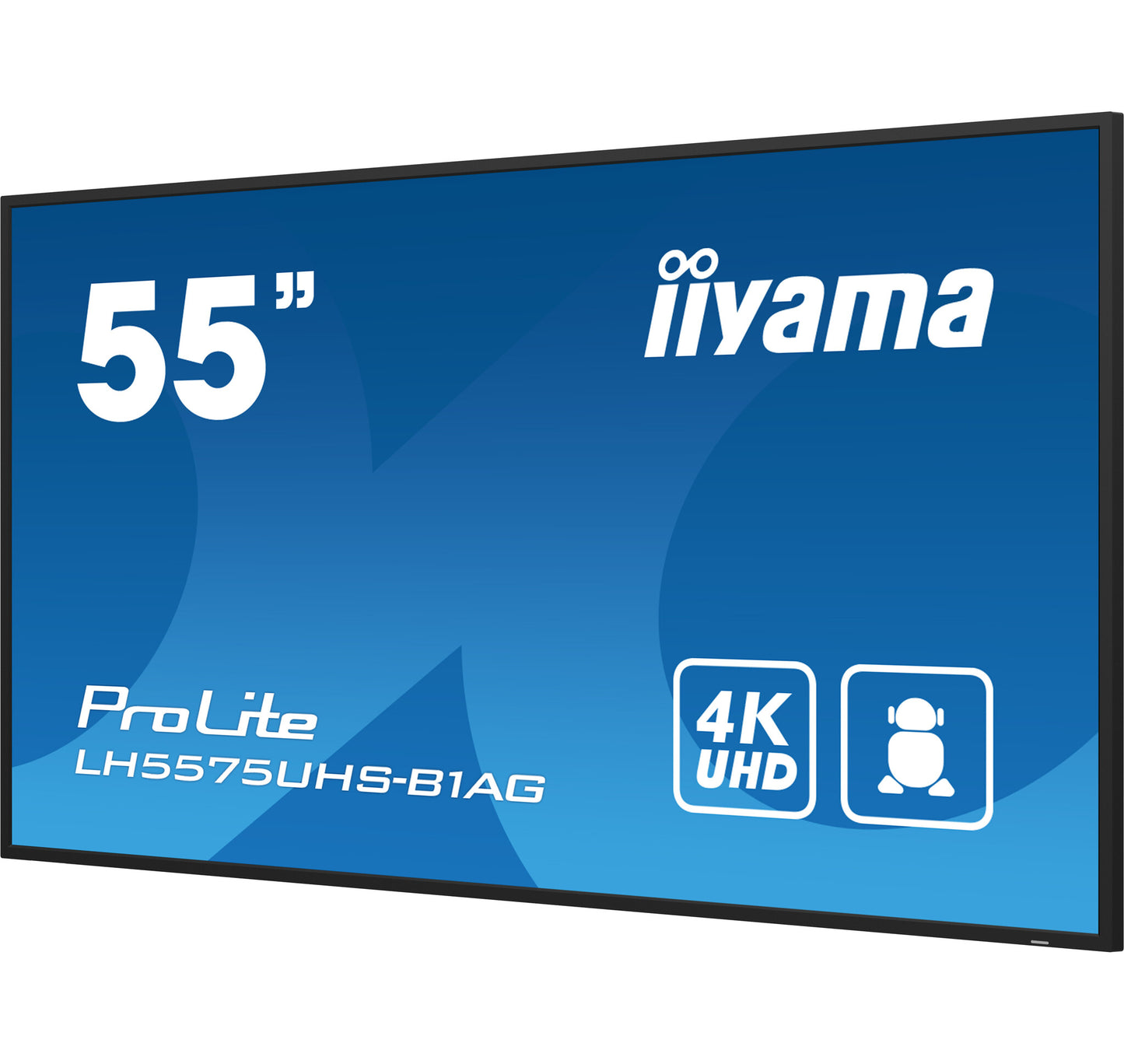

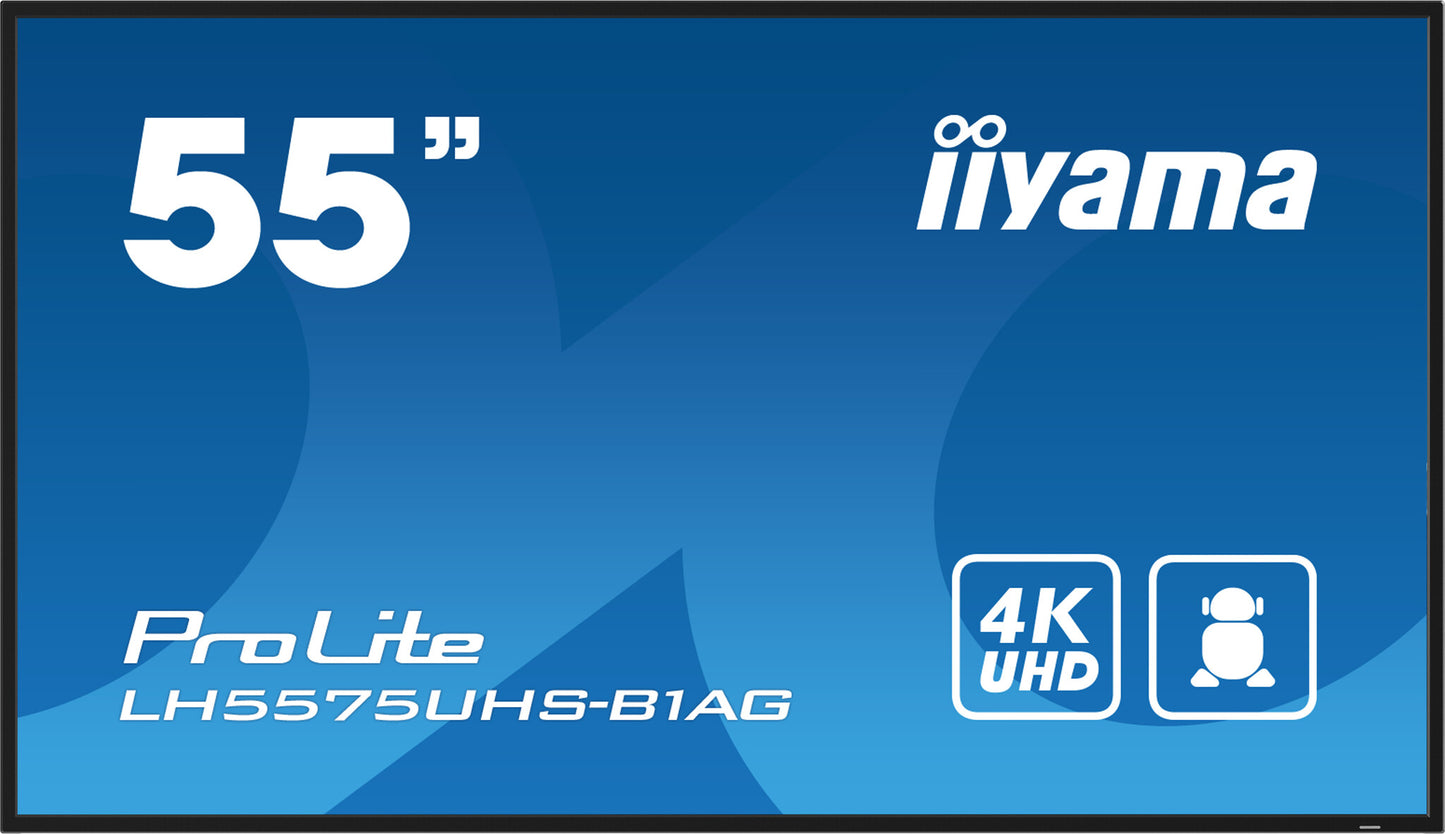

55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

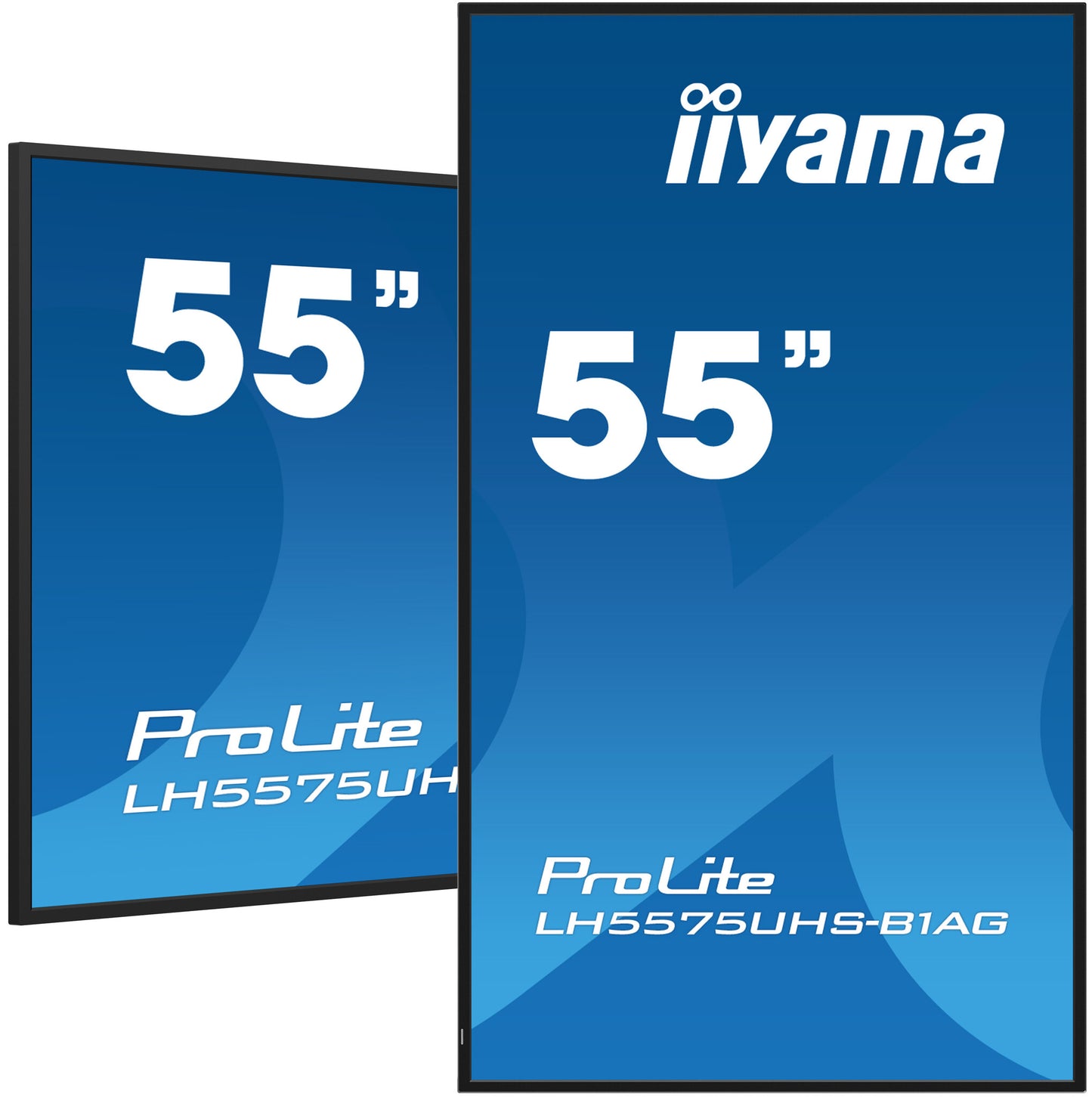

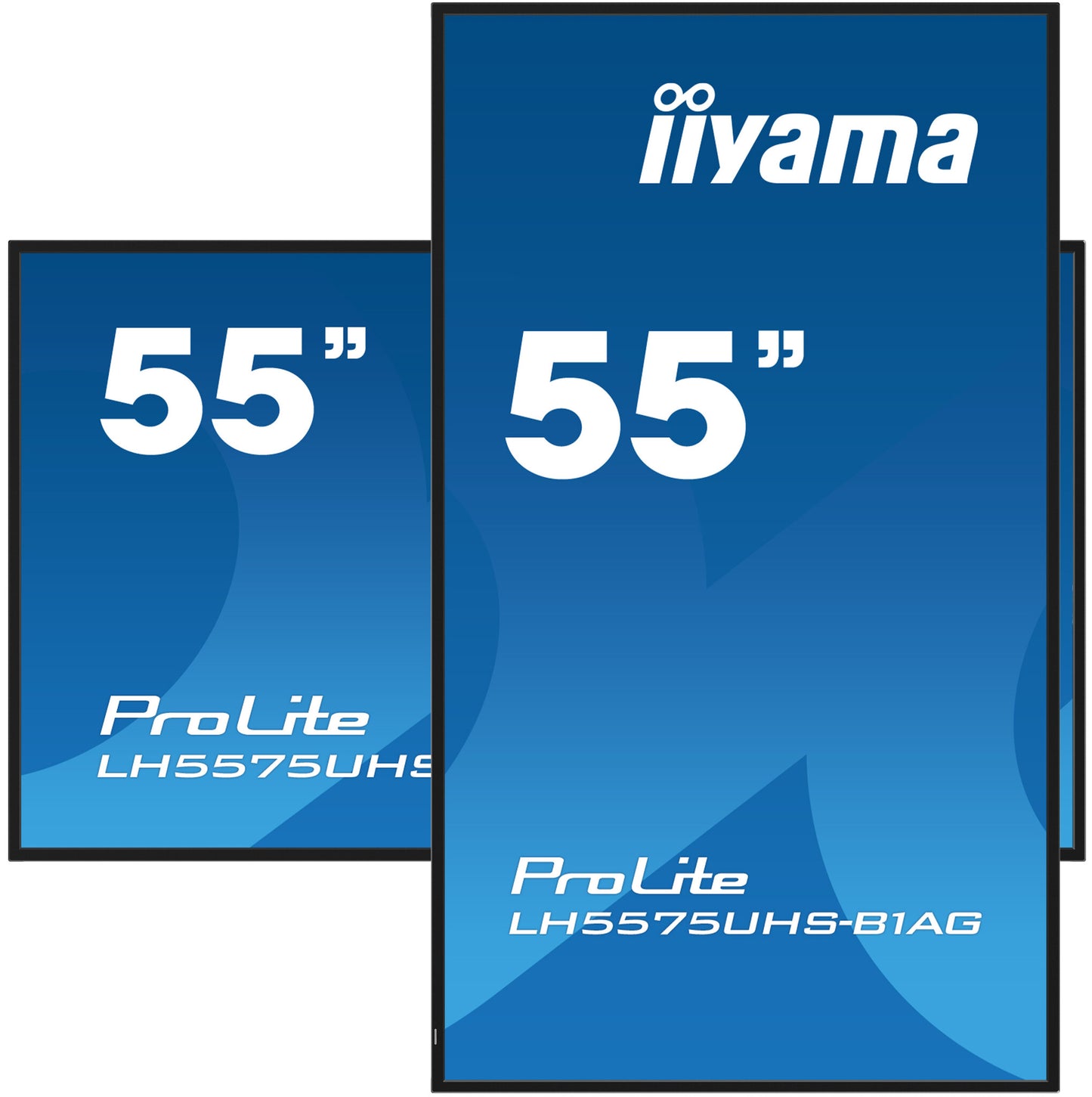

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

IISIGNAGE²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

SMART DISPLAY MODULE
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Display
RGB colour space
sRGB
Horizontal scan range
28 - 160 kHz
Haze rate
25%
Panel type
IPS
Maximum frame rate
60 fps
Display diagonal (metric)
139 cm
Active display area (W x H)
1209.6 x 680.4 mm
Pixel pitch
0.315 x 0.315 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
138.7 cm (54.6")

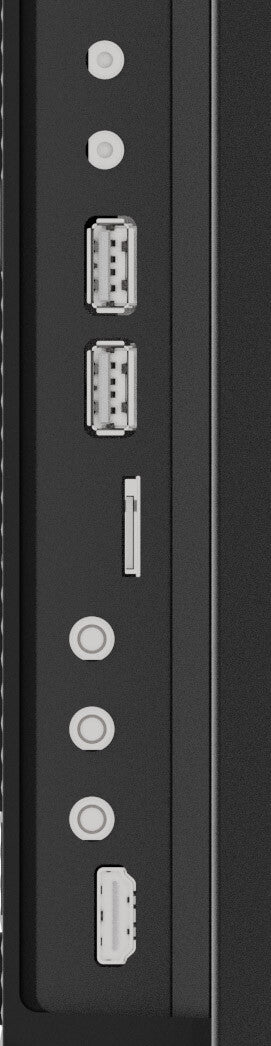

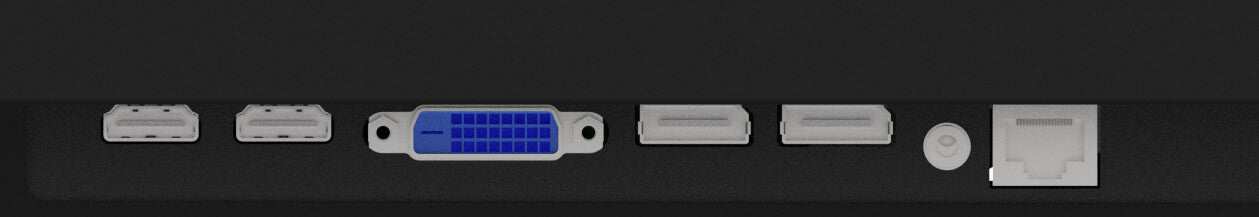

Ports & interfaces
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Remote (IR) output
1
Remote (IR) input
1
RS-232C
Yes
PC Audio in
Yes
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
HDMI version
2.0
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
44000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
15
On Screen Display (OSD) languages
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
Purpose
Universal
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
127 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
127 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
4
Processor architecture
ARM Cortex-A53+Cortex-A73
Processor family
ARM Cortex
Processor manufacturer
ARM
Built-in processor
Yes
Weight & dimensions
Display weight
15.2 kg
Display height
710 mm
Display depth
55 mm
Display width
1237.5 mm
Packaging data
Package weight
20.6 kg
Package height
845 mm
Package depth
130 mm
Package width
1386 mm
Packaging content

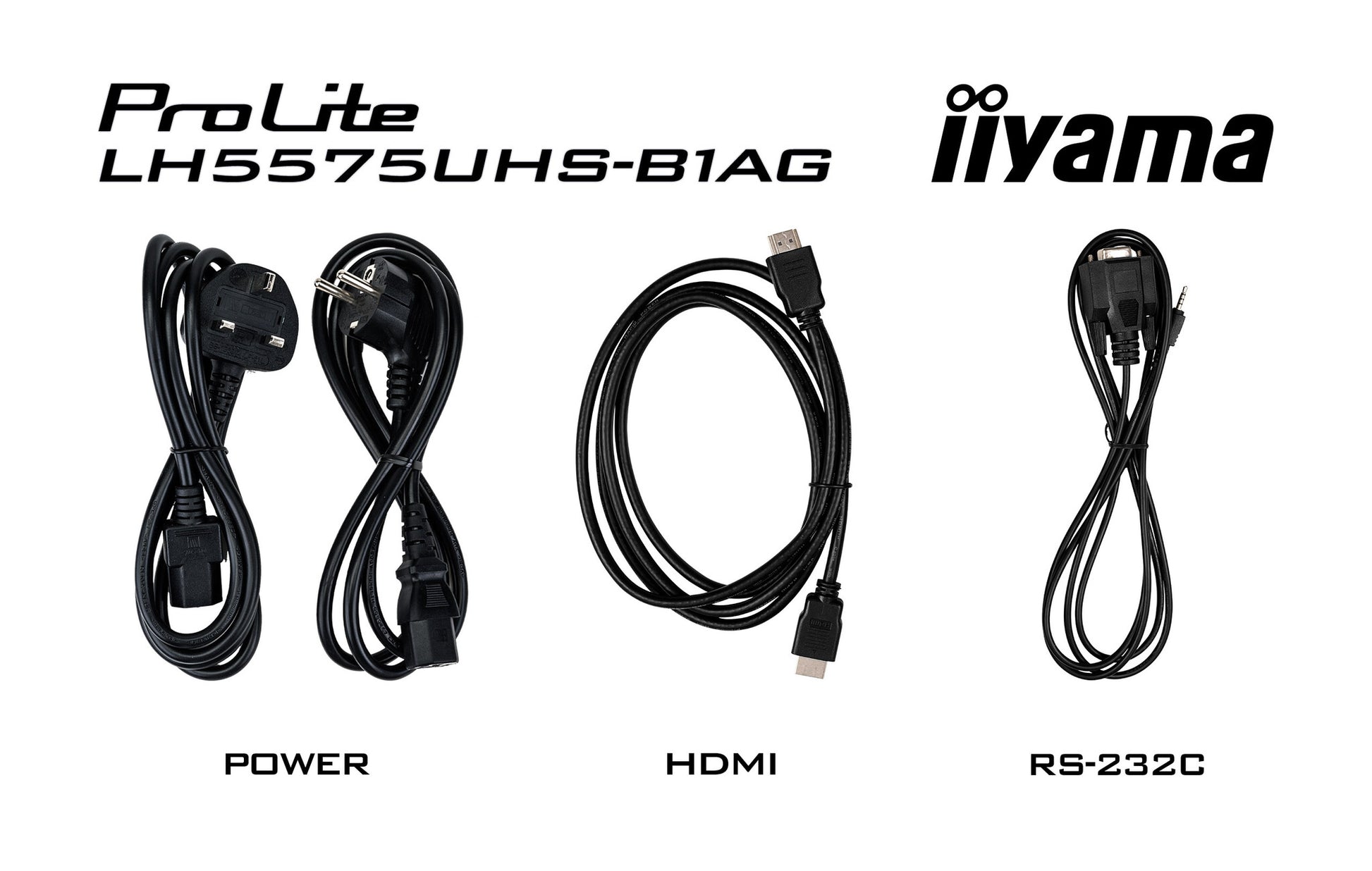

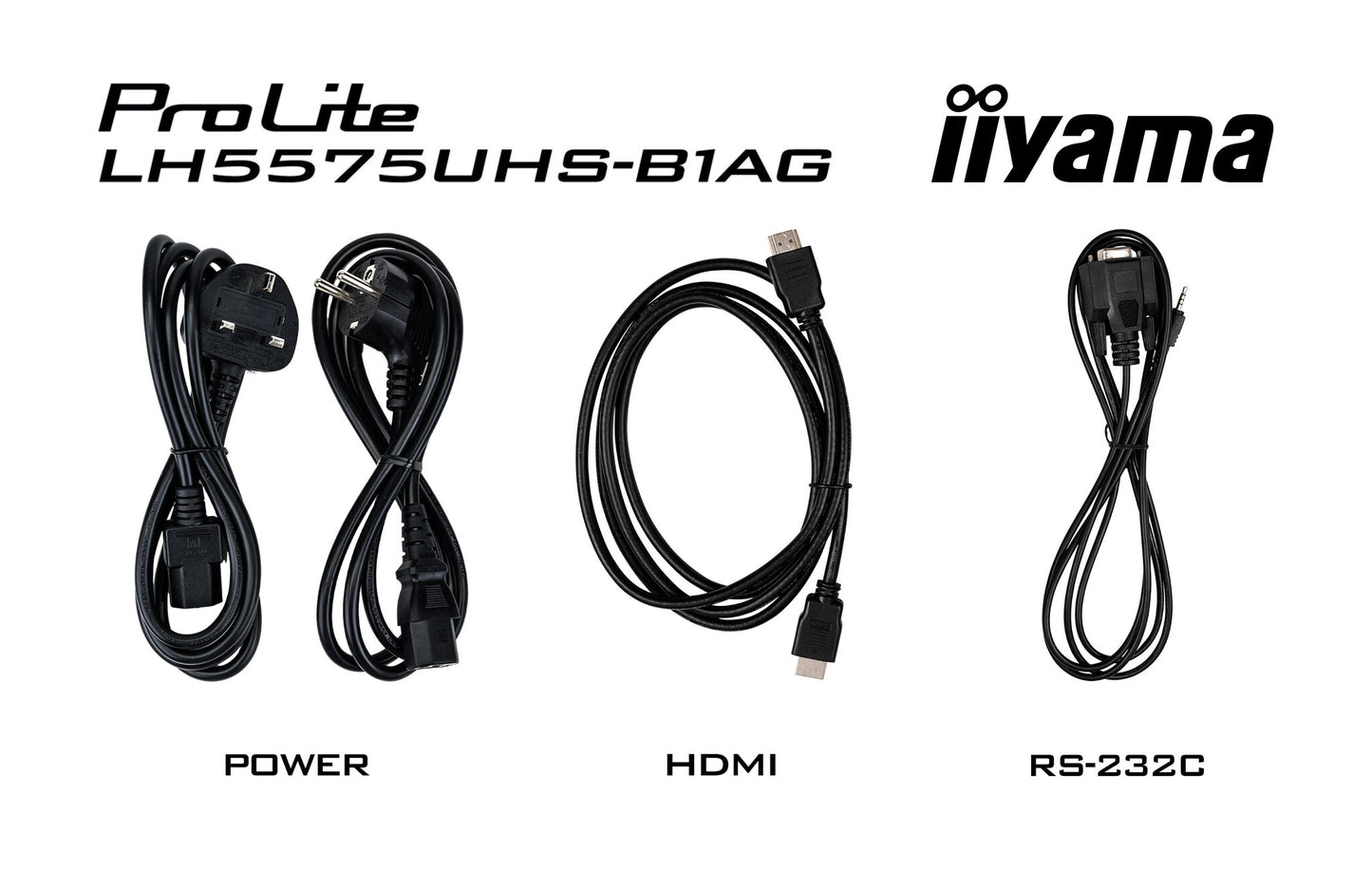

Cables included
AC, HDMI, RS-232
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Features
Harmonized System (HS) code
85285210
Technical details
Sustainability certificates
RoHS
Other features
Quick start guide
Yes
Housing material
Metal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
DisplayPort version
1.2
