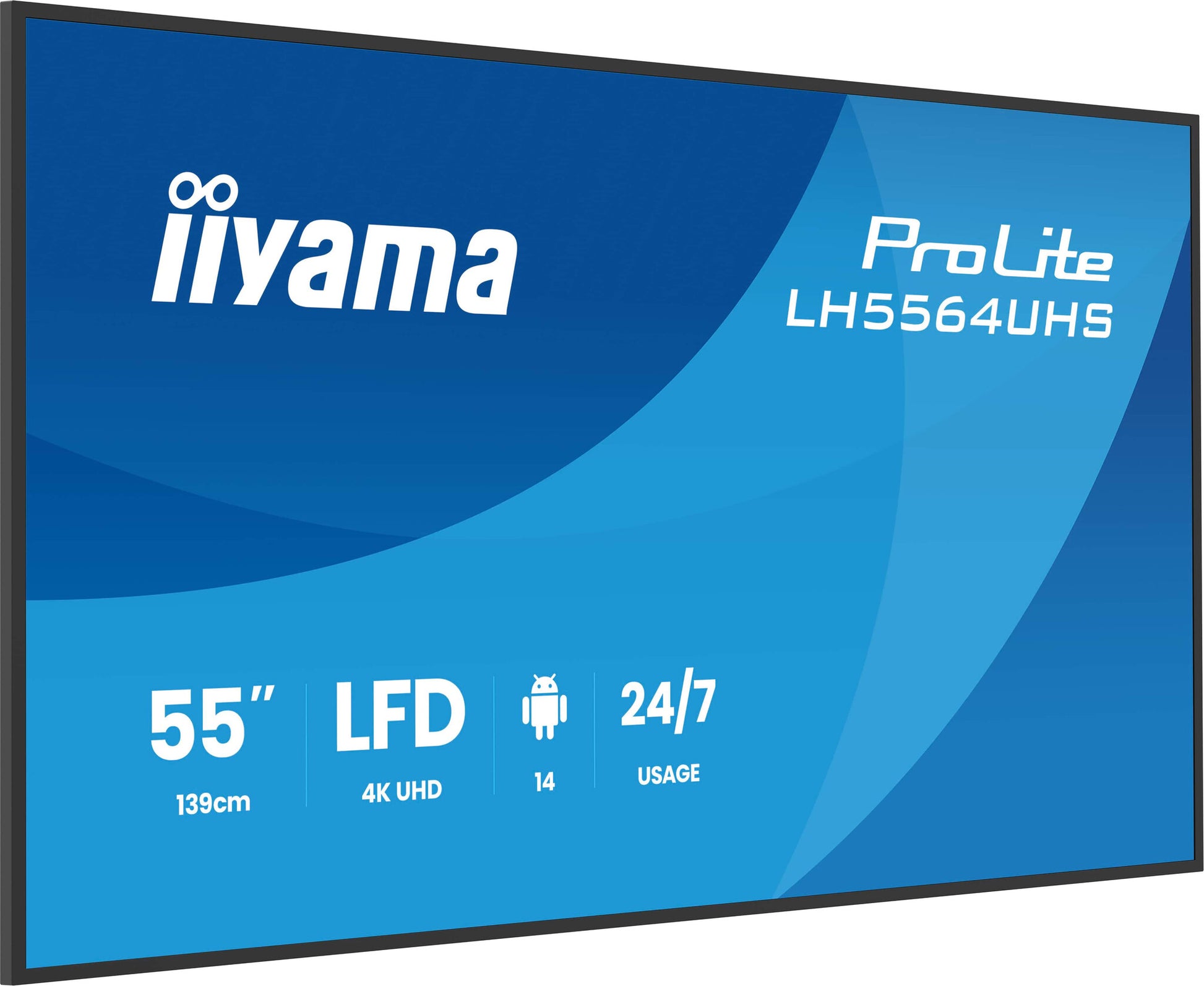

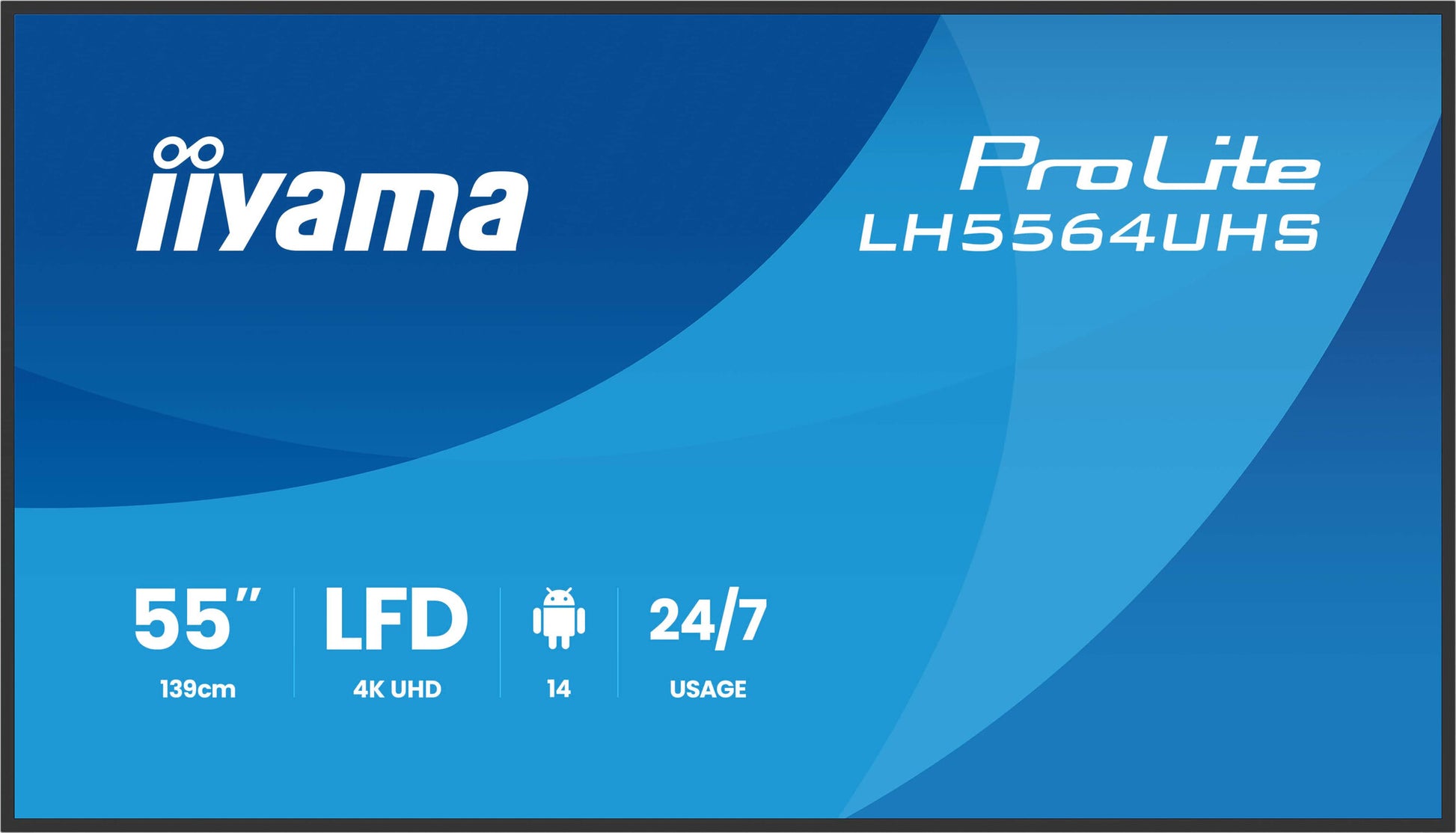

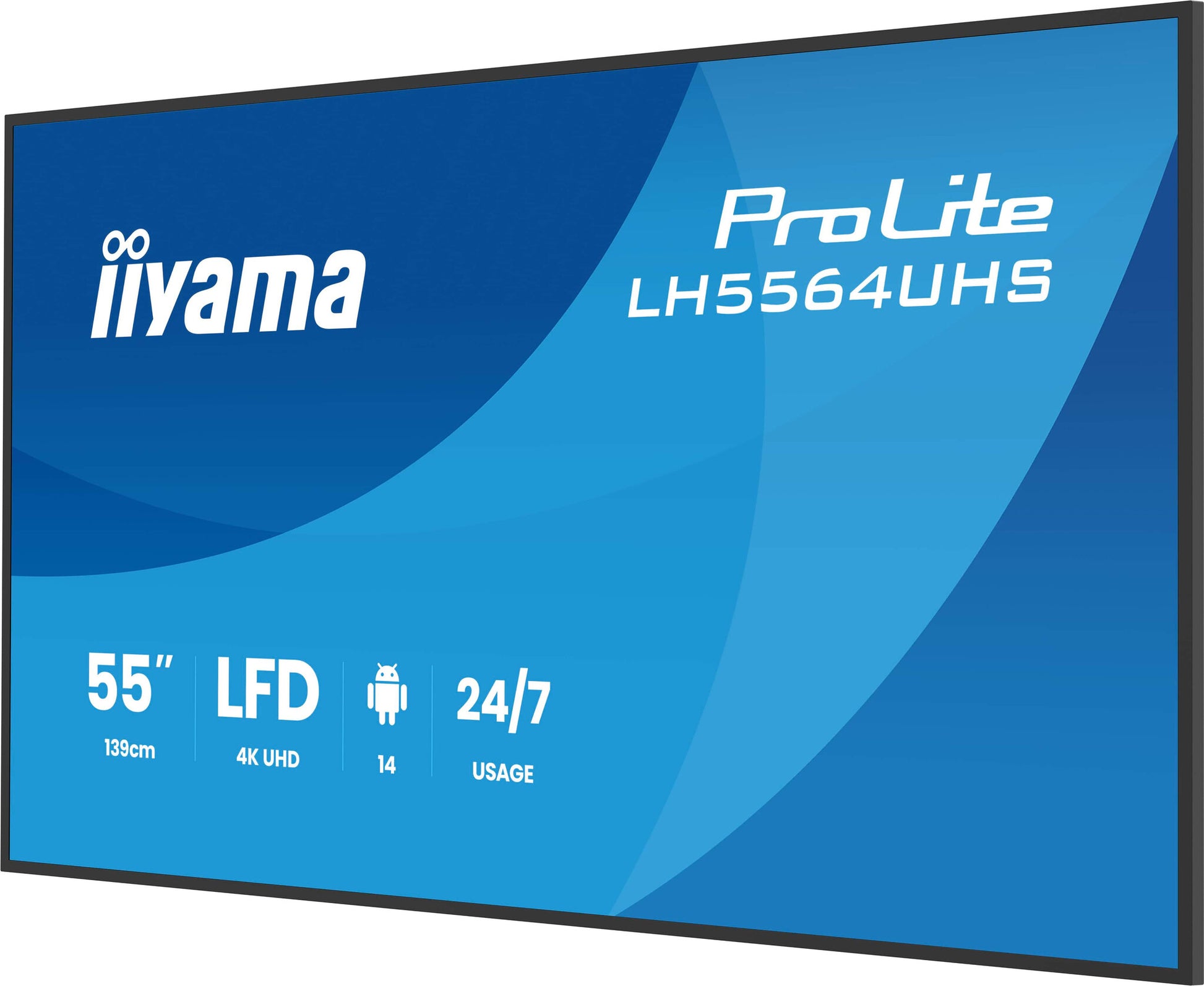

iiyama LH5564UHS-B1AG Signage Display Digital signage flat panel 139.7 cm (55") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

iiyama LH5564UHS-B1AG Signage Display Digital signage flat panel 139.7 cm (55") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

55" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options

  • Indoor Digital signage flat panel Black
  • 139.7 cm (55") 3840 x 2160 pixels 500 cd/m²
  • 60 Hz 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570125319
  • GTIN/EAN:4948570125319
  • MPN:LH5564UHS-B1AG

You need to login to view the price.

View full details

iiyama LH5564UHS-B1AG. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite LH5564UHS-B1AG is a 55" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.

Display
Display diagonal
139.7 cm (55")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.315 x 0.315 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
138.7 cm
Number of displays
1
Horizontal scan range
57 - 62 kHz
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

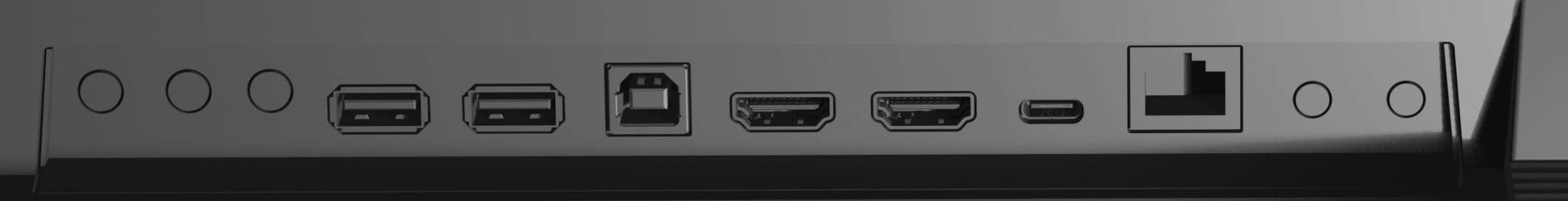

Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
USB port
Yes
USB ports quantity
2
USB version
2.0
USB Power Delivery
Yes
USB Power Delivery up to
15 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor

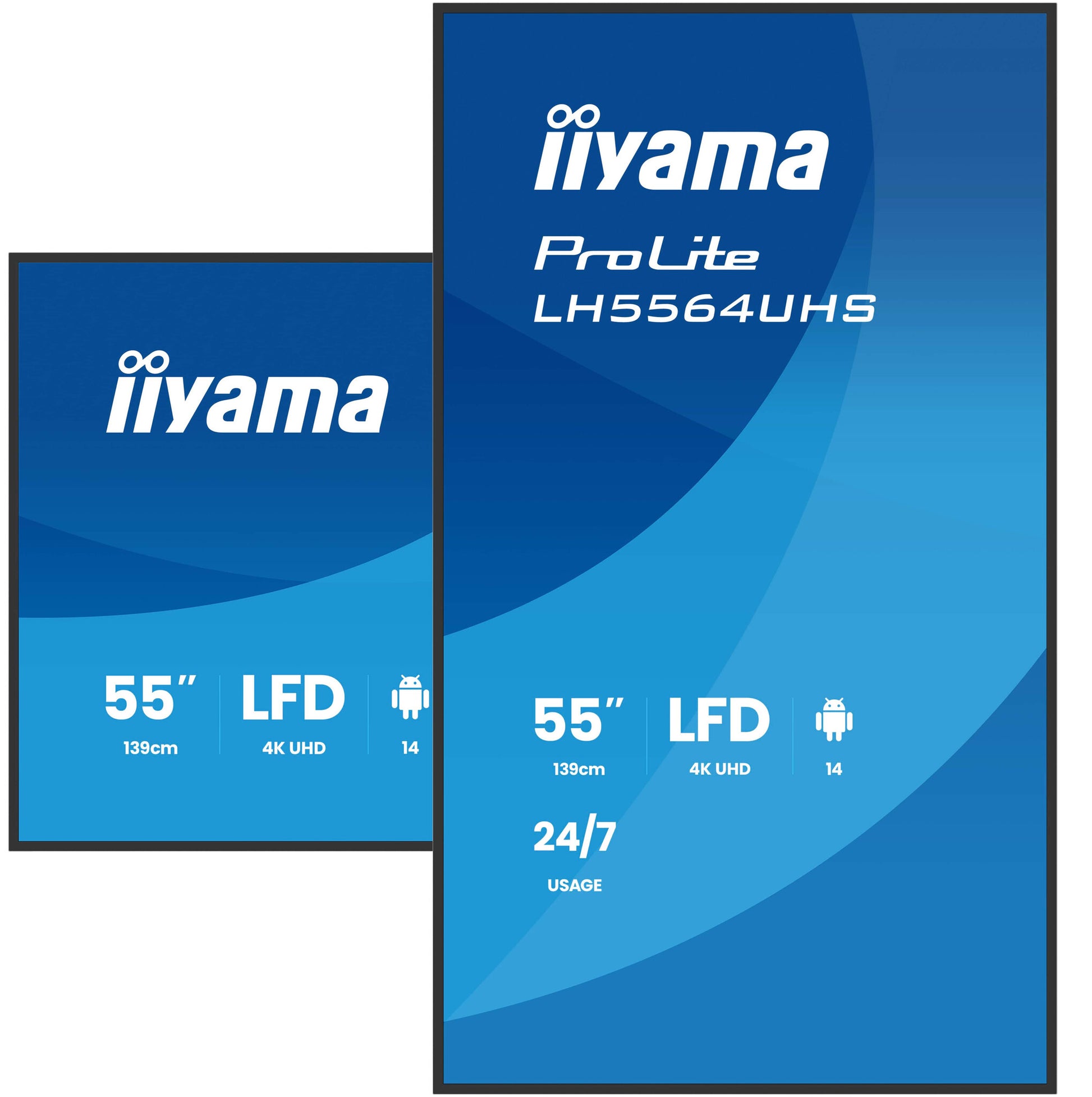

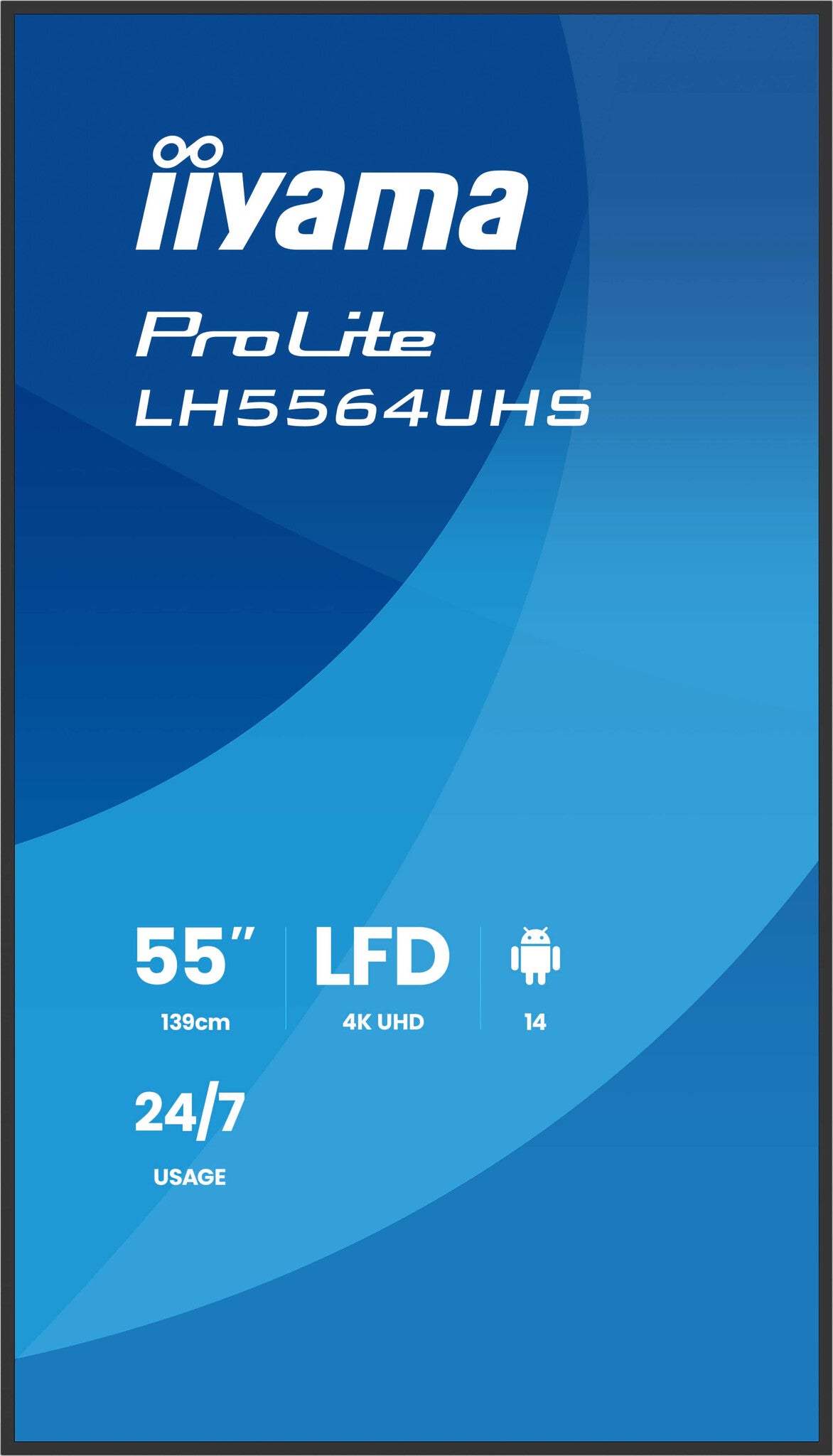

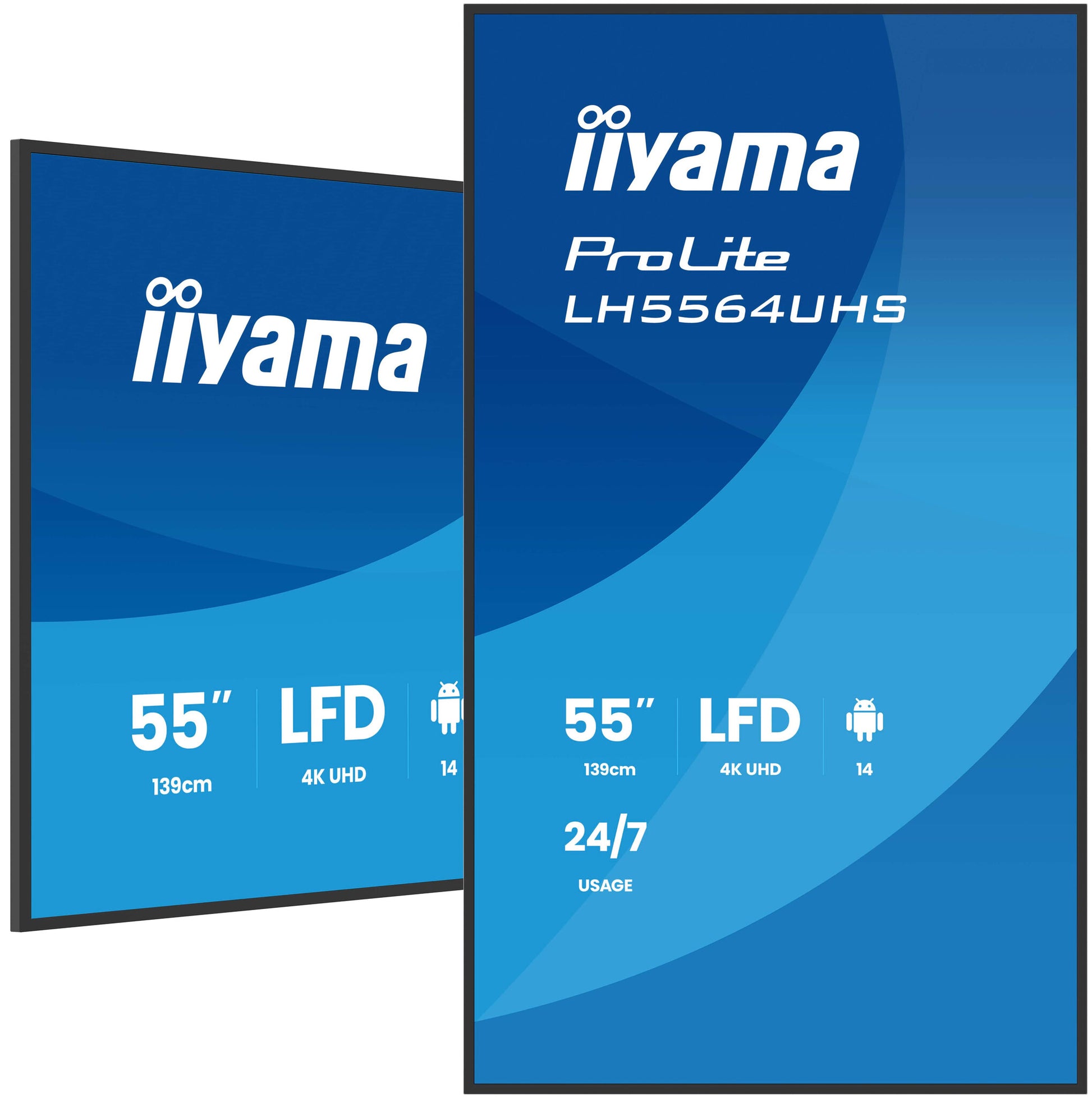

Orientation
Horizontal/Vertical

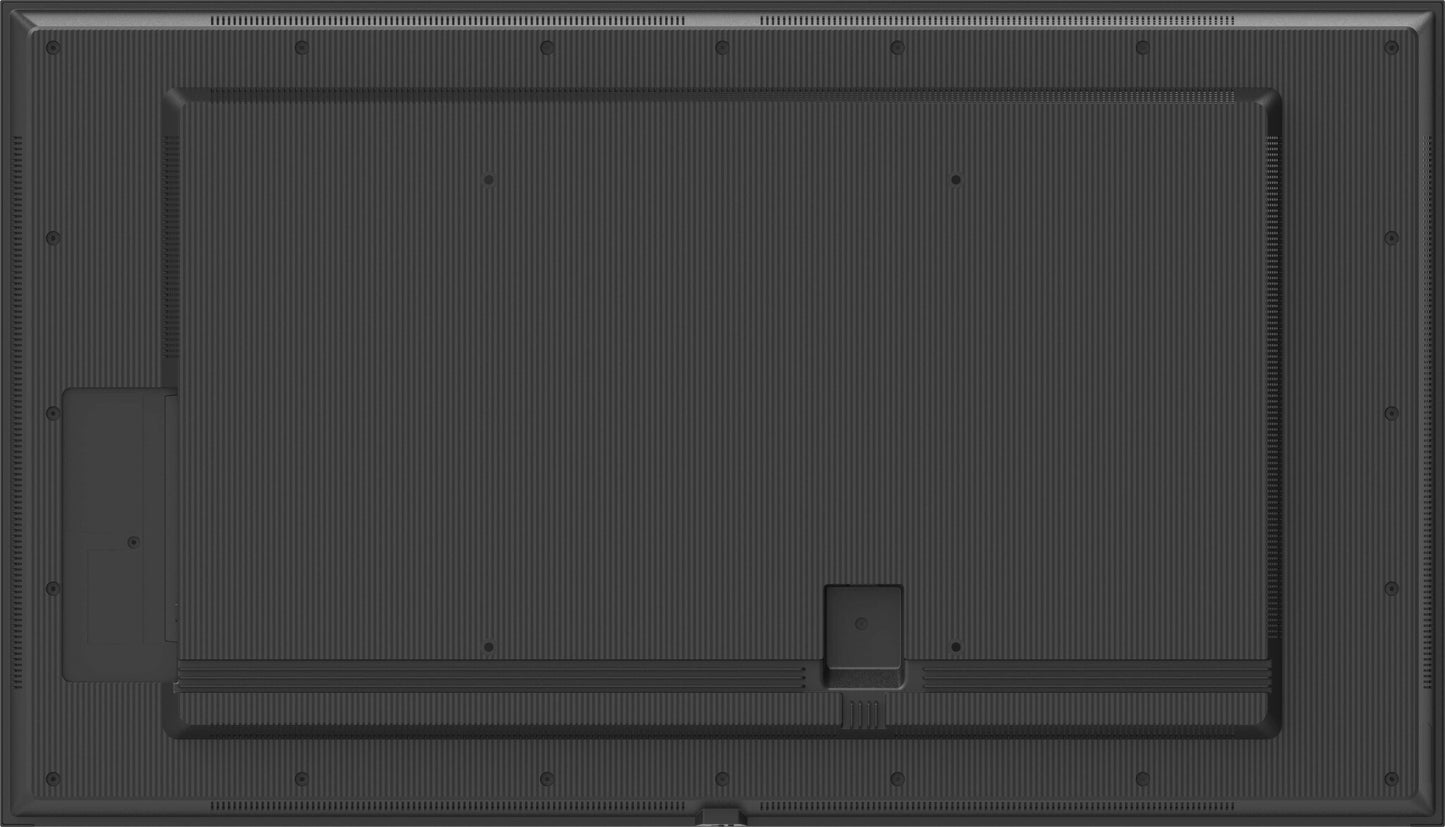

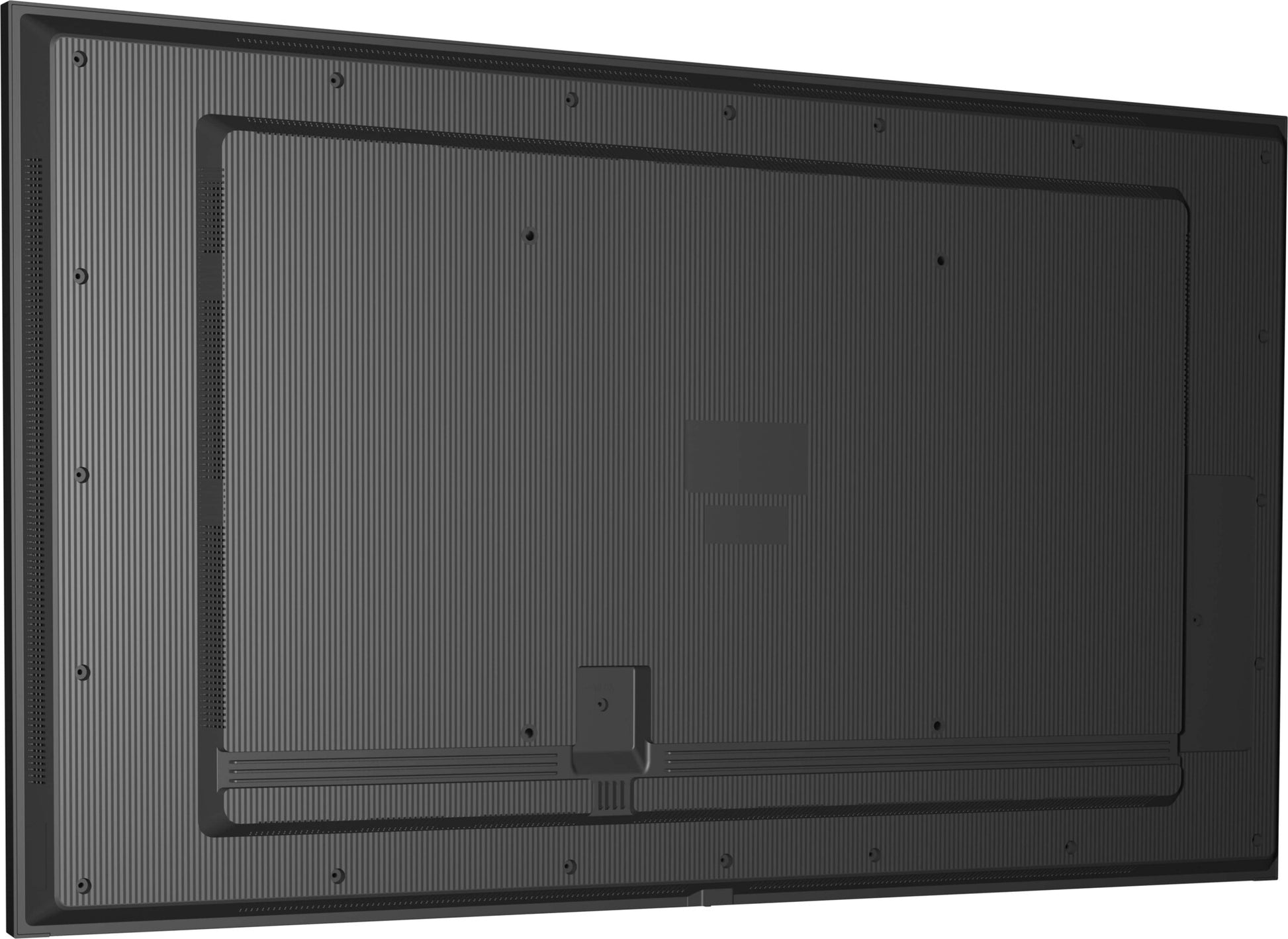

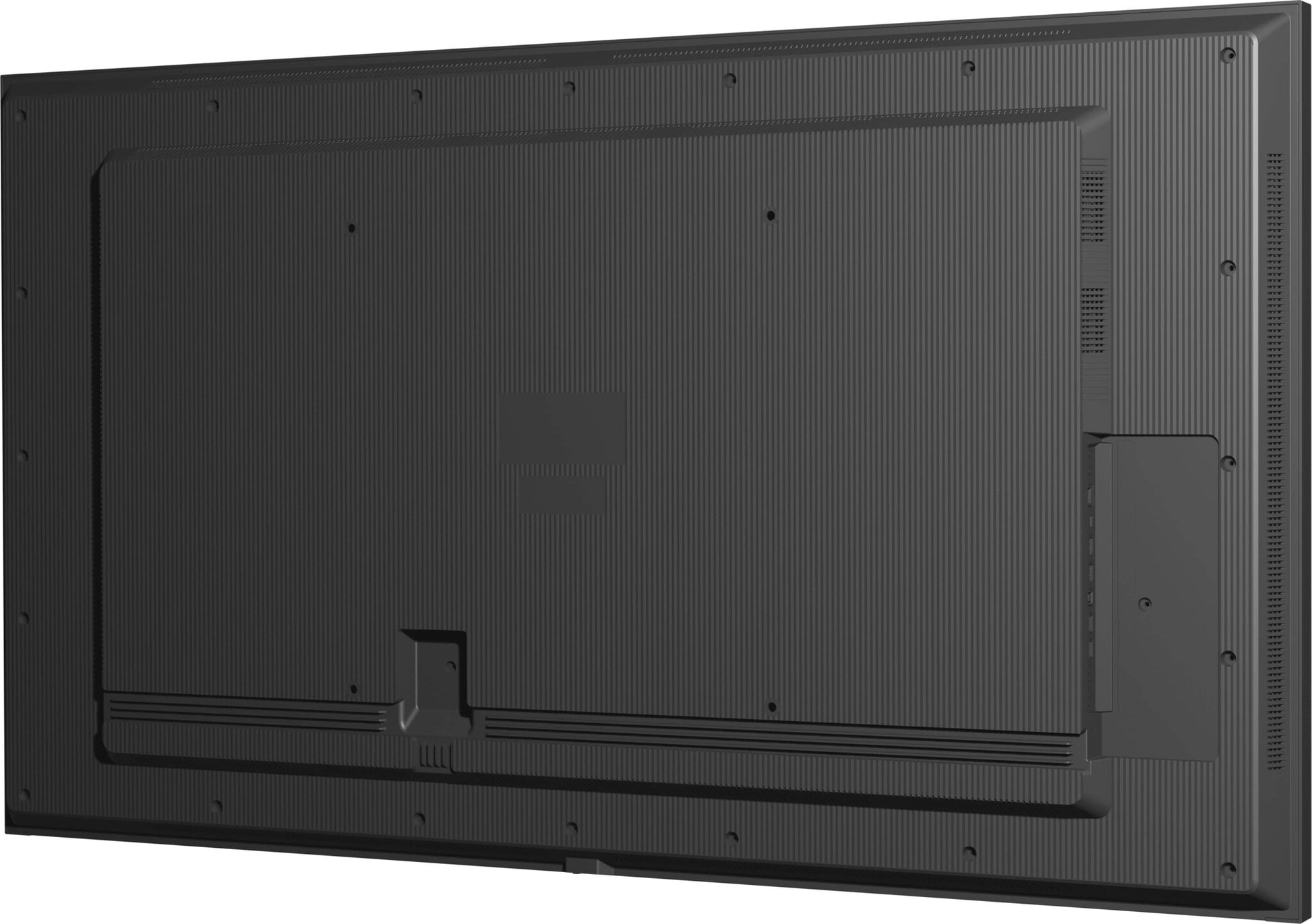

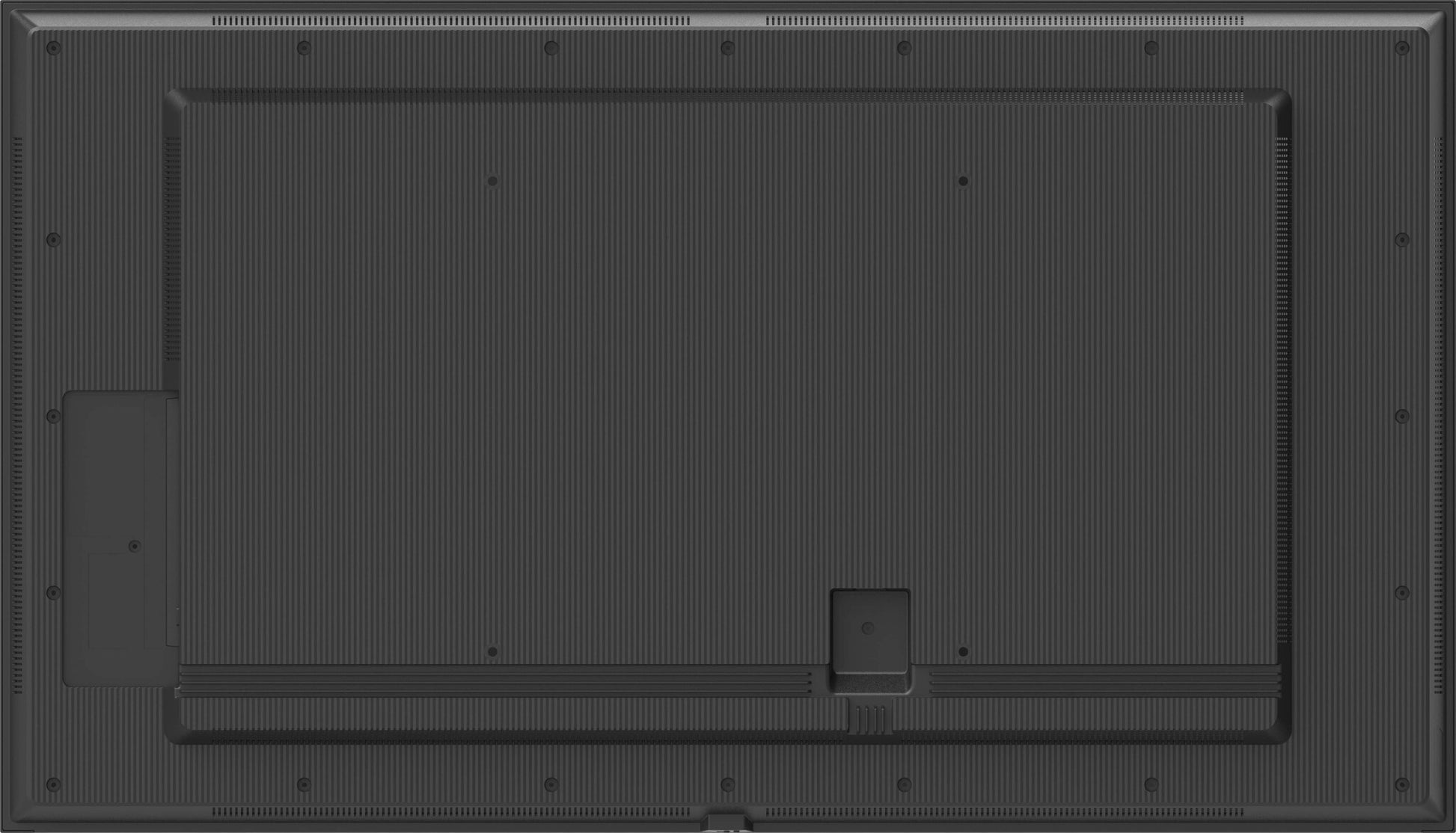

VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.28 cm
Bezel width (side)
1.28 cm
Bezel width (bottom)
1.28 cm
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages
15
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.0
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
135 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
135 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Built-in processor
Yes
Processor architecture
ARM Cortex-A73
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1238.4 mm
Display depth
70 mm
Display height
709.2 mm
Display weight
13 kg
Width
1238.4 mm
Depth
70 mm
Height
709.2 mm
Weight
13 kg
Packaging data
Package width
1390 mm
Package depth
144 mm
Package height
830 mm
Package weight
18.5 kg
Packaging content
Remote control included
Yes
Mounting kit
Yes

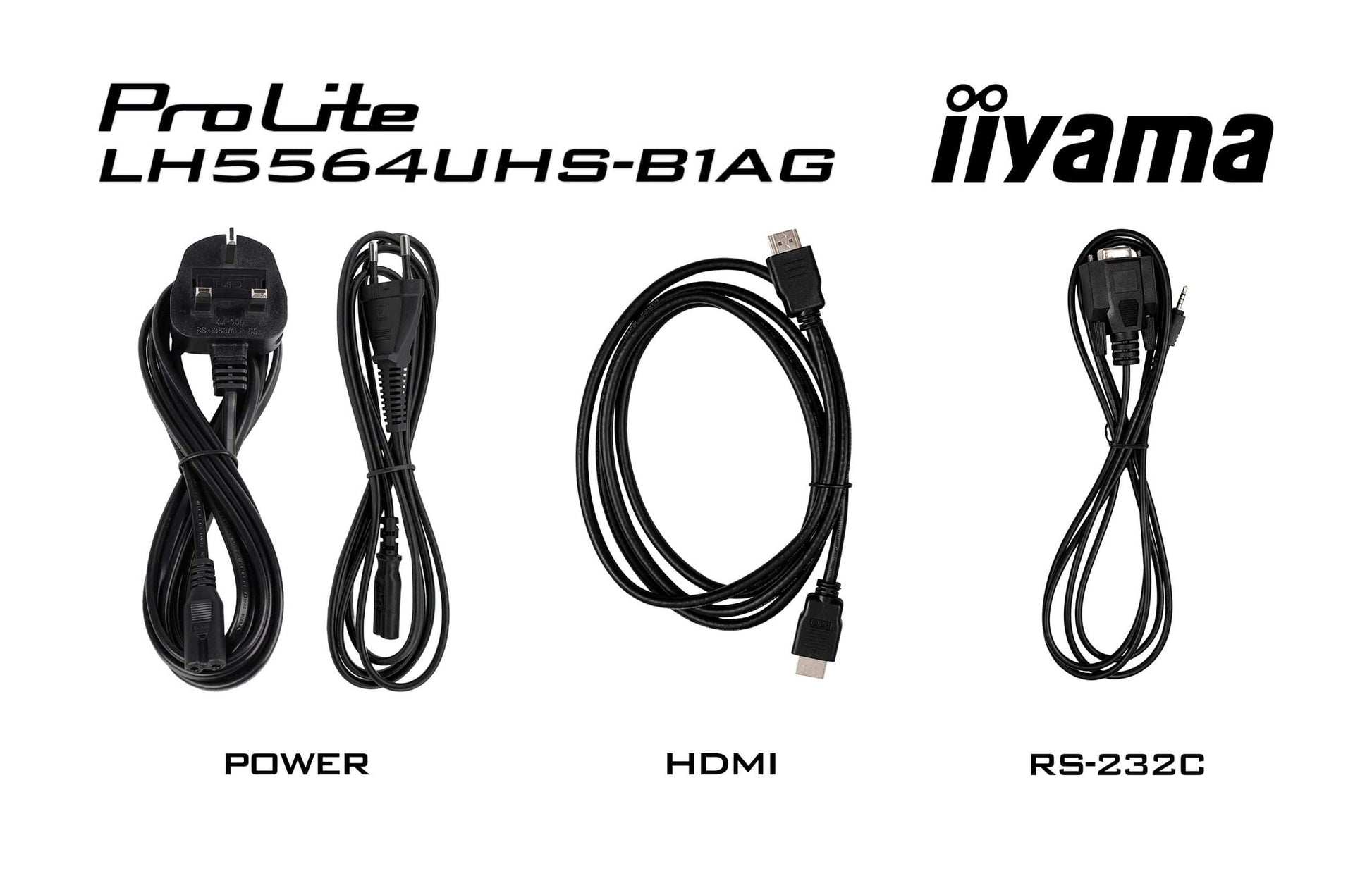

Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
ErP
User controls
network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Playback media
Y
Other features
Power supply type
Internal
Quick start guide
Yes
