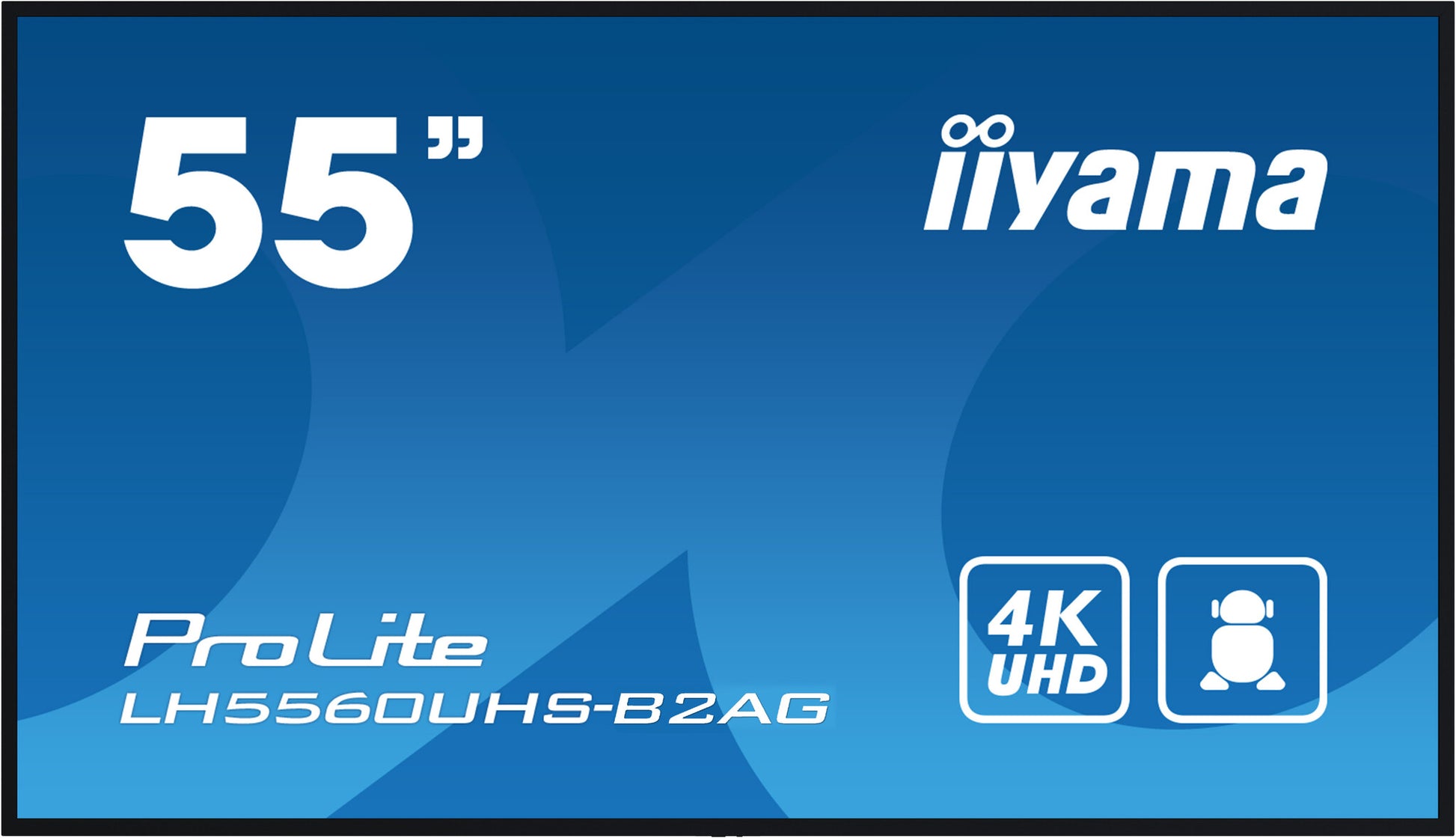

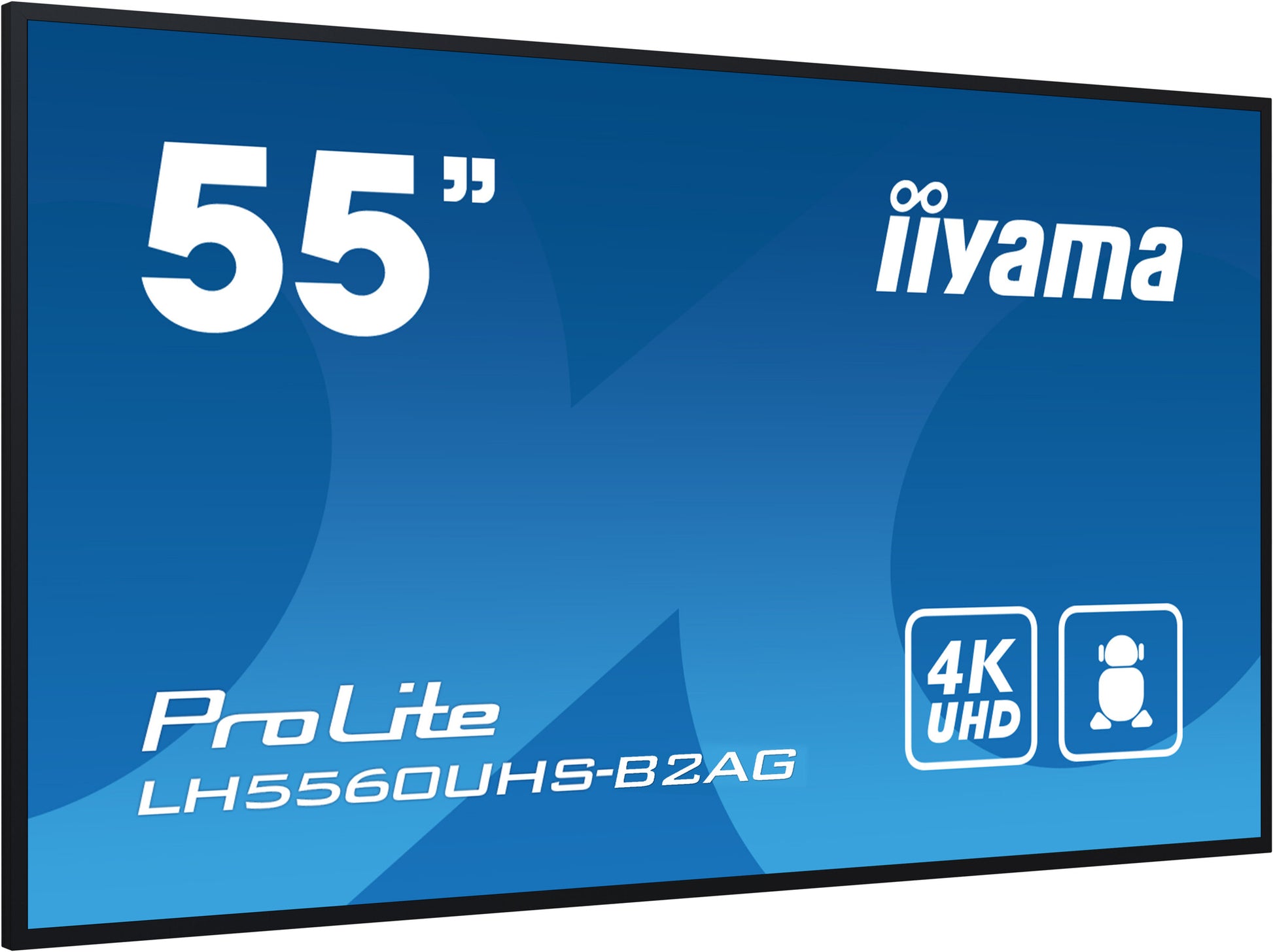

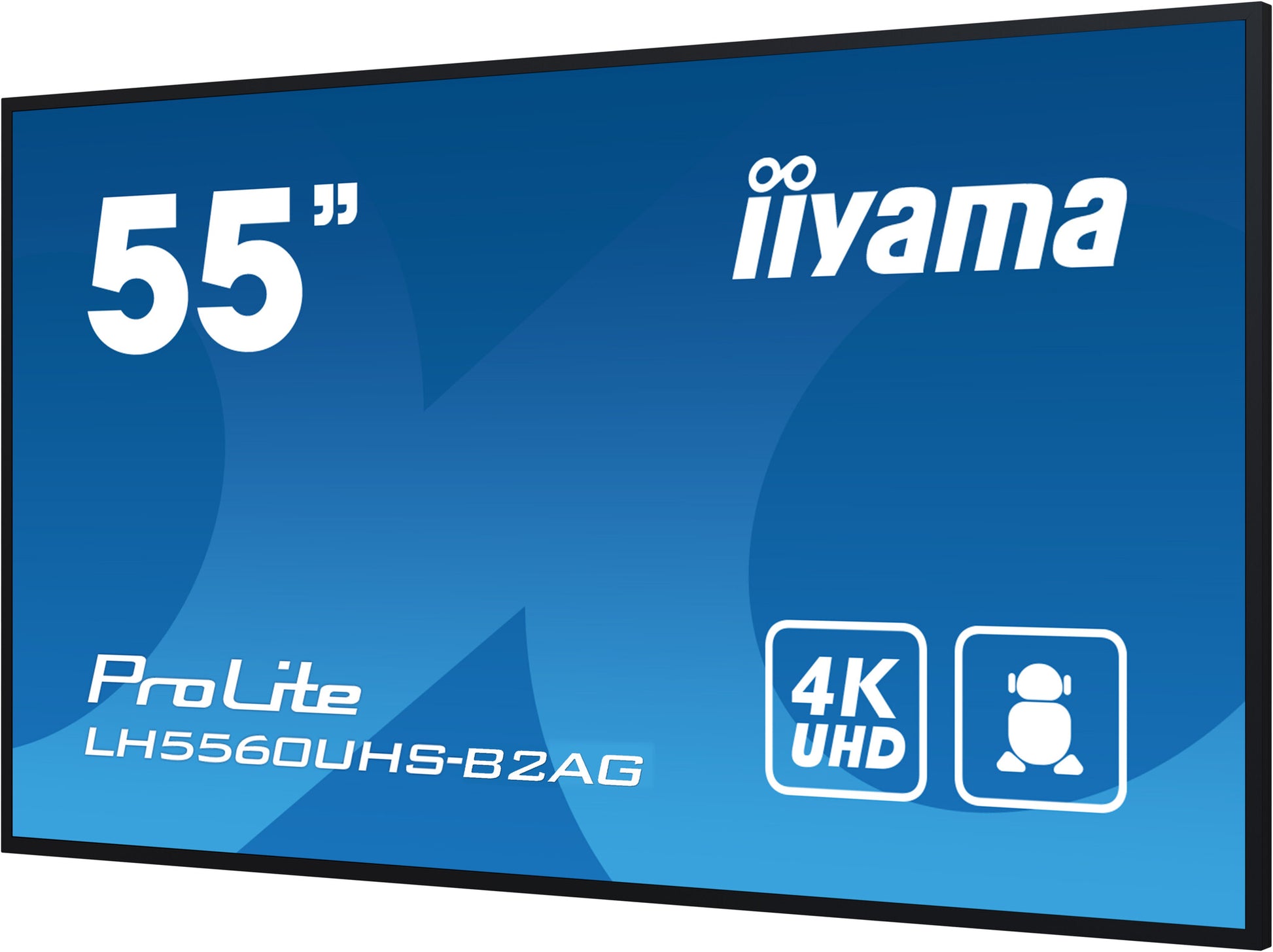

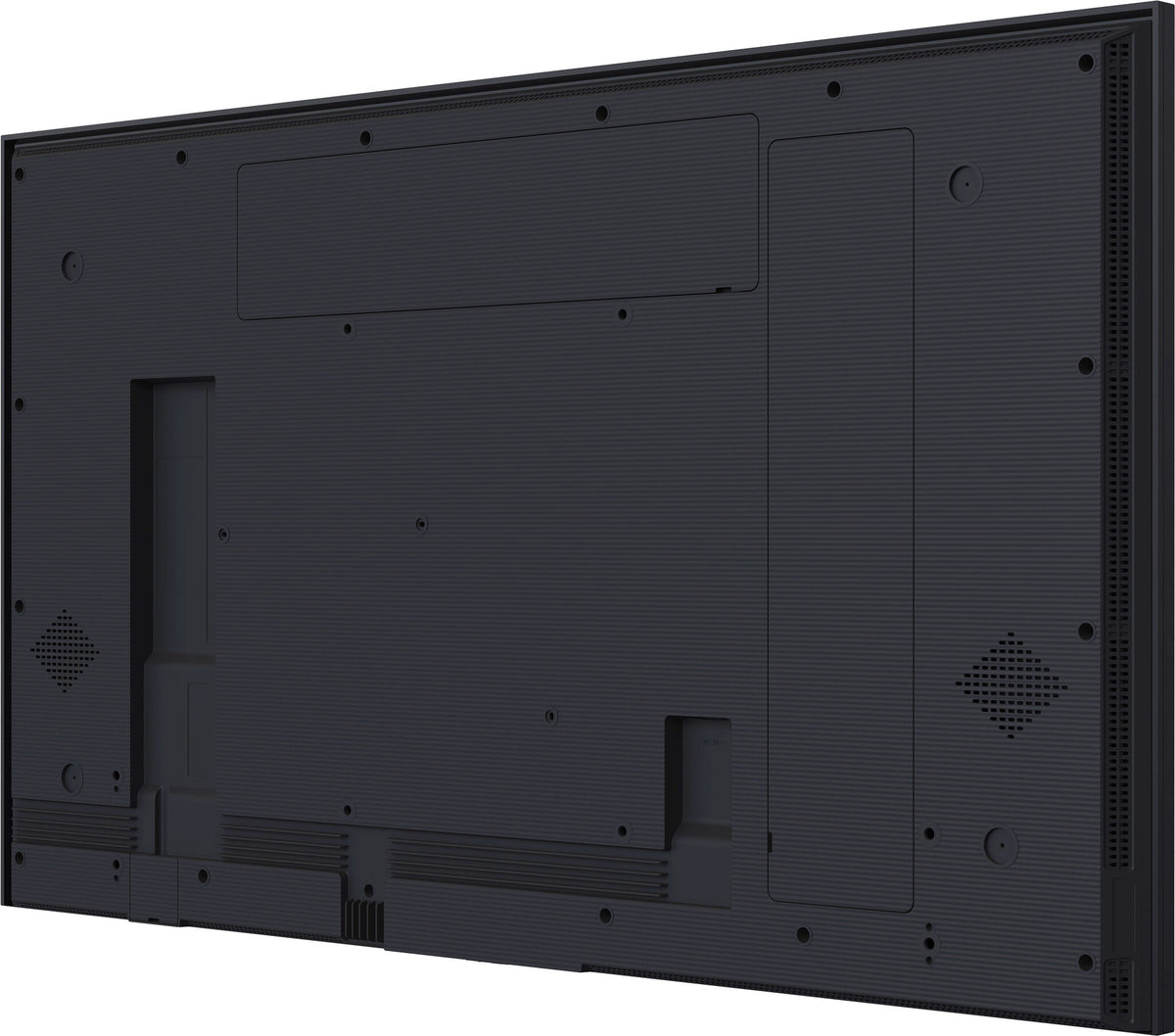

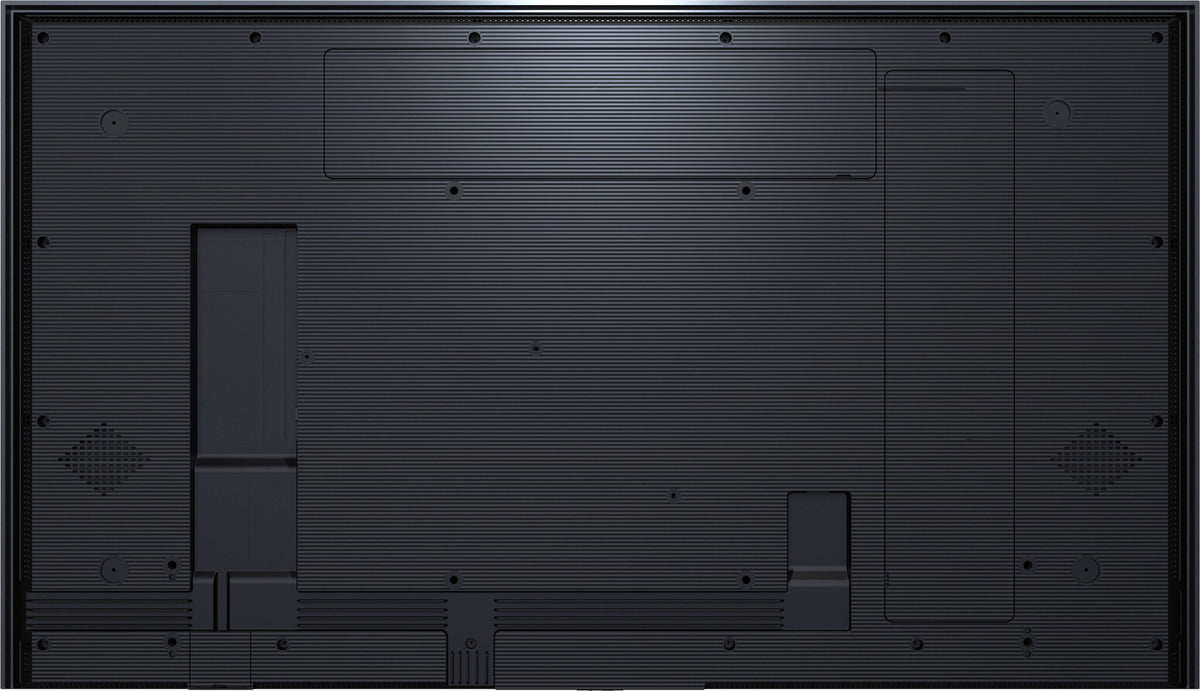

LH5560UHS-B2AG

55" 4K UHD professional digital signage display with advanced control and connectivity options

  • Indoor Digital A-board Black
  • 138.7 cm (54.6") 3840 x 2160 pixels LED 500 cd/m²
  • 60 Hz 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570125685
  • GTIN:4948570125685
  • MPN:LH5560UHS-B2AG

You need to login to view the price.

View full details

iiyama 55" 4K UHD professional digital signage display with advanced control and connectivity options. Product design: Digital A-board. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Elevate your visual communication with the LH5560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver, and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

Display
Display diagonal
138.7 cm (54.6")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.315 x 0.315 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
139 cm
Horizontal scan range
28 - 160 kHz
Surface hardness
3H
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

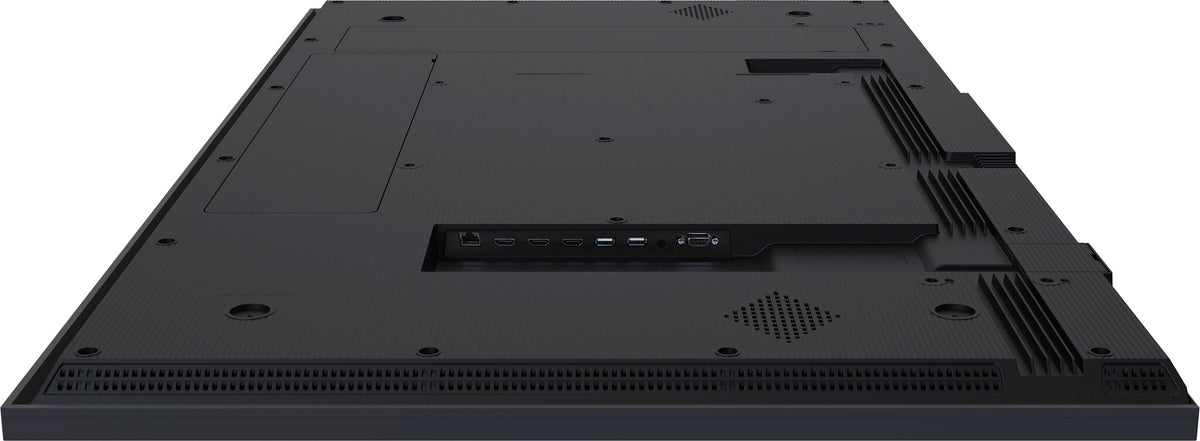

Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
DVI port
No
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
PC Audio in
Yes
RS-232 interface
Yes
RS-232C
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital A-board
Product colour
Black
Placement supported
Indoor

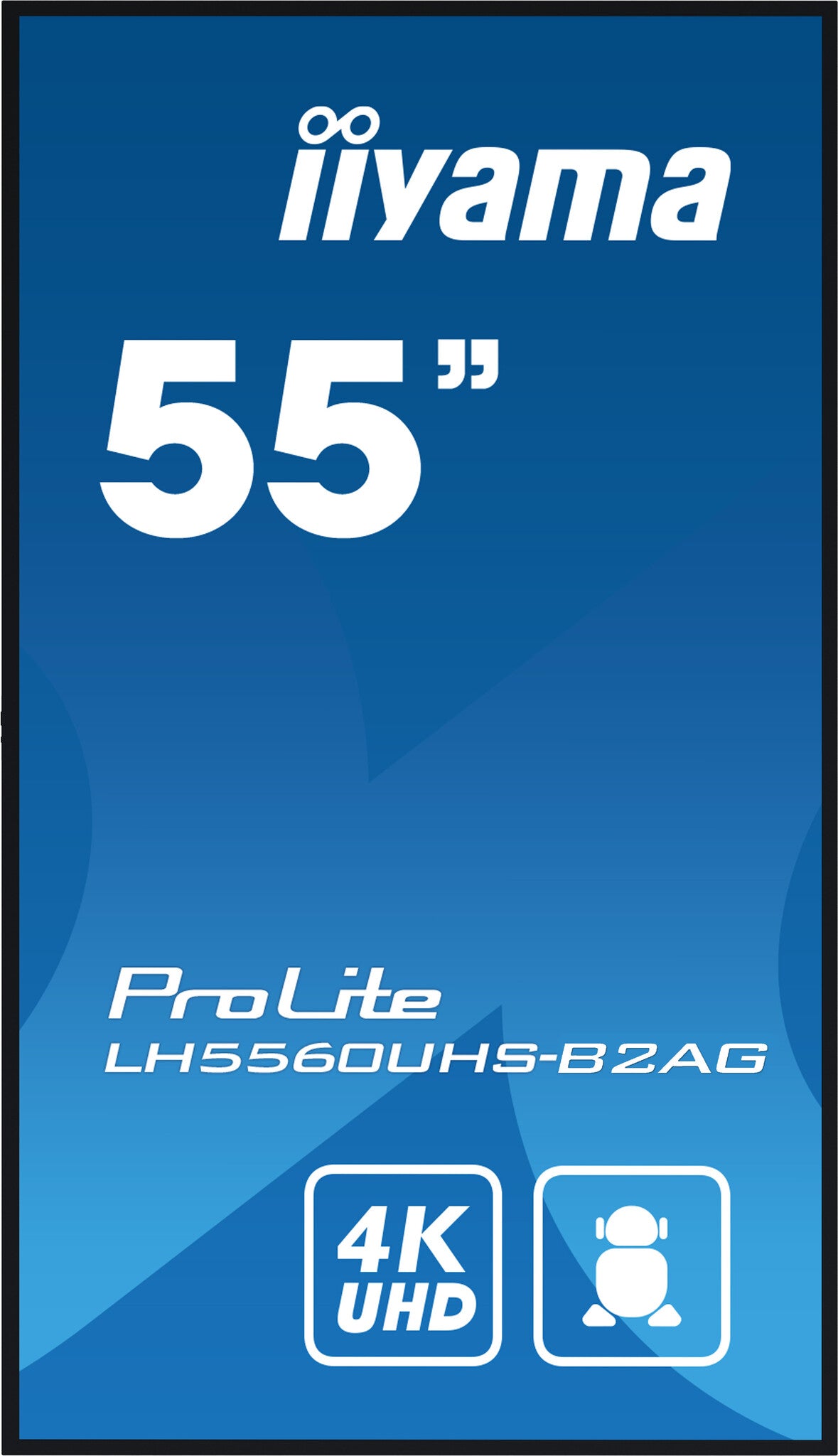

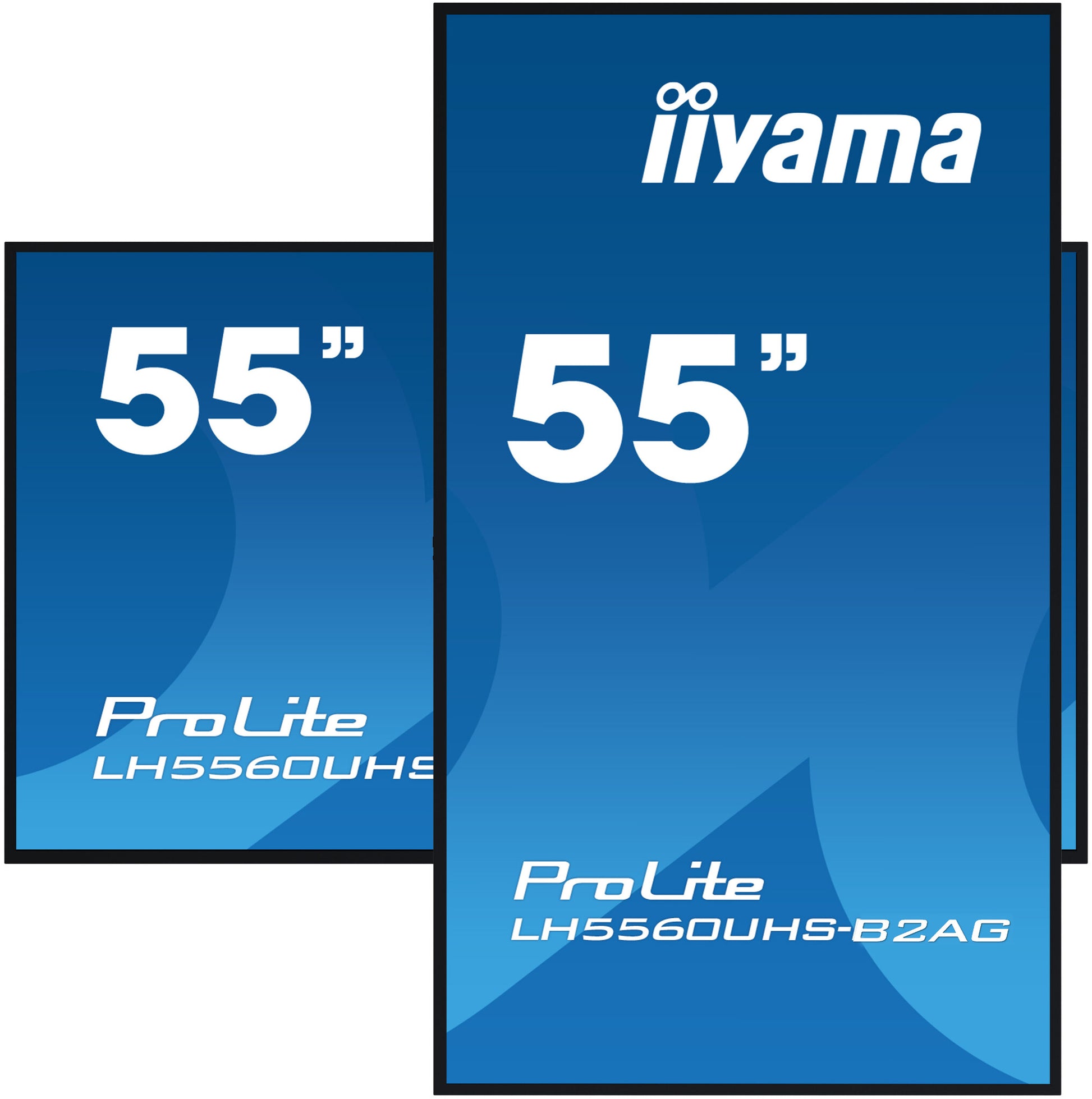

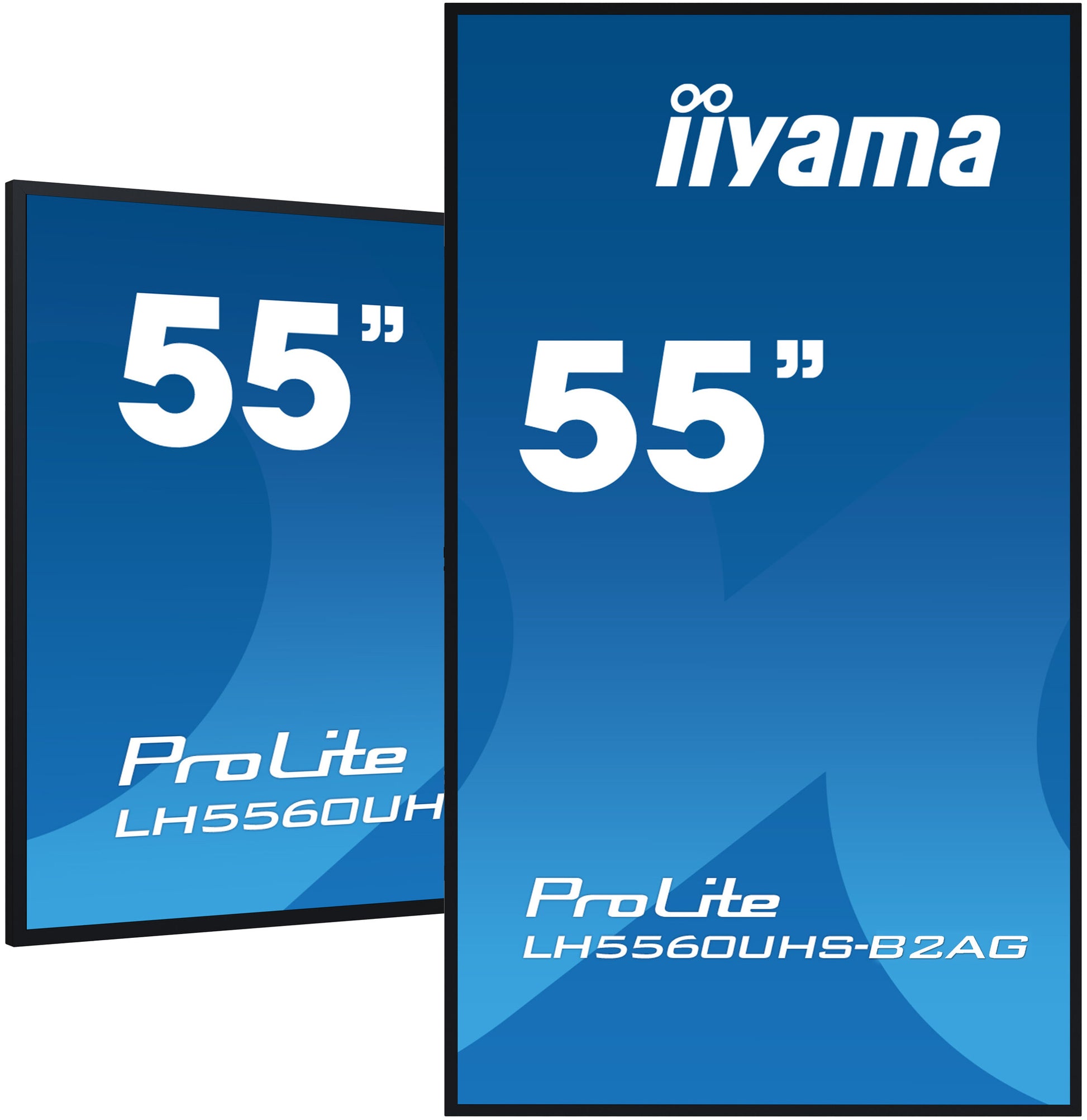

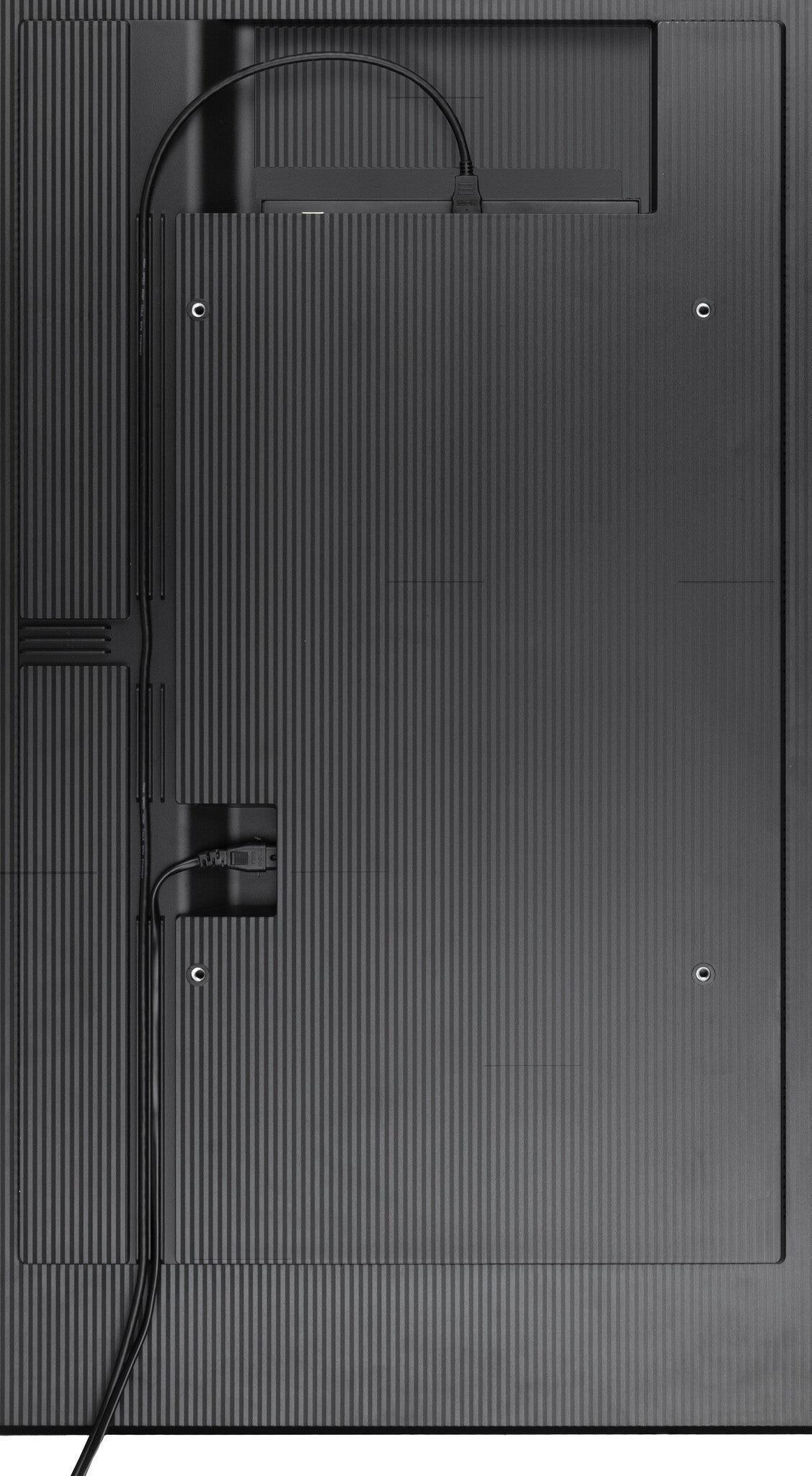

Orientation
Horizontal/Vertical

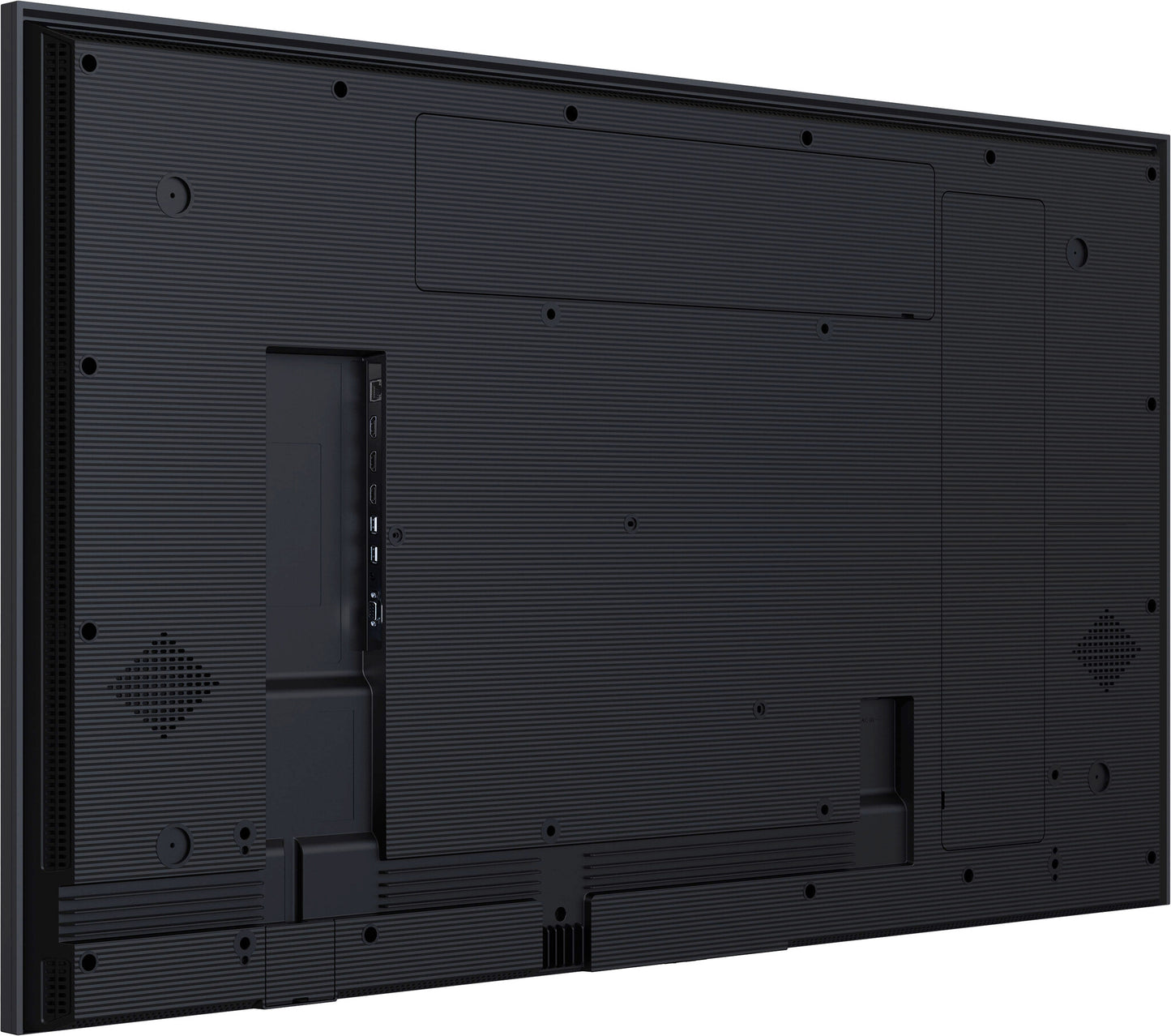

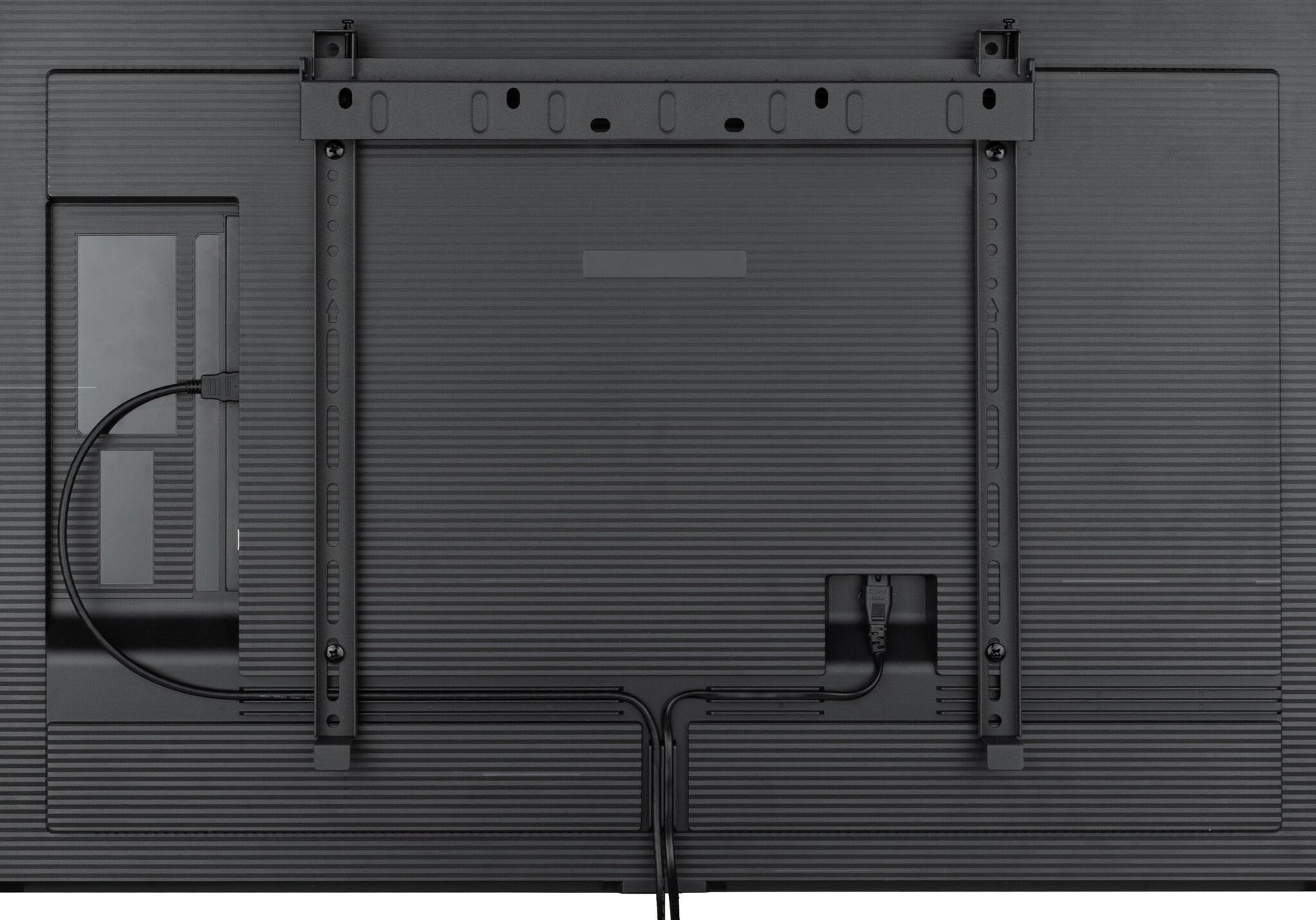

VESA mounting
Yes
Panel mounting interface
300 x 400 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.33 cm
Bezel width (side)
1.33 cm
Bezel width (bottom)
1.53 cm
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages
15
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
55 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
54.9 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
No
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A53
Processor model
A53
Processor cores
4
Internal memory
2 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
16 GB
Operating system installed
Android 11
Weight & dimensions
Display width
1239.7 mm
Display depth
38.6 mm
Display height
712.5 mm
Display weight
17.6 kg
Width
1239.7 mm
Depth
38.6 mm
Height
712.5 mm
Weight
17.6 kg
Packaging data
Package width
1390 mm
Package depth
136 mm
Package height
850 mm
Package weight
22.9 kg
Packaging content
Remote control included
Yes

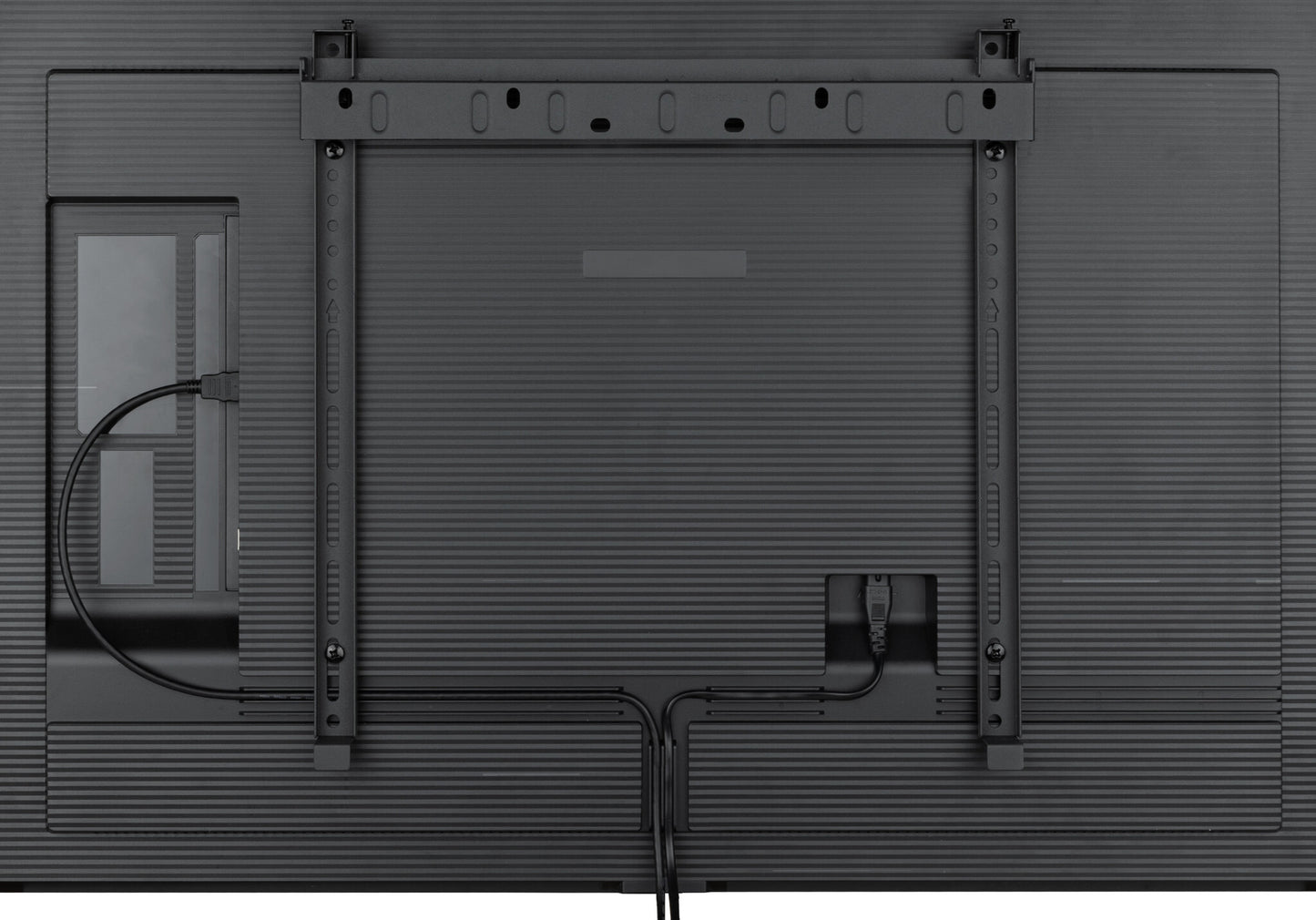

Mounting kit
Yes

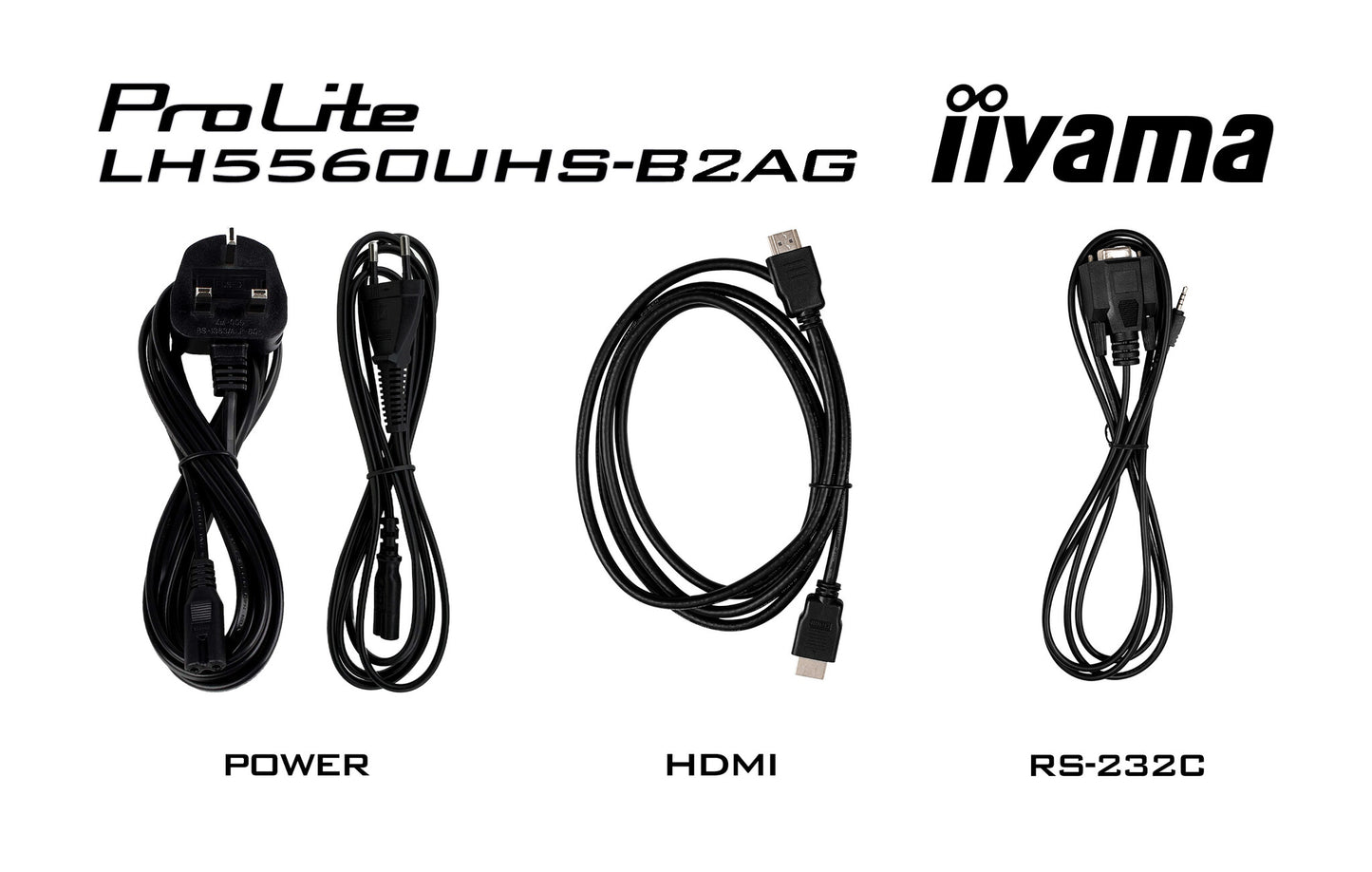

Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Features
Wall mountable
Yes
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
ErP
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Playback media
Y
Other features
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Quick start guide
Yes
