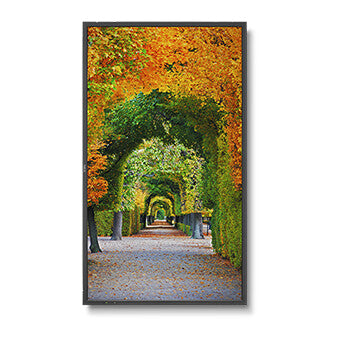

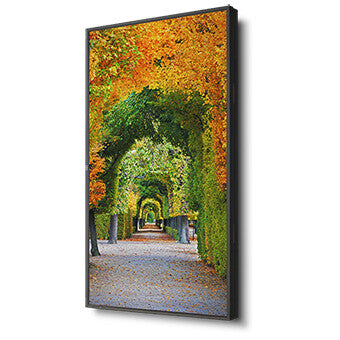

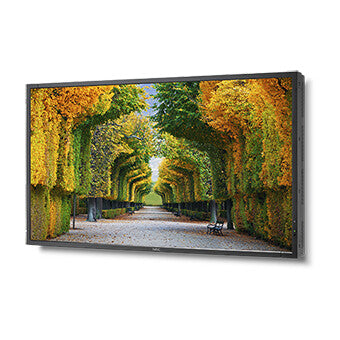

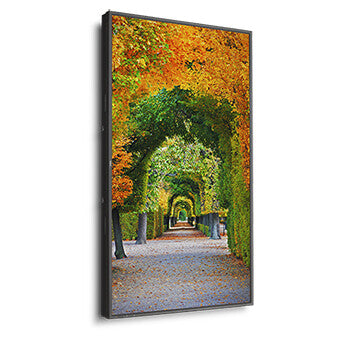

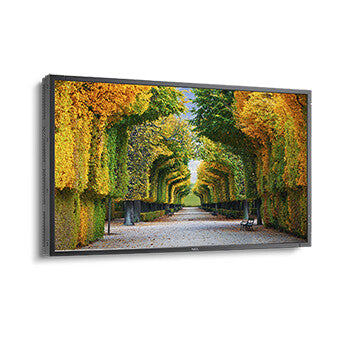

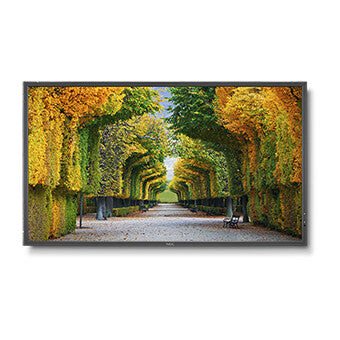

NEC 55" XHB-Series large format display, 2700cd/m², Direct LED backlight, 24/7 proof

NEC 55" XHB-Series large format display, 2700cd/m², Direct LED backlight, 24/7 proof

55" (140 cm) S-IPS Direct LED, 2700 cd/m2, 5000:1, 6 ms, 1920 x 1080, DVI-D x 2, HDMI, DisplayPort, VGA

  • High Brightness 2700 cd/m²
  • Digital signage flat panel Black
  • 139.7 cm (55") 1920 x 1080 pixels LED 2700 cd/m²
  • Direct-LED 6 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:MO/NEC/X/554HB
  • GTIN/EAN:
  • MPN:60003912

You need to login to view the price.

Add To Favorite
View full details

NEC MultiSync X554HB. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 2700 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Product colour: Black

The LED backlit 55" NEC X554HB offers superior brightness, extended runtimes and advanced engineering necessary for digital signage and messaging in high ambient light applications. This is the ideal display for window-facing retail signage where the sun may directly affect the fidelity of picture quality for a normal television or dimmer display. It can also be used for quick serve restaurant menuboard applications when coupled with a weatherproof type of enclosure. Direct LED backlighting combined with an integrated ambient light sensor allows for adaptable panel brightness depending on environmental conditions. This means that if the display senses higher lux during brighter hours of the day, the display will show a brighter image. At night when the ambient light is much less, the display will dim down, saving overall power consumption. Special quarter lambda polarizer is integrated onto the panel of this display that allows for the display to be seen in any type of orientation even when a customer is wearing polarized sunglasses. This display is the ideal solution for installations where high brightness is a necessity.

- Direct LED backlighting combined with an integrated ambient light sensor allows for adaptable panel brightness depending on environmental conditions. This means that if the display senses higher lux during brighter hours of the day, the display will show a brighter image. At night when the ambient light is much less, the display will dim down, saving overall power consumption.
- 2700cd/m² max brightness combined with full HD resolution will capture the attention of the audience in bright environments
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
- Built-in expansion slot supports the Open Pluggable Specification (OPS)
- Real-time clock has the ability to set schedules for on/off times 24/7
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Near field communication capabilities for setup and service. More information can be found here

Warranty: 3 years

Display
Horizontal scan range
31.5 - 91.1 kHz
Vertical scan range
50 - 85 Hz
Panel type
S-IPS
Display diagonal (metric)
138.78 cm
Active display area (W x H)
1209 x 680 mm
Pixel pitch
0.63 x 0.63 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
5000:1
Response time
6 ms
Native aspect ratio
16:9
HD type
Full HD
Display brightness
2700 cd/m²
Display resolution
1920 x 1080 pixels
LED backlighting type
Direct-LED
Display technology
LED
Display diagonal
139.7 cm (55")
Ports & interfaces
RS-232C
Yes
RS-232 interface
Yes
PC Audio in
Yes
Ethernet LAN data rates
100 Mbit/s
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB port
No
DisplayPorts quantity
2
VGA (D-Sub) input ports
1
DVI-D ports quantity
1
DVI port
Yes
HDMI ports quantity
1
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.95 cm
Bezel width (side)
1.95 cm
Bezel width (top)
1.95 cm
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Product colour
Black
Product design
Digital signage flat panel
Performance
HDCP
Yes
Operating hours (hours/days)
24/7
Ambient light sensor
Yes
Purpose
Universal
Power
AC input voltage
100 - 240 V
Power consumption (standby)
0.5 W
Power consumption (typical)
273 W
Weight & dimensions
Weight
32.6 kg
Height
724 mm
Depth
137 mm
Width
1253 mm
Packaging data
Package weight
42.2 kg
Package height
965 mm
Package depth
430 mm
Package width
1470 mm
Packaging content
Remote control included
Yes
Operational conditions
Non-operating altitude
5000 - 12192 m
Operating altitude
0 - 5000 m
Storage relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Algemeen
Productfamilie
MultiSync
Features
Harmonized System (HS) code
85285210
Technical details
Sustainability certificates
RoHS
Other features
Energy efficiency class (old)
D
Plug and Play
Yes
Annual energy consumption
399 kWh
Portrait mode
Yes
