55UH7Q-E

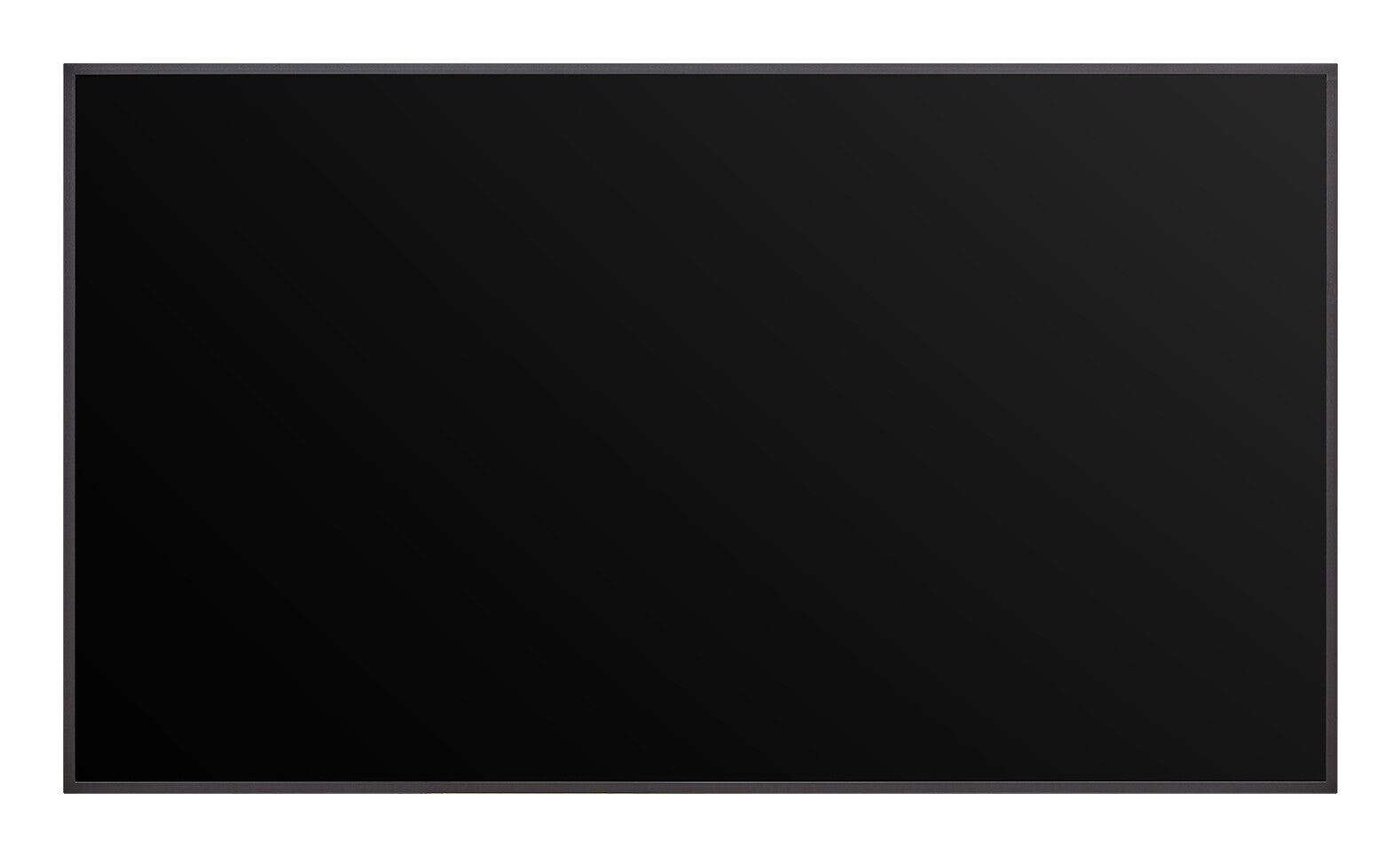

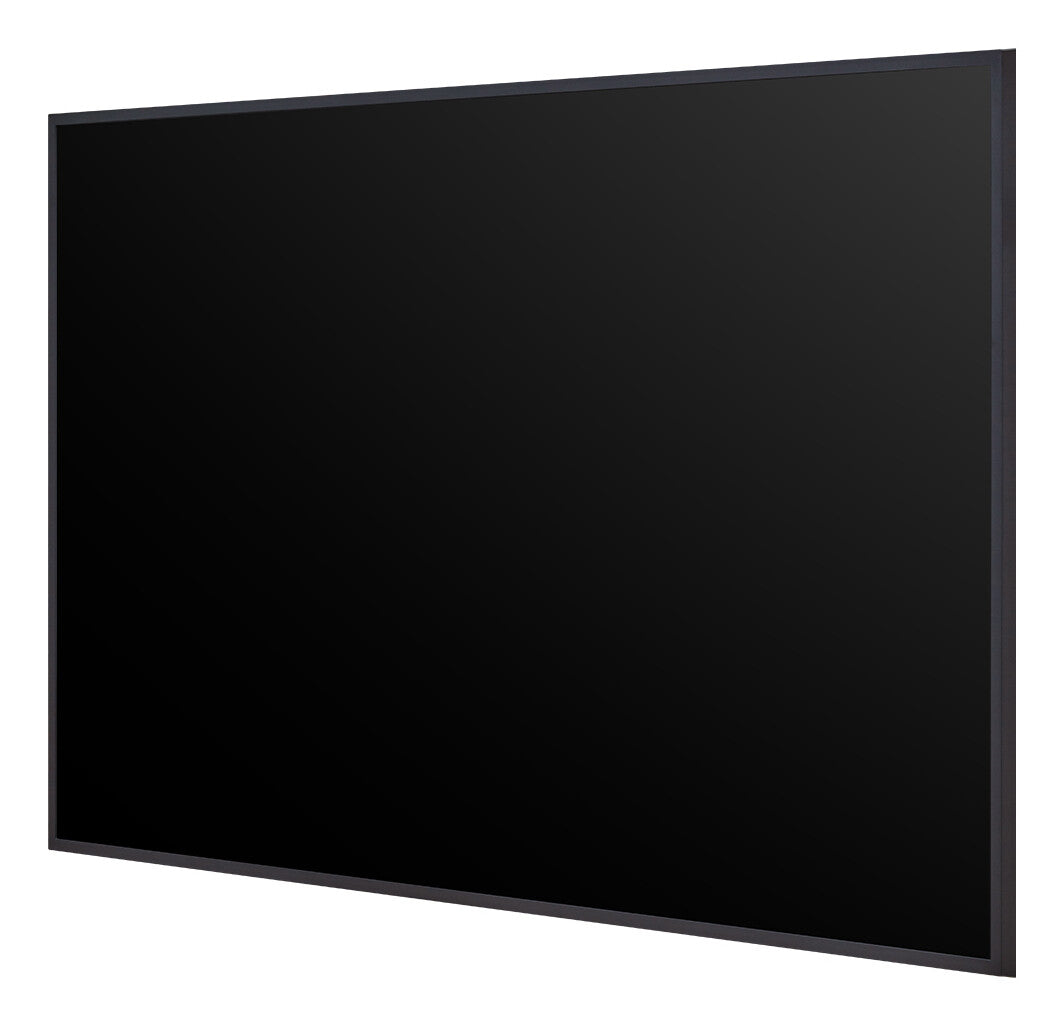

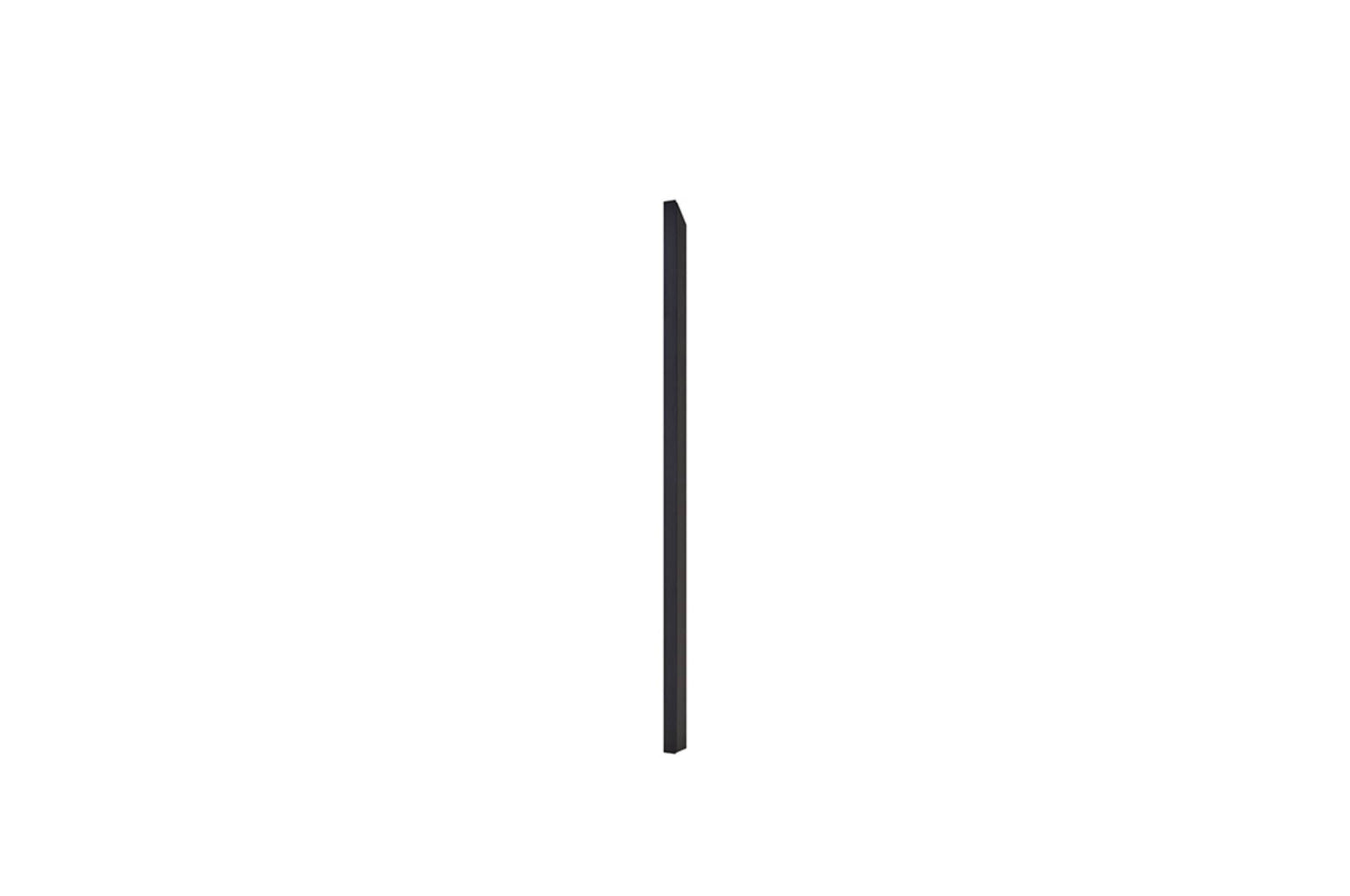

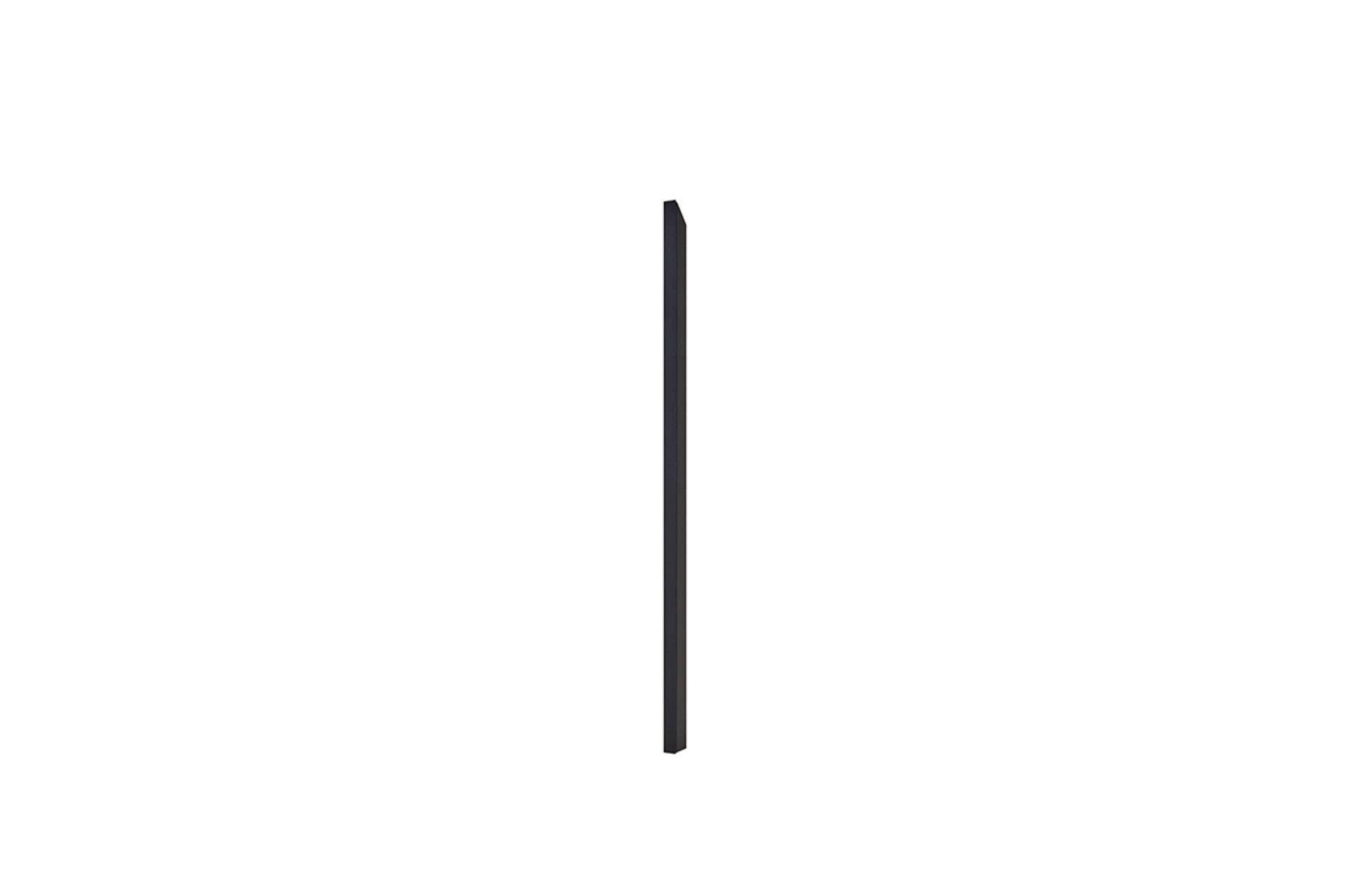

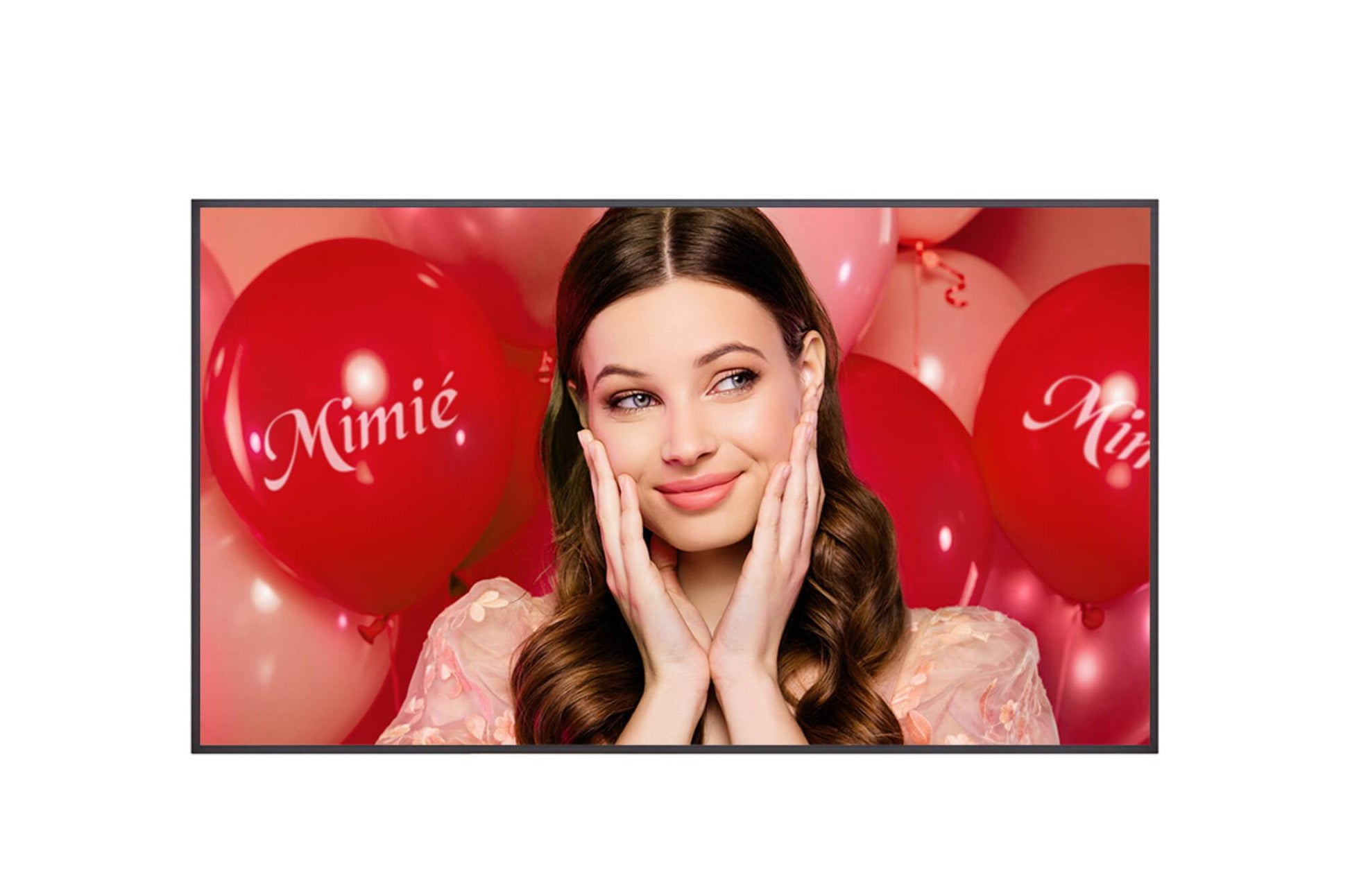

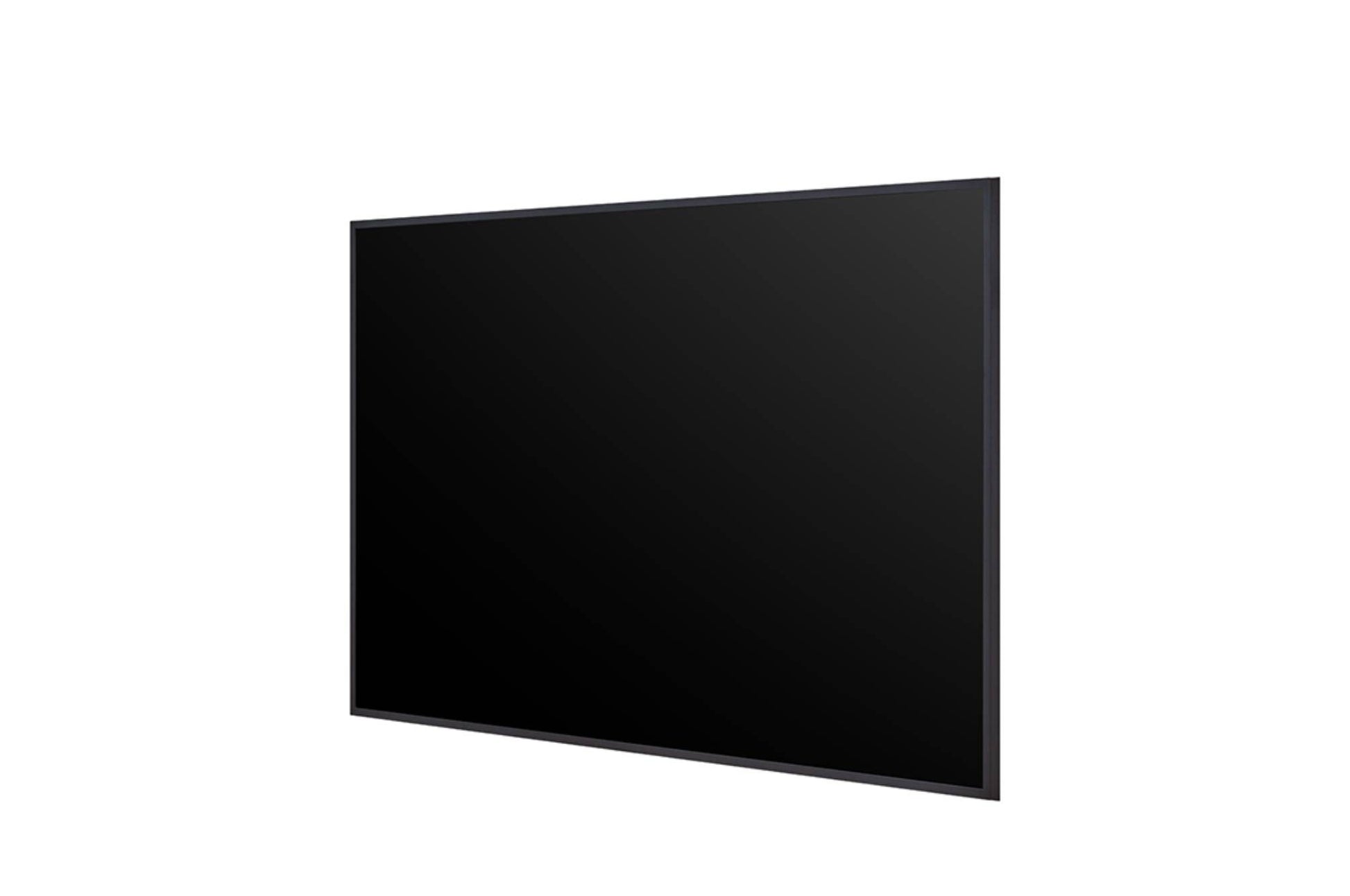

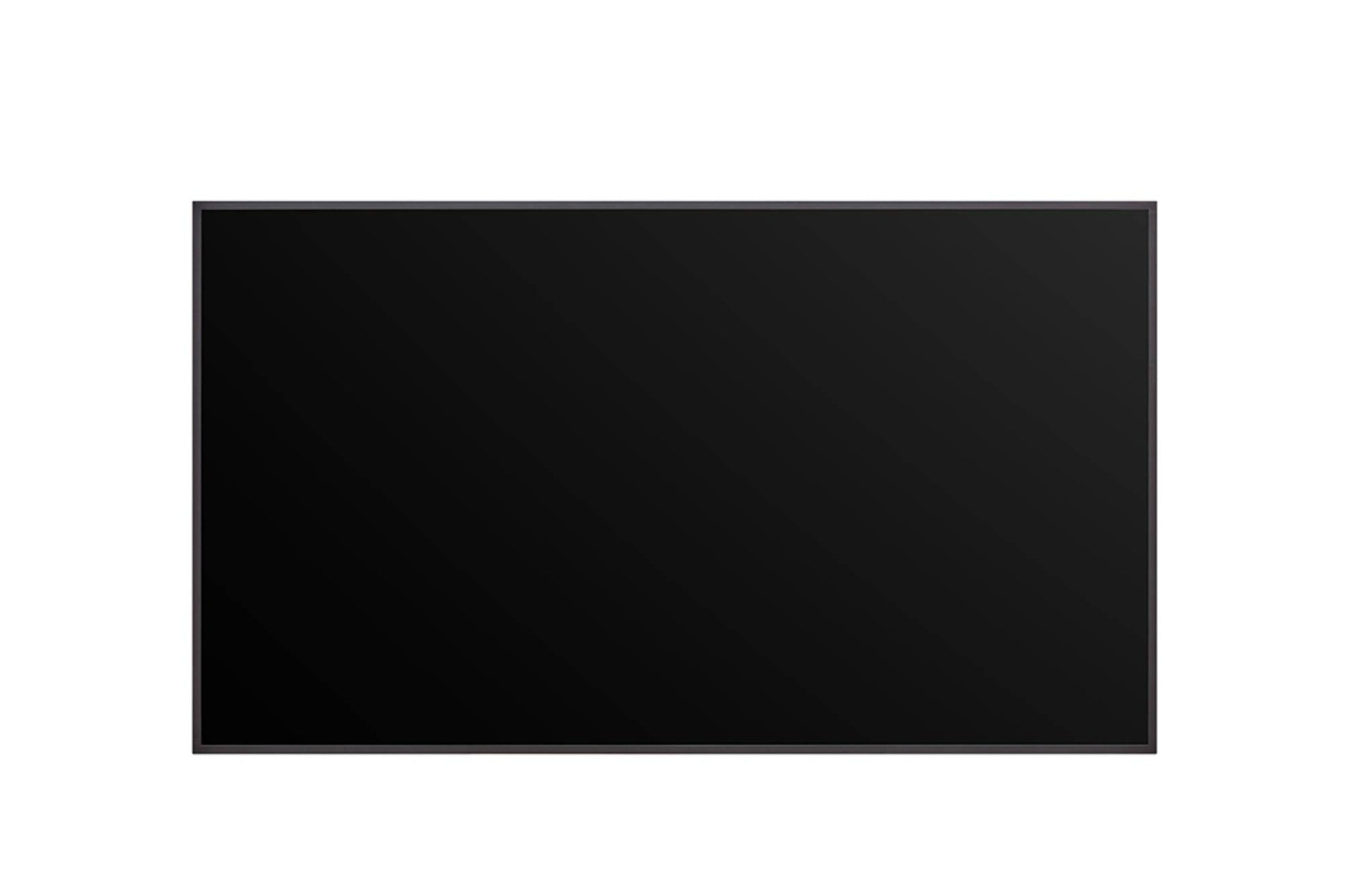

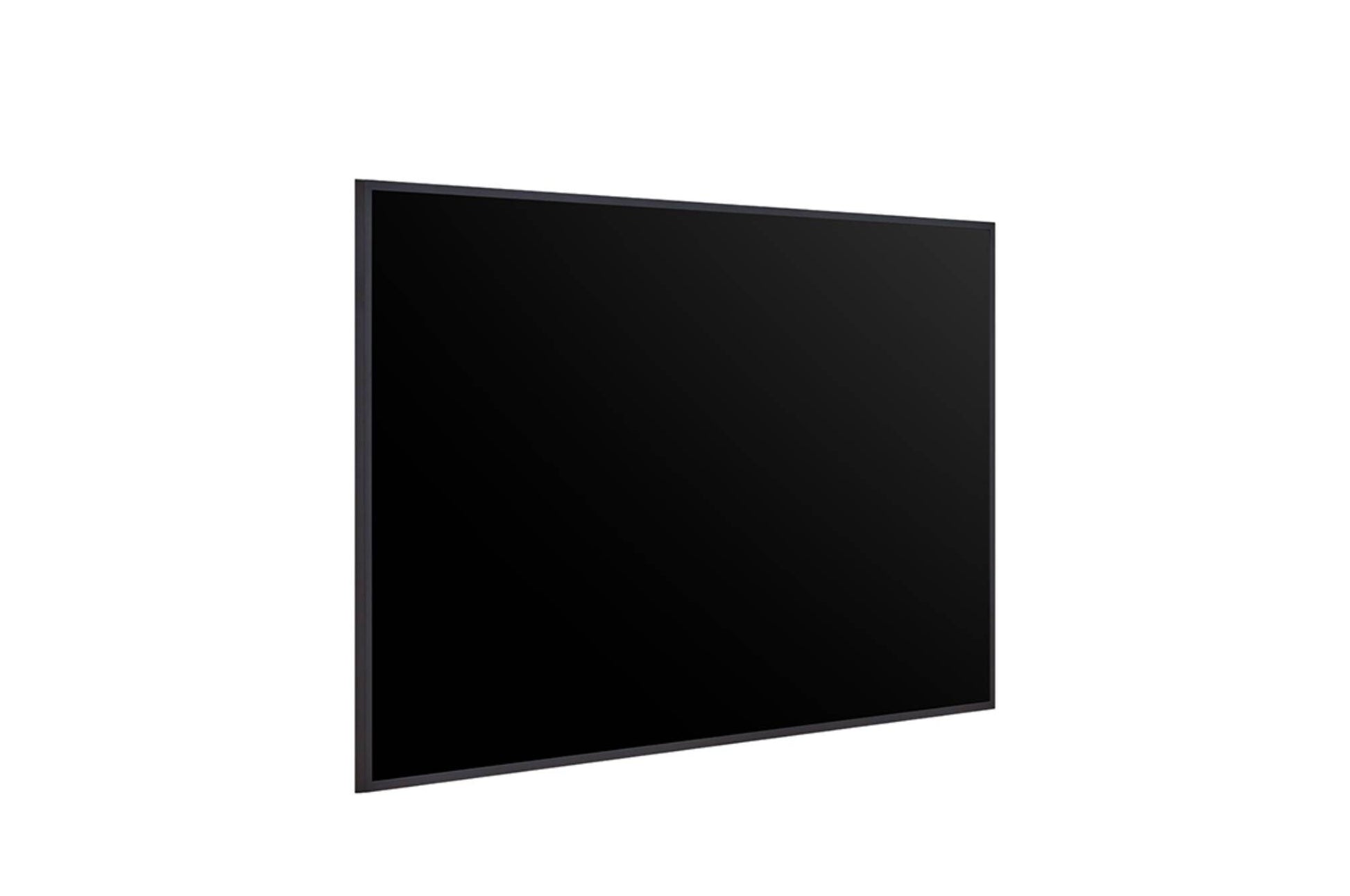

55-inch UHD 4K ADS commercial signage display rated for 24-7 operation with 700 nits brightness, 11.4 mm even bezel, and built-in webOS 8.0 smart platform.

  • 700-nit UHD 4K ADS panel delivers sharp, vivid content in brightly lit retail and corporate environments
  • Built-in webOS 8.0 SoC runs content natively — no external media player required
  • Slim 11.4 mm even bezel on all four sides suits landscape and portrait installations alike
  • IP5X dust-resistance rating and conformal power-board coating support reliable 24-7 continuous operation
  • LG Shield five-layer security protects the OS, applications, and hardware from unauthorised access
  • Compatible with LG SuperSign CMS and SuperSign Cloud for centralised multi-screen content management
  • SKU:8806096654583
  • GTIN:8806096654583
  • MPN:55UH7Q-E

You need to login to view the price.

View full details
BRIGHTNESS700 nits (Typ.)Typical
RUNTIME24-724 h x 7 days
VESA MOUNT300 × 300 mmVESA
ORIENTAIONLands./PortraitMounting
BEZEL WIDTH11.4 mmAll sides

Slim 55" UHD digital signage with built-in webOS

LG 55UH7Q-E

The LG 55UH7Q-E is a 55-inch UHD 4K commercial digital signage display built for demanding retail, corporate, and public-space environments. With a 700-nit ADS panel, it delivers vivid, detail-rich content even under the bright ambient lighting typical of high-street stores and showrooms. The integrated webOS 8.0 SoC eliminates the need for an external media player, while the slim 11.4 mm even bezel and hidden power inlet allow a near-flush wall installation. Rated IP5X for dust resistance and featuring conformal coating on the power board, the display is designed for reliable 24-7 continuous operation. LG Shield's five-layer security architecture and full compatibility with LG SuperSign CMS round out a versatile, enterprise-ready signage solution.

Built-in webOS 8.0 — No External Player Needed

Built-in webOS 8.0 — No External Player Needed

The 55UH7Q-E integrates a high-performance System-on-Chip running webOS 8.0 directly inside the display. This means no separate media player box, no extra cabling, and no additional power supply to manage. The platform includes local content scheduling, USB Plug & Play, Play via URL, Screen Share, PIP and PBP, Gapless Playback, and screen-rotation support. An intuitive UI, webOS partner-app ecosystem, and SI Server Setting make it straightforward to build custom signage workflows without third-party hardware. For an end user, this translates to a cleaner installation, fewer points of failure, and a display that can go live simply by connecting to a network and loading content.

700-Nit High Brightness for Bright Environments

700-Nit High Brightness for Bright Environments

At 700 nits (typical), the 55UH7Q-E sits well above the 350–450 nit range typical for consumer and entry-level commercial panels. The ADS (Advanced Super Dimension Switch) panel technology adds a wide 178° × 178° viewing angle, ensuring content stays readable and colour-accurate whether customers approach from the side or head-on. With 95% BT.709 colour gamut coverage and 1.07 billion colours, product imagery and brand graphics are rendered with the fidelity high-street retailers and showrooms require. This level of brightness makes the display suitable for locations with overhead spotlights, large windows, or other challenging lighting conditions — environments where lower-brightness panels simply wash out.

700 nits. Even 11.4 mm bezel. webOS 8 built in.

IP5X dust-rated · 24-7 operation · 50,000 hrs panel lifetime

Even 11.4 mm Bezel — Landscape and Portrait Ready

Even 11.4 mm Bezel — Landscape and Portrait Ready

The uniform 11.4 mm bezel is identical on all four sides, which is deliberately engineered for dual-orientation deployments. When the display is rotated from landscape to portrait — without any physical bezel adapters — the frame appears visually balanced regardless of orientation. This matters in retail and corporate fit-outs where displays are sometimes mixed in orientation within the same row or wall. The slim 29.7 mm overall depth and hidden power inlet allow a near-flush wall installation with as little as 13.5 mm of clearance behind the panel when using the optional slim bracket, keeping the overall aesthetic clean and minimising wall-protrusion.

IP5X Durability and 24-7 Rated Operation

IP5X Durability and 24-7 Rated Operation

The 55UH7Q-E carries an IP5X certification — meaning the enclosure is protected against dust ingress at a level suitable for commercial environments such as airports, transport hubs, production floors, or any location where airborne particulate is a concern. In addition, the power board receives conformal partial coating, protecting it against salt, iron powder, and humidity — a meaningful safeguard in coastal retail locations or humid back-of-house environments. With a rated 50,000-hour panel lifetime and a 24-7 operation class, the display is built to run continuously without the duty-cycle restrictions that would apply to a consumer screen. This directly reduces the risk of unplanned downtime and unscheduled service calls.

LG Shield — Five-Layer Enterprise Security

LG Shield — Five-Layer Enterprise Security

LG Shield goes beyond standard OS-level antivirus by implementing a five-tiered security architecture covering hardware, system, operating system, application, and server layers — each operating independently. The webOS platform also supports ETSI EN 303 645, the internationally recognised IoT cybersecurity standard. For organisations operating in regulated industries (retail banking, healthcare, government), this provides a defensible security posture without the need to add third-party endpoint-security software to the signage stack. Pro:Idiom encryption support further safeguards premium content delivery. In practice, this means the display can be confidently deployed on corporate or public networks without creating an unsecured endpoint.

Remote Monitoring and SuperSign CMS Integration

Remote Monitoring and SuperSign CMS Integration

The 55UH7Q-E is fully compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+, and LG ConnectedCare, giving operators a range of cloud and on-premise content management and remote monitoring options. The built-in Control Manager allows real-time monitoring, setting adjustments, and remote control from any networked mobile device or PC — including access to historical status data. Wake on LAN, SNMP, Status Mailing, Auto Set ID, and Cisco-certified and Crestron-Connected compatibility mean the display slots naturally into existing AV and IT management infrastructures. For multi-screen deployments, Tile Mode (up to 15 × 15 matrix), Local Network Sync, and Setting Data Cloning reduce commissioning time significantly.

Failover and Reliable Continuous Playback

Failover and Reliable Continuous Playback

The 55UH7Q-E includes a built-in Failover function that automatically switches to a backup content source — such as a connected USB drive or a secondary network source — if the primary content stream is interrupted. Paired with Gapless Playback and Booting Logo Image support, the display maintains a professional appearance even during unexpected network disruptions. No Signal Image prevents a blank or blue screen from showing when an input source is lost. Together, these features are particularly relevant for mission-critical deployments — digital menu boards, transport information screens, or financial services displays — where any visible interruption to content reflects directly on the brand.

Display23 specifications
Display diagonal55"
Panel technologyADS
Backlight typeEdge
Aspect ratio16:9
Native resolution3840 x 2160 (UHD)
Refresh rate60 Hz
Brightness700 nit (Typ.)
Contrast ratio1,200:1 (Typ.)
Dynamic contrast ratio1,000,000:1
Color gamutBT709 95%
Viewing angle (H x V)178° x 178°
Color depth1.07 Billion colors
Response time (G to G)8 ms
Surface treatment (haze)25% (Typ.)
Life time (min.)50,000 Hrs
Operation hours24 / 7
Portrait / landscapeYes / Yes
TransparencyNo
Touch overlay compatibilityNo
Screen diagonal138.8 cm
Visible screen area82.3 dm²
Colour depth1.07 billion colours (8-bit + FRC)
Panel lifetime (min.)50,000 h
Ports & interfaces20 specifications
HDMI inputs3 (3,840 x 2,160 @ 60 Hz, HDCP 2.2/1.4)
DisplayPort input1 (3840 x 2160 @ 60 Hz, HDCP 2.2/1.4)
DVI-D inputNo
RGB inputNo
Audio inputNo
RS-232C inputYes (4 pin phone jack)
RJ45 (LAN) input1
IR inputYes (5 pin phone jack / supports internal IR)
USB ports2 x USB 2.0 Type-A
HDMI outputNo
DisplayPort outputNo
Audio outputYes
RS-232C outputYes (4 pin phone jack)
RJ45 (LAN) outputNo
IR outputNo (IR daisy chain via RS-232C in/out supported)
Touch USBNo
External speaker outputNo
Daisy chainNo
HDMI HDCP versionHDCP 2.2/1.4
OPS slot compatibleNo
Audio2 specifications
Built-in speakers2 x 10 W
Speaker20 W (10 W × 2)
Design7 specifications
Bezel colourBlack
Bezel width11.4 mm (even)
HandleNo
Built-in fanNo
Power indicatorNo
VESA mount300 x 300 mm
Tilt (face down)Max. 15 degree (40℃ temperature)
Computer system2 specifications
Operating systemwebOS 8.0
Internal memory (eMMC)16 GB
Network4 specifications
Wi-Fi / Bluetooth (built-in)Yes
Wake on LANYes
SNMPYes
Network readyYes
Power13 specifications
Power supplyAC 100-240 V, 50/60 Hz
Power typeBuilt-in power
Power consumption (typical)101 W
Power consumption (max.)152 W
Smart energy saving (70%)71 W
DPM0.5 W
Power off0.5 W
Heat dissipation345 BTU/Hr (Typ.), 520 BTU/Hr (Max.)
Standby power0.5 W
Networked standby power2.0 W
On-mode power SDR101 W
Energy efficiency class (SDR)G
Energy efficiency scaleA to G
Weight & dimensions2 specifications
Dimensions (W x H x D)1240.1 x 711.9 x 29.7 mm
Weight (head)14.3 kg
Packaging data2 specifications
Carton Dimensions (W x H x D)1360.0 x 810.0 x 152.0 mm
Packed Weight18.1 kg
Packaging content2 specifications
Included accessoriesRemote controller (incl. 2 batteries), power cord, QSG, regulation book, phone to RS-232C gender, cable holder (for power cord), IR/light sensor receiver (EU/EK only), magnetic sheet 2 ea (EU/EK only)
Optional accessoriesSlim wall mount WB21LMA/B, normal wall mount OLW480A/B, IR/light sensor receiver ACC-L
Operational conditions3 specifications
Operating temperature0 °C to 40 °C
Operating humidity10% to 80%
IP ratingIP5X
Certificates4 specifications
SafetyCB / NRTL
EMCFCC Class B / CE / KC
ErP / Energy StarYes / Yes
ePEAT (US only)Yes
Other features47 specifications
Temperature sensorYes
Auto brightness sensorYes (IR/light sensor receiver, in-box for EU)
Acceleration (gyro) sensorYes
Pixel, proximity, current, BLU, humidity sensorsNo
Local key operationYes
Conformal coating (power board)Yes (partial space coating)
Shock monitoringYes
LG ShieldFive-tiered defense system (server, application, OS, system, hardware)
PIP / PBPYes / Yes (4 PBP)
Video tagYes (4)
Tile modeYes (max. 15 x 15)
Screen shareYes
Fail overYes
Local contents schedulingYes
Group managerYes
USB plug & playYes
Booting logo imageYes
No signal imageYes
RS-232C syncYes
Local network syncYes
Play via URLYes
Screen rotationYes
External input rotationYes
Gapless playbackYes
Setting data cloningYes
Control ManagerYes
Status mailingYes
ISM methodYes
Auto set IDYes
BeaconYes
webRTCYes
SI server settingYes
Smart energy savingYes
PM modeYes
HDMI-CECYes
Crestron connectedYes
Cisco certificationYes
Pro:IdiomYes
Compatible softwareSuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, LG ConnectedCare, Mobile CMS
OSD languagesEnglish, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
Brightness CompensationNo
W/B Setting by Grey scaleNo
Scan InversionNo
PromotaNo
Minimum guaranteed software/firmware updates8 years
Minimum guaranteed spare parts availability8 years
EAN8806096654583

Specifications are checked against the manufacturer's documentation where available.
