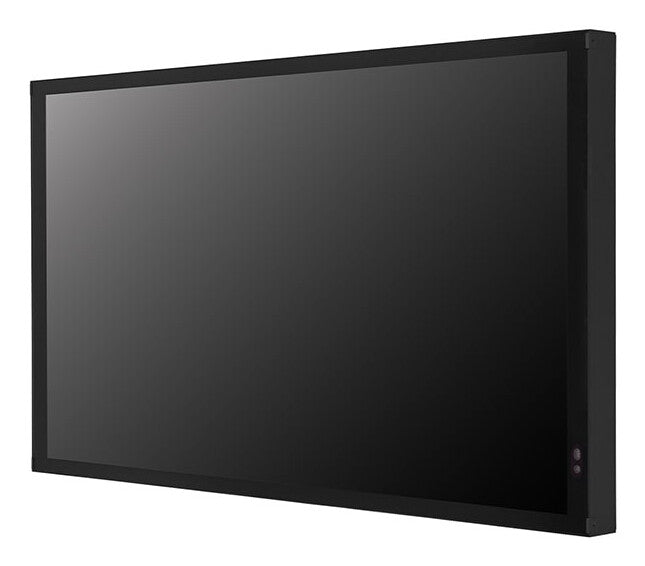

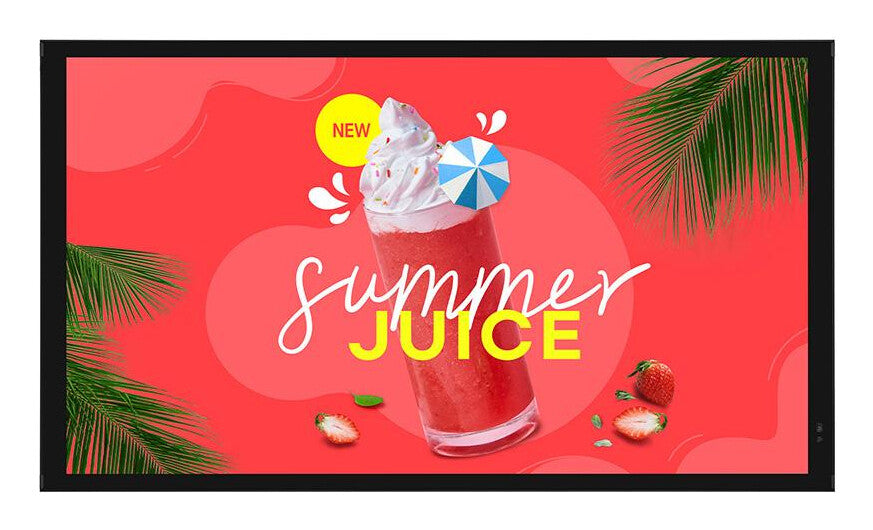

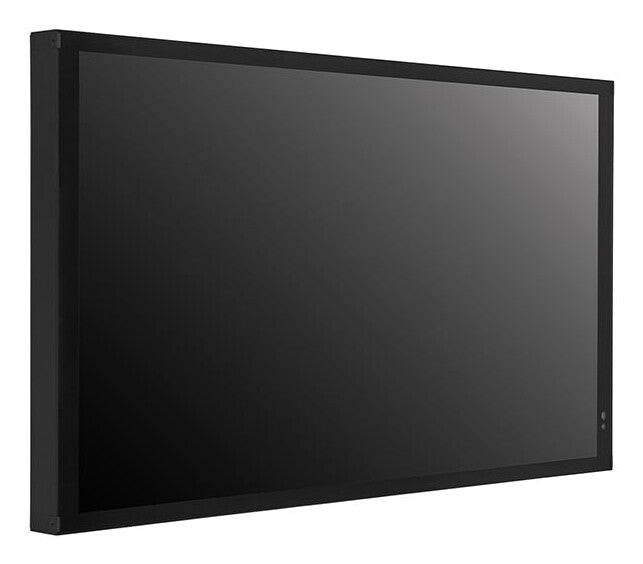

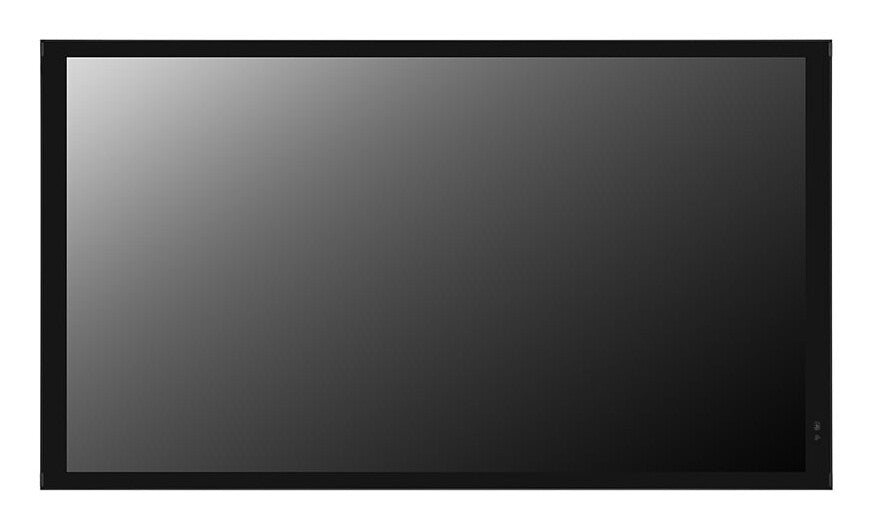

LG 55XE3P-B

LG 55XE3P-B

High-brightness IP-rated Outdoor Display, 55", 1920x1080 (FHD), 24/7, eMMC 16GB, webOS6.1, Max 430W, IP56

  • UL Verified Display Anti-discoloration characteristics
  • Resolution : 1,920 × 1,080 (FHD)
  • Brightness : 3,500 nits (Typ.), 2,800 nits (Min.)
  • Portrait / Landscape
  • SKU:8806096228876
  • GTIN/EAN:8806096228876
  • MPN:55XE3P-B

You need to login to view the price.

View full details

LG 55XE3P-B. Product design: Interactive flat panel. Display diagonal: 139.7 cm (55"), Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

IP-rated Outdoor Display
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.

LG Anti-Discoloration
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.

World’s First UL Verified Display for Anti-Discoloration Characteristics
Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.

IP56 Rated Reliability
The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.

IK10 Protective Glass
The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.

Wide Range of Operating Temperature
The XE3P can be used under a wide range of operating temperature from -30℃ to 50℃.

Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.

Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.

Easy Energy Management
The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.

Built-in Wi-Fi & Bluetooth
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.

Vandalism Alert
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.

Easy Installation
For easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.

High-performance with webOS 6.1
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.

Web Monitoring
The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Professional Content Partners
Pairing the XE3P with LG SW solutions* would enhance its utilization.

Display
Haze rate
3%
Panel type
IPS
Touch response time
8 ms
Native refresh rate
60 Hz
Glass thickness
5 mm
Panel life
50000 h
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
500000:1
Contrast ratio (typical)
1000:1
Response time
9 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
Full HD
Display brightness
3500 cd/m²
Display resolution
1920 x 1080 pixels
LED backlighting type
Direct-LED
LED backlight
Yes
Display diagonal
139.7 cm (55")
Ports & interfaces
RS-232 interface
Yes
Number of speaker outputs
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
HDMI input ports quantity
2
HDMI ports quantity
2
Audio
Sound pressure level
62 dB
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Orientation
Horizontal/Vertical
Placement supported
Outdoor
Product colour
Black
Product design
Interactive flat panel
Performance
HDCP
Yes
HDCP version
2.2
International Protection (IP) code
IP56
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
22
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Purpose
Commercial
Power
Heat dissipation
1126 BTU/h
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Power consumption (off)
0.5 W
Power consumption (max)
430 W
Power consumption (typical)
160 W
Computer system
Operating system version
6.1
Operating system installed
WebOS
Weight & dimensions
Base width
3.84 cm
Display weight
31.2 kg
Display height
737.4 mm
Display depth
88 mm
Display width
1292.5 mm
Packaging data
Package height
890 mm
Package depth
207 mm
Package width
1446 mm
Packaging content
Cables included
HDMI, Power
Remote control included
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 100%
Operating temperature (T-T)
-30 - 50 °C
Battery
Battery system included
Yes
Features
Heat dissipation (max)
1365 BTU/h
Technical details
Internal memory
16000 MB
Introduction year
2024
Other features
USB connector type
USB Type-A
