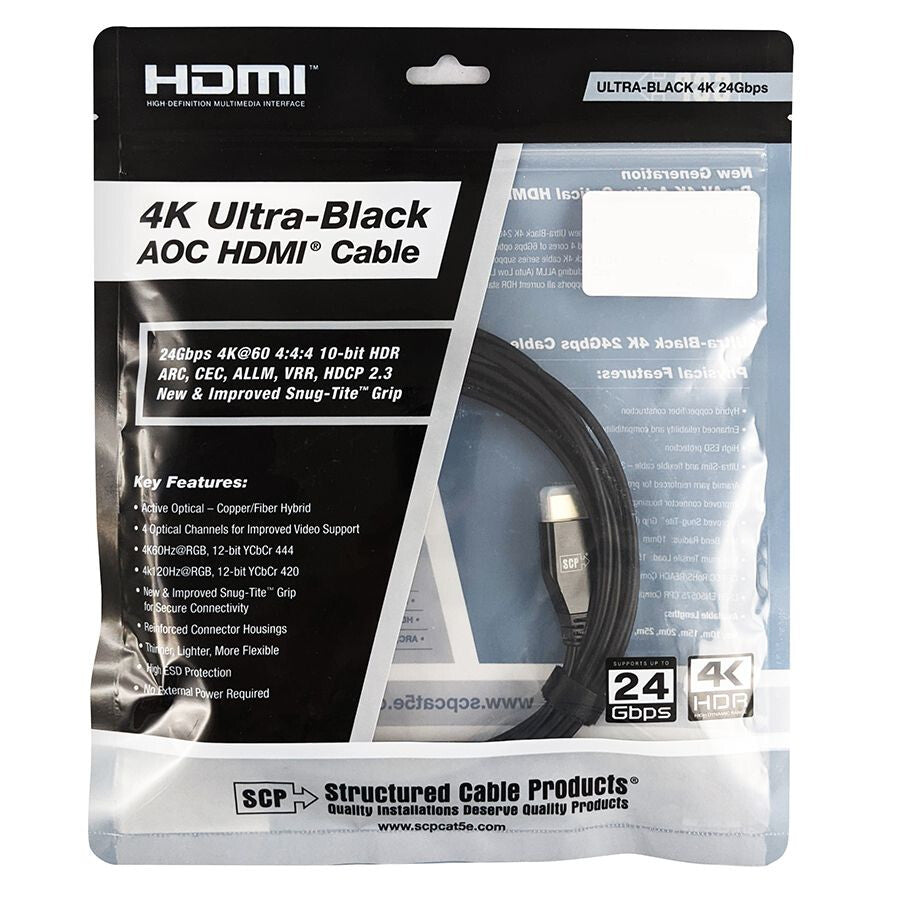

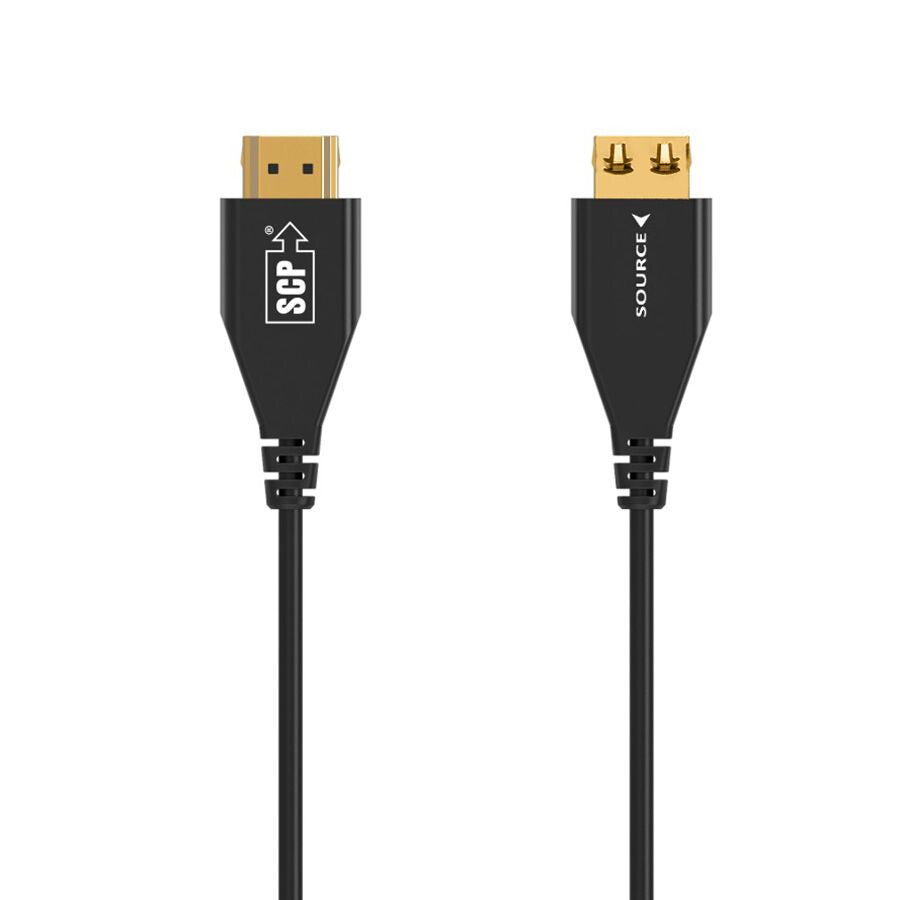

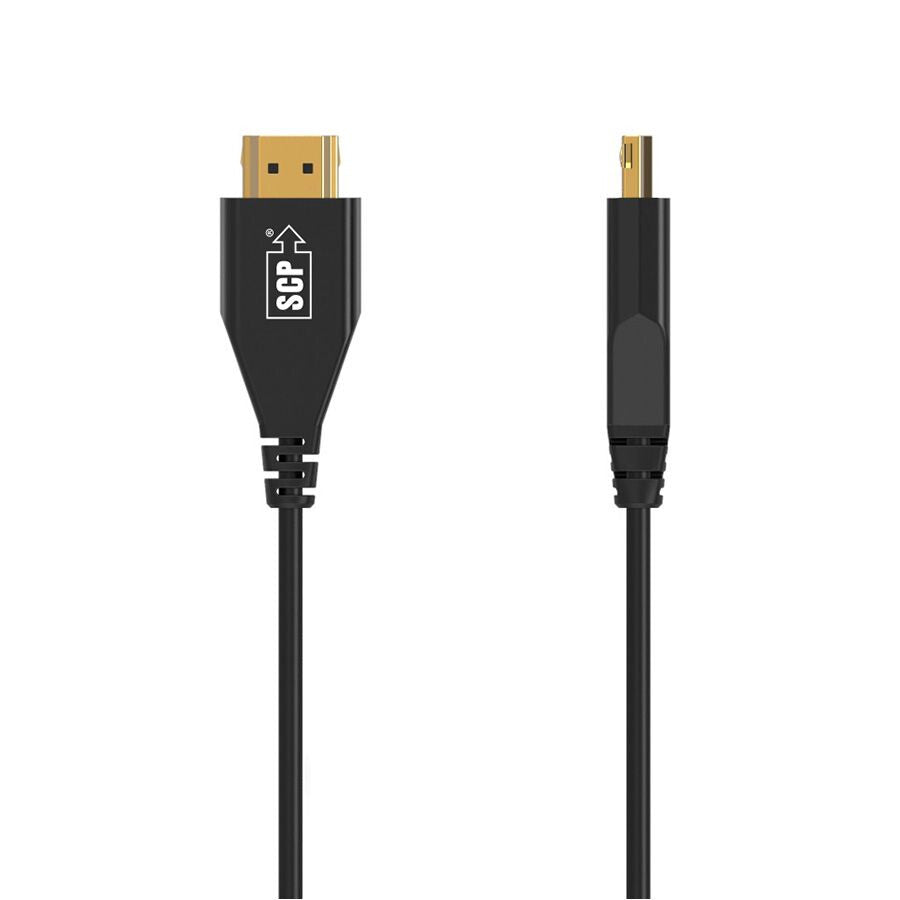

SCP 997AOC-LSZH-5M. Cable length: 5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: 3 x HDMI Type A (Standard), Connector 2 gender: Male, HDMI version: 2.0, Data transfer rate: 24 Gbit/s, Audio Return Channel (ARC), Product colour: Black
HDMI® AOC generates high quality digital video signals for the connection
between HDMI source and sink devices. It supports 4K120Hz with YCbCr 4:2:0.
The HDMI AOC is a compact hybrid cable comprising multi-mode glass fibers for
the TMDS signals and copper wires for the low frequency signals. It is fully
terminated with electro-optical and opto-electrical HDMI plug ends and is fully
compliant with the HDMI specifications.
Quantity per pack
1 pc(s)
Colour sampling
4:4:4
Bending radius (min)
1 cm
Cable jacket material
Low smoke zero halogen (LSZH)
Maximum refresh rate
120 Hz
Supported digital audio channels (uncompressed)
32
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported
Yes
Data transfer rate
24 Gbit/s
HDCP version
2.2
HDCP
Yes
Audio Return Channel (ARC)
Yes
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD, Dolby Vision
Supported video modes
2160p
HDMI version
2.0
Product colour
Black
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2 gender
Male
Connector 1 gender
Male
Connector 2
3 x HDMI Type A (Standard)
Connector 1
HDMI Type A (Standard)
Cable length
5 m
Operating temperature (T-T)
0 - 50 °C
Cable diameter
3.5 mm
