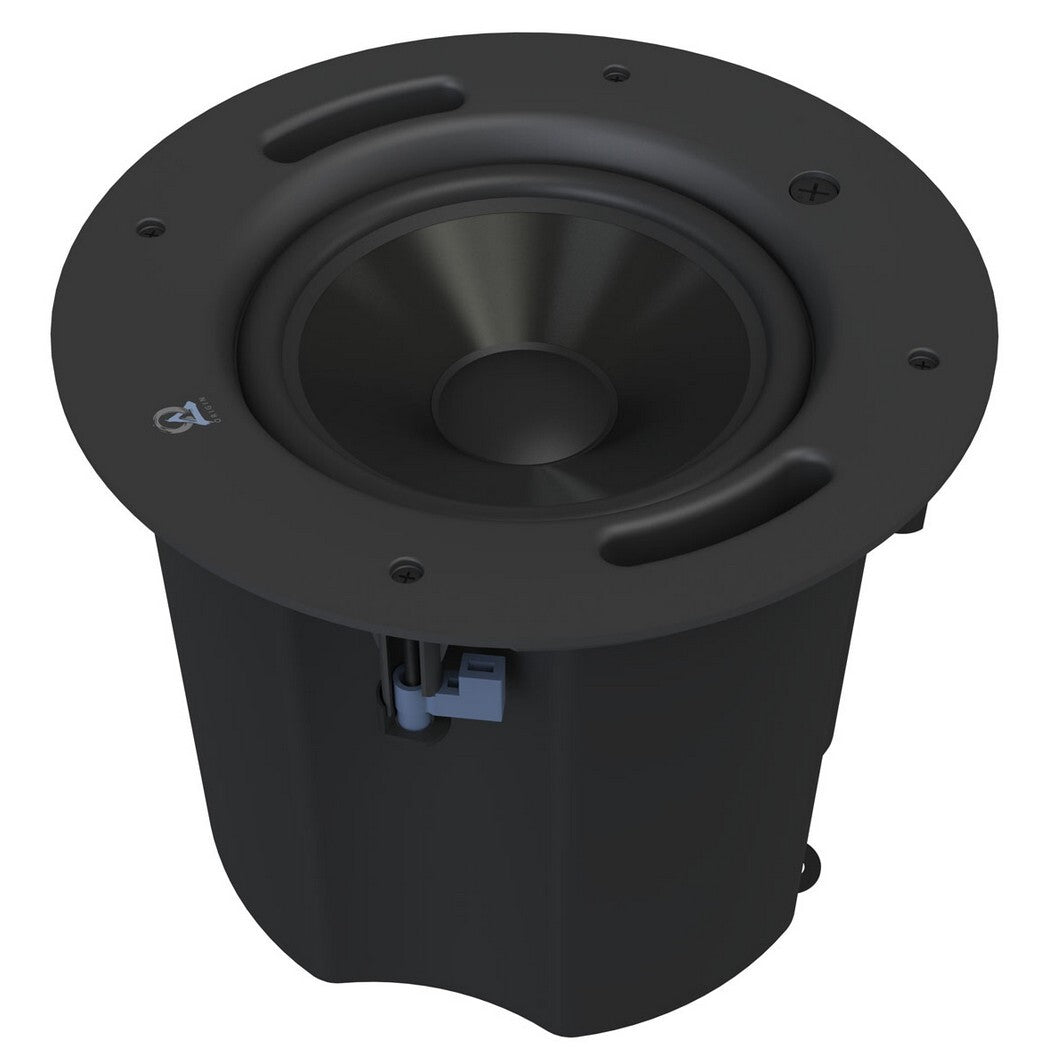

Origin Acoustics PC60B — Commercial 6.5" in-ceiling loudspeaker
The Origin Acoustics PC60B is a 6.5-inch two-way in-ceiling loudspeaker from the Professional Collection, engineered for commercial 70/100V distributed audio with an audiophile-grade signature. It suits retail spaces, hospitality venues, houses of worship, corporate offices and home theaters where discreet, even sound coverage is needed. A pivoting silk DPSD tweeter focuses the high frequencies toward the listening area, while a ported design delivers fuller low-end extension. Integrator-friendly touches such as heavy-duty dog-ears, an integrated conduit lock, Euro-block connectors and a front-mounted tap switch make installation fast and reliable. Finished in black with a low-profile, paintable grille, it blends into virtually any ceiling.
Selectable 70V/100V & 8-Ohm Operation
A front-mounted tap switch with a premium, near-transparent transformer lets the speaker run on 70V or 100V distributed lines or as an 8-ohm low-impedance load, with taps of 60W/30W/15W/7.5W on 70V. Because the tap is reached from the front, the level on each speaker can be set or re-balanced after the unit is in the ceiling, without pulling it back out. In practice this means a venue can fine-tune zone volumes during commissioning, add the PC60B to almost any existing amplifier topology, and keep one product on the shelf for both long cable runs and short low-impedance rooms.
Multi-Motion Pivot Tweeter Aiming
The 1-inch silk DPSD tweeter sits on Origin's patented Multi-Motion Pivot and tilts up to 30 degrees in any direction while the woofer stays fixed. High frequencies are the most directional part of the sound, so being able to angle just the tweeter lets the installer steer clarity and intelligibility toward where people actually stand or sit. For the end user this means speech and detail stay crisp even when the speaker is mounted off to one side or in a high ceiling, instead of firing treble straight down at an empty aisle.
DPSD Tweeter for Low Distortion
The Dual Plane Stabilized Diaphragm (DPSD) tweeter design lowers the usable crossover point and reduces distortion across the upper range. A lower crossover hands more of the vocal region to the smooth silk tweeter rather than the woofer, which keeps voices natural and removes the harshness that makes background music tiring over a long day. The payoff for the end user is a clean, fatigue-free sound that holds up during the many hours of continuous playback typical of shops, lobbies and worship spaces.
Integrator-Friendly Install Hardware
The PC60B ships with heavy-duty spring-loaded dog-ears, an integrated conduit lock and secure Euro-block (Phoenix) connectors. The dog-ears clamp the speaker firmly without fuss, the conduit lock satisfies code requirements for routed wiring, and the screw-down Euro-block terminals resist the accidental disconnections that loose push-terminals can cause. The result is a faster, tidier fit and fewer post-install callbacks, which matters most in large jobs where dozens of identical ceiling speakers have to go in quickly and stay connected.
Safety Strap Connection for Seismic Areas
A dedicated safety-strap attachment point lets the speaker be tethered to the building structure independently of the ceiling tile. In regions with regular seismic activity, or in any installation governed by overhead-suspension safety codes, this secondary support keeps the unit from falling if the ceiling is disturbed. For the end user it is straightforward peace of mind and easier code sign-off on commercial projects where falling-object protection is mandatory.
Paintable Low-Profile Grille
The black grille is low-profile and fully paintable, so it can be color-matched to the ceiling and made to visually disappear. In design-led environments such as boutiques, restaurants and galleries, hardware that draws the eye undermines the look the client paid for. Being able to paint the grille to match means the audio stays felt but not seen, keeping the focus on the space rather than the speakers.
