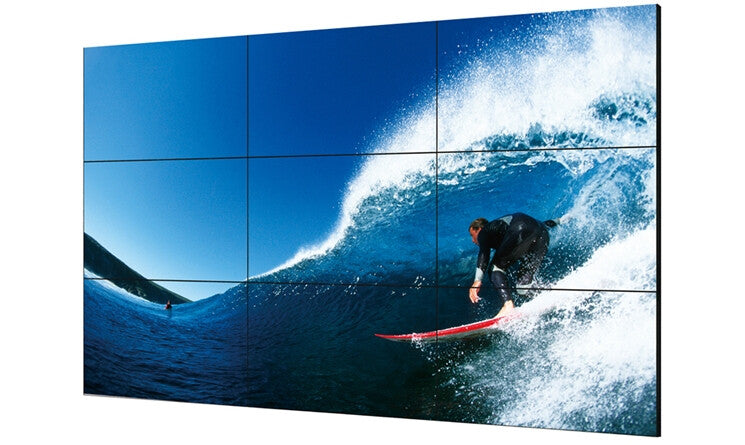

Sharp PN-V601A
Sharp PN-V601A
60" Videowall model, Full LED Backlight, Ultra Slim 6,5mm Bezel, 24/7, 700cd, Weight 45 kg
- 60” (152cm) video wall display with 24/7 Operation
- 700cd/m2 and UV2A LCD technology with 4000:1 contrast ratio
- Only 6.5mm bezel between active areas (4.1mm / 2.4mm)
- SHARP proprietary UV2A TFT panel
- 50.000 hours life time max
- Weight 44 kg
- 5 x 5 Multi-screen Capability (Enlargement) internal
- Module Slot System
- SKU:IM3_PN-V601A
- GTIN/EAN:74000069022
- MPN:PN-V601A
Sharp PN-V601A. Product design: Digital signage flat panel. Display diagonal: 152.4 cm (60"), Display technology: LED, Display resolution: 1366 x 768 pixels, Display brightness: 700 cd/m², HD type: WXGA
The PN-V601A ultra thin bezel model is mainly designed for video wall applications. This 152 cm (60") LCD-monitor can be used in a variety of signage and multi screen configurations. As a flexible solution with an almost seamless bezel, the PN-V601A sets a new standard for video wall displays.
3-Year On-Site Parts/Labor/Backlight Limited Warranty
Display diagonal (metric)
152.4 cm
Pixel pitch
0.973 x 0.973 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
176°
Viewing angle, horizontal
176°
Contrast ratio (typical)
4000:1
Response time
6 ms
Touchscreen
No
HD type
WXGA
Display brightness
700 cd/m²
Display resolution
1366 x 768 pixels
Display technology
LED
Display diagonal
152.4 cm (60")
DC-in jack
Yes
PC Audio in
Yes
Audio (L/R) in
1
Component video (YPbPr/YCbCr) out
1
Component video (YPbPr/YCbCr) in
1
Composite video in
1
Ethernet LAN
Yes
USB port
No
VGA (D-Sub) input ports
1
DVI-D ports quantity
1
DVI port
Yes
HDMI ports quantity
1
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Bezel width (bottom)
4.1 mm
Bezel width (top)
2.4 mm
Panel mounting interface
200 x 200 mm
VESA mounting
Yes
Product design
Digital signage flat panel
HDCP
Yes
Multi-display supported
Yes
Analog signal format system
PAL, PAL 60, SECAM
TV tuner integrated
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (standby)
0.9 W
Power consumption (typical)
480 W
Height
754.2 mm
Depth
149.3 mm
Width
1335.9 mm
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Sustainability certificates
ENERGY STAR
Plug and Play
Yes
Aspect ratio
16:9
Manual
Yes
Headphone connectivity
3.5 mm
S-Video in
Yes
