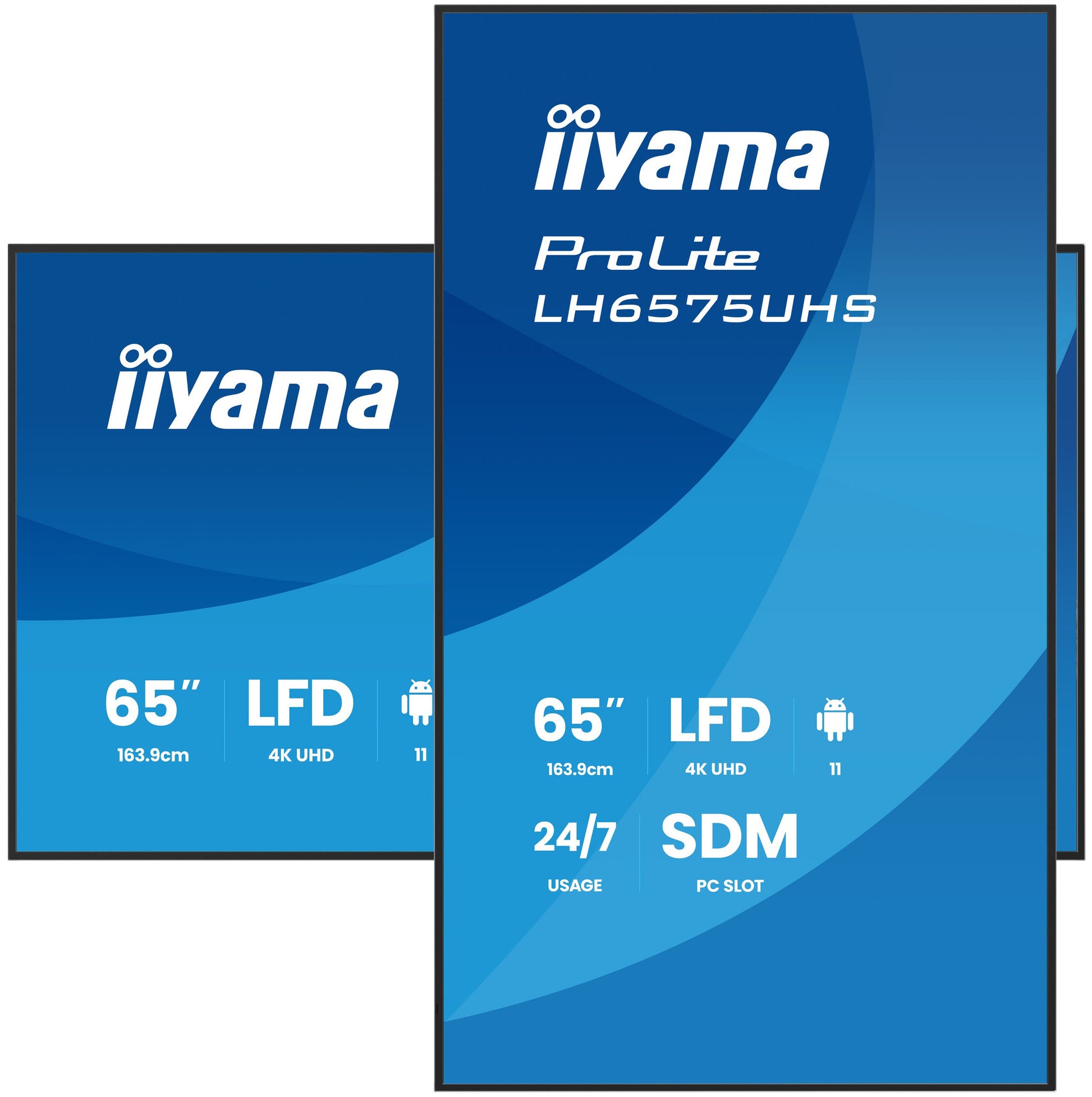

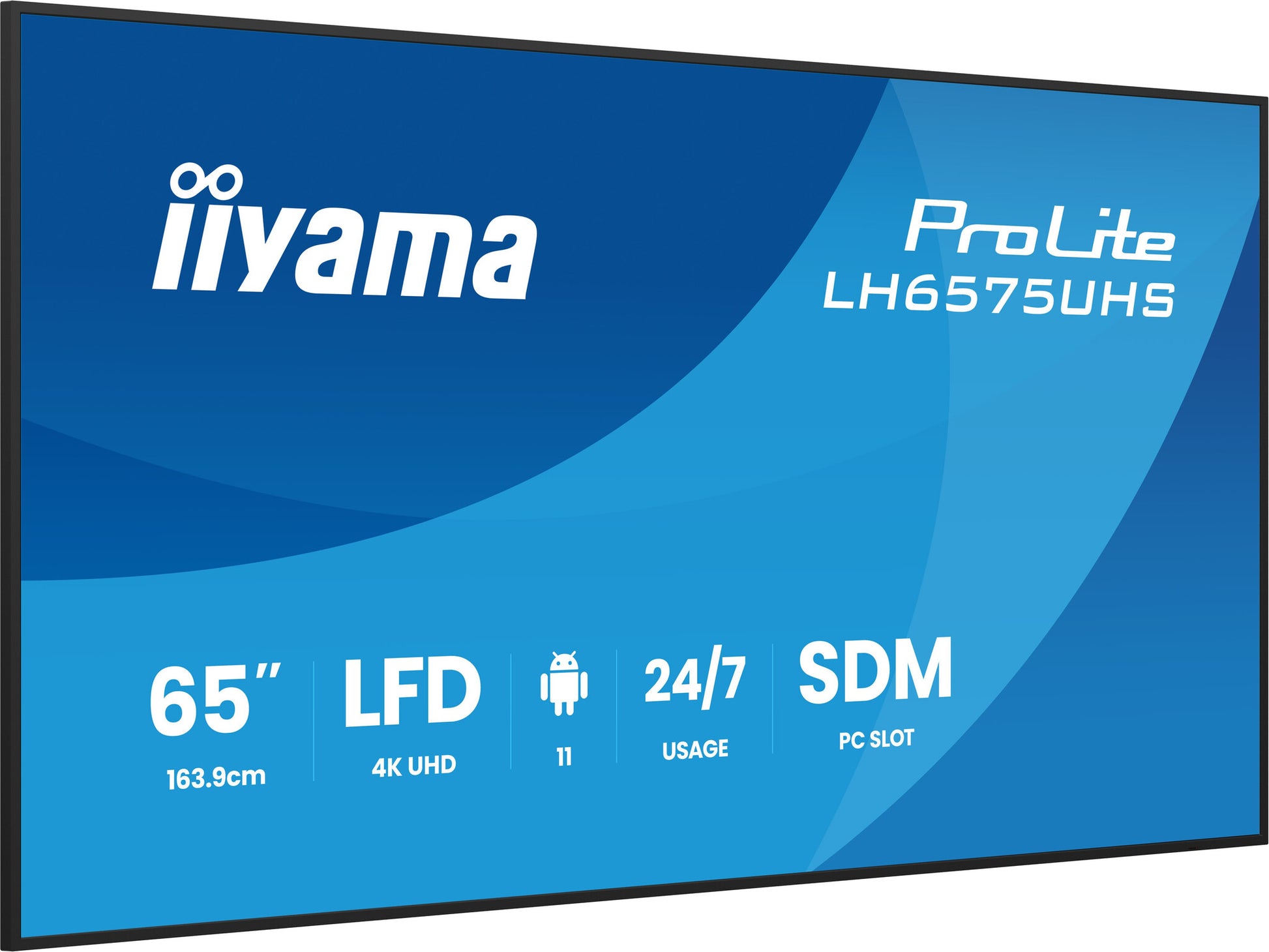

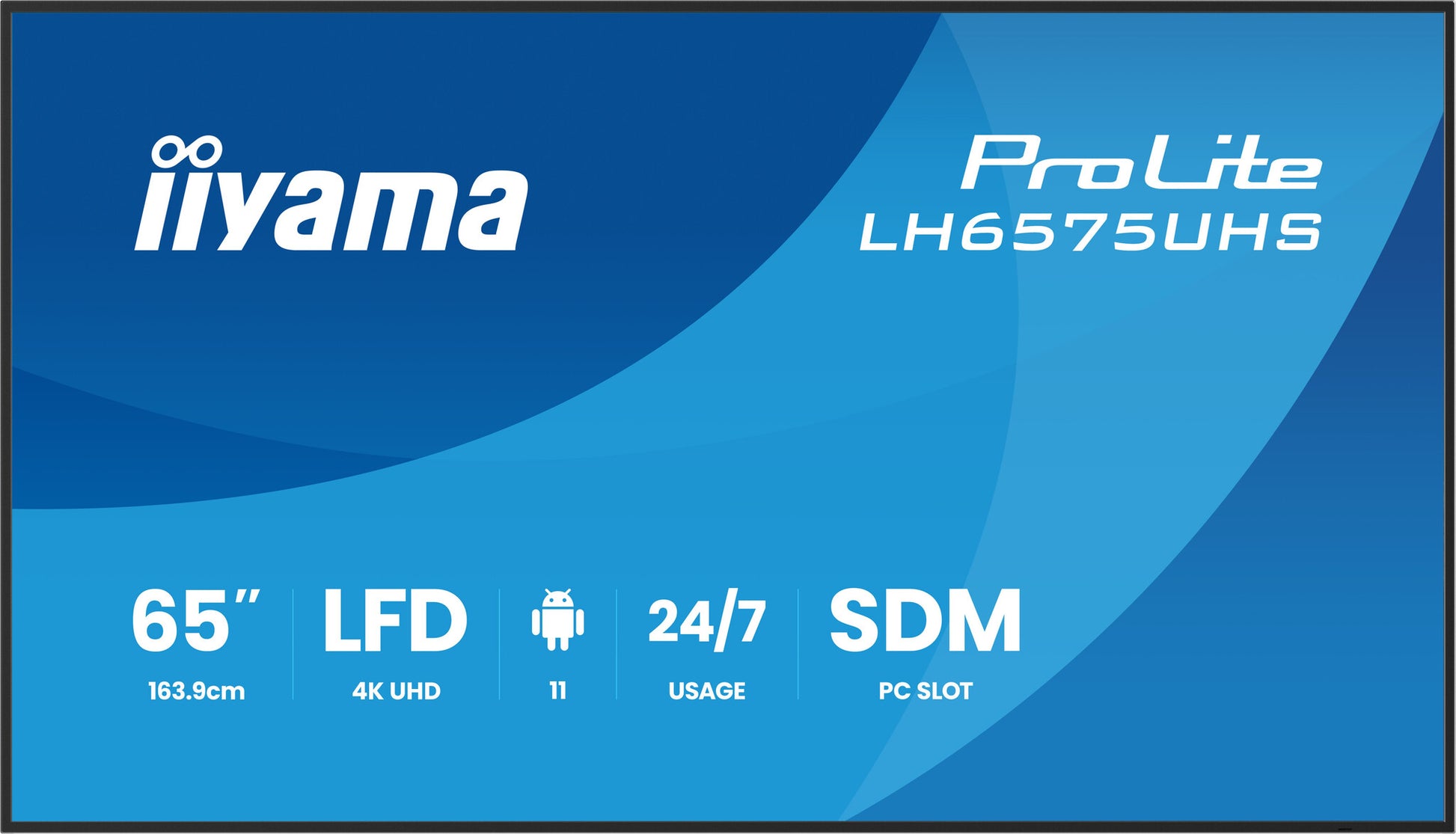

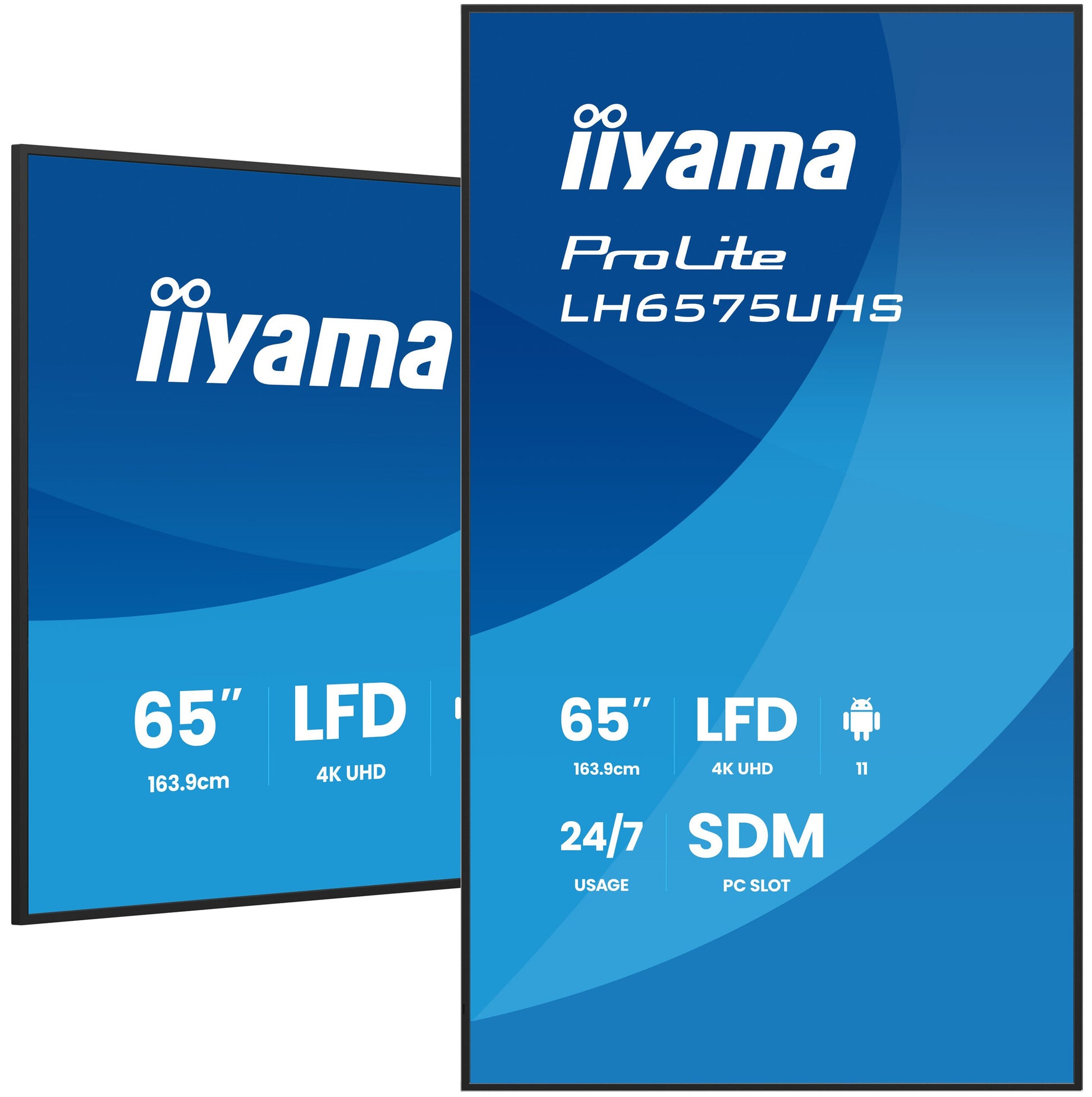

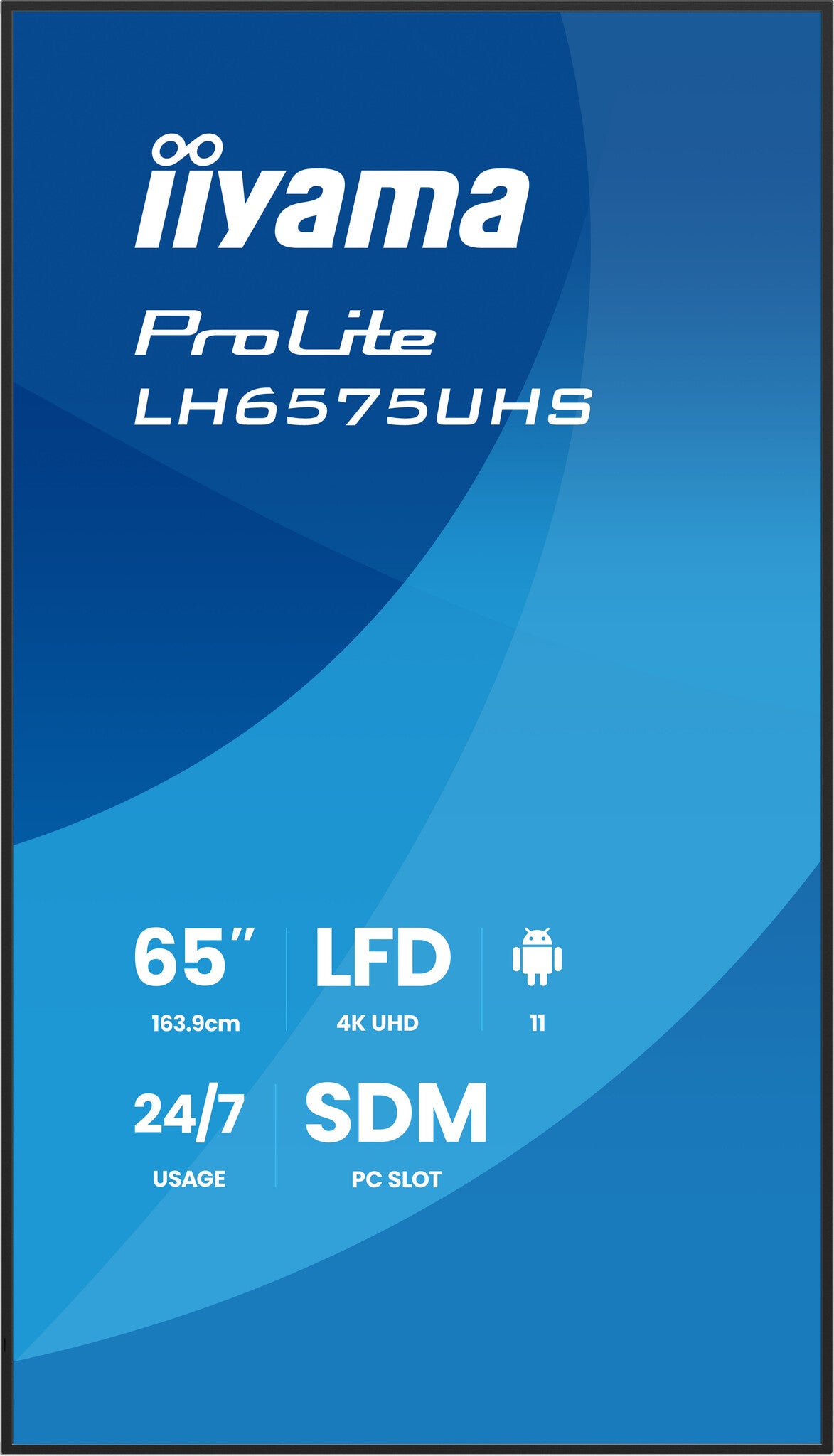

LH6575UHS-B2AG

LH6575UHS-B2AG

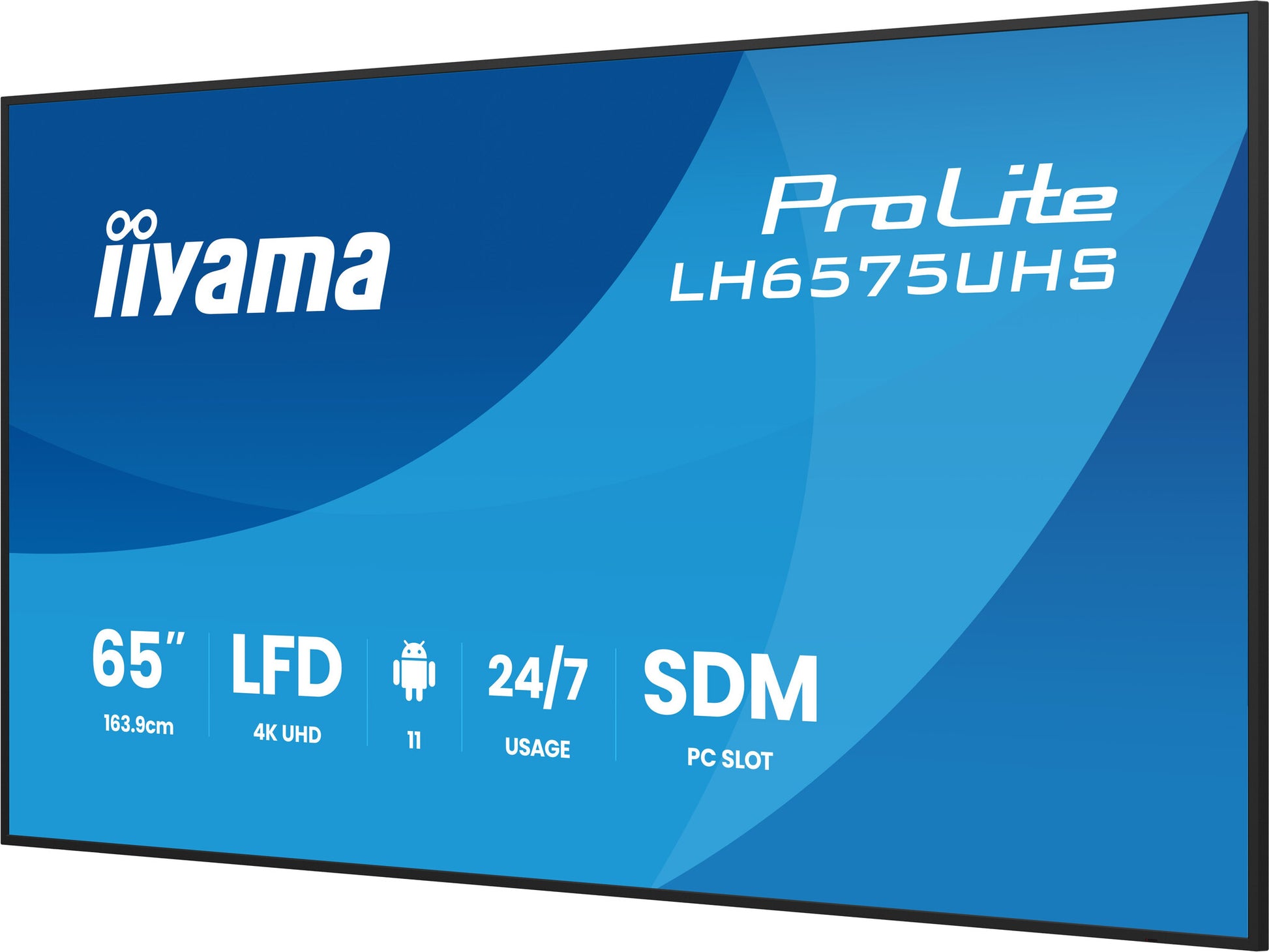

65" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

  • Indoor Digital signage flat panel Black
  • 163.8 cm (64.5") 3840 x 2160 pixels LCD 500 cd/m²
  • 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570125265
  • GTIN/EAN:4948570125265
  • MPN:LH6575UHS-B2AG
Add To Favorite

You need to login to view the price.

View full details

iiyama 65" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot. Product design: Digital signage flat panel. Display diagonal: 163.8 cm (64.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH6575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Colour gamut
72%
RGB colour space
NTSC
Colour depth
8 bit
Horizontal scan range
28 - 160 kHz
Haze rate
25%
Panel type
IPS
Maximum frame rate
60 fps
Display diagonal (metric)
108 cm
Active display area (W x H)
1428.5 x 803.5 mm
Pixel pitch
0.372 x 0.372 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LCD
Display diagonal
163.8 cm (64.5")
Ports & interfaces
Compatible memory cards
MicroSD (TransFlash)
Card reader integrated
Yes
Remote (IR) output
1
Remote (IR) input
1
RS-232C
Yes
PC Audio in
Yes
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts out
1
DisplayPorts in
1
DisplayPorts quantity
2
HDMI version
2.0
HDMI ports quantity
3
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Mounting type
Wall
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Anti-glare screen
Yes
Bezel colour
Black
Panel mounting interface
400 x 400 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
44000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
15
On Screen Display (OSD) languages
Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
Purpose
Universal
Power
Energy efficiency scale
A to G
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
172 kWh
Energy efficiency class (SDR)
G
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
172 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor architecture
ARM Cortex-A53+Cortex-A73
Processor family
ARM Cortex
Processor manufacturer
ARM
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Display weight
21.2 kg
Display height
832.5 mm
Display depth
56 mm
Display width
1456.5 mm
Packaging data
Package weight
29.2 kg
Package height
1016 mm
Package depth
162 mm
Package width
1645 mm
Packaging content

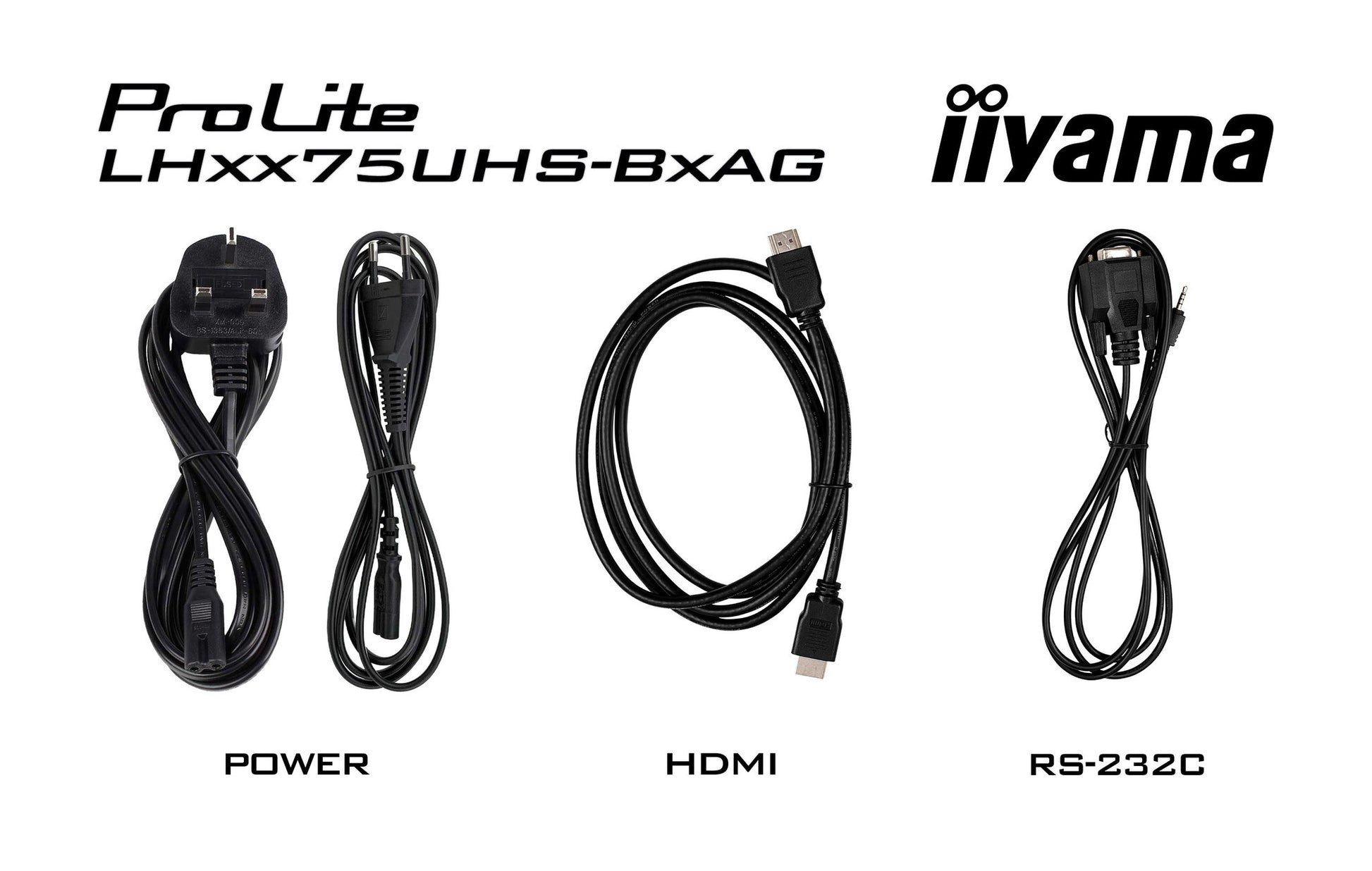

Cables included
AC, HDMI, RS-232
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Features
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
RoHS
Other features
Plug and Play
Yes
Quick start guide
Yes
Headphone outputs
1
Housing material
Metal
Audio output
3.5mm
Wi-Fi standards
Wi-Fi 5 (802.11ac)
DisplayPort version
1.2
Headphone connectivity
3.5 mm
