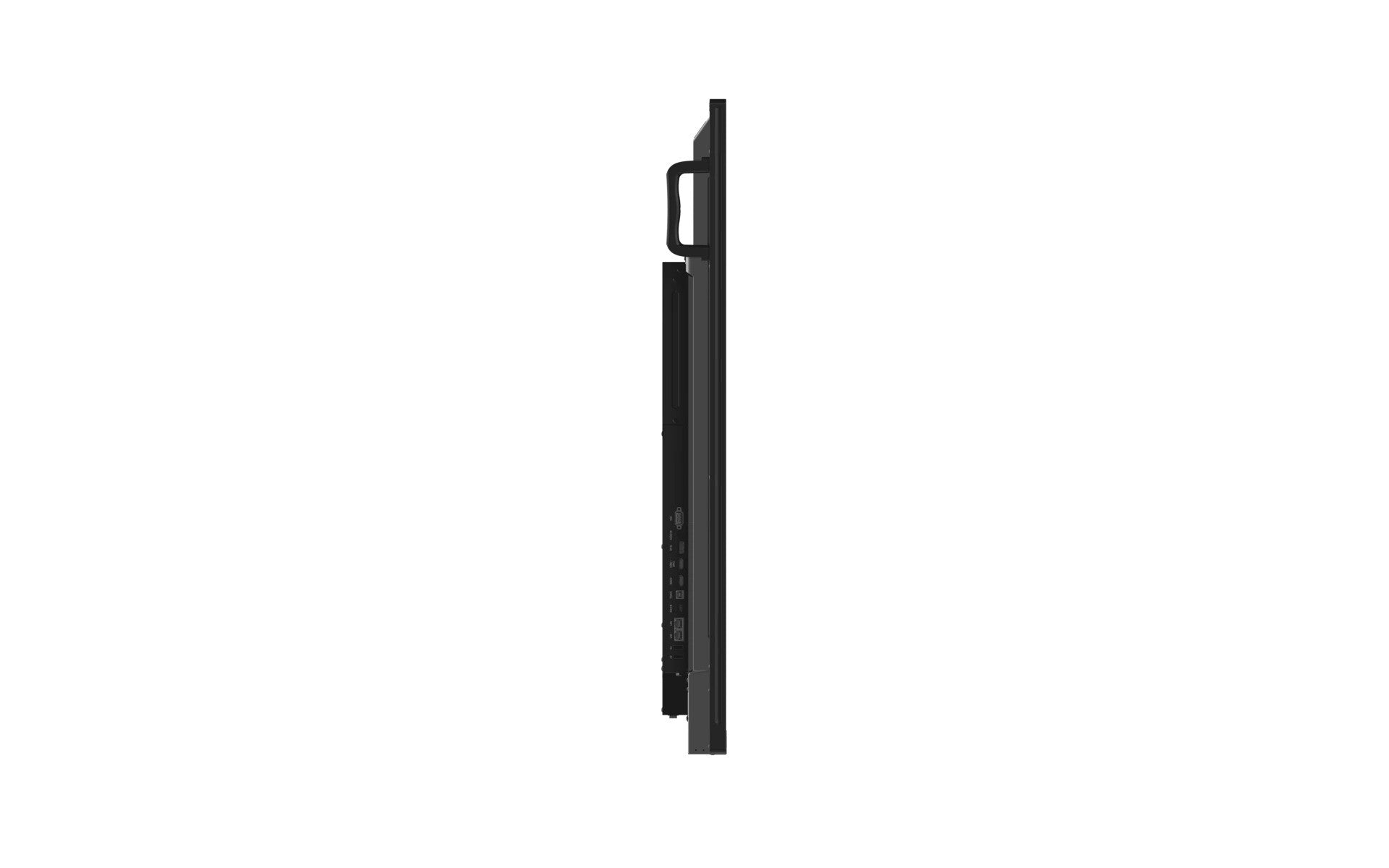

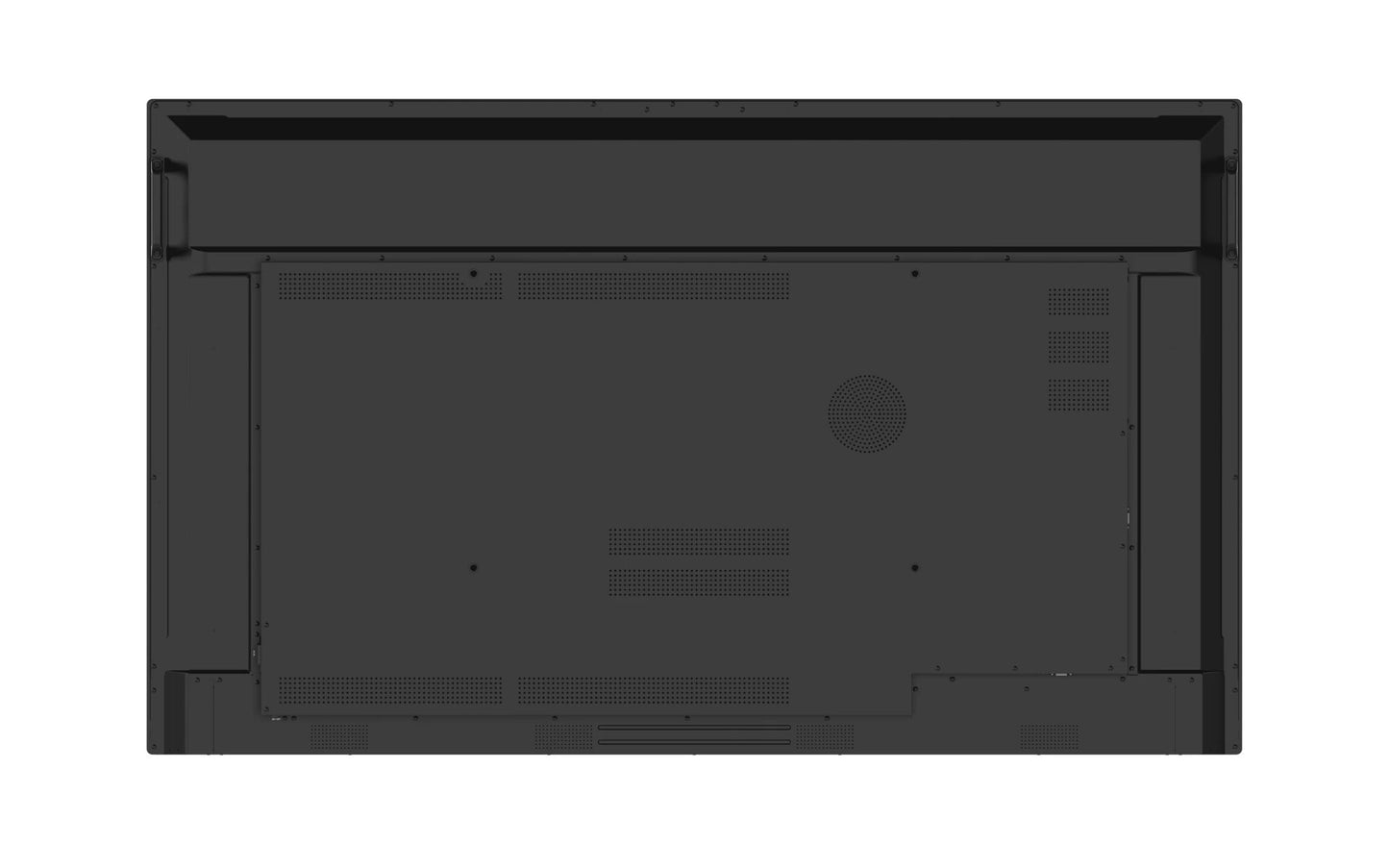

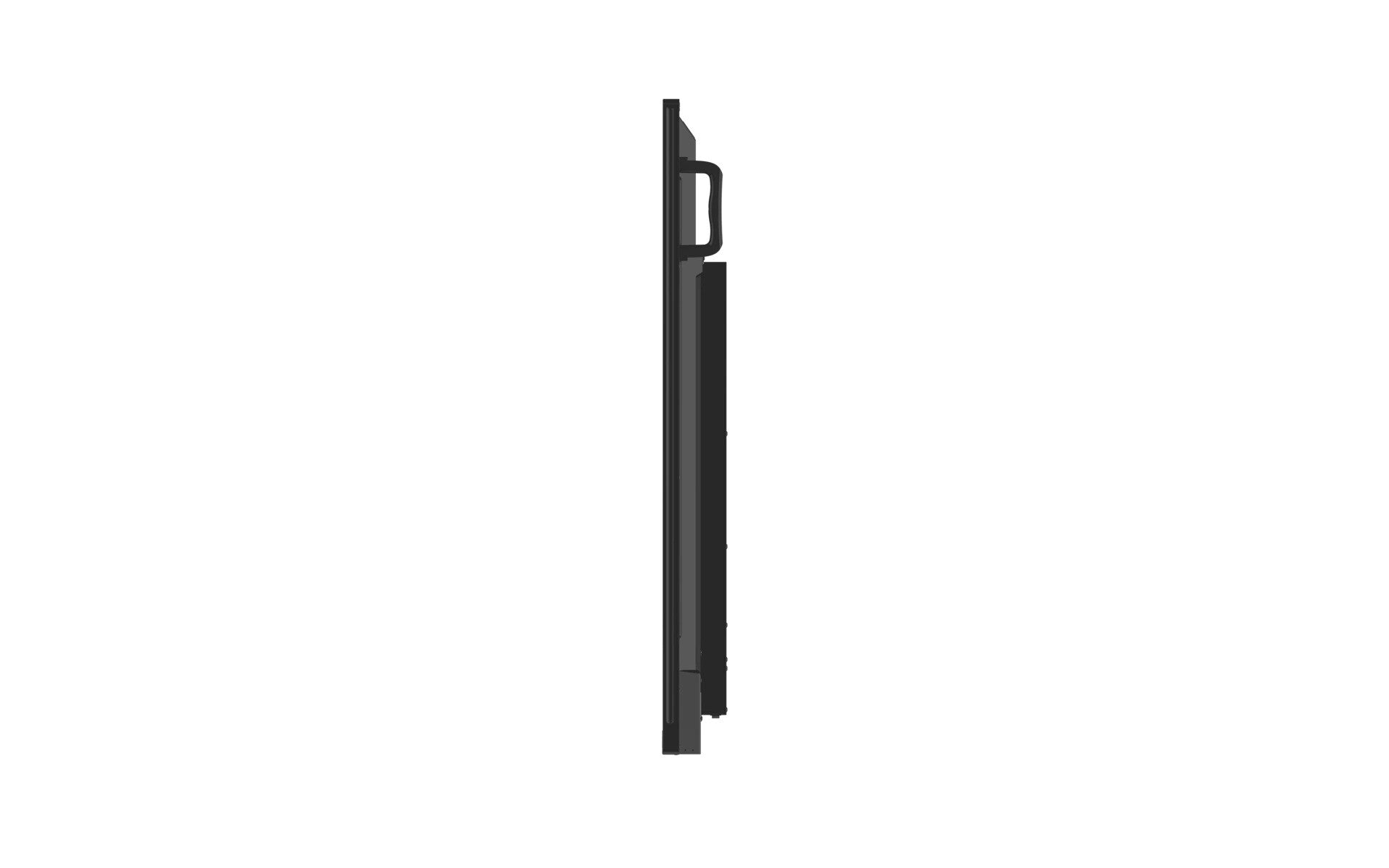

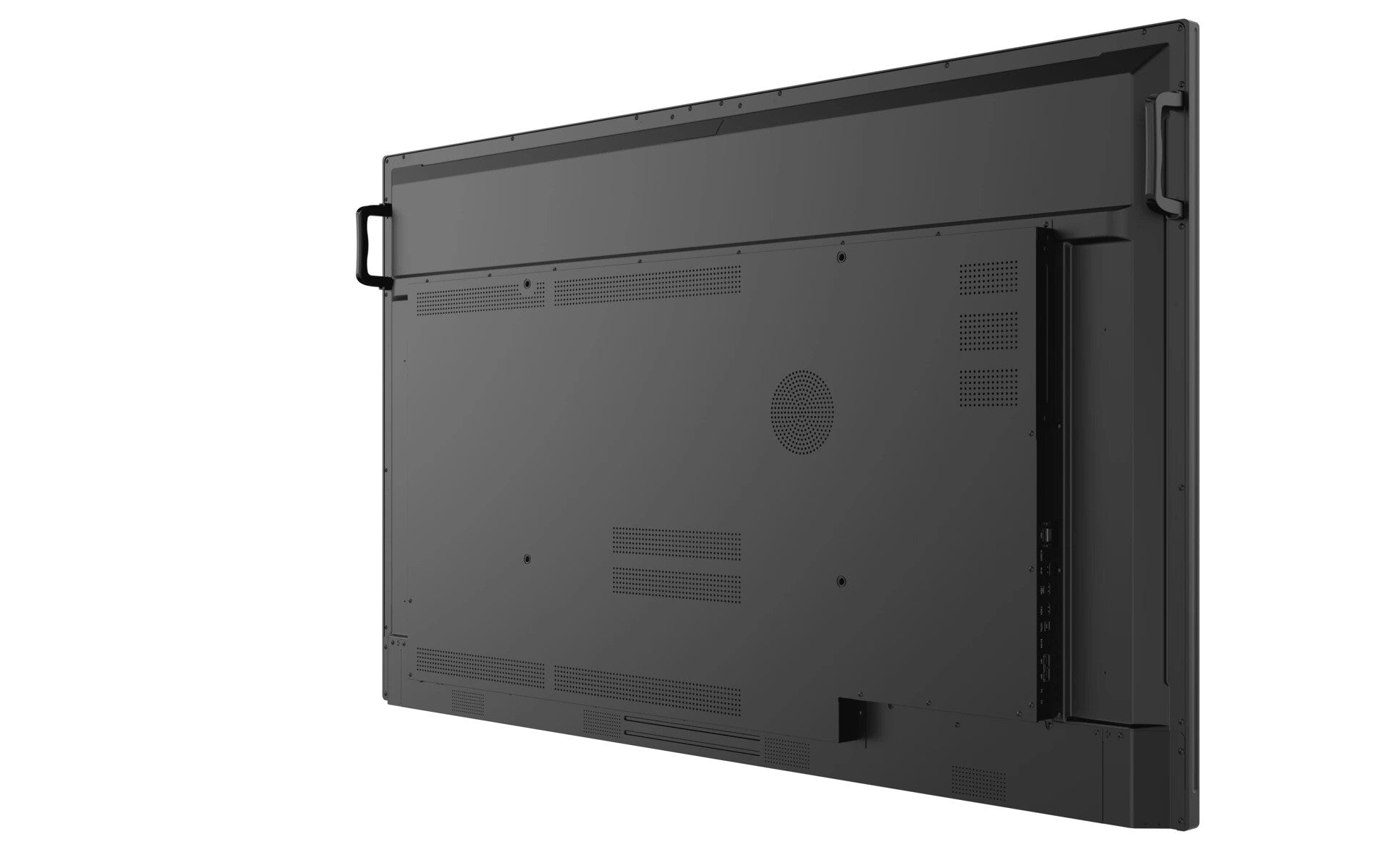

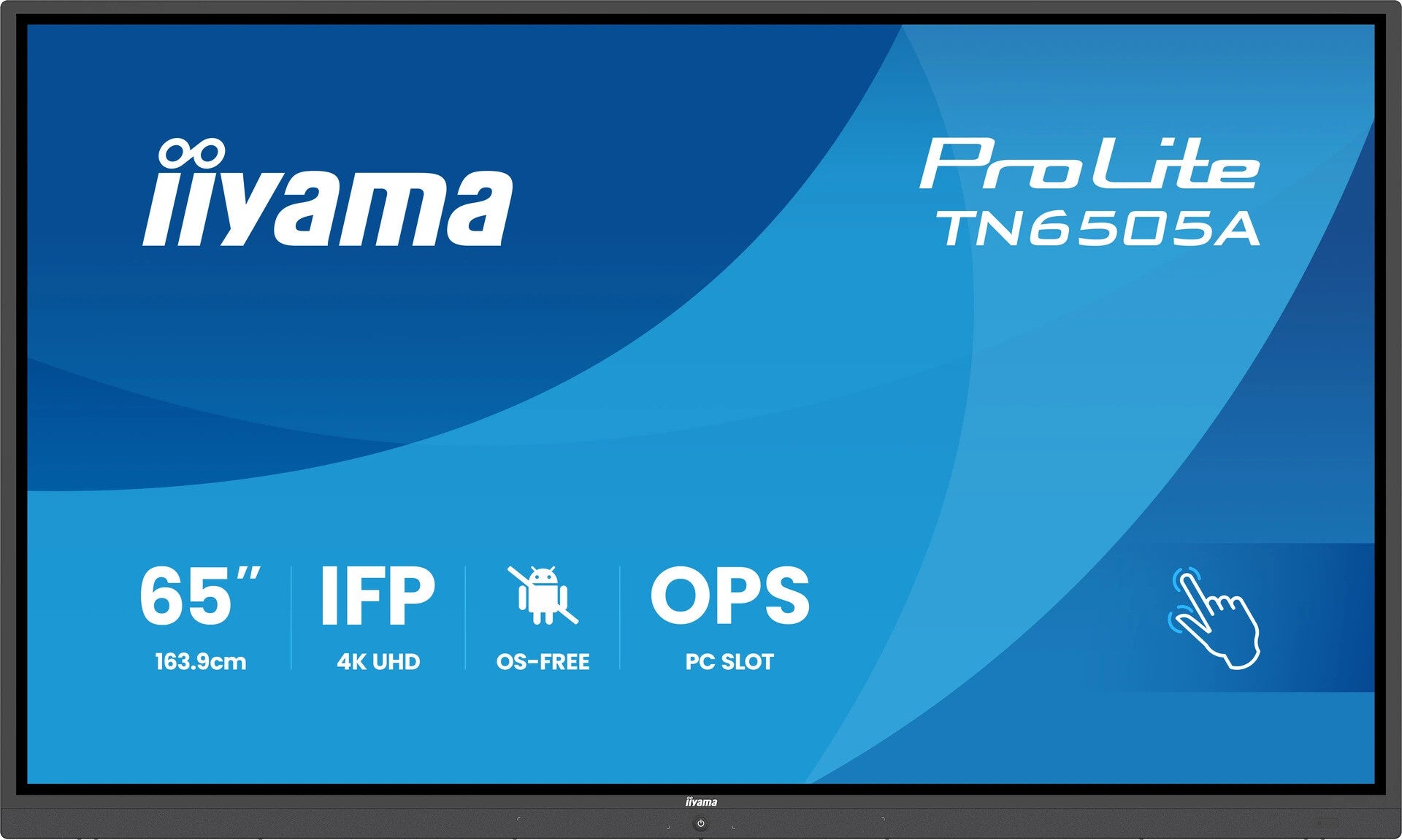

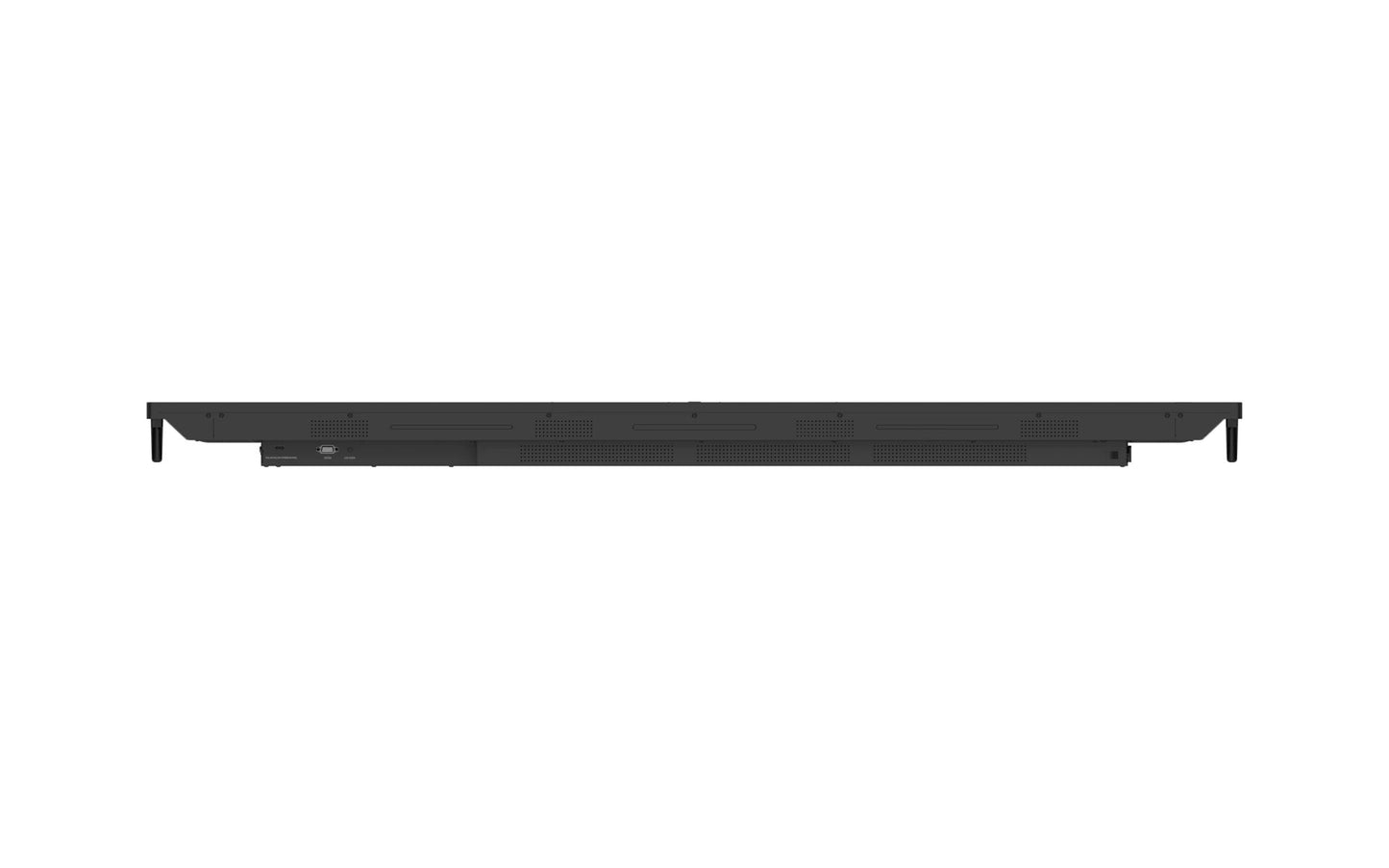

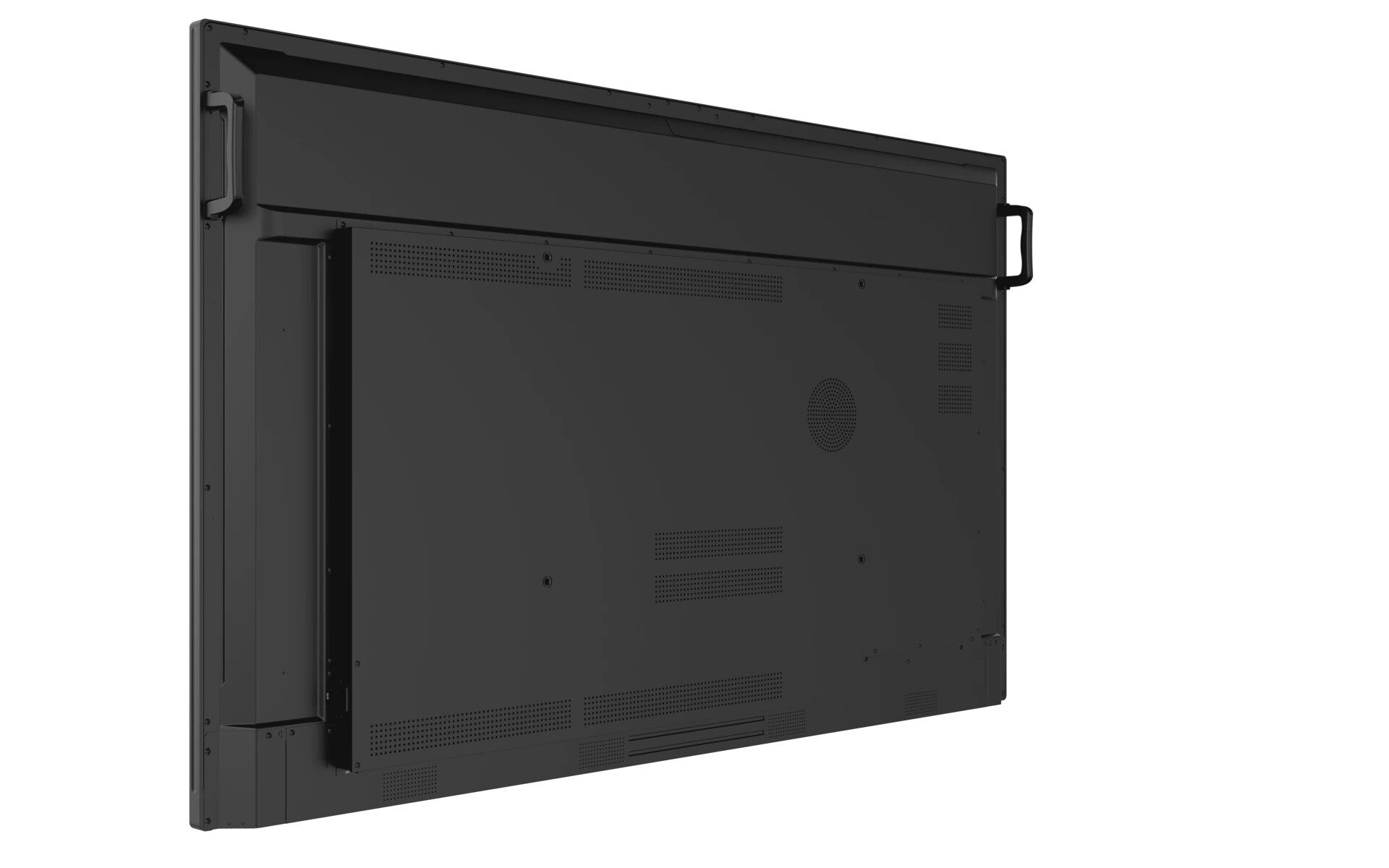

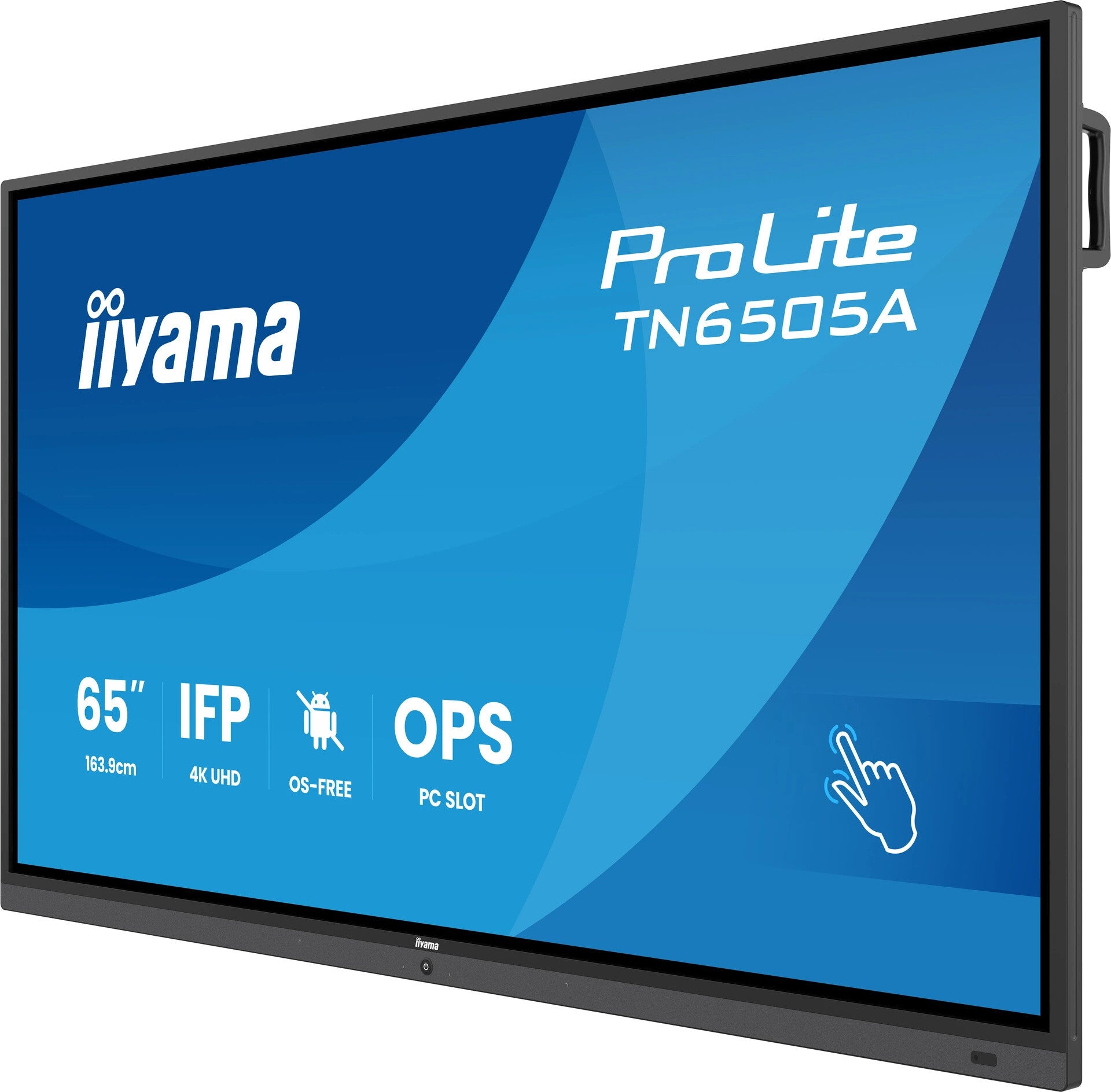

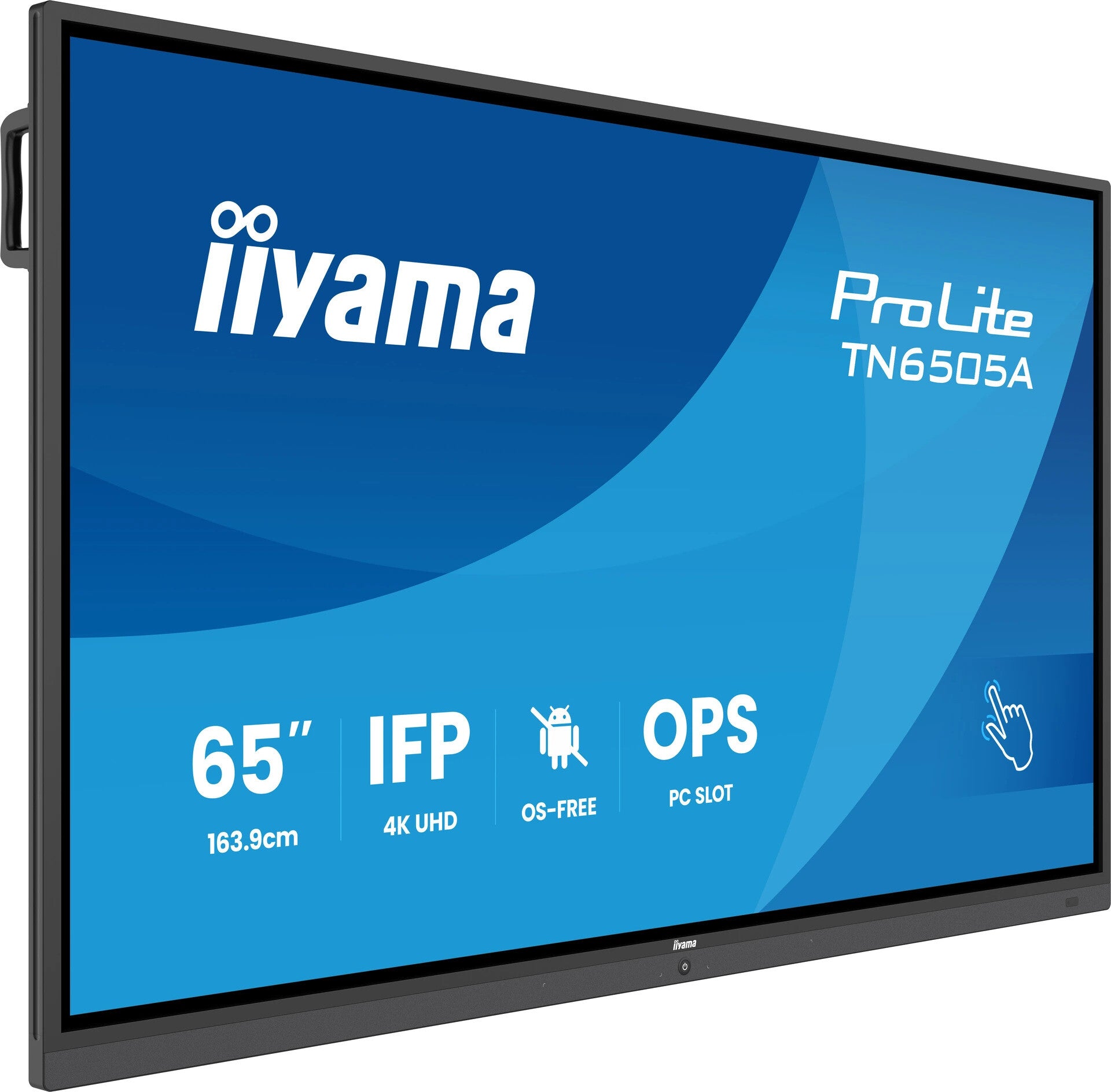

iiyama TN6505A-B1AG Signage Display Interactive flat panel 163.8 cm (64.5") 500 cd/m² 4K Ultra HD Black Touchscreen

iiyama TN6505A-B1AG Signage Display Interactive flat panel 163.8 cm (64.5") 500 cd/m² 4K Ultra HD Black Touchscreen

65" OS-Free Professional Touch Display for Maximum Security and Full IT Control

  • Indoor Interactive flat panel Black
  • 163.8 cm (64.5") 3840 x 2160 pixels 500 cd/m²
  • Touchscreen 5 ms
  • Ethernet LAN
  • Built-in speaker(s)
  • SKU:4948570127061
  • GTIN/EAN:4948570127061
  • MPN:TN6505A-B1AG

You need to login to view the price.

View full details

iiyama TN6505A-B1AG. Product design: Interactive flat panel. Display diagonal: 163.8 cm (64.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black

The ProLite TN6505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN6505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.

Display
Display diagonal
163.8 cm (64.5")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
Infrared
Native aspect ratio
16:9
Response time
5 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Active display area (W x H)
1428.5 x 803.5 mm
Display diagonal (metric)
163.9 cm
Horizontal scan range
30 - 135 kHz
Panel type
IPS
Haze rate
25%
Ports & interfaces
HDMI ports quantity
2
HDMI input ports quantity
2
VGA (D-Sub) input ports
1
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
USB Power Delivery
Yes
USB Power Delivery up to
65 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
PC Audio in
Yes
RS-232C
Yes
Remote (IR) output
1
PC Audio out
Yes
Audio Return Channel (ARC)
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
Design
Product design
Interactive flat panel
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Positioning accuracy
1 mm
Anti-glare screen
Yes
Performance
Purpose
Education
Picture-in-Picture
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Number of OSD languages
8
On Screen Display (OSD)
Yes
Power
Power consumption (typical)
146 W
Power consumption (standby)
0.4 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
146 kWh
Energy efficiency scale
A to G
Weight & dimensions
Display width
1489.1 mm
Display depth
118.6 mm
Display height
911.8 mm
Display weight
41.1 kg
Width
1489.1 mm
Depth
118.6 mm
Height
911.8 mm
Weight
41.1 kg
Packaging content
Cables included
AC, HDMI, RS-232, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
OPS slot
1
Sustainability certificates
ErP
User controls
Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast.
Audio in (mini jack)
Yes
Other features
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness
450 cd/m²
Power supply type
Internal
USB connector type
USB Type-C, USB Type-B
