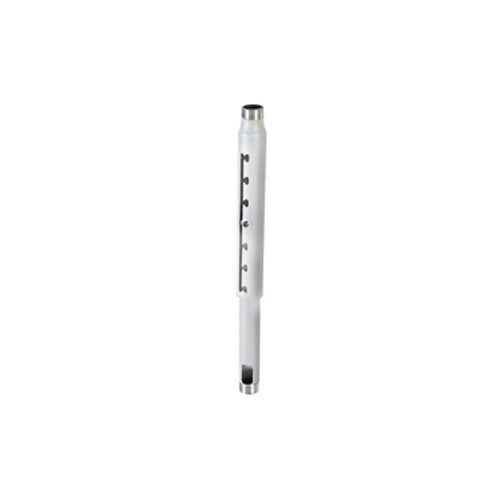

Chief CMS0709W, 213-274 cm, Adjustable — Adjustable ceiling extension column, white
The Chief CMS0709W is a white, adjustable extension column designed to position ceiling-mounted projectors or flat panel displays at the correct height in professional AV environments. Suited to lecture halls, conference rooms, auditoriums and large presentation spaces where standard drop length is insufficient, the column adjusts continuously between 213 and 274 cm in 2,5 cm increments — without disassembly. Its standard 1.5" NPT threading makes it universally compatible with any Chief 1.5" NPT ceiling plate or accessory, and the aluminium construction keeps the installation lightweight while supporting loads up to 227 kg. Integrated flow-through cable management keeps cabling hidden and secure for a clean, professional finish.
Tool-Free Height Adjustment
The CMS0709W uses Chief's Speed-Connect notched design to allow continuous length adjustment between 213 and 274 cm in 2,5 cm increments, without dismantling any part of the installation. In practice this means an installer can fine-tune drop height after the column is already in place — useful when ceiling heights vary slightly between rooms or when a display needs repositioning after commissioning. For the end user, it eliminates downtime: height changes during a space reconfiguration take minutes rather than hours.
Heavy-Duty Aluminium Construction
High-quality aluminium gives the CMS0709W a 227 kg load rating while remaining light enough for a one- or two-person ceiling installation. The material resists corrosion and maintains structural rigidity across the full extension range. For installations involving large-format laser projectors or heavy commercial displays, this load rating removes any concern about long-term structural fatigue — the column is also UL Listed, providing the compliance documentation many commercial and institutional projects require.
Flow-Through Cable Management
An integrated cable port at one end of the column routes signal and power cables through the interior of the pole rather than along the outside. This eliminates surface-run cable ties, removes a common source of client complaints about aesthetics, and protects cables from accidental snagging or interference. In auditoriums and corporate boardrooms where the ceiling installation is visible to the audience, the result is a noticeably cleaner look that reflects well on the overall installation quality.
Universal 1.5" NPT Compatibility
Both ends of the CMS0709W are threaded to the industry-standard 1.5" NPT specification, meaning the column connects directly to any Chief ceiling plate, speed-connect canopy, or NPT-compatible third-party accessory — without adapters. It can also be coupled end-to-end with a threaded pipe coupler (e.g. Chief CMA270) to create even longer drops where room height demands it. This broad compatibility makes the column a single stock item that works across a wide variety of Chief projector and flat panel ceiling mount systems, simplifying purchasing and on-site spare inventory.
Vibration Stability and Set Screw Security
A set screw locks the column at the chosen length once adjusted, preventing creep or rotation due to building vibrations — a common issue in older structures, facilities near traffic, or wherever HVAC systems introduce low-frequency resonance. For end users with ceiling-mounted laser projectors, even minor vibration can cause visible image instability during presentations. The set screw combined with the rigid aluminium body keeps the display or projector perfectly still during operation.
10-Year Warranty and Compliance Credentials
Chief backs the CMS0709W with a 10-year limited manufacturer warranty — one of the longest in the mounting category — covering defects in materials and workmanship. The column is also UL Listed (safety tested) and TAA Compliant, which is a mandatory procurement requirement for US federal, state and education projects funded under the Trade Agreements Act. For integrators working in the public sector or on government-funded installations, TAA compliance removes a common specification barrier without any additional sourcing effort.
