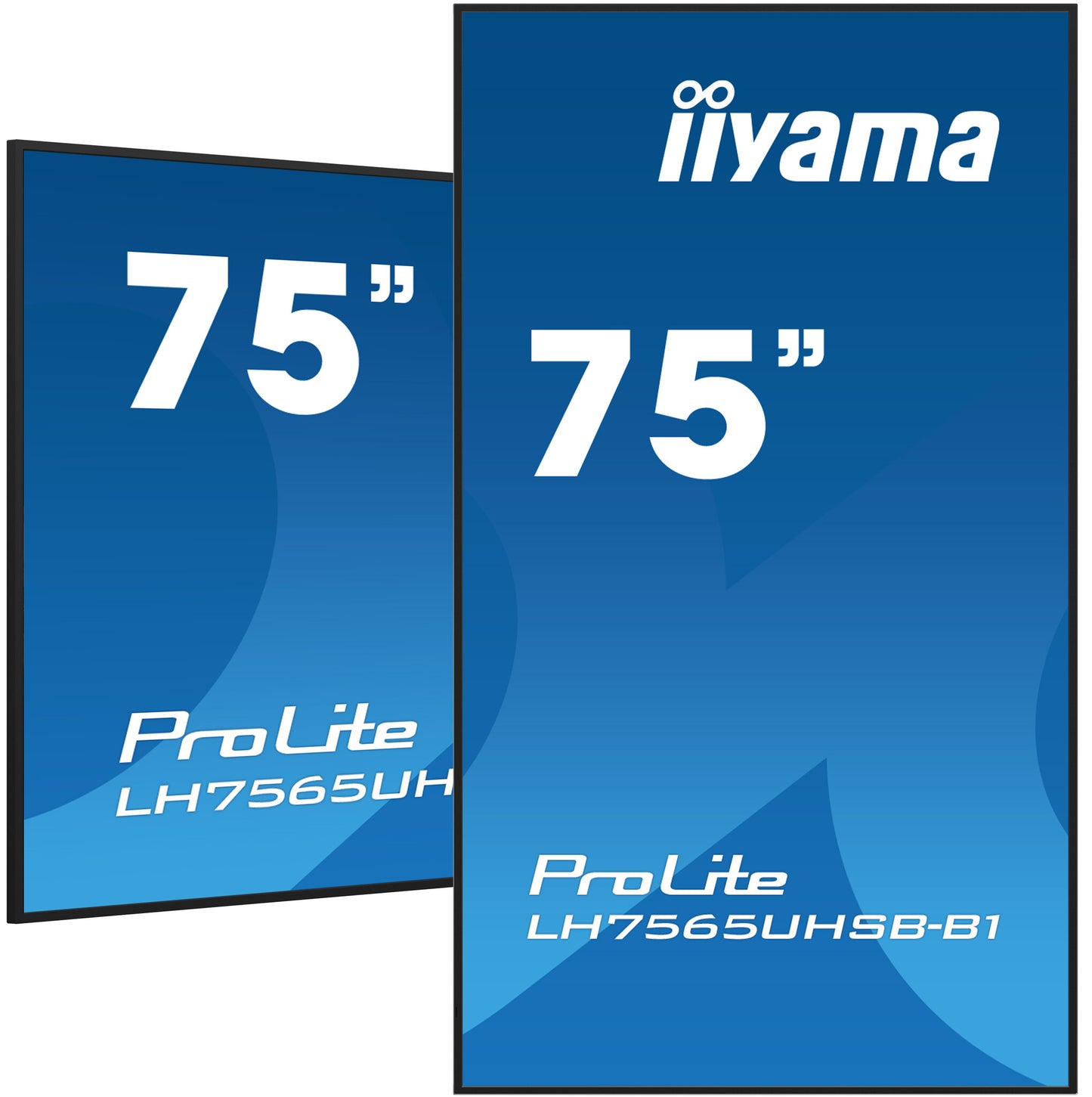

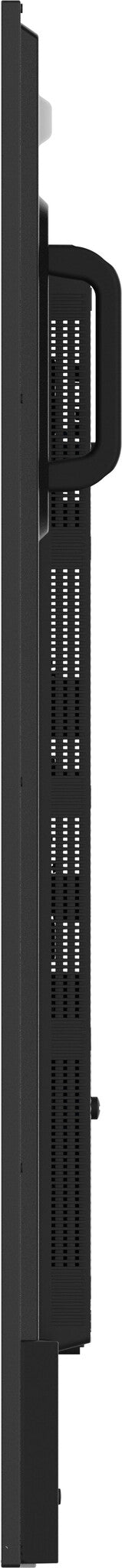

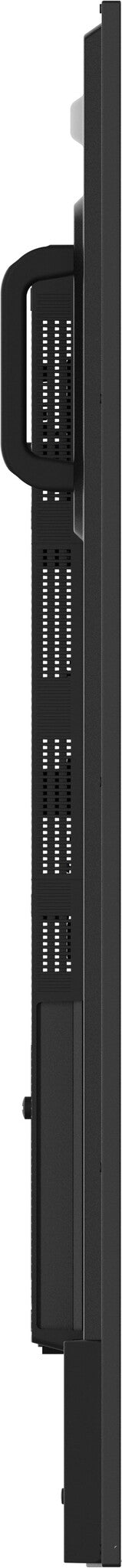

iiyama LH7565UHSB-B1

iiyama LH7565UHSB-B1

  • Indoor/outdoor Kiosk design Black
  • 189.2 cm (74.5") 3840 x 2160 pixels LED 800 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570123599
  • GTIN/EAN:4948570123599
  • MPN:LH7565UHSB-B1

You need to login to view the price.

Add To Favorite
View full details

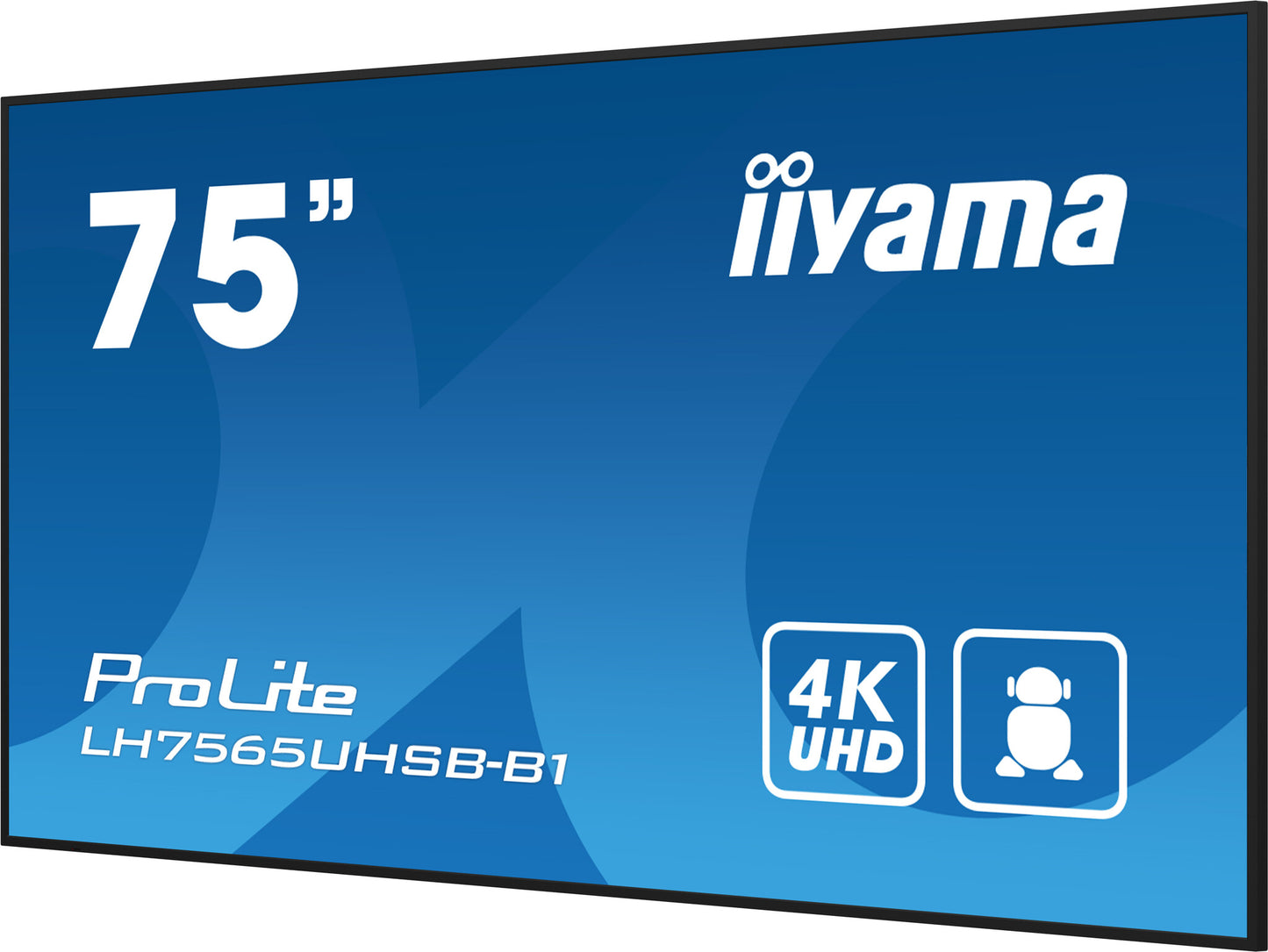

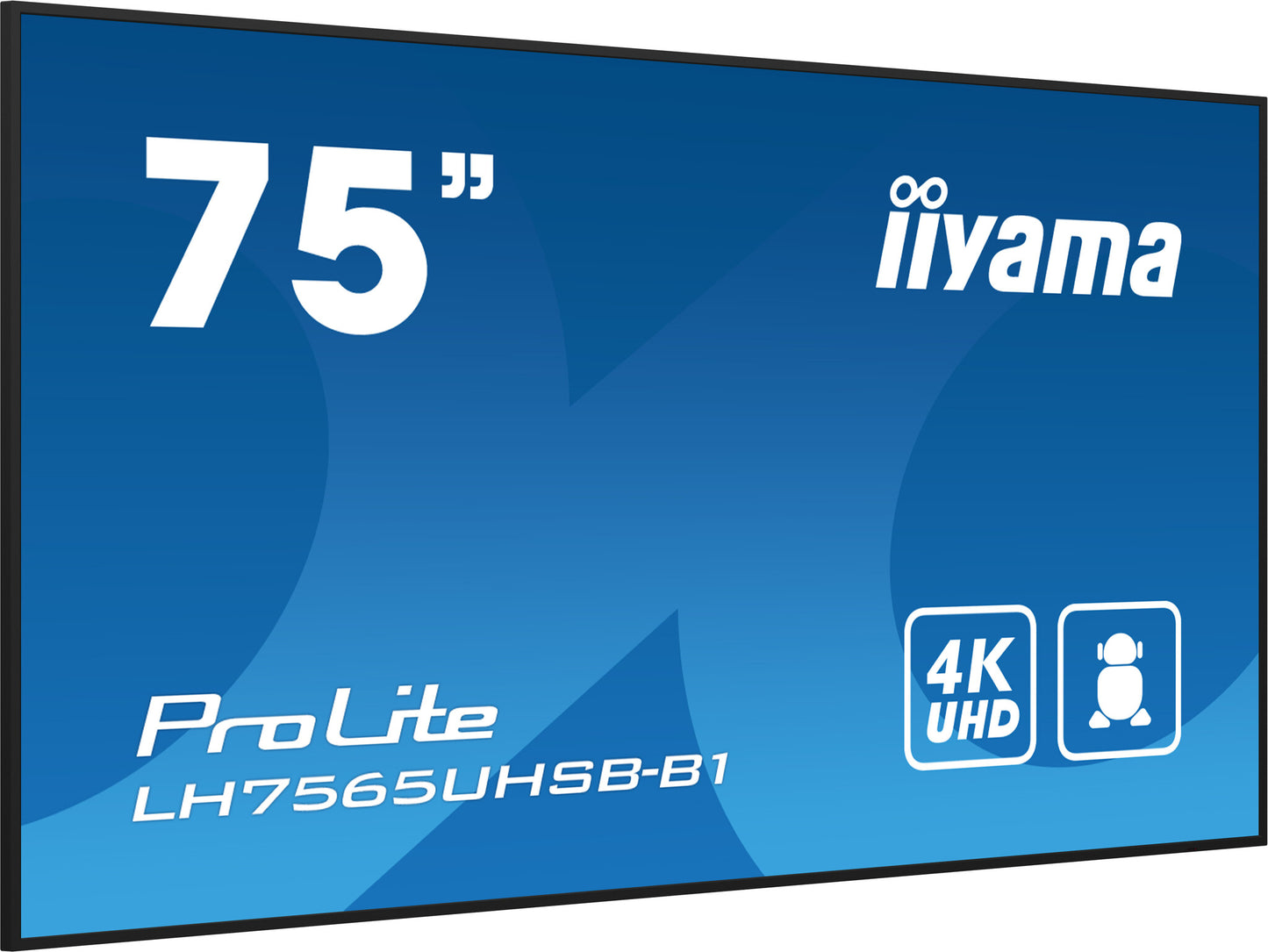

75" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication

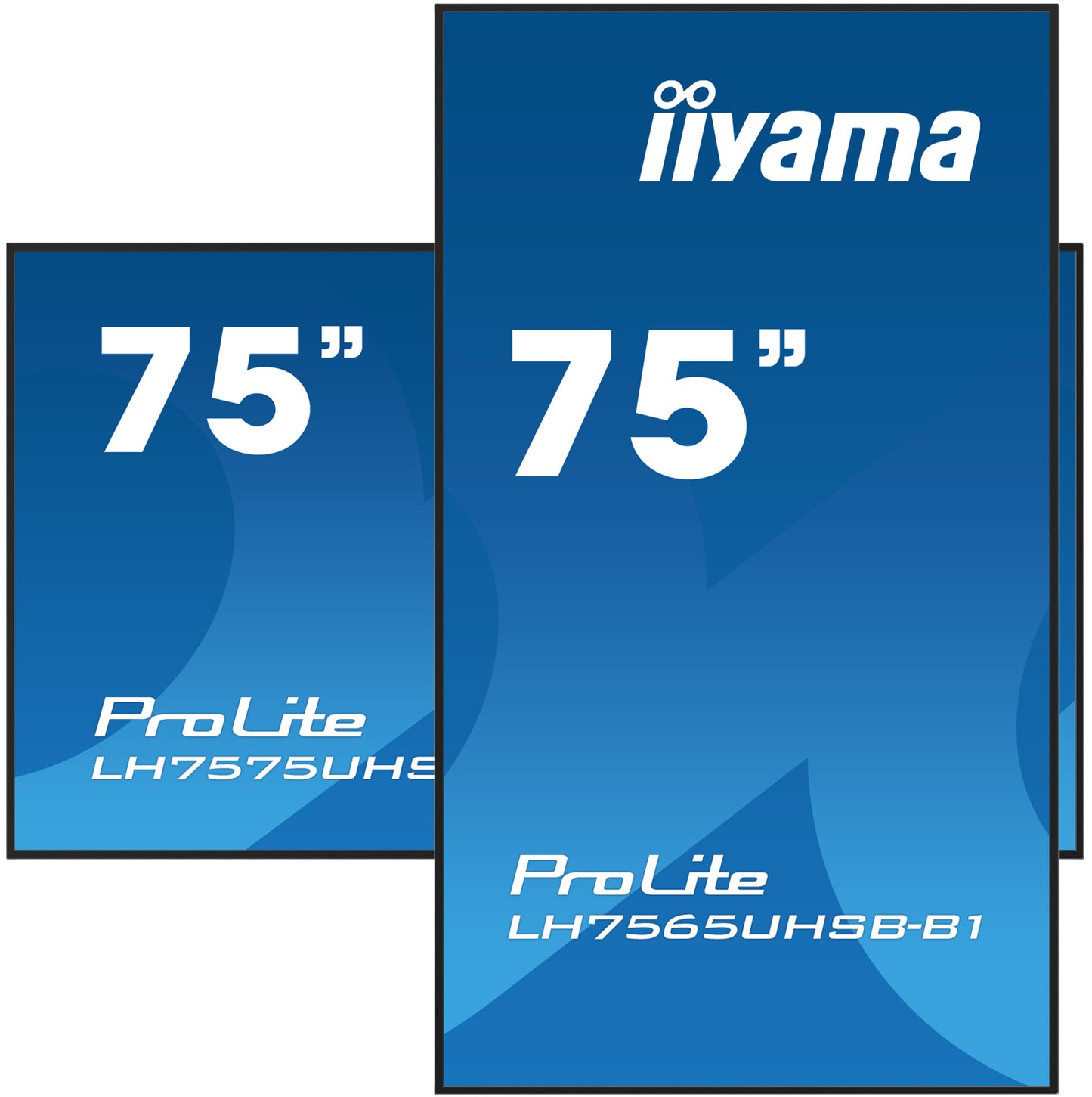

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH7565UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms.

The on-boardiiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Horizontal scan range
28 - 160 kHz
Haze rate
1%
Panel type
IPS
Native refresh rate
60 Hz
Display diagonal (metric)
189 cm
Active display area (W x H)
1650 x 928 mm
Pixel pitch
0.429 x 0.429 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Touchscreen
No
HD type
4K Ultra HD
Display brightness
800 cd/m²
Display resolution
3840 x 2160 pixels
Display technology
LED
Display diagonal
189.2 cm (74.5")

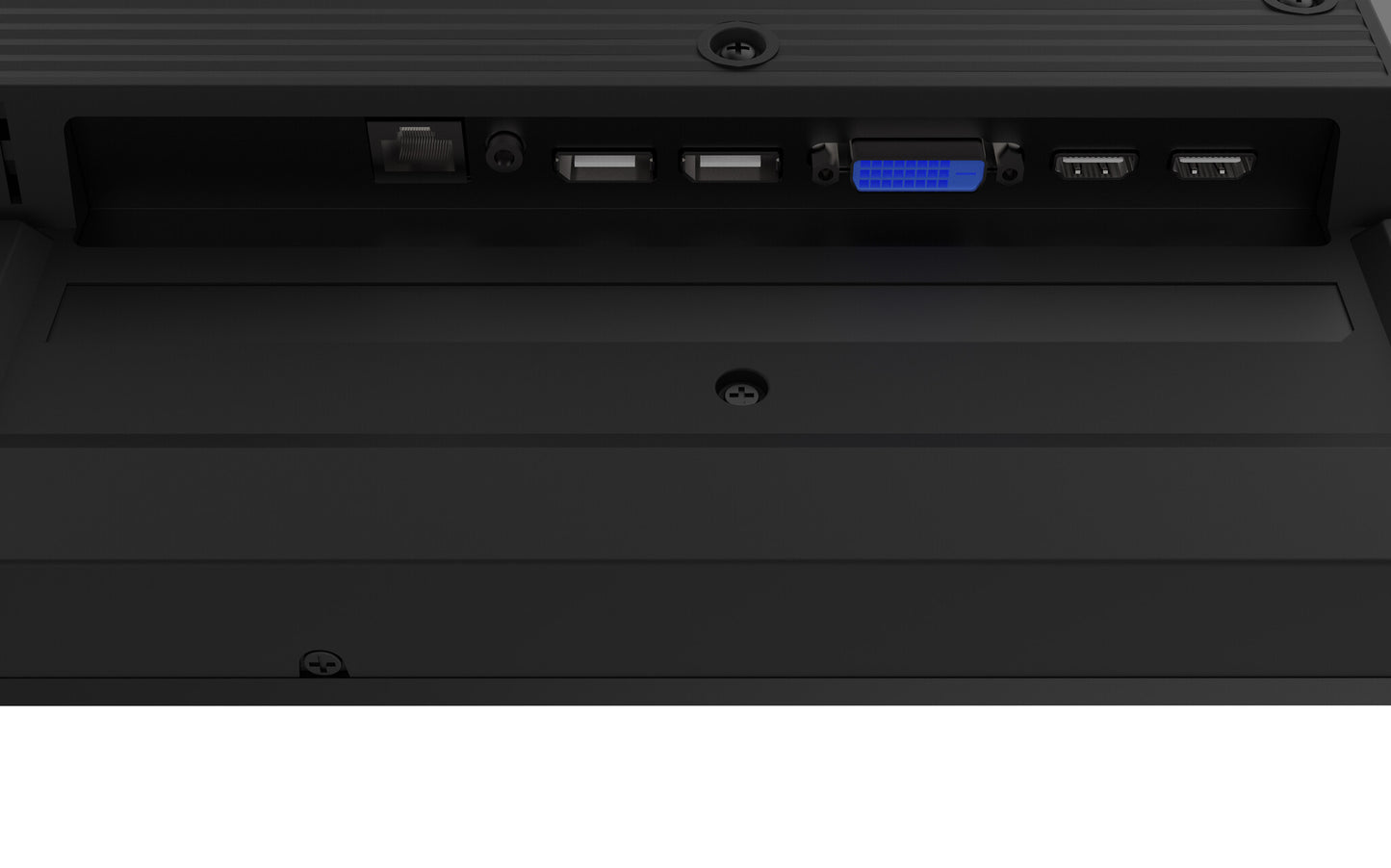

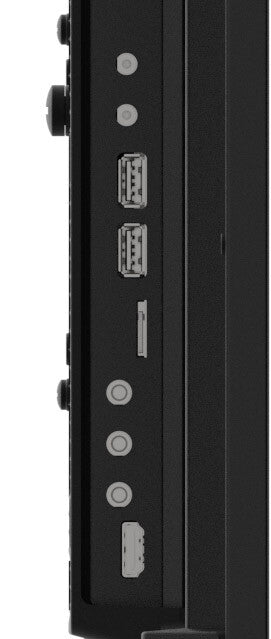

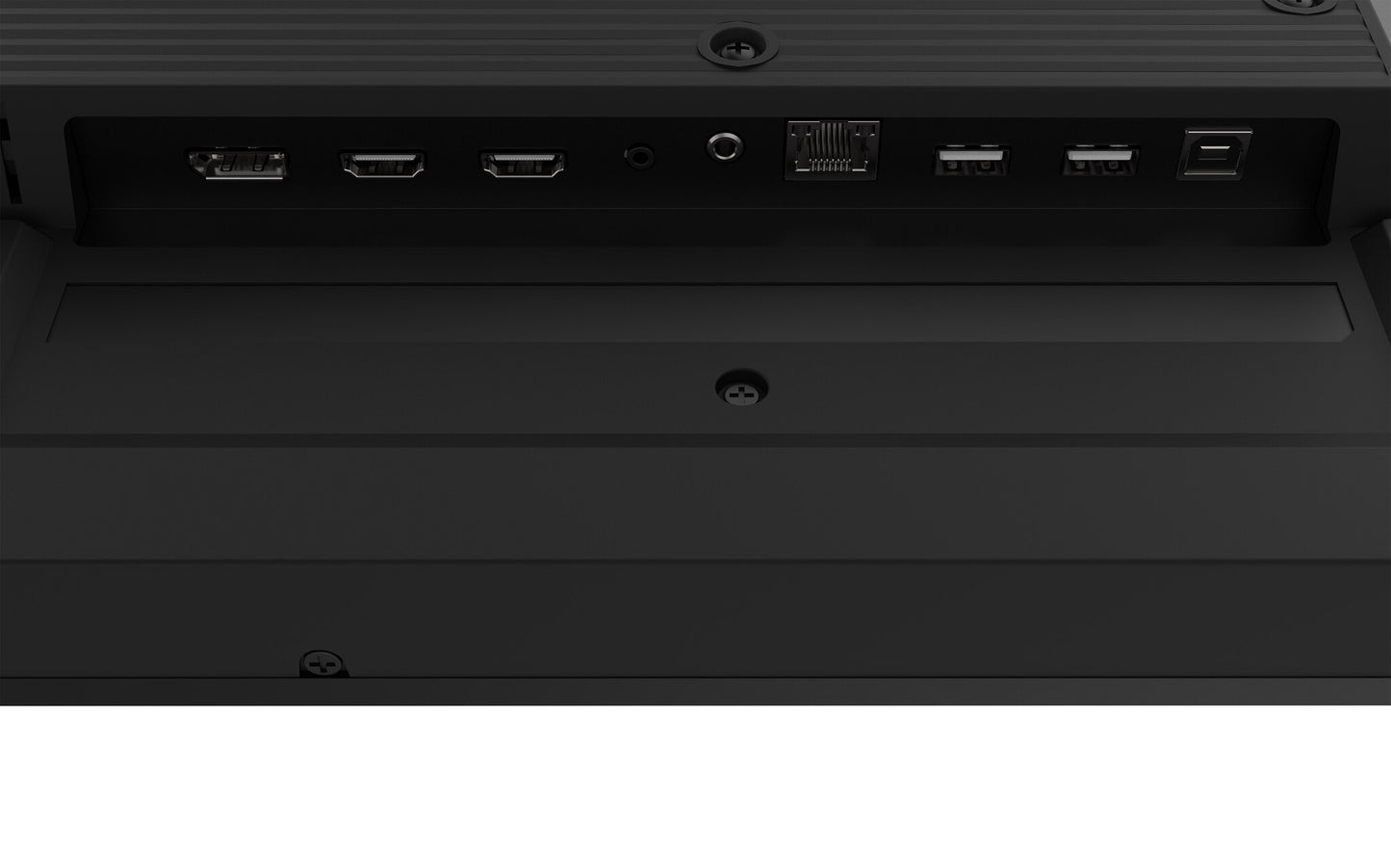

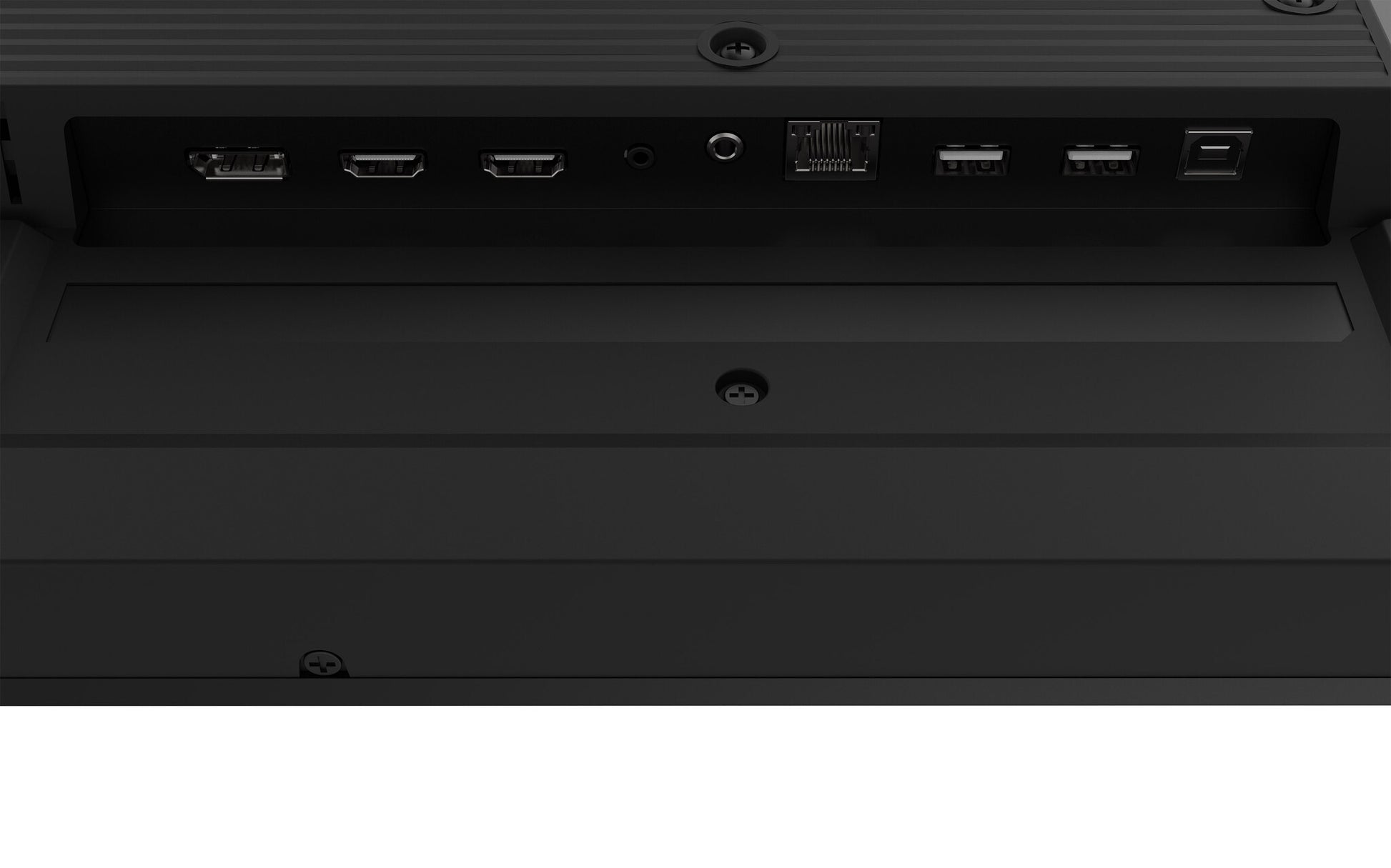

Ports & interfaces
RS-232C
Yes
RS-232 interface
Yes
Audio (L/R) in
1
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB version
2.0
USB ports quantity
2
USB port
Yes
DisplayPorts quantity
1
HDMI version
2.0
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (top)
1.49 cm
Bezel colour
black
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Placement supported
Indoor/outdoor
Product colour
Black
Product design
Kiosk design
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
Operating hours (hours/days)
24/7
Number of OSD languages
8
On Screen Display (OSD) languages
Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Purpose
Commercial
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
107 kWh
Energy efficiency class (SDR)
E
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
107 W
Computer system
Operating system installed
Android 11
Internal storage capacity
32 GB
On-board graphics card model
ARM Mali-G52
Internal memory
4 GB
Processor cores
8
Processor architecture
ARM Cortex-A53+Cortex-A73
Processor family
ARM Cortex
Processor manufacturer
ARM
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Weight (with stand)
29 kg
Height (with stand)
958.5 mm
Depth (with stand)
55 mm
Width (with stand)
1679.5 mm
Packaging data
Package weight
40.5 kg
Package height
1140 mm
Package depth
186 mm
Package width
1883 mm
Packaging content

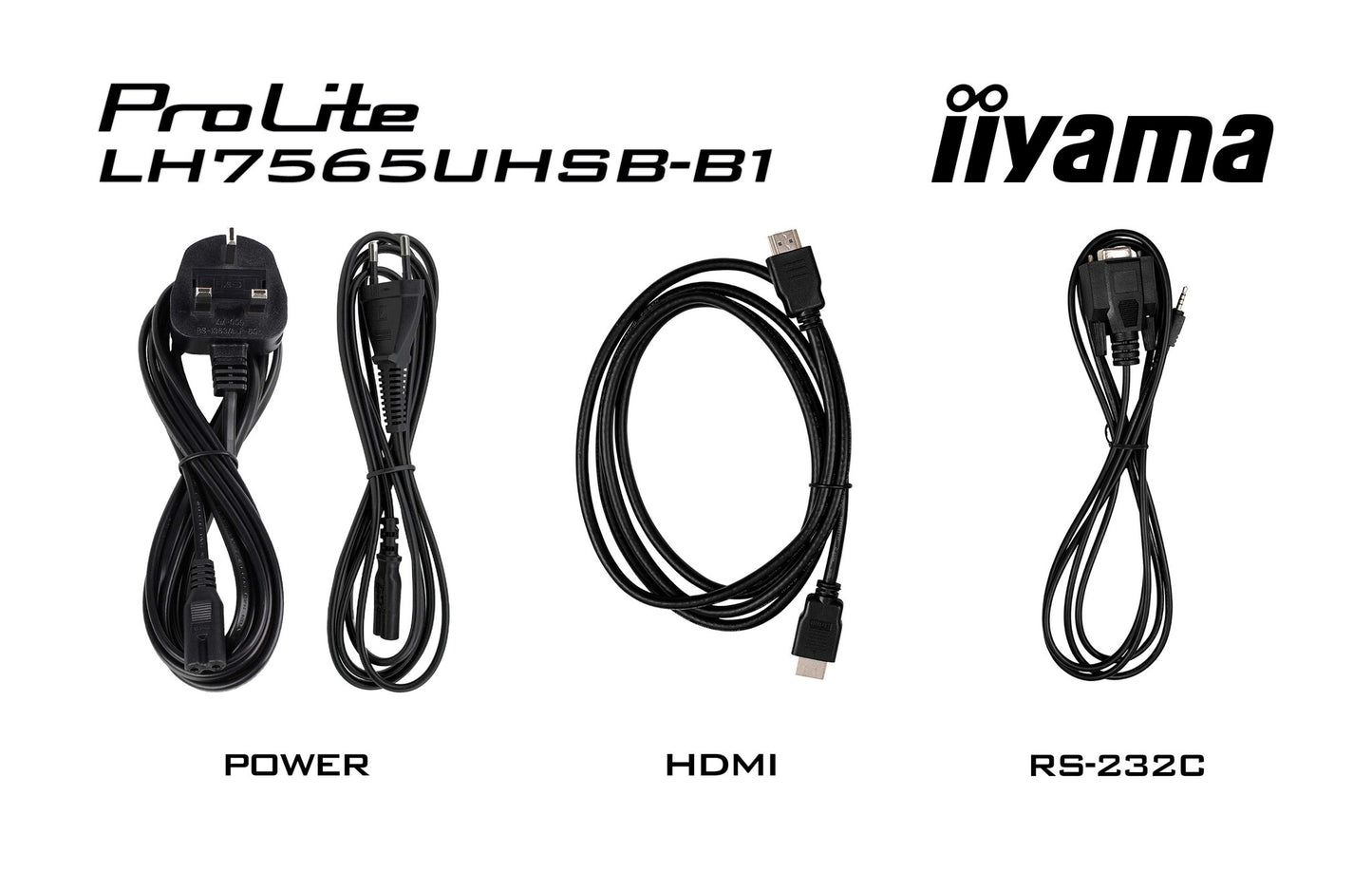

Cables included
HDMI, Power, RS-232
Remote control included
Yes
Operational conditions
Operating relative humidity (H-H)
-20 - 60%
Operating temperature (T-T)
0 - 40 °C
Other features
Wi-Fi standards
Wi-Fi 5 (802.11ac)
DisplayPort version
1.2
