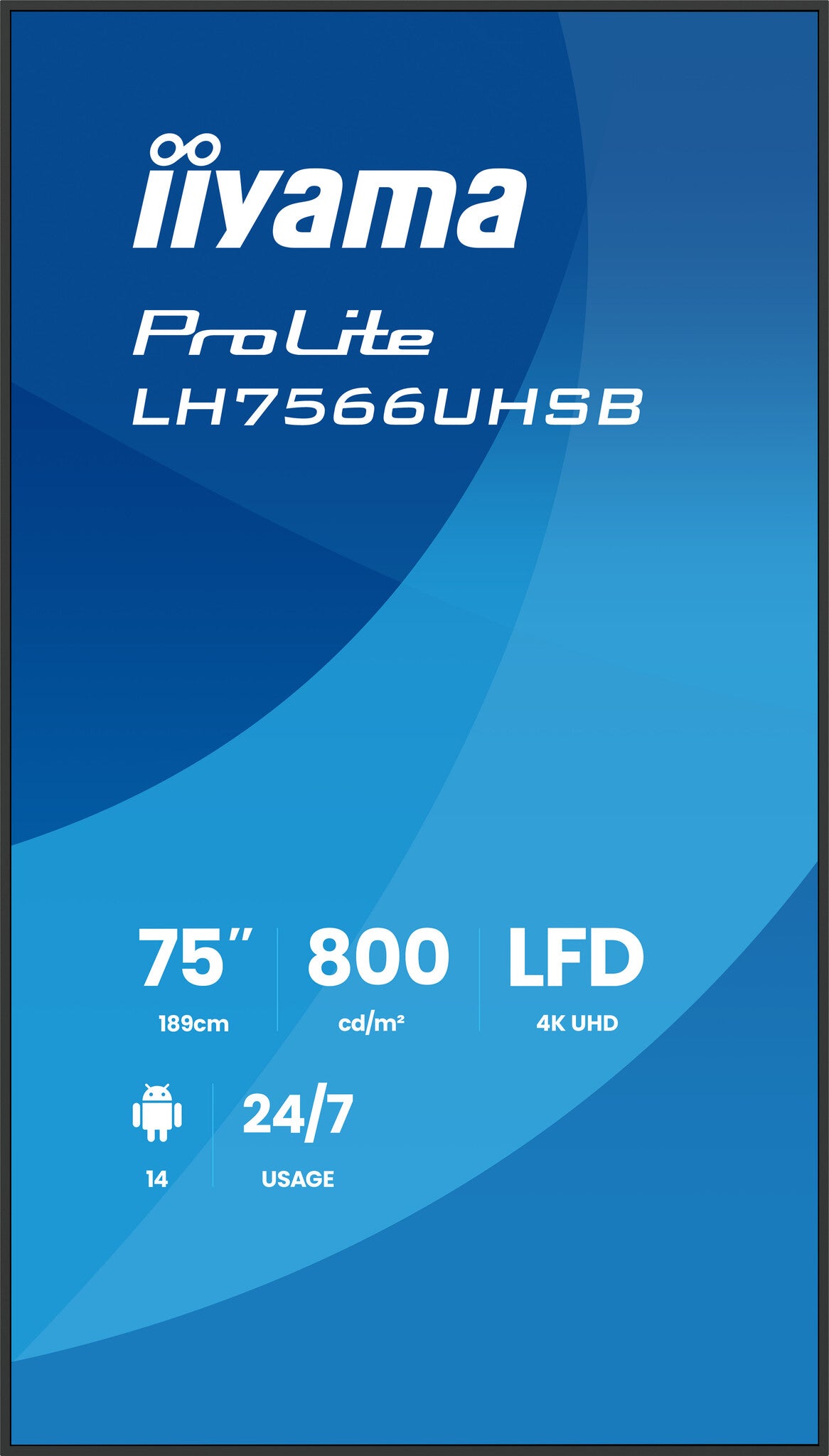

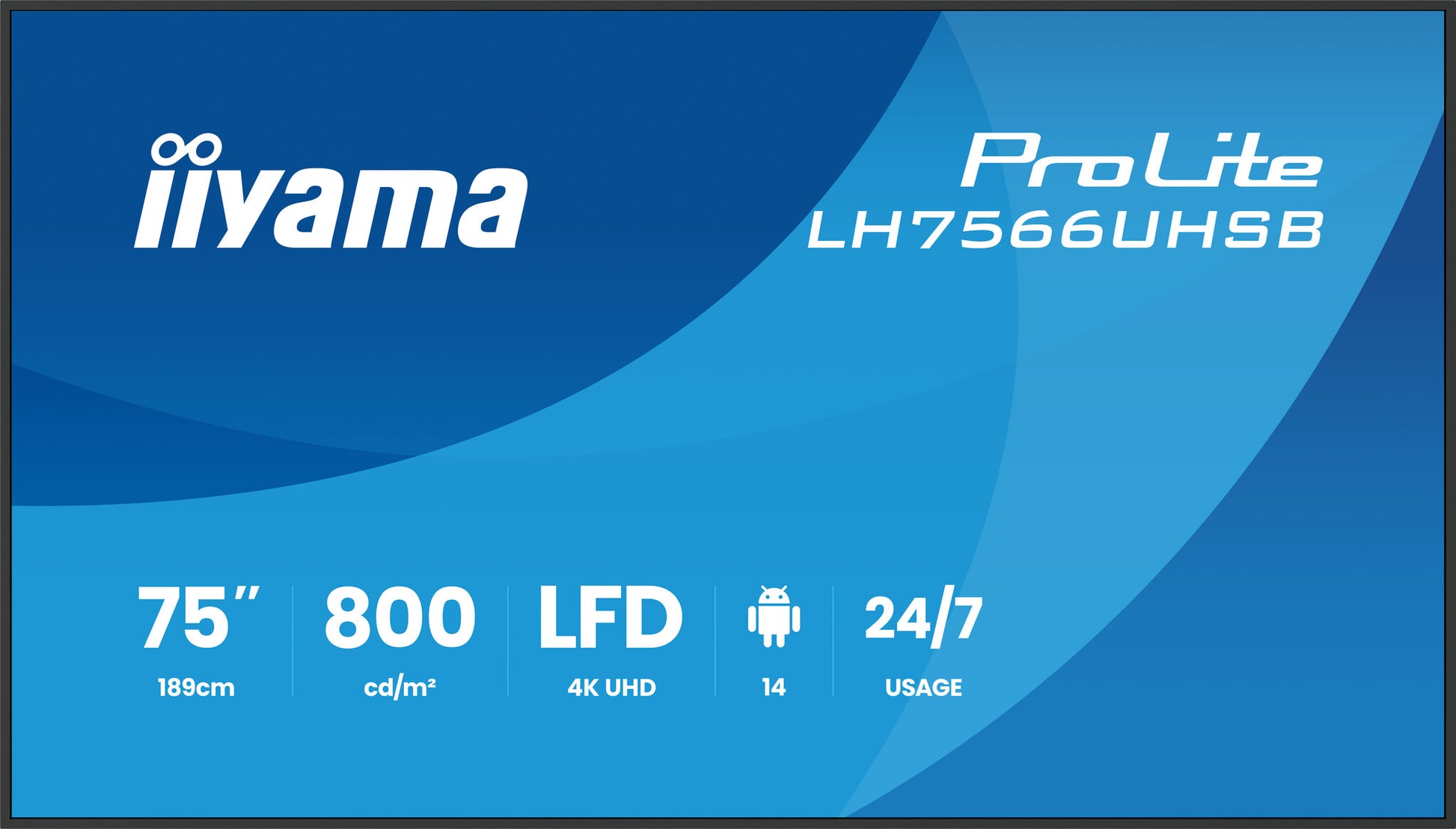

iiyama LH7566UHSB-B1AG Signage Display Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

iiyama LH7566UHSB-B1AG Signage Display Digital signage flat panel 190.5 cm (75") LCD Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

75" 4K UHD Most powerful professional digital signage display with a brightness of 800cd/m2

  • Indoor Digital signage flat panel Black
  • 190.5 cm (75") 3840 x 2160 pixels LCD 800 cd/m²
  • 60 Hz 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570128242
  • GTIN/EAN:4948570128242
  • MPN:LH7566UHSB-B1AG

You need to login to view the price.

View full details

iiyama LH7566UHSB-B1AG. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

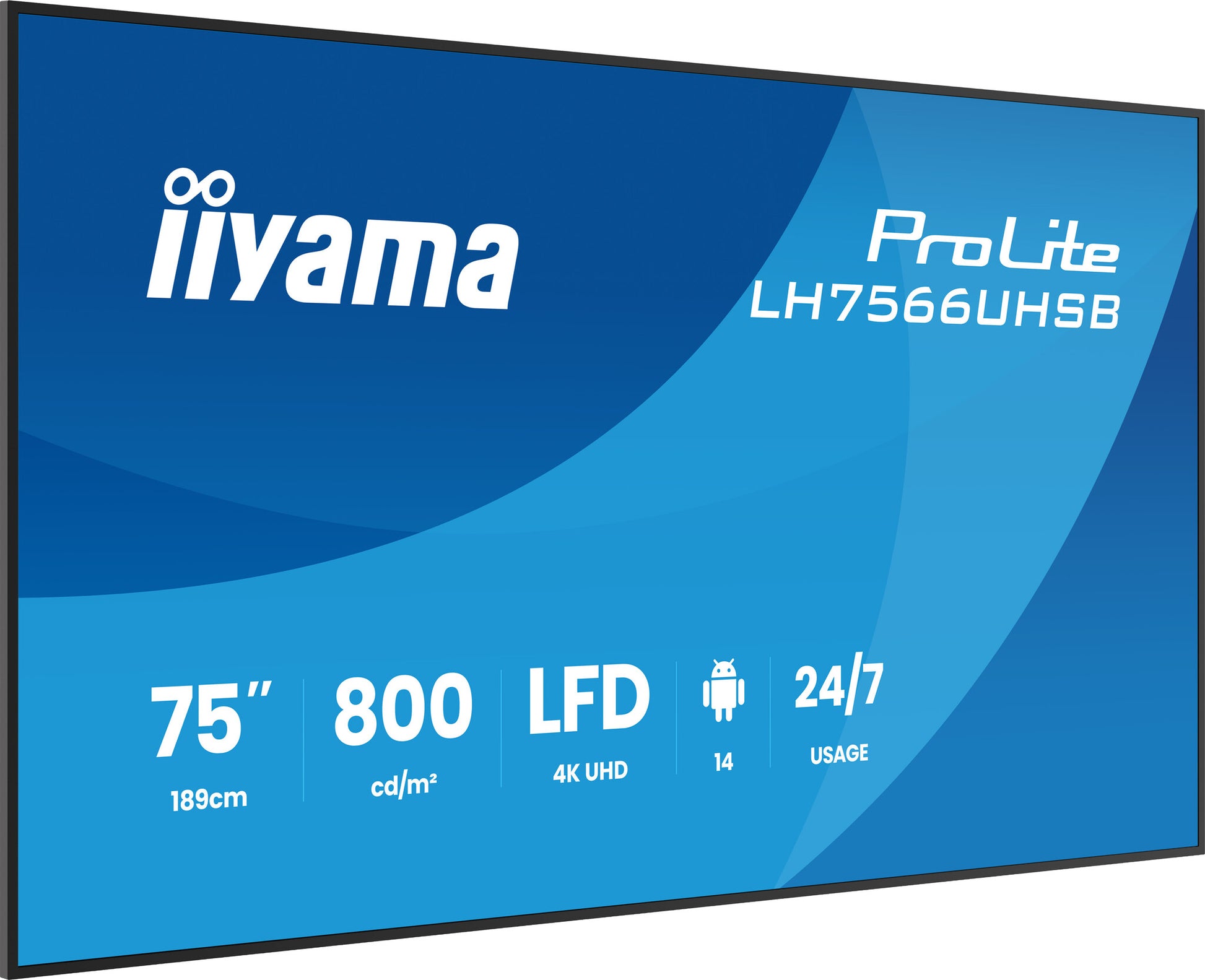

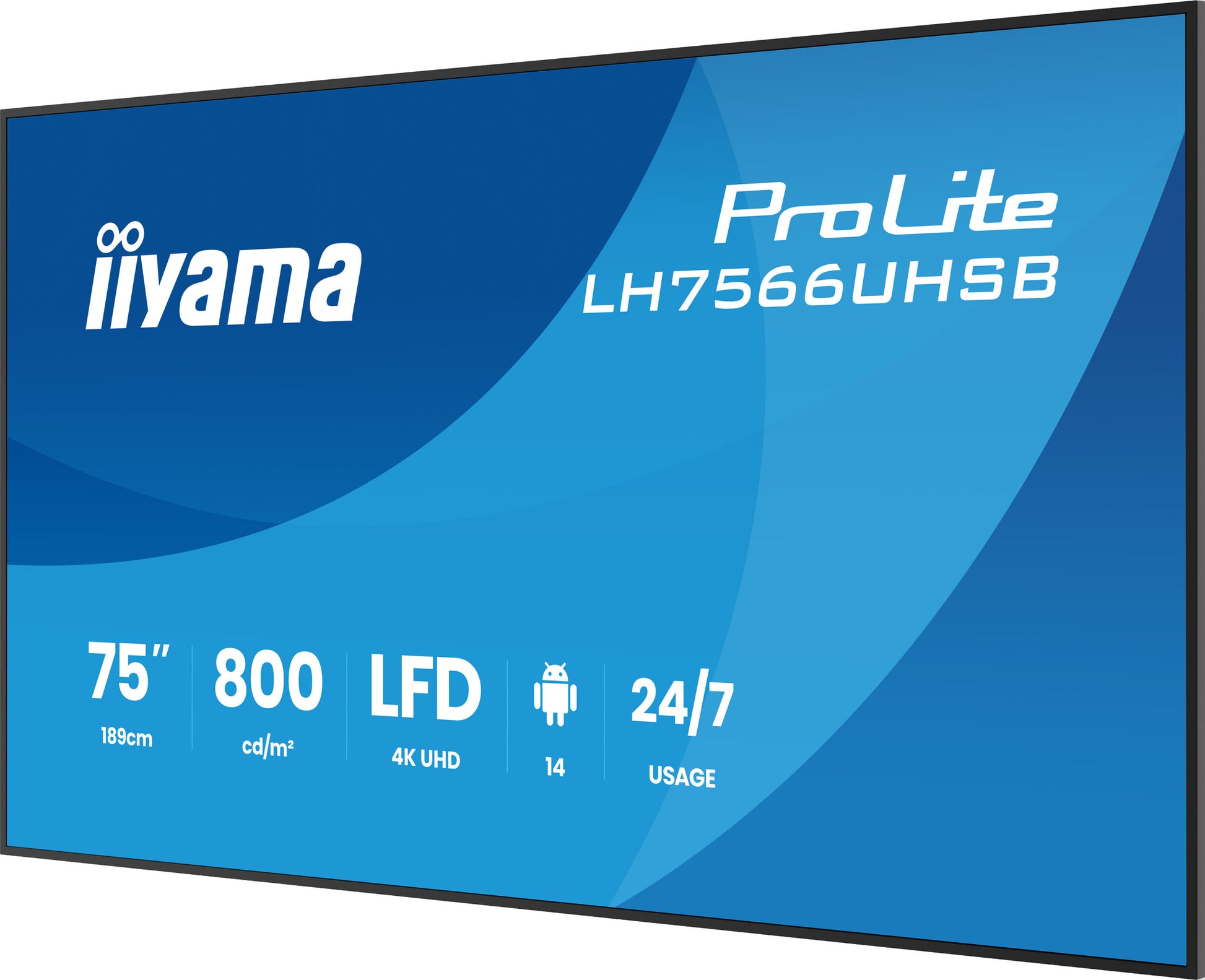

The ProLite LH7566UHSB-B1AG is a 75" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .

Display
Display diagonal
190.5 cm (75")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
800 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.429 x 0.429 mm
Active display area (W x H)
1650.24 x 928.26 mm
Display diagonal (metric)
189.5 cm
Horizontal scan range
57 - 62 kHz
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

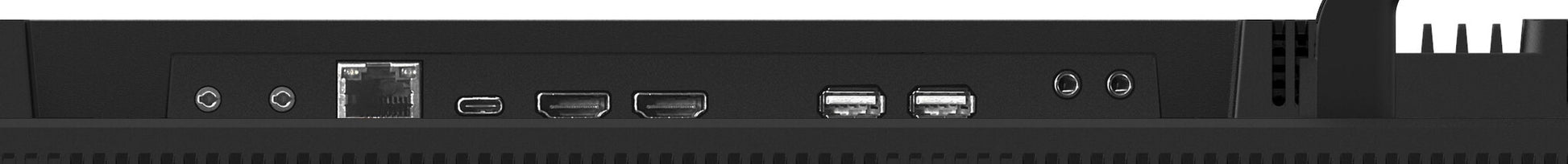

Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
DVI port
No
USB port
Yes
USB ports quantity
2
USB version
2.0
USB Power Delivery
Yes
USB Power Delivery up to
15 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor

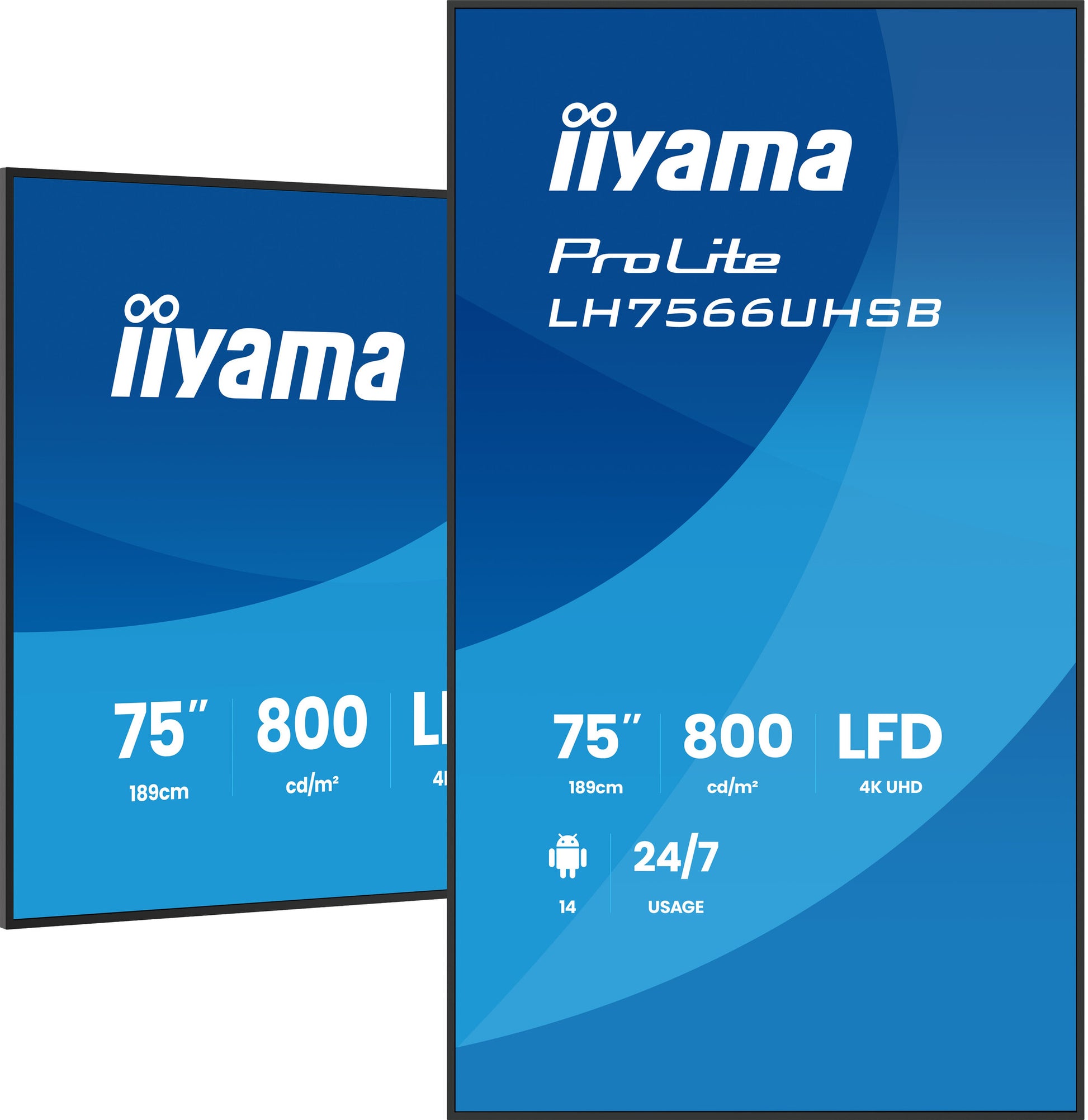

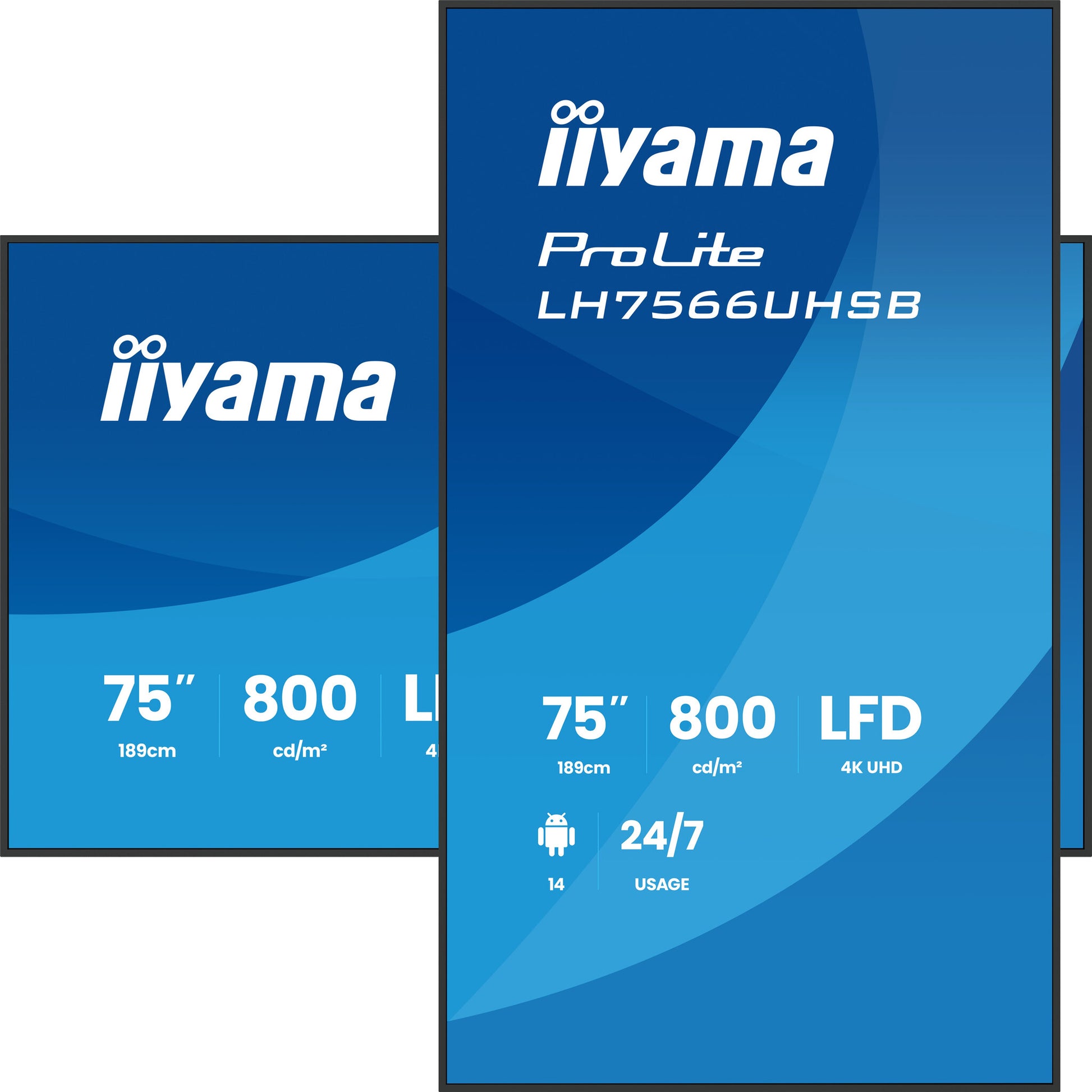

Orientation
Horizontal/Vertical

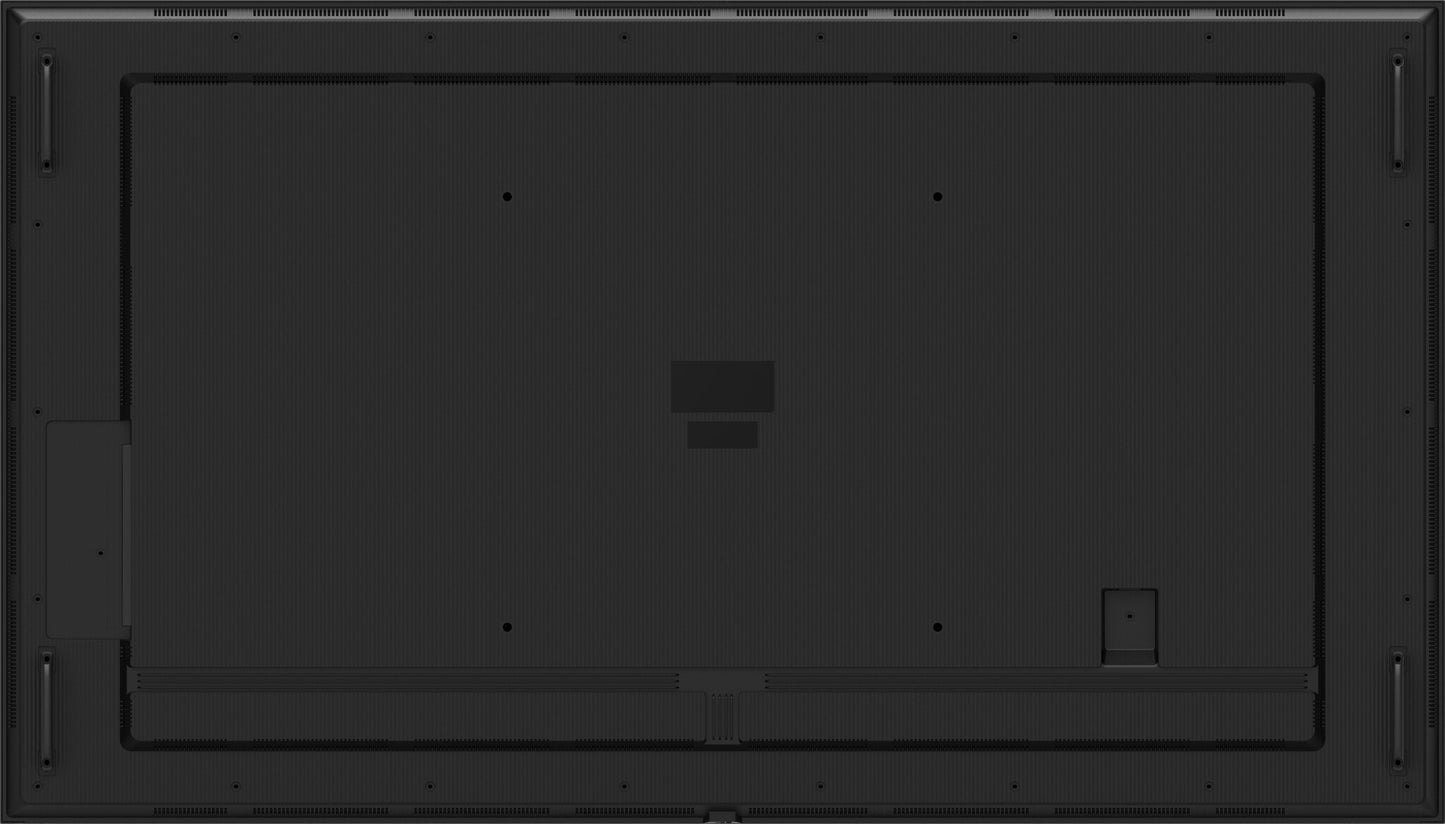

VESA mounting
Yes
Panel mounting interface
500 x 500 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.28 cm
Bezel width (side)
1.28 cm
Bezel width (bottom)
1.28 cm
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
International Protection (IP) code
IP5X
HDCP version
1.4/2.0
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
219 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system
Yes
Built-in processor
Yes
Processor manufacturer
MediaTek
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A73
Processor model
MT9679
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1679 mm
Display depth
69 mm
Display height
957.1 mm
Display weight
28 kg
Width
1679 mm
Depth
69 mm
Height
957.1 mm
Weight
28 kg
Packaging data
Package width
1840 mm
Package depth
1112 mm
Package height
177 mm
Package weight
39.6 kg
Packaging content
Remote control included
Yes
Mounting kit
Yes
Cables included

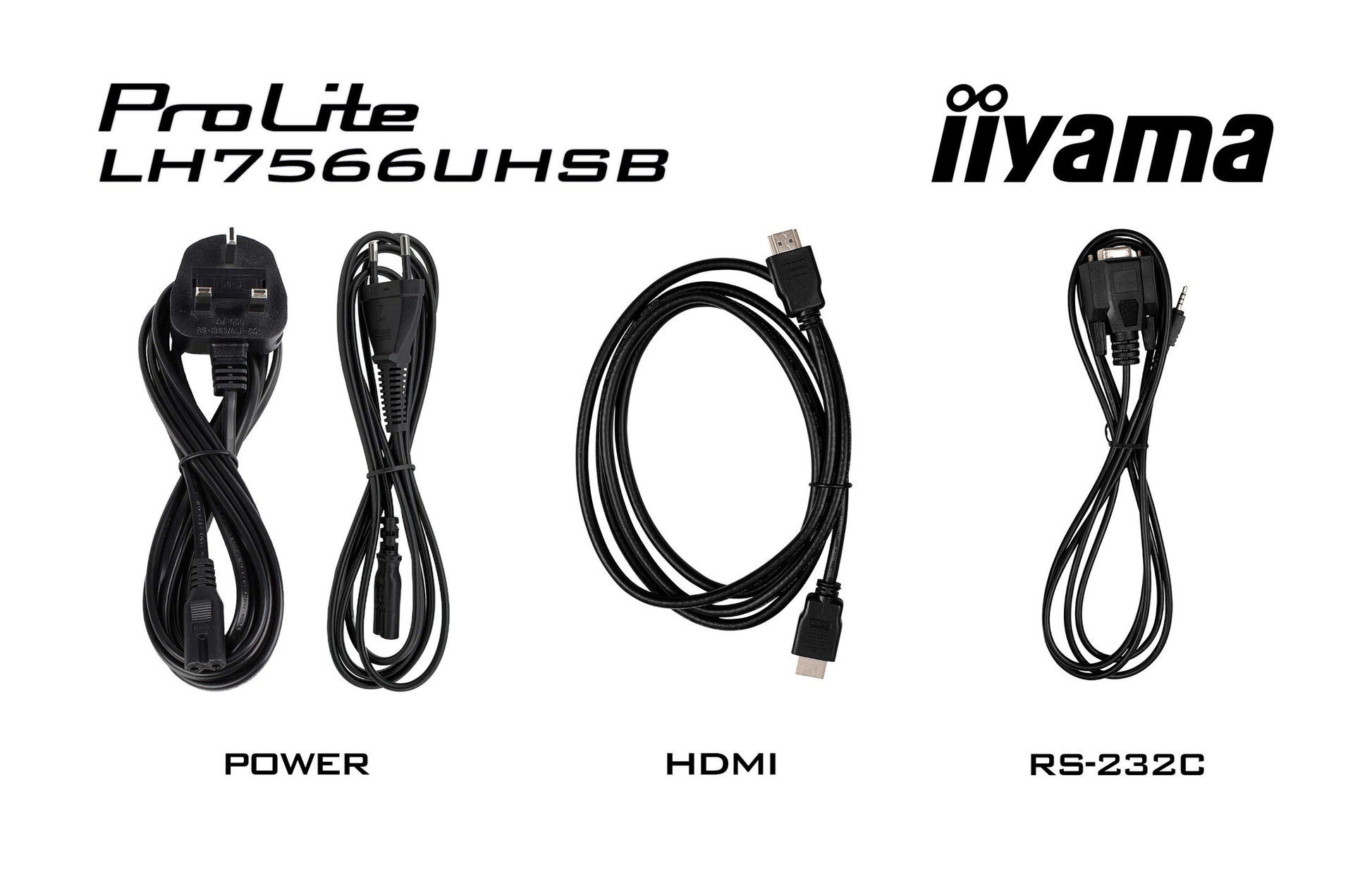

AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Logistics data
Products per pallet
12 pc(s)
Features
Base material
Plastic
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Pallet net width
185 cm
Pallet net length
111.2 cm
Pallet net height
107.2 cm
Sustainability certificates
ErP
User controls
network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Playback media
Y
Other features
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Quick start guide
Yes
