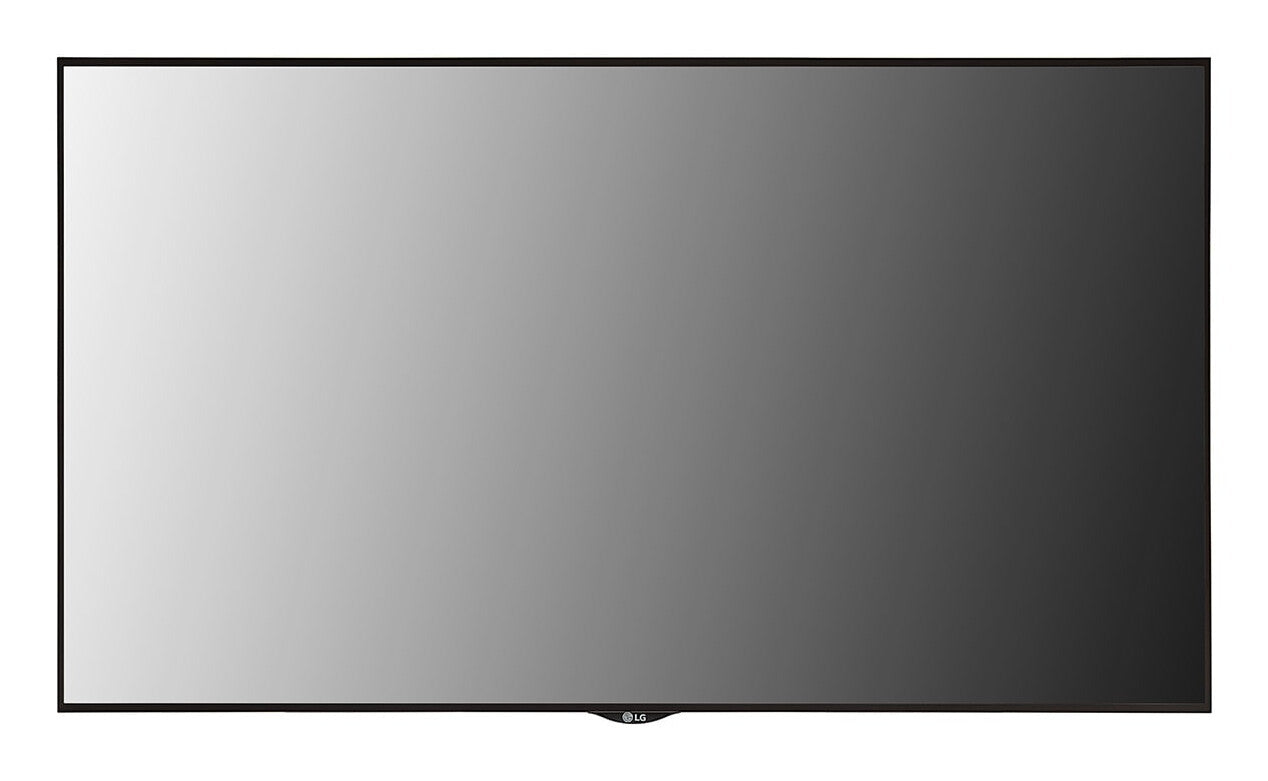

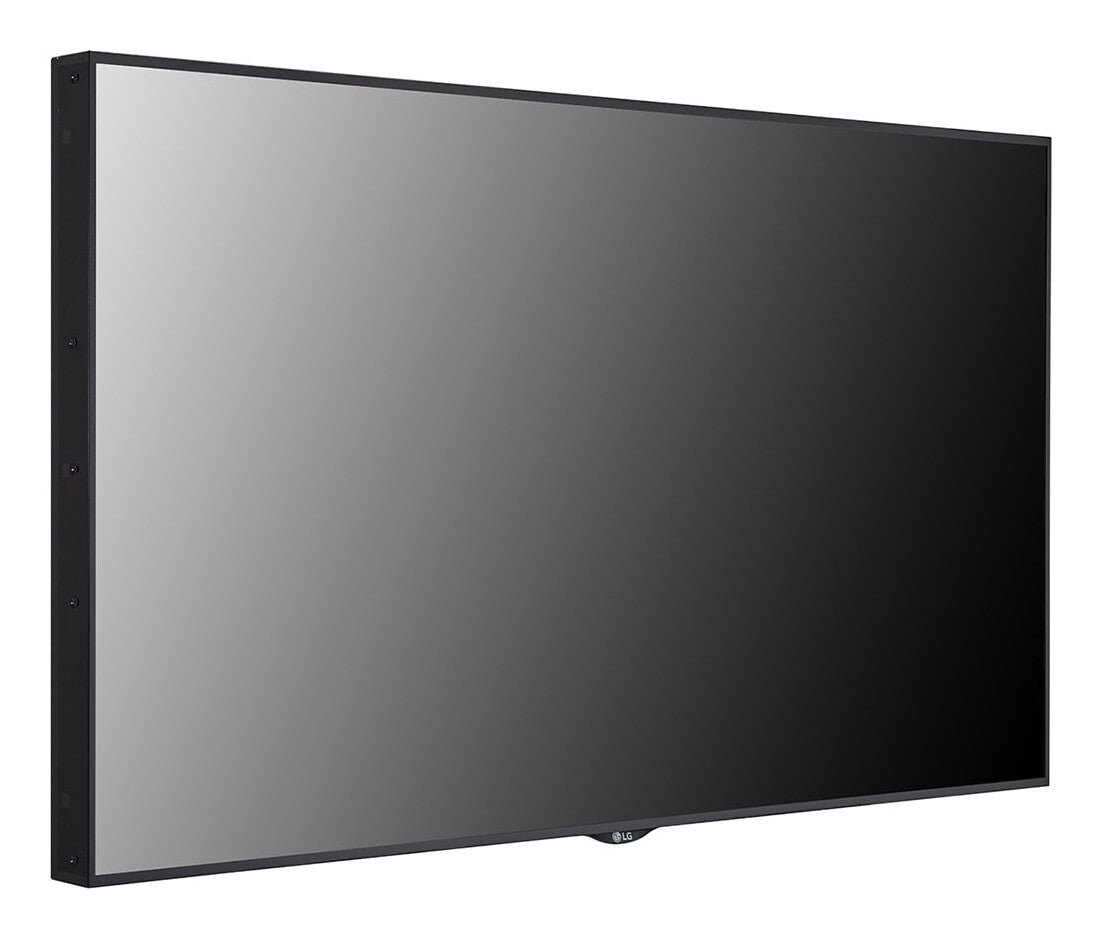

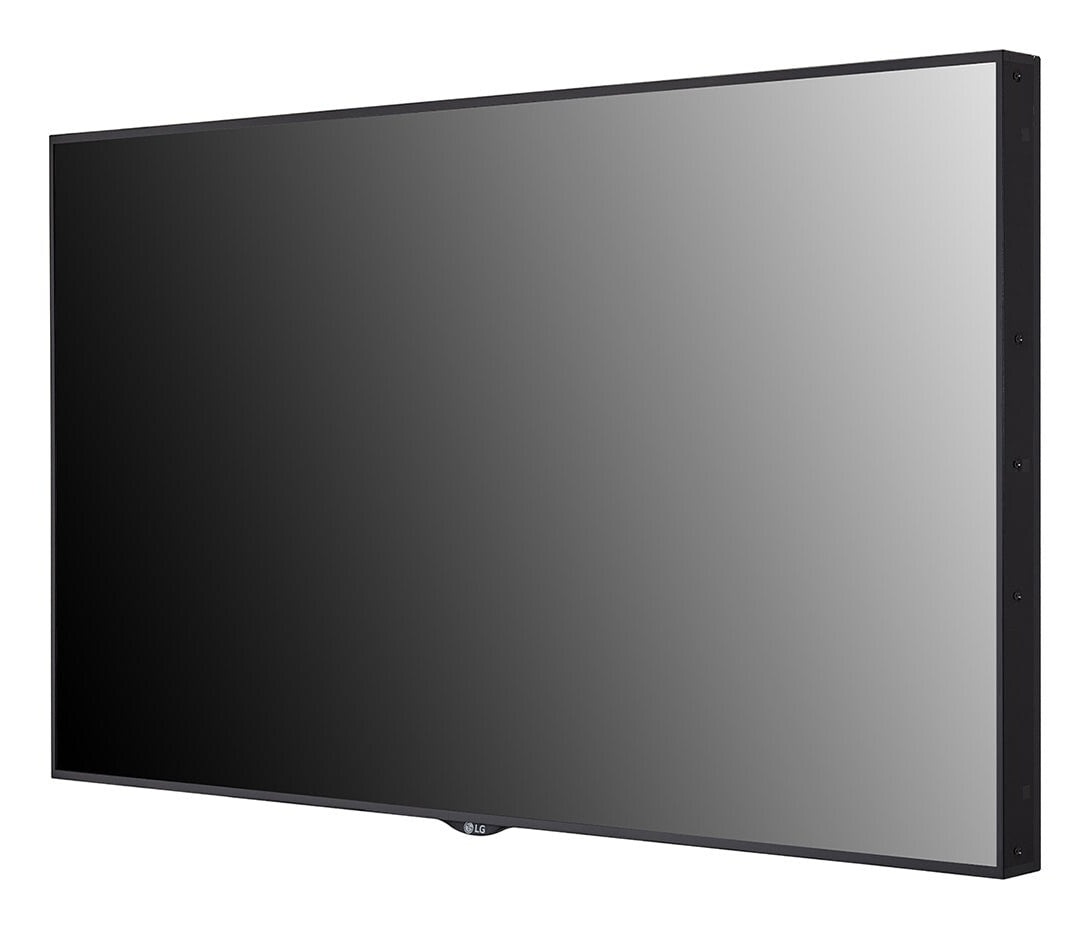

LG 75XS4P-B.AEU

LG 75XS4P-B.AEU

75", 3840 x 2160, 60 Hz, 178 x 178, web OS 6.0, 39.6 kg, Black

  • UL Verified Display Anti-discoloration Characteristics
  • 'Resolution : 3,840 x 2,160 (UHD)
  • 'Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)

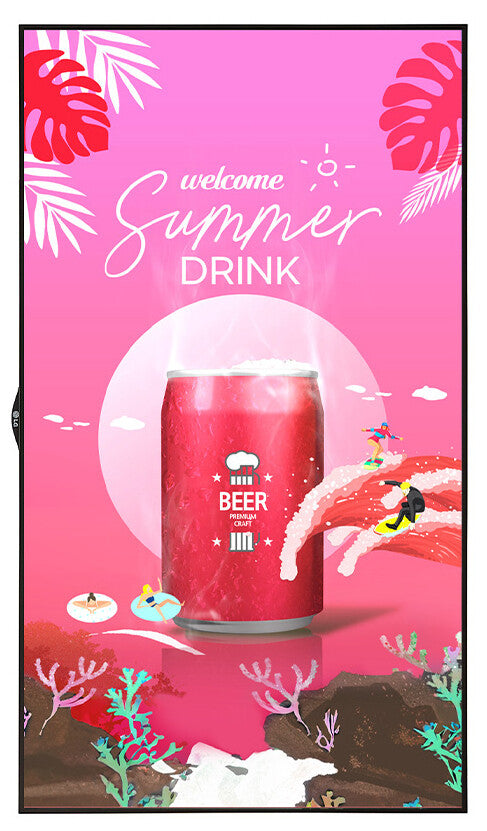

  • Portrait / Landscape
  • Space Efficiency
  • SKU:8806096166260
  • GTIN/EAN:8806096166260
  • MPN:75XS4P-B

You need to login to view the price.

View full details

LG 75XS4P-B.AEU. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 4000 cd/m², HD type: UHD+. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

Attract Passing Customers with a Bright Display Presented Through a Window

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

Display
Display diagonal
190.5 cm (75")
Display technology
LED
LED backlight
Yes
LED backlighting type
Direct-LED
Display resolution
3840 x 2160 pixels
Display brightness
4000 cd/m²
HD type
UHD+
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
500000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Panel life
50000 h
Native refresh rate
60 Hz
Panel type
IPS
Haze rate
3%

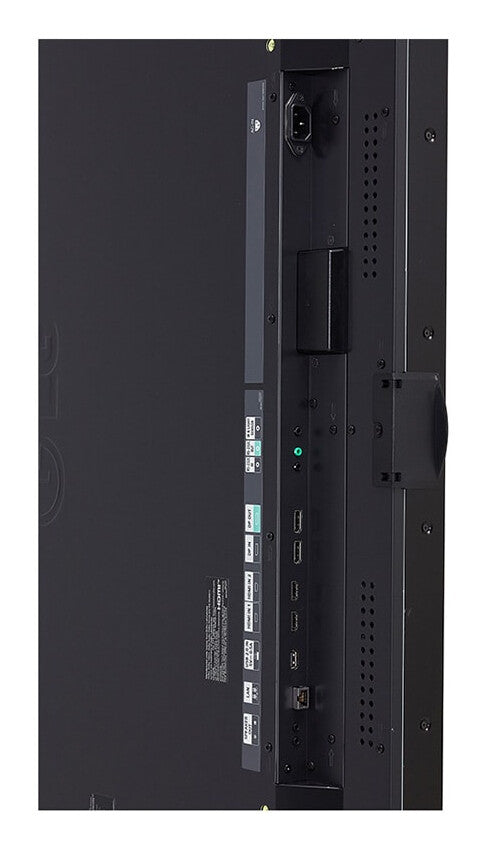

Ports & interfaces
HDMI ports quantity
2
HDMI input ports quantity
2
DVI-D ports quantity
1
DisplayPorts quantity
2
DisplayPorts in
1
DisplayPorts out
1
USB port
Yes
USB ports quantity
1
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Audio (L/R) out
1
Number of speaker outputs
1
RS-232C
Yes
Infrared data port
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio
Built-in speaker(s)
Yes
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Outdoor
Orientation
Horizontal/Vertical
Screen shape
Flat

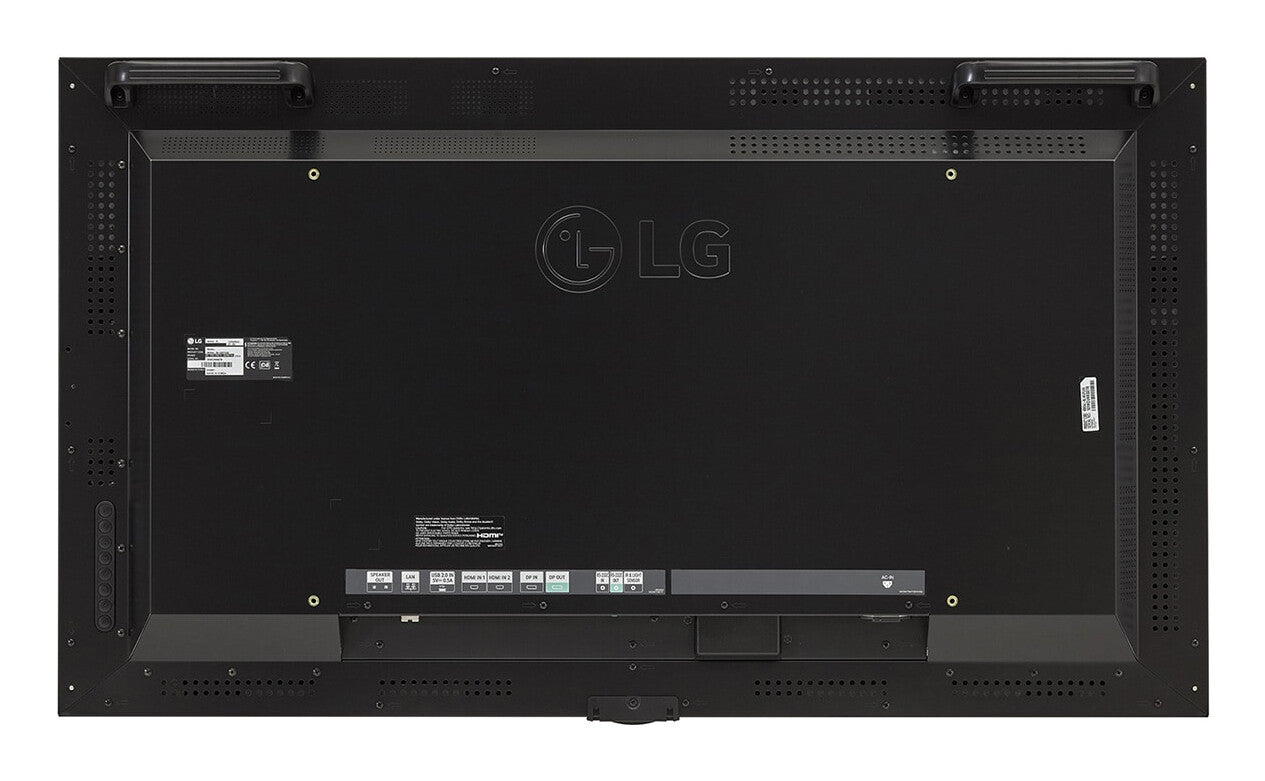

VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel colour
Black
Bezel width (side)
1.38 cm
Performance
Purpose
Retail
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Number of OSD languages
22
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.2
HDCP
Yes
Power
Power consumption (typical)
750 W
Power consumption (max)
790 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Heat dissipation
2559 BTU/h
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Internal memory
16 GB
Operating system installed
WebOS
Operating system version
6.0

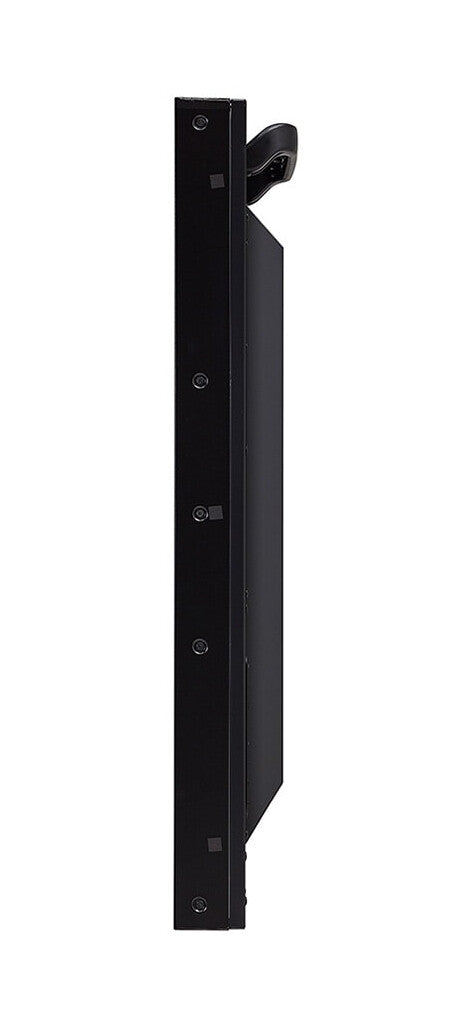

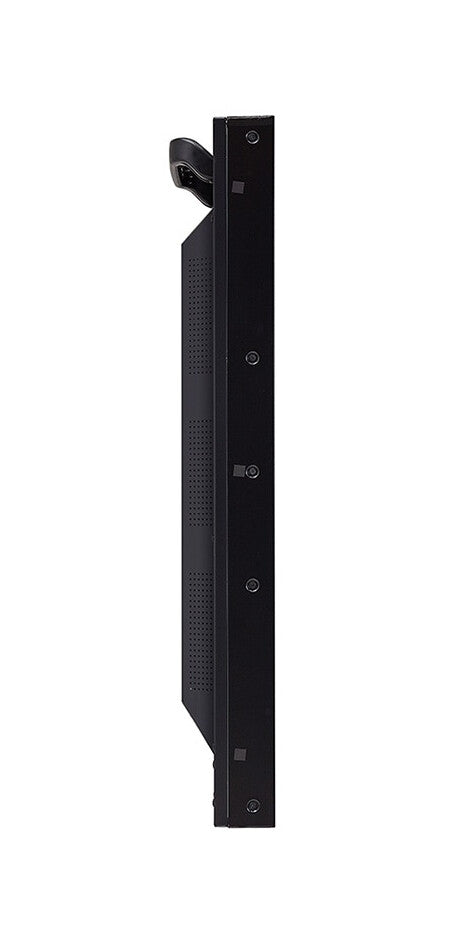

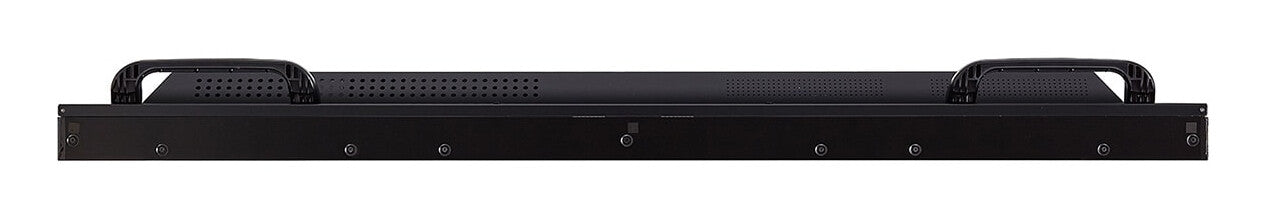

Weight & dimensions
Display width
1679.2 mm
Display depth
104 mm
Display height
957.6 mm
Display weight
39.6 kg
Packaging data
Package width
1816 mm
Package depth
285 mm
Package height
1106 mm
Package weight
50 kg
Packaging content
Remote control included
Yes
Cables included
AC, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 85%
Features
Suitable for outdoor use
Yes
Heat dissipation (max)
2696 BTU/h
Technical details
Introduction year
24
Other features
USB connector type
USB Type-A
Manual
Yes
