LUXUL SW-100-08P-E

LUXUL SW-100-08P-E

8 Port Unmanaged PoE+ Switch

  • 8 port Gb PoE+ switch w/ uplink 92W total power budget
  • Durable compact metal case
  • Fanless for silent operation
  • Includes rubber feet and keyhole features for surface mounting options
  • SKU:IM3_SW-100-08P-E
  • GTIN/EAN:655003921670
  • MPN:SW-100-08P-E

You need to login to view the price.

View full details

Luxul Wireless SW-100-08P-E. Switch type: Unmanaged. Switching capacity: 18 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

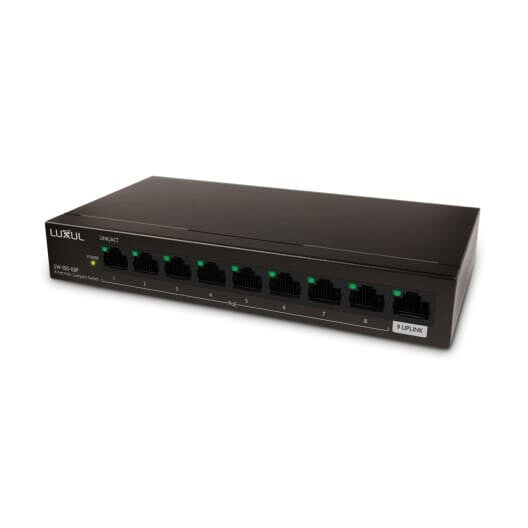

The SW-100-08P is a compact Gigabit PoE Plus switch that provides eight PoE Plus capable ports of Gb Ethernet connectivity with a total power budget of 92 watts. It is an excellent choice for expanding your network when using PoE-enabled devices such as IP cameras, wireless access points, AV over IP devices, control panels and easily fits into the widest range of environments. The durable metal case includes rubber feet and keyhole features for surface mounting options.

3 years

Management features
Switch type
Unmanaged
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Data transmission
Switching capacity
18 Gbit/s
Design
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, Power
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
5.8 W
Power consumption (max)
117 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Total Power over Ethernet (PoE) budget
92 W
Operational conditions
Operating temperature (T-T)
32 - 104 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
108 mm
Height
26 mm
Weight
1.2 kg
Certificates
Certification
FCC, IC, RCM, CE-EMC, CE-LVD (IEC-62368-1), CB Report
