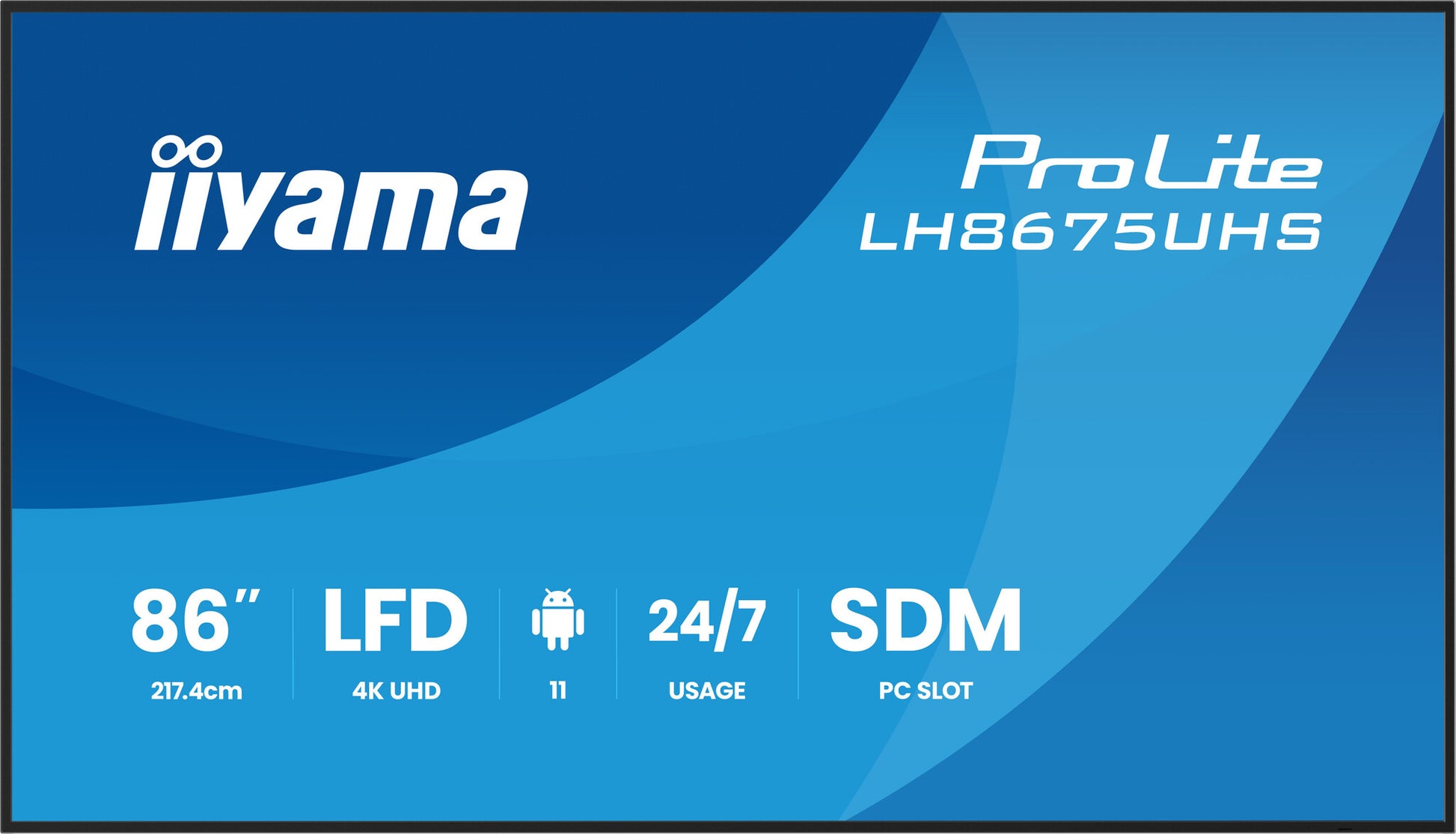

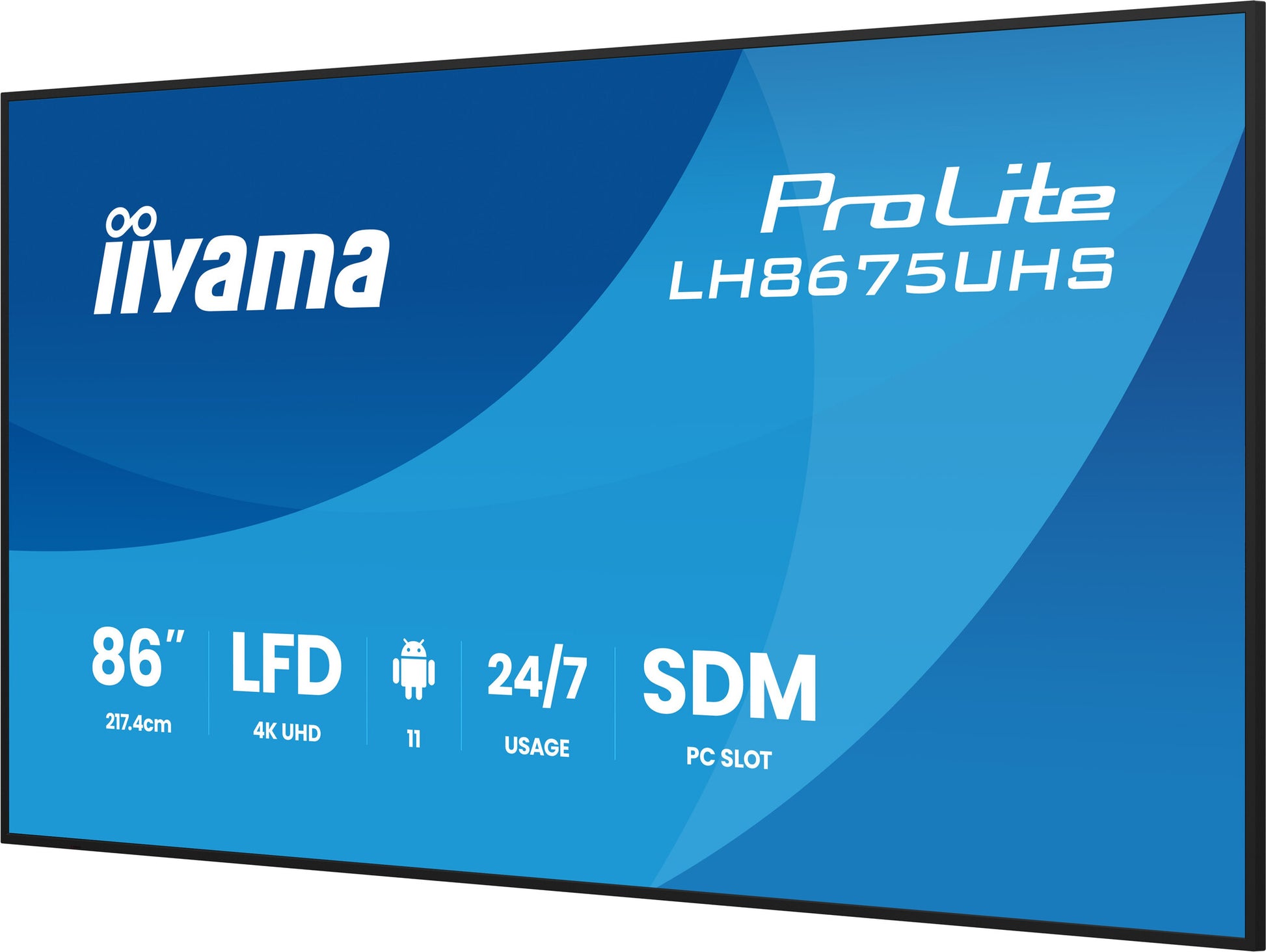

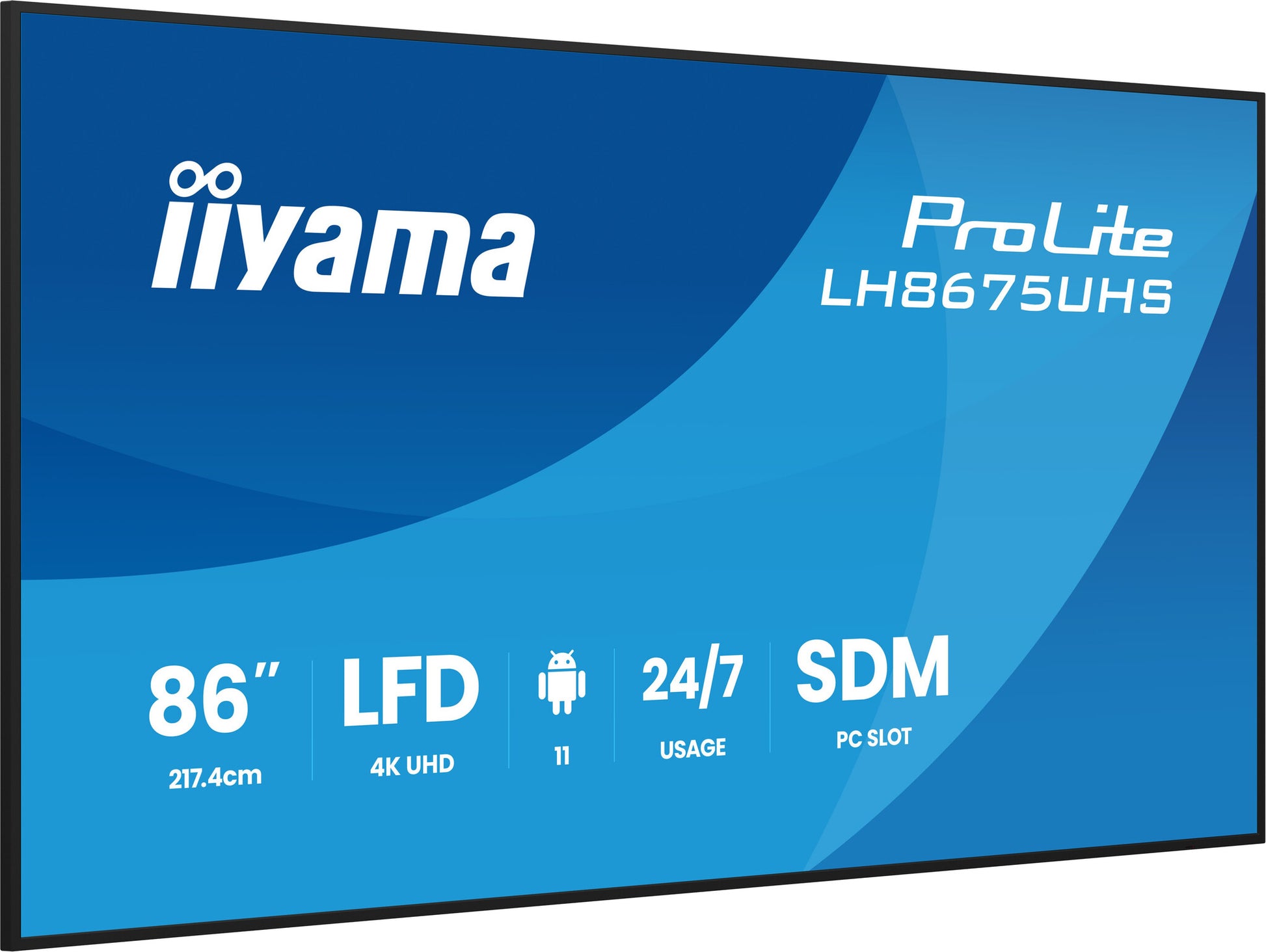

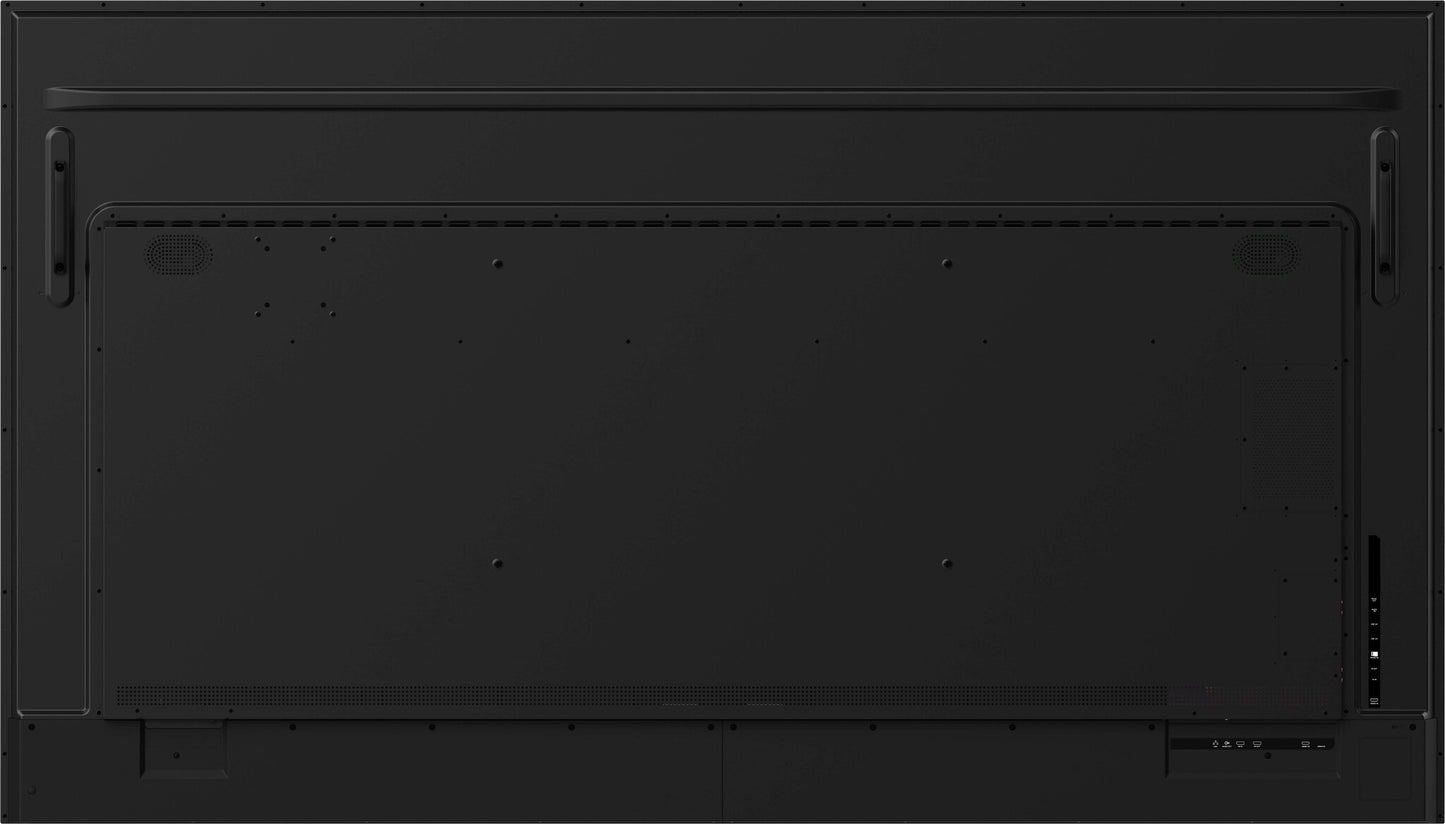

iiyama LH8675UHS-B2AG

iiyama LH8675UHS-B2AG

86" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

  • Indoor Digital signage flat panel Black
  • 2.17 m (85.6") 3840 x 2160 pixels LCD 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570125289
  • GTIN/EAN:4948570125289
  • MPN:LH8675UHS-B2AG

You need to login to view the price.

View full details

iiyama LH8675UHS-B2AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH8675UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Display diagonal
2.17 m (85.6")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1400:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.494 x 0.494 mm
Active display area (W x H)
1895 x 1066 mm
Display diagonal (metric)
217 cm
Colour depth
8 bit
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Panel type
IPS
Haze rate
25%
RGB colour space
NTSC
Colour gamut
72%

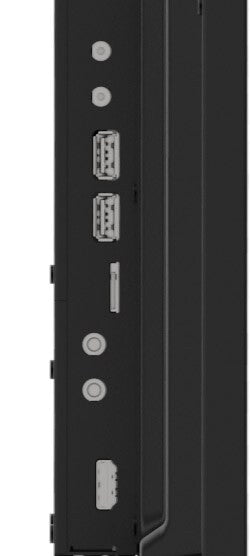

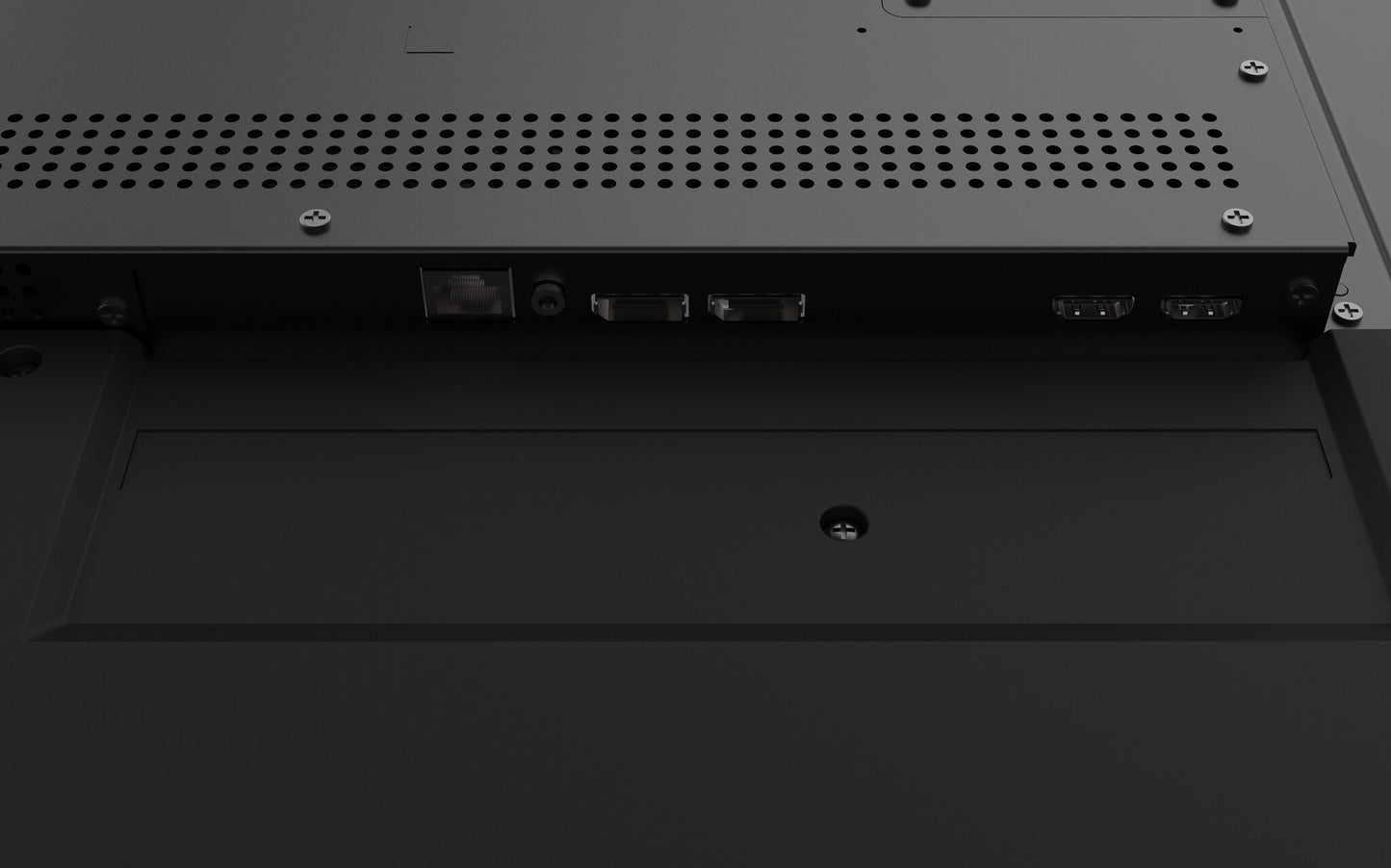

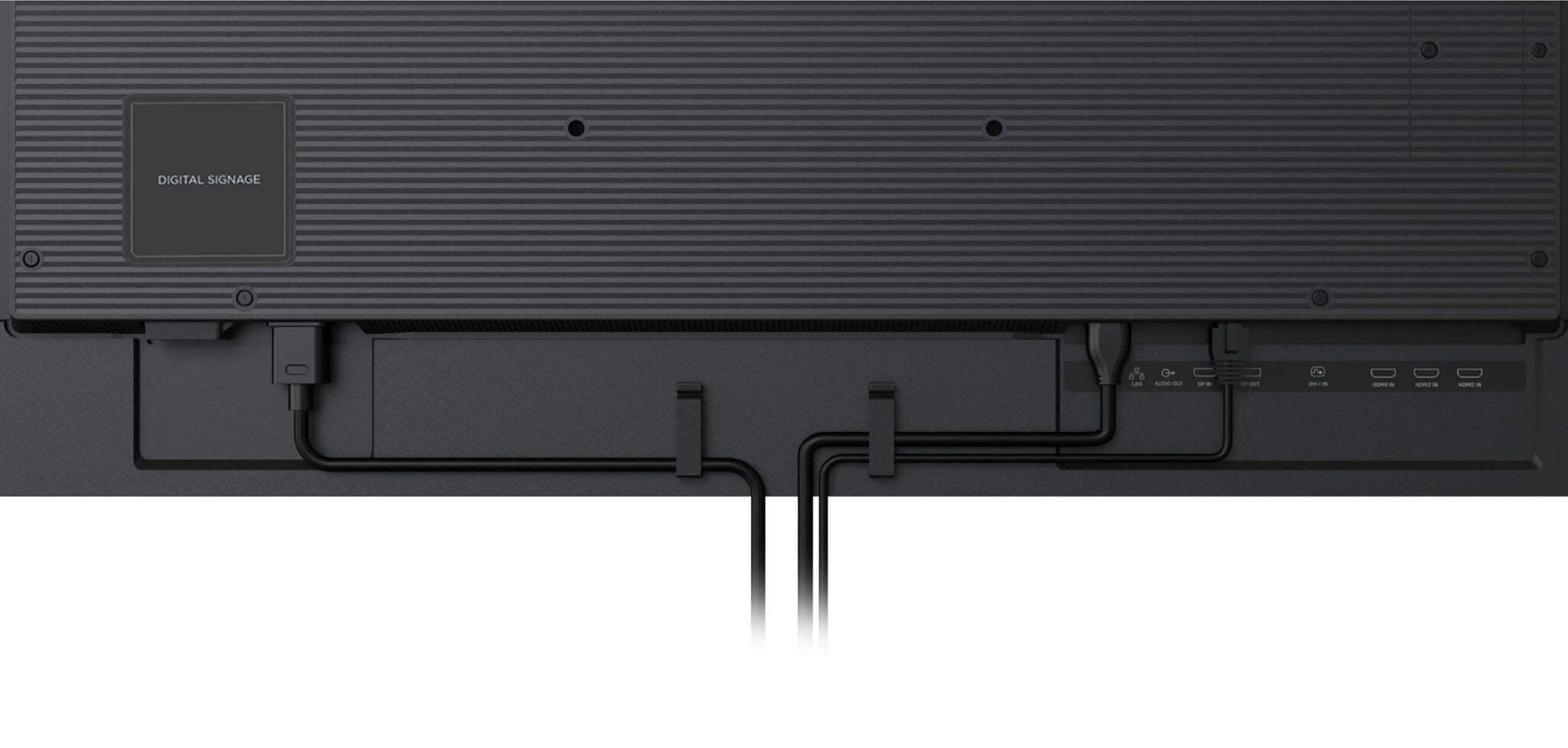

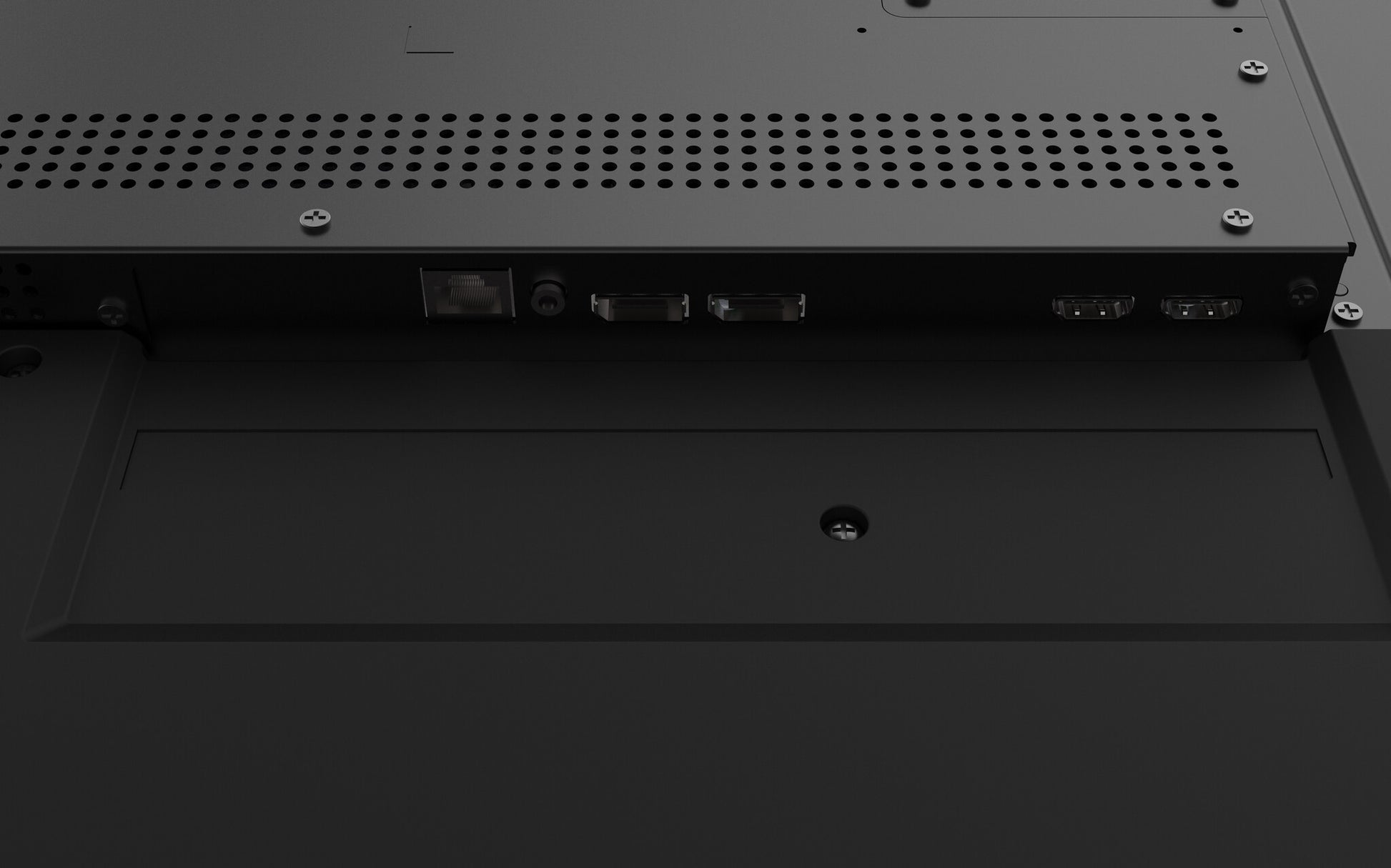

Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
DisplayPorts quantity
1
DisplayPorts in
1
DisplayPorts out
1
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
PC Audio in
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor

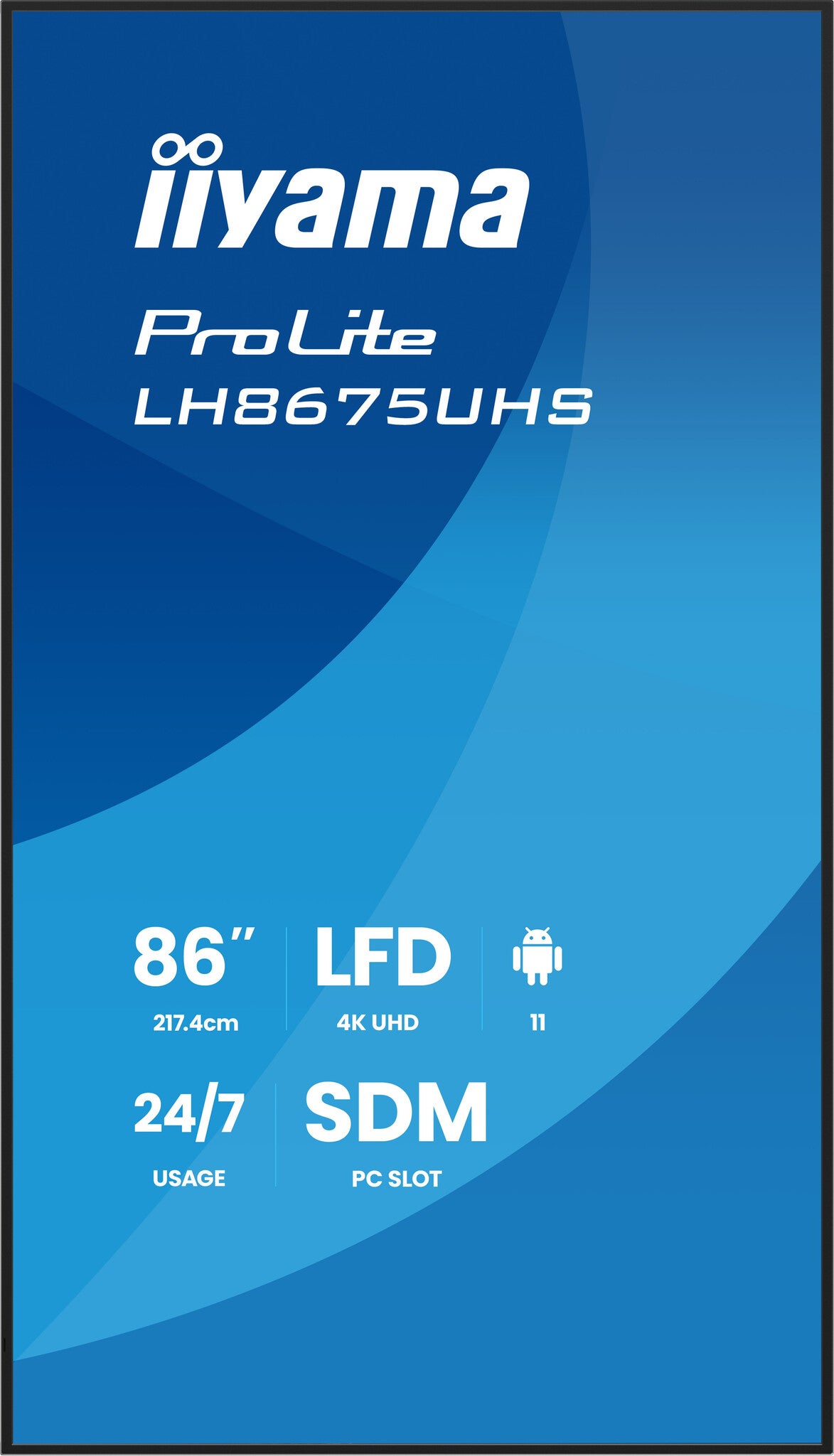

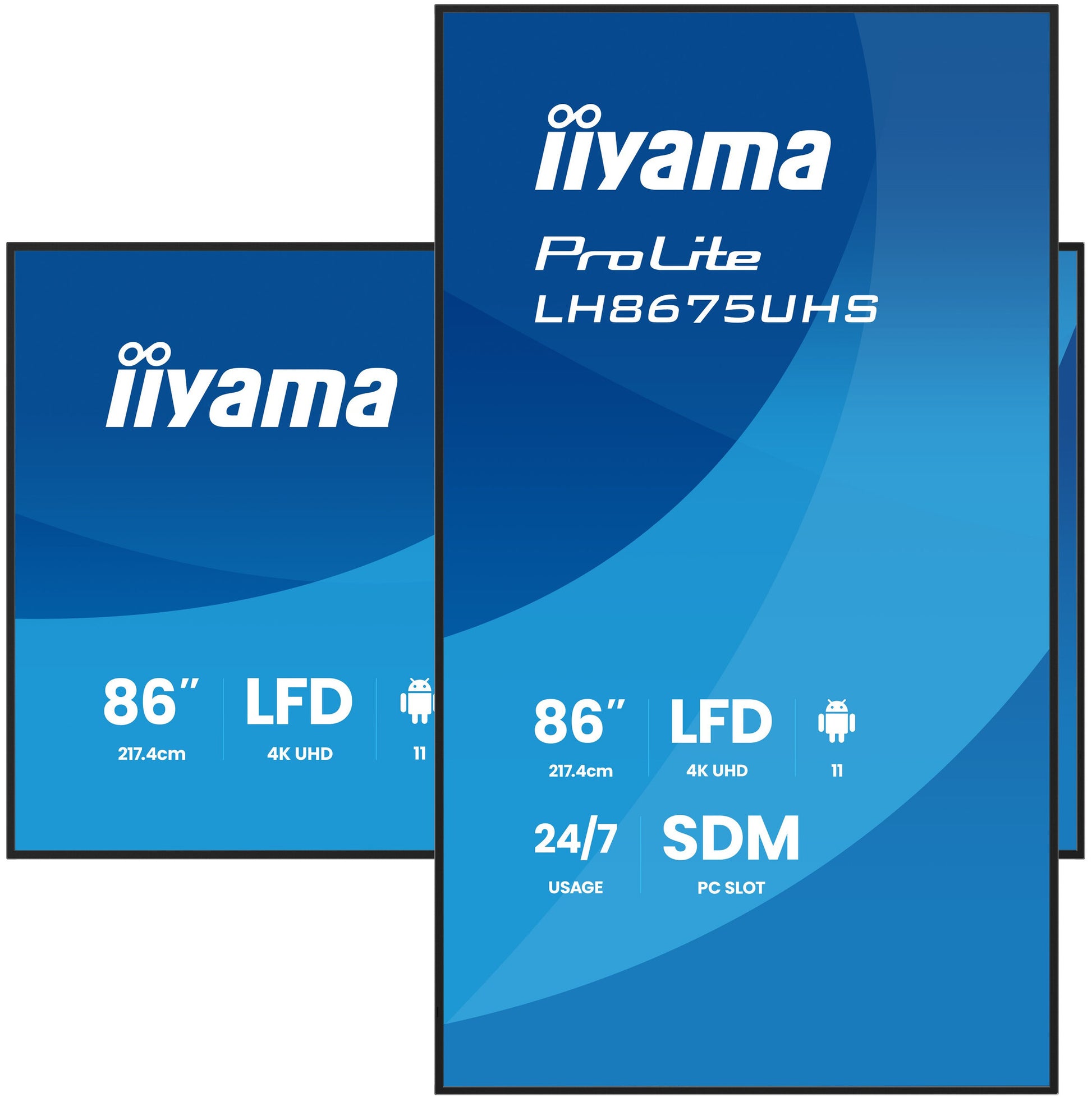

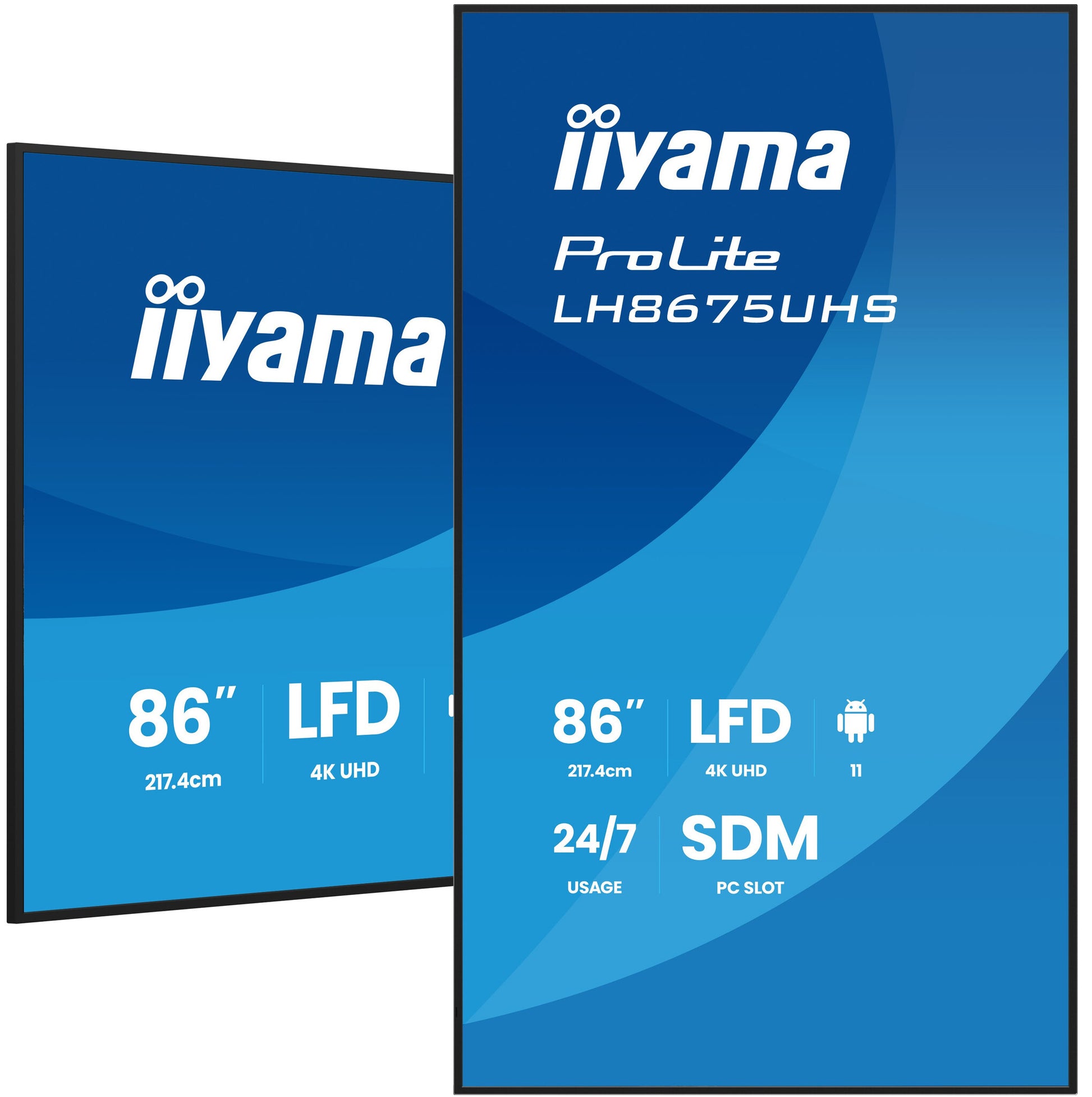

Orientation
Horizontal/Vertical

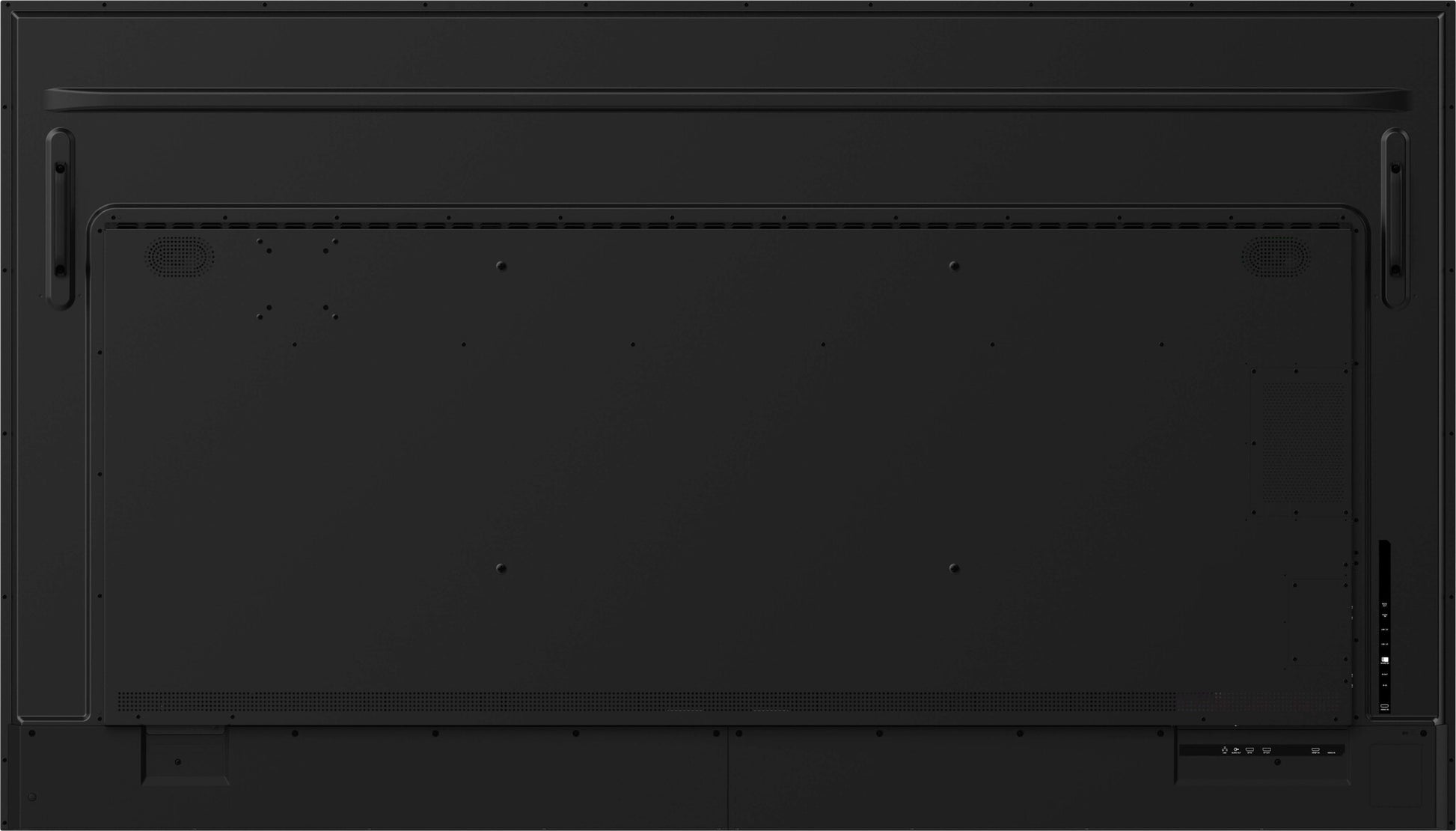

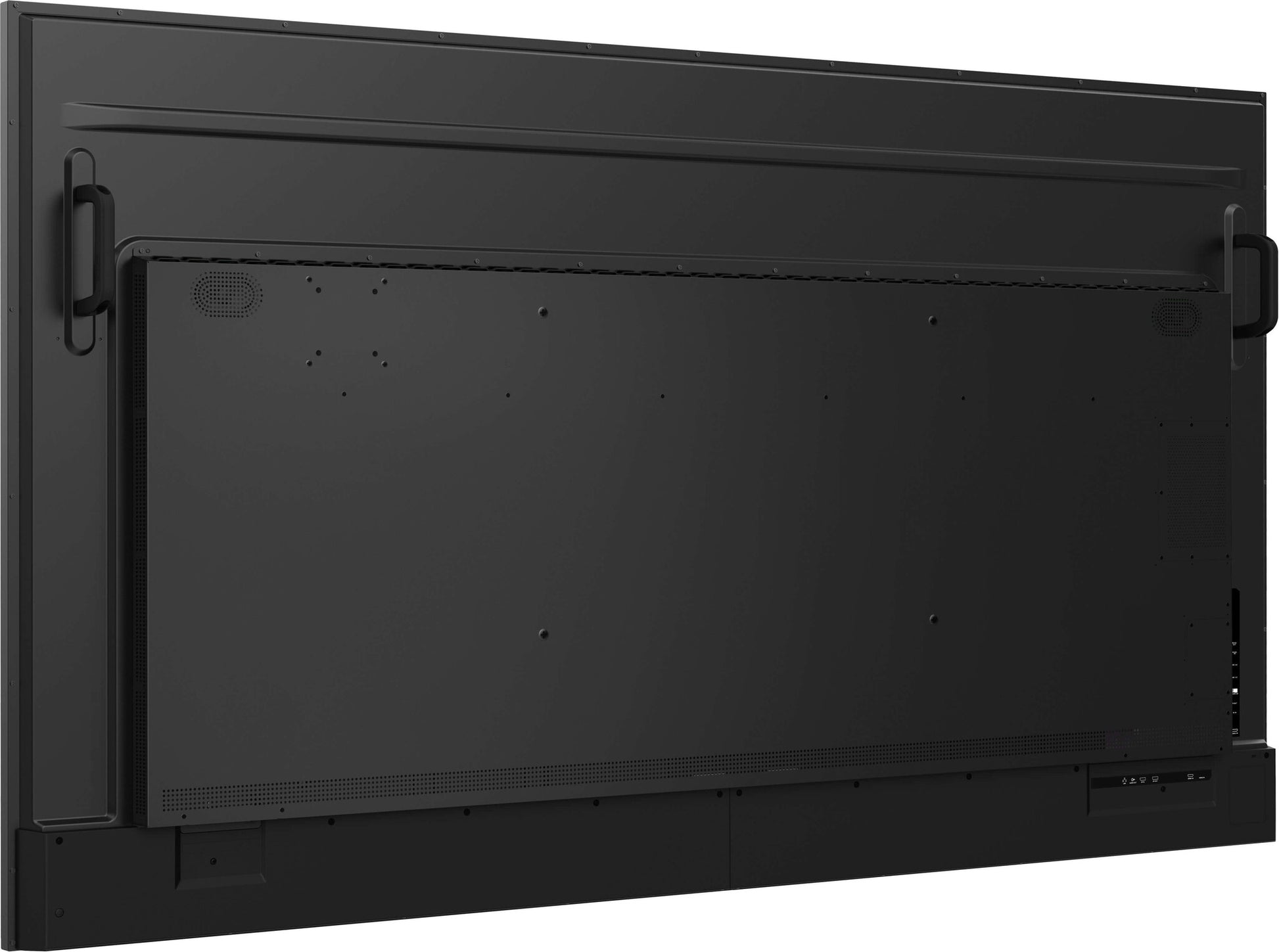

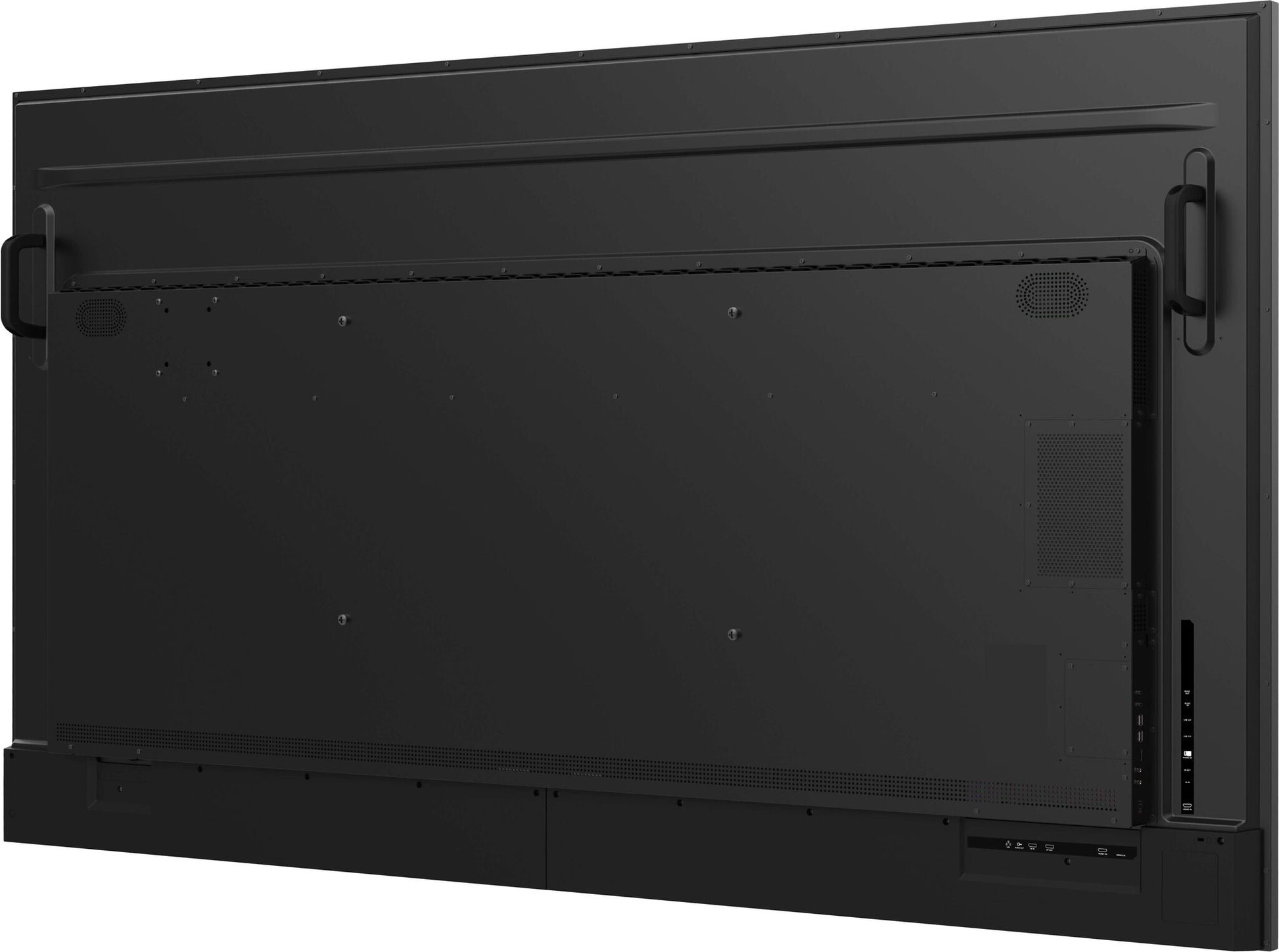

VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.62 cm
Bezel width (side)
1.6 cm
Bezel width (bottom)
1.62 cm
Mounting type
Wall
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages
15
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
44000 h
Power
Power consumption (typical)
229 W
Power consumption (standby)
0.4 W
Power consumption (off)
0.5 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
229 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A53+Cortex-A73
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11

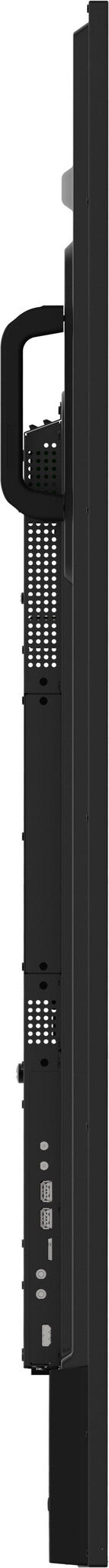

Weight & dimensions
Display width
1927 mm

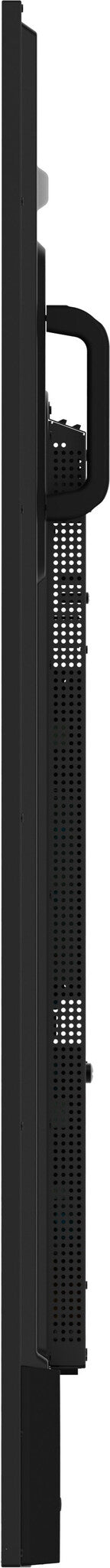

Display depth
57 mm
Display height
1098.5 mm
Display weight
50 kg
Width
1927 mm
Depth
57 mm
Height
1098.5 mm
Weight
50 kg
Packaging data
Package width
2123 mm
Package depth
225 mm
Package height
1247 mm
Package weight
65 kg
Packaging content
Remote control included
Yes

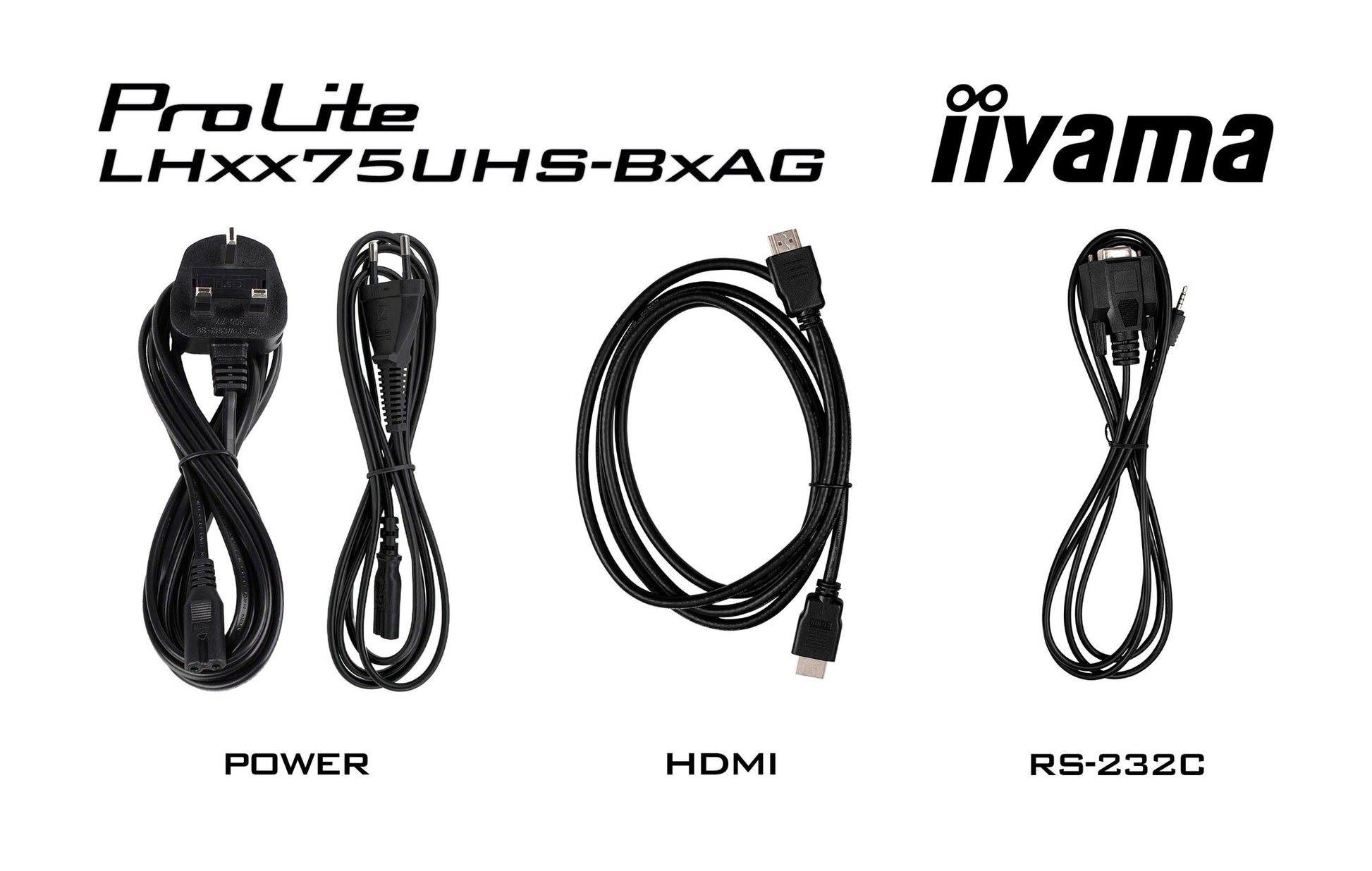

Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Features
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Sustainability certificates
ErP
Daisy Chain DisplayPort
Yes
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Playback media
Y
Other features
Headphone connectivity
3.5 mm
Headphone outputs
1
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Audio output
3.5mm
Housing material
Metal
Quick start guide
Yes
Plug and Play
Yes
