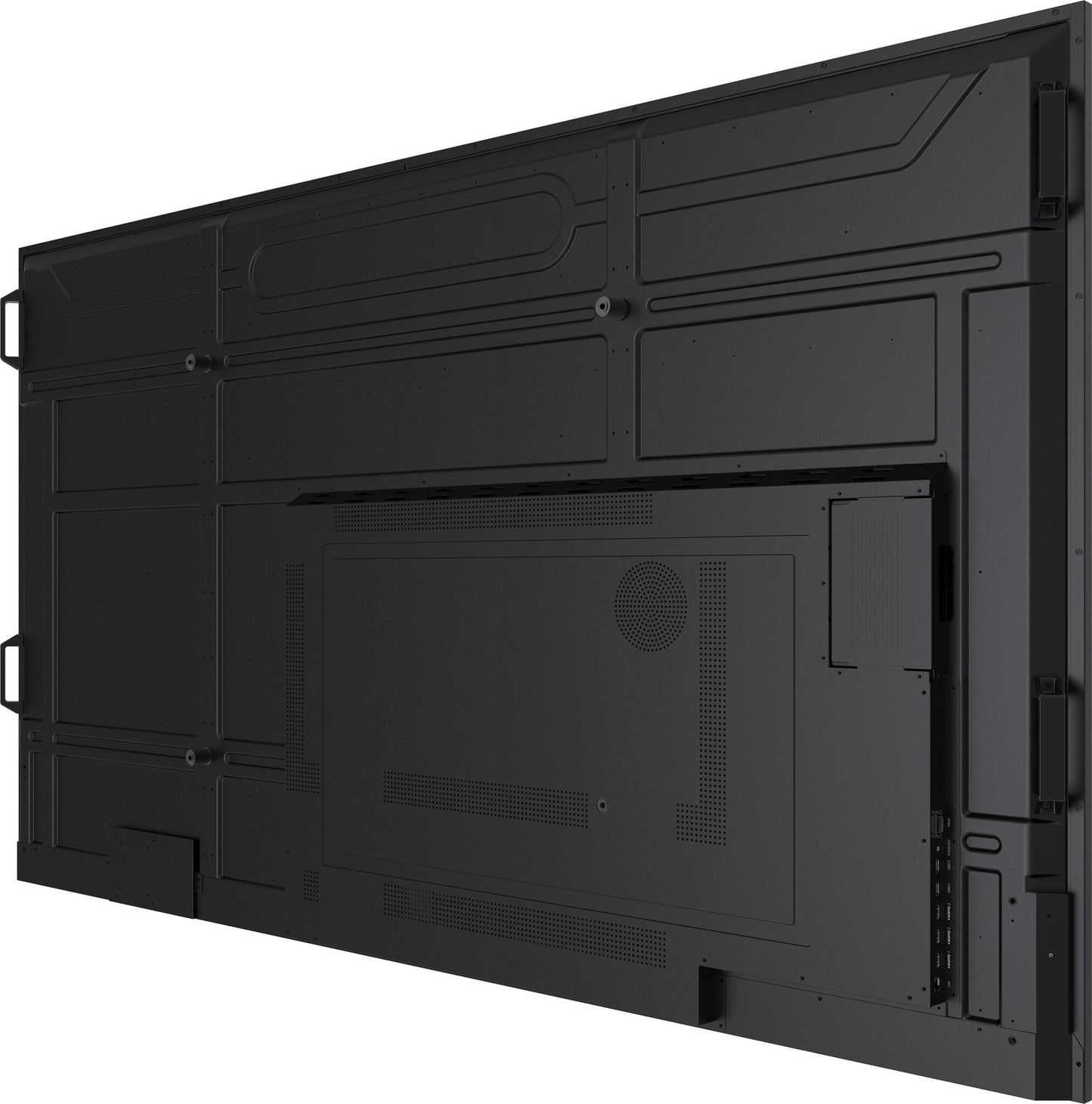

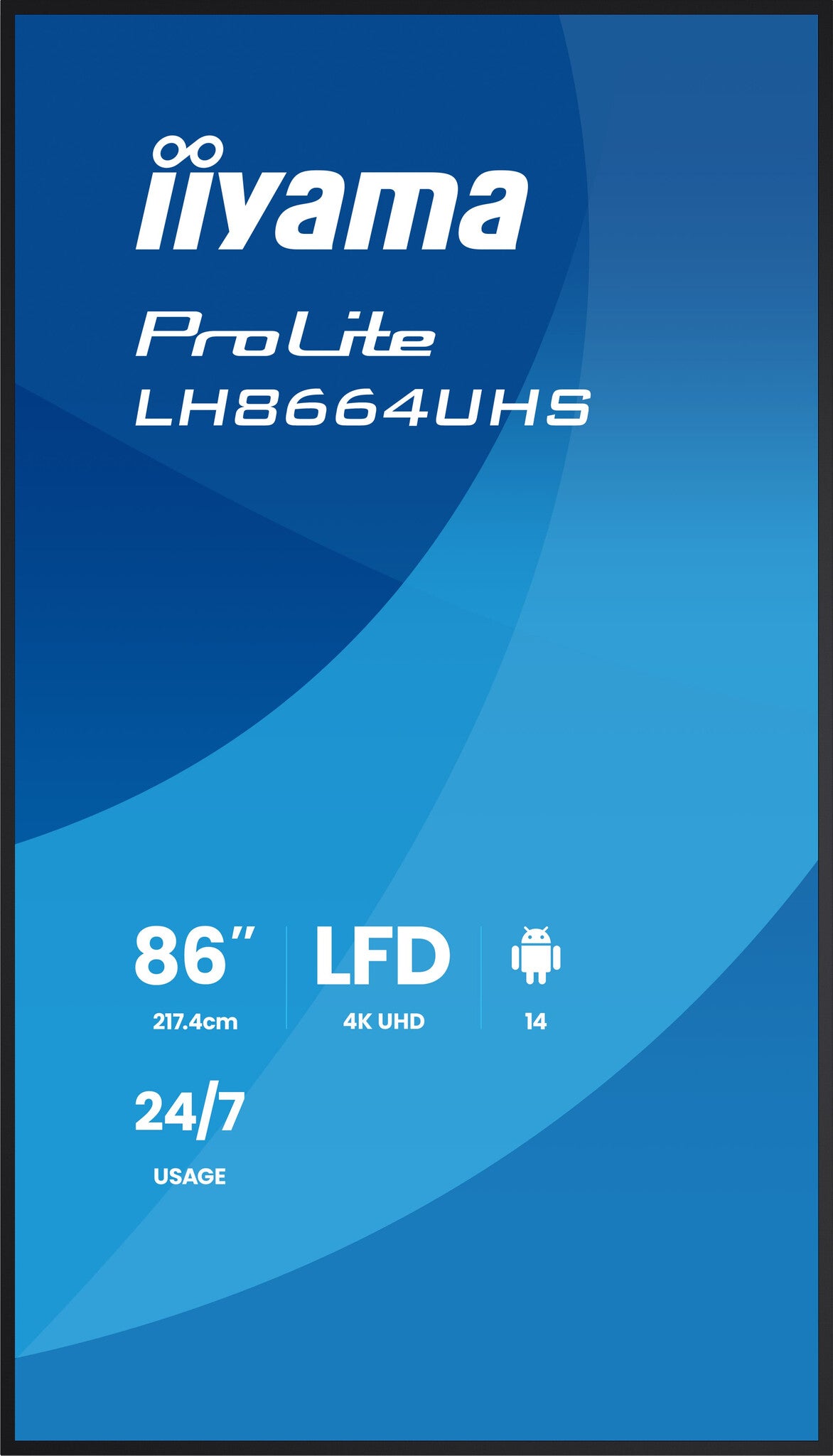

86" 3840x2160, UHD IPS panel, Haze 25% 500cd/m², Landscape and Portrait, IP5X Dust protection Speake

86" 3840x2160, UHD IPS panel, Haze 25% 500cd/m², Landscape and Portrait, IP5X Dust protection Speake

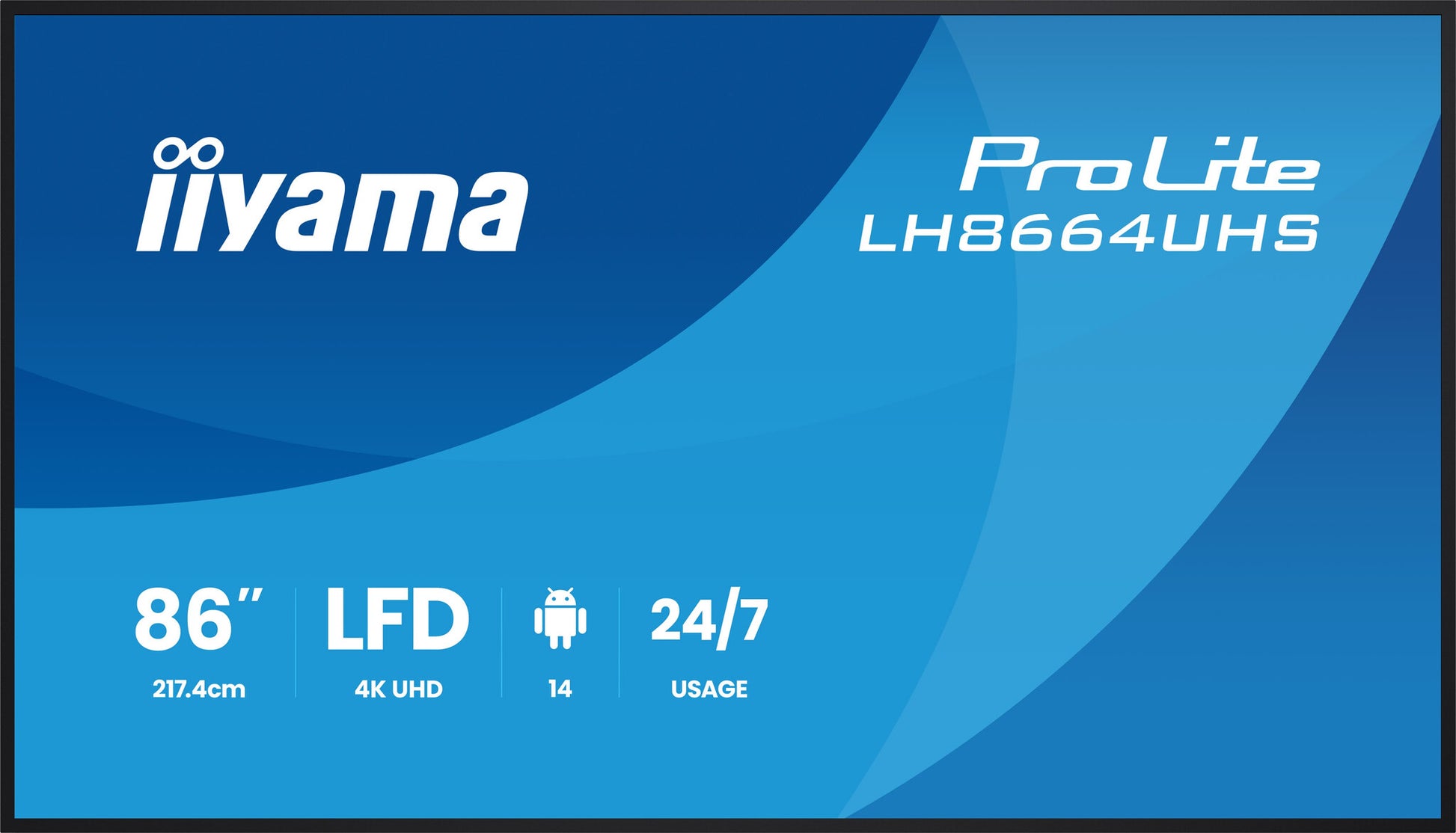

86" 4K UHD professional digital signage display with advanced control and connectivity options

  • Indoor Digital signage flat panel Black
  • 2.17 m (85.6") 3840 x 2160 pixels 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 32 W
  • SKU:4948570125357
  • GTIN/EAN:4948570125357
  • MPN:LH8664UHS-B3AG

You need to login to view the price.

View full details

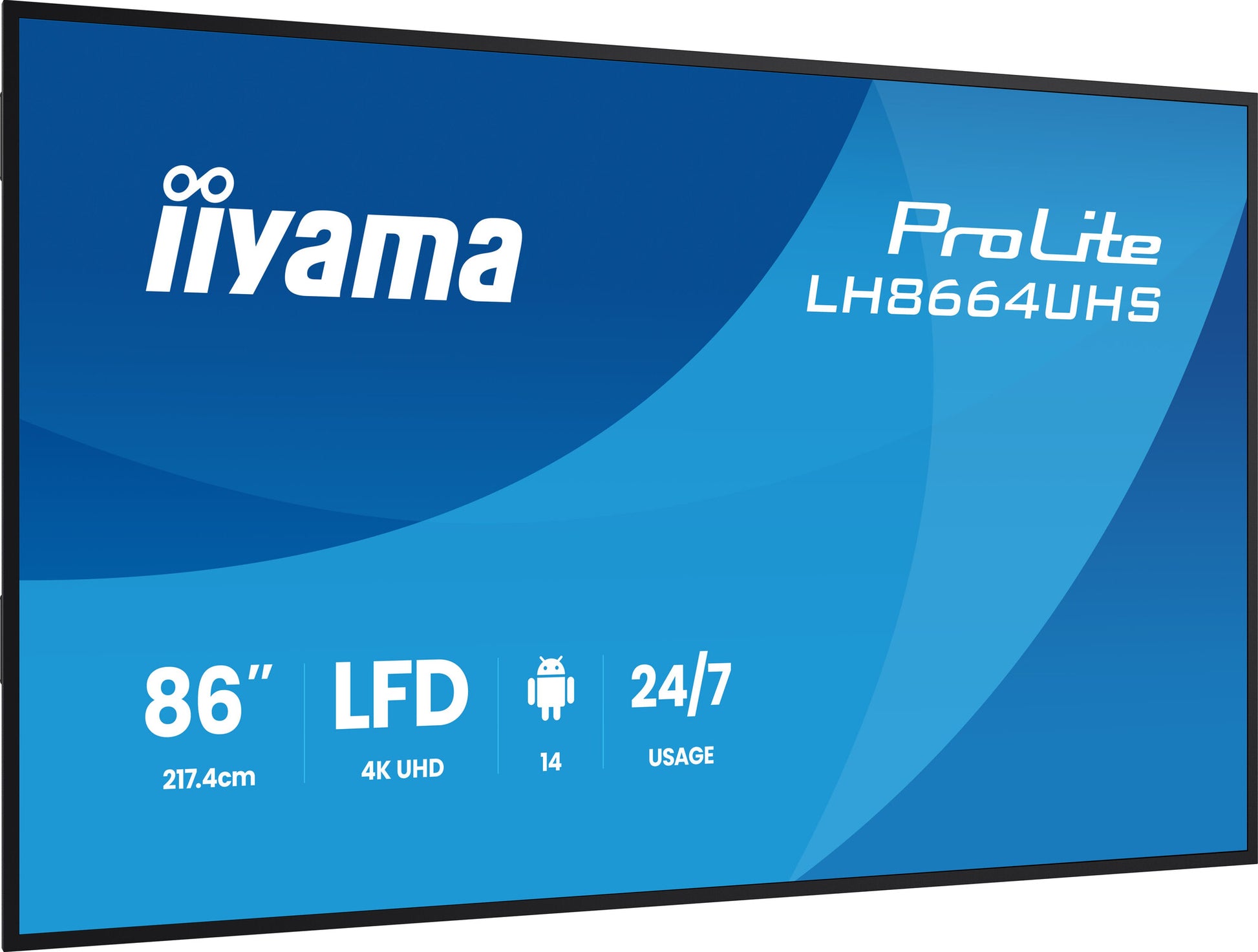

iiyama LH8664UHS-B3AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.

Display
Display diagonal
2.17 m (85.6")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.493 x 0.493 mm
Active display area (W x H)
1895 x 1066 mm
Display diagonal (metric)
217.4 cm
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Panel type
IPS
Haze rate
25%

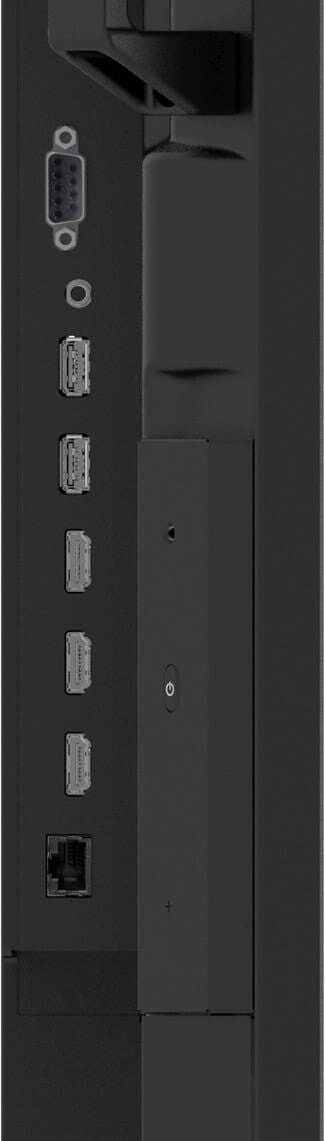

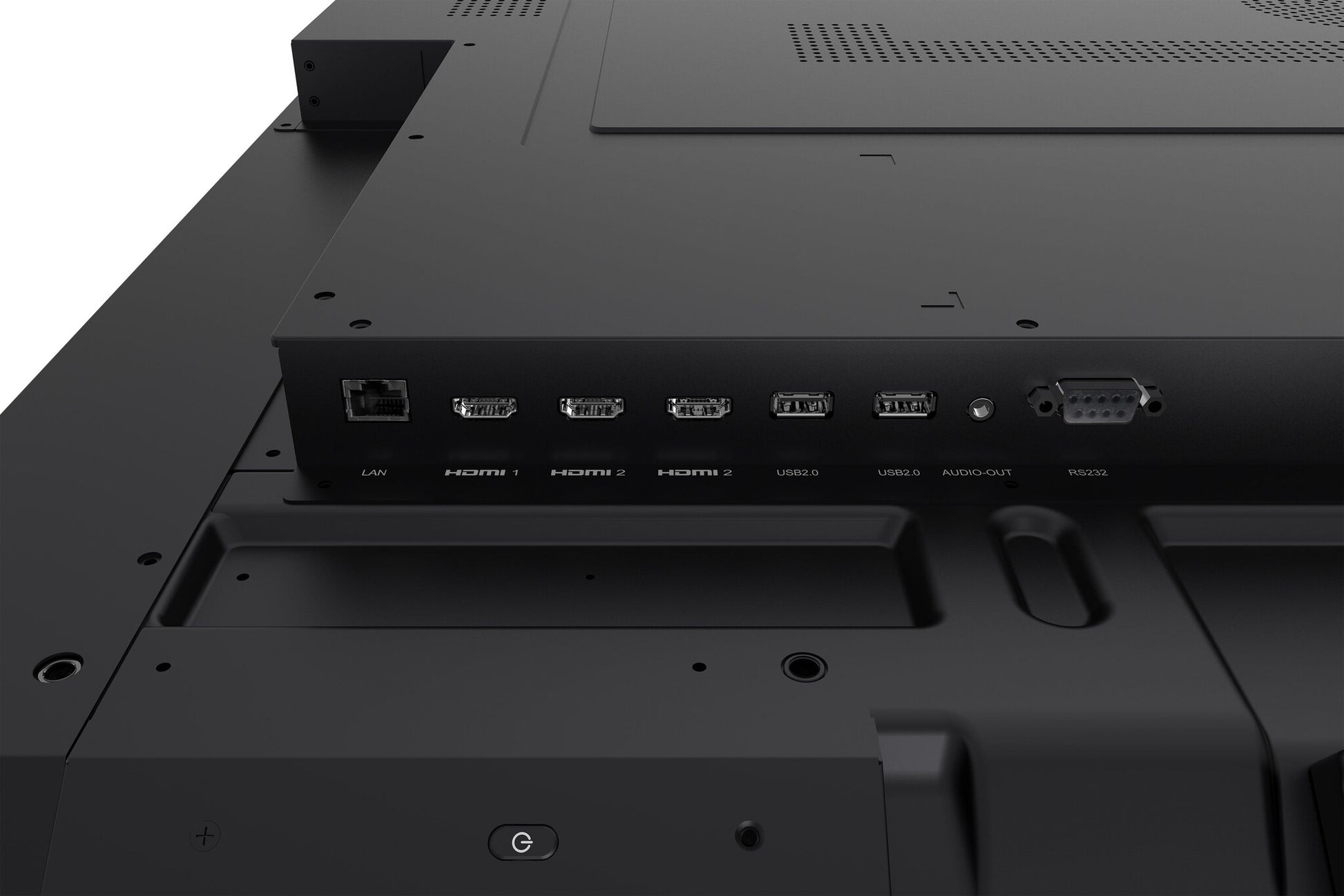

Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
HDMI input ports quantity
2
USB port
Yes
USB ports quantity
2
USB version
2.0
USB Power Delivery
Yes
USB Power Delivery up to
15 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
RS-232C
Yes
Infrared data port
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
32 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor

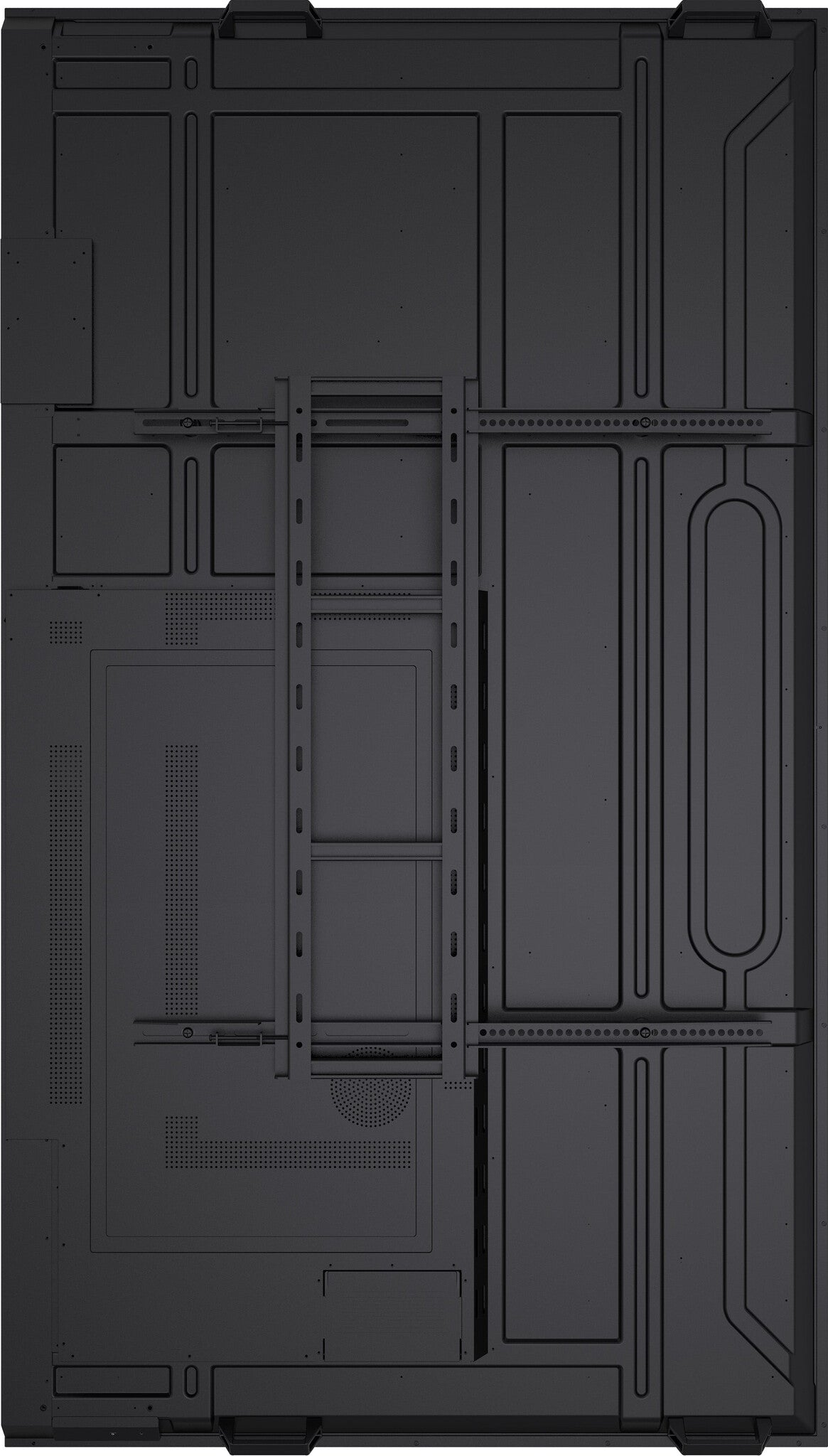

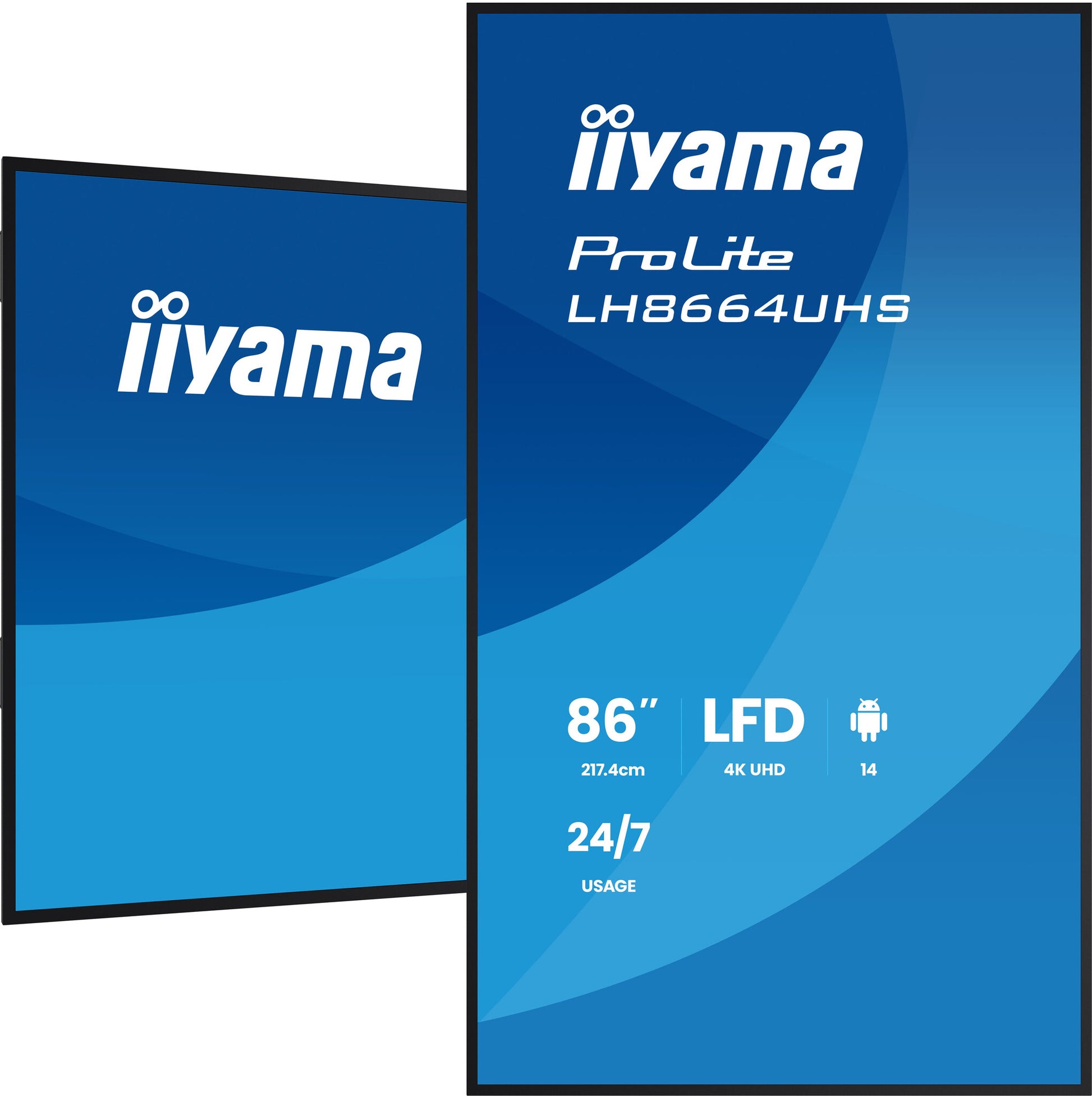

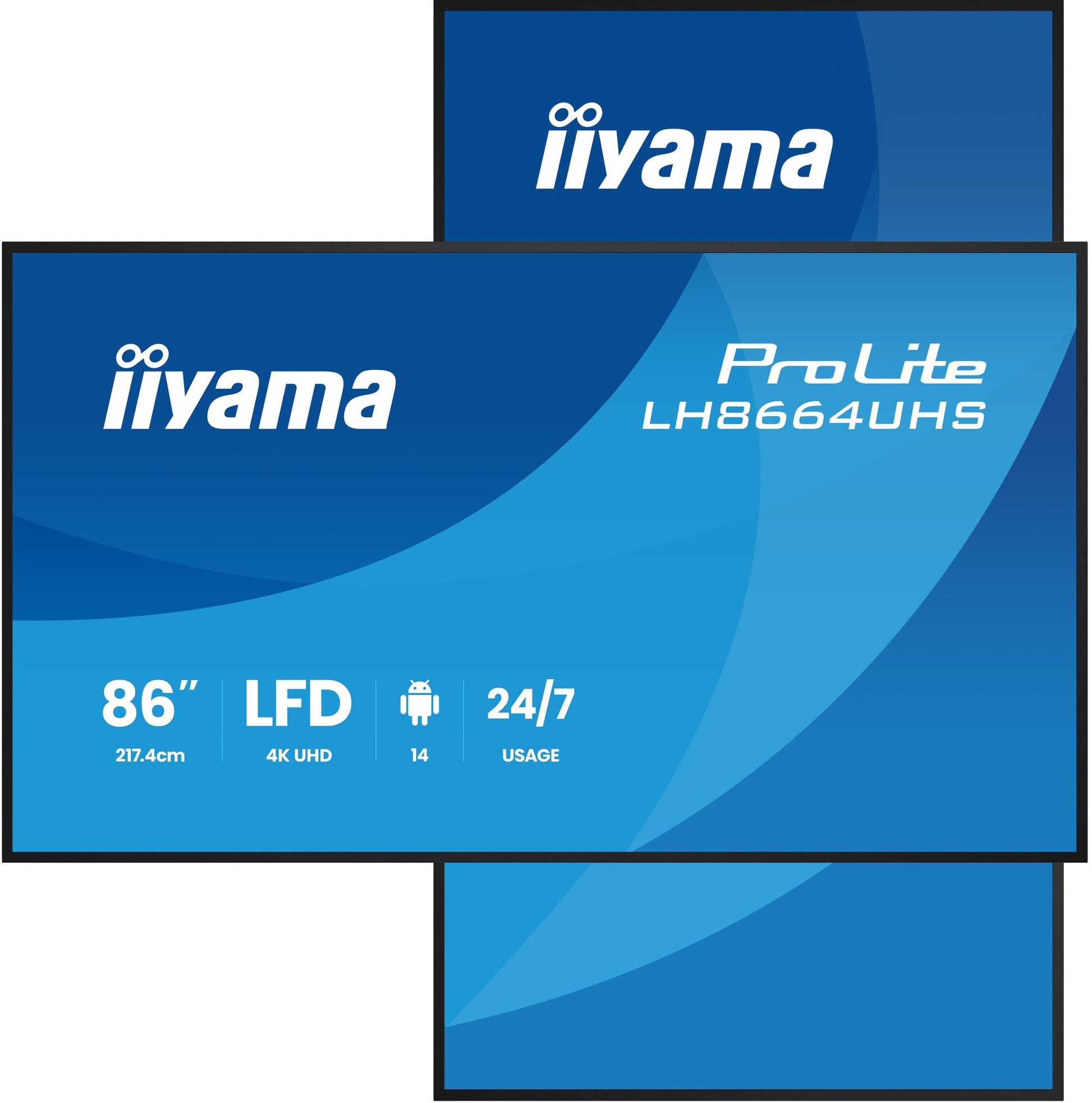

Orientation
Horizontal/Vertical
Screen shape
Flat

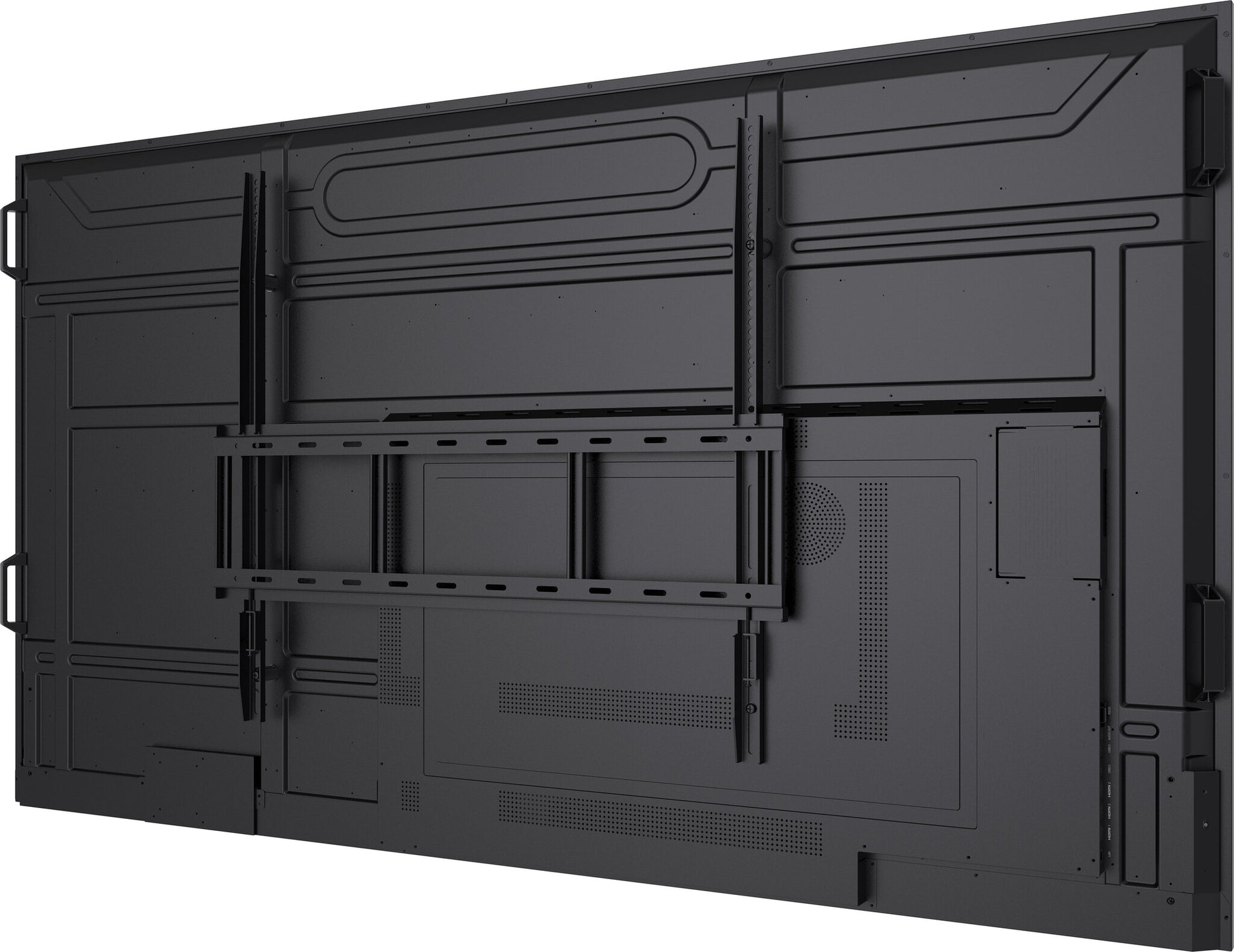

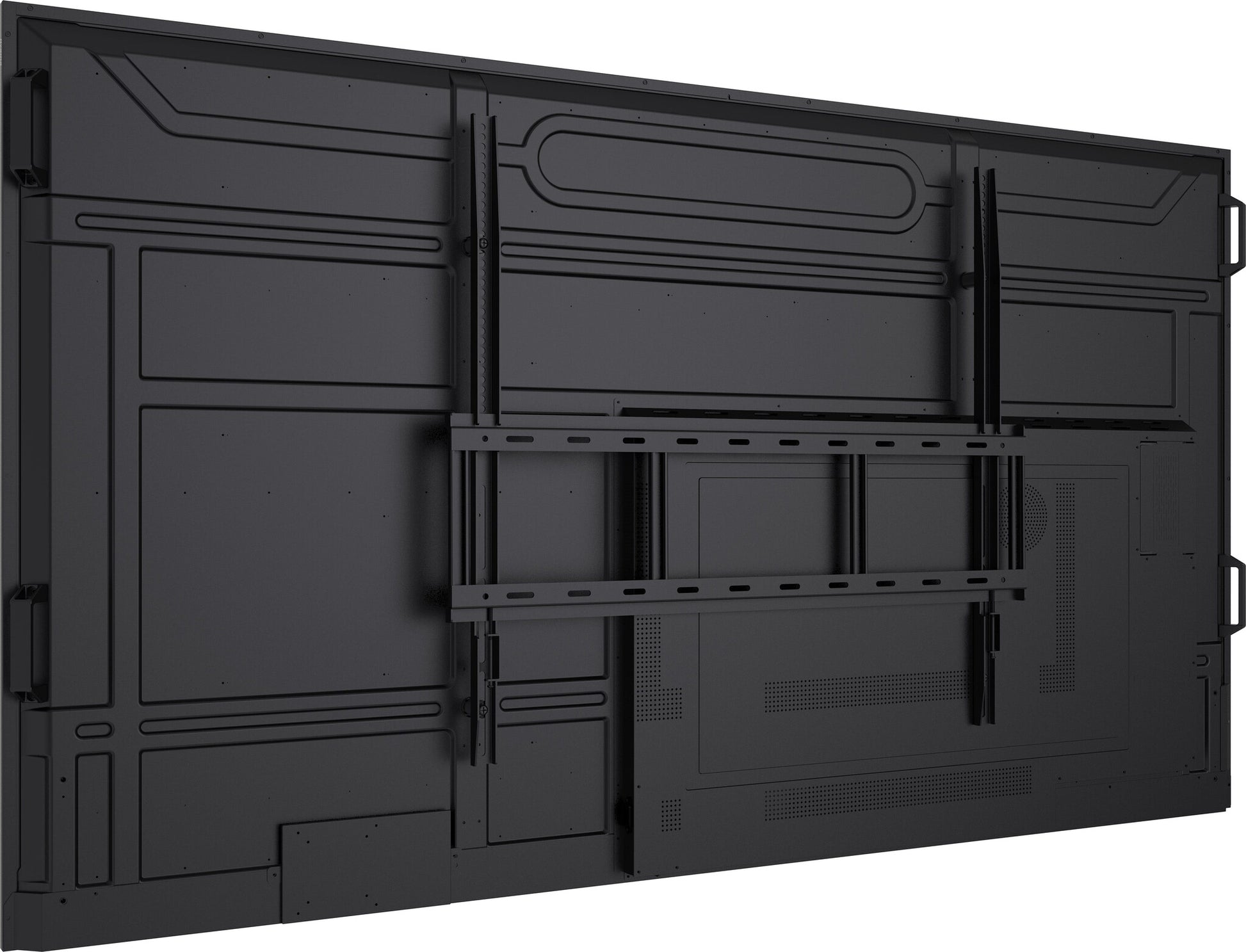

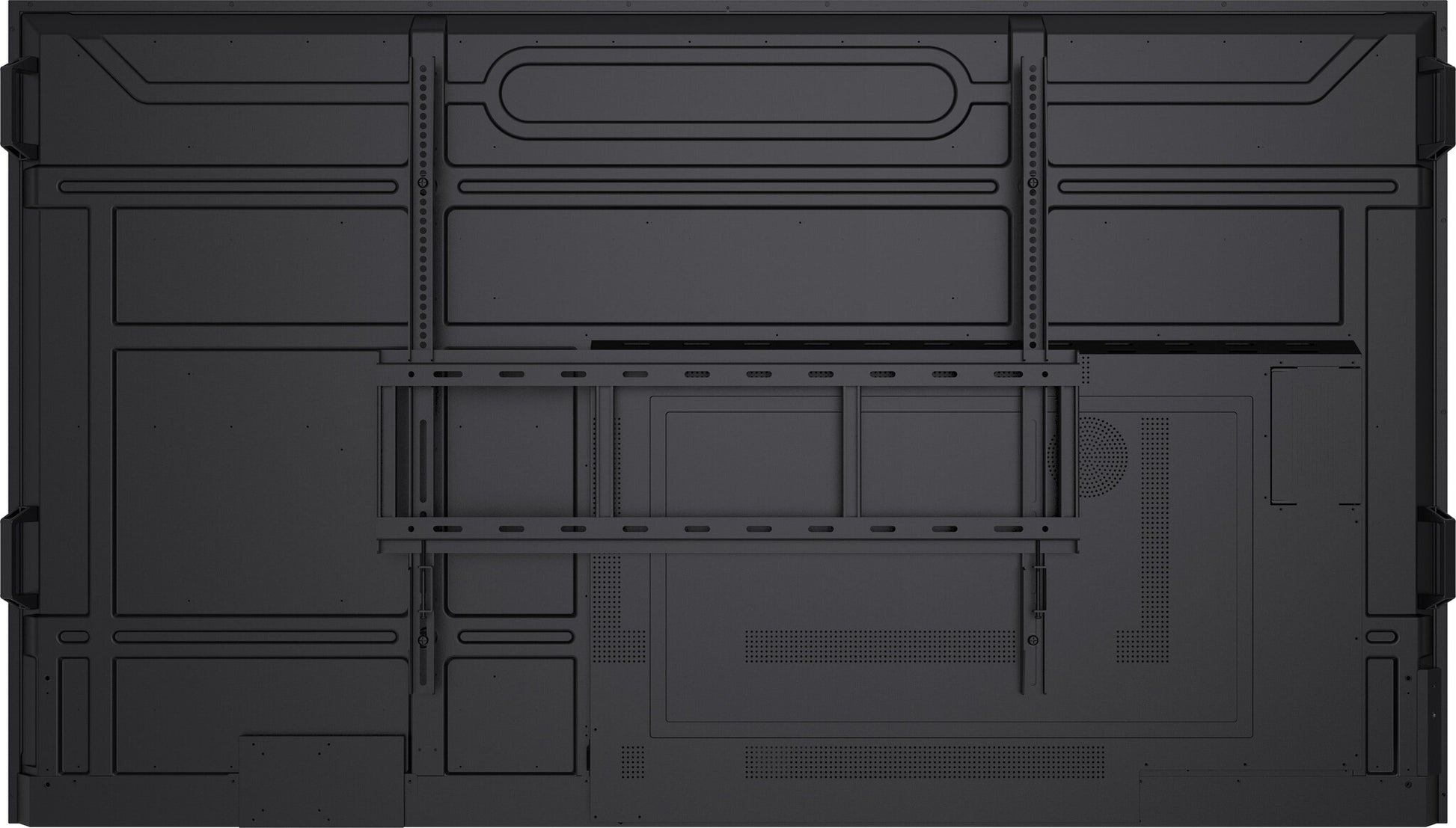

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
2.2 cm
Bezel width (side)
2.15 cm
Bezel width (bottom)
2.2 cm
Performance
Purpose
Corporate
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
277 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
277 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Built-in processor
Yes
Processor manufacturer
MediaTek
Processor architecture
ARM Cortex-A73
Processor model
MT9679
Processor cores
4
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1937.8 mm
Display depth
79.6 mm
Display height
1108.8 mm
Display weight
47.9 kg
Width
1937.8 mm
Depth
79.6 mm
Height
1108.8 mm
Weight
47.9 kg
Packaging data
Package width
2095 mm
Package depth
225 mm
Package height
1215 mm
Package weight
62.2 kg
Packaging content
Remote control included
Yes
Mounting kit
Yes
Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
EPEAT, ErP
User controls
network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export)
Playback media
Y
Other features
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
USB connector type
USB Type-A, USB Type-C
Quick start guide
Yes
