iiyama ProLite LH8666UHSB-B1AG

The iiyama ProLite LH8666UHSB-B1AG is a large-format 86-inch professional digital signage display designed for demanding 24-7 deployments in retail, corporate, hospitality, and education environments. It combines a vivid 4K UHD IPS panel rated at 800 cd/m² with an anti-glare coated glass surface, making it highly legible even in brightly lit spaces. Running Android 11 OS out of the box, it supports iiyama's own iiSignage² CMS, FailOver input switching, EShare wireless collaboration, and third-party signage platforms — giving integrators and end customers flexible deployment options without the need for a separate media player.

800 cd/m² Anti-Glare IPS Panel

The LH8666UHSB-B1AG pairs an 800 cd/m² IPS panel with an anti-glare coated glass surface — the key differentiator of this variant compared to the standard LH8665UHSB-B1. At this brightness level the display stays clearly readable under strong ambient lighting such as shop windows, open-plan atria, or exhibition halls with overhead fluorescent or LED lighting. The anti-glare treatment diffuses reflections from point light sources, avoiding the distracting mirror-like glare that glossy panels produce. Wide 178°/178° viewing angles ensure consistent colour and contrast for viewers who approach from the sides — important in high-traffic retail and public-space applications where the audience is rarely standing directly in front of the screen.

True 24-7 Operation with Fanless Design

The display is rated for continuous 24-7 operation, making it suitable for environments where content must run around the clock — digital out-of-home installations, airport information points, hotel lobbies, and transport hubs. The fanless design removes the primary mechanical wear point: there are no fan bearings to fail and no airflow paths to accumulate dust, which is a real-world maintenance benefit in dusty retail or industrial spaces. The combination of a 50,000-hour MTBF (excluding backlight) and fanless operation means lower lifetime service costs and fewer unplanned outages for the end customer.

800 nits. Anti-glare glass. 24-7 Android signage.

Fanless design · 50,000 h MTBF · CE certified

Android 11 OS — Standalone Signage Without an External Player

With Android 11 built in, the display runs content natively without requiring an external media player box. This simplifies installation wiring, reduces hardware costs, and eliminates an extra point of failure. The on-board SoC (Cortex A73×4 + A53×4, 4 GB RAM, 32 GB storage) is powerful enough to run iiyama's own iiSignage² CMS, EShare wireless screen-sharing, and most third-party Android signage applications. Content can be pushed remotely over Wi-Fi or LAN, and the iiControl device management system allows bulk configuration changes across a fleet of screens — useful for multi-site retail or corporate rollouts.

iiSignage² CMS and Remote Management

The display ships with iiyama's iiSignage² Content Management System pre-integrated. This cloud-based CMS lets operators schedule, update, and monitor content across one or many displays from a central dashboard — no on-site visits required for routine content changes. Combined with iiControl (iiyama's Device Management System), IT administrators can remotely adjust display settings, apply firmware updates, and monitor screen health across an entire fleet. For resellers, this is a compelling argument when pitching to multi-location customers who need centralised control without ongoing on-site costs.

Signal FailOver for Uninterrupted Display

The FailOver feature monitors the active input and automatically switches to a pre-configured backup source if the primary signal is lost — for instance, from a connected PC to the internal Android media player or a USB playlist. In mission-critical environments such as wayfinding, transport information boards, or retail digital signage where a blank screen directly impacts customer experience or safety, this automatic failover ensures content is always visible without manual intervention. Customers can prioritise inputs including HDMI, DisplayPort, browser, and internal media player.

Built-in Wi-Fi and Wired LAN Connectivity

An integrated 802.11ac (Wi-Fi 5) module means the display can connect to the customer's network without running an Ethernet cable to the wall — a practical advantage when mounting high on a wall or in a location where cable routing is expensive. For installations where network reliability is paramount, a wired RJ45 LAN port is also present. RS-232c serial control is included for integration with room-control systems or legacy AV infrastructure, and the display responds to IP commands over LAN for modern control systems.

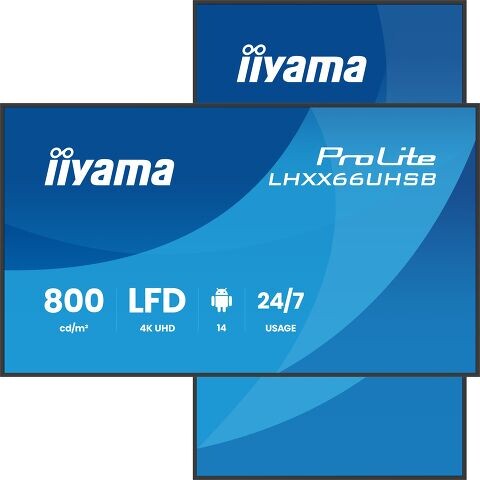

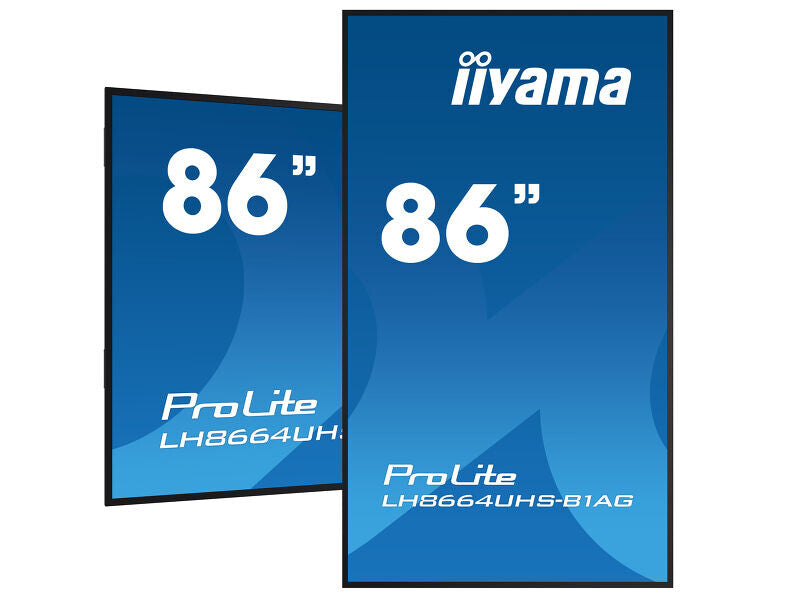

Landscape and Portrait Orientation

The display supports both landscape and portrait physical installation, with on-screen rotation available through the OSD. Portrait mode is particularly useful for menu boards, retail shelf displays, wayfinding totems, and any application where vertical content formats make better use of available wall space. The slim depth of 57 mm and metal bezel contribute to a professional aesthetic in both orientations.
