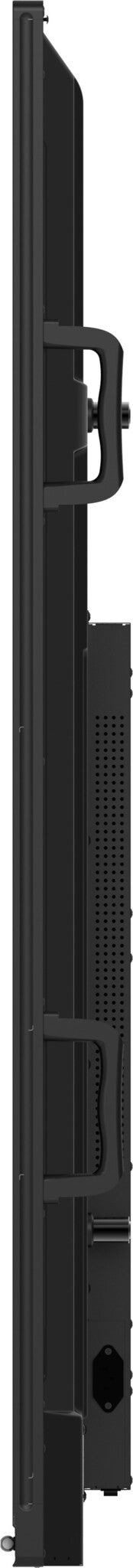

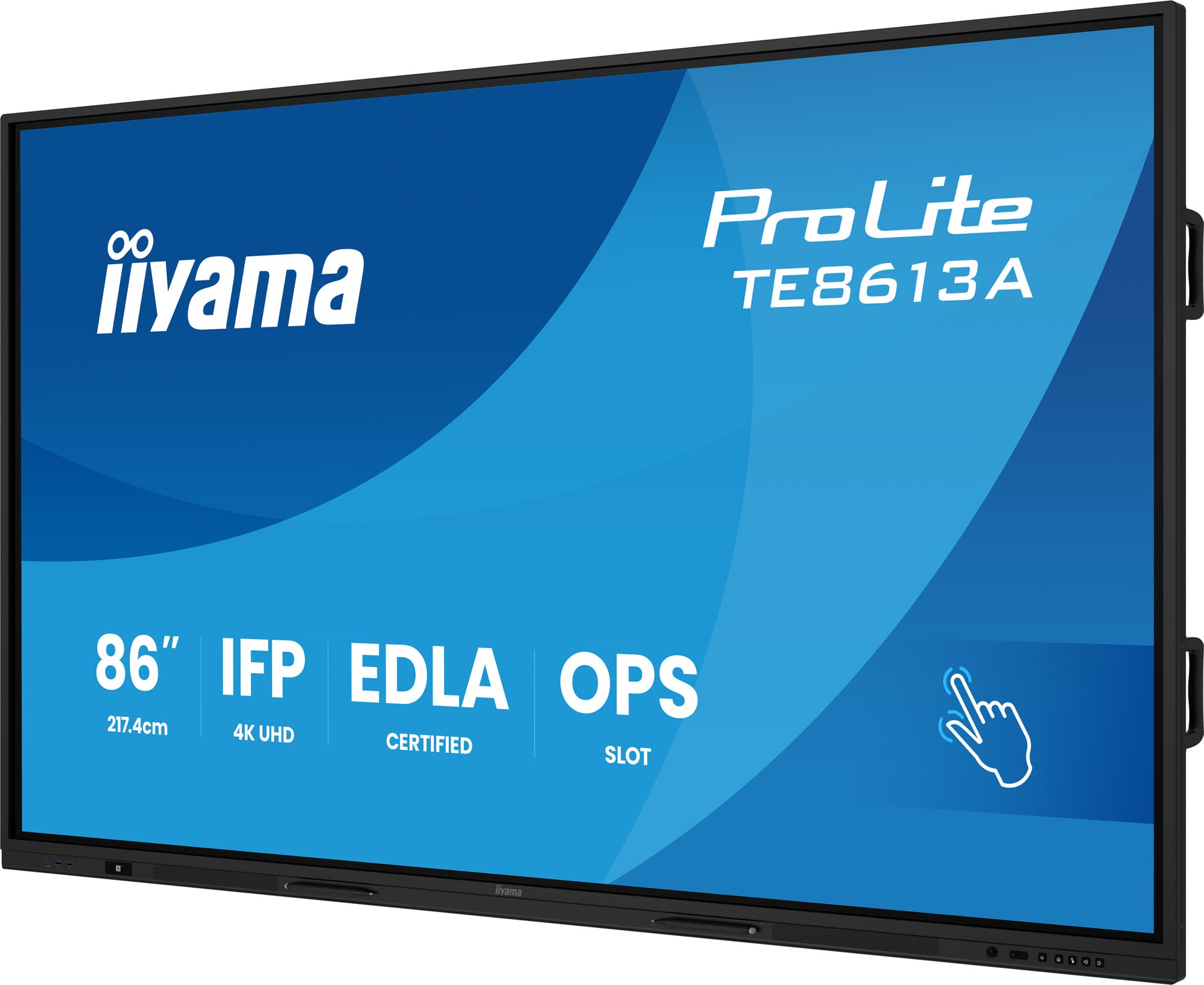

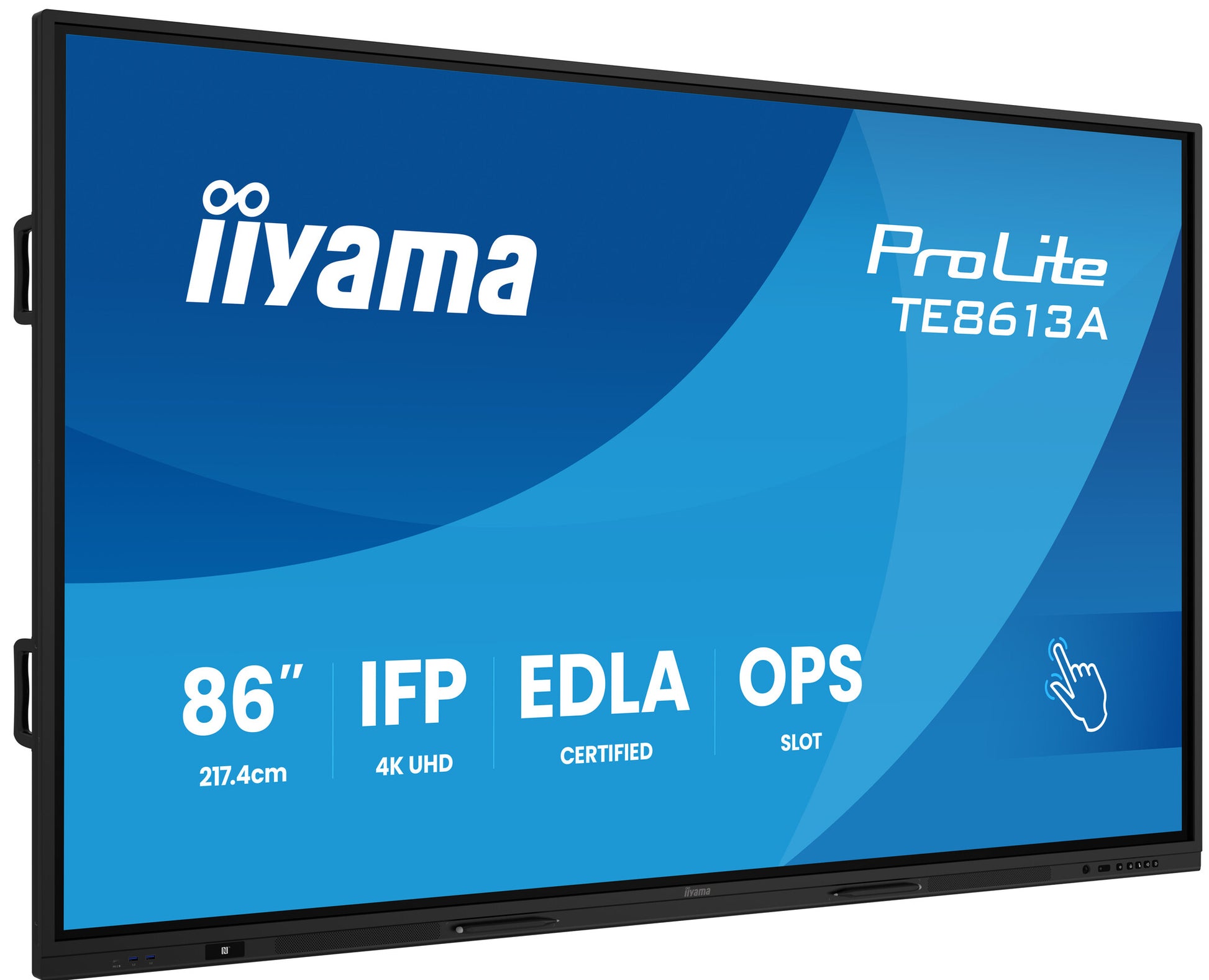

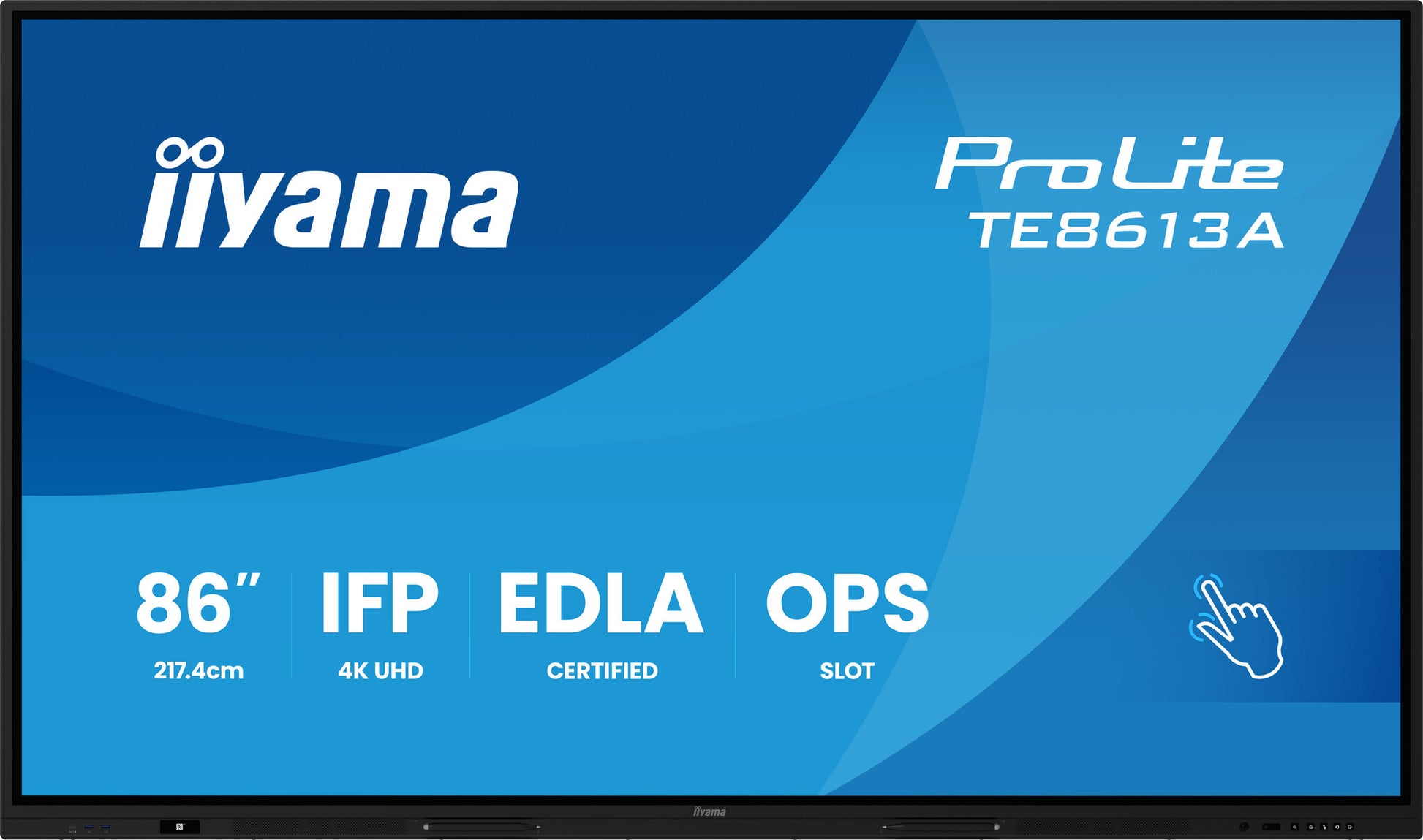

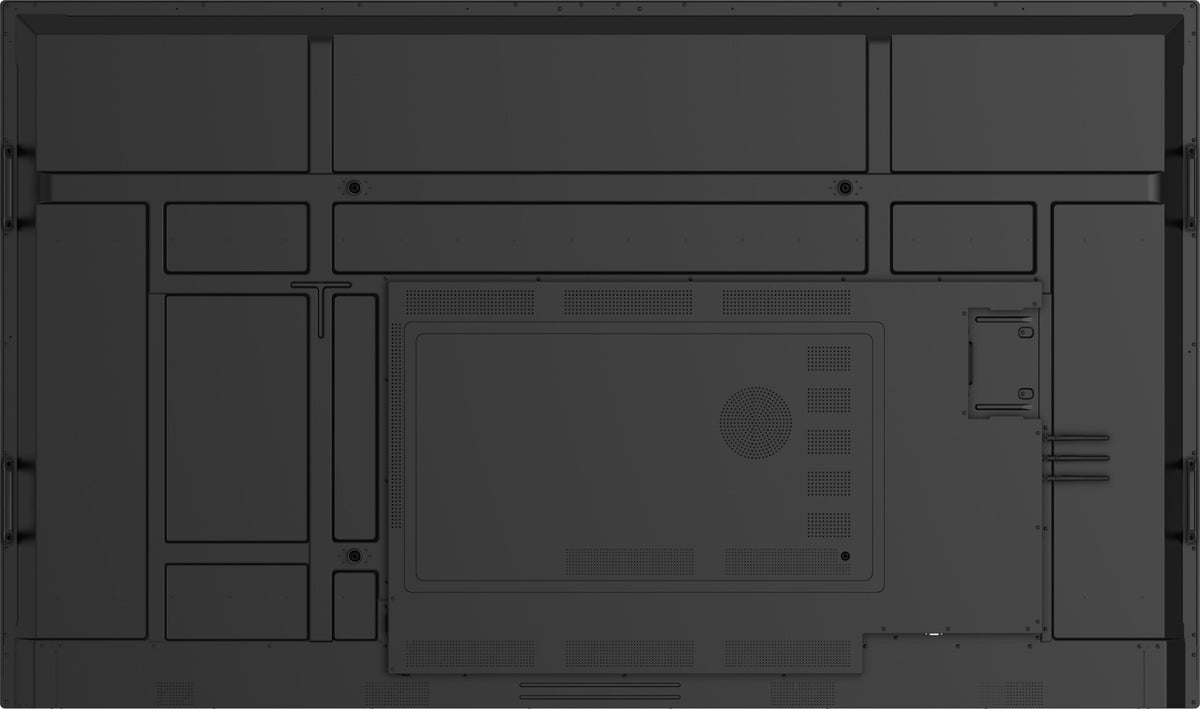

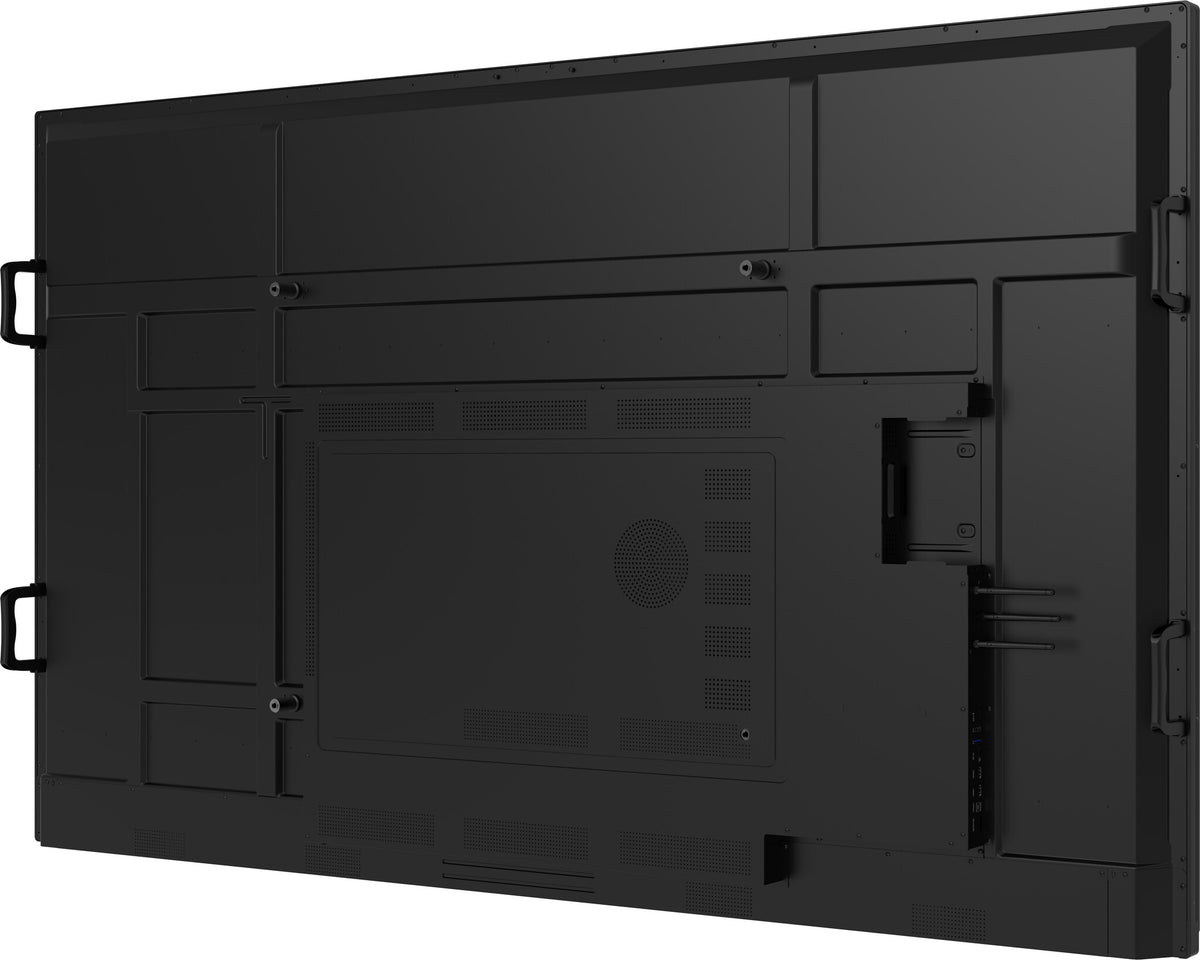

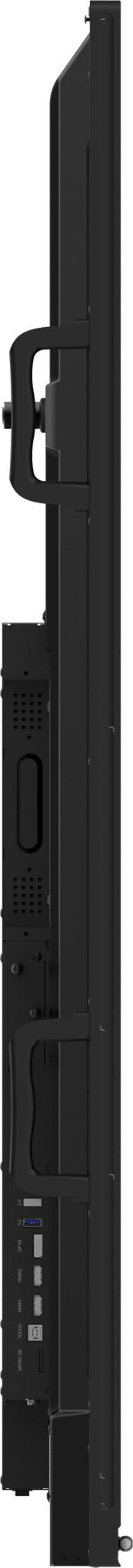

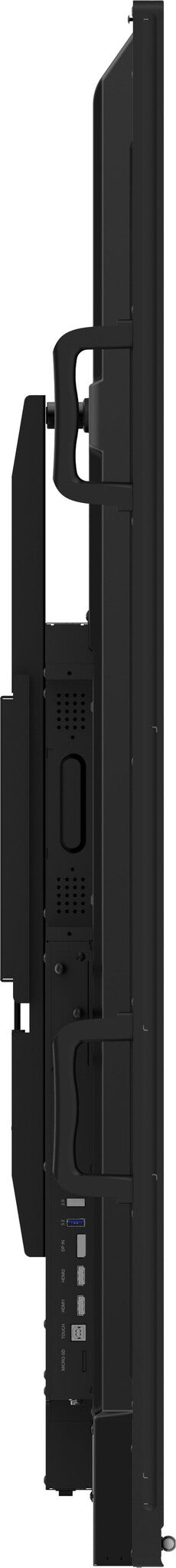

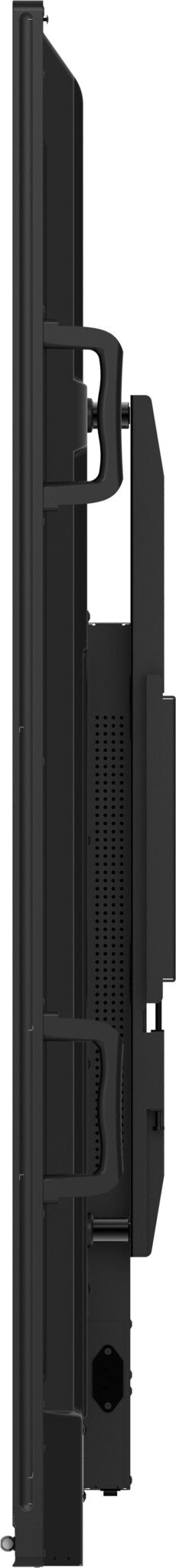

iiyama TE8613A-B3AG

iiyama TE8613A-B3AG

86" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise

  • Indoor Interactive flat panel Black
  • 2.17 m (85.6") 3840 x 2160 pixels LCD 500 cd/m²
  • Touchscreen 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 60 W
  • SKU:4948570128136
  • GTIN/EAN:4948570128136
  • MPN:TE8613A-B3AG

You need to login to view the price.

View full details

iiyama TE8613A-B3AG. Product design: Interactive flat panel. Display diagonal: 2.17 m (85.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The TE8613A-B3AG is a 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display
Display diagonal
2.17 m (85.6")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
PureTouch-IR
Multi-touch
Yes
Number of simultaneous touchpoints
40
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.493 x 0.493 mm
Active display area (W x H)
1895 x 1066 mm
Display diagonal (metric)
217.4 cm
Colour saturation
72%
Glass thickness
3.2 mm
Touch response time
5 ms
Horizontal scan range
30 - 135 kHz
Surface hardness
7H
Native refresh rate
60 Hz
Panel type
IPS
Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
HDMI input ports quantity
1
HDMI output ports quantity
1
Consumer Electronics Control (CEC)
Yes
DVI port
No
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
6
USB version
3.2 Gen 1 (3.1 Gen 1)
USB Power Delivery
Yes
USB Power Delivery up to
100 W
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
RS-232 interface
Yes
RS-232C
Yes
Audio Return Channel (ARC)
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
60 W
Design
Product design
Interactive flat panel
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal

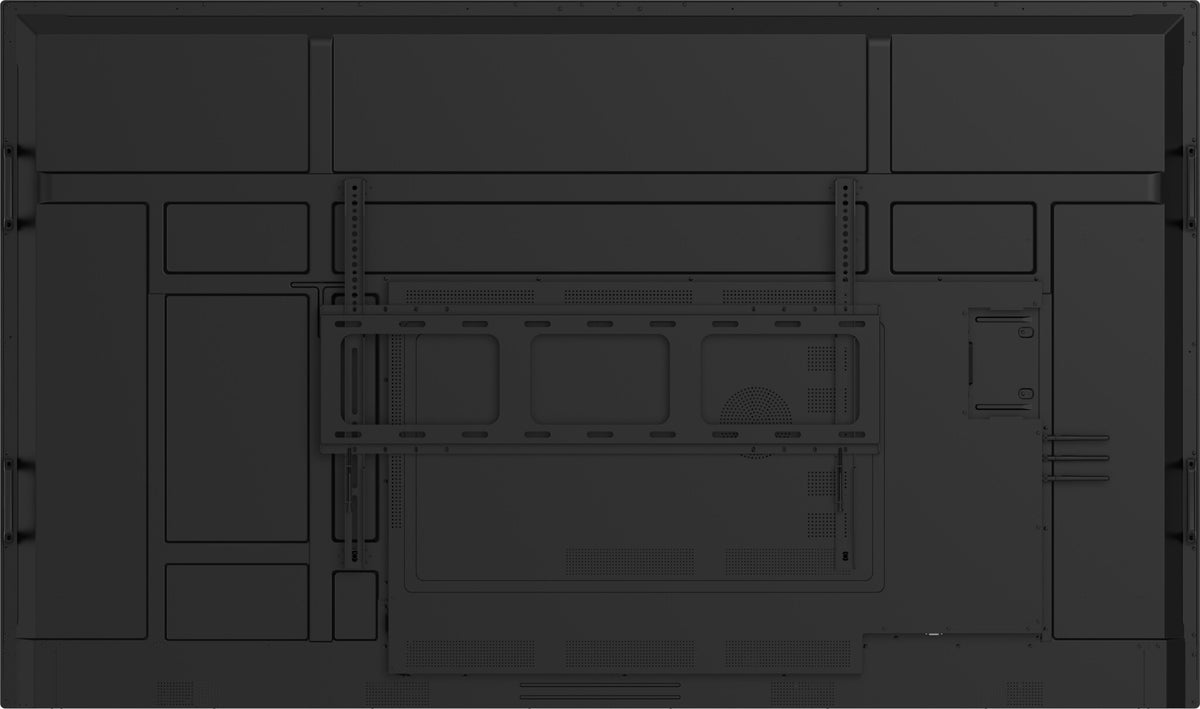

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.41 cm
Bezel width (side)
1.67 cm
Bezel width (bottom)
4.67 cm
Performance
Purpose
Commercial
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
260 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Built-in processor
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor architecture
ARM Cortex-A73
Processor model
RK3576
Processor cores
8
Internal memory
6 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
1955.6 mm
Display depth
87.1 mm
Display height
1154 mm
Display weight
63.8 kg
Width
1955.6 mm
Depth
87.1 mm
Height
1154 mm
Weight
63.8 kg
Packaging data
Package width
2095 mm
Package depth
185 mm
Package height
1265 mm
Package weight
76.5 kg
Packaging content
Remote control included
Yes
Number of stylus pens
4
Stylus pen
Yes
Cables included
AC, USB, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
6 pc(s)
Technical details
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
OPS slot
1
Sustainability certificates
ErP
User controls
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Audio in (mini jack)
Yes
Playback media
Y
Other features
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness
500 cd/m²
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Bluetooth version
5.0
Quick start guide
Yes
