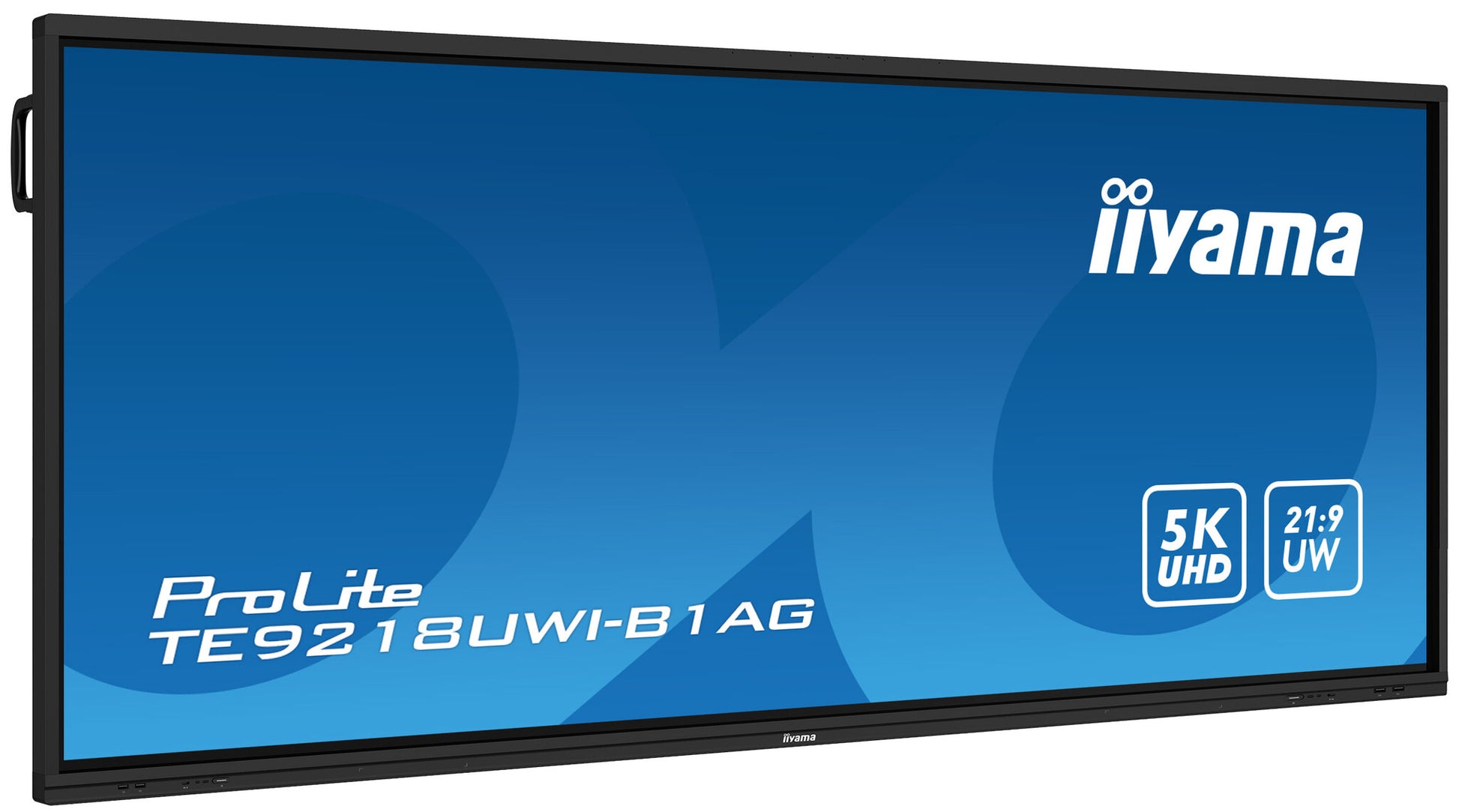

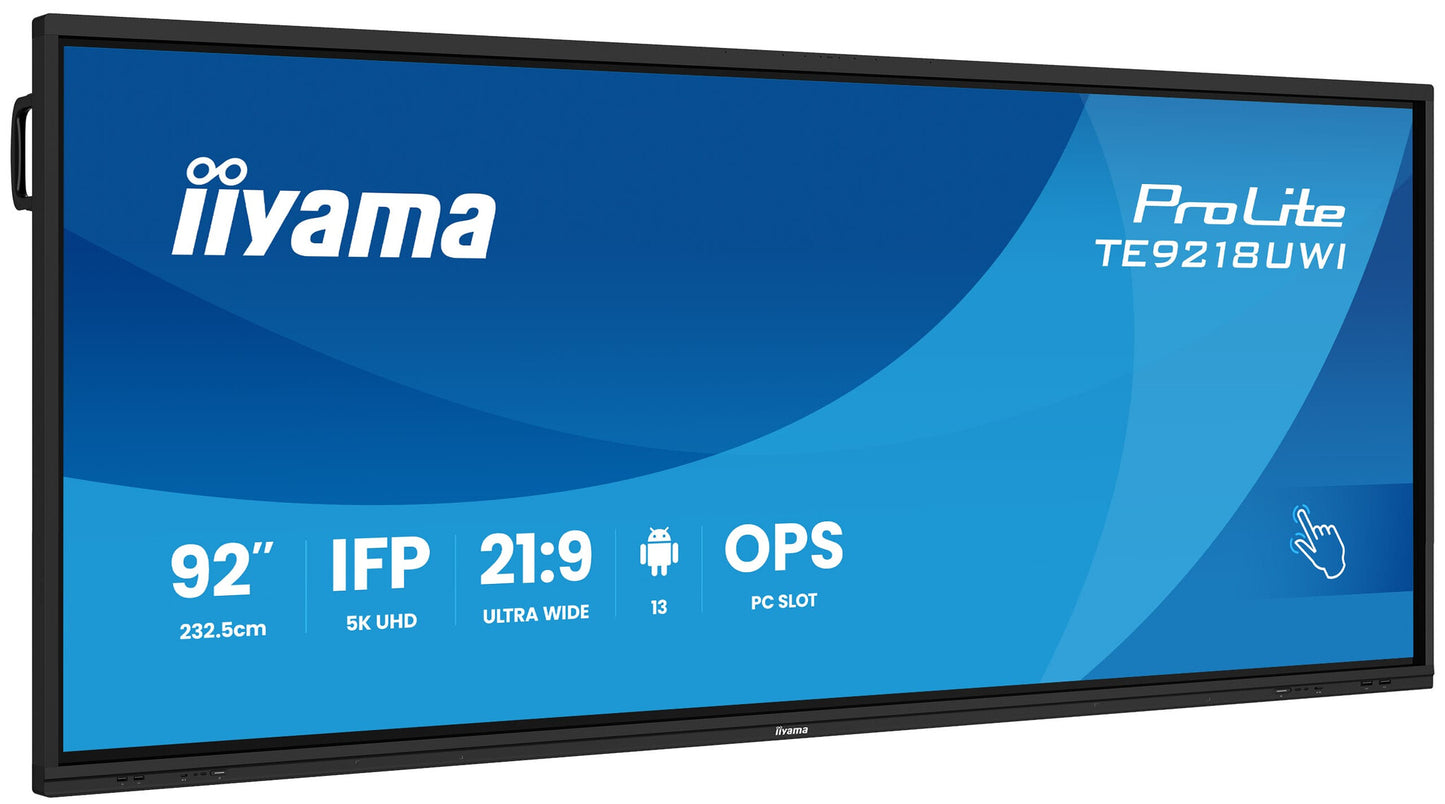

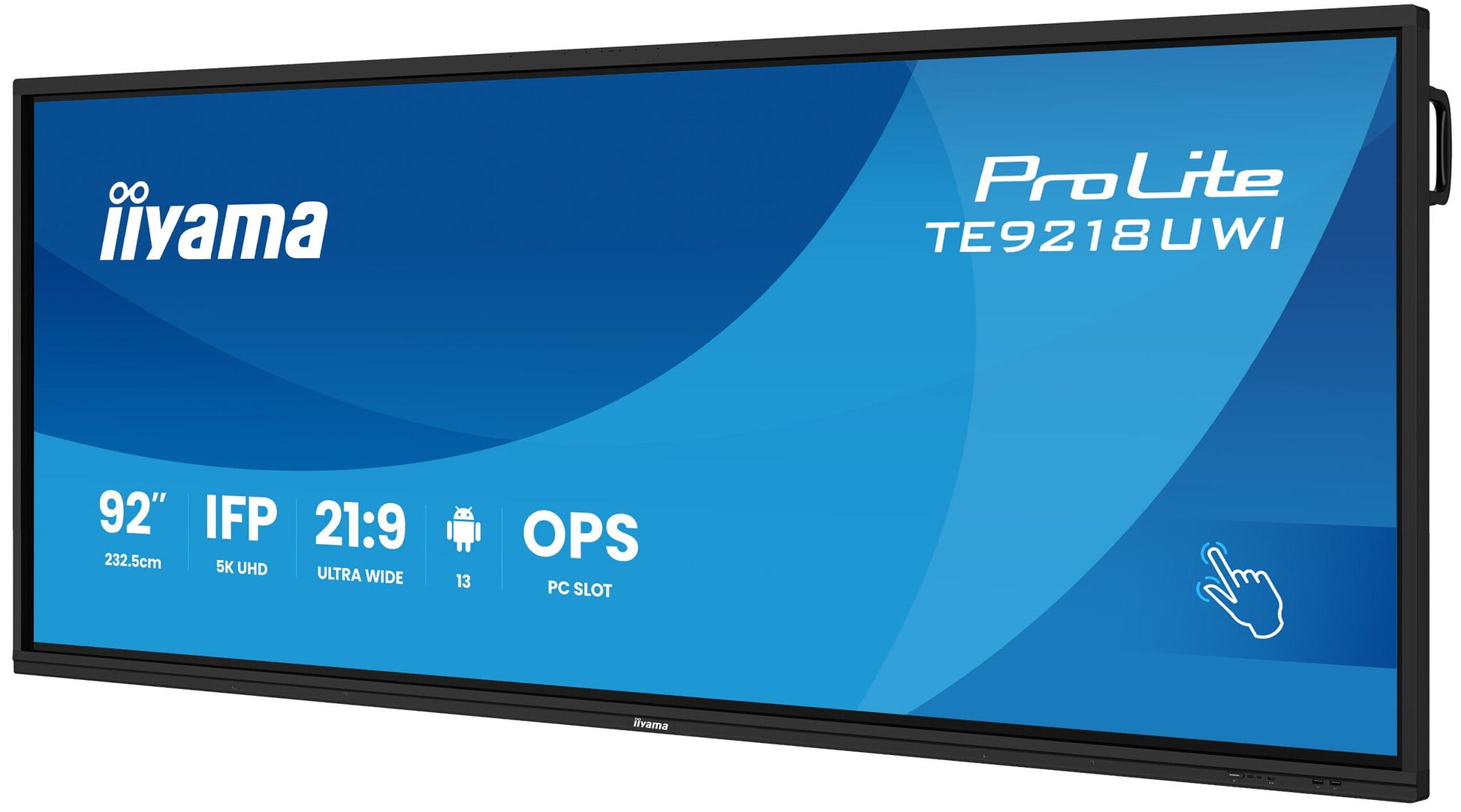

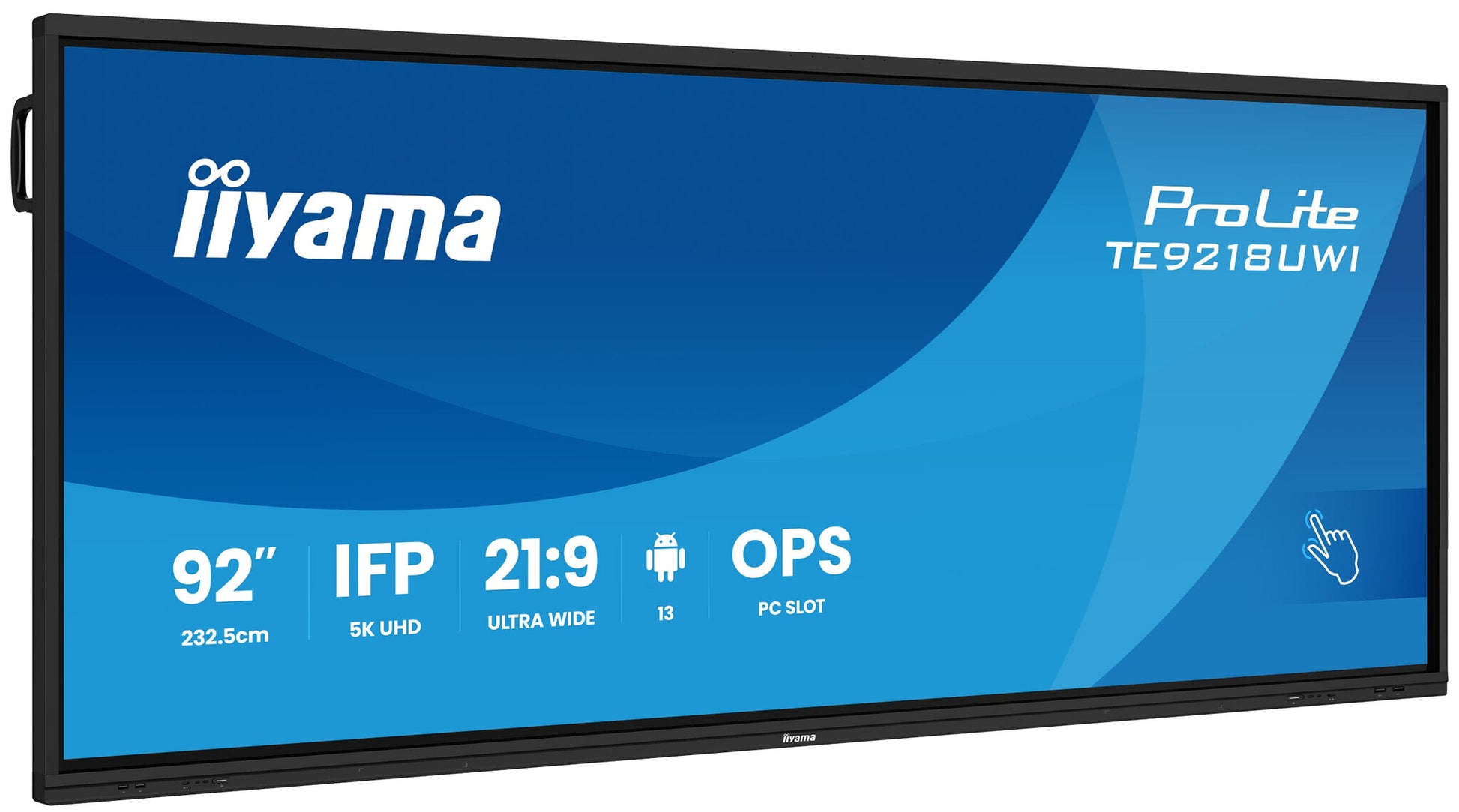

iiyama TE9218UWI-B1AG Signage Display Kiosk design 2.32 m (91.5") LED Wi-Fi 500 cd/m² 5K Ultra HD Black Touchscreen Built-in processor Android 16/7
iiyama TE9218UWI-B1AG Signage Display Kiosk design 2.32 m (91.5") LED Wi-Fi 500 cd/m² 5K Ultra HD Black Touchscreen Built-in processor Android 16/7

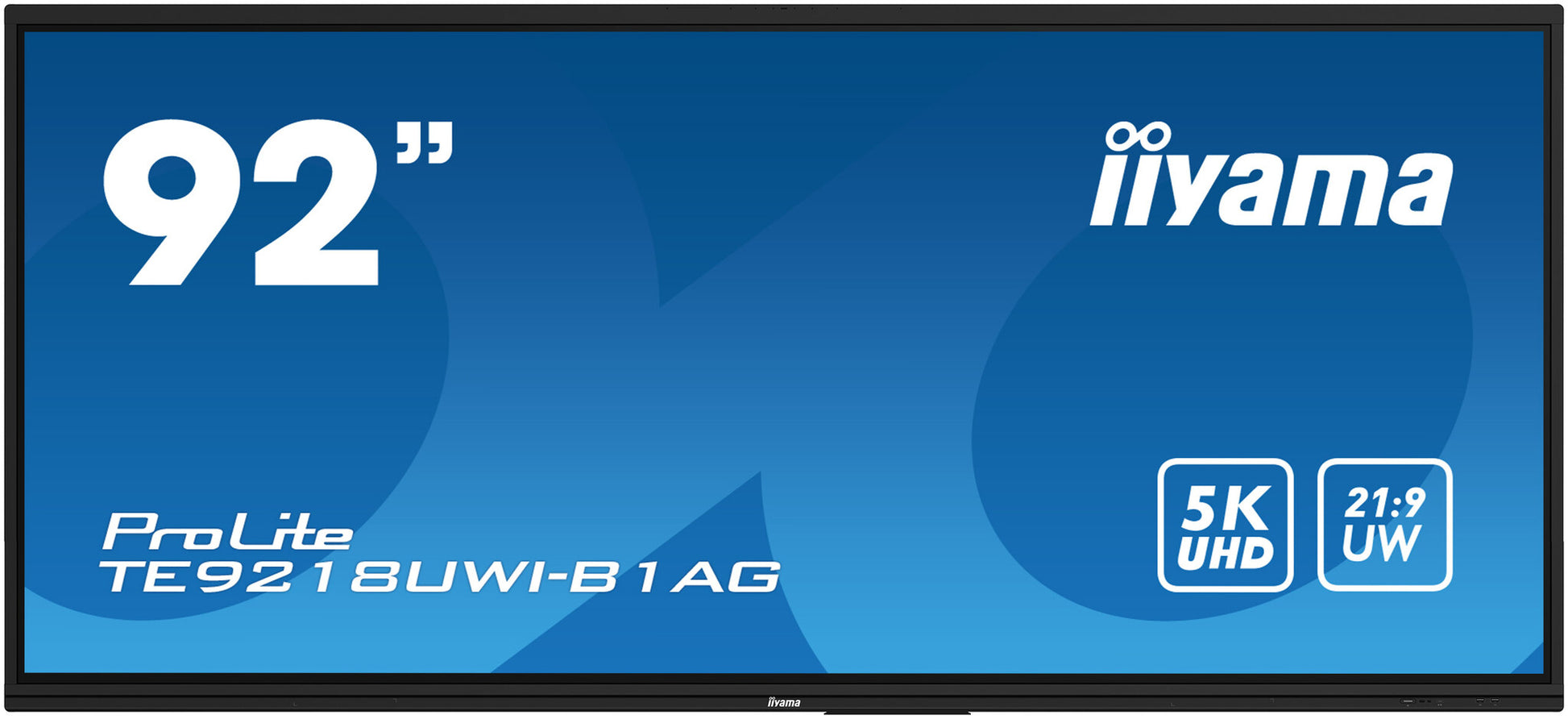

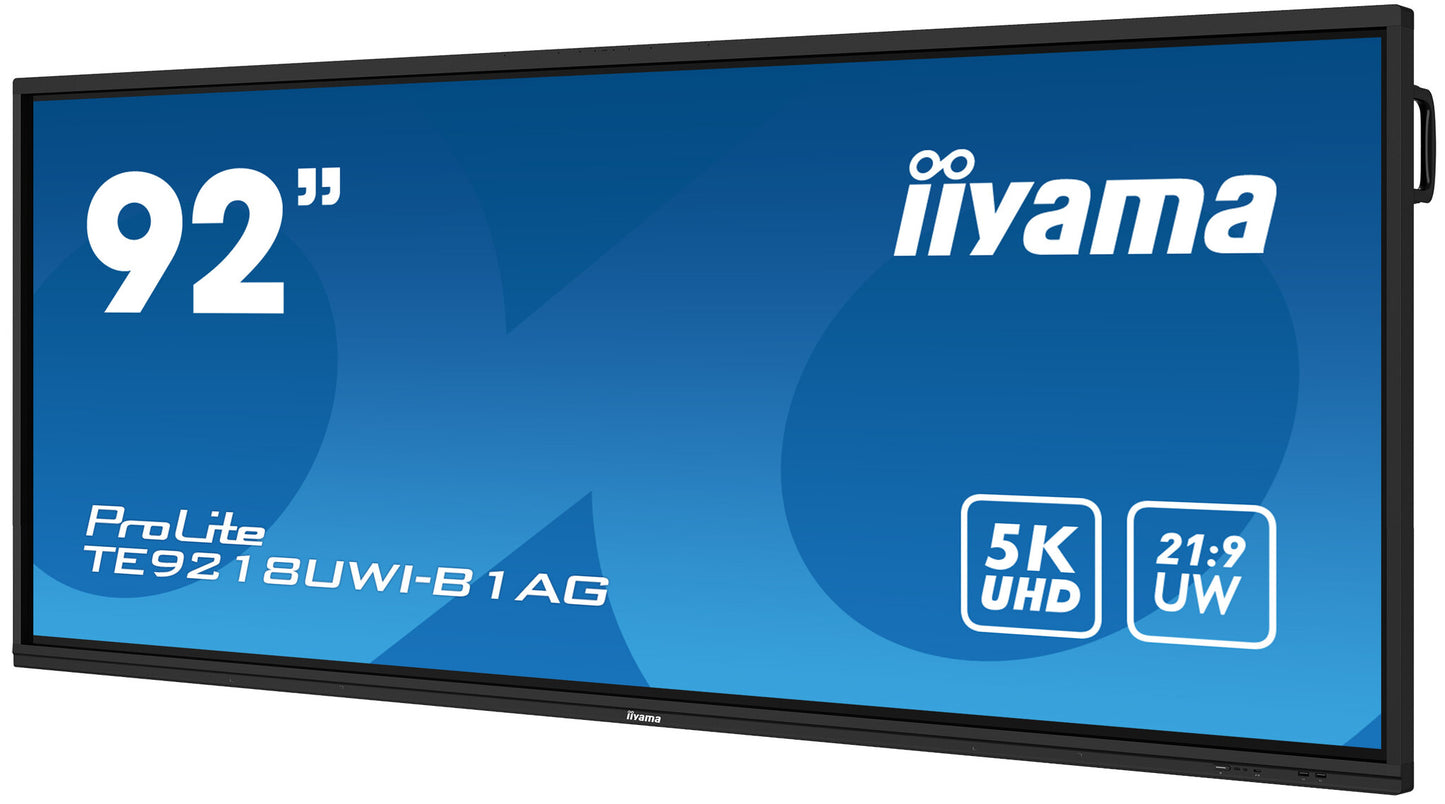

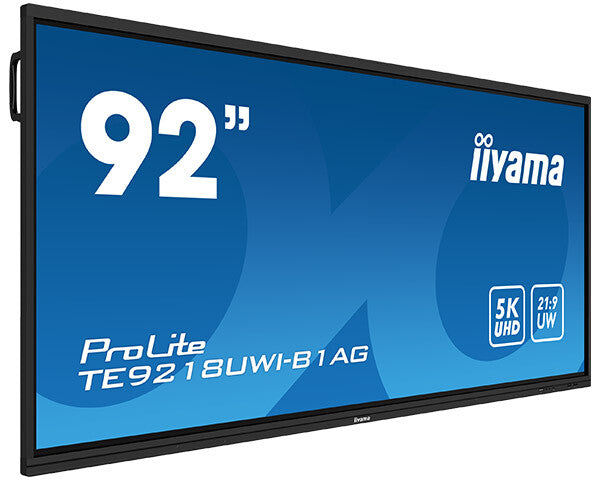

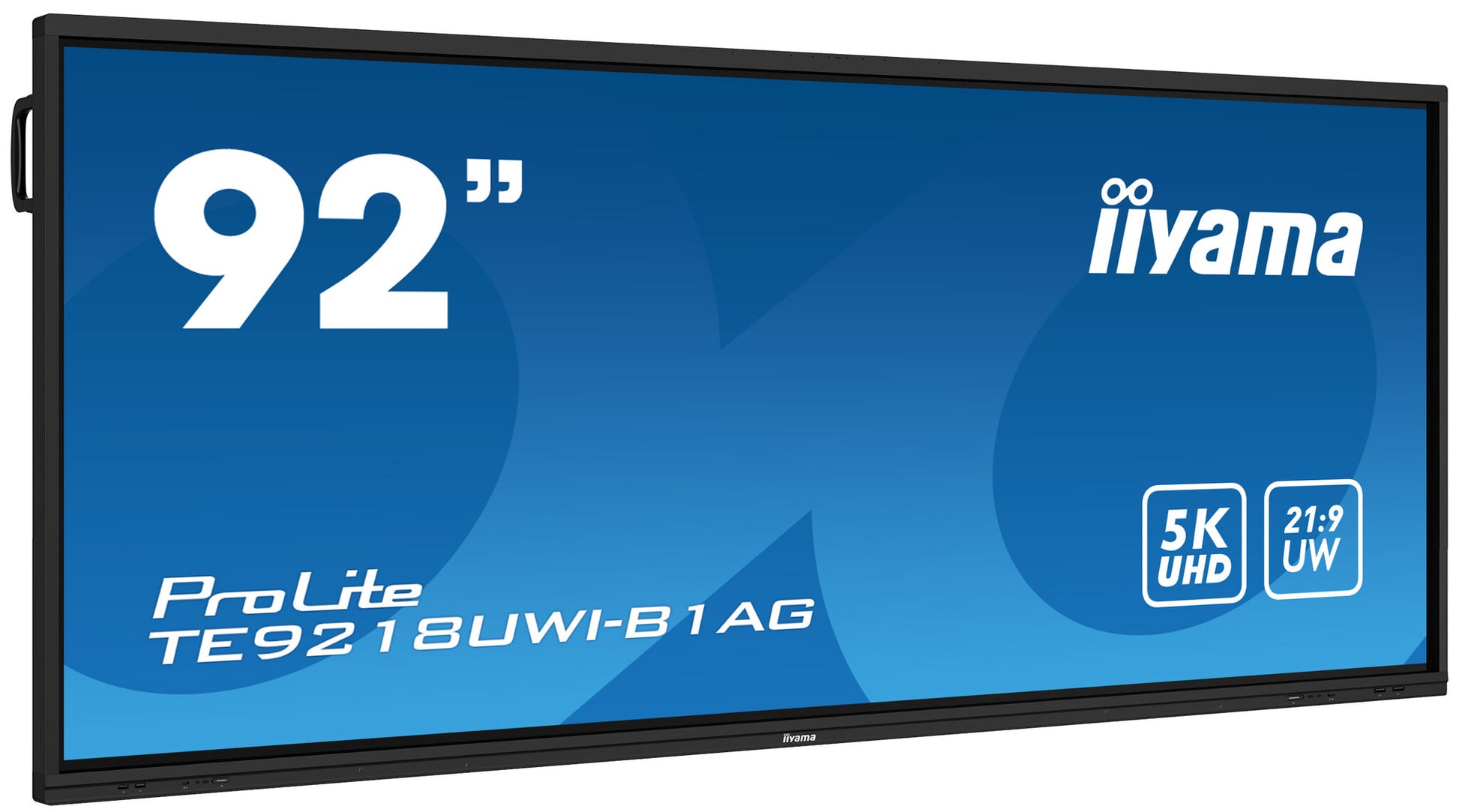

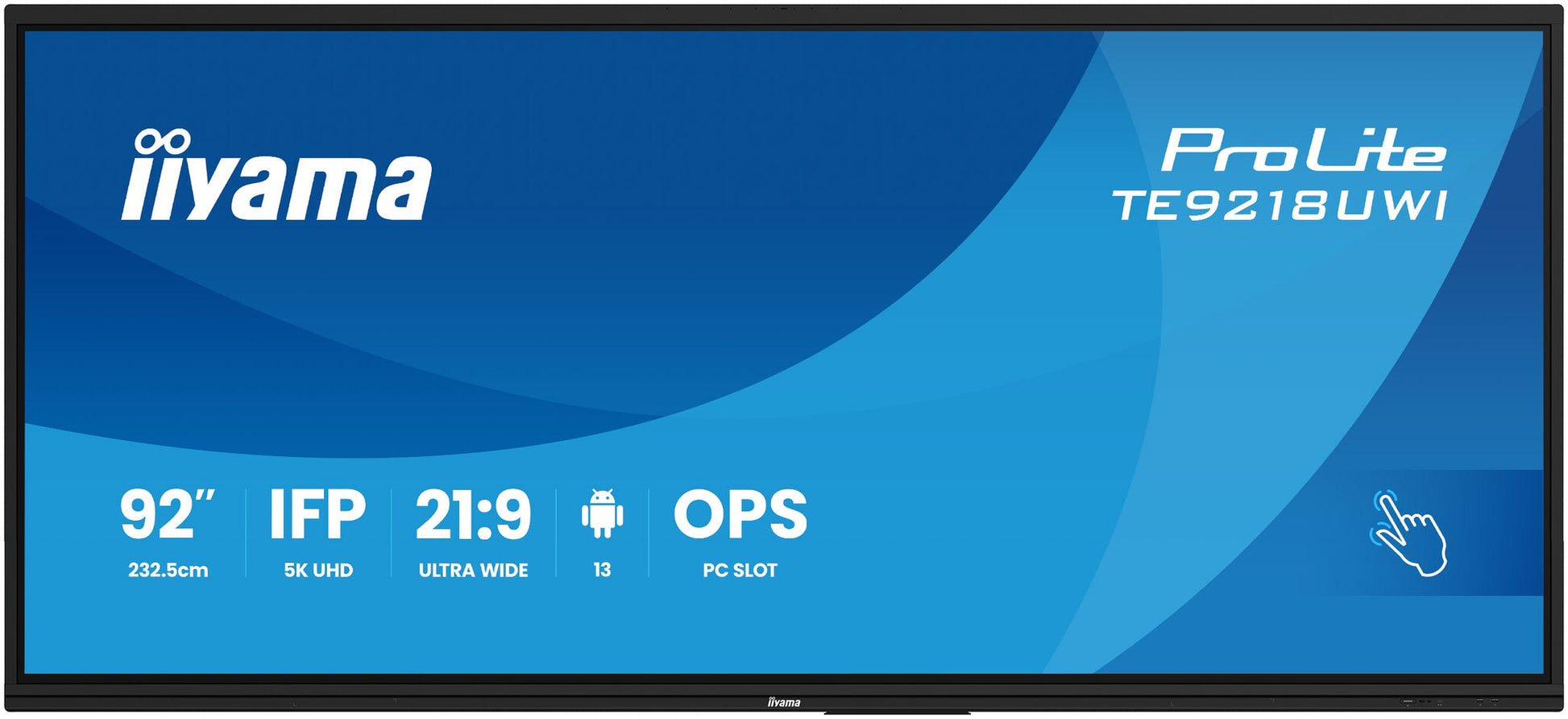

92” Ultra-wide Interactive 5K UHD display with 21:9 panoramic view
- Indoor Kiosk design Black
- 2.32 m (91.5") 5120 x 2160 pixels LED 500 cd/m²
- Touchscreen 60 Hz 6.5 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 60 W
- SKU:4948570124305
- GTIN/EAN:4948570124305
- MPN:TE9218UWI-B1AG
iiyama TE9218UWI-B1AG. Product design: Kiosk design. Display diagonal: 2.32 m (91.5"), Display technology: LED, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: 5K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Android. Product colour: Black
The TE9218UWI-B1AG is a revolutionary 92" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 92" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.
Horizontal scan range
30 - 135 kHz
Panel type
VA
Native refresh rate
60 Hz
Glass thickness
3 mm
Surface hardness
7H
Display diagonal (metric)
232.5 cm
Active display area (W x H)
2142 x 903.6 mm
Pixel pitch
0.418 x 0.418 mm
Display number of colours
1.07 billion colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
5000:1
Contrast ratio (typical)
4000:1
Response time
6.5 ms
Native aspect ratio
21:9
Number of simultaneous touchpoints
50
Touchscreen technology
PureTouch-IR
Touchscreen
Yes
HD type
5K Ultra HD
Display brightness
500 cd/m²
Display resolution
5120 x 2160 pixels
Display technology
LED
Display diagonal
2.32 m (91.5")
OPS module slot
Yes
RS-232C
Yes
Microphone in
Yes
Audio (L/R) out
4
Audio (L/R) in
1
Wi-Fi
Yes
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN (RJ-45) ports
2
Ethernet LAN
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery up to
100 W
USB Power Delivery
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
8
USB port
Yes
DisplayPorts in
1
DisplayPorts quantity
1
DVI port
No
HDMI output ports quantity
1
HDMI input ports quantity
1
HDMI version
2.0/2.1
HDMI ports quantity
5
RMS rated power
60 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Anti-glare screen
Yes
Bezel colour
Black

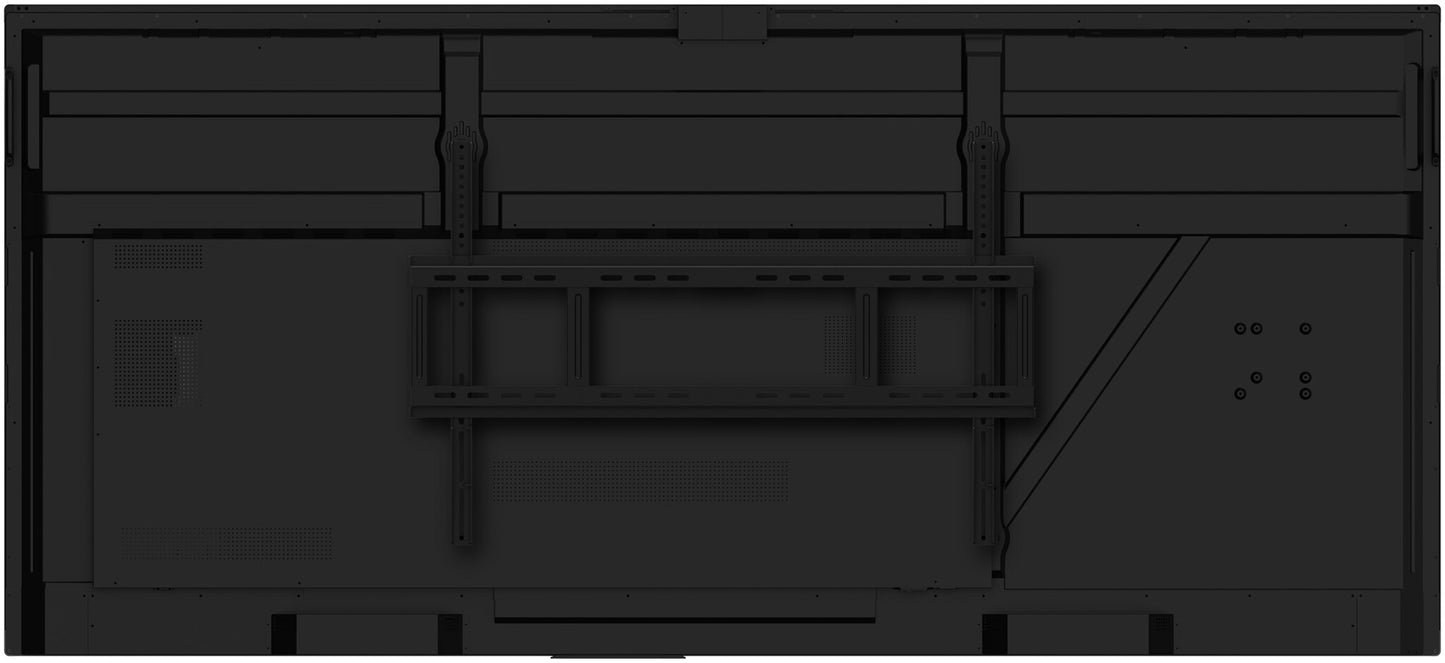

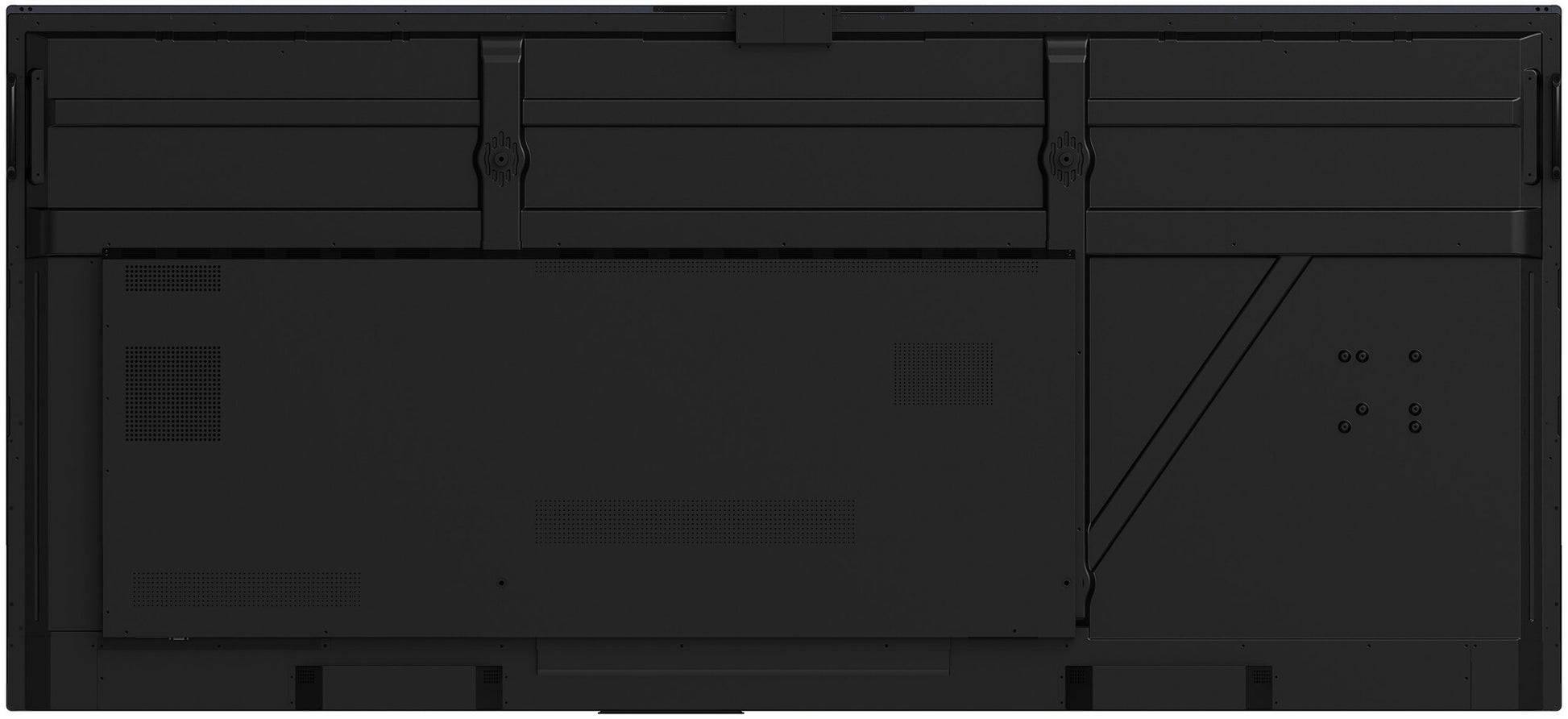

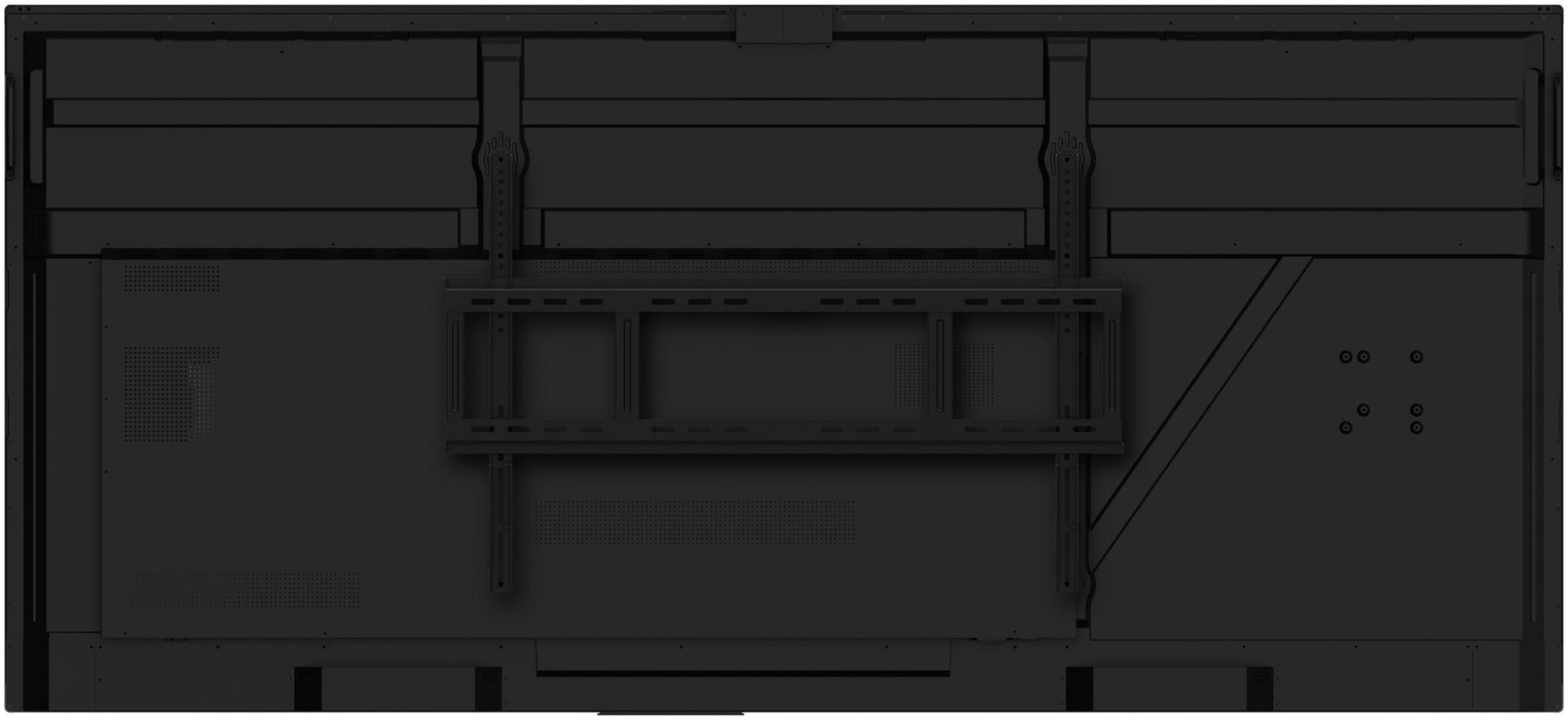

Panel mounting interface
800 x 600 mm
VESA mounting
Yes
Orientation
Horizontal
Placement supported
Indoor
Product colour
Black
Product design
Kiosk design
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.3
Operating hours (hours/days)
16/7
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Purpose
Universal
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
227 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
G
Power consumption (off)
0.3 W
Power consumption (standby)
0.4 W
Power consumption (typical)
227 W
Operating system version
13
Operating system installed
Android
Internal storage capacity
64 GB
On-board graphics card model
ARM Mali-G610 MP4
Internal memory
8 GB
Processor architecture
ARM Cortex-A76+Cortex-A55
Processor manufacturer
ARM
Built-in processor
Yes
Computer system
No
Weight
67.6 kg
Height
1000 mm

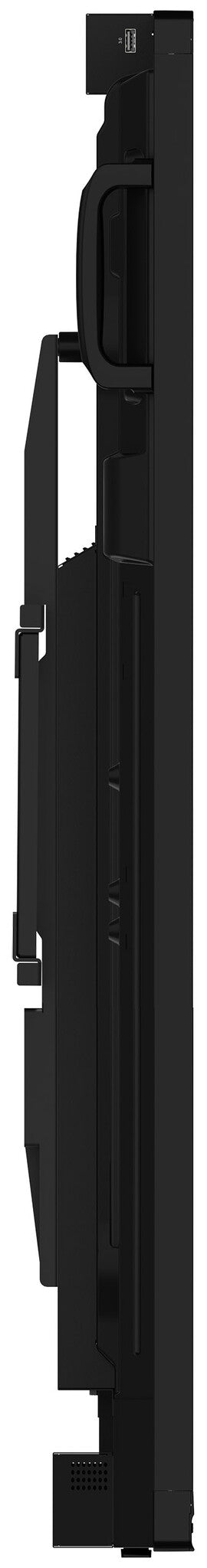

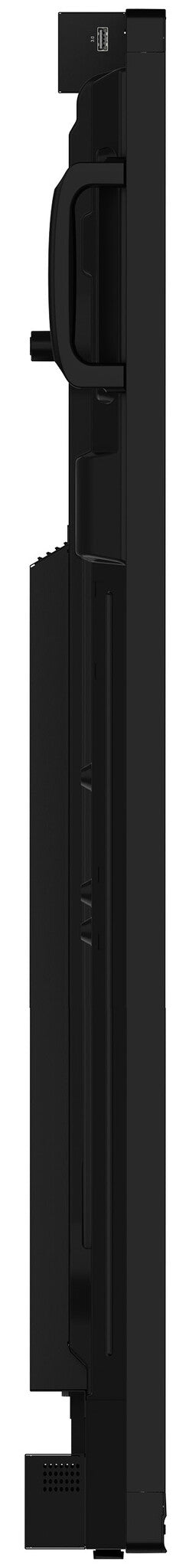

Depth
92 mm
Width
2203 mm
Display weight
67.6 kg
Display height
1000 mm
Display depth
92 mm
Display width
2203 mm
Package weight
88.5 kg
Package height
225 mm
Package depth
1140 mm
Package width
2360 mm
Mounting kit
Yes

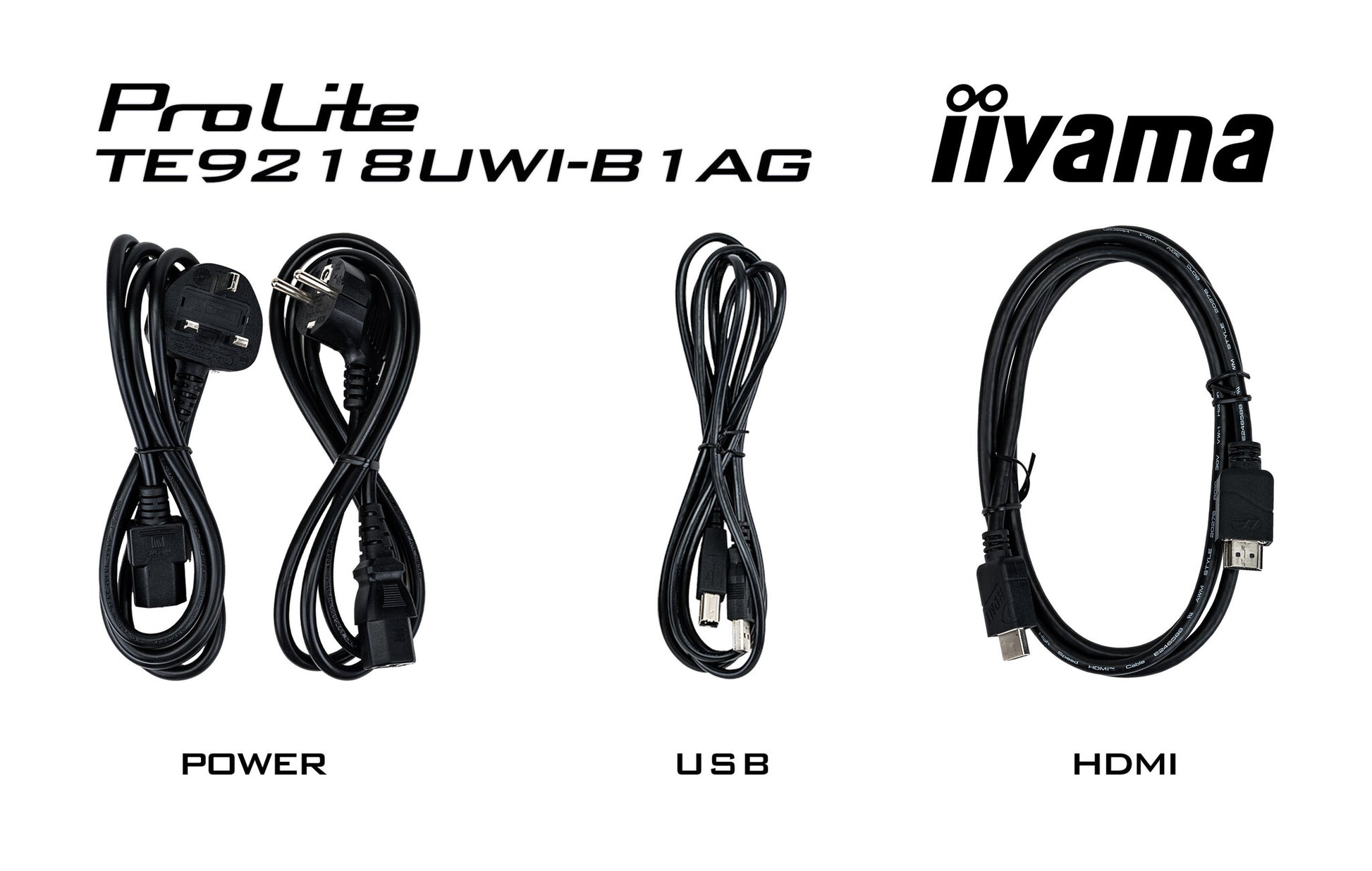

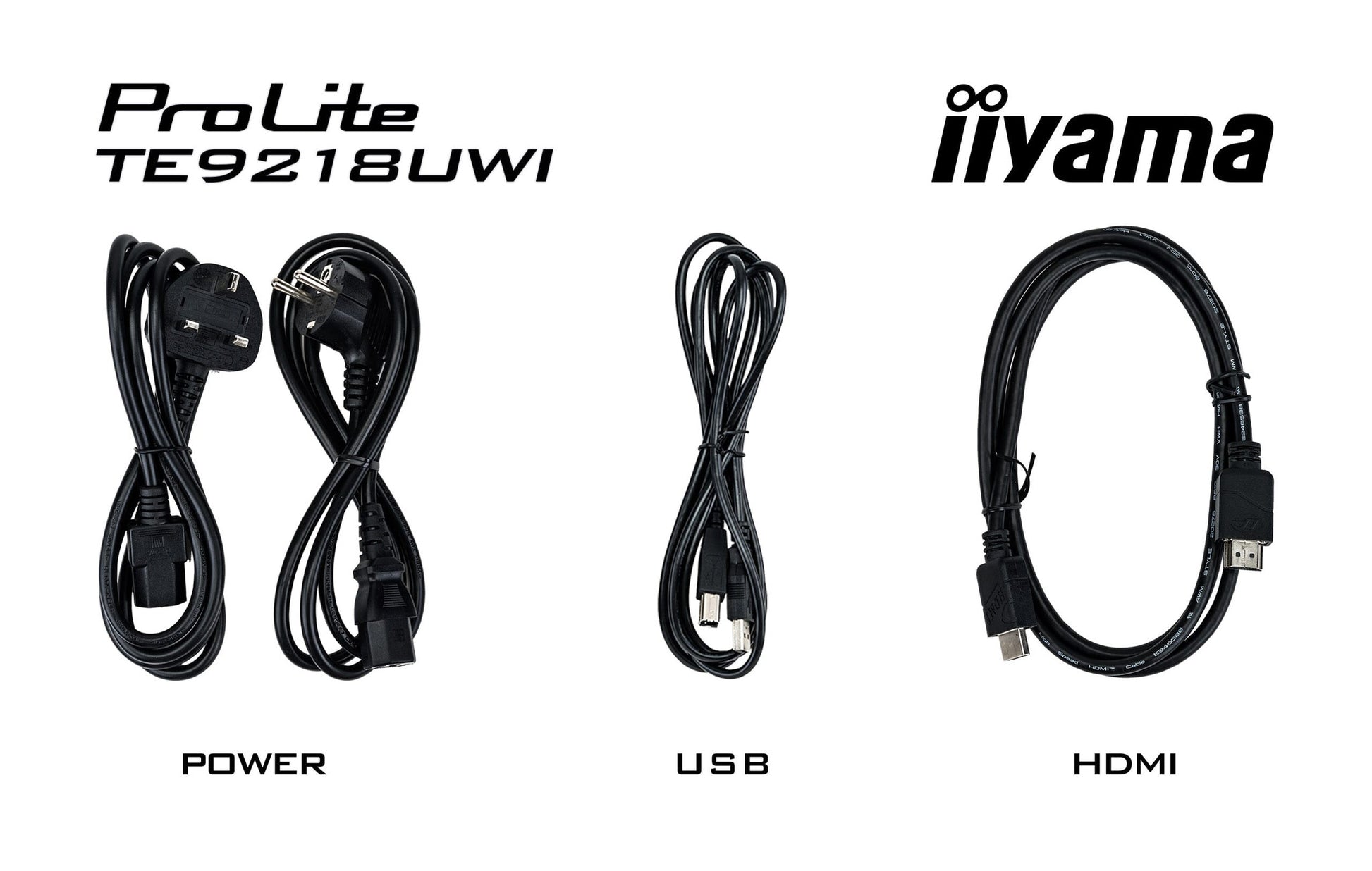

Cables included
AC, USB, HDMI
Wi-Fi module included
Yes
Number of stylus pens
4
Stylus pen
Yes
Remote control included
Yes
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
User controls
general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless & networks, personal, input & output, application, system)
Audio in (mini jack)
Yes
Playback media
Y
Sustainability certificates
ErP
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Quick start guide
Yes
Built-in microphone
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
USB connector type
USB Type-A, USB Type-C
Wi-Fi standards
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Power supply type
Internal
Bluetooth
Yes
Bluetooth version
5.0
