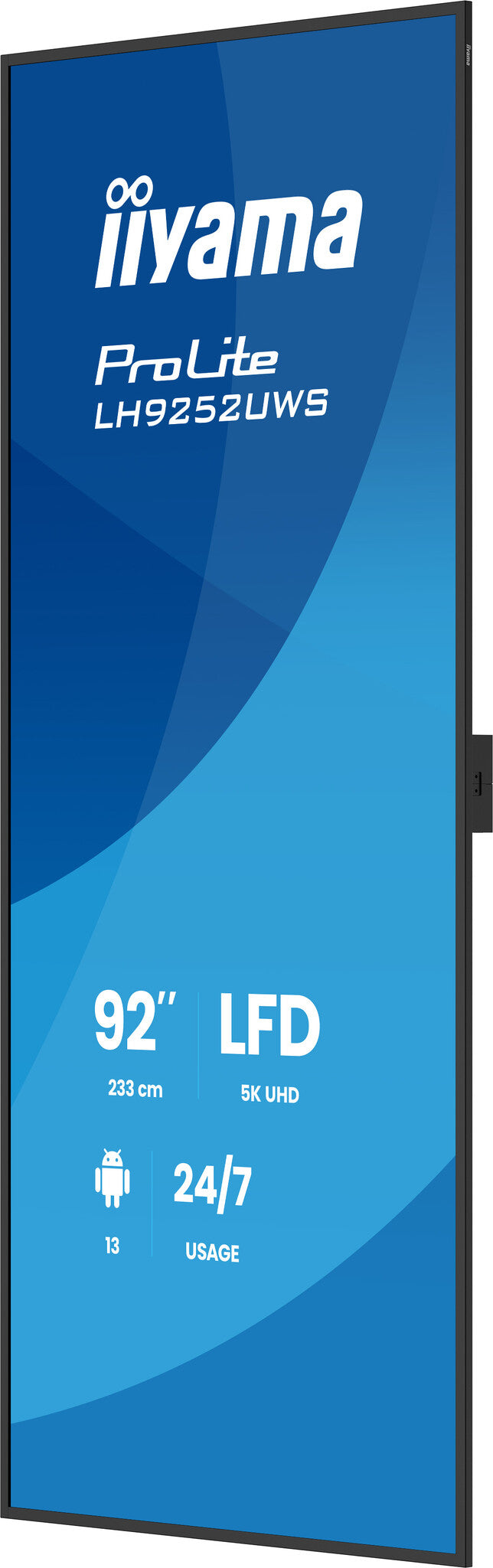

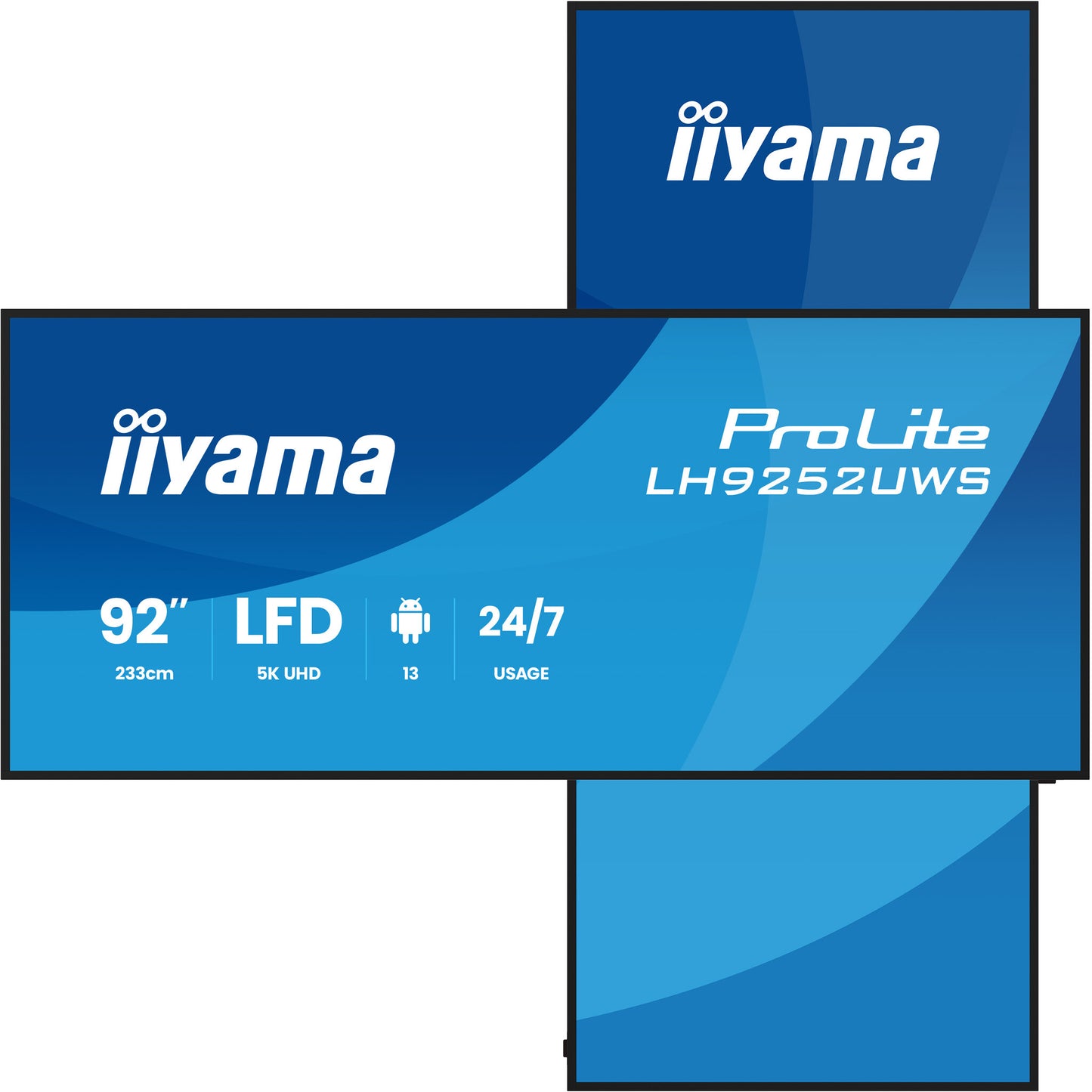

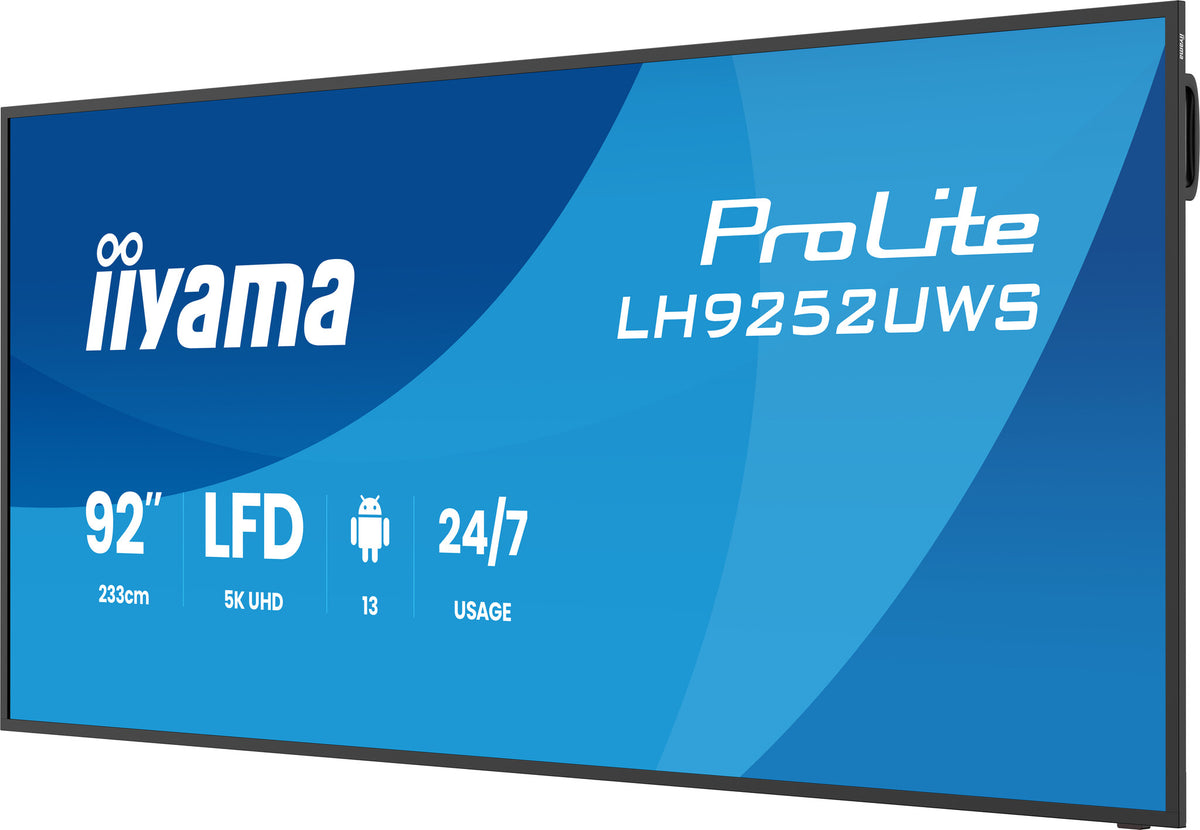

iiyama LH9252UWS-B1AG Signage Display Kiosk design 2.34 m (92") LCD Wi-Fi 500 cd/m² UltraWide 5K HD Black Built-in processor Android 24/7

iiyama LH9252UWS-B1AG Signage Display Kiosk design 2.34 m (92") LCD Wi-Fi 500 cd/m² UltraWide 5K HD Black Built-in processor Android 24/7

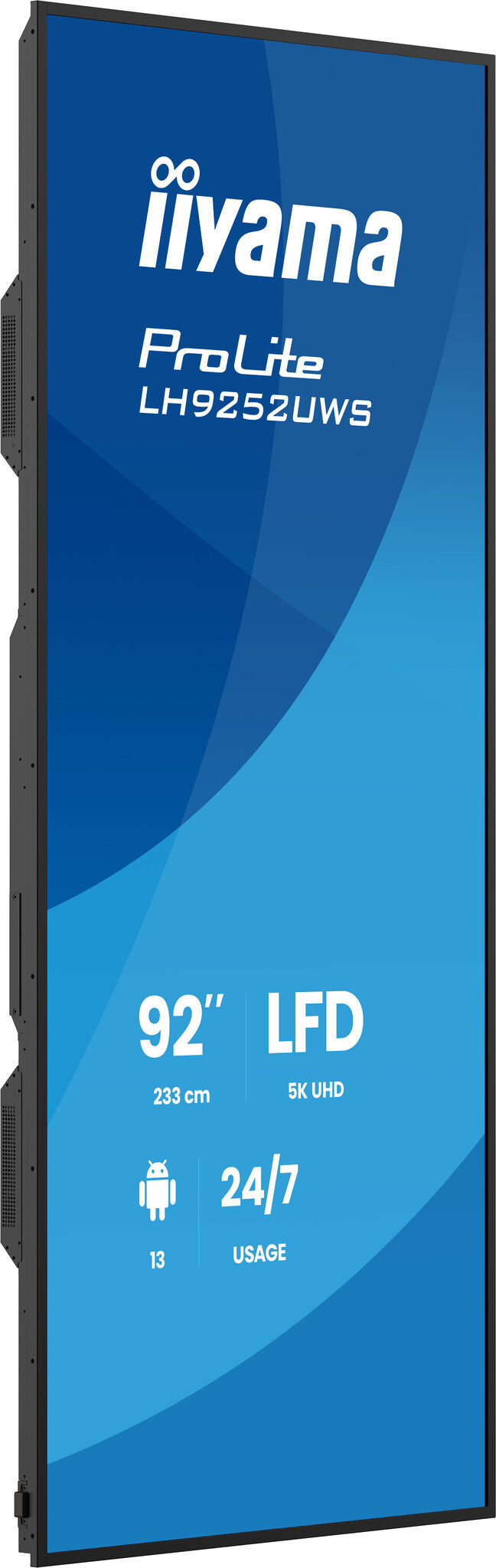

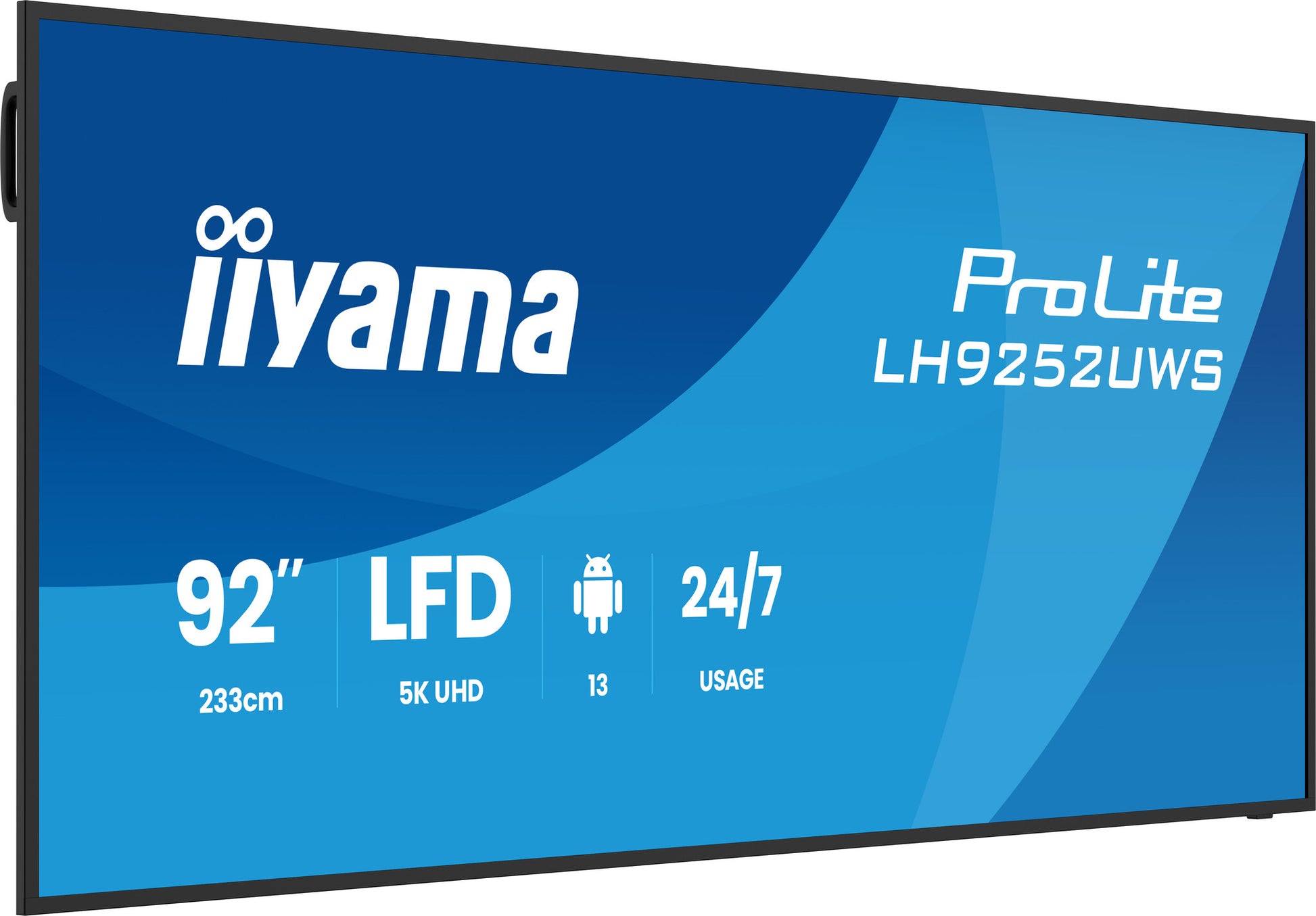

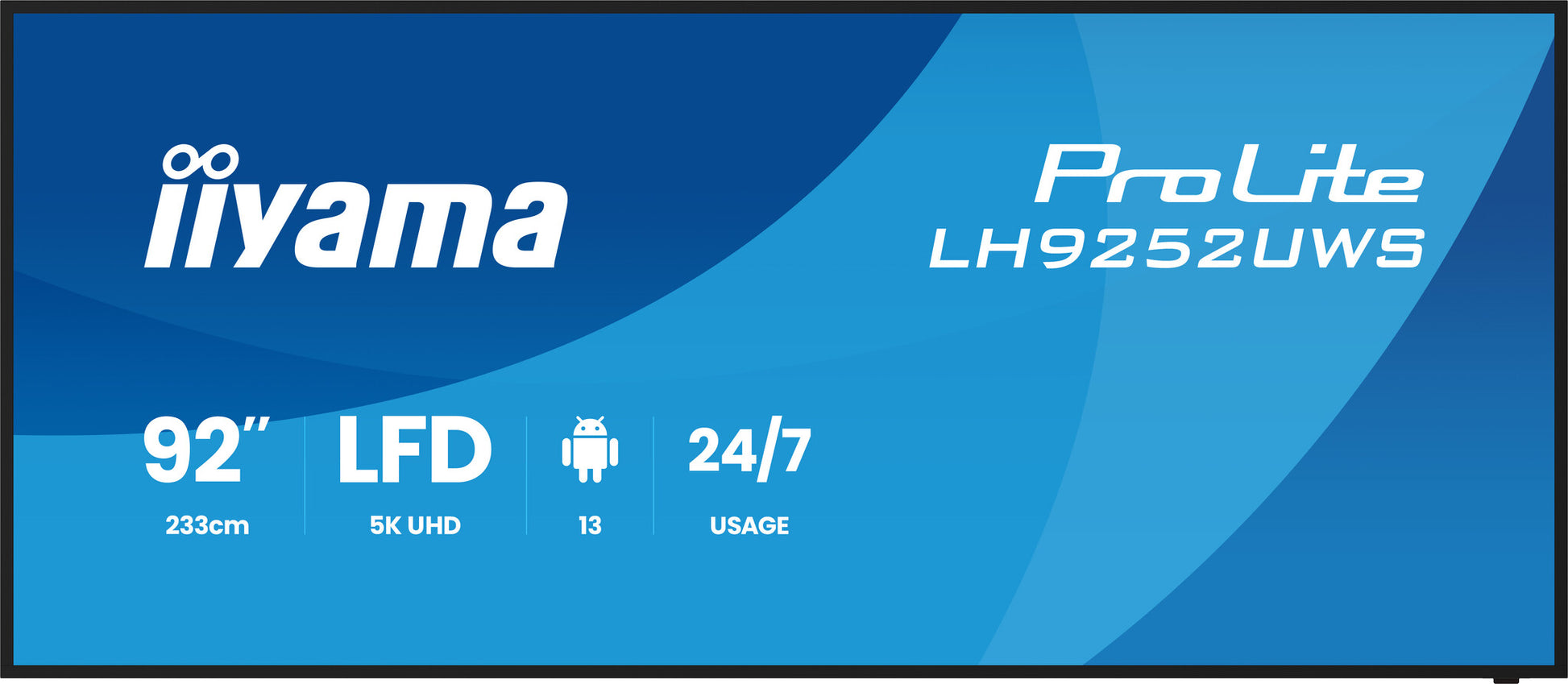

ProLite LH9252UWS-B1AG with 92" 5K collaboration display

  • Indoor/outdoor Kiosk design Black
  • 2.34 m (92") 5120 x 2160 pixels LCD 500 cd/m²
  • 60 Hz 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570128051
  • GTIN/EAN:4948570128051
  • MPN:LH9252UWS-B1AG

You need to login to view the price.

View full details

iiyama LH9252UWS-B1AG. Product design: Kiosk design. Display diagonal: 2.34 m (92"), Display technology: LCD, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: UltraWide 5K HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.

Display
Display diagonal
2.34 m (92")
Display technology
LCD
Display resolution
5120 x 2160 pixels
Display brightness
500 cd/m²
HD type
UltraWide 5K HD
Touchscreen
No
Native aspect ratio
21:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.13945 x 0.41835 mm
Active display area (W x H)
2141.952 x 903.636 mm
Display diagonal (metric)
233 cm
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

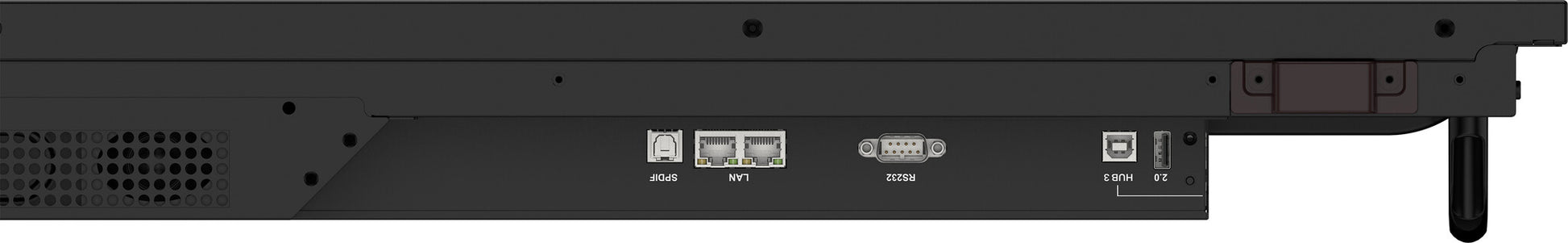

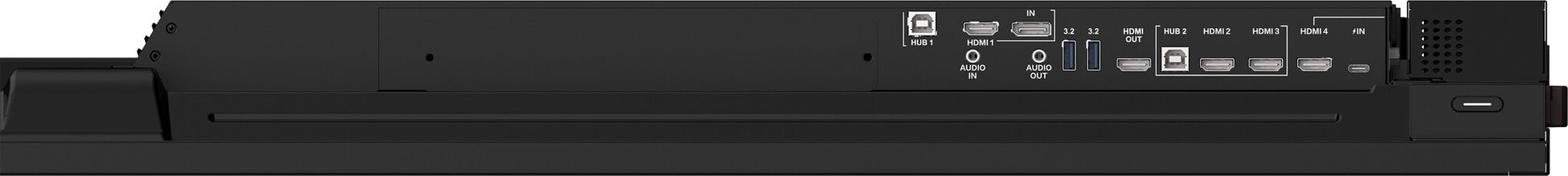

Ports & interfaces
HDMI ports quantity
1
HDMI version
2.0
HDMI input ports quantity
1
Consumer Electronics Control (CEC)
Yes
DVI port
No
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
3
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
RS-232C
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Kiosk design
Product colour
Black
Placement supported
Indoor/outdoor

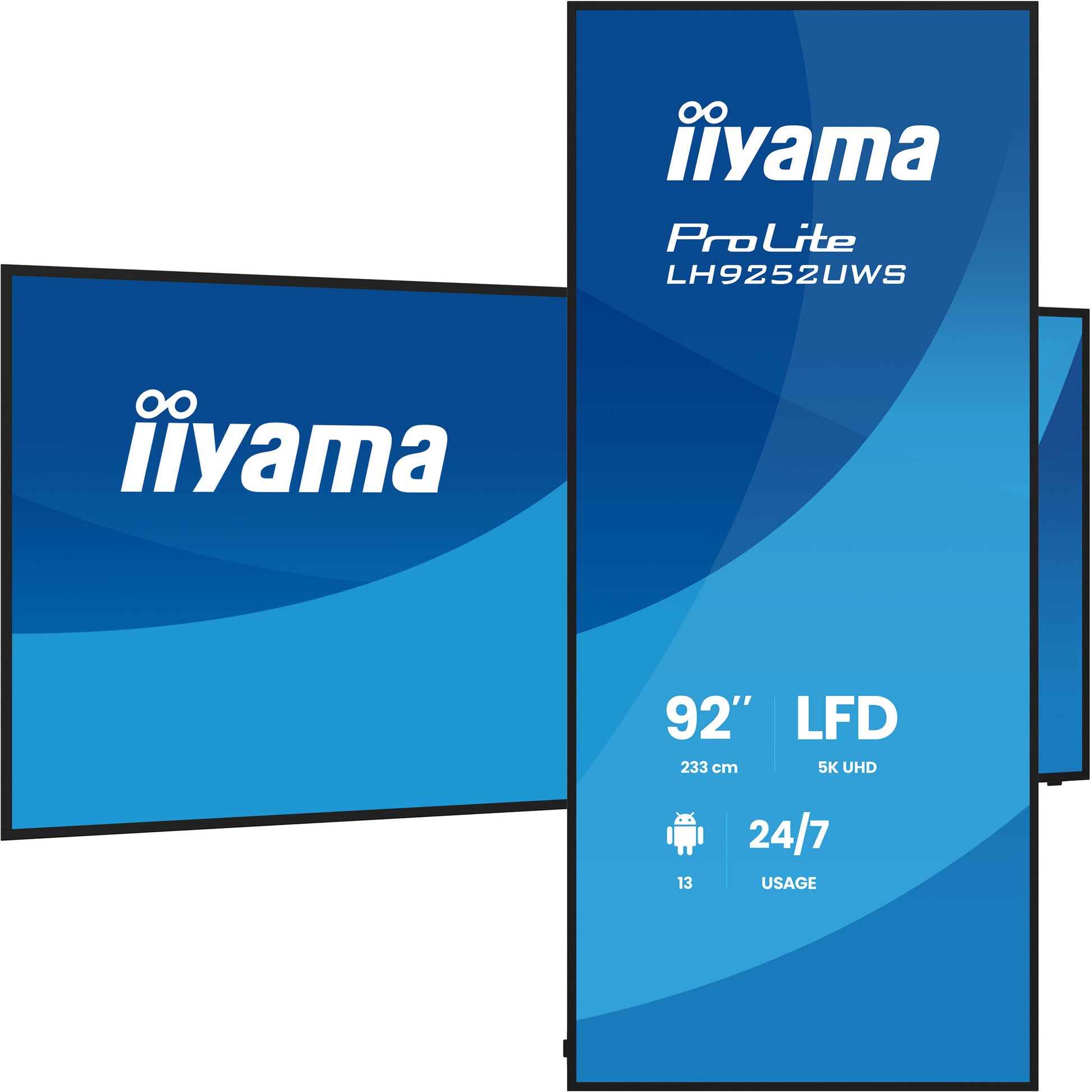

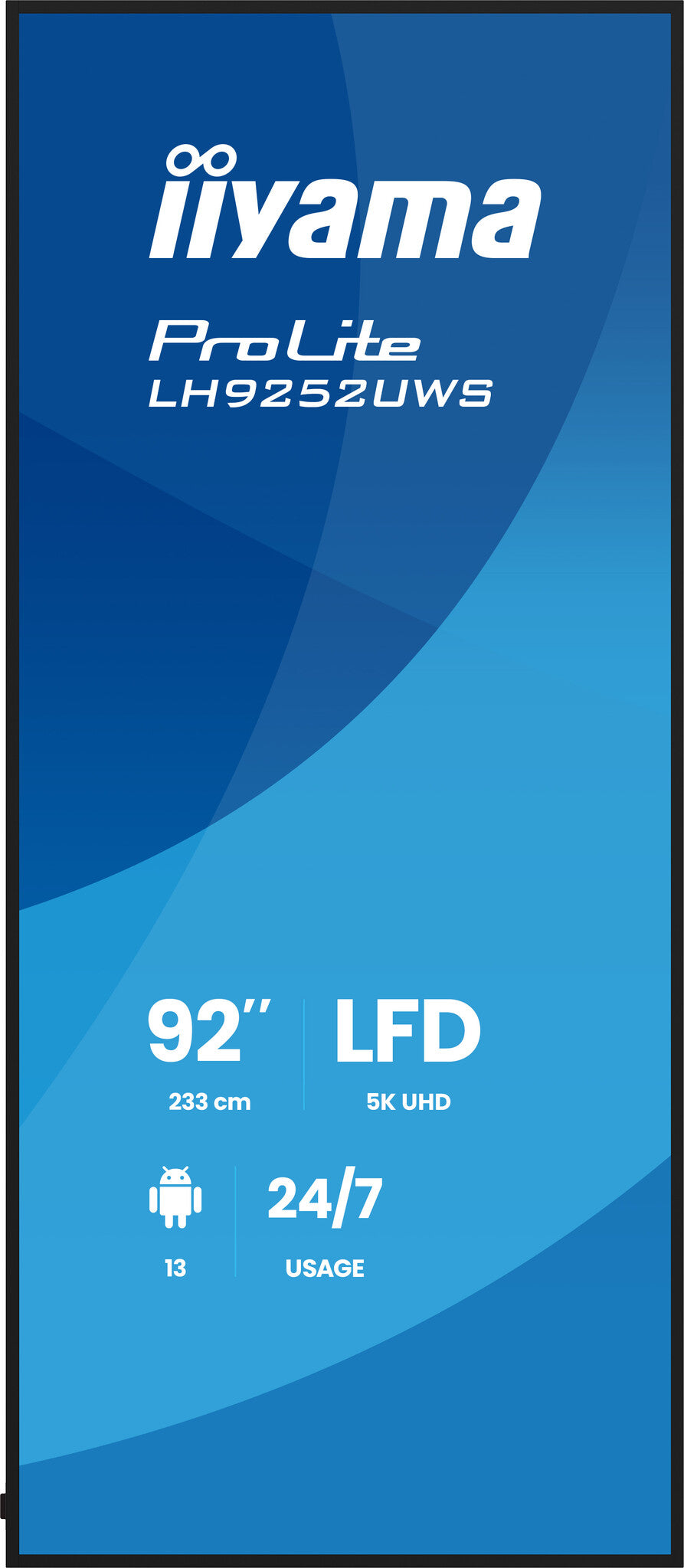

Orientation
Horizontal/Vertical

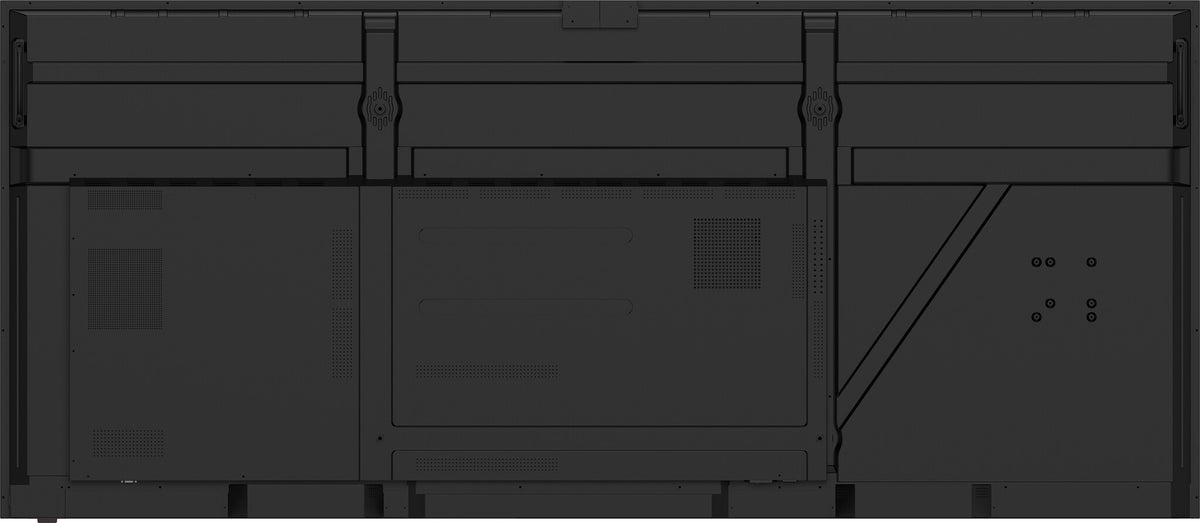

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Anti-glare screen
Yes
Bezel width (top)
1.49 cm
Bezel width (side)
1.49 cm
Bezel width (bottom)
1.49 cm
Performance
Purpose
Commercial
On Screen Display (OSD) languages
CAT, Traditional Chinese, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Japanese, Lithuanian, LAT, Dutch, Polish, Russian
Number of OSD languages
18
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4
HDCP
Yes
Power
Power consumption (typical)
201 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Built-in processor
Yes
Processor architecture
ARM Cortex-A76+Cortex-A55
Processor model
RK3588
Processor cores
8
Internal memory
8 GB
On-board graphics card model
Mali-G640 MP4
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
13
Weight & dimensions
Display width
2182 mm
Display depth
85.2 mm
Display height
943.8 mm
Display weight
44 kg
Width
2182 mm
Depth
85.2 mm
Height
943.8 mm
Weight
44 kg
Packaging data
Package width
2360 mm
Package depth
225 mm
Package height
1072 mm
Package weight
63 kg
Packaging content
Remote control included
Yes
Wi-Fi module included
Yes

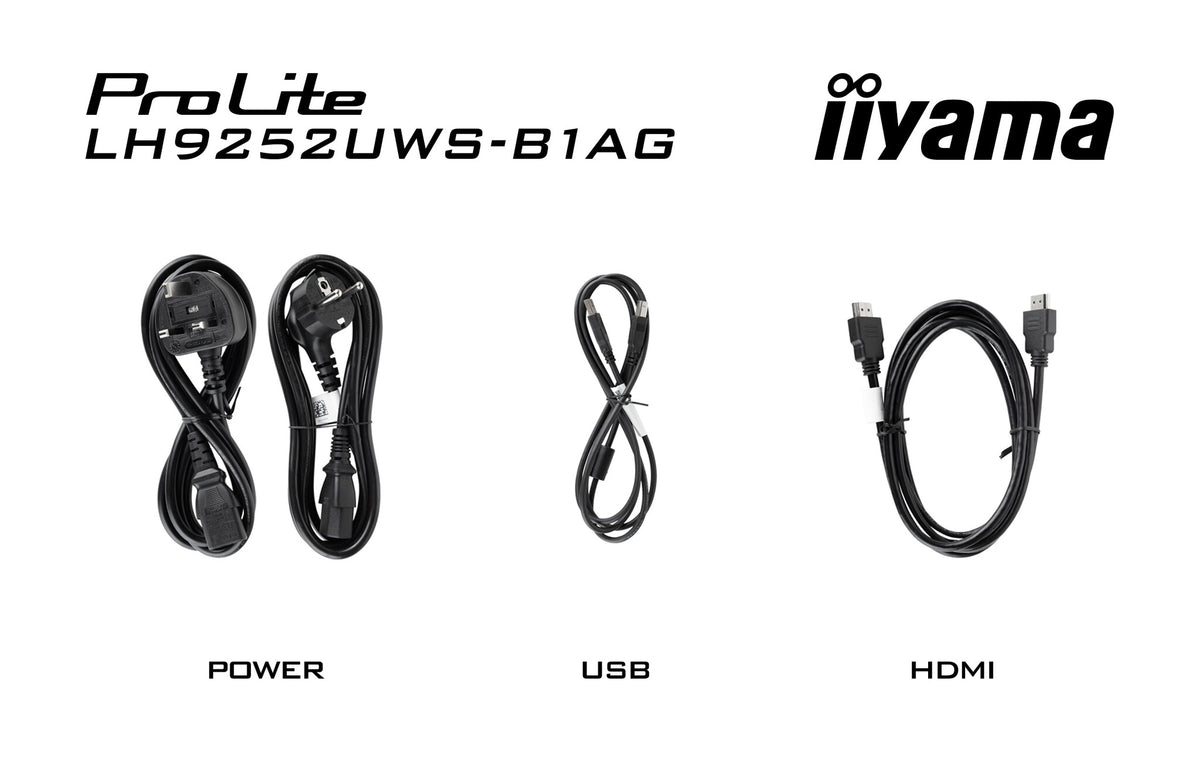

Cables included
AC, HDMI, DisplayPort, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
50 pc(s)
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
OPS slot
1
Pallet net width
2.38 m
Pallet net length
12 cm
Pallet net height
114 cm
Sustainability certificates
ErP
User controls
Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number)
Audio in (mini jack)
Yes
Other features
Power supply type
Internal
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Quick start guide
Yes
