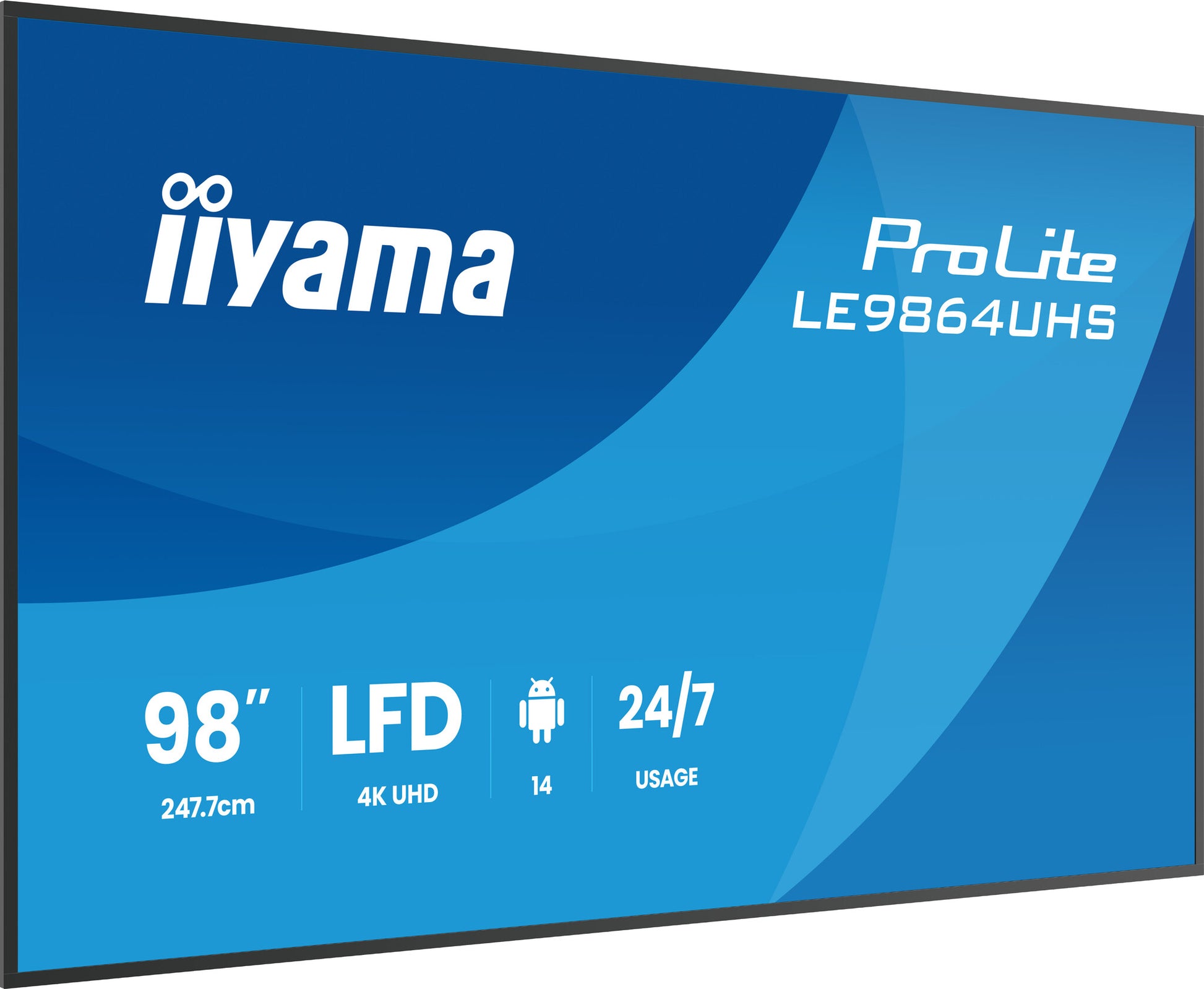

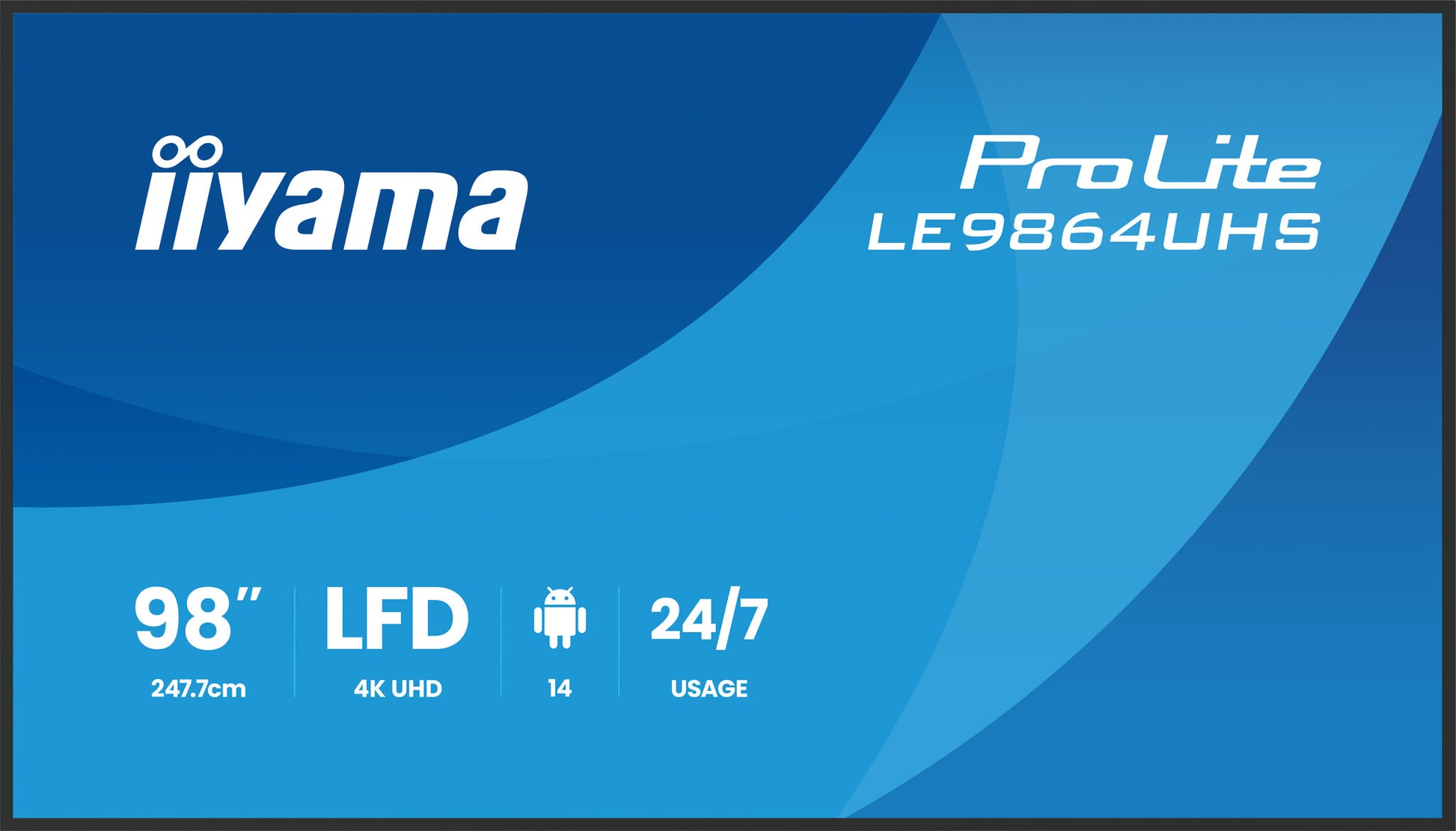

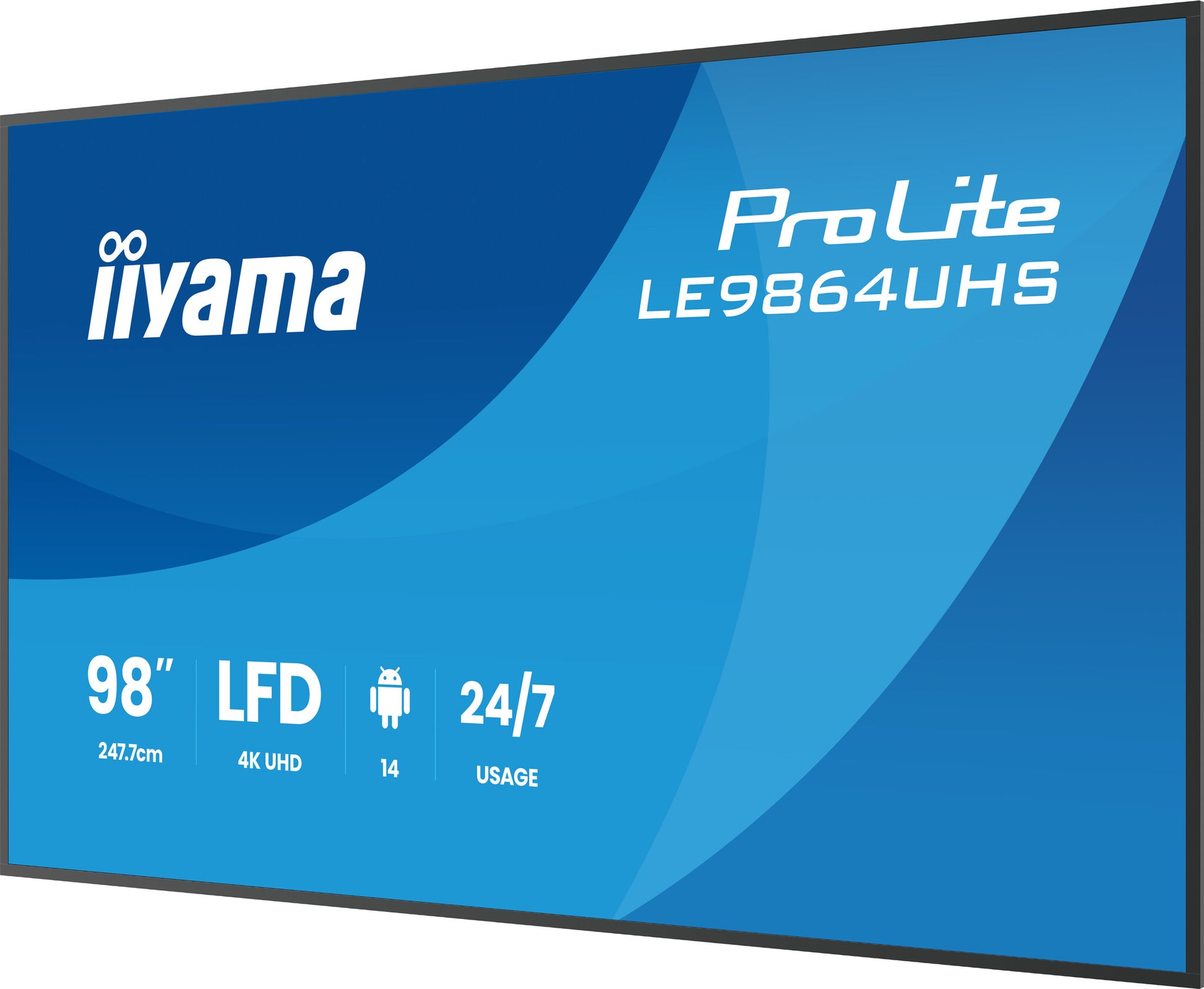

iiyama LE9864UHS-B1AG Signage Display Digital signage flat panel 2.49 m (98") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

iiyama LE9864UHS-B1AG Signage Display Digital signage flat panel 2.49 m (98") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

98" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options

  • Indoor Digital signage flat panel Black
  • 2.49 m (98") 3840 x 2160 pixels 500 cd/m²
  • 60 Hz 6.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570125227
  • GTIN/EAN:4948570125227
  • MPN:LE9864UHS-B1AG

You need to login to view the price.

View full details

iiyama LE9864UHS-B1AG. Product design: Digital signage flat panel. Display diagonal: 2.49 m (98"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite LE9864UHS-B1AG is a 98" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.

Display
Display diagonal
2.49 m (98")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Native aspect ratio
16:9
Response time
6.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.487 x 0.487 mm
Active display area (W x H)
2158.8 x 1214.4 mm
Display diagonal (metric)
247.7 cm
Number of displays
1
Horizontal scan range
57 - 62 kHz
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

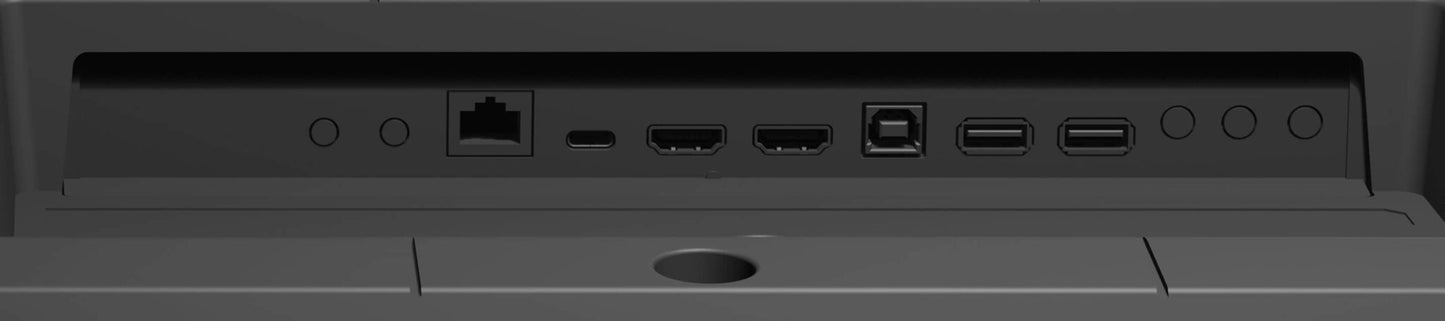

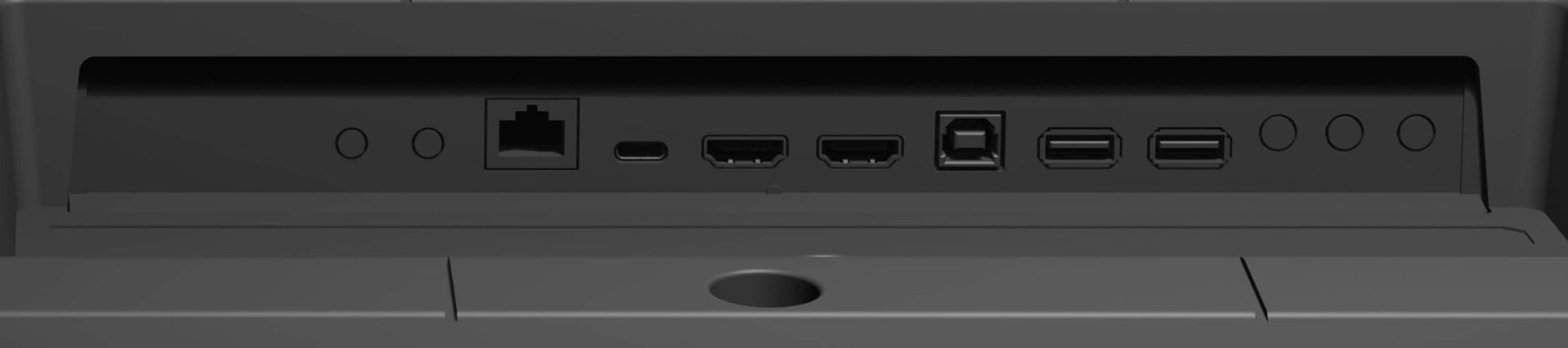

Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
USB port
Yes
USB ports quantity
2
USB version
2.0
USB Power Delivery
Yes
USB Power Delivery up to
15 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
RS-232C
Yes
Remote (IR) input
1
Remote (IR) output
1
Audio Return Channel (ARC)
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal

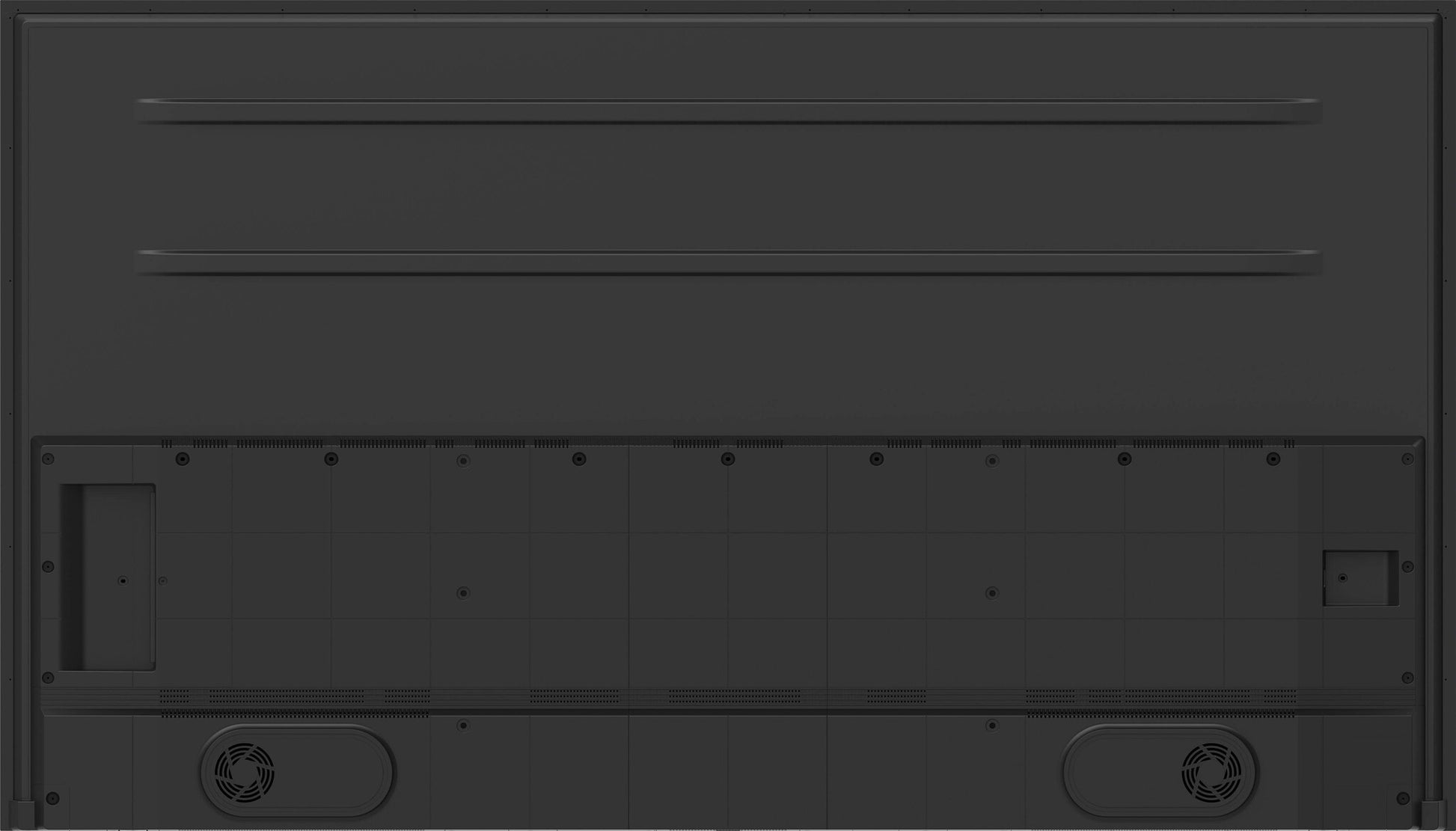

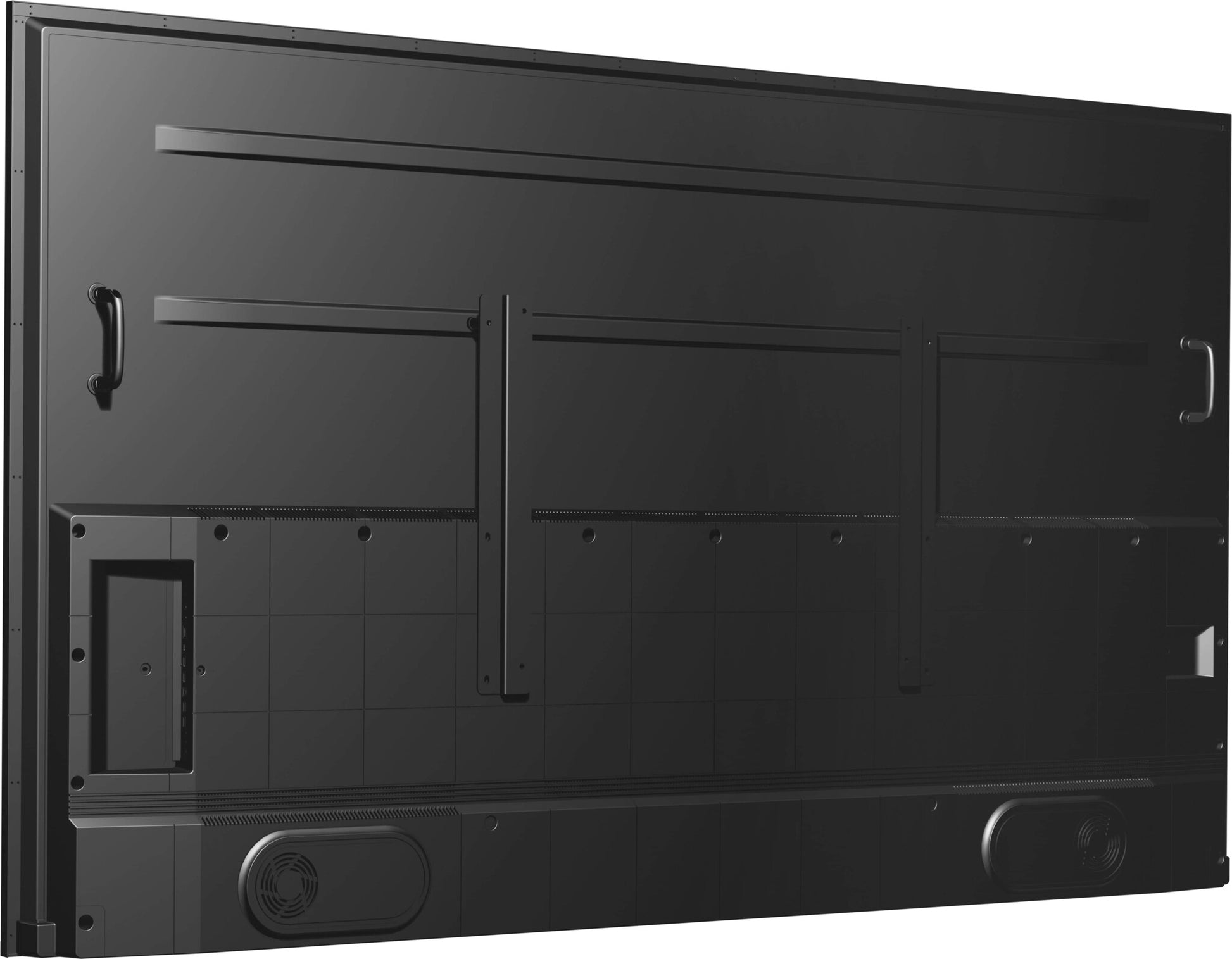

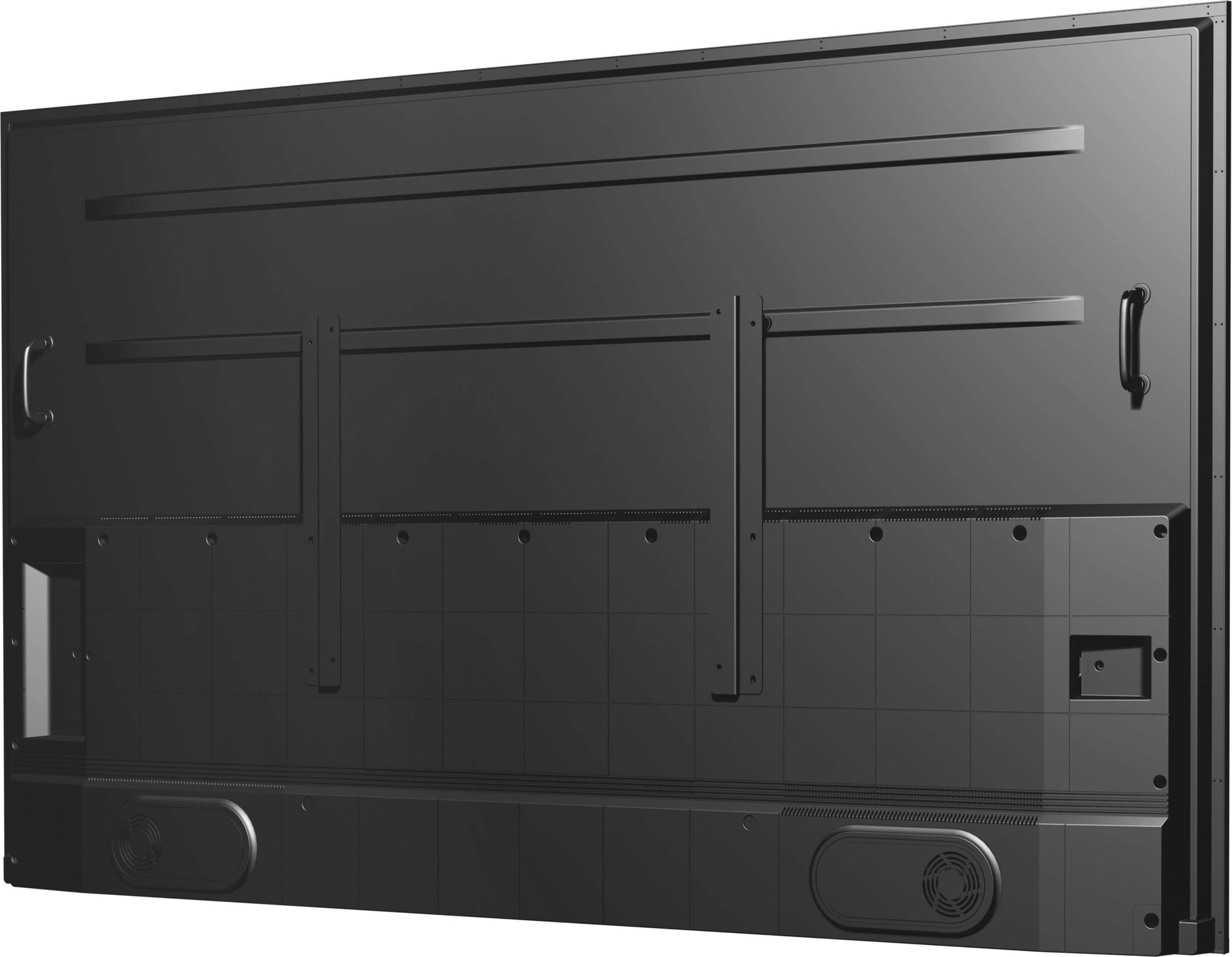

VESA mounting
Yes

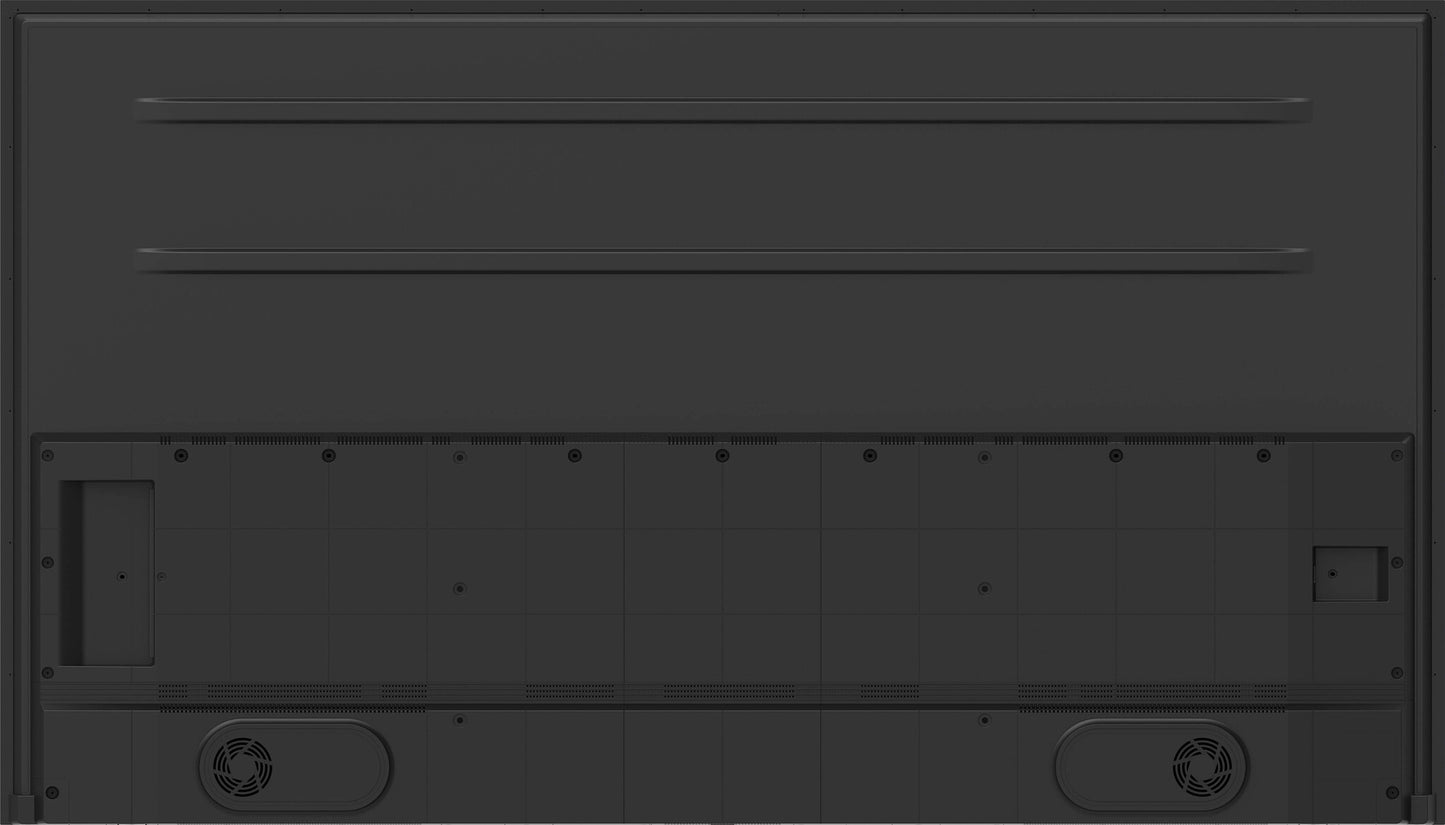

Panel mounting interface
700 x 500 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
2 cm
Bezel width (side)
2 cm
Bezel width (bottom)
2 cm
Mounting type
Wall
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Number of OSD languages
15
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.0
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
388 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
388 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor architecture
ARM Cortex-A73
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
2202 mm
Display depth
110.5 mm
Display height
1257.7 mm
Display weight
61 kg
Width
2202 mm
Depth
110.5 mm
Height
1257.7 mm
Weight
61 kg
Packaging data
Package width
2390 mm
Package depth
280 mm
Package height
1500 mm
Package weight
77.9 kg
Packaging content
Remote control included
Yes
Mounting kit
Yes

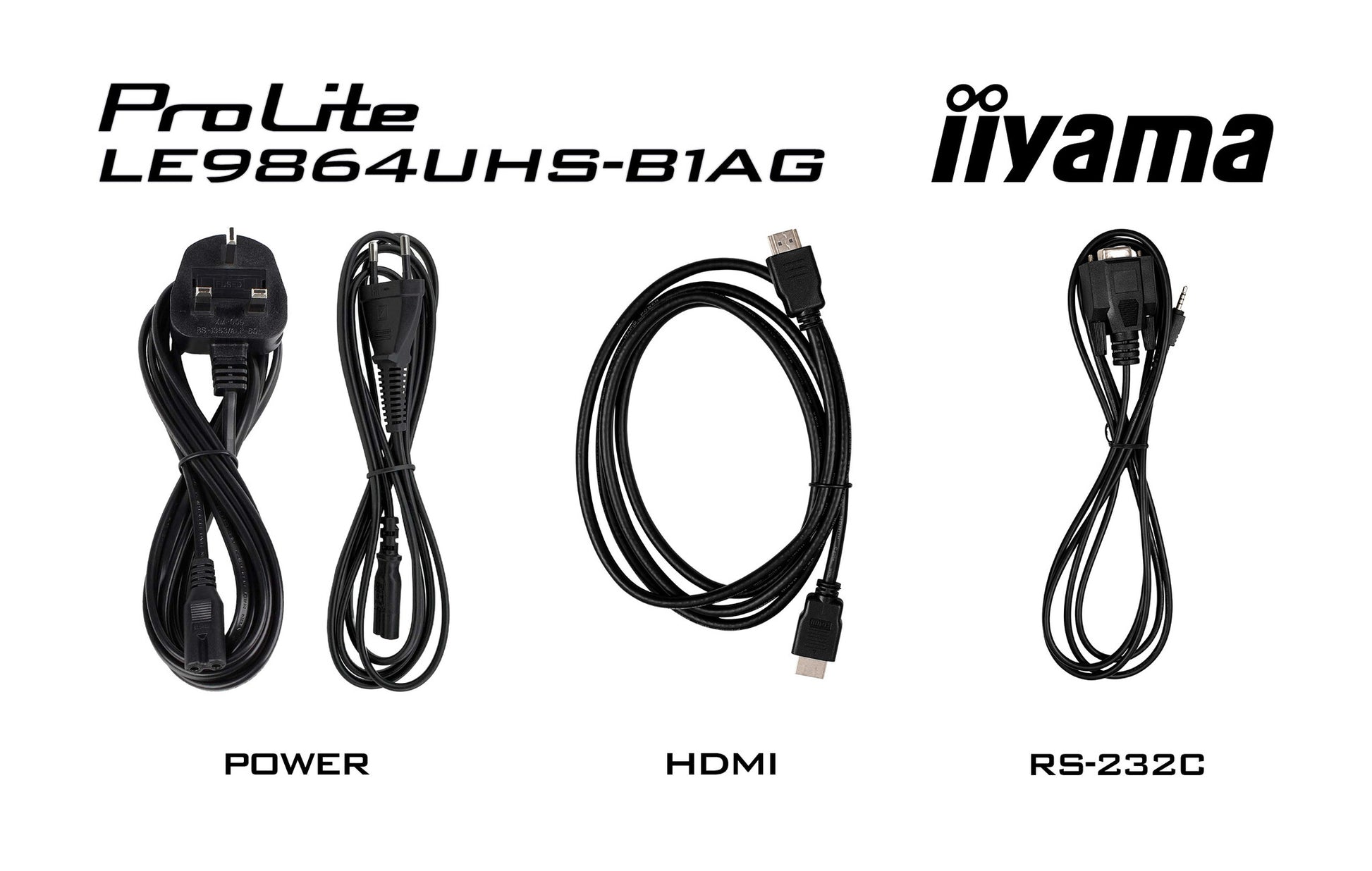

Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
ErP
User controls
network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Playback media
Y
Other features
Power supply type
Internal
Quick start guide
Yes
