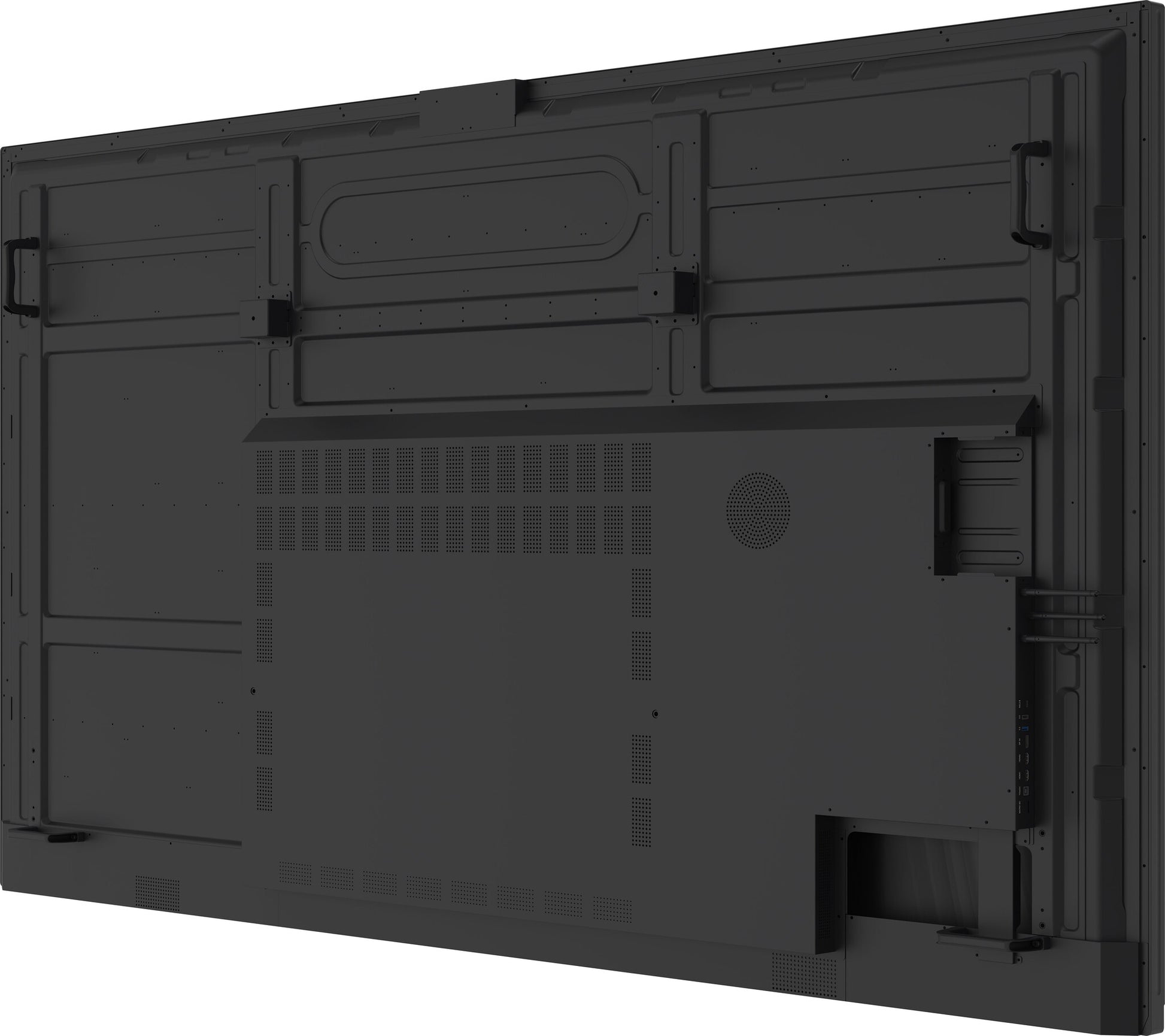

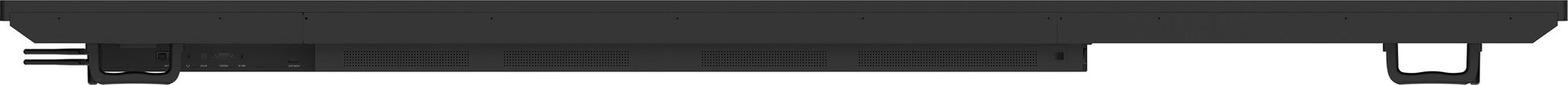

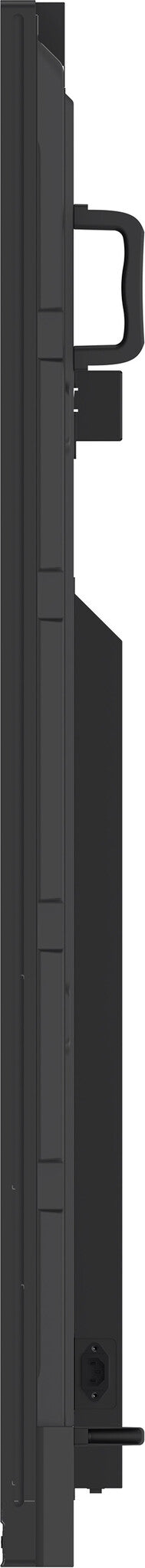

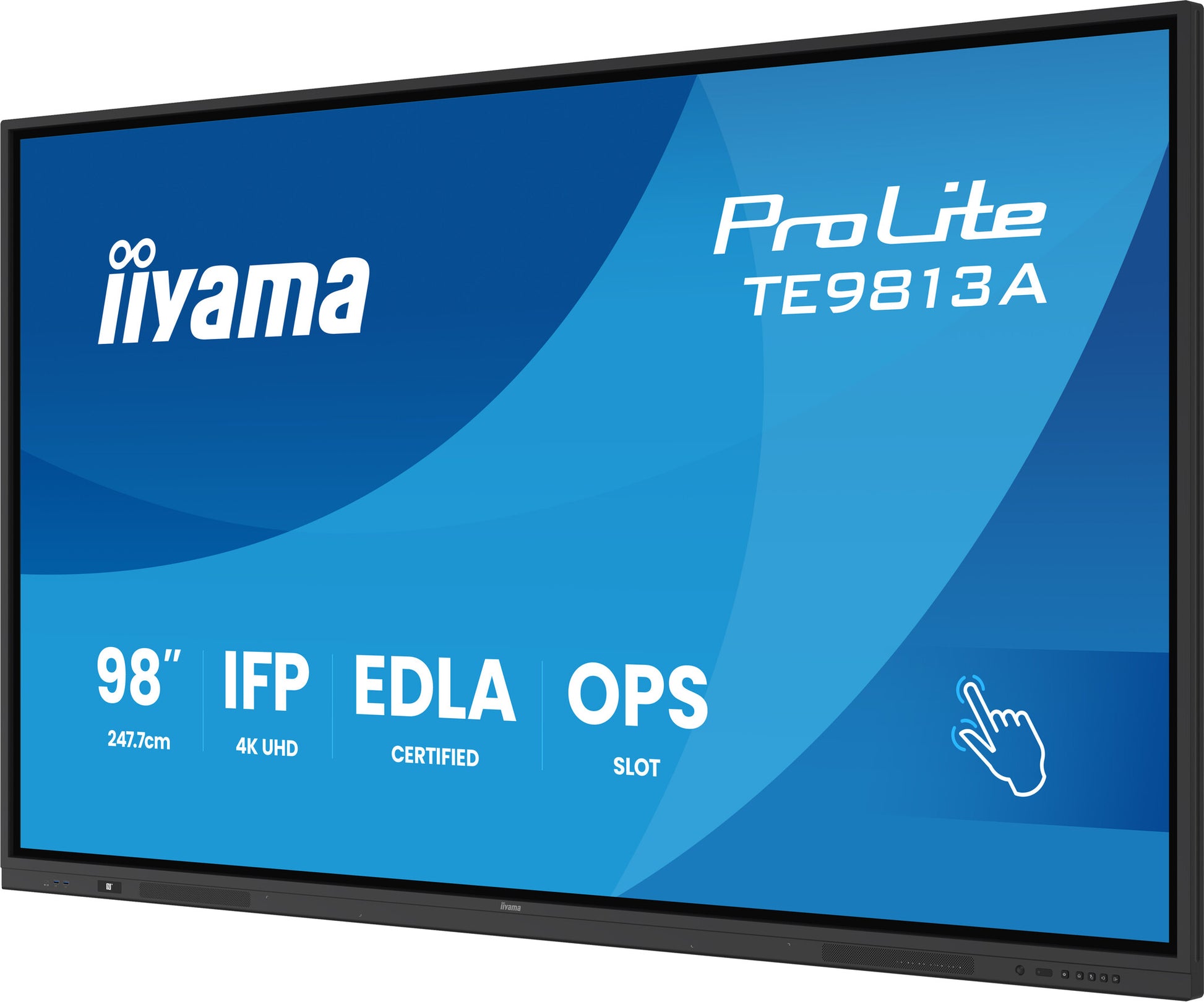

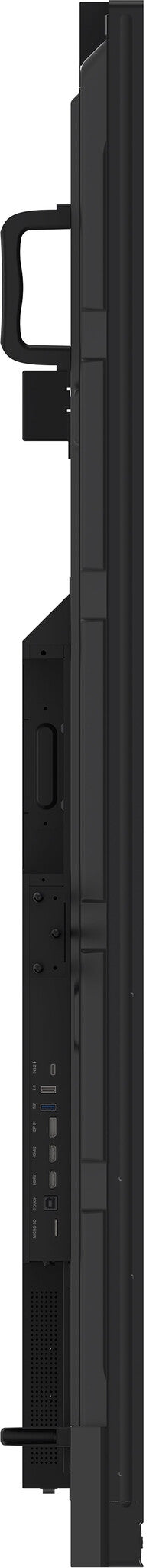

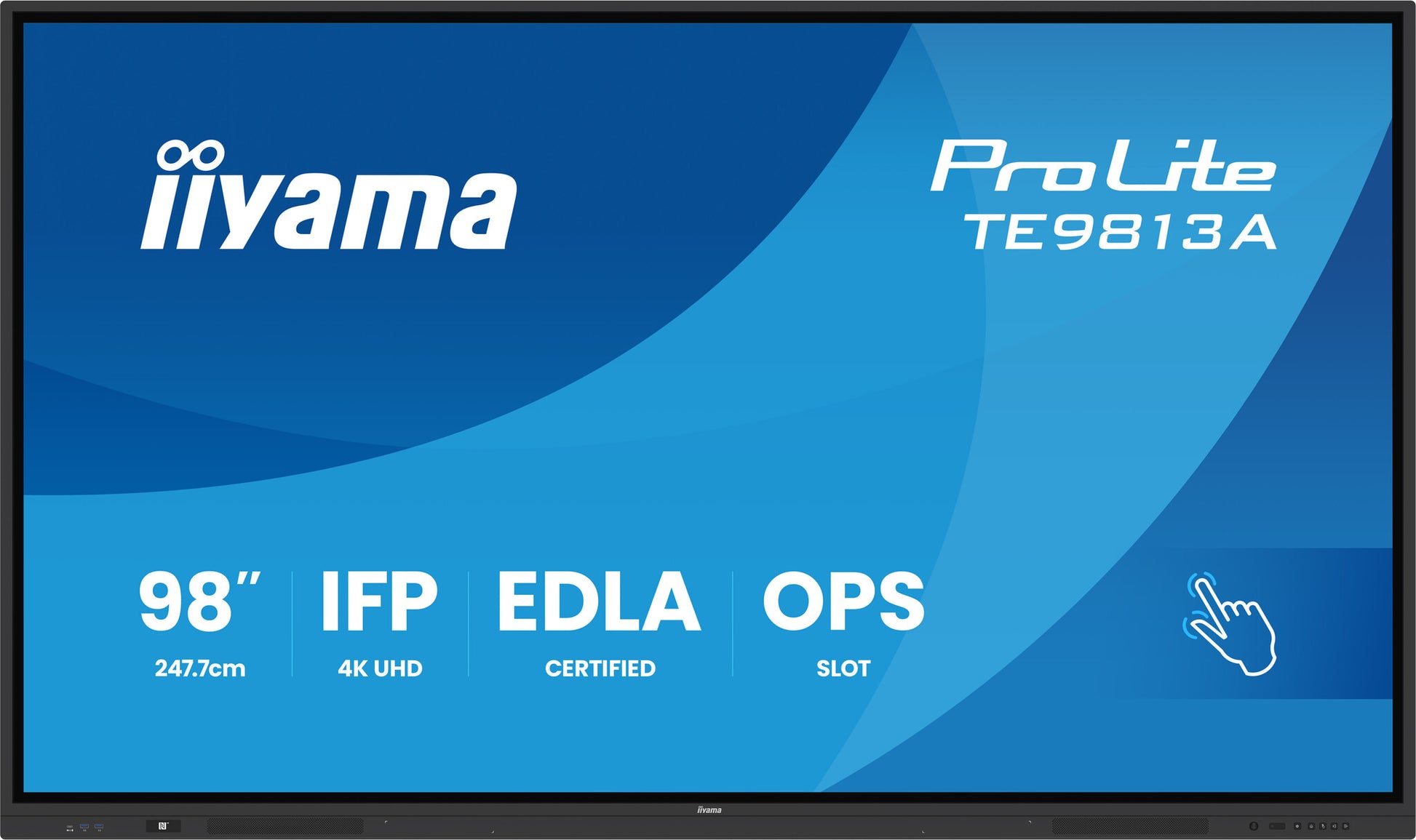

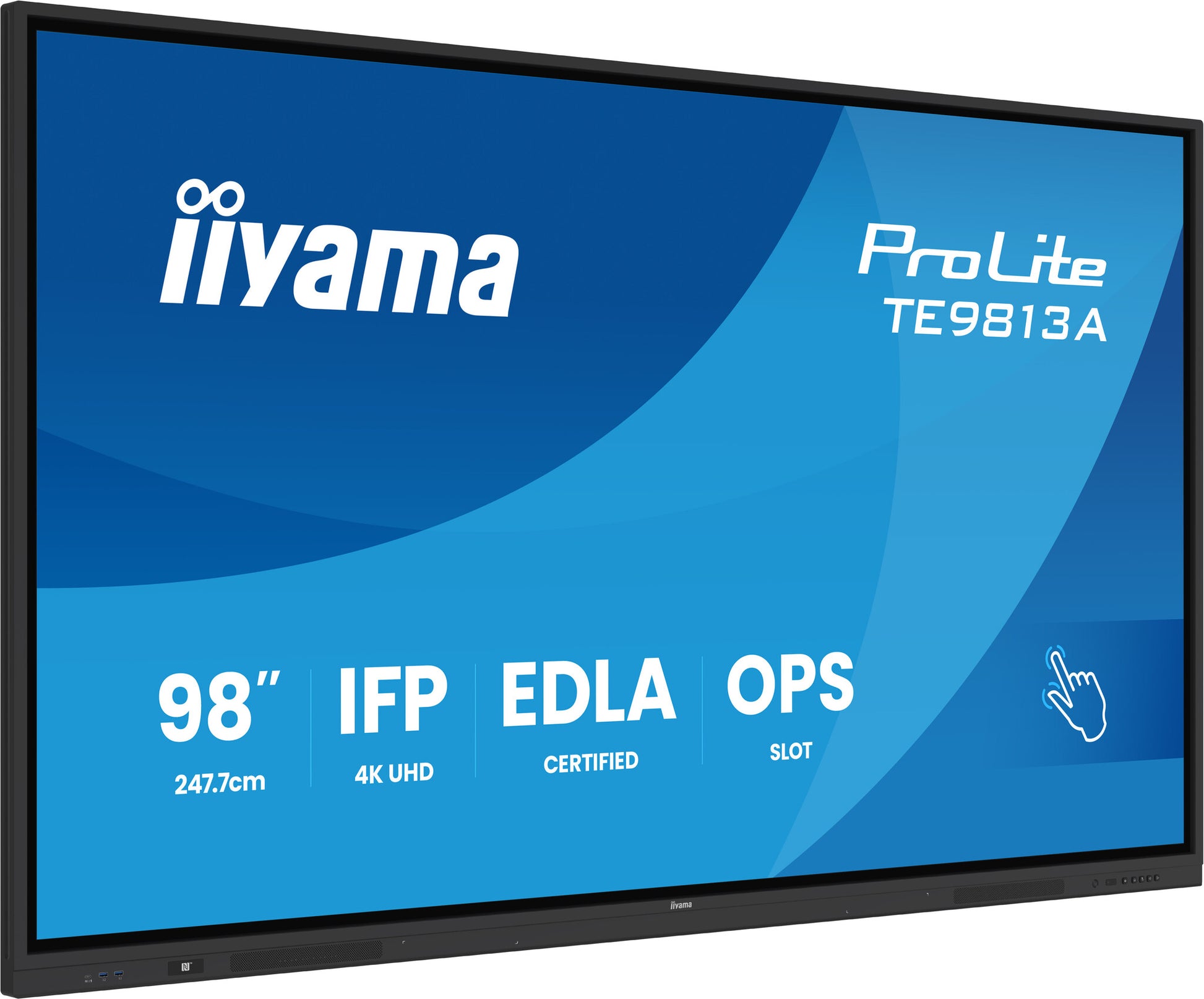

iiyama TE9813A-B2AG Signage Display Kiosk design 2.48 m (97.5") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

iiyama TE9813A-B2AG Signage Display Kiosk design 2.48 m (97.5") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

98" Google EDLA Certified IFP - Interactive display for seamless integration and collaboration in education and enterprise

  • Indoor Kiosk design Black
  • 2.48 m (97.5") 3840 x 2160 pixels 500 cd/m²
  • Touchscreen 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 60 W
  • SKU:4948570125760
  • GTIN/EAN:4948570125760
  • MPN:TE9813A-B2AG

You need to login to view the price.

View full details

iiyama TE9813A-B2AG. Product design: Kiosk design. Display diagonal: 2.48 m (97.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The TE9813A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display
Display diagonal
2.48 m (97.5")
Display resolution
3840 x 2160 pixels
Display brightness
500 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
PureTouch-IR
Number of simultaneous touchpoints
40
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.562 x 0.562 mm
Active display area (W x H)
2159 x 1214 mm
Display diagonal (metric)
247.7 cm
Glass thickness
4 mm
Touch response time
5 ms
Horizontal scan range
30 - 135 kHz
Surface hardness
7H
Native refresh rate
60 Hz
Panel type
IPS
Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
HDMI input ports quantity
1
HDMI output ports quantity
1
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
5
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB 2.0 Type-B ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery up to
100 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
RS-232C
Yes
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Audio Return Channel (ARC)
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
60 W
Design
Product design
Kiosk design
Product colour
Black
Placement supported
Indoor
Orientation
Horizontal

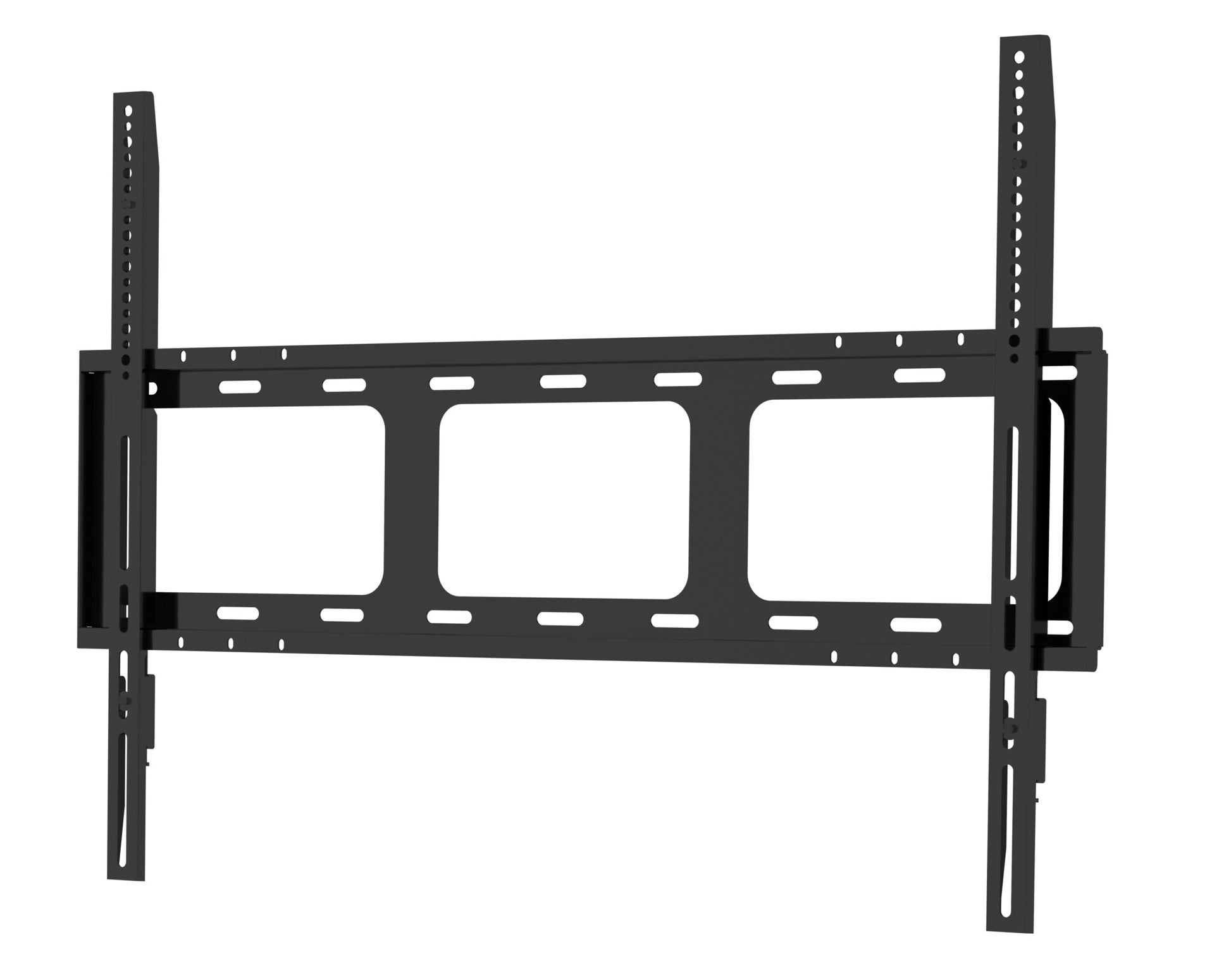

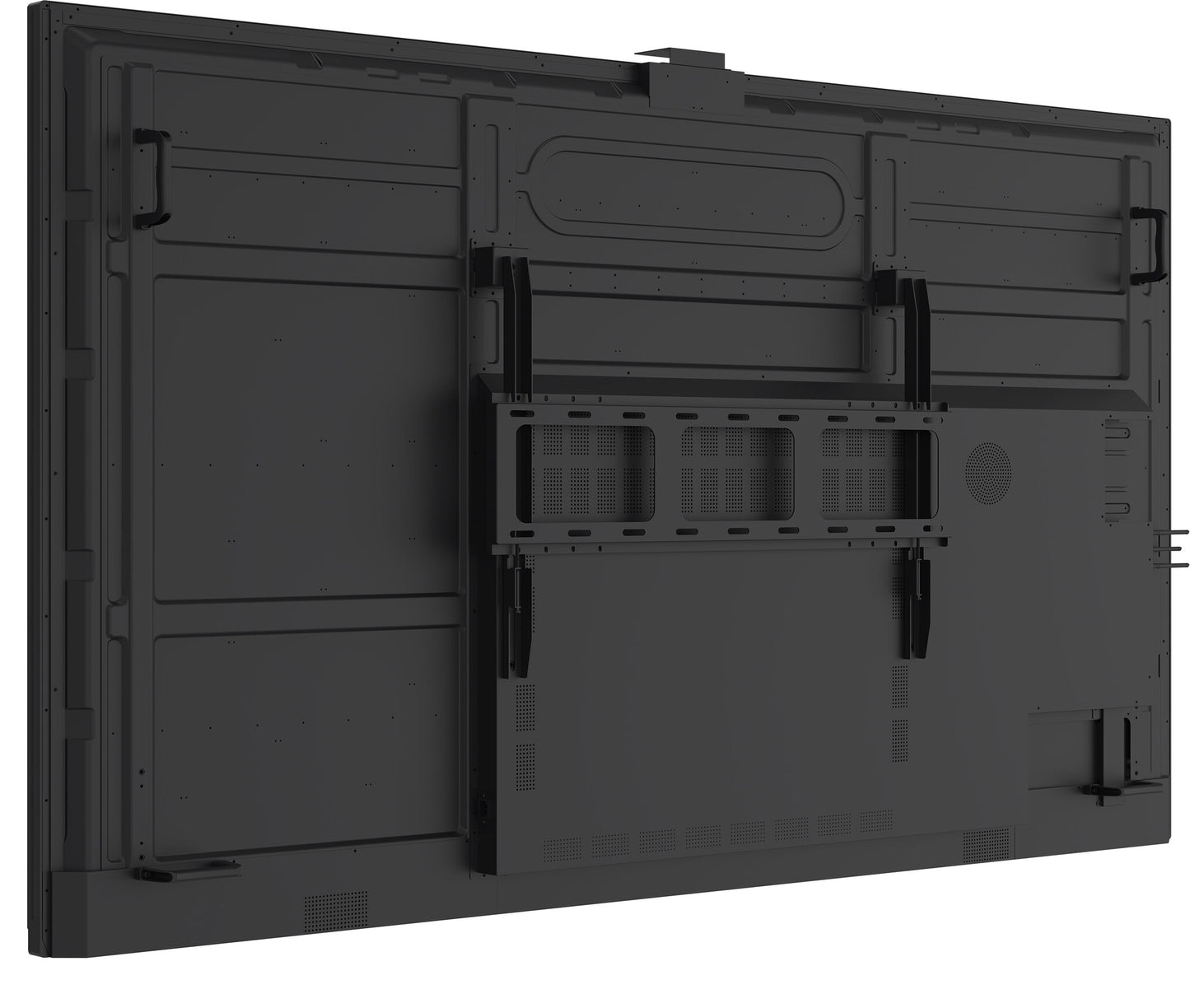

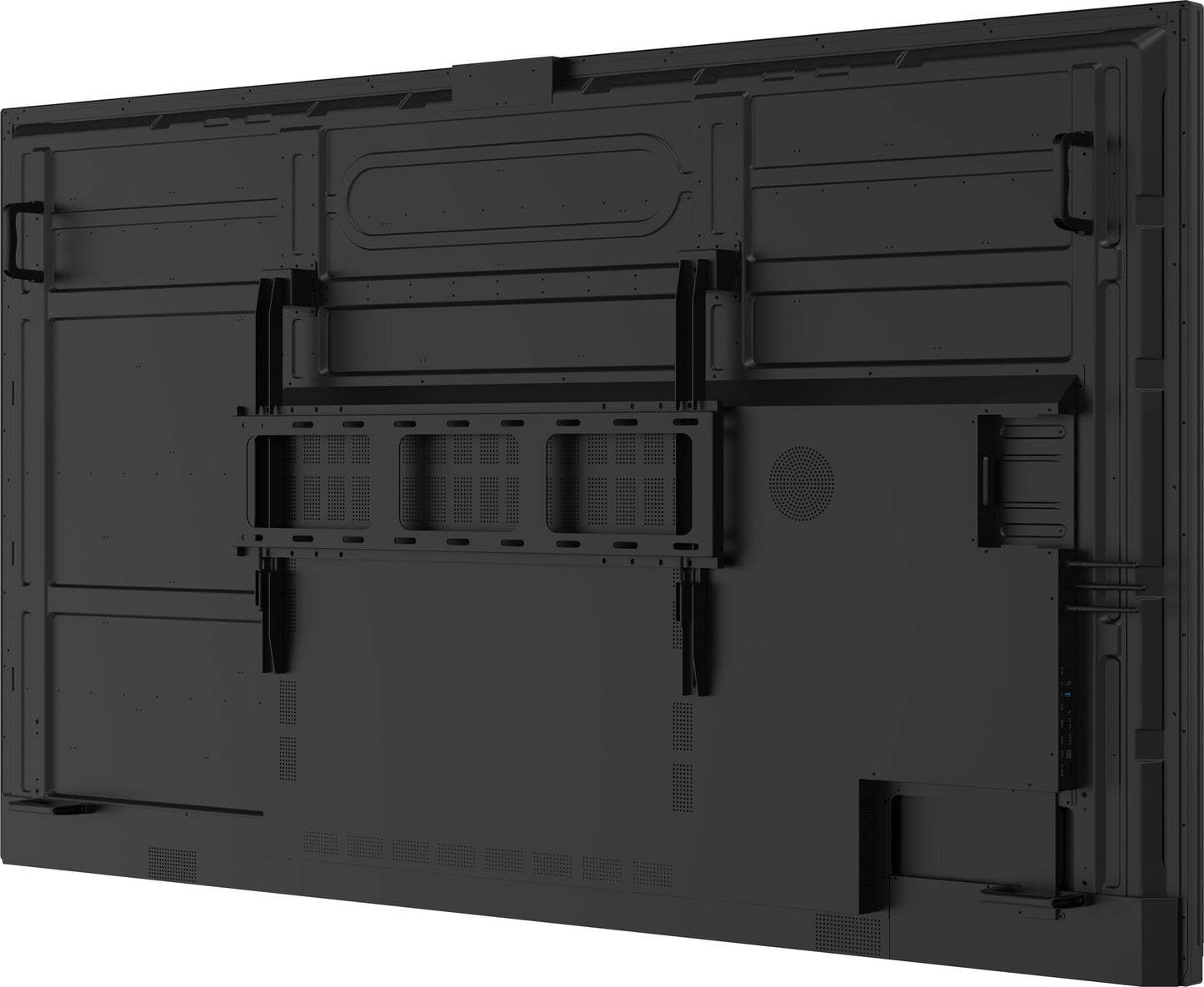

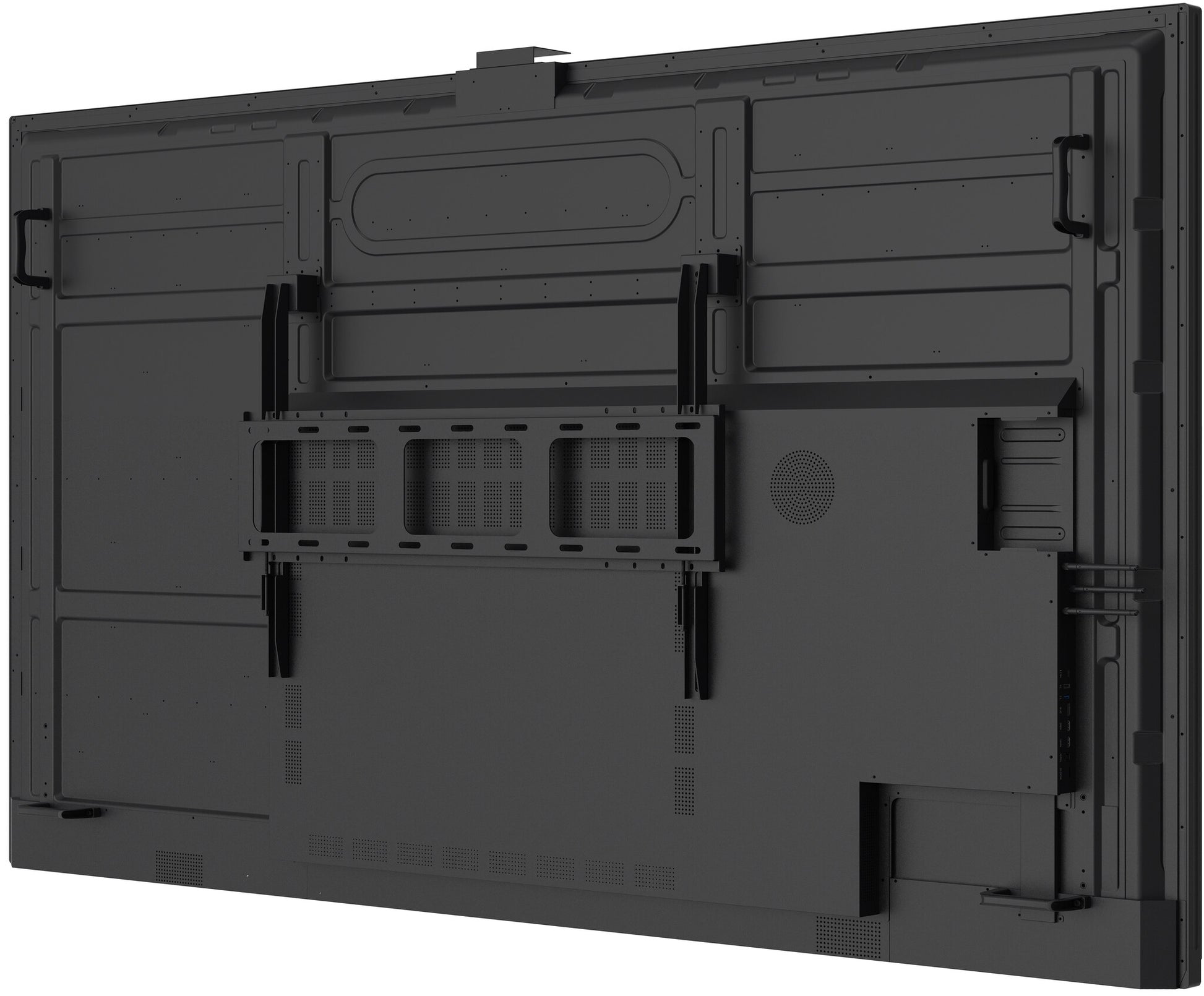

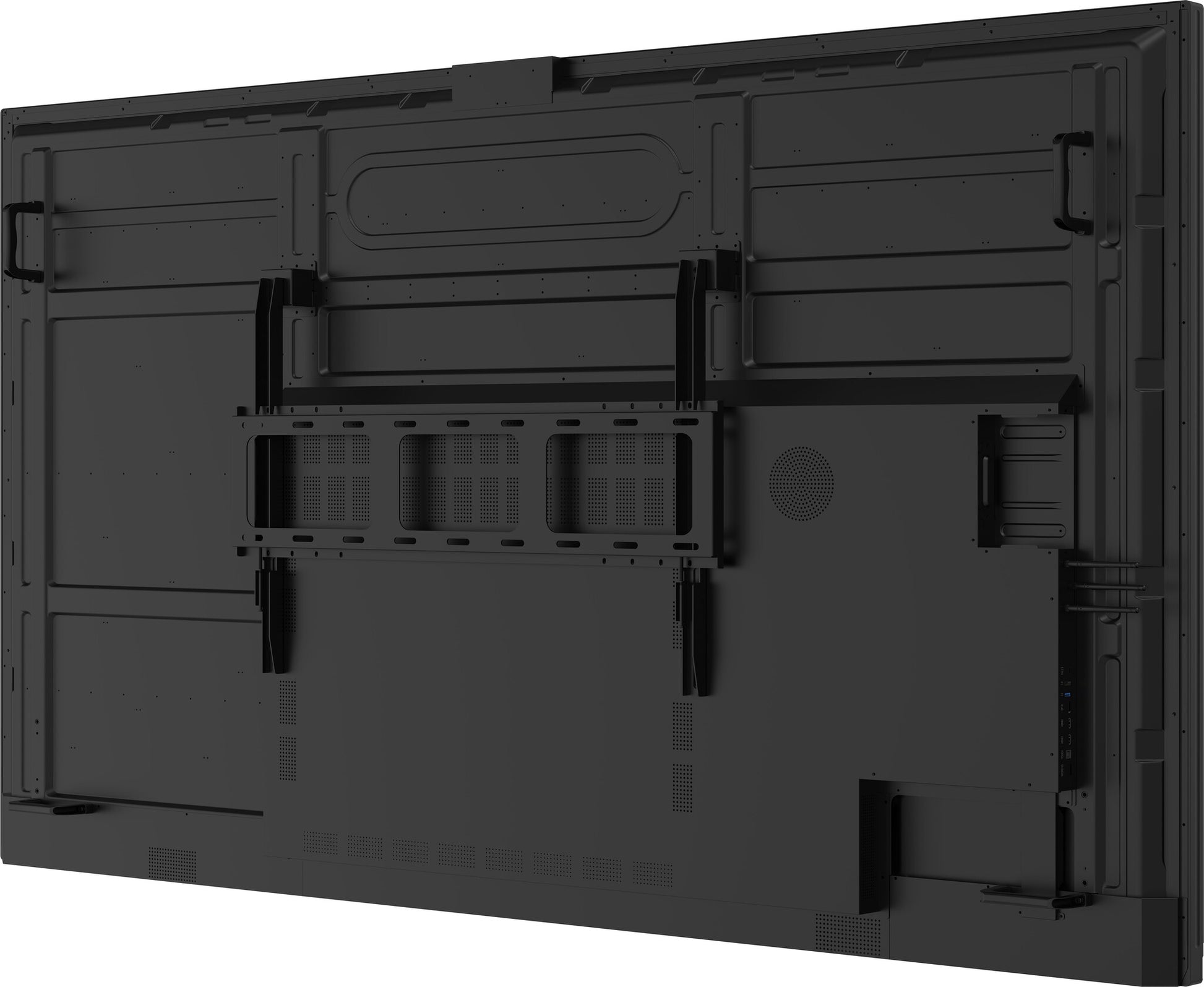

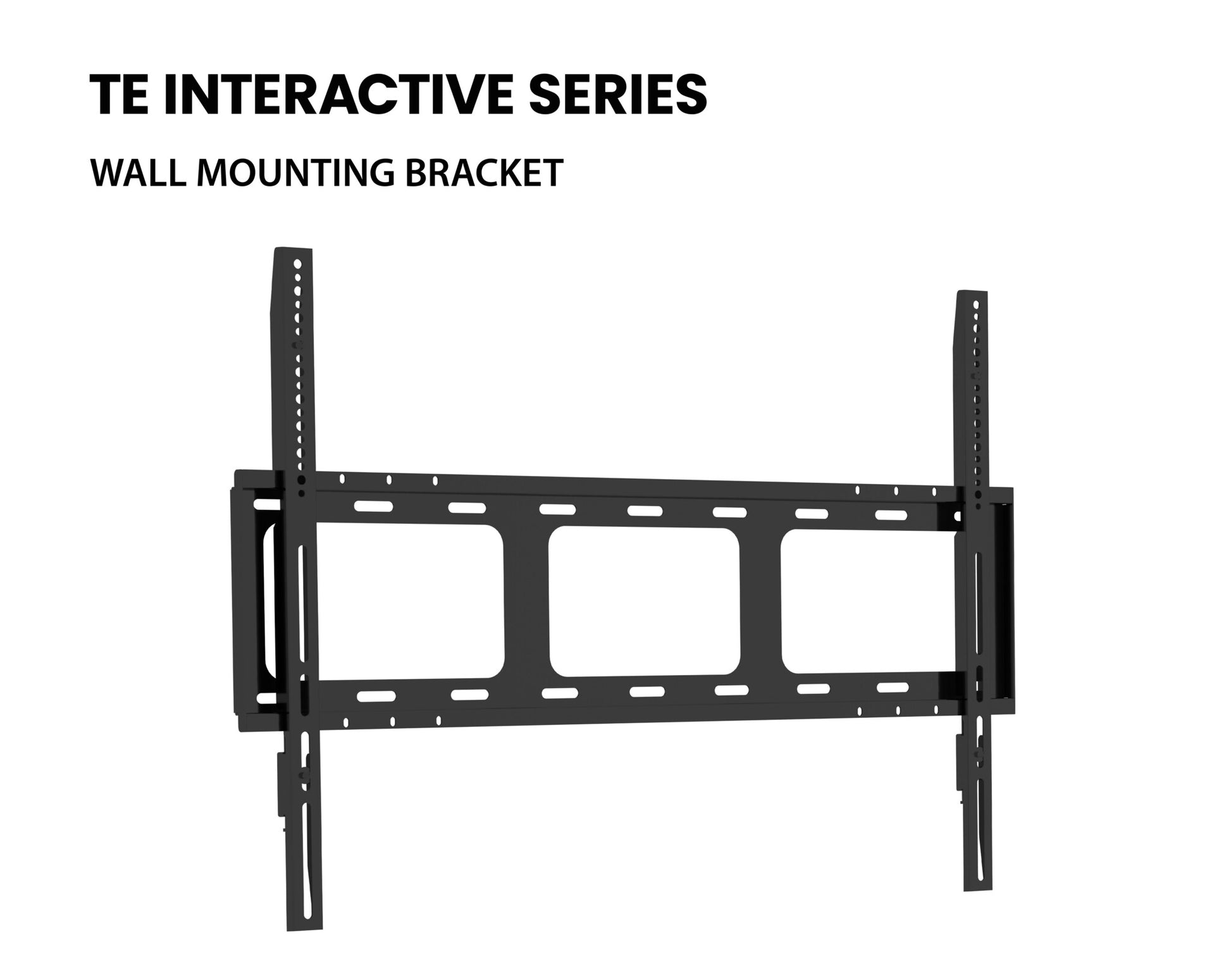

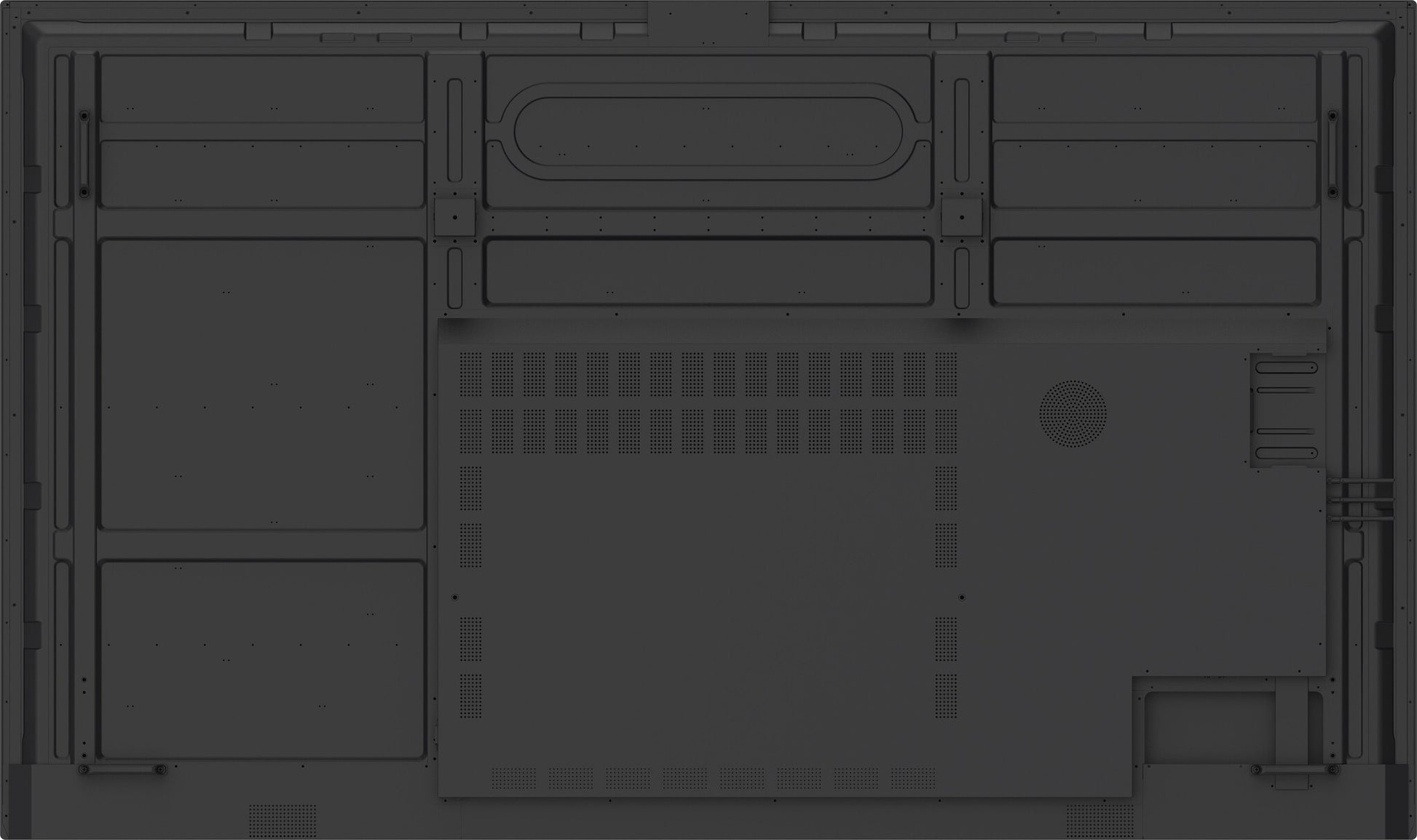

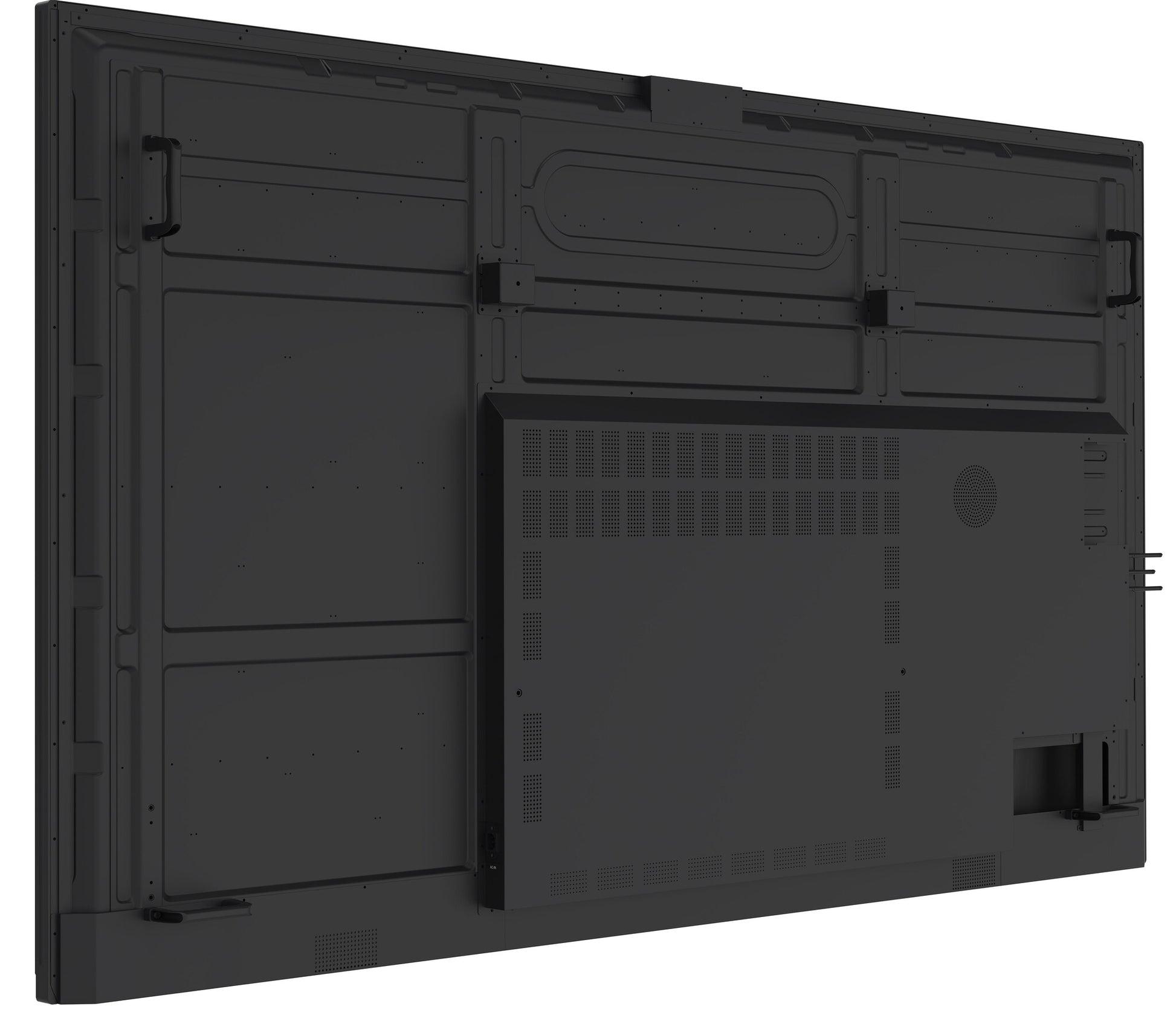

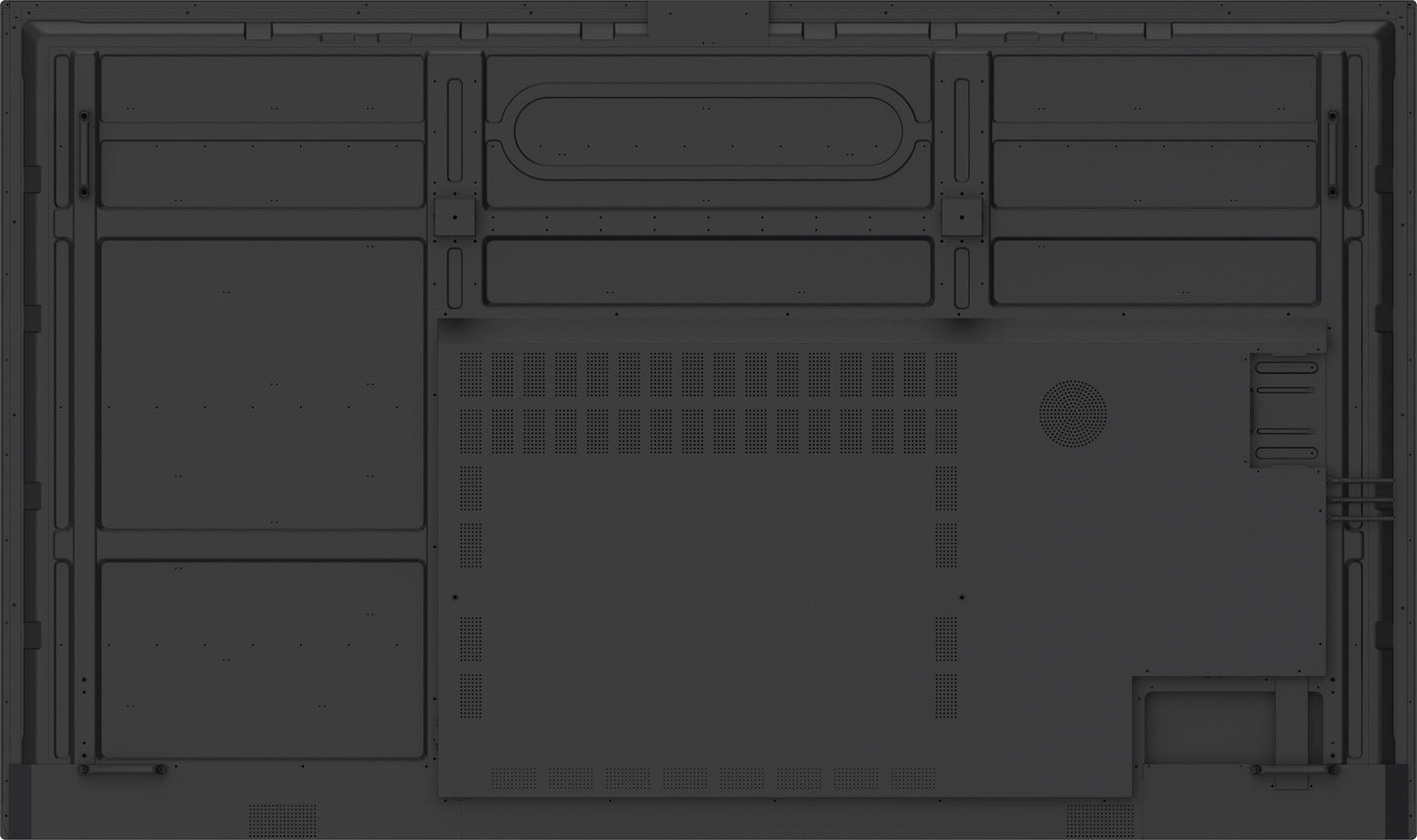

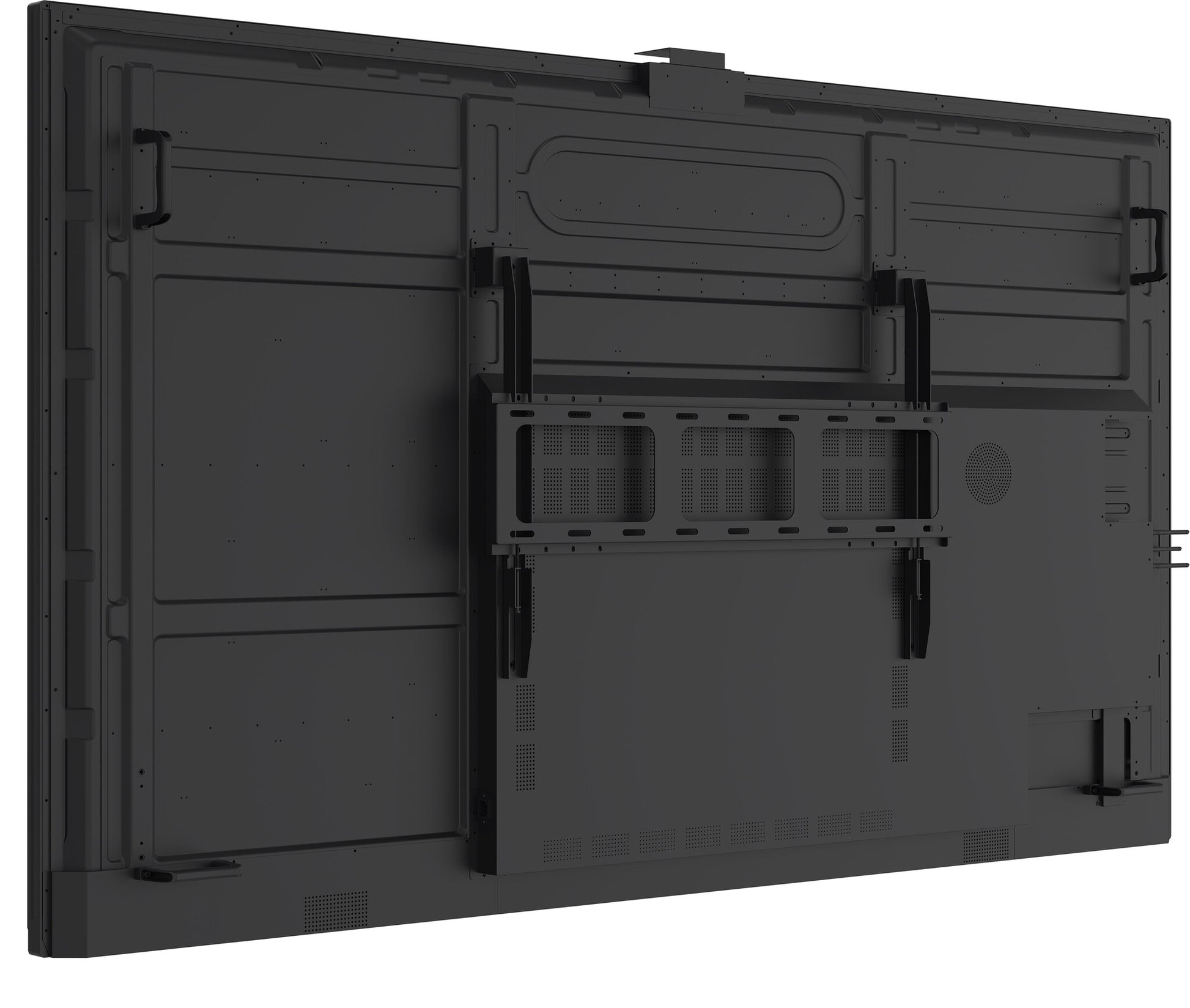

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Bezel colour
Black
Positioning accuracy
1 mm
Anti-glare screen
Yes
Bezel width (top)
1.65 cm
Bezel width (side)
1.65 cm
Bezel width (bottom)
4.1 cm
Performance
Purpose
Education
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Number of OSD languages
13
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
303 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
266 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor architecture
ARM Cortex-A53+Cortex-A72
Processor cores
8
Internal memory
8 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
128 GB
Operating system installed
Android
Operating system version
14
Weight & dimensions
Display width
2235.4 mm
Display depth
103 mm
Display height
1326 mm
Display weight
109.6 kg
Width
2235.4 mm
Depth
103 mm
Height
1326 mm
Weight
109.6 kg
Packaging data
Package width
2360 mm
Package depth
280 mm
Package height
1445 mm
Package weight
132.2 kg
Packaging content
Remote control included
Yes

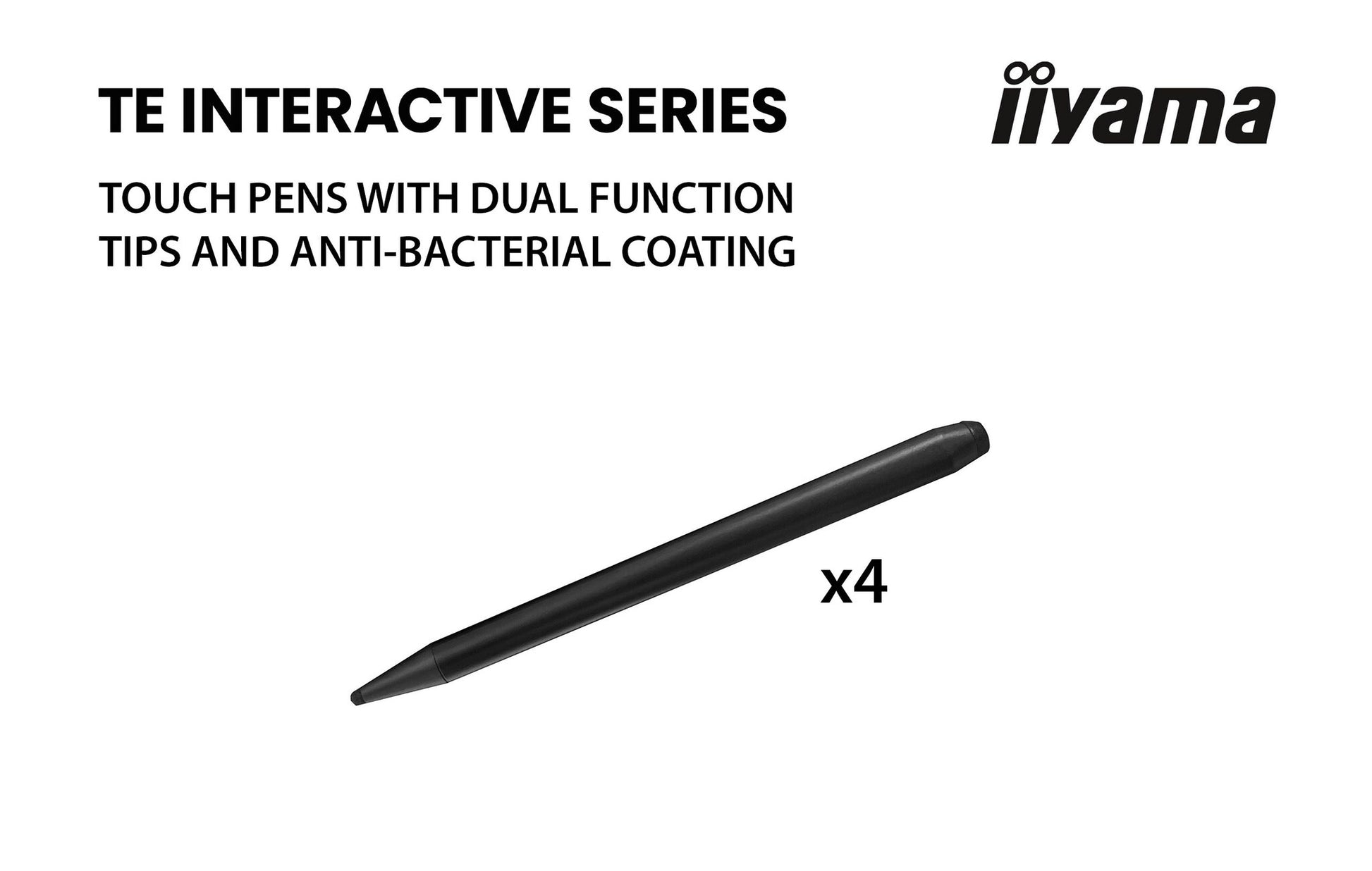

Number of stylus pens
4
Stylus pen
Yes
Cables included
AC, USB, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
4 pc(s)
Technical details
Warranty period
5 year(s)
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
OPS slot
1
Sustainability certificates
ErP
User controls
general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Audio in (mini jack)
Yes
Playback media
Y
Other features
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness
500 cd/m²
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a
USB connector type
USB Type-A, USB Type-B, USB Type-C
Quick start guide
Yes
