ALPHA SA2314
ALPHA SA2314
- 24/7 Operation
- AMD Ryzen™ R2000 (R2314)
- 250 GB NVME SSD Disk
- 8 GB DDR4 RAM

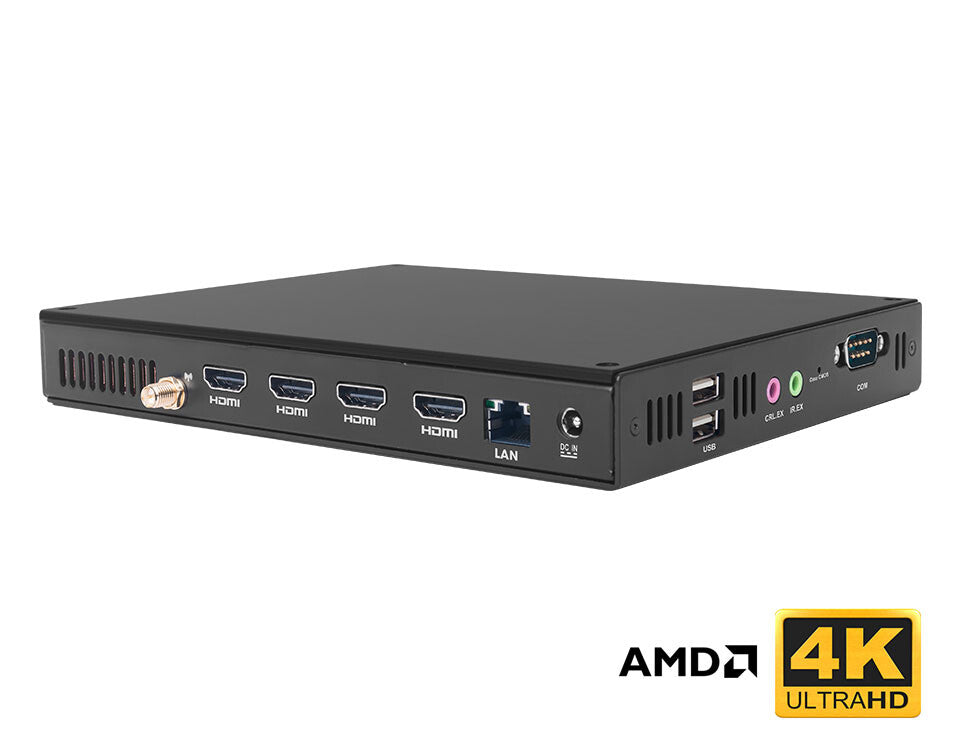

- 4 Video Output (4 x HDMI)
- Windows 11 LTSC
- Dimension: 189,6 x 148,3 x 26 mm (Ultra slim)
- SKU:PC/A/B/SA2314
- GTIN/EAN:
- MPN:DM6-R231440M0G-GIA
ALPHA SA2314 Performance small form factor computer
ALPHA SA2314 is based on AMD R2000 processor. This is a top level
industrial designed player, offering great value for signage and
industrial tasks. Supports up to three 4K (3840 x 2160@30fps) or
four 1080p (1920x1080@60fps) video decoding
The system supports JEHE's patented JAHC function which makes
automatic on/off functions a breeze. Install the software in your
Windows installation and set the switch on/off schedule during the
week. It is no longer necessary to set timers in BIOS or via task
manager. It makes it easy in the software.
 |
AMD® Ryzen™ R2000
Processors
Long Life Cycle Product The booksize player adopts
high-performance Ryzen™ Embedded R2314 processor. It
supports dual-channel DDR4 memory and it's flexible
to extend the hard drive through M.2 slot.
|
|
Four Display Outputs Supporting
4K Video Playback
The player supports AMD Radeon™ Vega 6
Graphics. It has four HDMI 2.0a outputs, supporting
Max. 3840 x 2160@60Hz resolution. As for video
decoding capability, it supports up to three 4K (3840
x 2160@30fps) or four 1080p (1920x1080@60fps) video
decoding. With AMD driver, users can easily group
monitor configurations, including 1 x 4 and 2 x 2.
|
 |
JEHE Active Hardware Control (JAHC)
JEHE Active Hardware Control (JAHC) management system includes
both hardware Microcontroller Unit (MCU) and software (JAHC
Technology Manager). JAHC can avoid devices running in non-working
hours and help users save power consumption significantly. The
diagram shows how JAHC can control a device through a
Microcontroller Unit (MCU).

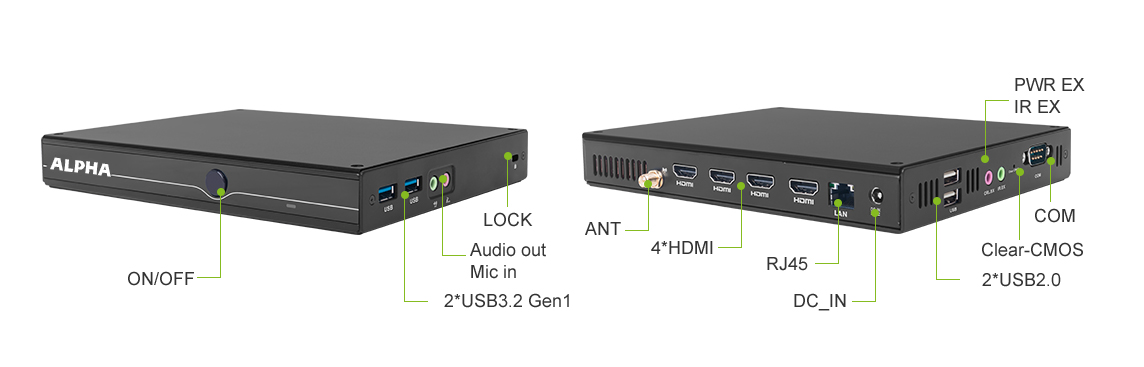

I/O port introduction
