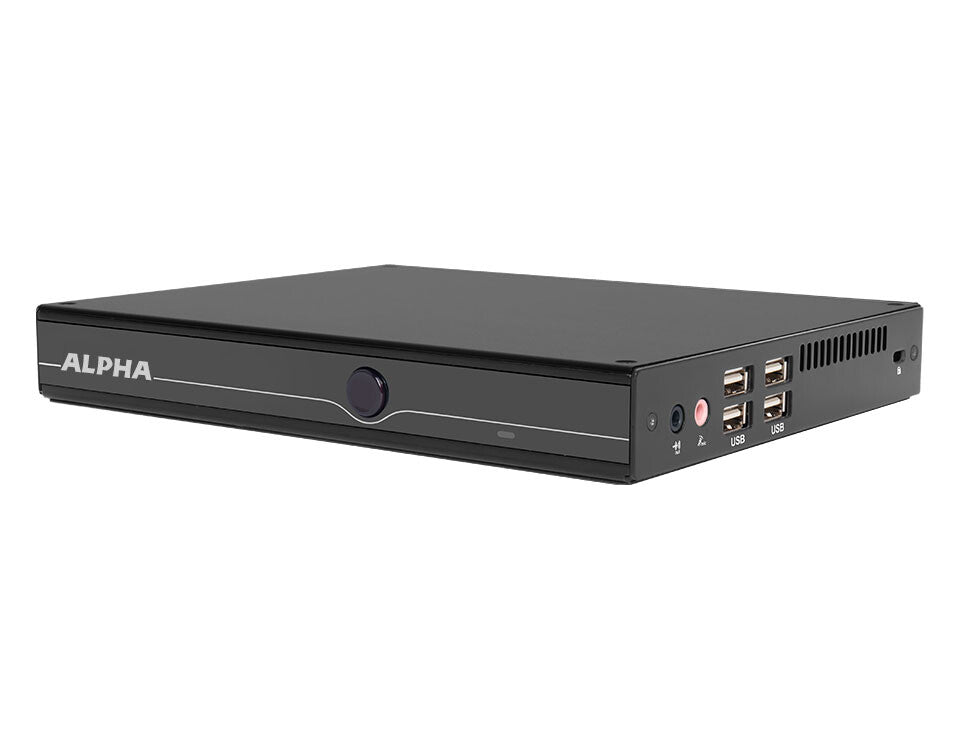

ALPHA SI235F Small form factor computer
The ALPHA SI235F comes with the new Intel N150 processor. This makes it an great choice for signage tasks. 2 x HDMI and 1 x Displayport allow the connection of 3 screens, each with a resolution of 4096x2160@60hz.Additional the SI235F is designed as a FANLESS solution.
The system supports JEHE's patented JAHC function which makes
automatic on/off functions a breeze. Install the software in your
Windows installation and set the switch on/off schedule during the
week. It is no longer necessary to set timers in BIOS or via task
manager. It makes it easy in the software.
|
|
Intel® Twin lake Processors ALPHA SI235F adopts Intel® Twin lake processors, featuring low-power range from 6-12W. The book-size embedded PC is especially designed for digital signage and kiosk applications. |
|

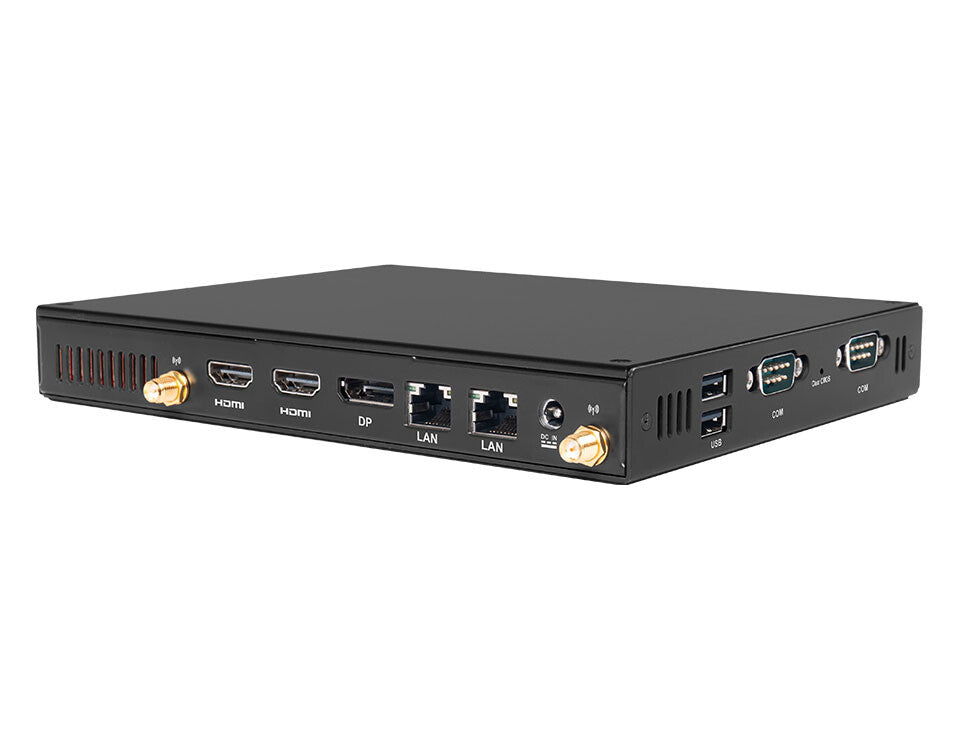

Rich I/O Ports The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can be easily integrated in vending machine, self-service and check-in kiosks. |
|
|
|
Supporting 3 Display Outputs The digital signage player adopts Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. |
|
Fanless Design With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. |
|
JEHE Active Hardware Control (JAHC) management system includes
both hardware Microcontroller Unit (MCU) and software (JAHC
Technology Manager). JAHC can avoid devices running in non-working
hours and help users save power consumption significantly. The
diagram shows how JAHC can control a device through a
Microcontroller Unit (MCU).
I/O port introduction
