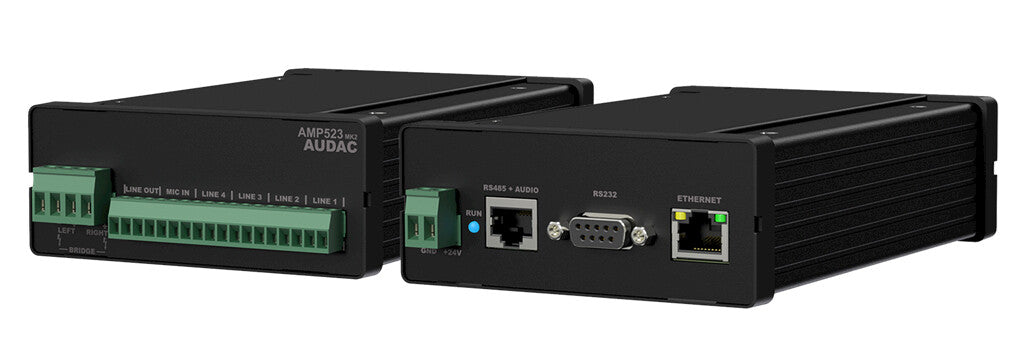

AUDAC AMP523

AUDAC AMP523

AMP523 MK2, 75 dB @ 1 kHz, RS-232, RS-485, RJ-45, 24V DC, 108x44x165 mm

  • Total Harmonic Distortion (THD): 0.1%
  • Signal-to-Noise Ratio (SNR): 95 dB
  • Speakers connectivity type: Euroblock
  • 810 g
  • Black
  • SKU:AMP523MK2
  • GTIN/EAN:
  • MPN:AMP523MK2

You need to login to view the price.

Add To Favorite
View full details

AUDAC AMP523. Total Harmonic Distortion (THD): 0.1%, Signal-to-Noise Ratio (SNR): 95 dB, Crosstalk (1kHz): -75 dB. Speakers connectivity type: Euroblock. AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz, DC input voltage: 24 V. Width: 108 mm, Depth: 165 mm, Height: 44 mm

The AMP523 is a mini stereo amplifier with an integrated web-based control unit featuring four stereo line inputs and one balanced microphone input with phantom power. It has an output power rating of 2 x 15 Watt. The simple and compact but versatile functionalities make it perfectly suited for small speaker systems requiring compact and economical audio solutions which are comprehensive and easily controllable. Some typical applications are classrooms where the audio system will be used in combination with a smartboard, offices and meeting rooms where the music should switch automatically from background music to speech or playback when the presentation starts, …. and many other similar applications.

The compact size and very high efficiency even make it possible to hide it in a closet, on a false ceiling or mount it under a desk or table. The various stereo line inputs allow simultaneous connections for different sources such as laptops, CD or MP3 players and tablets while having a microphone connected. The switching between the inputs, volume regulation and other function controls can be done in multiple ways: an integrated website makes it possible to control all the functions from any computer with a web browser without requiring additional software while the RS232 connection makes it possible to control the AMP523 with any device supporting serial communication such as a computer or even a home or industrial automation system. Another option is to control the system through smartphones and tablets using the special developed AUDAC Touch app.

Using this freely available application for smart devices guarantees total system control and configuration from any device on any location and at any time. To make the installation even more complete, an optional MWX43 or MWX45 wall panel can be installed to control the signal routing and volume level from one or multiple fixed locations. The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet or 19” equipment rack installation.

Audio
Efficiency
87%
Crosstalk (1kHz)
-75 dB
Signal-to-Noise Ratio (SNR)
95 dB
Total Harmonic Distortion (THD)
0.1%
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Speakers connectivity type
Euroblock
Technical details
Cooling type
Passive
Product colour
Black
Connectivity technology
Wired
Power
Power consumption (standby)
3 W
DC input voltage
24 V
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
Weight & dimensions
Weight
810 g
Height
44 mm
Depth
165 mm
Width
108 mm
