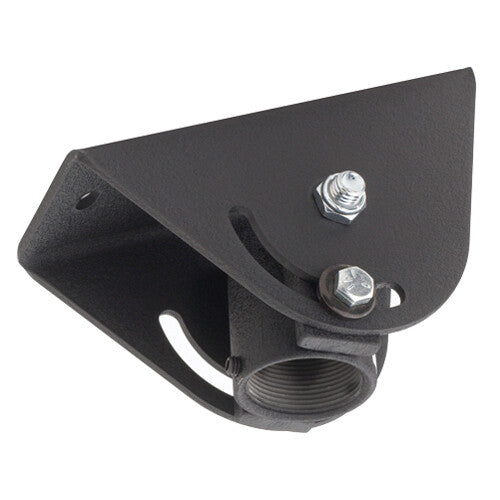

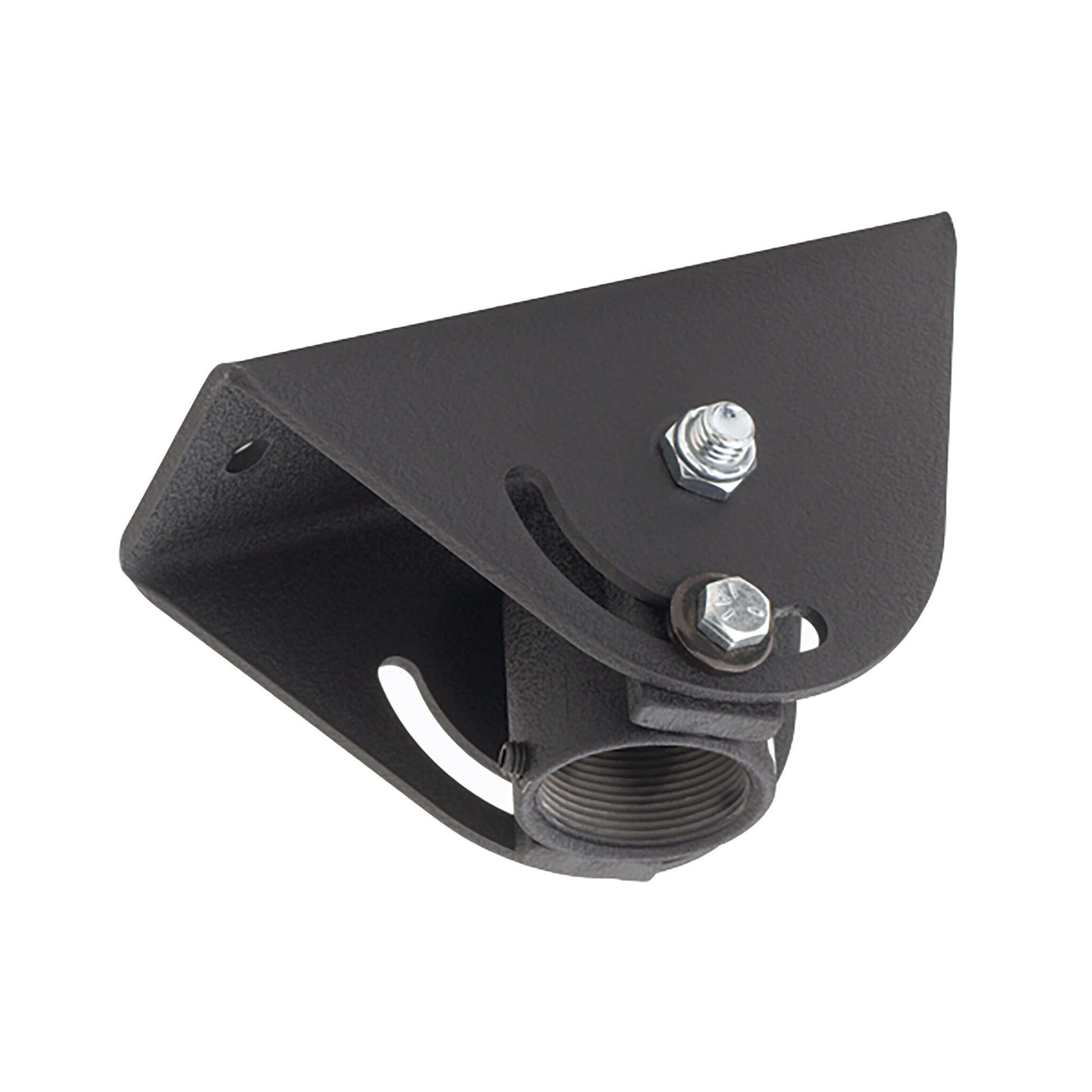

Chief CMA395 — Angled ceiling plate for vaulted ceiling projector installs
The Chief CMA395 is an angled ceiling plate designed to solve one of the most common projector installation challenges: mounting on vaulted or sloped ceilings. By offering a full 100° of tilt adjustment — from -5° to +95° — it allows the projector to hang perfectly level regardless of the ceiling pitch. Targeted at AV integrators working in churches, auditoriums, classrooms, and other venues with non-flat ceilings, the CMA395 bridges the ceiling structure and the extension column, forming the critical first link in a complete Chief projector suspension system. Its heavy-duty metal construction and UL listing make it a reliable, code-compliant choice for permanent installations.
100° Tilt Range for Any Sloped Ceiling
The CMA395 adjusts continuously from -5° to +95°, covering virtually every ceiling pitch encountered in real-world AV installs — from a gentle residential rake to steep cathedral vaults. This wide range eliminates the need for custom fabrication or wedge adapters on angled structures. In practice, the installer sets the plate angle once during rough-in to compensate for the ceiling slope, and the projector then hangs truly vertical, ensuring the image lands correctly on the screen without keystone distortion caused by a tilted throw axis. This is especially valuable in houses of worship, lecture theatres, and auditoriums where ceilings are rarely flat and the cost of a misaligned image is immediately visible to the entire audience.
Slotted Holes for Precise On-Site Alignment
Three slotted mounting holes provide independent horizontal and vertical adjustment at the ceiling attachment point. This matters most on site: structural ceiling anchors are rarely drilled with millimetre precision, and the ability to shift the plate after fixing screws are partially tightened saves significant time during commissioning. Rather than re-drilling or shimming, the installer slides the plate to the exact position needed to centre the projector over the screen, then locks everything down. The result is a clean, professional finish with the column hanging plumb — important in open-plan spaces where the mount is clearly visible from the audience.
Standard 1.5" NPT Thread — Full Chief Ecosystem Compatibility
The CMA395 accepts any Chief extension column or pipe section with a 1.5" NPT (National Pipe Thread) fitting — the de facto standard across the Chief projector mount range. This means it pairs directly with Chief's CMS and CMS0 series columns, giving the integrator full flexibility to set the drop length independently from the ceiling adapter. NPT compatibility also means the plate works with standard 1.5" trade-size pipe available from electrical/plumbing wholesalers, which is useful for custom-length drops or retrofit situations where standard column lengths don't quite fit. There is no need for proprietary adapters between the ceiling plate and the column.
226,8 kg Rated Capacity — UL Listed
The CMA395 carries a 226,8 kg (500 lb) load rating, which far exceeds the weight of any commercial projector currently on the market and provides a generous safety margin even when a column, projector mount, and accessories are combined. UL listing means the product has been independently tested and verified for structural and electrical safety, which is often required by facility managers and building inspectors for permanent ceiling installations in schools, government buildings, and public venues. Specifying a UL-listed component at the ceiling attachment point — the most safety-critical element of the assembly — simplifies sign-off and removes liability concerns for the integrator.
