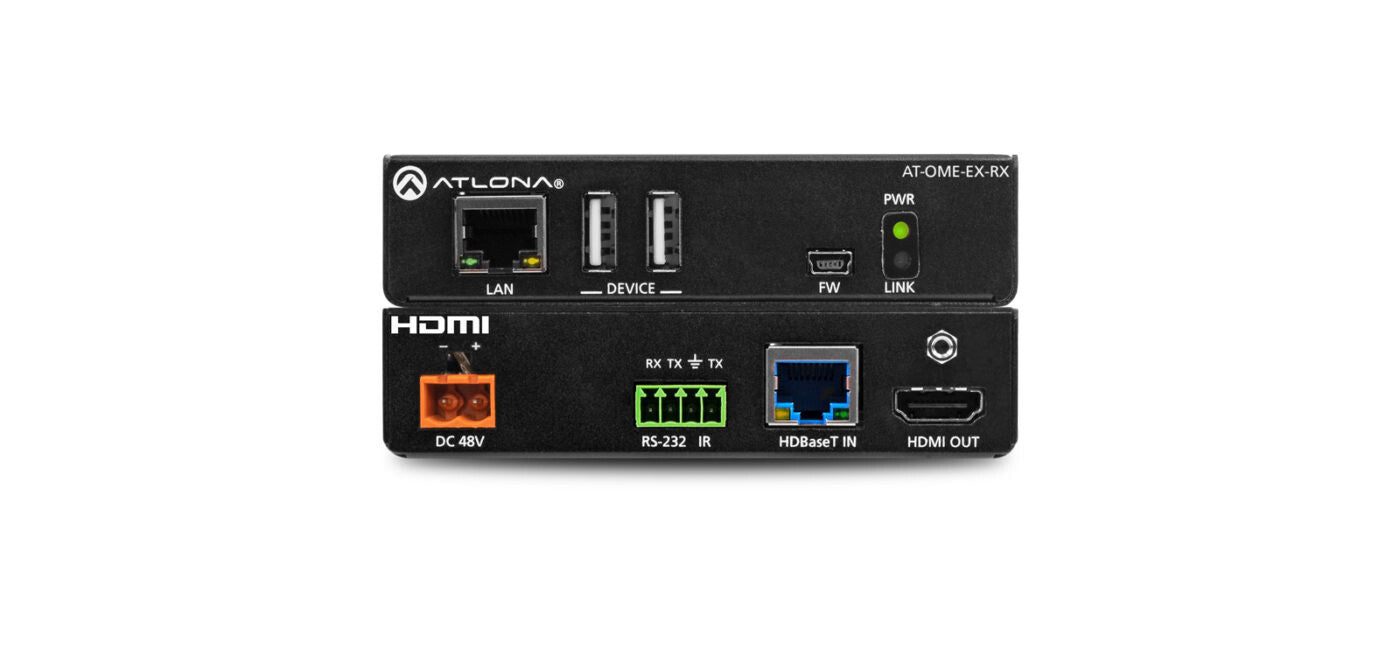

Atlona AT-OME-EX-RX
Atlona AT-OME-EX-RX

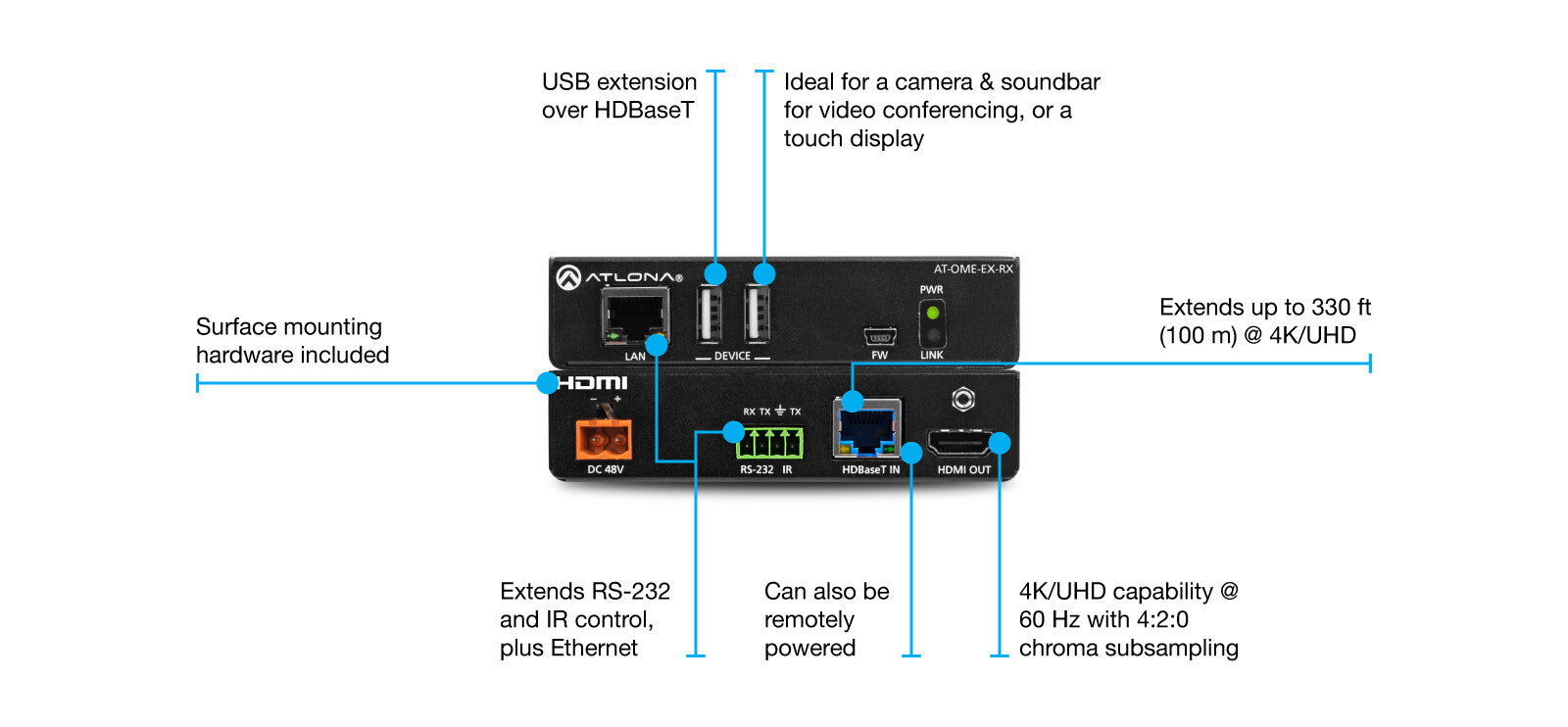

HDBaseT Receiver for HDMI with USB
- HDBaseTTM receiver for HDMI®, Ethernet, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Remotely powered over HDBaseT, or locally powered (can supply power over HDBaseT to a transmitter)
- SKU:IM1_AT-OME-EX-RX
- GTIN/EAN:846352006082
- MPN:AT-OME-EX-RX
Atlona AT-OME-EX-RX. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: Mini-USB A, USB Type-A. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 109 mm, Depth: 127 mm, Height: 26 mm
Certification
CE, RoHS, FCC
HDBaseT certified
Yes
LED indicators
Yes
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
2048 x 1080, 3840 x 2160, 4096 x 2160
Audio formats supported
LPCM
HDCP
Yes
Colour depth
24 bit
HDCP version
2.2
Audio output channels
7.1 channels
Modulation
PCM
Maximum transfer distance
100 m
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum resolution
4096 x 2160 pixels
Type
AV receiver
RS-232 input ports
1
USB connector type
Mini-USB A, USB Type-A
USB ports quantity
3
Number of HDMI outputs
1
RJ-45 output ports
1
Ethernet LAN
Yes
Connectivity technology
Wired
Power consumption (typical)
18.76 W
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power source type
DC
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
-18 - 50 °C
Weight
430 g
Height
26 mm
Depth
127 mm
Width
109 mm
