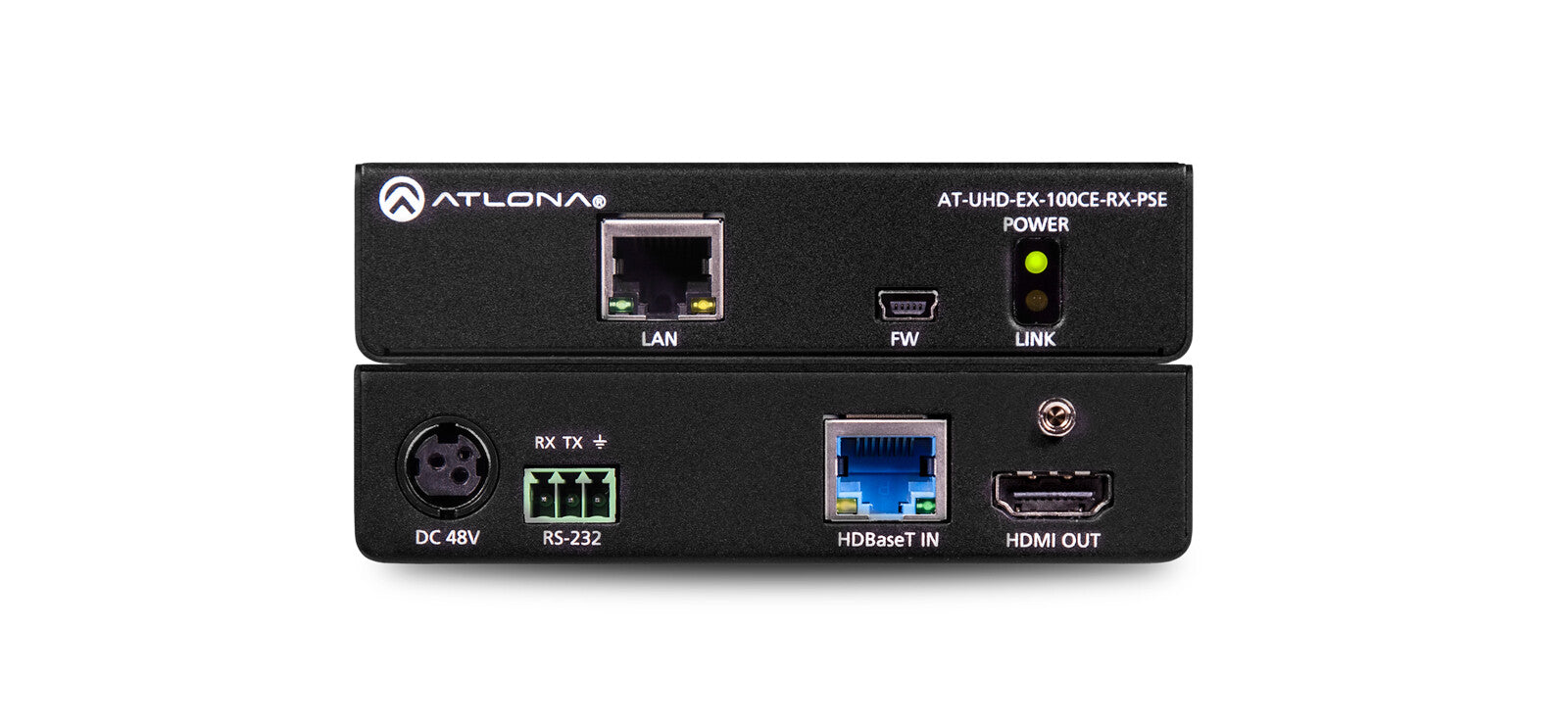

Atlona UHD-EX-100CE-RX-PSE

Atlona UHD-EX-100CE-RX-PSE

HDMI Over 100M HDBaseT Rx w/EthCtrlPOE, CAT 5e/6/6a/7, 4K, HDMI, RJ-45, 27x119x127 mm

  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
  • HDBaseTTM receiver for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
  • PoE (Power over Ethernet) source – remotely powers a PoE-compatible transmitter
  • Receives RS-232, CEC, and Ethernet control signals over HDBaseT
  • Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
  • SKU:IM3_ATUHDEX100CERXPS
  • GTIN/EAN:846352004910
  • MPN:AT-UHD-EX-100CE-RX-PSE
Add To Favorite

You need to login to view the price.

View full details

Atlona UHD-EX-100CE-RX-PSE. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Output current: 0.83 A. Width: 119 mm, Depth: 127 mm, Height: 27 mm

The AT-UHD-EX-100CE-RX-PSE is compatible with the AT-UHD-EX-100CE-TX-PD transmitter, as well as HDVS-200-TX switching transmitters and Atlona switchers with HDBaseT outputs. This receiver can also be purchased as a kit with select transmitters. See below for a list of compatible products and kits.

The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It receives video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-RX-PSE is HDCP 2.2 compliant and supports EDID communication. It is ideal for use with the AT-UHD-EX-100CE-TX-PD HDBaseT transmitter, or an HDVS-200 Series HDBaseT switcher for extending 4K signals to a display. This receiver features a quarter rack width metal enclosure, with rear panel I/O ports for uncluttered wire management. The AT-UHD-EX-100CE-RX-PSE is externally powered by the included power supply, and provides Power over Ethernet for the AT-UHD-EX-100CE-TX-PD, an HDVS-200 HDBaseT switcher, or other PoE-compatible HDBaseT transmitter.

Features
Certification
CE, FCC
Product colour
Black
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160
HDCP
Yes
Colour depth
12 bit
Bandwidth
10.2 Gbit/s
Audio output channels
7.1 channels
Maximum transfer distance
100 m
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum resolution
4096 x 2160 pixels
Type
AV receiver
Ports & interfaces
RS-232 input ports
1
Number of HDMI outputs
1
HDBaseT port
Yes
RJ-45 input ports
1
Ethernet LAN
Yes
Connectivity technology
Wired
Power
Power consumption (typical)
15.2 W
Output current
0.83 A
Operating voltage (receiver)
48 V
AC input frequency
50 - 60 Hz
AC input voltage
100-240 V
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
390 g
Height
27 mm
Depth
127 mm
Width
119 mm
Technical details
Colour
Yes
Compliance certificates
RoHS
