Atlona AT-HDR-EX-70C-RX

Atlona AT-HDR-EX-70C-RX

4K HDR HDBaseT Receiver with Control and Remote Power

  • 4K HDR HDBaseT receiver
  • Extend 4K/60 4:4:4 up to 130’ (40 m)
  • Supports HDR10, HLG, and Dolby® Vision™
  • Receives RS-232, IR, and CEC control signals over HDBaseT
  • Remotely powered by the AT-HDR-CAT products
  • Works with HDR-CAT-2, HDR-CAT-4, and HDR-CAT-8 distribution amplifiers
  • SKU:846352005740
  • GTIN/EAN:846352005740
  • MPN:AT-HDR-EX-70C-RX
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-HDR-EX-70C-RX. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: Mini-USB B. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 48 V. Receiver dimensions (WxDxH): 109 x 127 x 26 mm, Receiver weight: 390 g. Quantity per pack: 1 pc(s)

The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-EX-70C-RX is ideal for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

- HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT input receives HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Remotely powered by the AT-HDR-CAT distribution amplifiers over HDBaseT
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Multi-channel audio pass-through

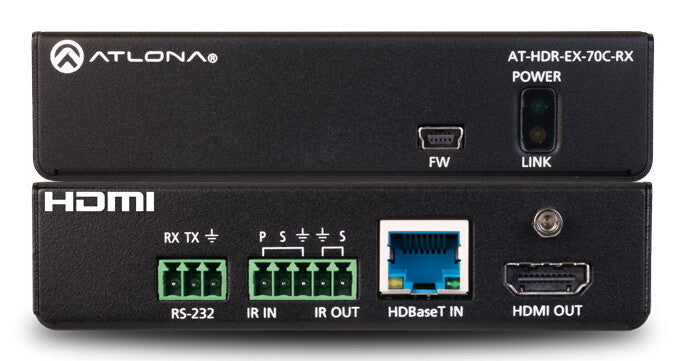

- Front panel Power and Link status LEDs
- Front panel USB port for firmware updates
- Rear panel connections simplify wire management and save installation time
- Compact enclosure can be mounted in furniture, behind a display, or above a projector
- Included accessories – surface mounting hardware and installation guide

Features
Certification
CE, FCC
HDBaseT certified
Yes
HDCP
Yes
Colour depth
12 bit
Bandwidth
18 Gbit/s
Consumer Electronics Control (CEC) support
Yes
Audio output channels
7.1 channels
Audio system
Multichannel
Maximum transfer distance
70 m
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum resolution
4096 x 2160 pixels
Type
AV transmitter & receiver
Ports & interfaces
Remote (IR) input
2
Remote (IR) output
2
USB connector type
Mini-USB B
USB ports quantity
1
Number of HDMI outputs
1
HDMI in
1
HDBaseT port
Yes
RJ-45 output ports
1
RJ-45 input ports
1
Connectivity technology
Wired
Power
Power consumption (typical)
13 W
Input current
0.83 A
Operating voltage
48 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Receiver weight
390 g
Receiver dimensions (WxDxH)
109 x 127 x 26 mm
Packaging data
Quantity per pack
1 pc(s)
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC)
