HDR RX with Control-Ethernet-Audio-PoE

HDR RX with Control-Ethernet-Audio-PoE

4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power

  • 4K HDR HDBaseT receiver
  • Extend 4K/60 4:4:4 up to 330’ (100 m)
  • Supports HDR10, HLG, and Dolby® Vision™
  • Receives RS-232, IR, Ethernet, and CEC control signals over HDBaseT
  • Remotely powered by the AT-HDR-CAT products
  • Works with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher
  • SKU:846352005771
  • GTIN/EAN:846352005771
  • MPN:AT-HDR-EX-100CEA-RX

You need to login to view the price.

View full details

Atlona AT-HDR-EX-100CEA-RX. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: Mini-USB B, Audio input: Optical. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 48 V. Receiver dimensions (WxDxH): 146 x 97 x 26 mm, Receiver weight: 396 g

The Atlona AT-HDR-EX-100CEA-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-EX-100CEA-RX is ideal for use with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

- HDBaseT receiver for use with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT input receives HDMI®, Ethernet, control signals, and power up to 330 feet (100 meters) for both 4K HDR and 1080p with Category 6/6A
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Remotely powered by the AT-HDR-CAT distribution amplifier over HDBaseT
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Multi-channel audio pass-through

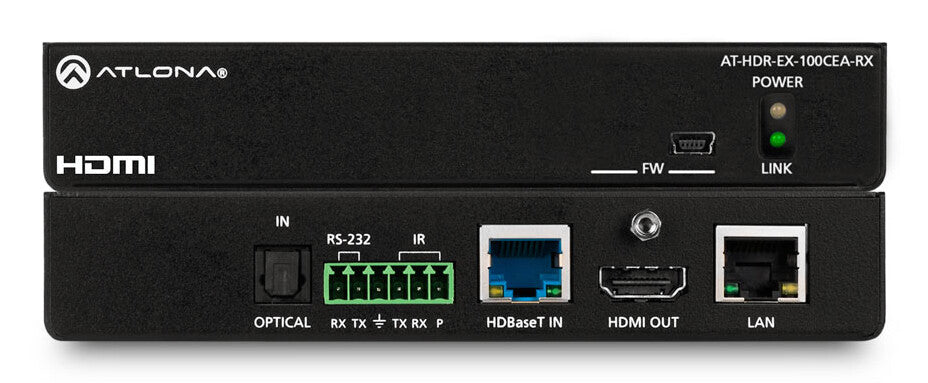

- Front panel Power and Link status LEDs
- Front panel USB port for firmware updates
- Rear panel connections simplify wire management and save installation time
- Compact enclosure can be mounted in furniture, behind a display, or above a projector
- Included accessories – surface mounting hardware and installation guide

Features
Certification
CE, FCC
LED indicators
Yes
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
HDCP
Yes
Colour depth
12 bit
Consumer Electronics Control (CEC) support
Yes
Audio output channels
7.1 channels
Audio system
Multichannel
Maximum transfer distance
100 m
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum resolution
4096 x 2160 pixels
Type
AV transmitter & receiver
Ports & interfaces
DC-in jack
Yes
Audio input
Optical
Audio output
Optical
USB connector type
Mini-USB B
USB ports quantity
2
Number of HDMI outputs
1
HDMI in
1
HDBaseT port
Yes
RJ-45 output ports
1
RJ-45 input ports
2
Connectivity technology
Wired
Power
Power consumption (receiver) (max)
7.55 W
Power consumption (transmitter) (max)
5.25 W
Input current
0.83 A
Operating voltage
48 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Receiver weight
396 g
Receiver dimensions (WxDxH)
146 x 97 x 26 mm
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC)
