HDR TX with Control-Ethernet-Audio-PoE

HDR TX with Control-Ethernet-Audio-PoE

  • 4K HDR HDBaseT transmitter
  • Extend 4K/60 4:4:4 up to 330’ (100 m)
  • Supports HDR10, HLG, and Dolby® Vision™
  • Transmits AV, Ethernet, control signals, and power over HDBaseT
  • SKU:846352005788
  • GTIN/EAN:846352005788
  • MPN:AT-HDR-EX-100CEA-TX

You need to login to view the price.

View full details

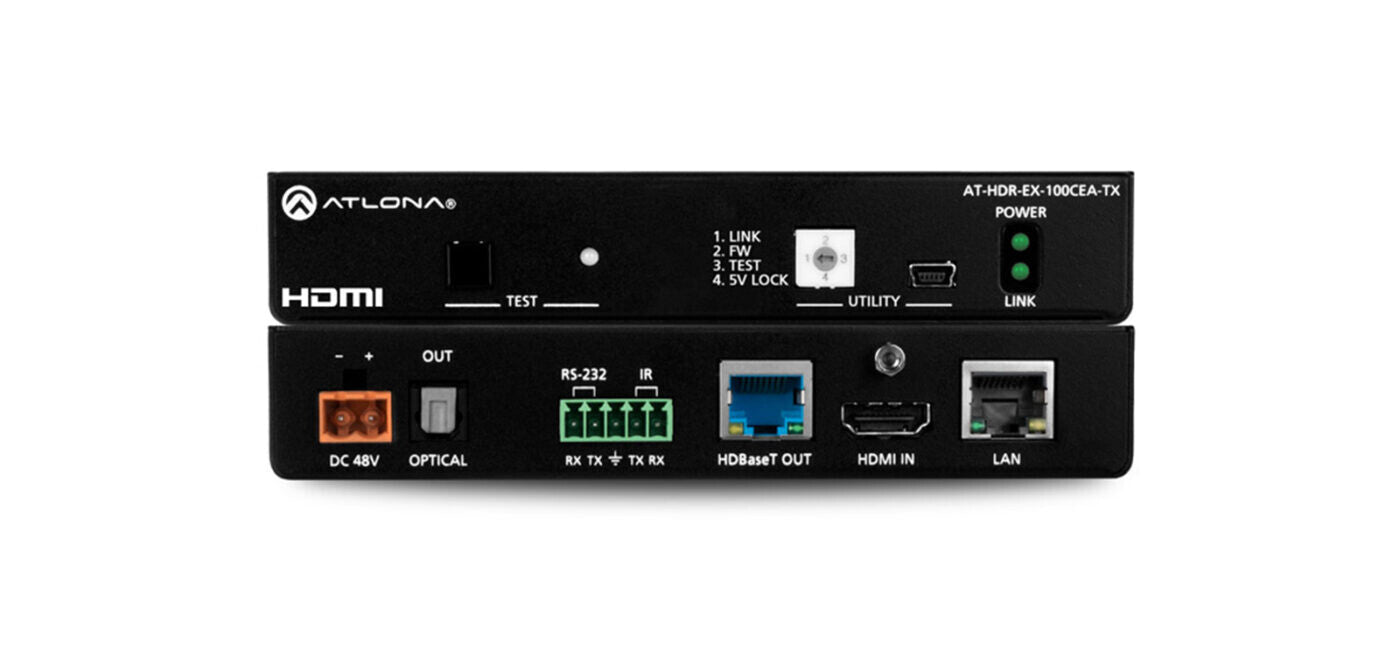

The Atlona AT-HDR-EX-100CEA-TX is a HDBaseT™ transmitter for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft (100 m) over Category 6/6A cable.

The HDR-EX-100CEA-TX is ideal for use with the AT-HDR-EX-100CEA-RX receiver for transmitting 4K HDR in point-to-point applications. It can also be used with the AT-UHD-CLSO-824 and AT-UHD-SW-5000ED for transmitting 4K/UHD @ 60 Hz 4:2:0 signals to the switchers from a remote source.

Housed in a compact enclosure, it can be conveniently mounted in furniture, a lectern, or an equipment rack.

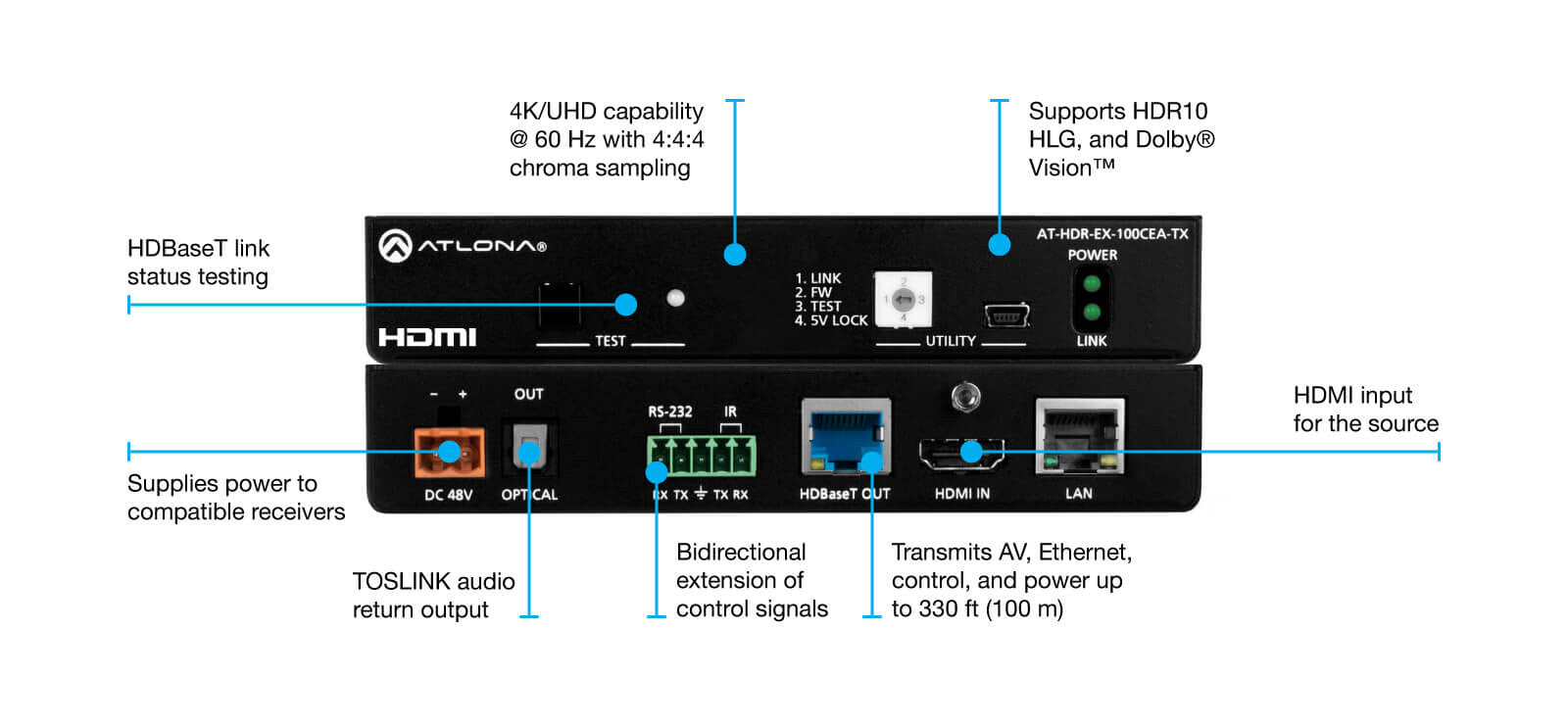

Features

  • HDBaseT transmitter for use with the AT-HDR-EX-100CEA-RX receiver
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby® Vision™ HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT output transmits AV, Ethernet, control signals, and power up to 330 feet (100 meters) for both 4K HDR and 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Provides remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-100CEA-RX
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • HDBaseT link status testing allows verification of cable, termination, and link quality for more reliable installations
  • Provides a TOSLINK return audio pathway from a display over HDBaseT when used with a compatible receiver such as the AT-HDR-EX-100CEA-RX
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, a lectern, or an equipment rack
  • Compatible with AT-UHD-CLSO-824 and AT-UHD-SW-5000ED switchers for transmission of 4K/UHD @ 60 Hz 4:2:0 signals
  • Included accessories – power supply, surface mount hardware, and captive screw connectors
Color
Output
HDBaseT, Optical
Input
HDMI
Color
Black
