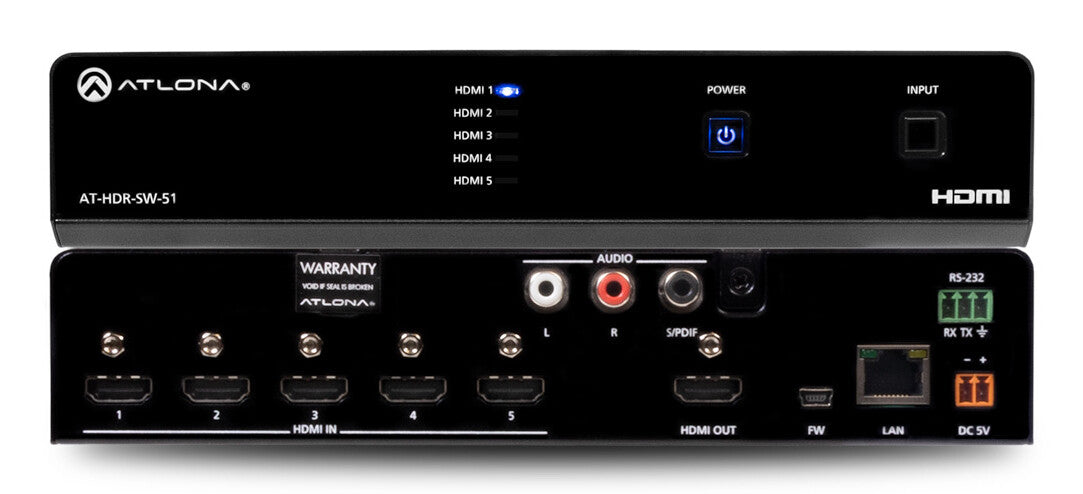

Atlona AT-HDR-SW-51

Atlona AT-HDR-SW-51

4K HDR Five-Input HDMI Switcher

  • Five HDMI inputs
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Selectable 4K to 1080p downscaling
  • Automatic input selection
  • Audio de-embedding
  • Also available: AT-HDR-SW-52 (two matrixed HDMI outputs) and AT-HDR-SW-52ED (matrixed HDMI and HDBaseT outputs)
  • SKU:846352007331
  • GTIN/EAN:846352007331
  • MPN:AT-HDR-SW-51
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-HDR-SW-51. Maximum pixel clock: 600 MHz, Ethernet LAN data rates: 10,100 Mbit/s, Audio formats supported: DTS, LPCM. Housing colour: Black, Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC. USB connector type: Mini-USB. Power consumption (max): 13.53 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 208 mm, Depth: 112 mm, Height: 34 mm

Bring Together HDMI Sources
The AT-HDR-SW-51 goes anywhere AV switching is needed, such as for this meeting space with sources in the credenza and a presenter’s laptop.

4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

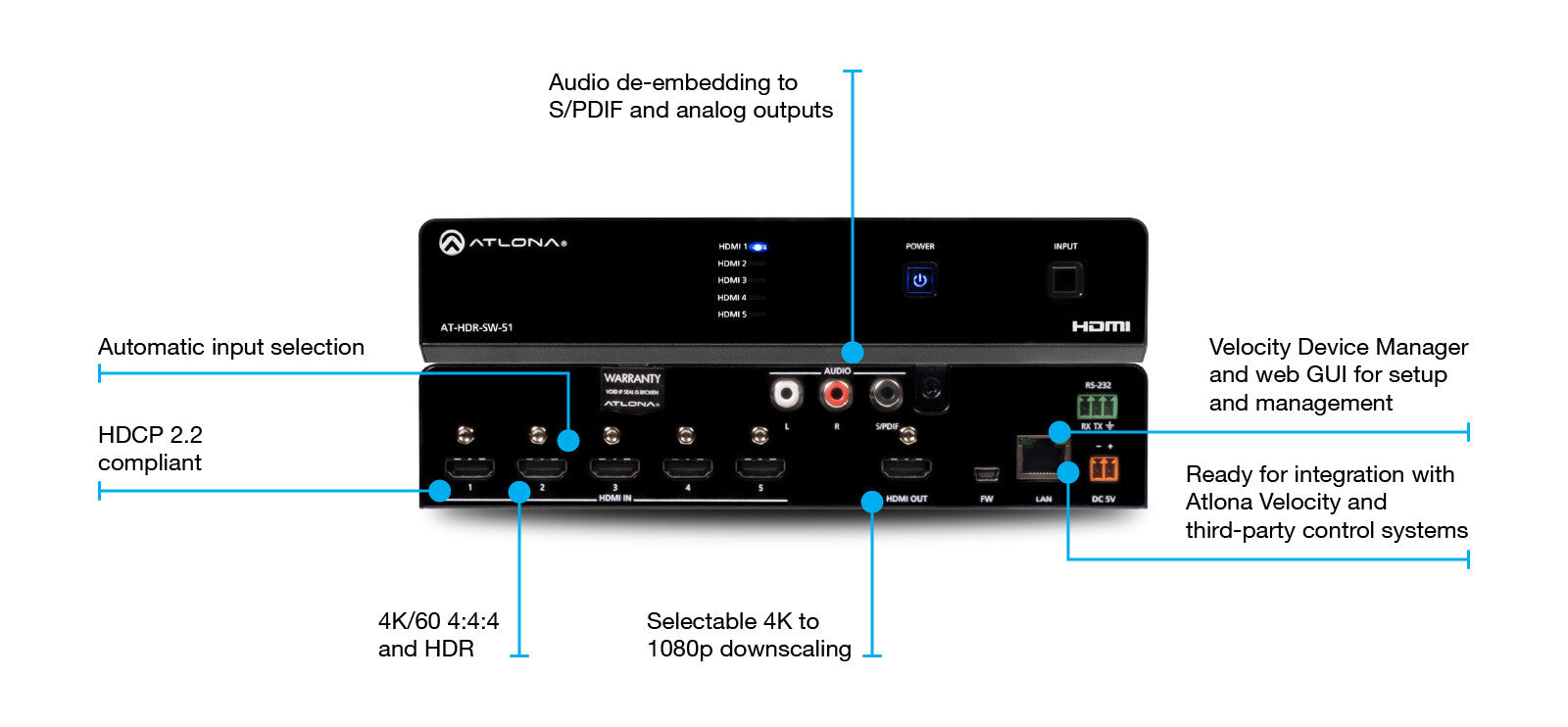

Features and capabilities designed to ease integration in commercial AV applications include audio de-embedding, EDID and HDCP management, and HDBaseT link testing.

Features
Supported resolutions
4096×2160 (DCI) @ 24/25/30/50/60 Hz3840×2160 (UHD) @ 24/25/30/50/60 Hz1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz1920x1080i @ 50/60 Hz1280x720p @ 30/50/60 Hz720x576p @ 50 Hz720x576i @ 25/50 Hz720x480p @ 60 Hz640x480p @ 60 Hz640x480i @ 60 Hz
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Audio formats supported
DTS, LPCM
Ethernet LAN data rates
10,100 Mbit/s
High Dynamic Range (HDR) supported
Yes
HDCP version
2.2
HDCP
Yes
Audio channels
2
Maximum pixel clock
600 MHz
Design
Certification
CE, RoHS, FCCCE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
LED indicators
Yes
Housing colour
Black
Display
Built-in display
No
Ports & interfaces
DC-in jack
Yes
Audio (L/R) in
2
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
USB connector type
Mini-USB
HDMI output ports quantity
1
HDMI input ports quantity
5
Power
Output power
5 W
Input current
4 A
AC input frequency
50/60 Hz
AC input voltage
100 – 240
Power consumption (max)
13.53 W
Operational conditions
Heat dissipation
46.1 BTU/h
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
3.15 kg
Height
34 mm
Depth
112 mm
Width
208 mm
Packaging content
Quick start guide
Yes
