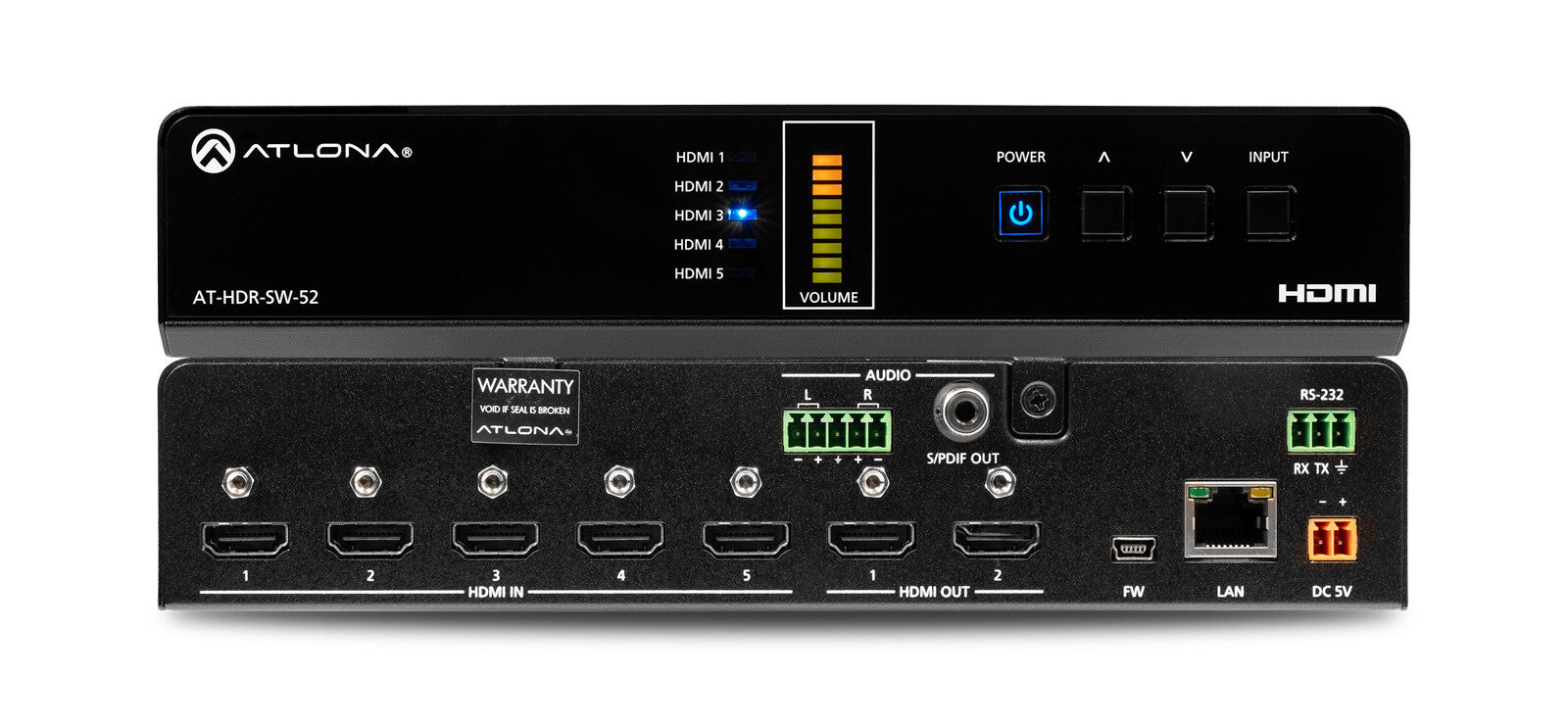

Atlona AT-HDR-SW-52

Atlona AT-HDR-SW-52

4K HDR 5×2 HDMI Matrix Switcher

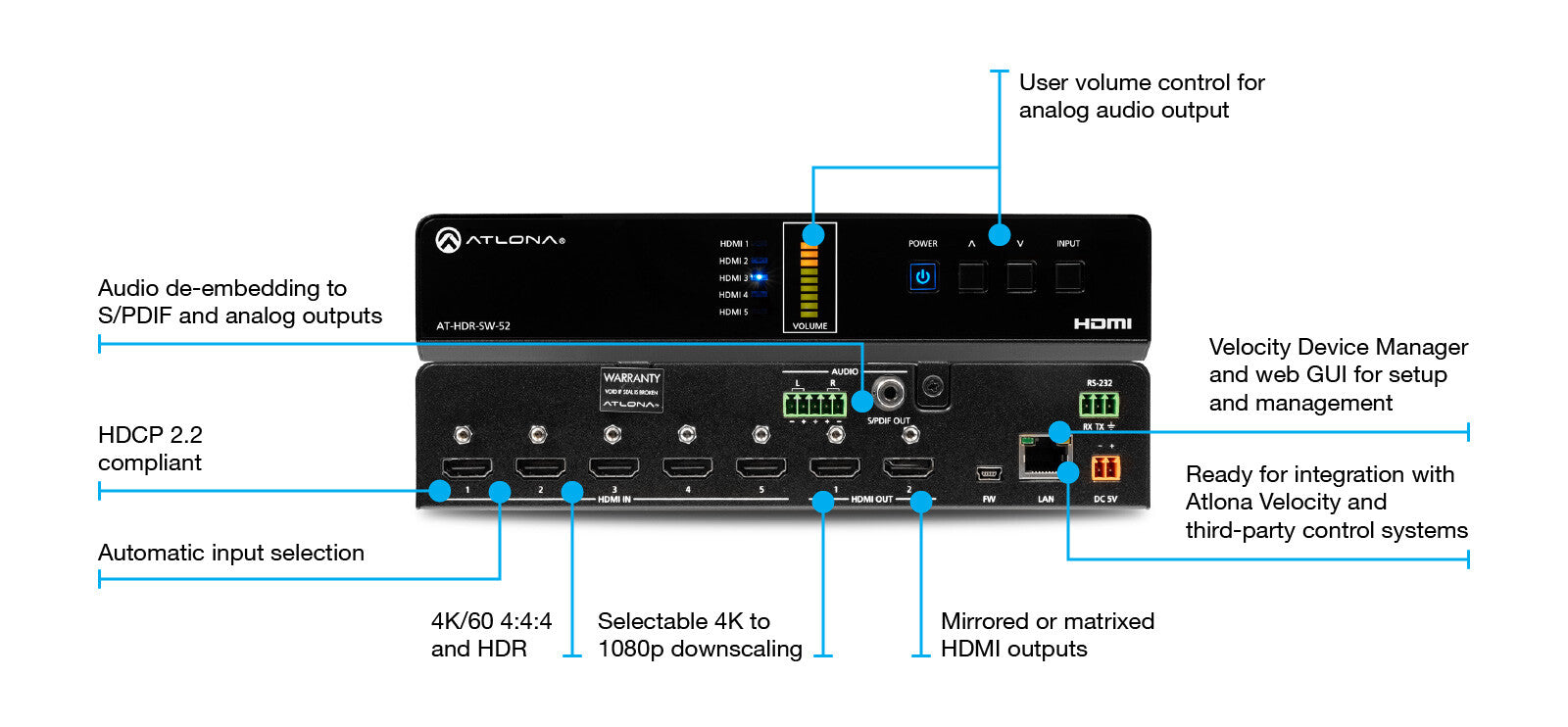

  • Five HDMI inputs
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Selectable 4K to 1080p downscaling
  • Automatic input selection
  • Audio de-embedding
  • Also available: AT-HDR-SW-52ED (HDMI and HDBaseT outputs) and AT-HDR-SW-51 (HDMI switcher)
  • SKU:846352007270
  • GTIN/EAN:846352007270
  • MPN:AT-HDR-SW-52
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-HDR-SW-52. Maximum pixel clock: 600 MHz, Ethernet LAN data rates: 10,100 Mbit/s, Audio formats supported: DTS, LPCM. Housing colour: Black, Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC. USB connector type: Mini-USB. Power consumption (max): 18.06 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 208 mm, Depth: 112 mm, Height: 34 mm

Ready for Two Displays
Many new meeting room installations include dual, side-by-side displays. With two matrixed HDMI outputs, the HDR-SW-52 is great for this scenario.

4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby Vision HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV applications include audio de-embedding, EDID and HDCP management, and HDBaseT link testing.

Features
Supported resolutions
4096×2160 (DCI) @ 24/25/30/50/60 Hz3840×2160 (UHD) @ 24/25/30/50/60 Hz1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz1920x1080i @ 50/60 Hz1280x720p @ 30/50/60 Hz720x576p @ 50 Hz720x576i @ 25/50 Hz720x480p @ 60 Hz640x480p @ 60 Hz640x480i @ 60 Hz
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Audio formats supported
DTS, LPCM
Ethernet LAN data rates
10,100 Mbit/s
High Dynamic Range (HDR) supported
Yes
Audio channels
2
Maximum pixel clock
600 MHz
Design
Certification
CE, RoHS, FCCCE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
LED indicators
Yes
Housing colour
Black
Display
Built-in display
No
Ports & interfaces
DC-in jack
Yes
Audio (L/R) in
1
RS-232 ports
1
USB ports quantity
1
USB connector type
Mini-USB
RJ-45 input ports
1
HDMI output ports quantity
2
HDMI input ports quantity
5
Power
Output power
5 W
Input current
4 A
AC input frequency
50/60 Hz
AC input voltage
100 – 240
Power consumption (max)
18.06 W
Operational conditions
Heat dissipation
61.6 BTU/h
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
3.15 kg
Height
34 mm
Depth
112 mm
Width
208 mm
Packaging content
Manual
Yes
