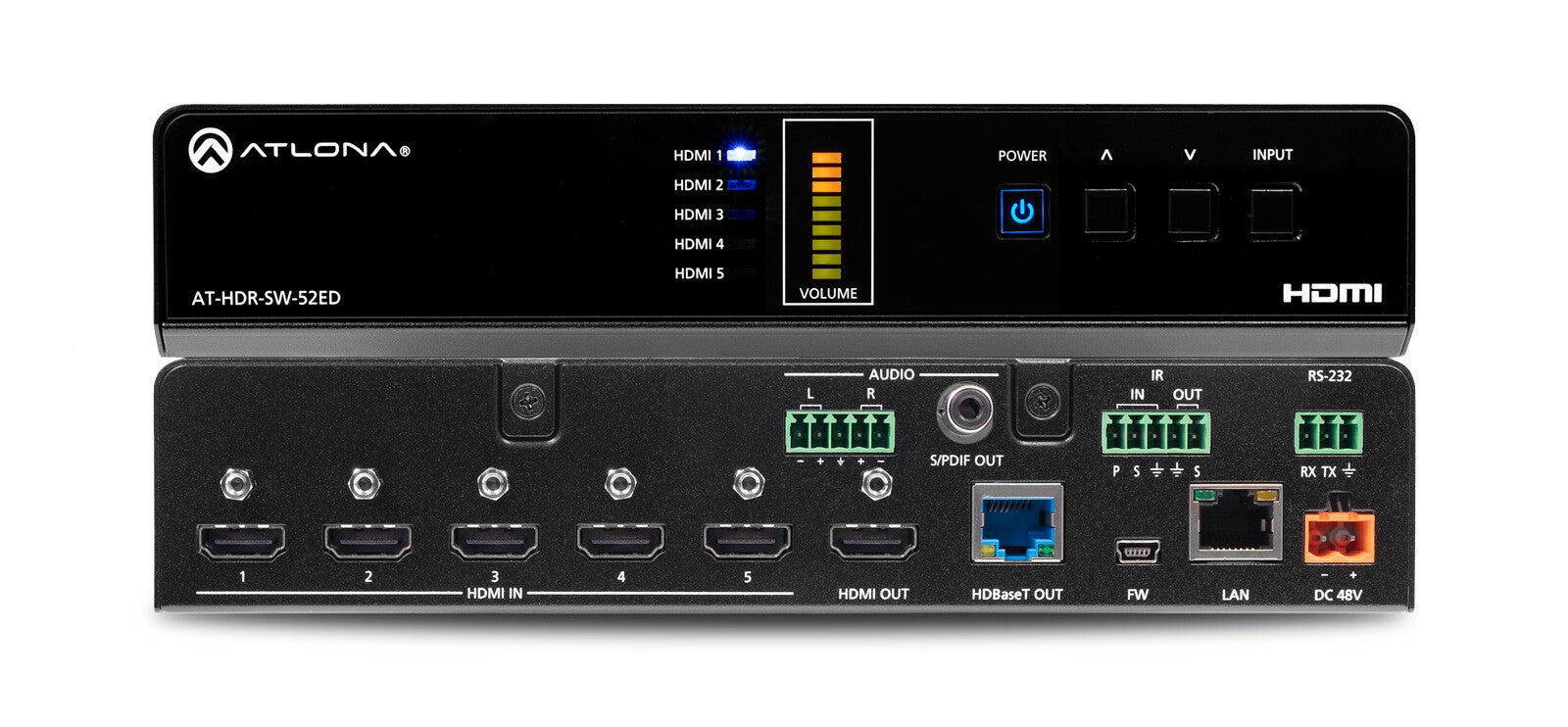

Atlona AT-HDR-SW-52ED

Atlona AT-HDR-SW-52ED

4K HDR 5×2 HDMI Matrix Switcher with HDMI and HDBaseT Outputs

  • Five HDMI inputs, HDMI and HDBaseTTM outputs
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • HDBaseT output transmits 4K video up to 330 feet (100 meters)
  • Selectable 4K to 1080p downscaling
  • Automatic input selection and automatic display control
  • Audio de-embedding
  • Also available: AT-HDR-SW-52 (two HDMI outputs) and AT-HDR-SW-51 (HDMI switcher)
  • SKU:846352007355
  • GTIN/EAN:846352007355
  • MPN:AT-HDR-SW-52ED
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-HDR-SW-52ED. Ethernet LAN data rates: 10,100 Mbit/s, Audio formats supported: DTS, LPCM, Supported chroma subsampling: 4:2:2, 4:4:4, 4:2:0. Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC. USB connector type: Mini-USB. Power consumption (max): 22.4 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 208 mm, Depth: 112 mm, Height: 34 mm

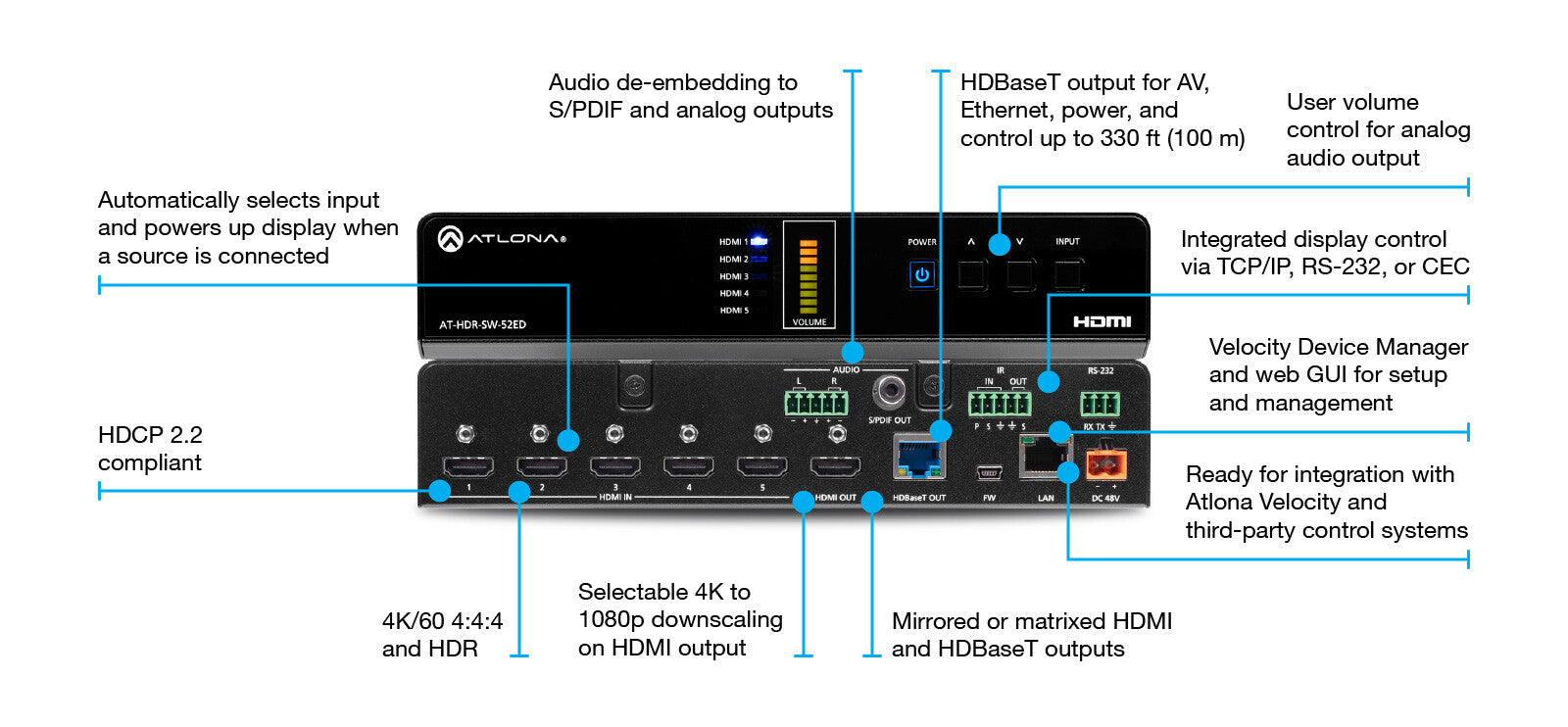

Ready for Two Displays
Many new meeting room installations include displays along the front and side walls. With matrixed HDMI and HDBaseT outputs, the HDR-SW-52ED is great for this scenario.

4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV applications include audio de-embedding, EDID and HDCP management, automatic display control, and HDBaseT link testing.

Features
Supported resolutions
4096×2160 (DCI) @ 24/25/30/50/60 Hz3840×2160 (UHD) @ 24/25/30/50/60 Hz1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz1920x1080i @ 50/60 Hz1280x720p @ 30/50/60 Hz720x576p @ 50 Hz720x576i @ 25/50 Hz720x480p @ 60 Hz640x480p @ 60 Hz640x480i @ 60 Hz
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Audio formats supported
DTS, LPCM
Ethernet LAN data rates
10,100 Mbit/s
High Dynamic Range (HDR) supported
Yes
HDCP version
2.2
HDCP
Yes
Audio channels
2
Design
Certification
CE, RoHS, FCCCE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
LED indicators
Yes
Display
Built-in display
No
Ports & interfaces
DC-in jack
Yes
Remote (IR) output
1
Audio (L/R) in
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
USB connector type
Mini-USB
RJ-45 output ports
1
RJ-45 input ports
1
HDMI output ports quantity
1
HDMI input ports quantity
5
Power
Output power
48 W
Input current
0.83 A
AC input frequency
50/60 Hz
AC input voltage
100 – 240
Power consumption (max)
22.4 W
Operational conditions
Heat dissipation (max)
76.4 BTU/h
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
3.15 kg
Height
34 mm
Depth
112 mm
Width
208 mm
