Atlona AT-GAIN-M50-LZ
Atlona AT-GAIN-M50-LZ
Mixer Amplifier, 50 W, 2 x 25 W (stereo) or 1 x 50 W (bridged),

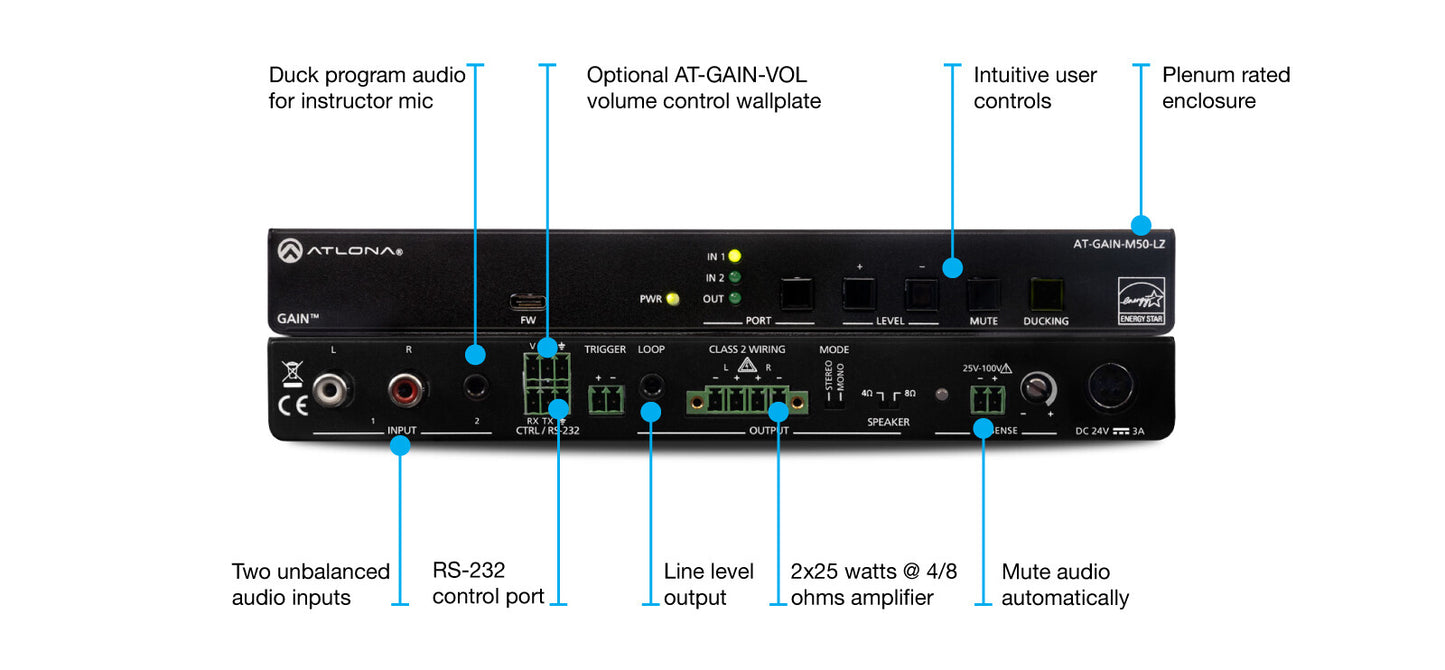

- Two-Input mixer amplifier
- 2 x 25 watts (stereo) or 1 x 50 watts (bridged) @ 4/8 ohms output
- Duck audio on input 1 when signal detected on input 2
- Mute audio with PA sense or contact closure
- RS-232 control for integration with control systems
- Compact, plenum rated enclosure
- Optional AT-GAIN-VOL volume control wallplate
- SKU:846352007683
- GTIN/EAN:846352007683
- MPN:AT-GAIN-M50-LZ
Atlona AT-GAIN-M50-LZ. Audio output channels: 1.0 channels, Amplifier class: D, Crosstalk (1kHz): -80 dB. Speakers connectivity type: 3.5mm, USB port type: USB Type-C, RS-232 connector type: 3-pin. Power source type: DC, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 219 mm, Depth: 152 mm, Height: 26 mm. Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
Two-input mixer amplifier

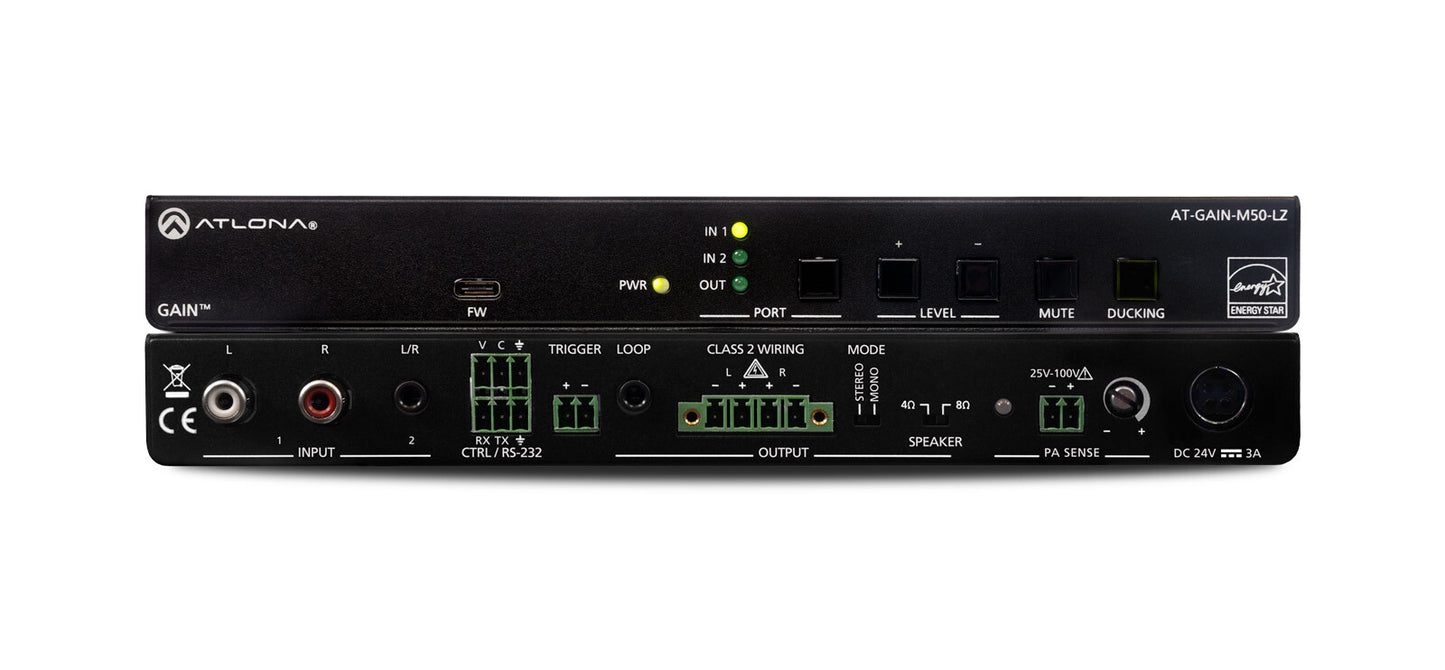

The Atlona AT-GAIN-M50-LZ is a two-input mixer amplifier designed for low impedance education and commercial applications. The amplifier features two unbalanced stereo audio inputs with independent level control and delivers either two channels of 25 watts each into 4 or 8 ohms, or a single channel of 50 watts.
Specialized Classroom Capabilities
Ducking automatically lowers the program audio level on input one when a teacher speaks into a microphone system connected to input two. PA sense or trigger mutes the output of the amplifier during public address announcements. Both features ensure important lesson material and announcements are heard clearly.
