Atlona AT-HDR-CAT-4ED
Atlona AT-HDR-CAT-4ED

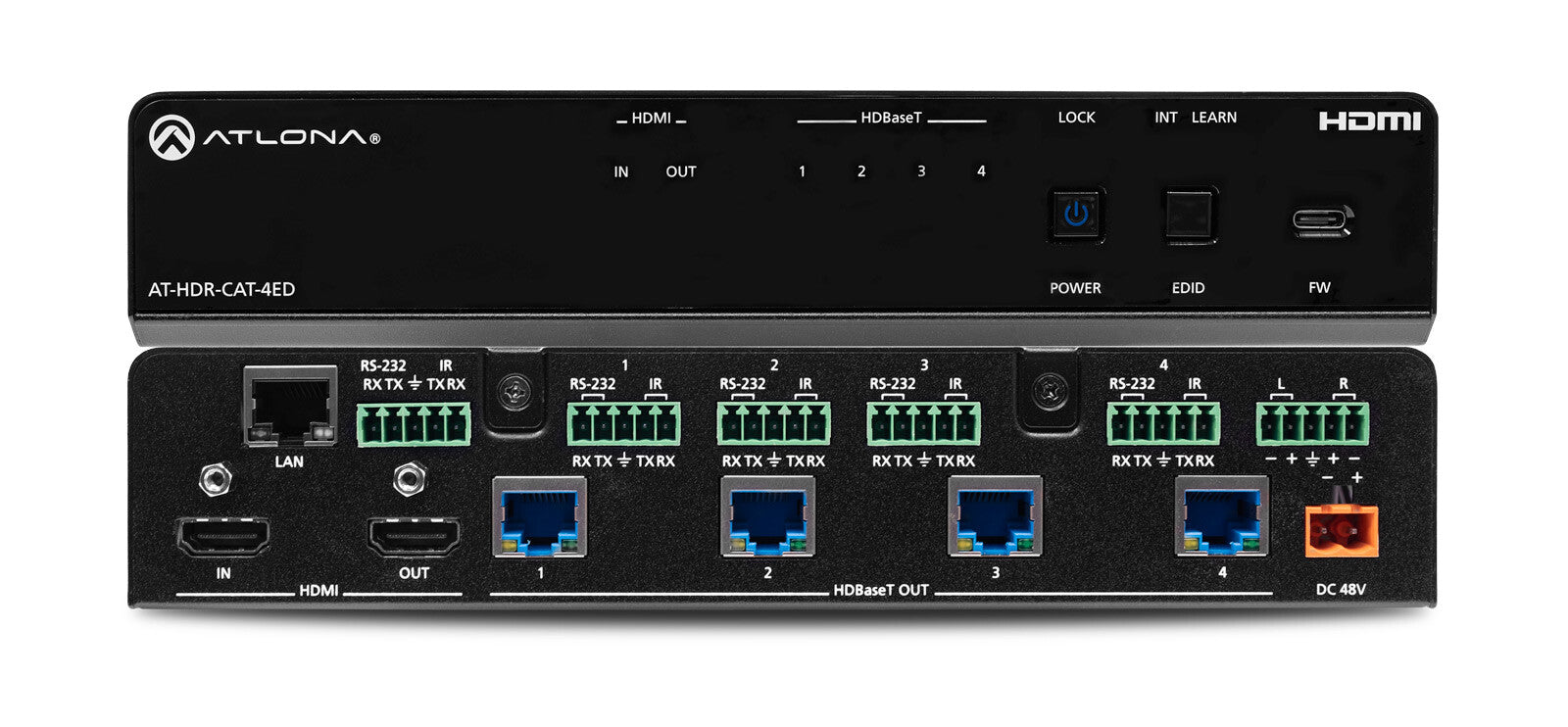

Four-Output Extended Distance 4K HDR HDBaseT Distribution Amplifier, HDR10, HLG, and Dolby Vision
- One HDMI input and four extended distance HDBaseT outputs
- Extend 4K/60 4:4:4 up to 330’ (100 m)
- Supports HDR10, HLG, and Dolby Vision
- Pass-through HDMI output
- CEC display control on each output
- Audio de-embedding with volume control
- Also available with 2 outputs, 4 outputs, or 8 outputs
- SKU:5711783024019
- GTIN/EAN:5711783024019
- MPN:AT-HDR-CAT-4ED
Atlona AT-HDR-CAT-4ED. Maximum resolution: 4096 x 2160 pixels, Ethernet LAN data rates: 10,100 Mbit/s, Audio formats supported: DTS, LPCM, PCM. Housing colour: Black, Rack capacity: 1U. USB connector type: USB Type-C. Power consumption (max): 71.5 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz
Long Distance HDBaseT Distribution
Send a single HDMI source to four displays at distances up to 330′ (100 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.
4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby Vision HDR formats for very high, pristine image quality.

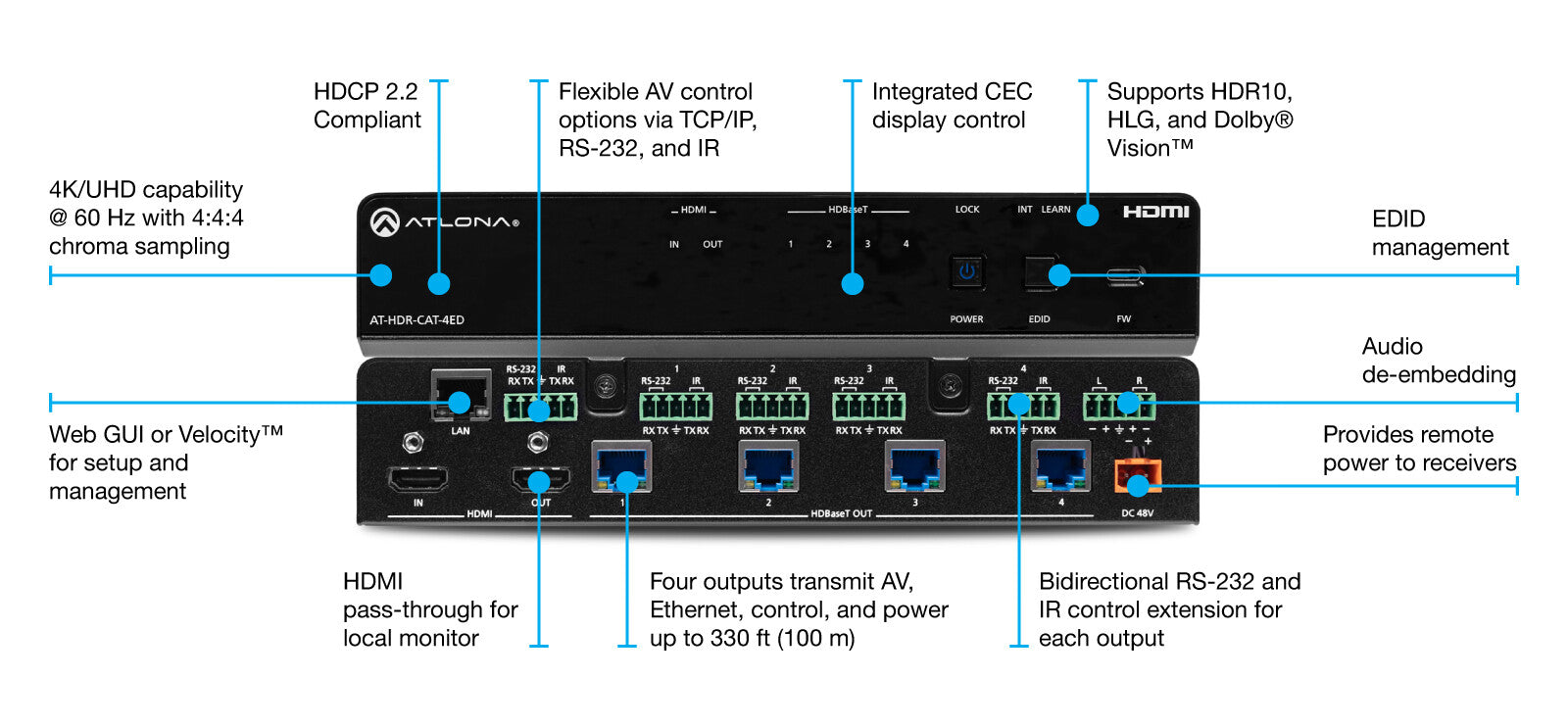

Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.
