Dante AVIO Analog Adapters let you use your favorite analog audio gear with any Dante-connected system, delivering the interoperability, performance and scalability that only networking can bring. Cost effective, compact and built for the road, Dante AVIO adapters bring the modern network connectivity that every audio pro needs in their toolbox. Dante AVIO analog adapters are available as input or output versions in 1- or 2-channel configurations.
PLUG & PLAY

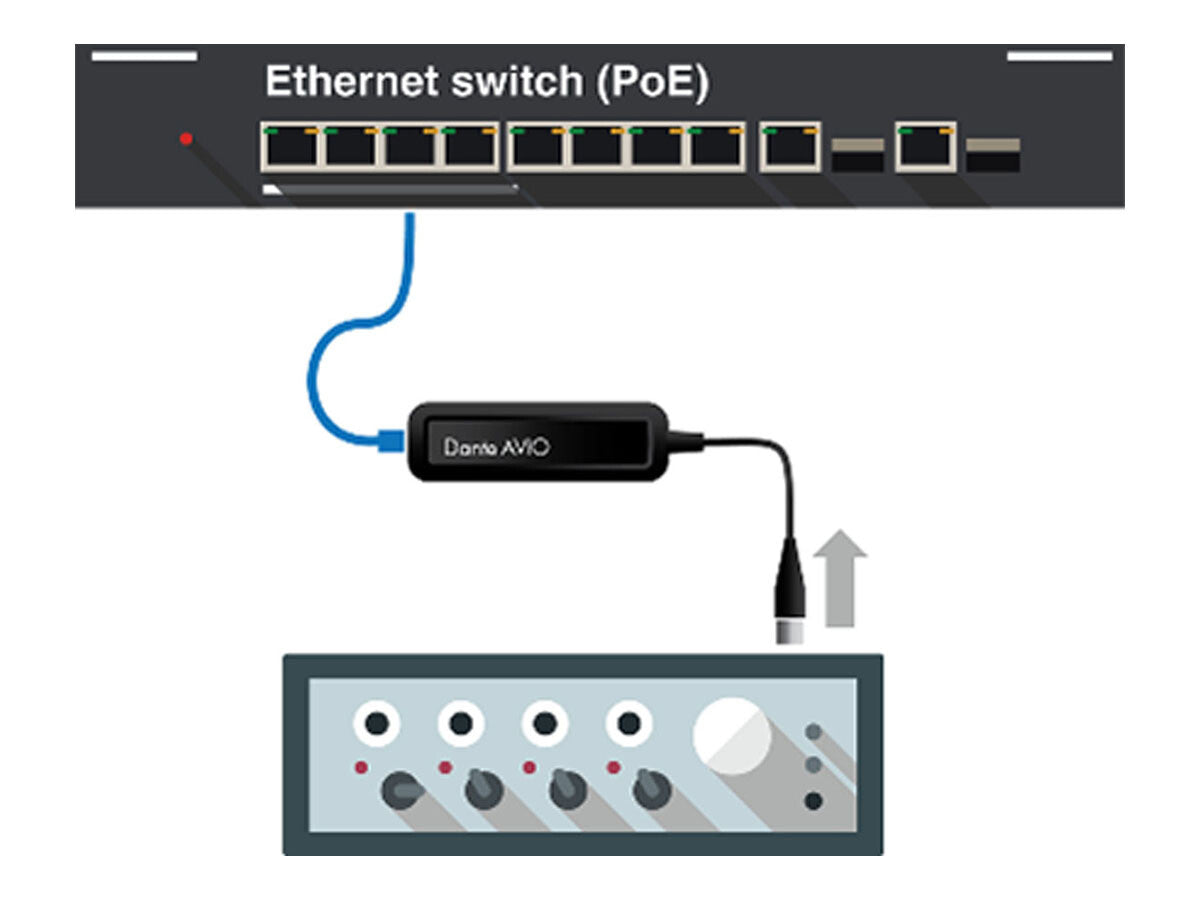

Each Dante AVIO analog adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. Dante AVIO analog adapters are automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and Dante AVIO analog adapters are ready to go.
BUILT FOR THE ROAD
We’ve made Dante AVIO analog adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show.
ALL DANTE
Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by our easy-to-use Dante Controller software on any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked. All Dante AVIO adapters are fully compatible with Dante Domain Manager (DDM) for IT-level security and management, while AES67 is supported for connection to non-Dante networks.
COST-EFFECTIVE
We’ve worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.
DANTE AVIO ANALOG INPUT & OUTPUT
Dante AVIO Analog Adapters allow you to use the audio gear you already own with your Dante network. Don’t abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO. Dante AVIO Analog Adapters are available as balanced line-level single or dualchannel input or output adapters, with high-quality XLR connectors. Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.
Features
- Connect legacy mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Connect stage DI boxes and keyboard instruments directly to a Dante network
Specifications
- One channel balanced line level analog input
- Adjustable signal levels: +24dBu / +4dBu / 0dBu/ 0dBV /-10dBV (through Dante Controller)
- Frequency Response: 20Hz to 20kHz (-/+0.5dB)
- Impedance: 20k Ohm balanced, 10k Ohm unbalanced
- Dynamic Range > 100dB
- Signal to Noise Ratio: > 100dB
- Total Harmonic Distortion: < 0.01% at +4dBu
- Sample Rates: 44.1, 48, 96 kHz
- Bit Depth: 24
- Powered through Class 1 802.3af PoE Switch or injector
