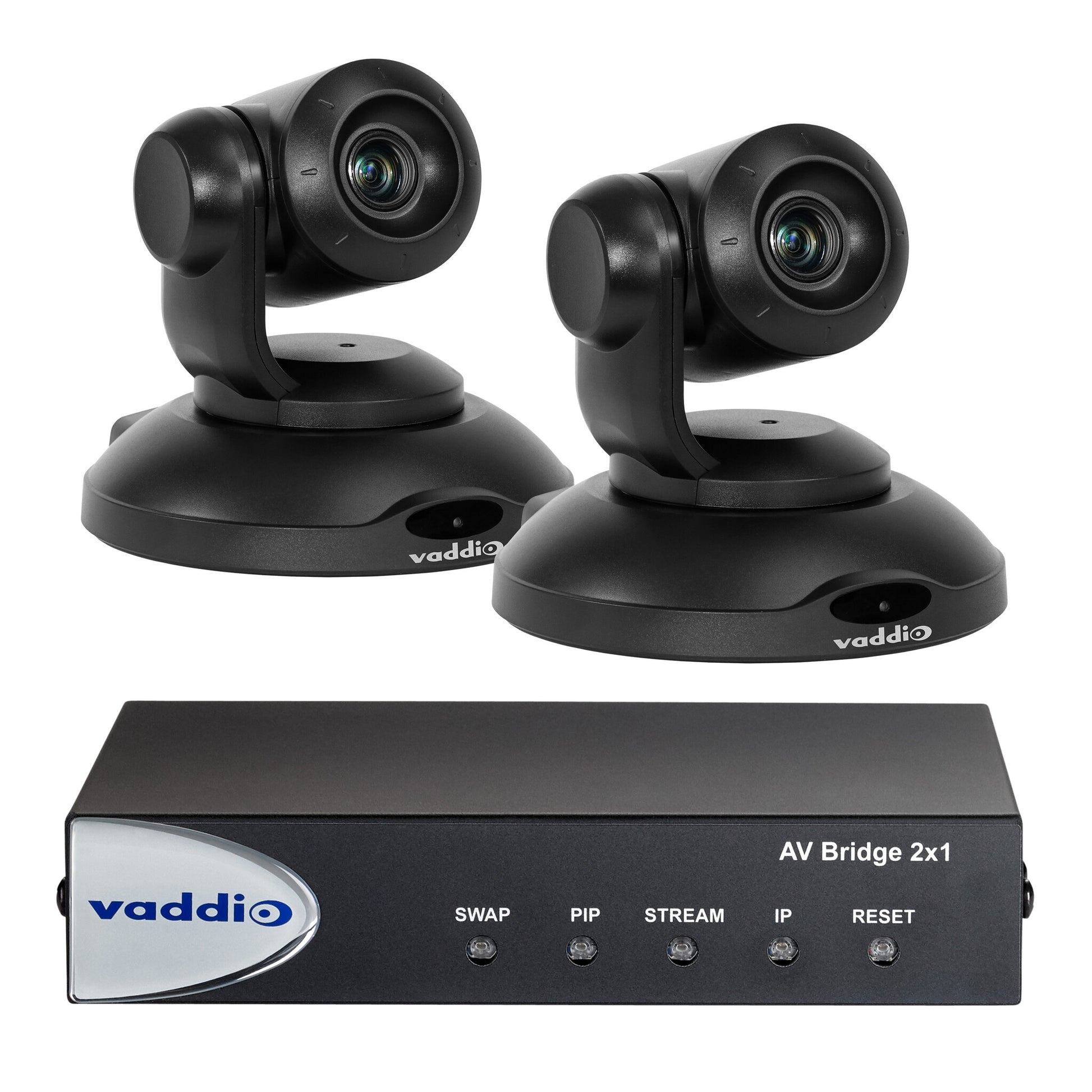

Vaddio AV Bridge 2x1 with 2 PrimeSHOT 10 HDMI cameras

Vaddio AV Bridge 2x1 with 2 PrimeSHOT 10 HDMI cameras

PTZ, 1/2.8 Exmor CMOS, HDMI, RS232, 1080p, Zoom, Black + AV Bridge 2x1

  • Robust two HDMI input AV Bridge with simultaneous 1080p USB 3.0, HDMI, and IP Streaming Outputs
  • Two HD PTZ cameras with 10x zoom and 67° horizontal field of view
  • 4x4 Dante Audio matrix (12x12 cross-point audio matrix)
  • Flexible control options with serial, telnet, trigger, Vaddio Device Controller, and web control
  • SKU:0840077508531
  • GTIN/EAN:0840077508531
  • MPN:999-82500-201

You need to login to view the price.

View full details

Vaddio AV Bridge 2x1 with 2 PrimeSHOT 10 HDMI cameras. Sensor type: Exmor. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 1080p, Maximum frame rate: 60 fps. Product colour: Black

Ideal for conferencing, lecture capture and live streaming applications, AV Bridge 2x1 with 2 PrimeSHOT 10 HDMI cameras combines a production video switcher and 2 HD PTZ cameras. It is easy to integrate this bundle with your existing system or start a new room from scratch, thanks to various outputs and built-in audio mixing.

Introducing the perfect bundle for a simple multi-camera setup: the AV Bridge 2x1 and 2 PrimeSHOT 10 HDMI cameras.

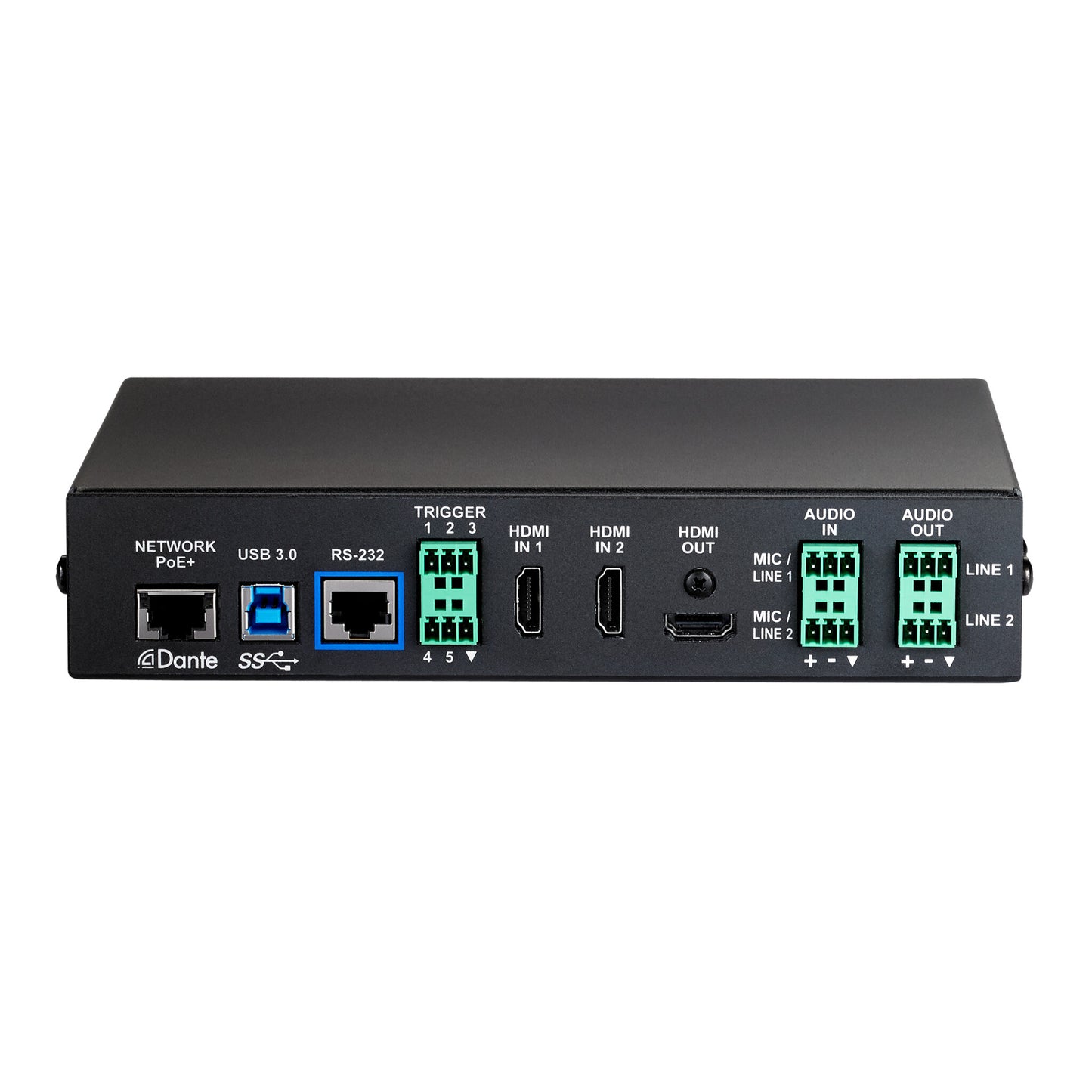

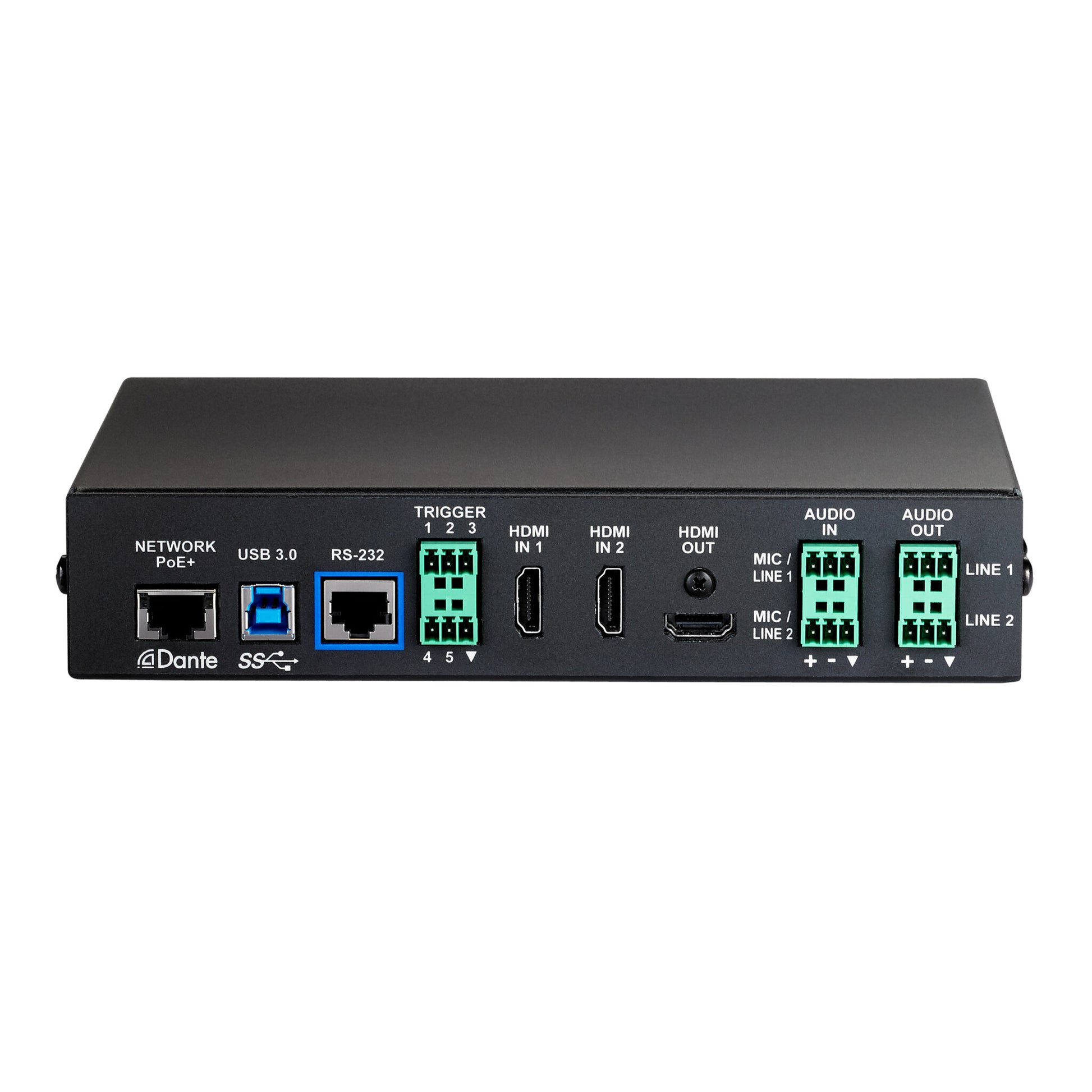

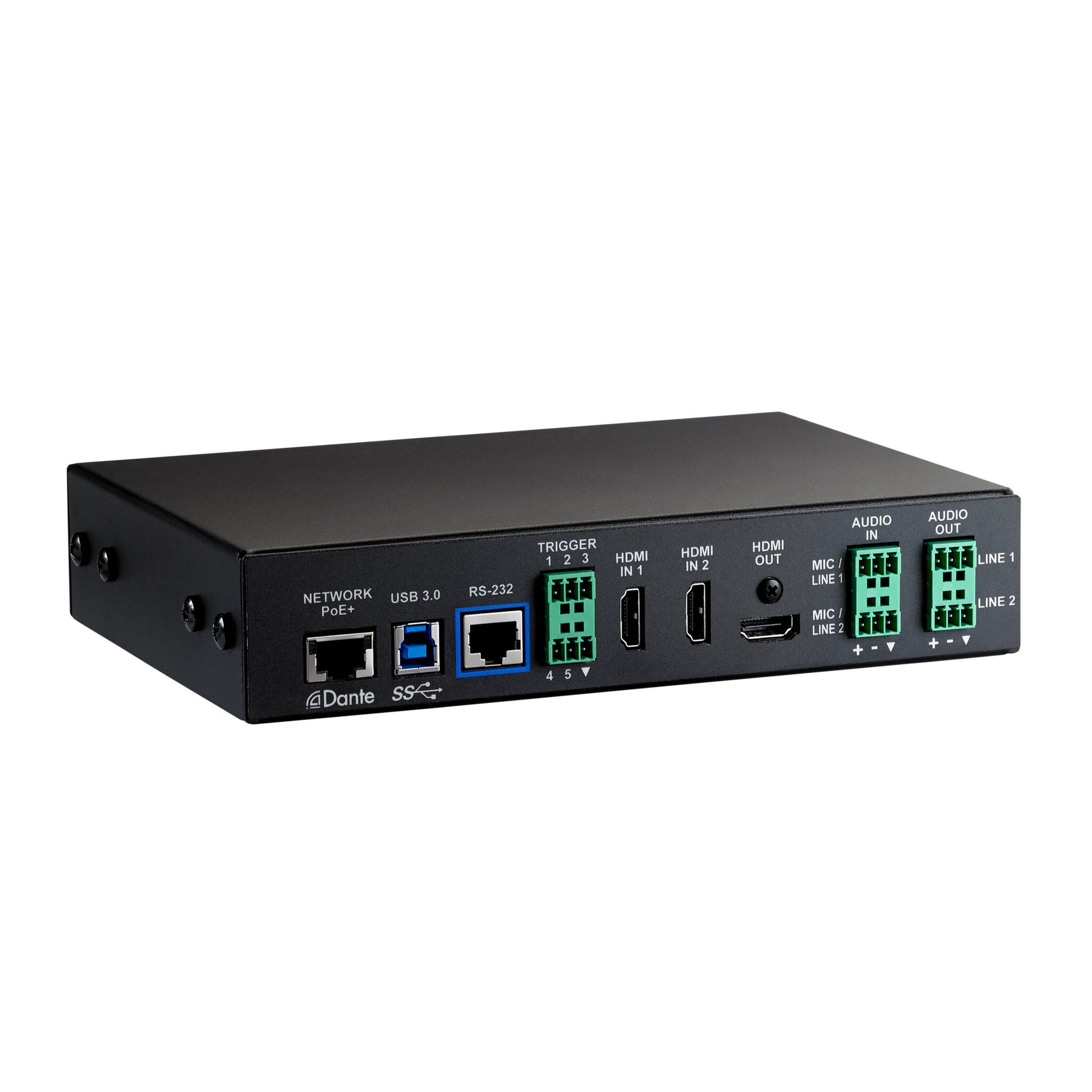

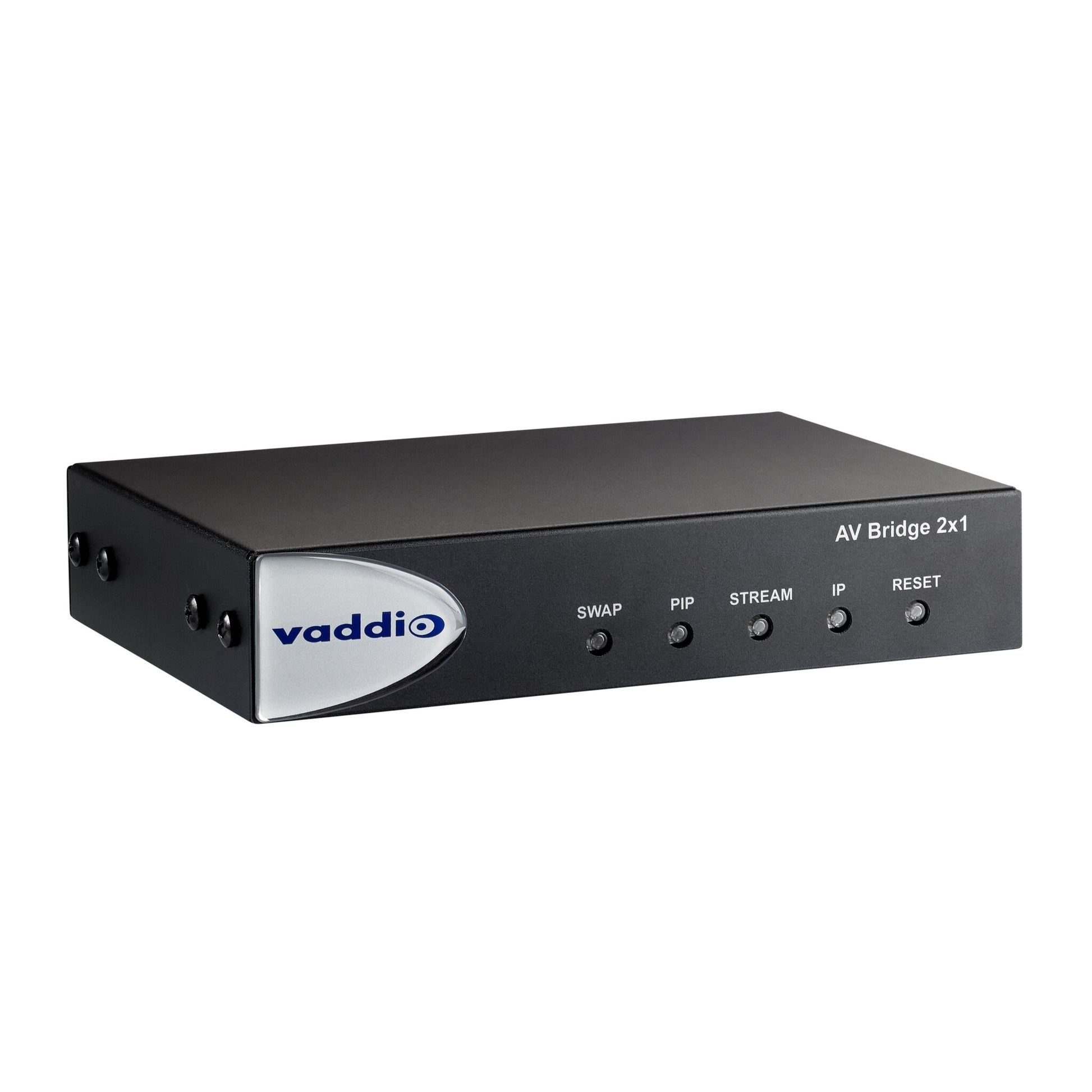

The AV Bridge 2x1 is designed for simple distribution, production, and capture of high-quality networked Dante audio, analog audio, and two HD video sources. It features two HDMI inputs for connecting PrimeSHOT 10 HDMI cameras or another HDMI source. The device supports concurrent 1080p USB 3.0, HDMI, and IP streaming, allowing for flexible video distribution. The AV Bridge 2x1 can simultaneously record to a local PC, magnify the subject's video through a room projector, and stream the lecture to popular online platforms without the need for special drivers or additional applications.

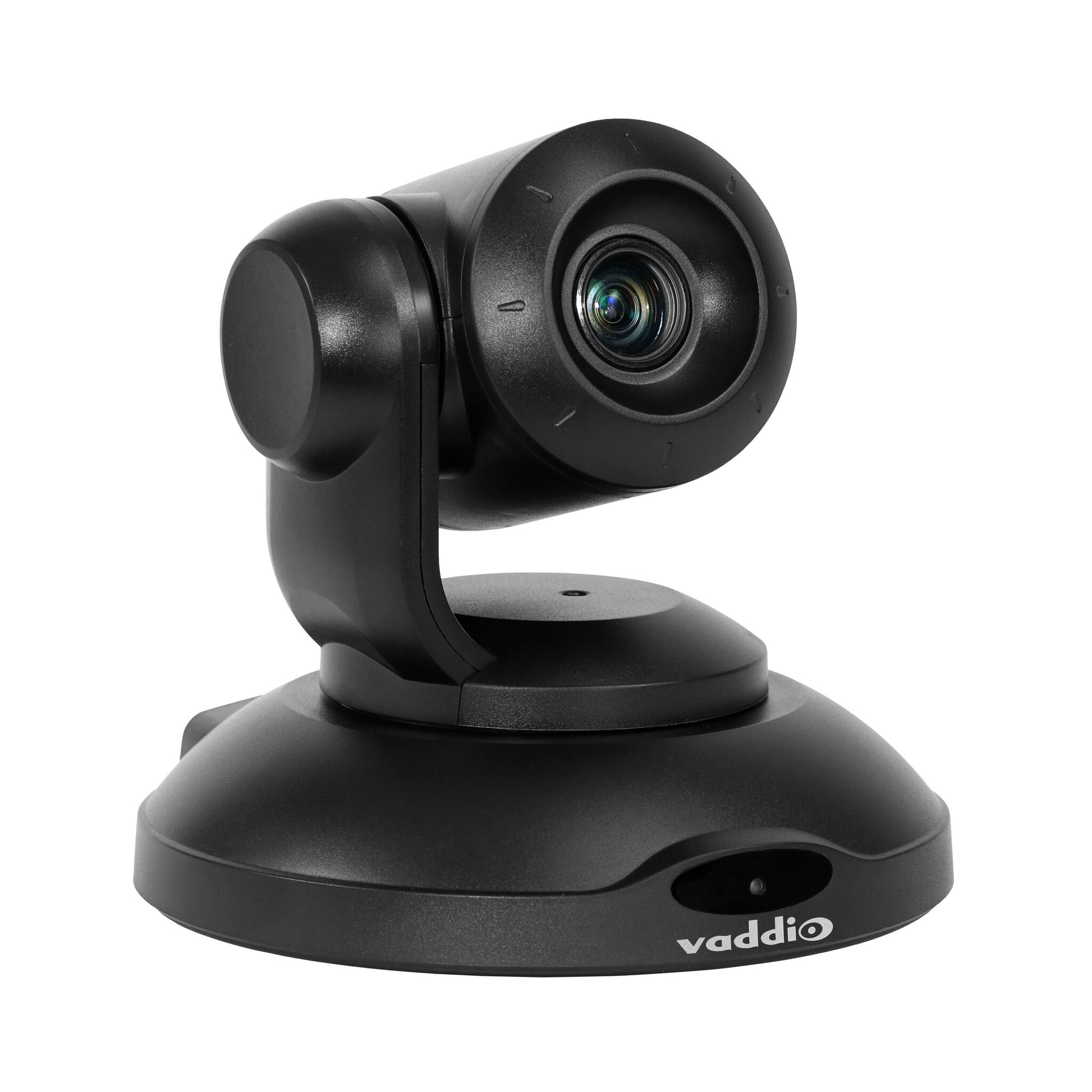

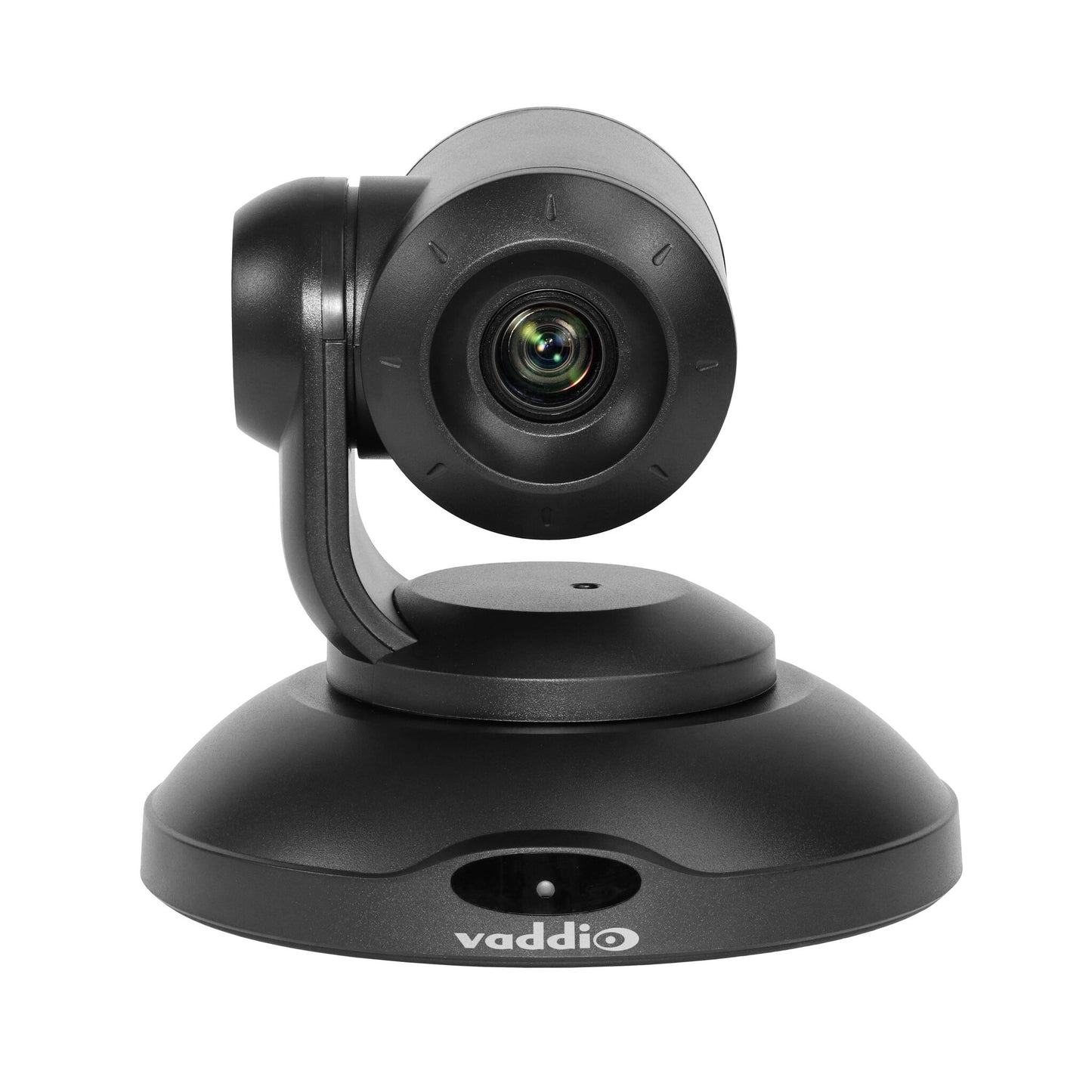

The bundle includes two PrimeSHOT 10 HDMI cameras that provide exceptional video quality and control. The cameras feature full HD 1080p/60 video, 10x zoom, and a wide field of view. They also have an intuitive web-based user interface for remote control and management.

With this bundle, you can easily capture lectures and presentations and stream with your preferred live streaming or conferencing software. The AV Bridge 2x1 and 2 PrimeSHOT 10 HDMI cameras provide you with a reliable and high-quality multi-camera system perfect for creating dynamic content that engages your audience.

3 years

Camera
Sensor type
Exmor
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Zoom capability
Yes
Field of view (tele)
7.6°
Field of view (wide)
67°
Minimum illumination
0.4 lx
Aperture range (F-F)
1.6 - 1.6
White balance
Auto, Manual
Focus adjustment
Auto/Manual
Number of camera presets
16
Gain control type
Auto/Manual
PTZ control
Yes
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Supported video modes
1080p
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-165 - 165°
Ports & interfaces
HDMI ports quantity
1
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power source type
DC
Operating current
3 A
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Packaging content
Cables included
AC, LAN (RJ-45), USB
Performance
Certification
CE
FCC
TAA
Weight & dimensions
Width
711 mm
Depth
500 mm
Height
300 mm
Weight
17 kg
