LUXUL AMS-1816P
LUXUL AMS-1816P
18-Port Gigabit PoE+, L2/L3, SFP, RJ-45, 802.1Q VLAN, 250 W, 100 - 240 V, 50/60 Hz
- 16 Gigabit 802.3af/at PoE+ ports (185W power budget)
- Two Gigabit SFP ports
- Full layer 2/3 support
- 802.1Q VLAN (with trunking) and QoS support
- User selected green and blue front facing LEDs
- Variable speed fans for quiet operation
- Plug-and-play installation with intuitive management
- Simple power management of PoE enabled devices
- Compact design in standard 19" rack-mount enclosure
- SKU:IM3_AMS-1816P-E
- GTIN/EAN:655003921182
- MPN:AMS-1816P-E
Luxul Wireless AMS-1816P. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex, Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

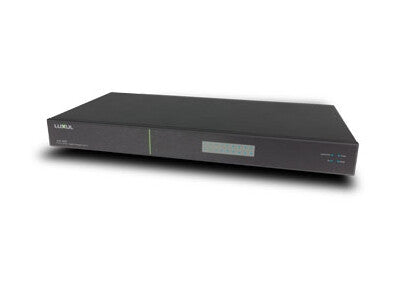

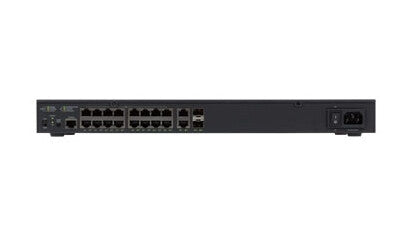

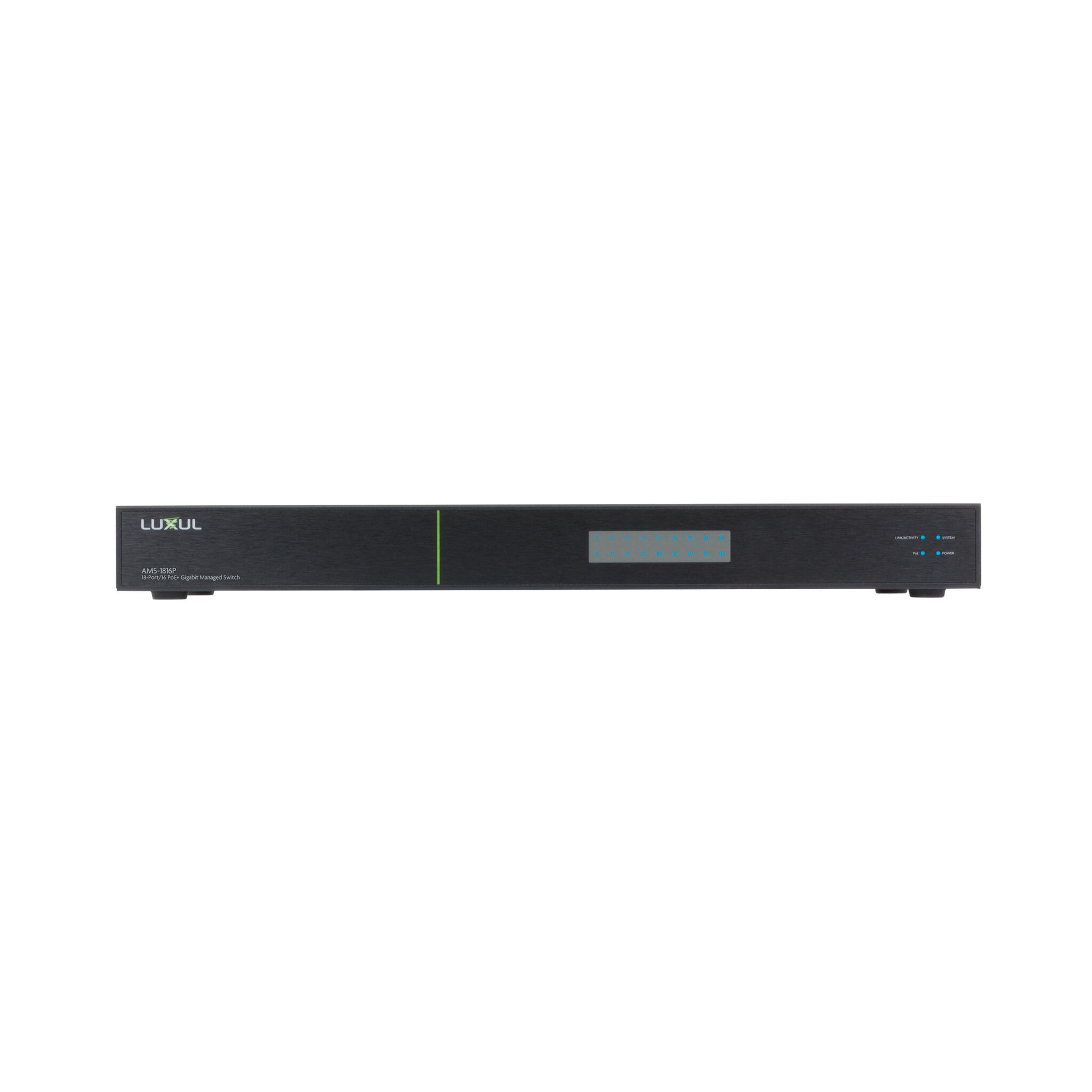

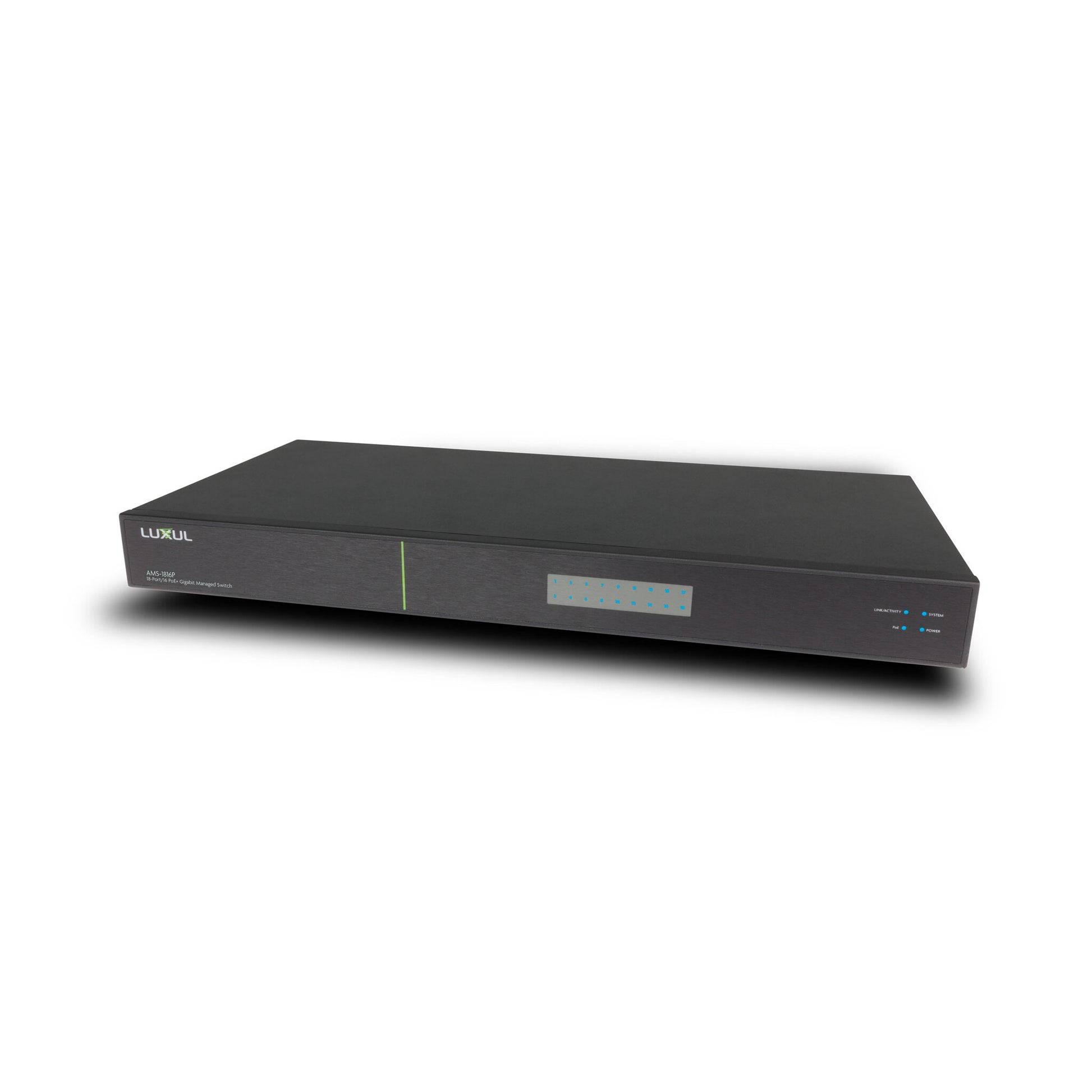

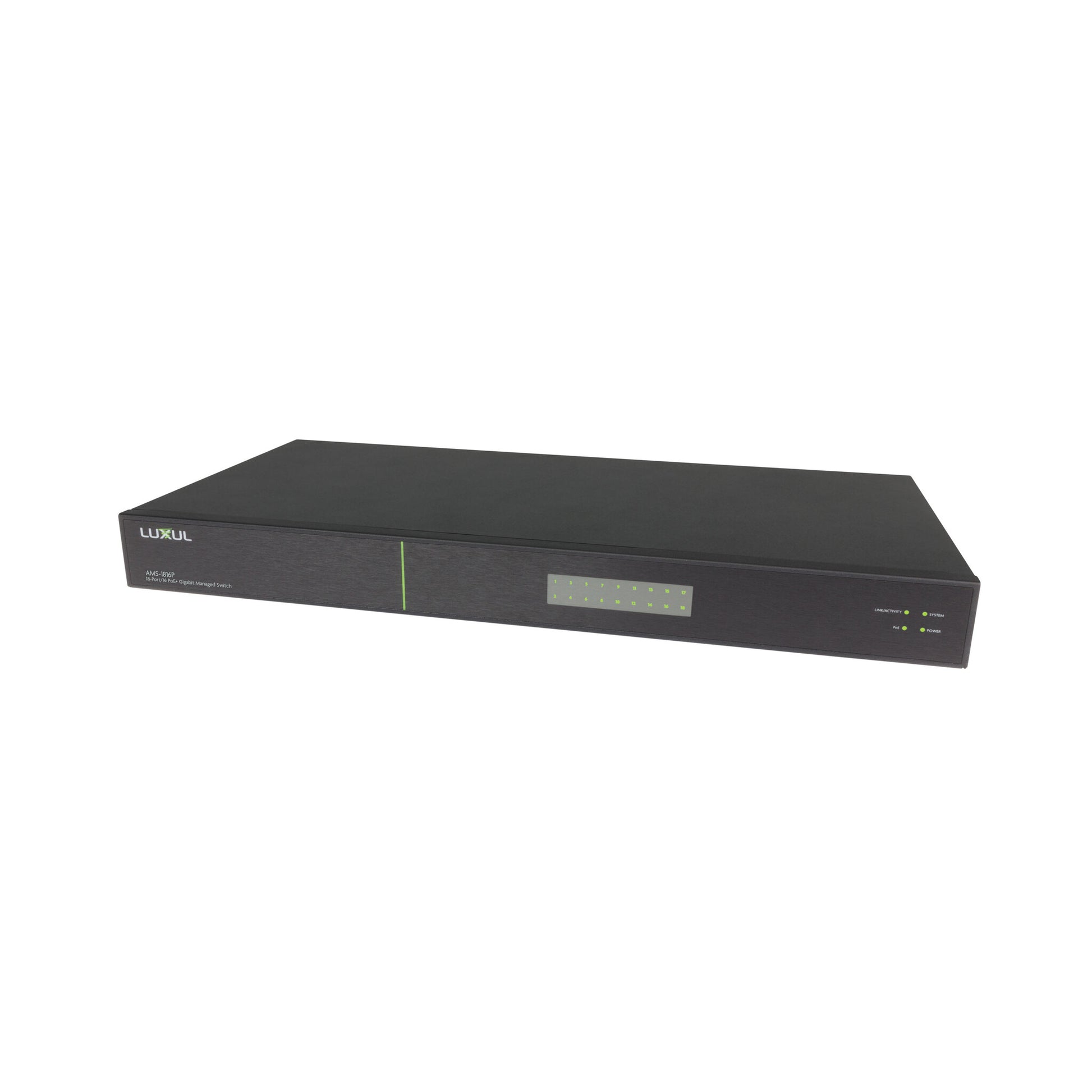

The AMS-1816P is an 18-port Gigabit swtich that easily functions on its own or provides cost effective expandability via its two Gigabit SFP uplink ports to other Luxul switches in your AV rack. The 16 PoE+ ports provide a robust 185W power budget and simple power management to automation touch panels, security cameras, and other PoE powered devices. The compact rack-mountable design, selectable green/blue front facing LEDs, and variable speed fans ensure aesthetic and quiet operation. The AMS-1816P provides simple installation with powerfully intuitive management, including L2/L3 switching, 802.1Q VLAN support with trunking, and QoS prioritization support.
3 year
