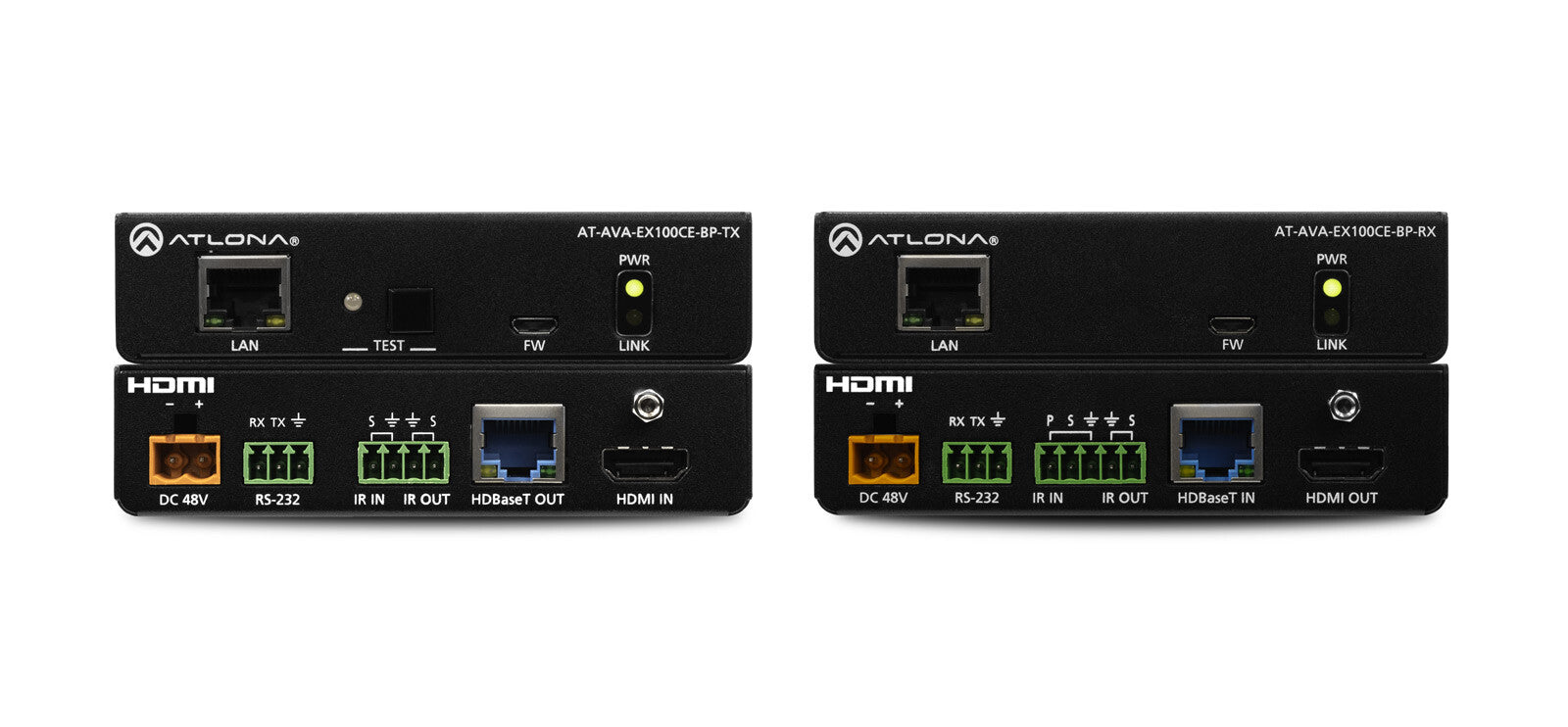

Avance HDMI TX-RX Kit with BiPower| 100m

Avance HDMI TX-RX Kit with BiPower| 100m

4K/UHD Extender Kit with Ethernet, Control, and Bidirectional Remote Power

  • Supports resolutions up to 4K/UHD 60 Hz 4:2:0
  • Extends bidirectional Ethernet data as well as RS-232 and IR control signals
  • Bidirectional remote power, kit may be powered by either transmitter or receiver
  • ARC for audio return from the display
  • EDID filtering prevents extension of unsupported resolutions
  • HDBaseT link test verifies cable, termination, and link quality
  • SKU:846352006693
  • GTIN/EAN:846352006693
  • MPN:AT-AVA-EX100CE-BP-KIT

You need to login to view the price.

View full details

Atlona AT-AVA-EX100CE-BP-KIT. Maximum resolution: 4096 x 2160 pixels, Audio formats supported: DTS, LPCM, PCM, Colour depth: 24 bit. USB connector type: Micro-USB A. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 0.83 A. Width: 109 mm, Depth: 132 mm, Height: 26 mm. Quantity per pack: 2 pc(s)

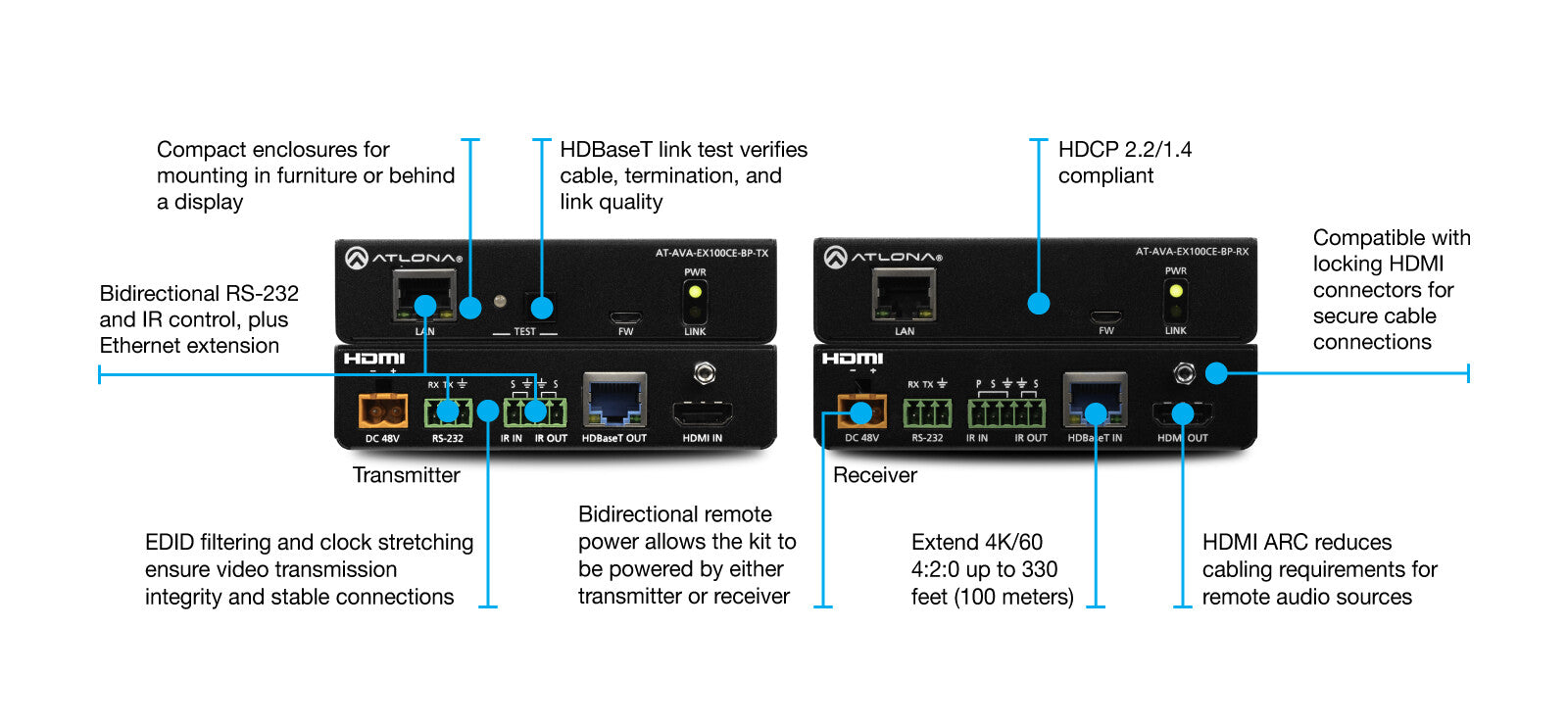

Extend AV signals further than standard cabling
Extends 4K/UHD 60 Hz 4:2:0 up to 100 meters (330 feet) with Category 6/6A

Faster and more reliable installs
EDID filtering, clock stretching, and HDBaseT link test ensure video transmission integrity and stable connections, as well as verification of cable termination, and link quality

Flexible powering
Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT

Features
Certification
CE, FCC CE, FCC, cULus, RoHS
Product colour
Black
Audio formats supported
DTS, LPCM, PCM
HDCP
Yes
Colour depth
24 bit
HDCP version
1.4/2.2
Maximum resolution
4096 x 2160 pixels
Ports & interfaces
RS-232 input ports
1
USB connector type
Micro-USB A
USB ports quantity
1
Number of HDMI outputs
1
HDMI in
1
HDBaseT port
Yes
RJ-45 input ports
1
Power
Power consumption (typical)
13.55 W
Input current
0.83 A
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 60%
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
360 g
Height
26 mm
Depth
132 mm
Width
109 mm
Packaging data
Quantity per pack
2 pc(s)
