HDCP 1.4/2.2, YUV, RGB, Dolby Digital Plus, 192 kHz, UHD 60 Hz 4:2:0
Atlona AT-AVA-EX70C-KIT. Type: Network transmitter & receiver, Cable types supported: Cat5e, Cat6, Cat6a, Cat7, HDMI. Product colour: Black, LED indicators: Link, Power. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 7.71 W. Width: 106.8 mm, Depth: 75 mm, Height: 23.7 mm. Cables included: HDMI, IR, RS-232

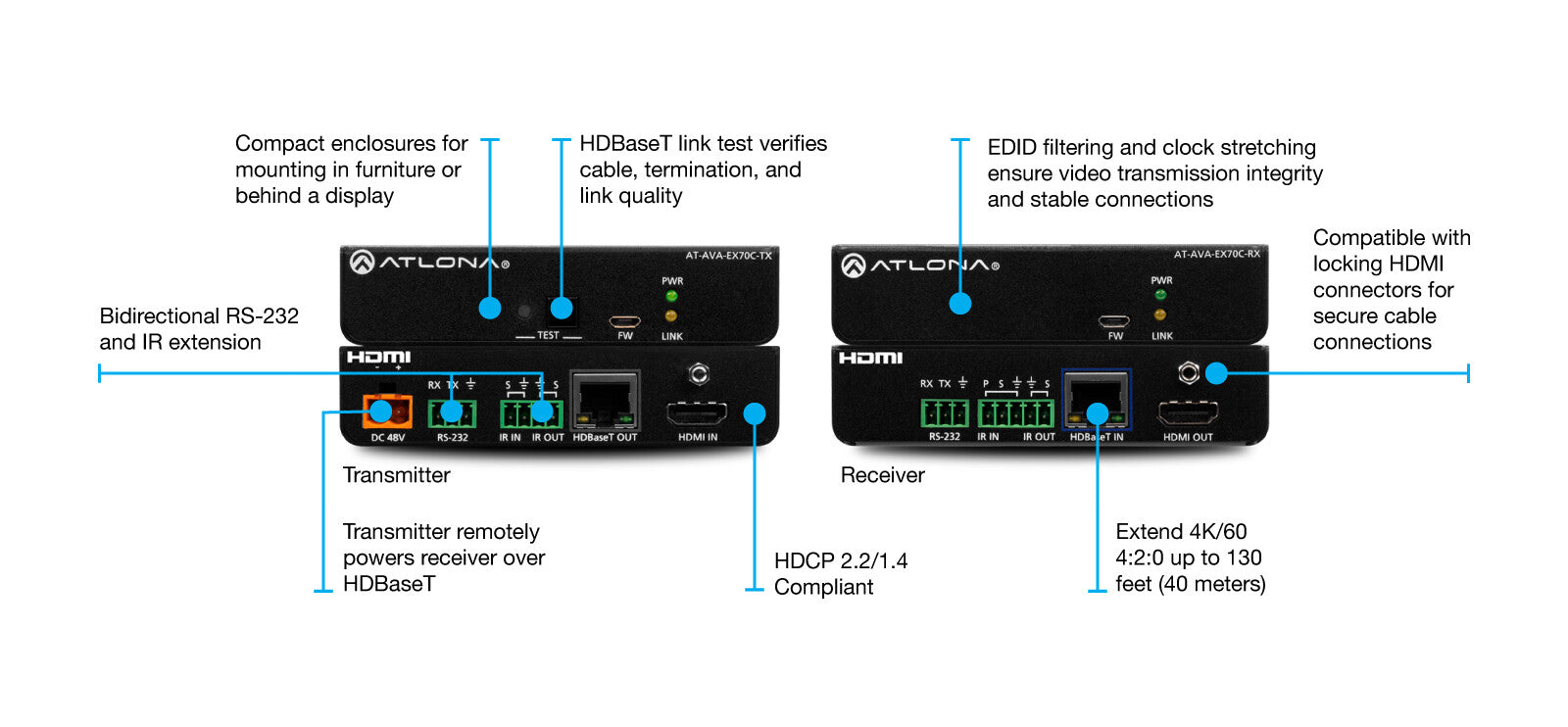

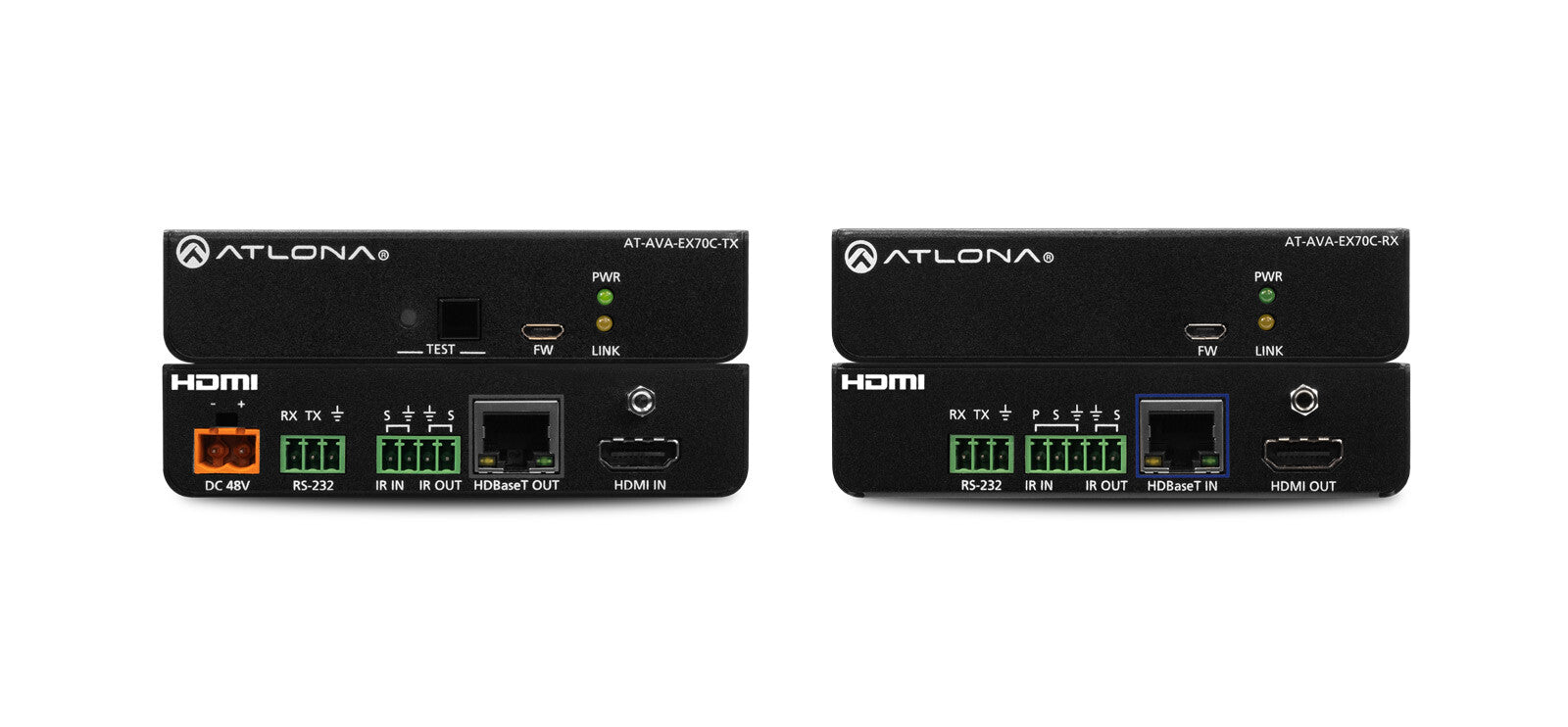

The Atlona AT-AVA-EX70C-KIT is an Avance Series HDBaseT extender kit that supports control pass-through and remote power capability. The kit transmits 4K/UHD 60 Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60 Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote power from the transmitter to the receiver are supported on the single Category 6/6A cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. The AT-AVA-EX70C-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-KIT delivers a cost-effective solution for extension of video, audio, control, and receiver power at resolutions up to 4K/UHD.
Extend AV signals further than HDMI cables
Extends 4K/UHD 60 Hz 4:2:0 up to 40 meters (130 feet) with Category 6/6A.
Faster and more reliable installs
EDID filtering, clock stretching, and HDBaseT link test ensure video transmission integrity and stable connections, as well as verification of cable termination, and link quality.
Remote power
Transmitter supplies power to the receiver over HDBaseT.
10 years
