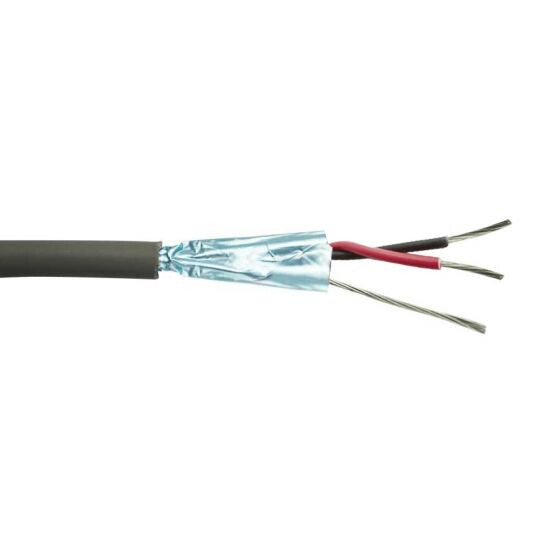

SCP 22/2ESH-LSZH

SCP 22/2ESH-LSZH

305 m, 22 AWG, LSZH, Nylon, grey

  • Permanent or Semi-Permanent Installations
  • Connecting Line Level Analog Audio
  • Microphone and Intercom Distribution
  • Power-Limited Control Circuits
  • Security Systems Recording Studios
  • Rack Cabling
  • SKU:817777013115
  • GTIN/EAN:817777013115
  • MPN:22/2ESH-LSZH

You need to login to view the price.

View full details

SCP 22/2ESH-LSZH. Cable material: Copper, AWG wire size: 22, Cable length: 305 m, Product colour: Black

BALANCED LINE LEVEL AUDIO - LOW SMOKE ZERO HALOGEN- 2C/22 AWG TC TWISTED PAIR, EACH PAIR AL FOIL SHIELD W/DRAIN, EN50575 Dca-s1,d2a1 HD LSZH JKT- GRAY BULK CABLE - 1000FT/305M BOX

SCPs Line Level Analog Audio cables are "balanced" high-performing audio and control distribution cables for a wide range of AV applications. These cables provide a superior signal-to-noise ratio and will maintain high signal levels over distance.

SCP Line Level Analog Audio cables are to be used only in permanent or semi-permanent installations. These Line Level Analog cables are available in one or two individually foil-shielded, twisted pairs with color-coded conductors (red/black + green/white); and a flexible LSZH or PVC jacket that is easy to handle, strip, and terminate.

SCP 22/2ESH-LSZH Line Level Analog Audio cables are designed to carry the left and right analog line-level audio signals. These cables are not built to carry a lot of current, because line-level audio is all about fidelity before the audio is amplified to the speaker level. This is why SCPs Line Level Analog Audio cables don't look like speaker cables... because they are really signal cables.

Operational conditions
Operating temperature (T-T)
-20 - 75 °C
Features
AWG wire size
22
Jacket material
Low smoke zero halogen (LSZH)
Cable material
Copper
Product colour
Black
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2
No
Connector 1
No
Cable length
305 m
Packaging data
Package type
Box
Quantity per pack
1 pc(s)
Cable diameter
4.3 mm
