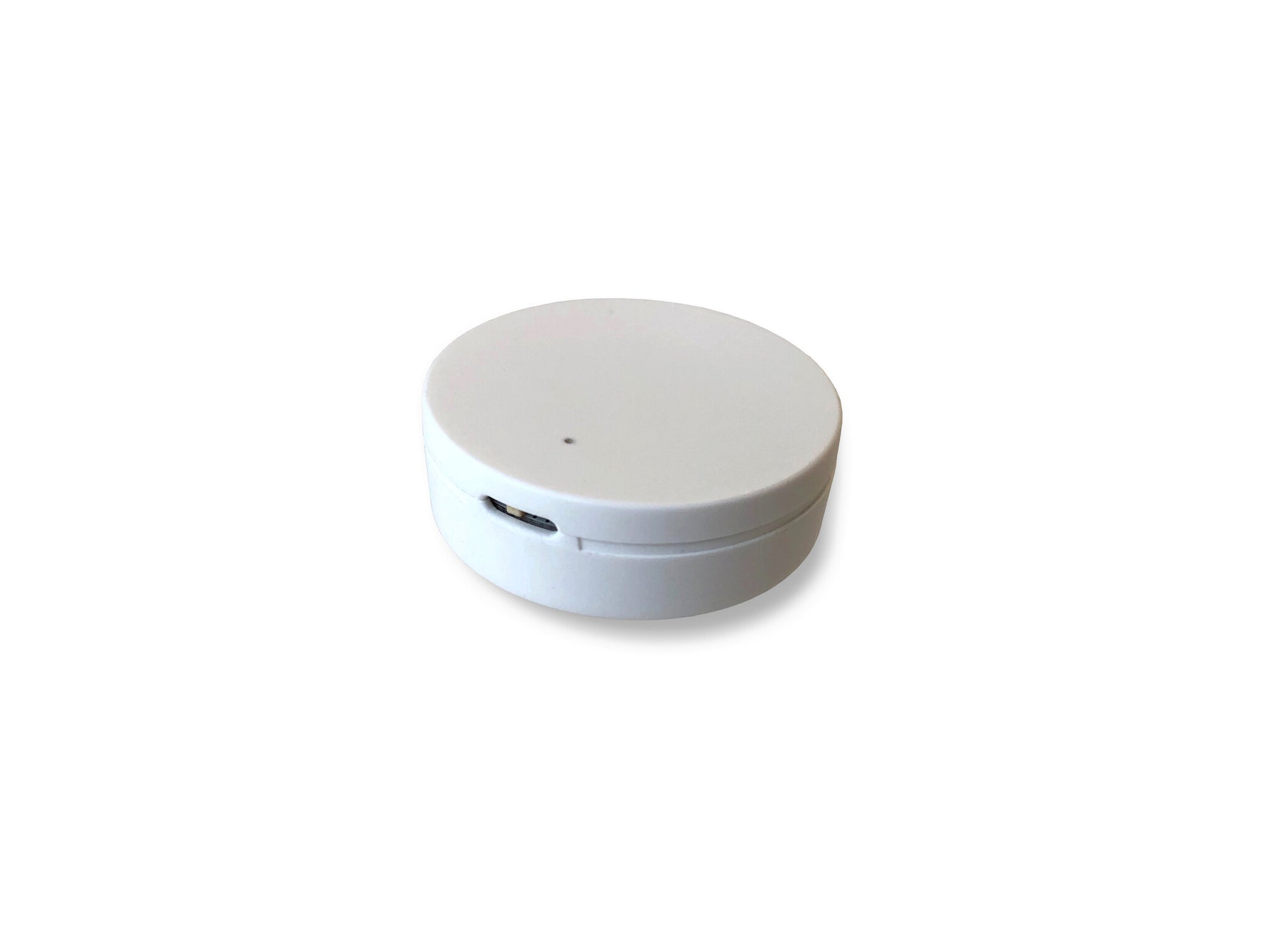

Nexmosphere Battery-powered wireless pick-up sensor, white

Nexmosphere Battery-powered wireless pick-up sensor, white

Wireless, 8-10 m range, 3 V, Superfast 2-step pairing procedure

  • Wireless X-talk, range 8-10 meters
  • Pick-up detection (accelerometer technology)
  • Ultra-low power consumption for long battery life
  • SKU:44578
  • GTIN/EAN:8720064445785
  • MPN:XF-P3W

You need to login to view the price.

Add To Favorite
View full details

The P3 sensor is a battery-powered pickup sensor that can be placed in, or adhered to -your merchandise The sensor detects any change of positioning when the shopper interacts with the merchandise on display and translates this into triggers that are sent towards the controller unit that can be invisibly installed at distance from the actual sensor.

Pick-up detection
The sensor registers both pick-ups and place-backs of the merchandise on the shelf. Both events can be used as triggers on the Xperience controller, for example, to start a video or illuminate a string of LEDs.

- Pick-up and place-down registration
- Highly responsive
- False detection filters

Wireless X-talk interface
The XF-P3 sensor can be connected to one of the EM-F base stations with 1, 4 or 8 wireless sensor X-talk channels. All settings of the P3 sensor are programmable on the controller using the X-talk API commands, enabling a seamless integration in your application.

- Superfast 2-step pairing procedure
- Same API structure as regular X-talk

Battery-powered
The XF-P3 is battery-powered and therefore cable-free, providing freedom of placement in or attached to merchandise. Due to innovative power management technology, the sensor has an ultra-low power consumption in idle state. As a result, the sensor can operate for 2+ years on one single battery.

- Freedom in sensor placement
- Long battery life

Features
Easy pairing
Yes
On/off button
Yes
Wireless range
10 m
Product colour
White
Connection type
Wireless
Power
Transmit frequency
2.4 GHz
Operating voltage
3 V
Power source type
Battery
Weight & dimensions
Weight
11 g
Height
10 mm
Diameter
3.2 cm
Operational conditions
Storage temperature (T-T)
-20 - 50 °C
Operating temperature (T-T)
10 - 40 °C
Sustainability
Sustainability certificates
CE, RoHS
Logistics data
Customs product code (TARIC)
8543709099
Technical details
Compliance certificates
CE, RoHS
Other features
Country of origin
Netherlands
