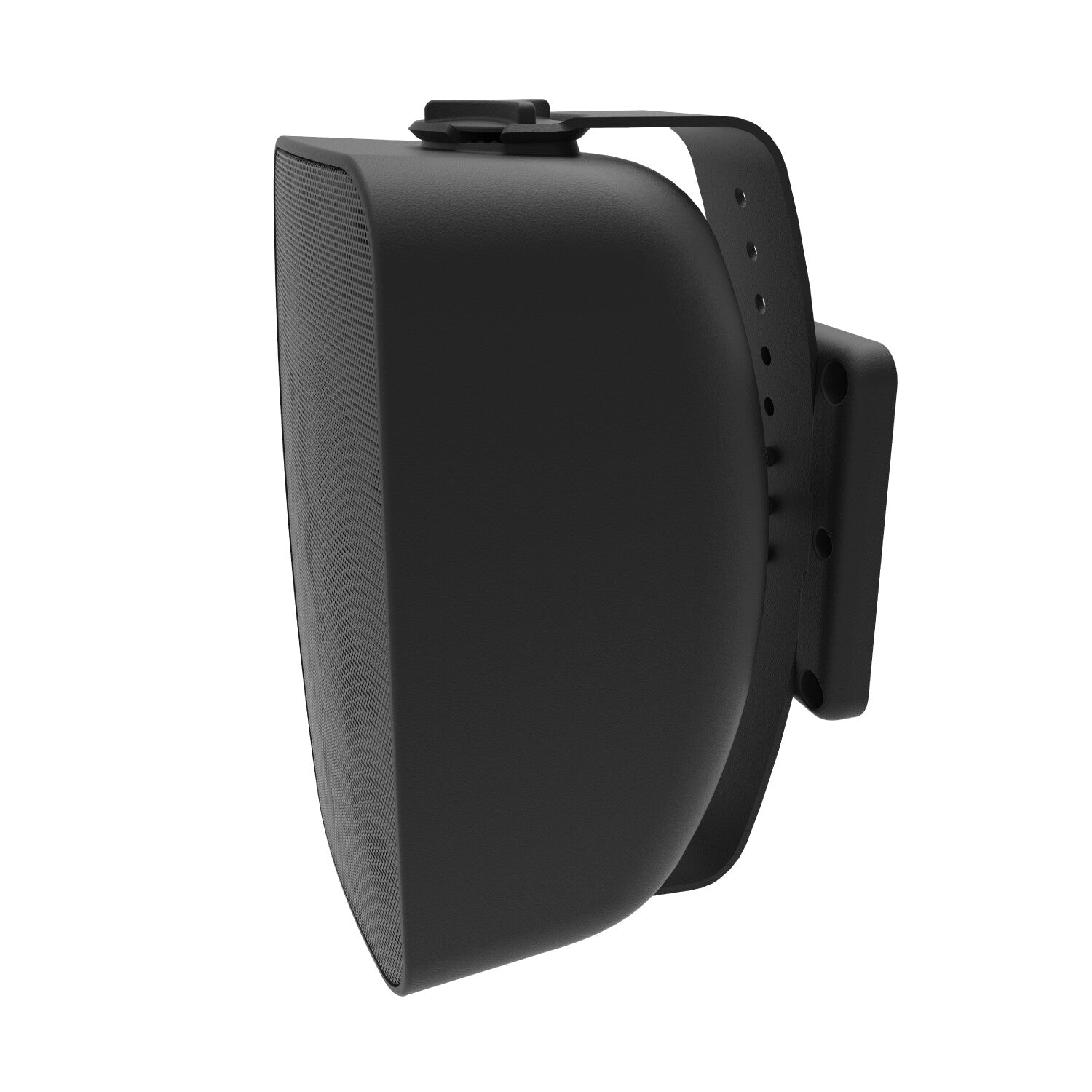

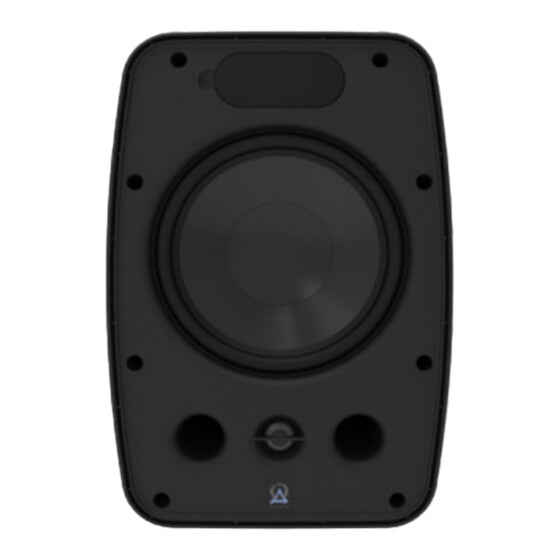

Origin Acoustics PS50B

The Origin Acoustics PS50B is a professional 2-way surface mount loudspeaker engineered for commercial sound reinforcement environments such as restaurants, retail spaces, corporate lobbies, hospitality venues, and transportation hubs. Purpose-built for integrators, it combines audiophile-grade drivers with a contractor-friendly feature set: a pivoting Weather Resistant POM mount lets the installer aim the speaker precisely toward the listening area on both X and Y axes, while a front-accessible rotary tap switch covers 70V, 100V, and 8-ohm operation from a single unit. IPX4 splash resistance and UL 1480A certification make it suitable for damp and demanding locations, and the compact low-profile black enclosure blends discreetly into virtually any setting.

Front-Accessible 70V-100V-8Ω Tap Switch

A rotary impedance selector on the front face of the speaker lets the installer choose between 70V (30W, 15W, 7.5W, 3.75W), 100V (30W, 15W, 7.5W) and 8-ohm operation without rewiring. This single-unit flexibility is decisive for jobs where voltage standards differ — for example, a US 70V backbone feeding a European 100V zone, or a small room tapped direct at 8 ohm off a local amplifier. The front-mounted position means adjustments can be made after cabinet installation, reducing re-work and making commissioning faster. Note: the 8Ω bypass setting must never be selected when the amplifier output is live on 70V or 100V — the transformer will be damaged. The selector is clearly marked, which reduces the risk of wiring errors during installation.

X and Y-Axis Pivoting POM Mount

The Weather Resistant POM (polyoxymethylene) bracket gives the PS50B full two-axis pivot, letting the installer swing the cabinet horizontally and tilt it vertically after it is fixed to the wall. In practice this means the optimal aim point — toward seated listeners in a restaurant, for instance, or toward the queue line in a retail checkout — can be fine-tuned on site without moving the mounting point. POM is a dense engineering-grade plastic that resists moisture, UV and temperature variation, so the bracket performs reliably in outdoor terraces, pool areas, and other damp-exposure locations where a powder-coated steel bracket would eventually corrode. The 100° × 50° nominal coverage pattern (wide horizontal, narrower vertical) pairs well with this adjustability: aim horizontally first to sweep the seating zone, then tilt vertically to keep level off the floor.

One speaker. 70V, 100V, 8 ohm. Any commercial space.

UL 1480A certified · IPX4 rated · CE marked

IPX4 Rating for Damp and Semi-Outdoor Use

IPX4 under IEC 60529 certifies the PS50B's enclosure against water splashing from any direction — which covers covered terraces, sports facility changing rooms, commercial kitchens, pool surrounds, and similar semi-exposed locations where the speaker is not directly rained on. Combined with the UL 1480A listing (Standard for Speakers for Commercial and Professional Use), the PS50B is formally approved for dry, damp, and wet indoor locations as classified under the National Electrical Code NFPA 70. This dual certification gives specifiers documentary evidence for compliance inspections and AHJ (Authority Having Jurisdiction) approval — a meaningful advantage over non-listed competitors on commercial projects where documentation is mandatory.

UL 1480A, CE and WEEE Compliance

The PS50B carries UL 1480A (ETL listed via Intertek), CE marking, and WEEE compliance — the combination needed for sales and installation across North America and the EU without additional re-testing. UL 1480A is specifically the standard for commercial and professional speakers (not the household UL 1492 or fire-alarm UL 1480), confirming the unit is evaluated for non-emergency sound reinforcement, crowd-control systems, and institutional use. For integrators working on multi-site or multinational rollouts, having a single SKU that is compliant in both territories simplifies procurement, warehousing, and documentation.

Wide 100° Horizontal Dispersion Pattern

The PS50B's nominal coverage angle of 100° horizontal and 50° vertical is broader than many competing 5-inch surface mount speakers, which typically measure around 80°–90° horizontally. This wider horizontal spread means fewer speakers are needed to achieve consistent direct-field coverage in corridors, open dining areas, or retail floors — directly reducing hardware cost and installation time. The narrower 50° vertical pattern helps keep energy focused on the listening plane and away from the ceiling, reducing unwanted reflections that degrade speech intelligibility in reverberant rooms. For integrators designing to a target STI or SPL map, the combination of wide horizontal dispersion, 89 dB sensitivity and 105 dB maximum SPL gives useful headroom without overdriving the speaker in typical commercial backgrounds.
