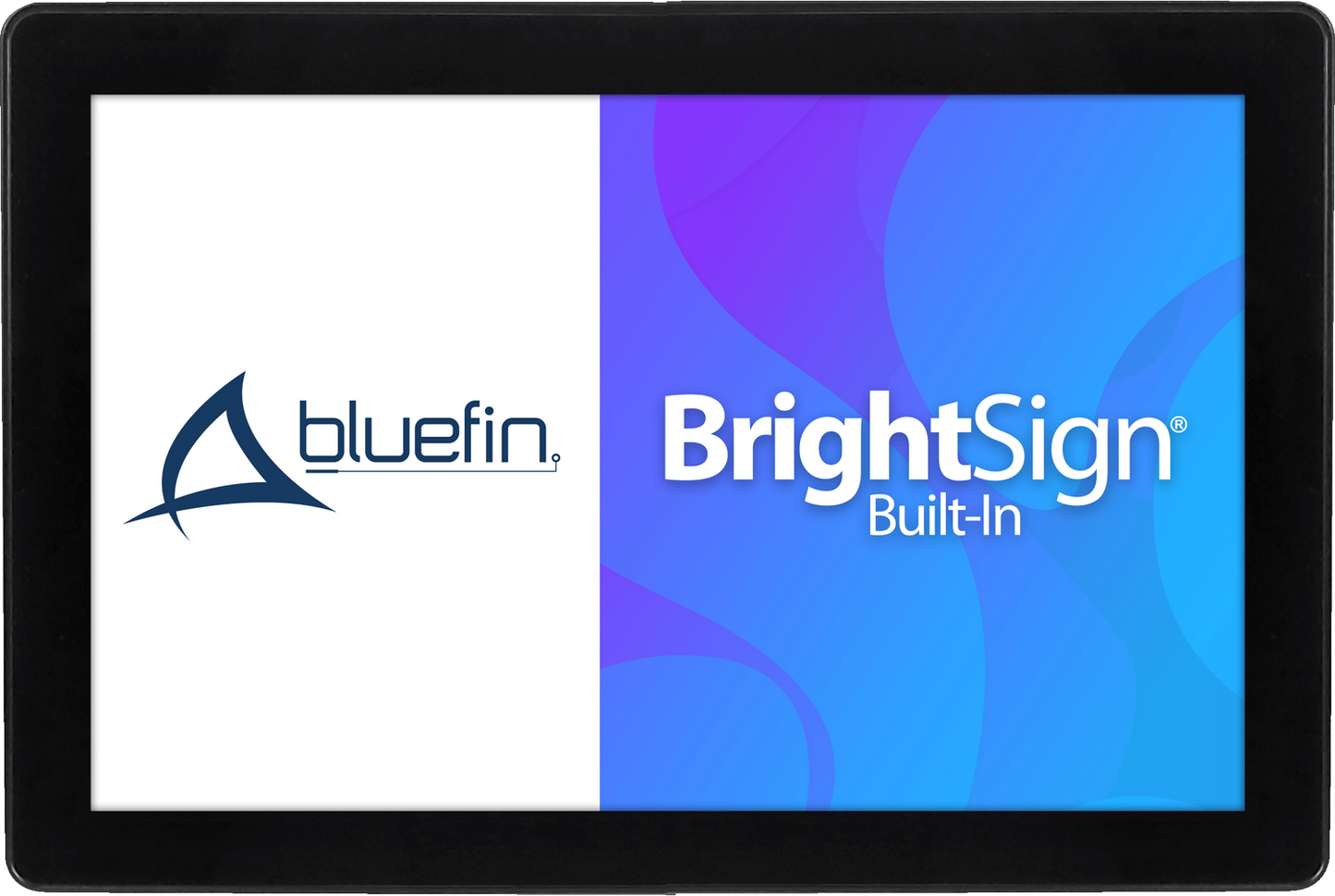

Bluefin 10.1" BrightSign Touch PoE

The robust BrightSign digital signage ecosystem integrated with industrial quality LCD screens.
Create complex and engaging presentations with layers of video, images, audio, HTML widgets and more.
Update new playlists and deploy them to a fleet of players from one location.
Connect with external devices through GPIO and Serial to take experiences beyond the screen to control house lighting, RFID accessories and more.

Display

• 10.1'' LCD Screen

• Resolution: 1280x800

• Max Brightness: 400 nits

• Viewing Angle: 89/89/89/89

• Contrast: 800CR

• Optional: Capacitive Touch

System

Click Here for BrightSign SoC Specs

• BrightSign HS124 SoC

  • Single 1920x1080 video decoding

  • 720p portrait video decoding

  • ‘Entry-Level’ HTML5 rendering

• BrightSign HS144 SoC optionally available.

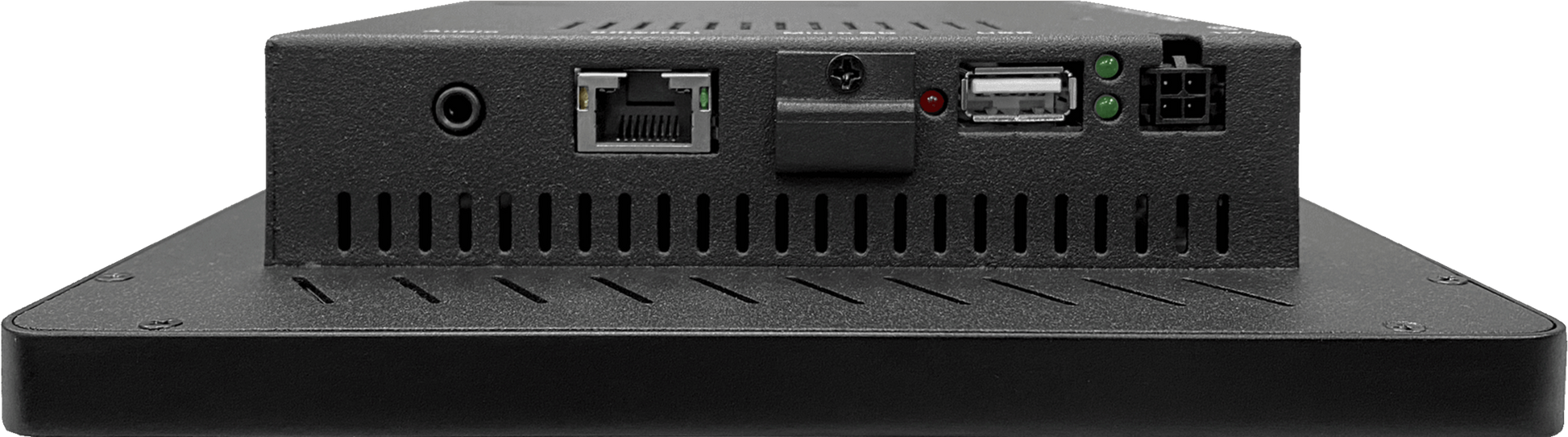

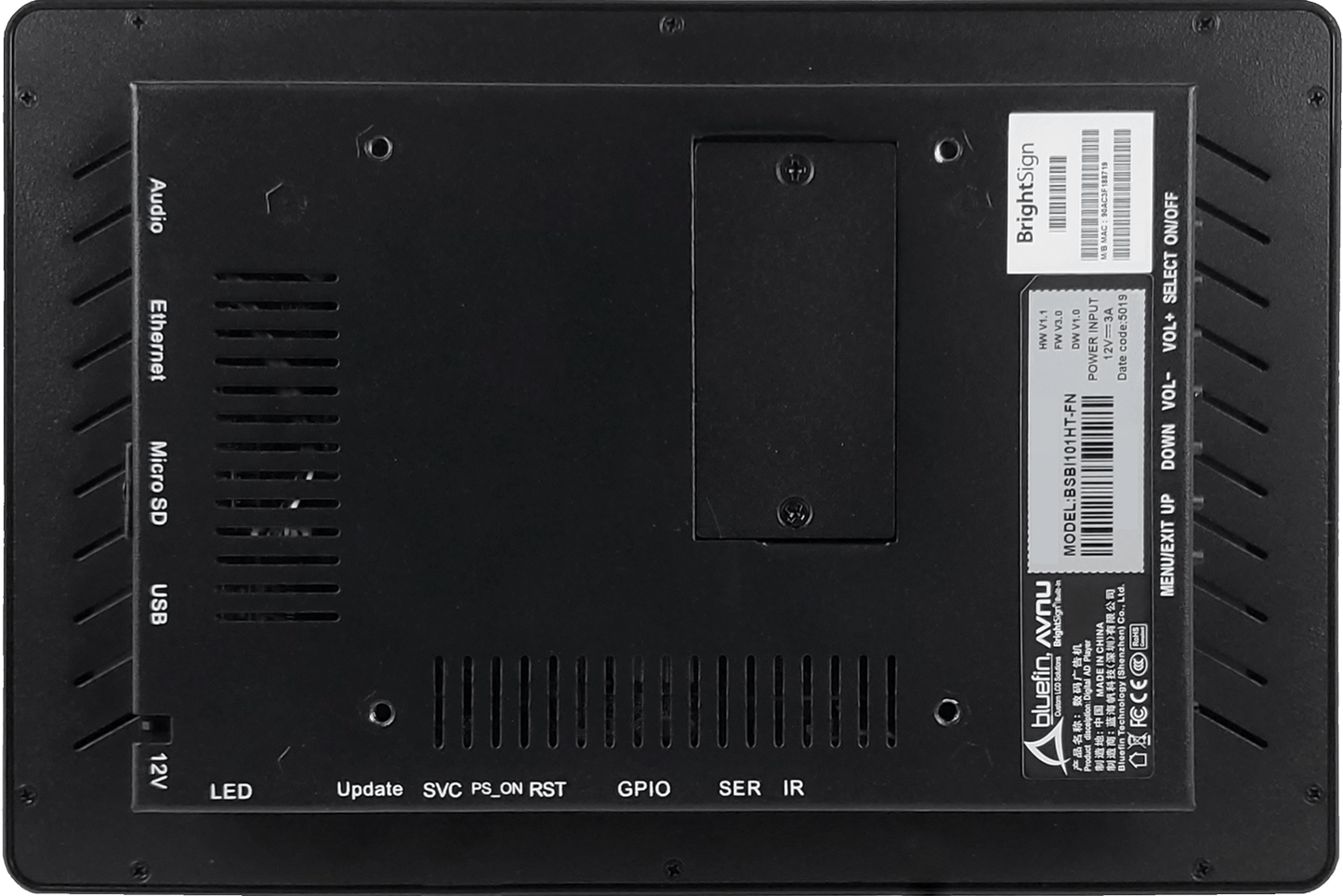

Input / Output:

• 1x Micro-SD

• 1x USB 2.0

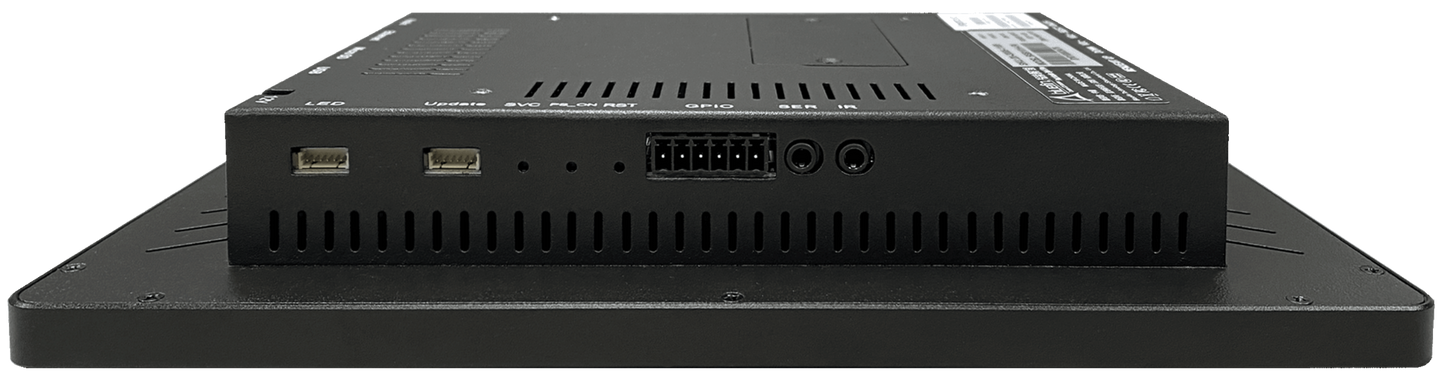

• Phoenix GPIO (4-pin Bi-Directional)**

• 3.5mm RS232 Serial**

• RJ45 Ethernet

• 2x Stereo 3W Speakers (Finished Units Only)**

• 3.5mm Analog/Digital Audio Out

• Optional Wi-Fi

**Not Available on Countertop Screens.

Power

• Adapter Style: Micro Molex

• Adapter Output: 12V 2A

• Adapter SKU: 20-0150-0603

• Optional Power over Ethernet
  PoE 802.3at (30W)

Housing / Mounting

• Finished

  • Size: 9.8'' x 6.7'' x 1.6''

  • Weight: 2.76 lbs (1.25kg)

  • Mounting: VESA 100x100mm M4x4mm

• Frameless Non-Touch

  • Size: 10.0'' x 6.0'' x 1.3''

  • Weight: 2.9 lbs (1.3kg)

  • Mounting: VESA 100x100mm M4x6mm

• Frameless Touch

  • Size: 10.6'' x 6.6'' x 1.4''

  • Weight: 2.9 lbs (1.3kg)

  • Mounting: VESA 100x100mm M4x6mm

• Countertop

  • Portrait Size:
    7.9’' x 10.6'' x 7.9''

  • Landscape Size:
    10.4’’ x 7.4’’ x 7.0’’

  • Weight: 2.76 lbs (1.25kg)
