High-performance dual-output 8K digital signage player
XC2055

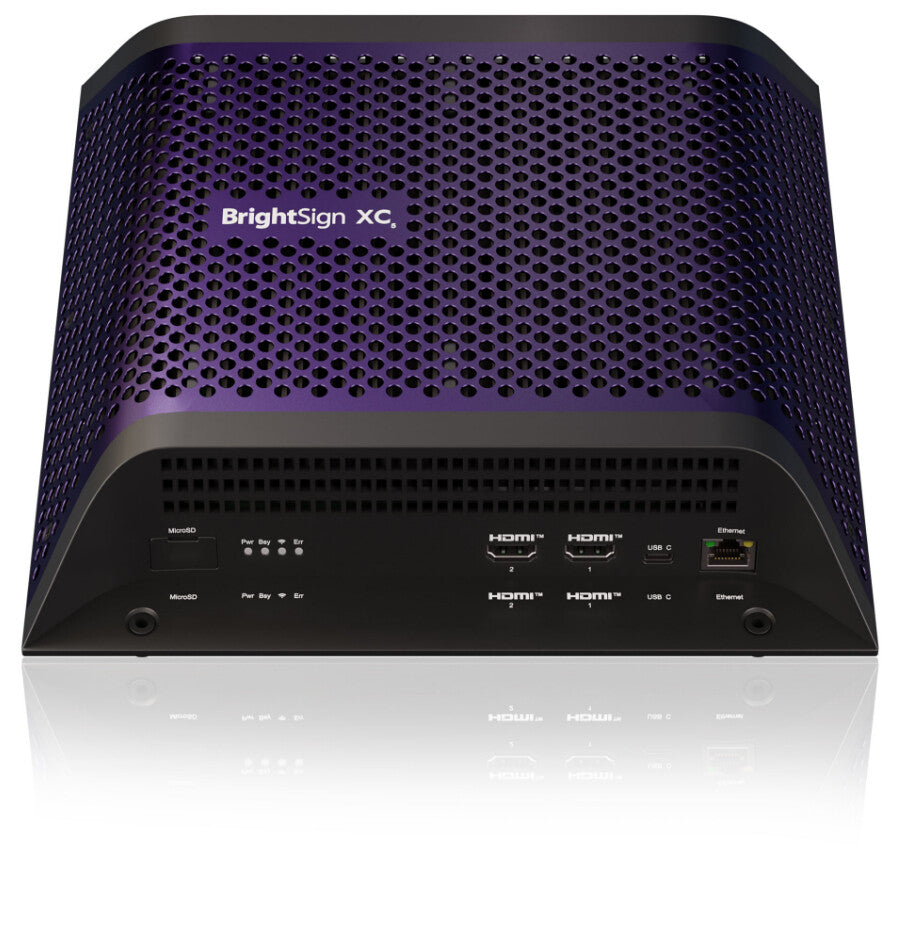

The BrightSign XC2055 is BrightSign's flagship dual-output media player in the Series 5 XC5 family, designed for demanding digital signage, video wall, DVLED, and kiosk deployments. Powered by an Intel Gen 11 Celeron processor with 8GB RAM, it delivers single 8K60p or dual 4K60p video decoding along with full PC-class HTML5, CSS, JavaScript, and 3D WebGL rendering. Running BrightSignOS — purpose-built exclusively for digital signage — or optionally Windows 11/10 IoT, the XC2055 brings extraordinary flexibility to integrators who need both reliability and performance. With an Expanded Multiplex IO package, Gigabit Ethernet, optional WiFi, MicroSD storage, and a 5-year included warranty, it is engineered for long-term, always-on operation in the most demanding commercial environments.
8K and Dual 4K60p Video Decoding
The XC2055 handles single 8K60p video at 8-bit or simultaneous dual 4K60p streams at 10-bit, with full HDR10, HLG and Rec.2020/BT.2020 support. This means a single rack-mounted player can feed two independent 4K screens — or a single massive 8K DVLED — without any external splitter or additional hardware. Supported codecs span H.265/HEVC, H.264/AVC, AV1, VP9, MPEG-2, MPEG-4 Part 2 and MJPEG, covering every format in active commercial use. For operators running large-format video walls, luxury retail, broadcast lobbies, or control rooms, this eliminates the cost and complexity of deploying two separate players per screen pair while still delivering reference-quality HDR visuals.
PC-Class HTML5 and 3D WebGL Performance
Driven by an Intel Gen 11 Celeron with 8GB RAM and full OpenGL support, the XC2055 renders complex HTML5, CSS animations, SVG, JavaScript and 3D WebGL content at up to 8K resolution across both outputs simultaneously. This is a decisive differentiator for deployments that rely on browser-based content — live data dashboards, interactive wayfinding, animated menus, or WebGL-rendered 3D graphics — where a conventional signage player typically stutters or degrades quality. Content loads faster, animations run at full frame rate, and multi-touch interactive sessions remain responsive. Customers running web-based CMS templates or bespoke HTML5 applications can move directly from browser development to on-screen deployment without compromise.
Two screens. One player. 8K-class performance.
5-year warranty included · Fanless commercial-grade design · BrightSignOS or Windows IoT
BrightSignOS: Purpose-Built Reliability
BrightSignOS is not a trimmed-down Android or a general Windows install — it is an operating system engineered exclusively for digital signage and always-on operation. It includes automatic fault detection and self-healing protocols that recover the player without any human intervention, remote diagnostics and controls that eliminate most on-site service visits, and a secure boot chain that runs only BrightSign-approved code. OS patches and security updates are committed for 5+ years, meaning the hardware does not become a liability before its physical life is over. For integrators managing large fleets, the free built-in bsn.Control dashboard provides remote monitoring across all players — no additional subscription required. The result is dramatically lower operational costs and fewer emergency callouts over the life of the installation.
OS Flexibility: BrightSignOS or Windows IoT
The XC2055 uniquely supports a choice between BrightSignOS, Windows 11 IoT, and Windows 10 IoT — a decision that can be made per deployment rather than per hardware SKU. This matters when a customer's software stack, kiosk application, or corporate IT policy mandates a Windows environment while the integrator still wants the hardware reliability of a solid-state BrightSign platform. Note that when running Windows, certain ports are disabled (GPIO, USB-C, IR, Serial, Audio, and three of the four status LEDs), so the OS selection should be confirmed before installation to avoid surprises at commissioning.
Expanded Multiplex IO for System Integration
The XC2055 ships with BrightSign's Expanded Multiplex IO package: Gigabit Ethernet (802.3 with 802.1x), USB-A 3.0, USB-C/DisplayPort 3.0, 12-pin GPIO, 3.5mm Serial, 3.5mm IR in-out, 3.5mm analog and SPDIF audio output, MicroSD slot, and a locking 19V/4.7A power connector that prevents accidental disconnection in installed environments. Two external WiFi antenna connectors allow a BrightSign wireless module to be added without disassembling the unit. Internally, an M.2 PCIe slot supports an optional 256GB NVMe SSD for high-volume local content libraries, and an M.2 E-Key slot accommodates the WiFi/Bluetooth module. This port density makes the XC2055 suitable for interactive kiosks, sensor-triggered signage, serial-controlled display networks and any installation requiring reliable GPIO-based automation.
Hardware 4K Video Rotation for Video Walls
The XC2055 performs hardware-accelerated 4K video rotation, which is significant for portrait-mode installs and video wall configurations where content must be rotated at the player level rather than in software. Software rotation on less capable players typically causes dropped frames or forces content to be pre-rendered in the target orientation — both workflows add operational burden. Hardware rotation on the XC2055 happens transparently, so a single content master can be distributed to landscape and portrait screens in the same network without separate authoring. Combined with BrightSign's BrightWall feature for synchronised multi-display output, this makes the XC2055 a natural fit for multi-screen retail installations, transit hubs, and large-format video wall grids.
Fanless Design and 5-Year Warranty
The XC2055 uses a fanless, solid-state commercial-grade chassis — no moving parts means no dust accumulation on fan blades, no fan noise, and no mechanical failure mode. This is the baseline expectation for always-on signage in noise-sensitive environments such as retail stores, museums, corporate lobbies, and hospitality venues. BrightSign backs the hardware with a 5-year warranty covering parts and labor (for units purchased from BrightSign after January 1, 2025), which is the longest standard warranty in the commercial signage player category. Operating temperature is rated 0°C to 40°C with transients up to 50°C, and the player weighs just 1.41 kg — making it straightforward to mount behind screens or inside enclosures.
Free Remote Management and 200+ CMS Partners
Every XC2055 running BrightSignOS comes with free access to bsn.Control for remote player monitoring, health checks and basic content control — no recurring licence needed. For larger deployments requiring fleet operations, bulk scheduling, AI-powered diagnostics and network management, the paid BrightSign Control Plus tier is available. Beyond BrightSign's own tools, the platform integrates with 200+ third-party CMS solutions via open APIs, meaning the XC2055 drops into virtually any existing signage infrastructure without requiring a rip-and-replace of the management layer. This flexibility is a practical argument for standardising on a single hardware SKU across a customer's entire estate, even when different sites run different CMS platforms.
